SOLIDA Tableting
Machine overview
Simplify compression, maximise results.
SOLIDA extends the benefit of a robust tablet press to a wider range of pharmaceutical tableting applications. Thanks to its innovative technical solutions, it ensures consistent results across a wide range of production scenarios, meeting the most demanding product requirements.
Easy to use and quick to set up, SOLIDA supports pharmaceutical manufacturers by maximising tableting efficiency and keeping pace with the latest advances in automation.
Production plant
IMA Active
Machine highlights
-
Pharma 4.0 ready
SOLIDA is designed for seamless integration into modern, digitalised production environments, with the ability to adapt, learn and support continuous improvement.
-

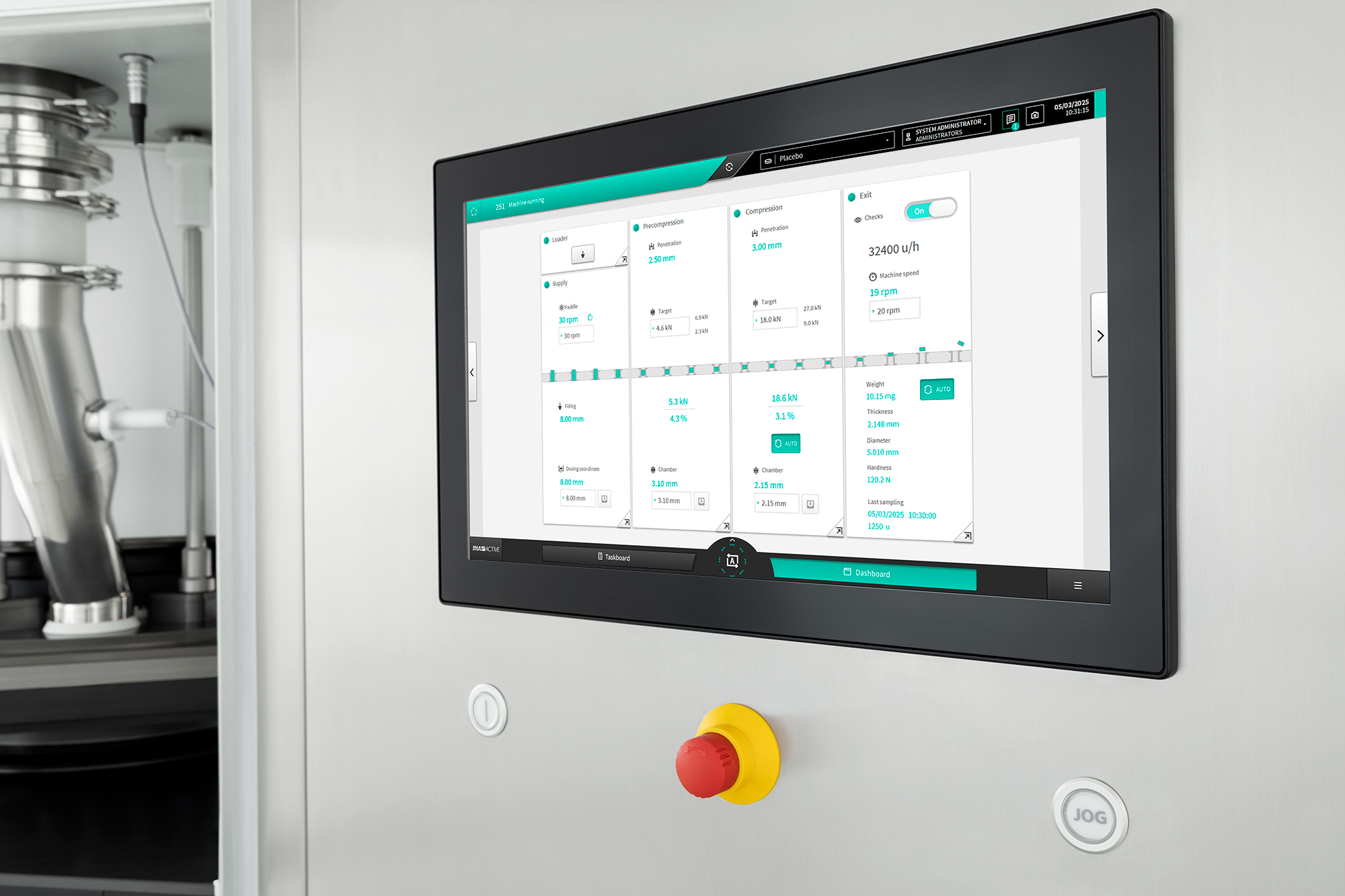

Operator-friendly interface
Guided procedures through an intuitive HMI ensure smooth operation and significantly reduce the risk of human error.
-
High compression capability
With a robust structure, SOLIDA supports both pre-compression and main compression forces up to 100 kN.
-
Future-proof design
SOLIDA is built to evolve, allowing for efficient functional upgrades that adapt to changing production needs.
Future-ready by design
Its flexible design allows for efficient functional upgrades, making it a future-proof investment for evolving tableting production requirements.
Machine details
Technical information
| SOLIDA 300 | SOLIDA 500 | |||||
| Turret Design | Tooling Type | Max Tablet Ø | Compression | Max Speed (Tab/h) | Compression Stations | Max Speed (Tab/h) |
| Die-Table | EU/TSM-D or EU-441 | 25 mm | 27-M | 194,400 | 40-M | 288,000 |
| EU/TSM-B B-dies | 16 mm | 33-M | 237,600 | 49-M | 352,800 | |
| EU/TSM-B BB-dies | 13 mm | 41-M | 295,200 | 60-M | 432,000 | |
| IMA 8 | 11 mm | 55-M | 396,000 | 80-M | 576,000 | |
| Segments | EU/TSM-D | 25 mm | 33-S | 237,600 | 48-S | 345,600 |
| EU-441 | 25 mm | 30-S | 216,000 | 44-S | 316,800 | |
| EU/TSM-B | 19 mm | 42-S | 302,400 | 64-S | 460,800 | |
| IMA 8 | 11 mm | 54-S | 388,800 | 80-S | 576,000 | |
