Engineered simplicity is hard to beat.

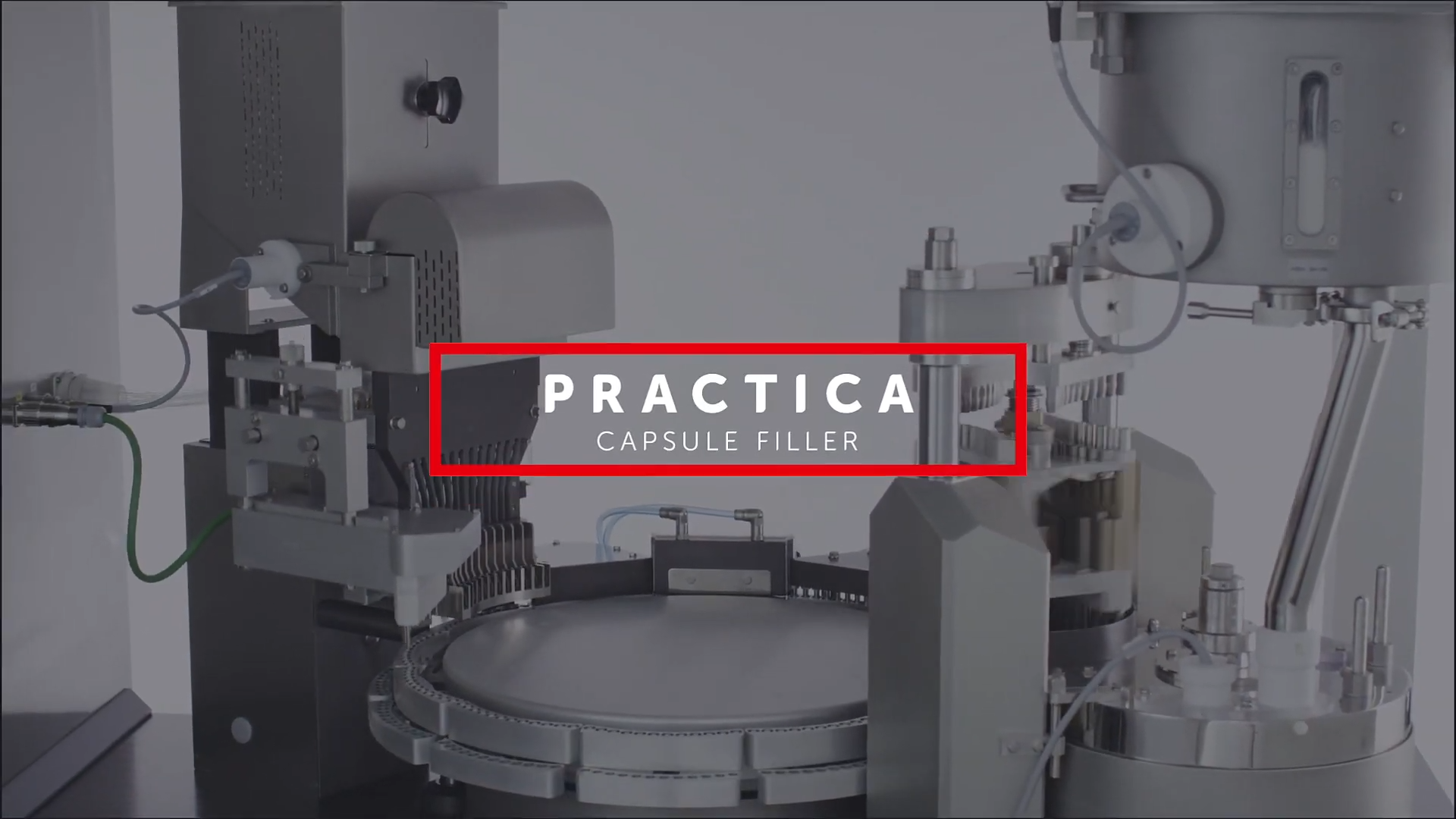

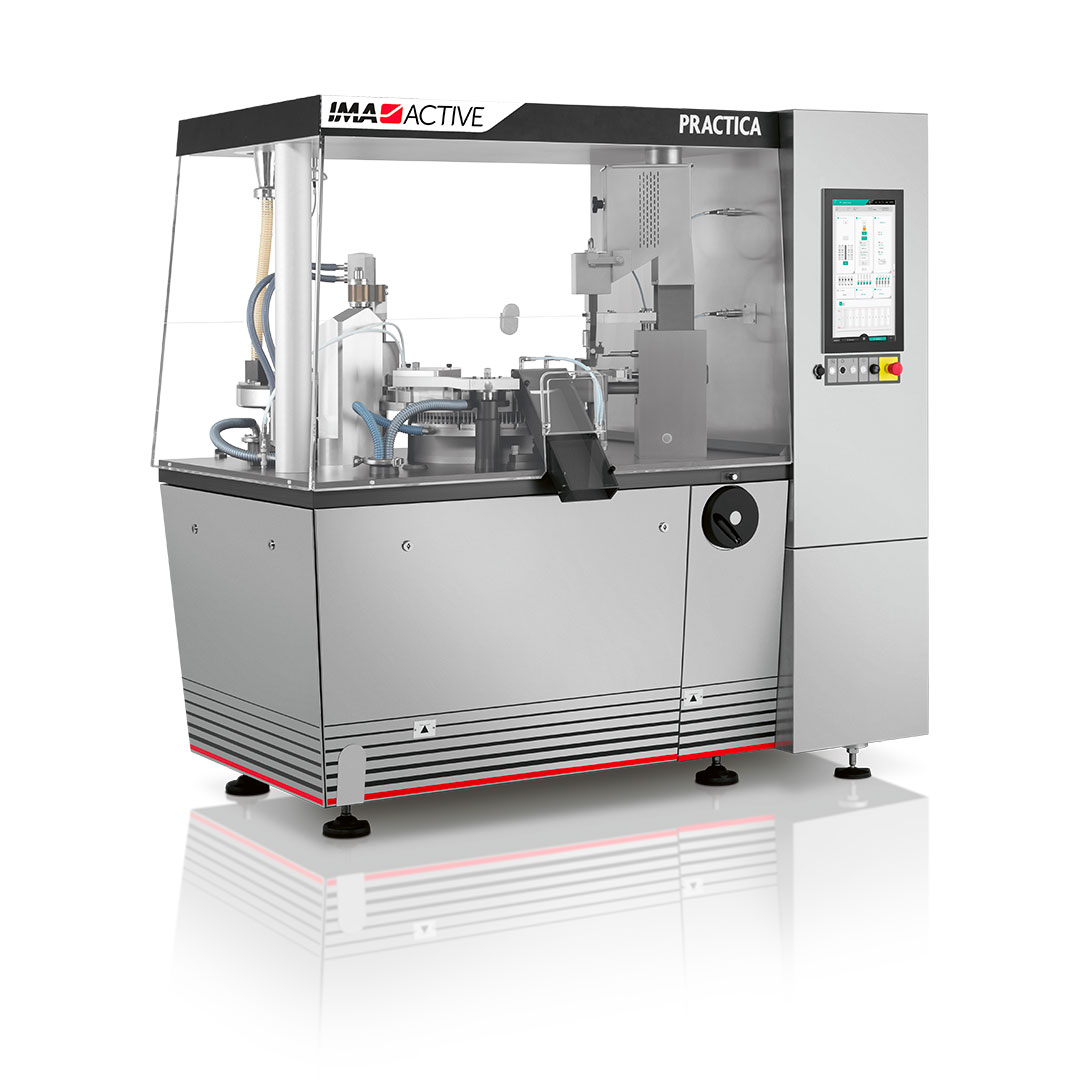

Simple, reliable and effective, Practica is the unbeatable answer to a wide variety of straightforward capsule filling requirements. A competitive solution in terms of speed, precision and ease of use.
A combination of IMA Active’s technological expertise and understanding of industry requirements, Practica guarantees high reliability in processing granules, powder or pellets.
Production plant
IMA Active

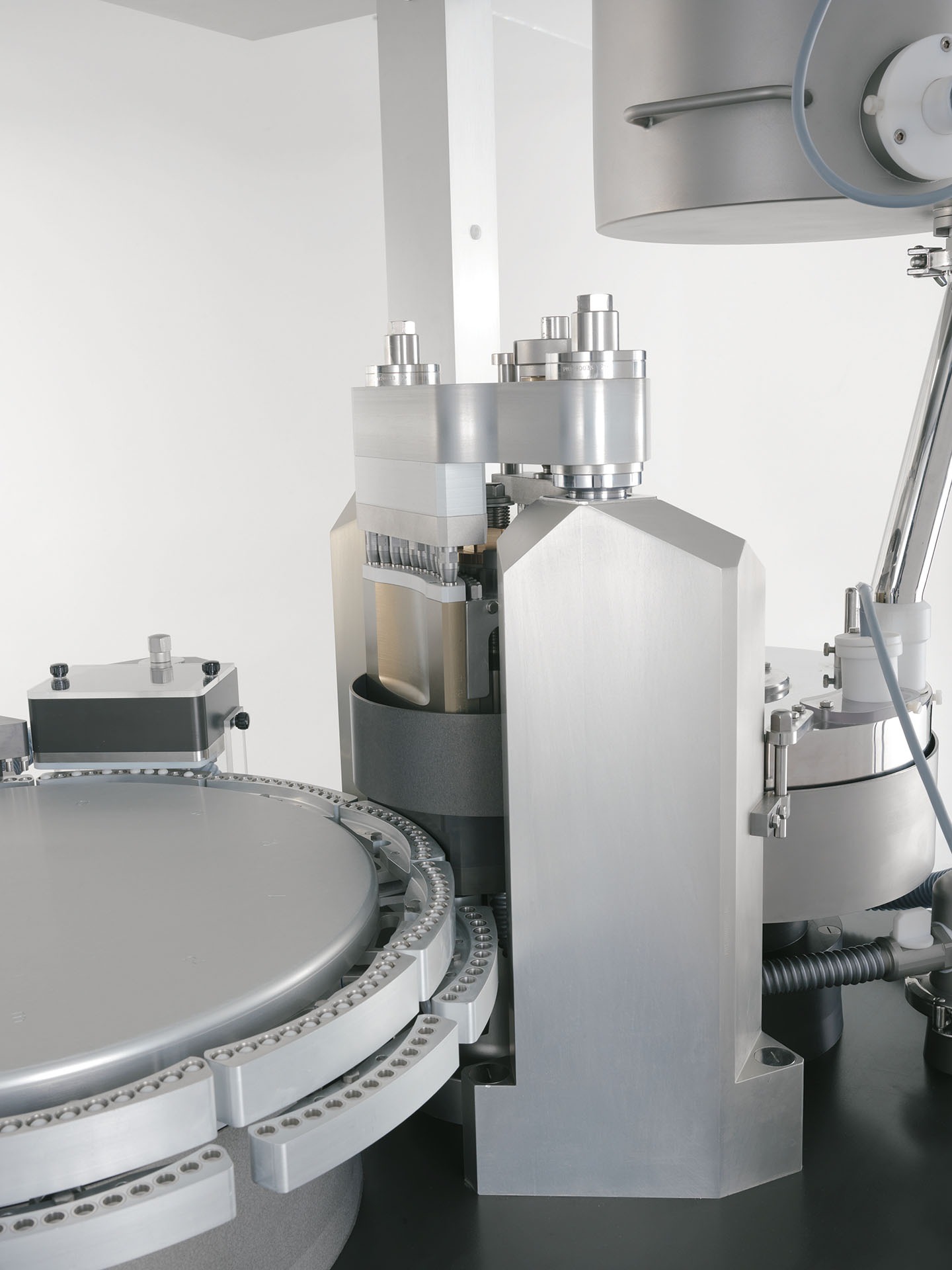

Single product dosing system designed to handle powders, granules, or pellets with very high accuracy.
Capsule filler designed for intuitive use, enabling efficient operation with minimal training.
MAX new corporate HMI enhances operator efficiency, ensuring prompt responsiveness, improved predictability, and easy learning.
Statistic weight-checking unit for production monitoring and automatic machine self-adjustment available upon request.

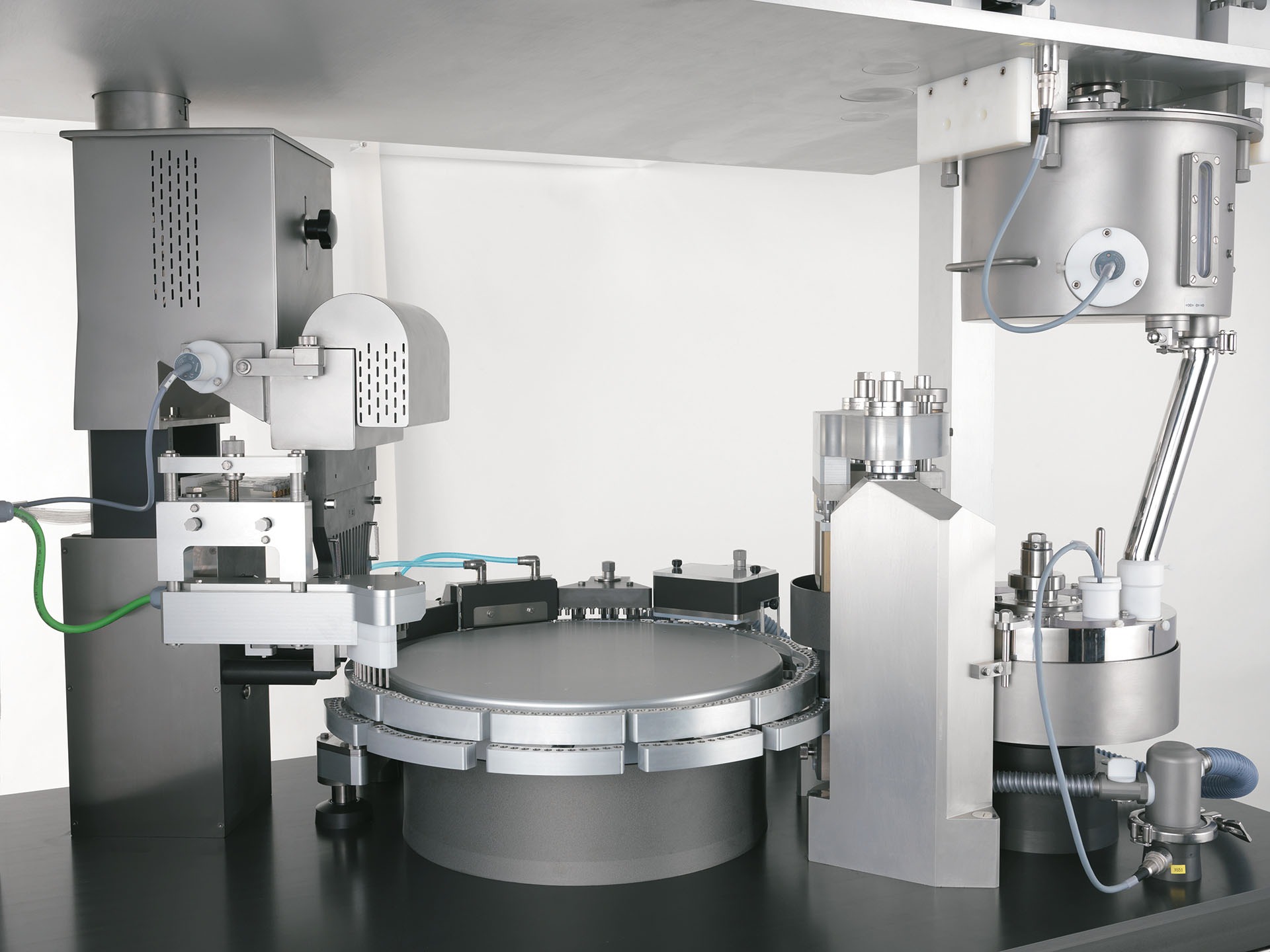

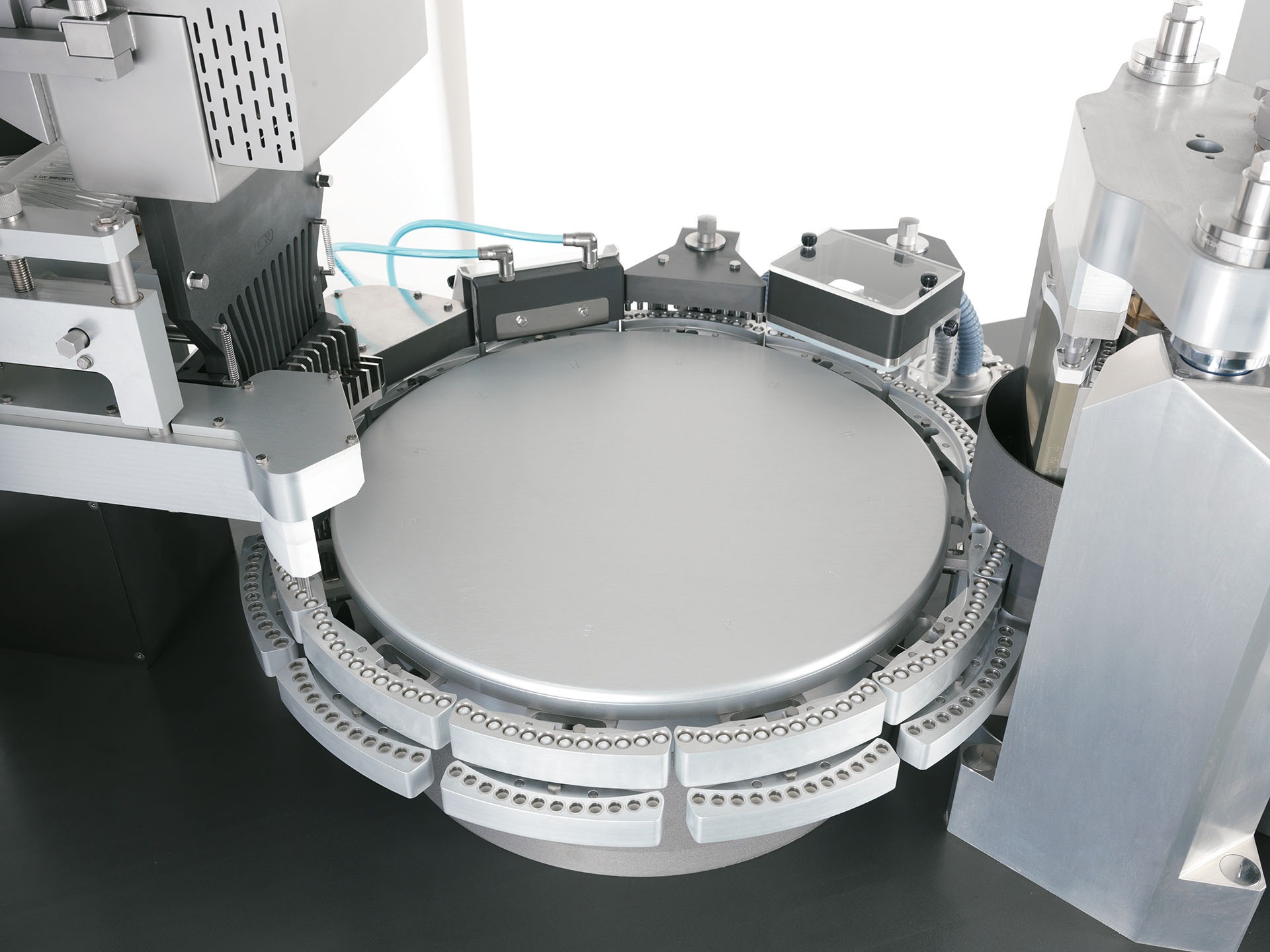

Remarkable for its practicality, Practica boasts a smart design enabling great accessibility, fostering straightforward operations, easy inspection and cleaning.

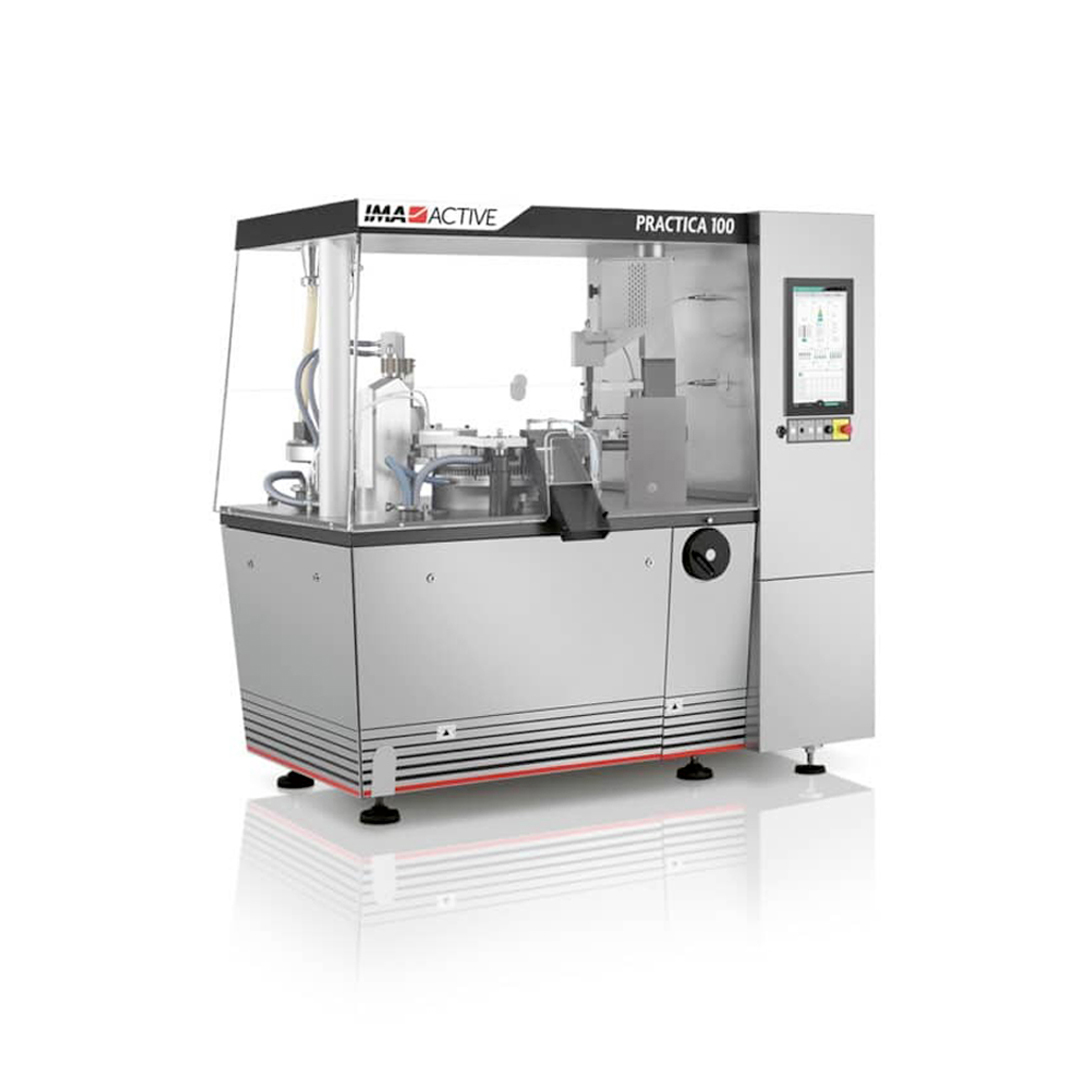

Practica 100 capsule filler can reach a speed of 100,00 capsules/hour and performs single product dosing(powder/granulate or pellets) with top-level accuracy. The machine is prearranged to be equipped with a statistical weight-checking unit for production monitoring. Combined with machine self-adjustment, this makes it possible to automatically keep production parameters within the range set by the operator.

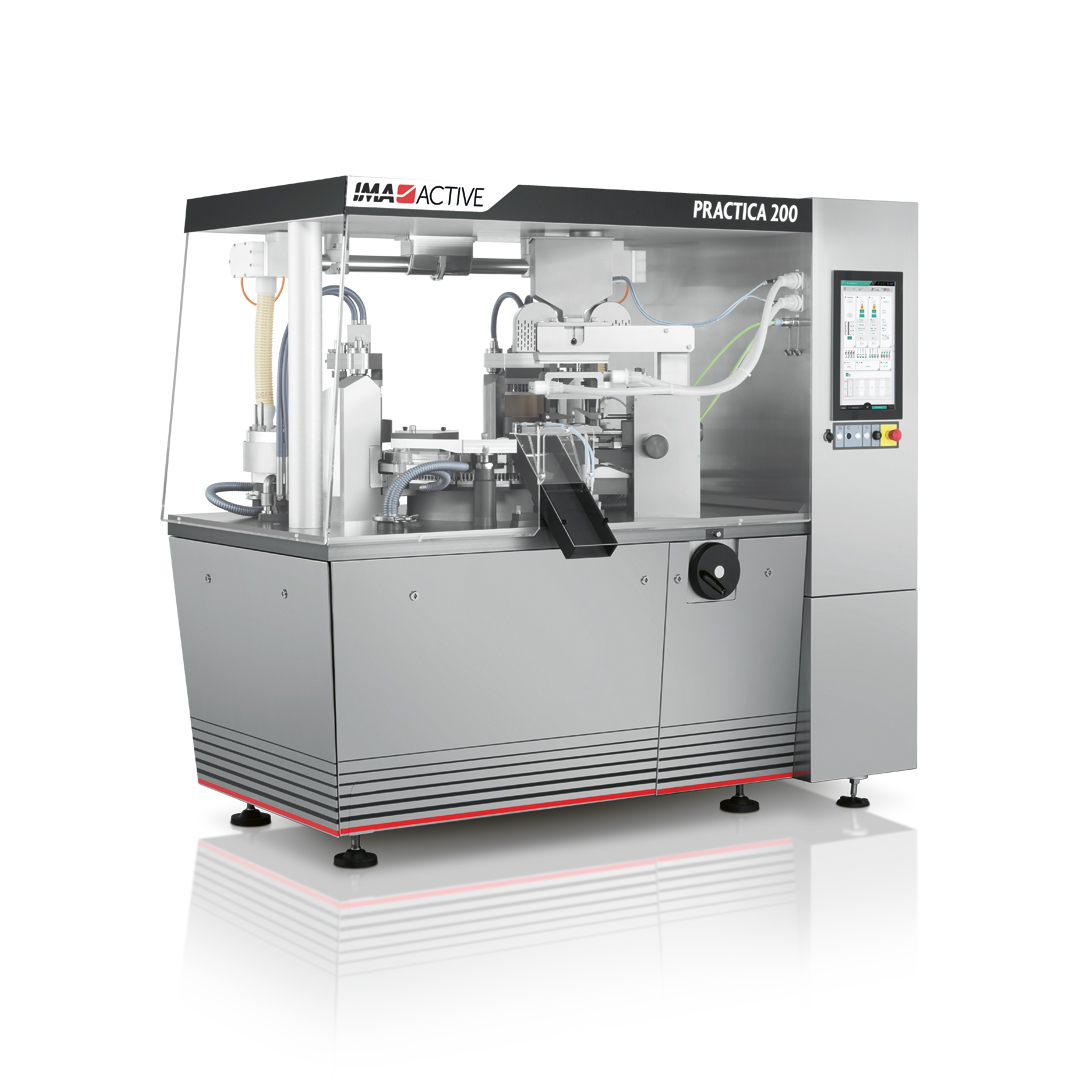

Practica 200 capsule filler can reach a speed of 100,00 capsules/hour and performs single product dosing(powder/granulate or pellets) with top-level accuracy. The machine is prearranged to be equipped with a statistical weight-checking unit for production monitoring. Combined with machine self-adjustment, this makes it possible to automatically keep production parameters within the range set by the operator.

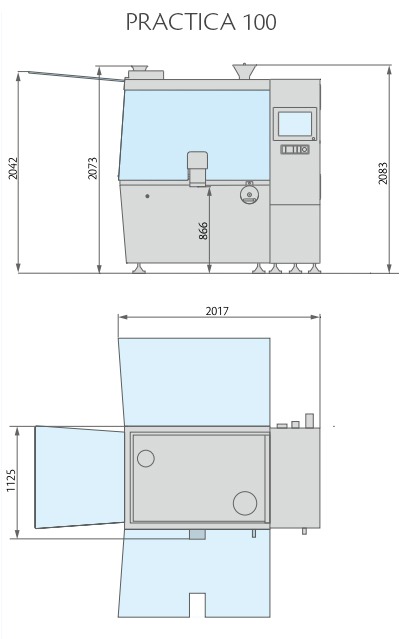

| Practica 100 technical data | |
| MODEL | PRACTICA 100 |
| Maximum output (capsules/hour) | 100,000 |
| Number of capsules per cycle | 12 |
| Capsule size | 5-00EL, 000, DB |
| Maximum installed power (kW) | 15 |
| Aspiration | 5,100 litres/minute – 3,200 mm H2O |
| Compressed air | 115 litres/minute – 6 bar |
| Vacuum | 100 m³/h – 3 mbar (abs.) |
| Standard voltage | 400 V – 50 Hz |
| Weight (kg) | 1,900 |

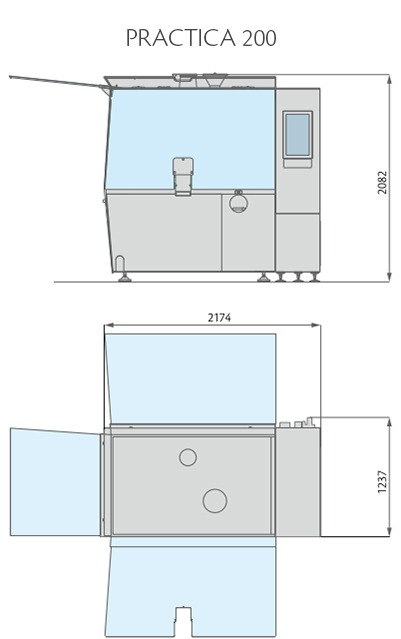

| Practica 200 Technical data | |
| MODEL | PRACTICA 200 |
| Maximum output (capsules/hour) | 200,000 |
| Number of capsules per cycle | 24 |
| Capsule size | 5-00EL, 000, DB |
| Maximum installed power (kW) | 16 |
| Aspiration | 9,500 litres/minute – 3,200 mm H2O |
| Compressed air | 115 litres/minute – 6 bar |
| Vacuum | 100 m³/h – 6 mbar (abs.) |
| Standard voltage | 400 V – 50 Hz |
| Weight (kg) | 2,300 |
