The effective answer for everyday coating.

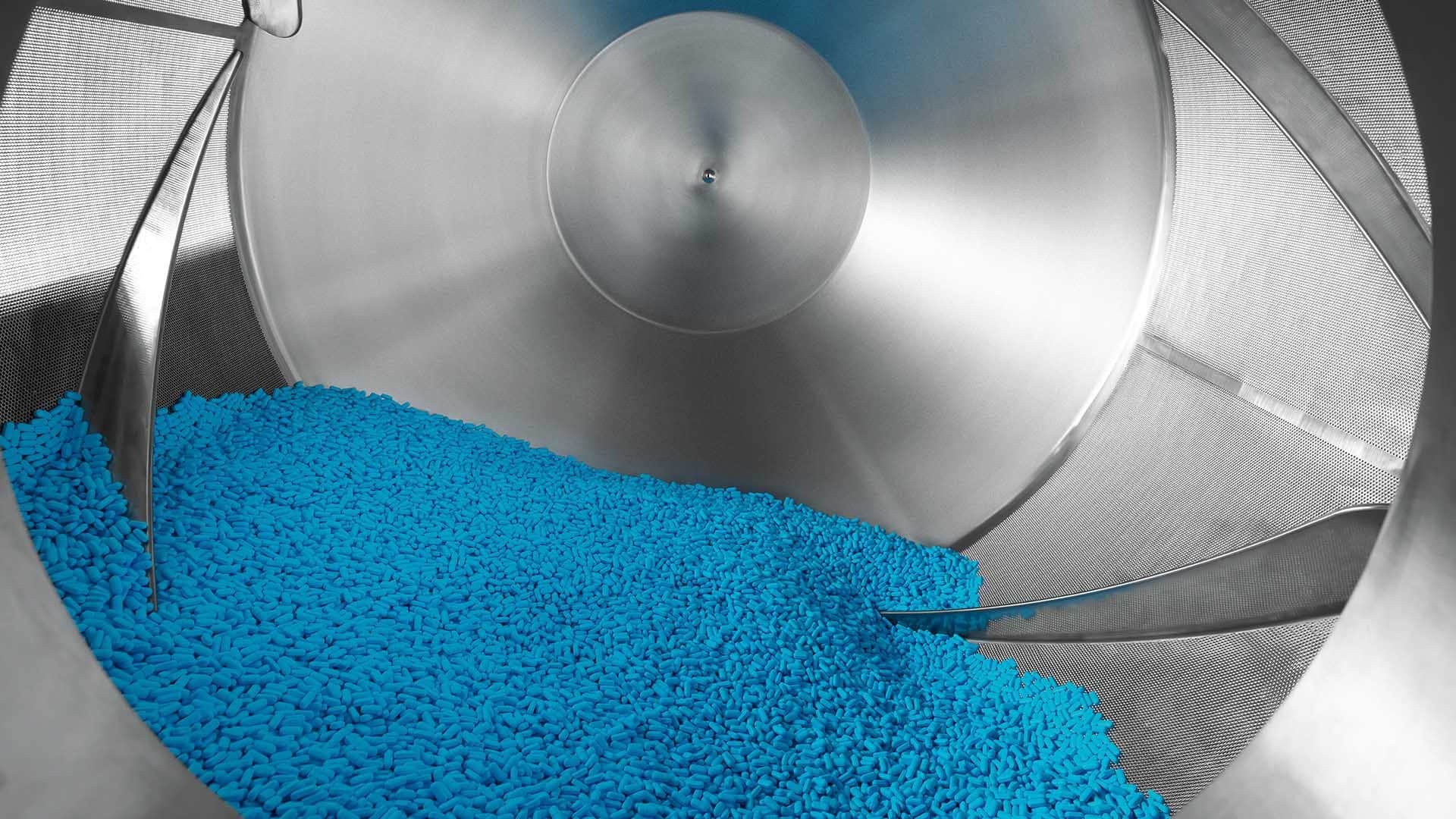

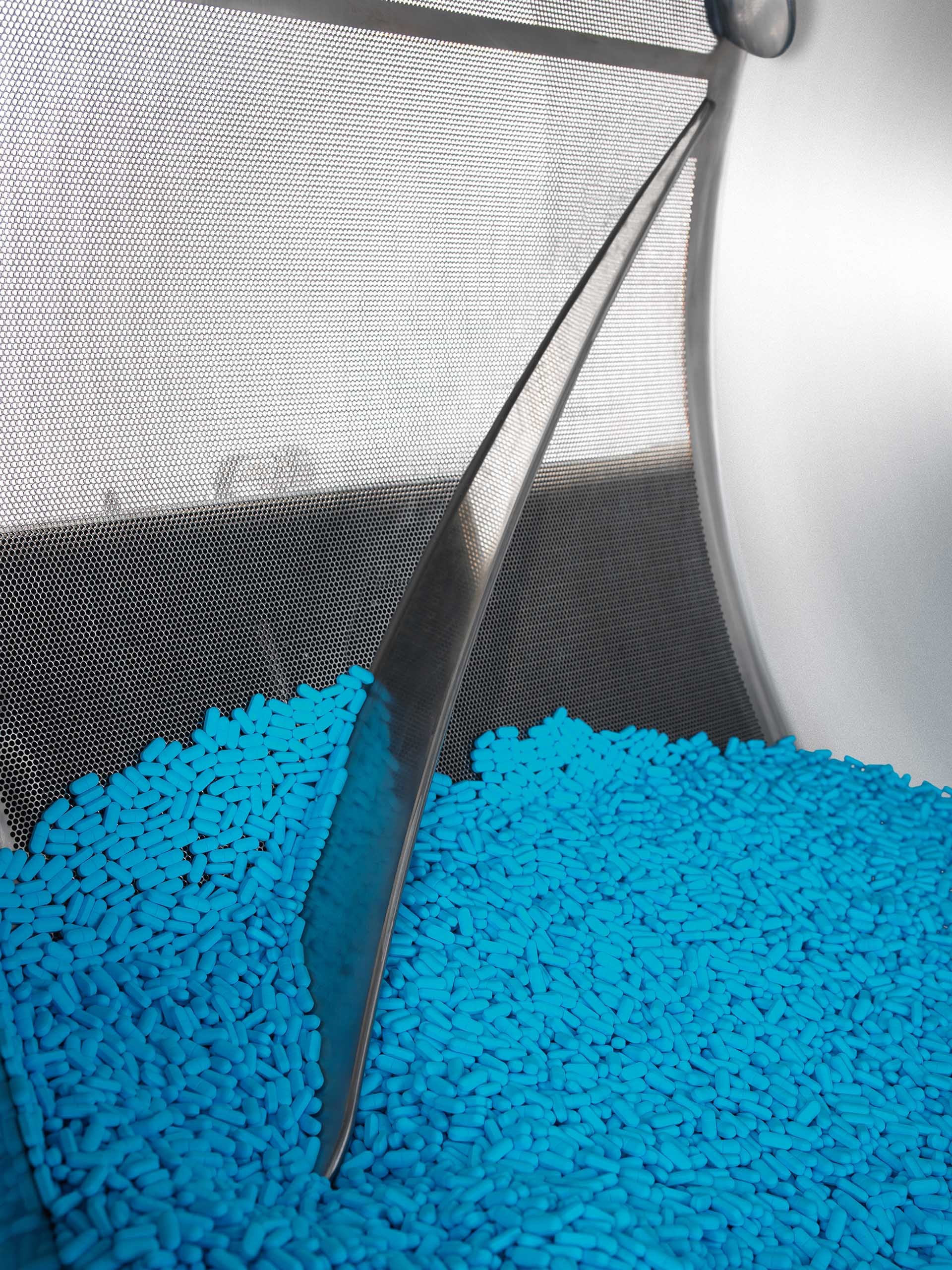

Effecta is a perforated coating pan for tablet film and sugar coating. High-grade components include a functionally shaped perforated drum and specially conceived baffles for effective mixing of the cores and uniform distribution of the sprayed coating dispersion.
Designed to meet the requirements of the pharmaceutical and nutraceutical industries, Effecta is the straightforward solution to maximise efficiency in coating processes. The machine achieves excellent results ensuring hassle-free productivity.
Production plant
IMA Active

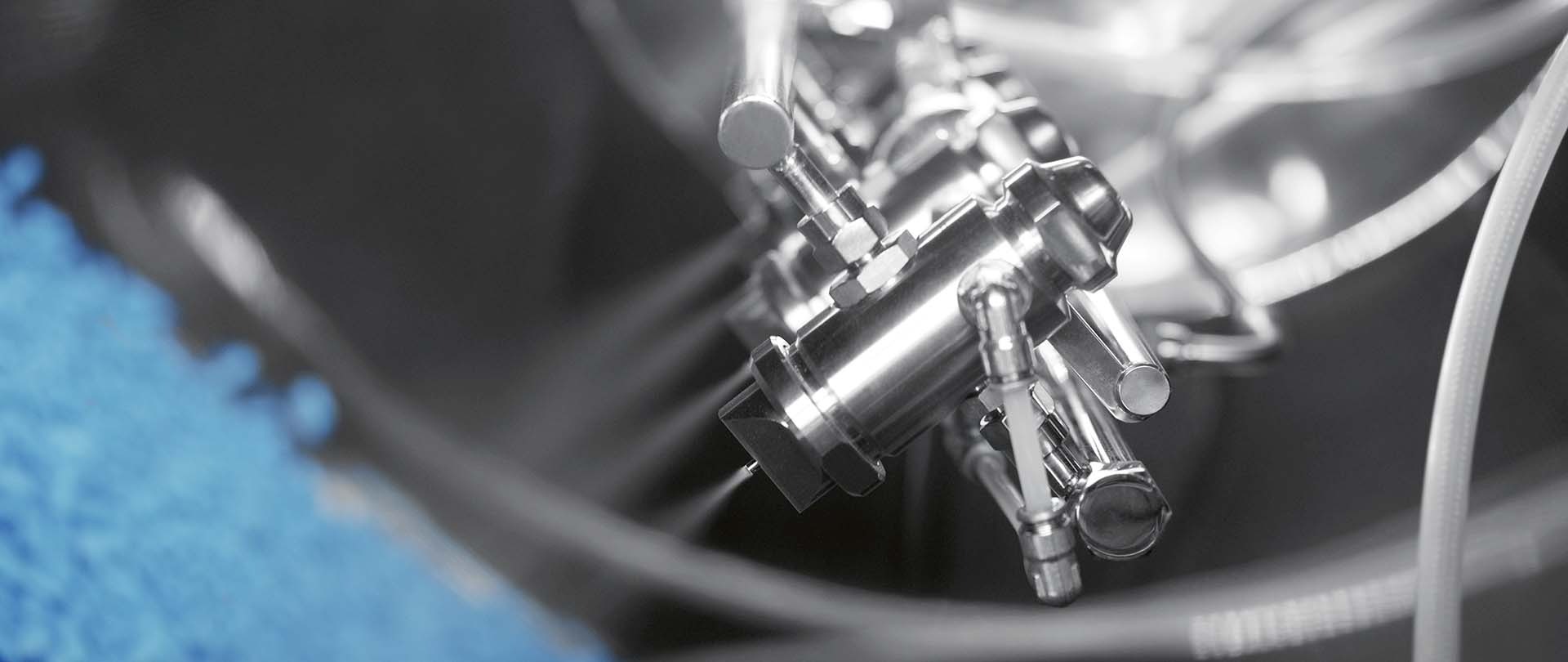

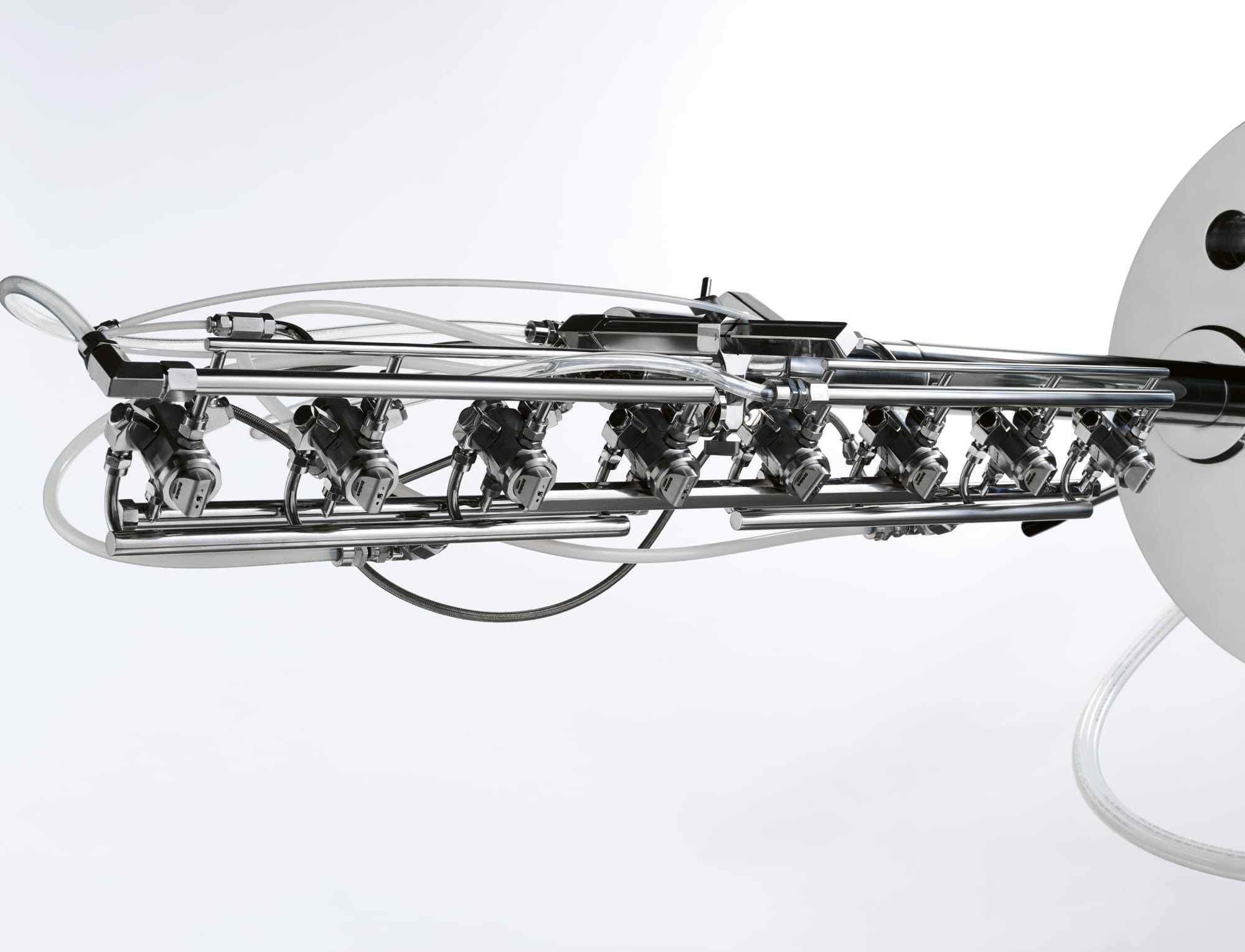

Switchable spray guns designed for both film and sugar coating, offering maximum flexibility and efficiency.
Strategically positioned and dimensioned outlet air duct for optimal drying of the cores and energy saving.
Dosing unit housed in the machine frame to save space within the production area.

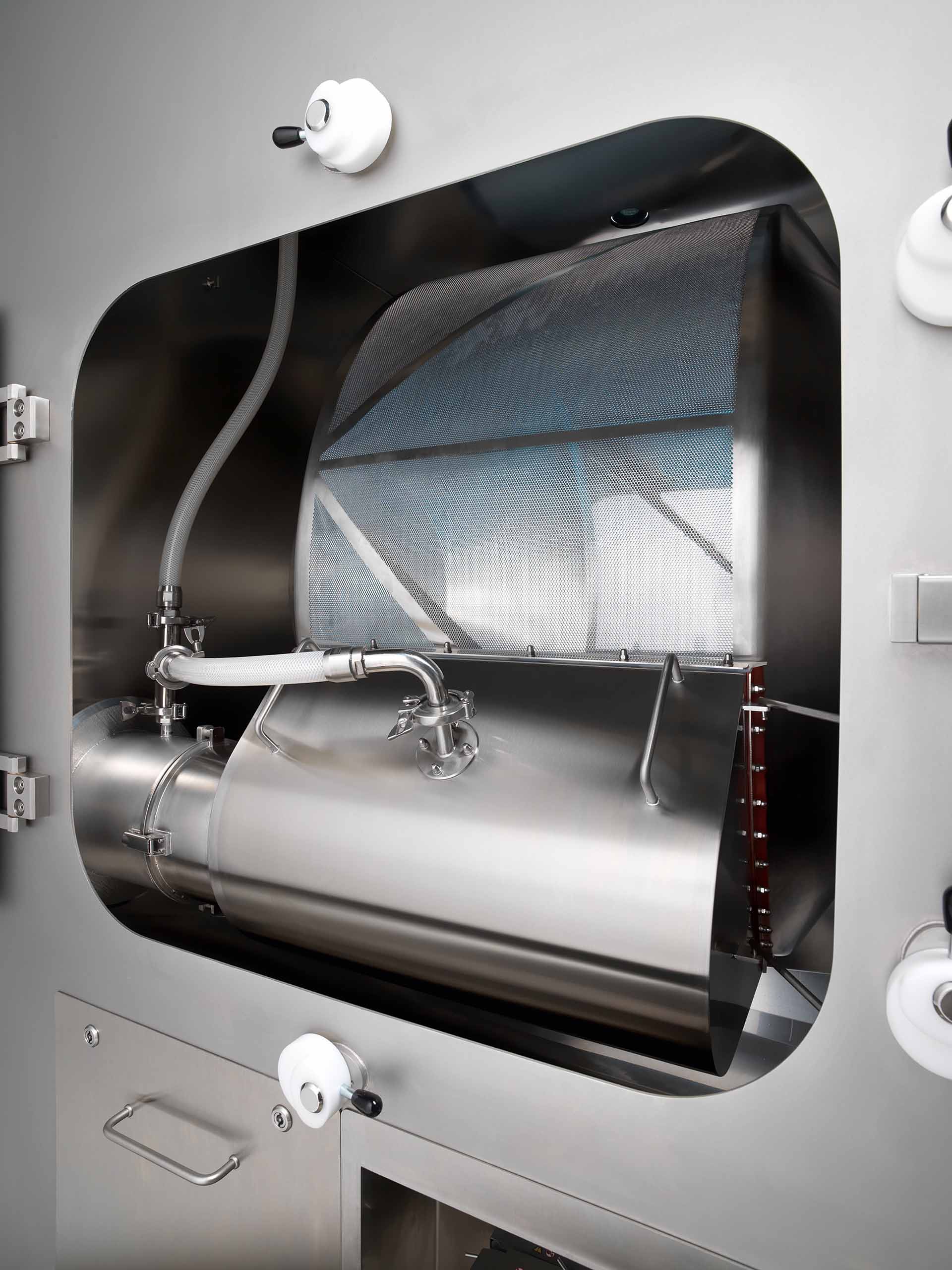

Easy and safe inspection through the side doors, ensuring quick access and full visibility of the process.
Through‑the‑wall machine installation possible, ensuring optimal use of space and streamlined integration into production environments.
MAX, the new corporate HMI, plays a strategic role in improving operator efficiency, while ensuring prompt responsiveness, enhanced predictability and easy learning.
Effecta guarantees superior coating quality through an advanced spray system that delivers fine atomisation for perfect core finishing.
Switchable spray guns allow quick adaptation between film and sugar coating processes, while the integrated dosing unit—featuring peristaltic and volumetric systems—ensures accurate dispersion and saves space in the production area.
| Effecta technical data | ||||||
| Model | 70 | 200 (120) | 200 | 500 (360) | 500 | 750 |
| Minimum/maximum pan capacity (litres) | 18-70 | 30-120 | 60-250 | 90-360 | 140-550 | 180-750 |
| Pan diameter (mm) | 985 | 1,200 | 1,346 | 1,516 | 1,716 | 1,746 |
| Pan mouth diameter (mm) | 474 | 600 | 600 | 600 | 600 | 670 |
| Pan motor power (kW) | 1.5 | 4 | 4 | 5.5 | 4 | 7.5 |
| Process air delivery (m³/h) | 1,100 | 2,500 | 4,000 | 4,000 | 6,000 | 8,000 |
