AQUARIA Washing

Machine overview

Elements of power, waves of flexibility.

Aquaria is IMA Active’s new component washer, maximising the washing chamber volume while minimising the size of the machine. A solution for tools, components and machine parts, Aquaria redefines the meaning of flexibility and performance.
Powerful yet essential, effective and smart, a variety of configurations help keep consumption under control, ensure greater efficiency and respect for the environment.

Aquaria water recirculation system allows consumption saving and reduces the disposal of dirty water at the end of the washing cycle, while granting optimal equipment performance. The AHU allows energy efficiency thanks to the recovery of treated air which is used to cool/heat the incoming air thus maintaining optimal system performance.

Production plant

IMA Active

Machine highlights

  1. Compact design

    Different configurations are available thanks to the plug‑and‑play shift among machine groups and layout options, meeting diverse space requirements. The compact design also ensures a minimal footprint in the processing area.

  2. Dosing regulation

    Up to 3 detergent groups with automatic dose regulation avoiding any waste.

  3. Smart rotating arms

    Rotating washing arms with a sensor to detect the correct rotation of the arm during washing.

  4. Cutting-edge HMI

    MAX new corporate HMI plays a strategic role in improving operator efficiency, while ensuring prompt responsiveness, enhanced predictability and easy learning.

Efficiency and compliance in every wash

Simplified washing concepts based on intelligent design together with GMP-compliance enable Aquaria to fully respond to industry requirements.

Machine details

Machine video trailer

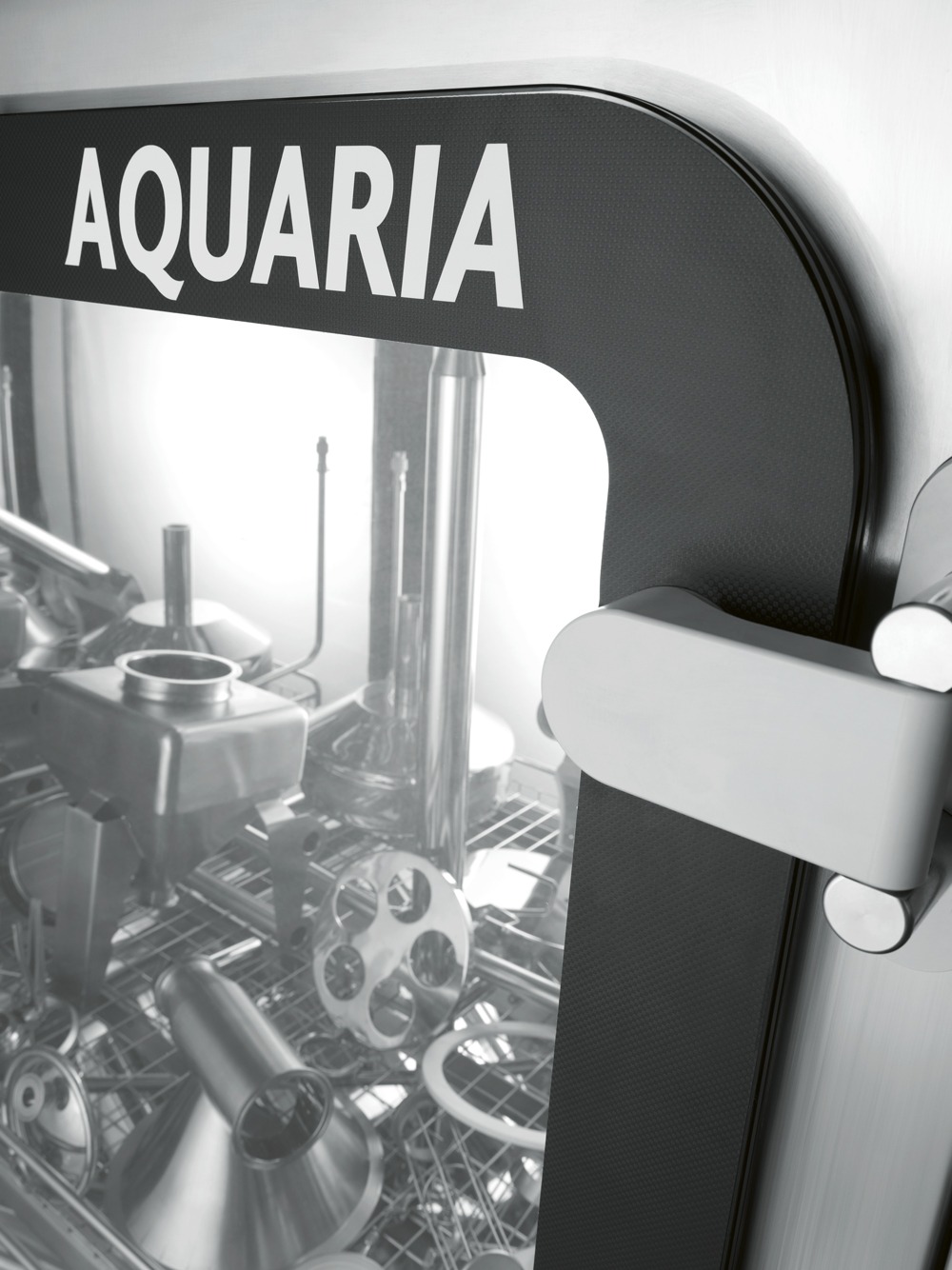

Washing chamber

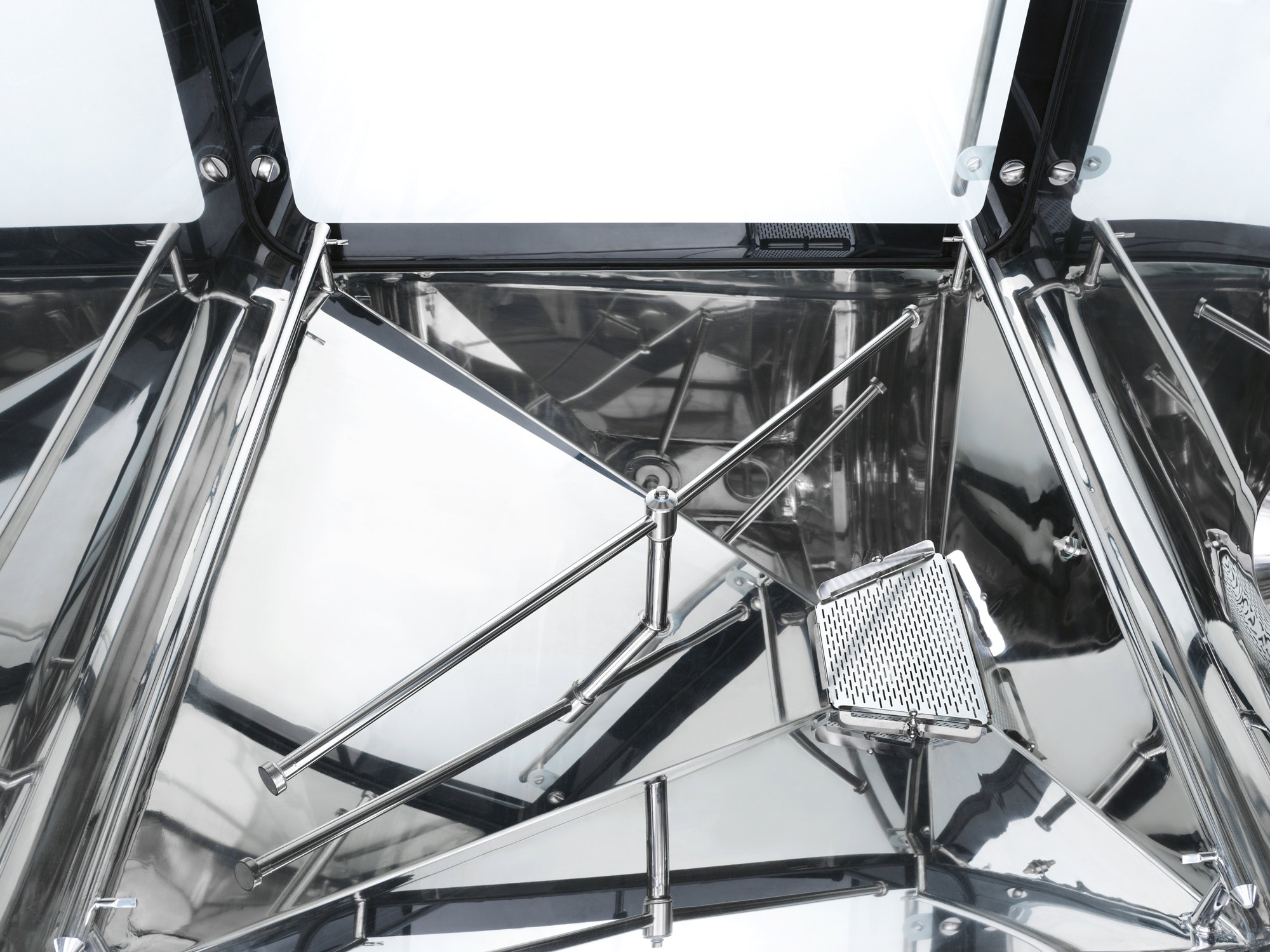

Rotating arm

Sealing gasket

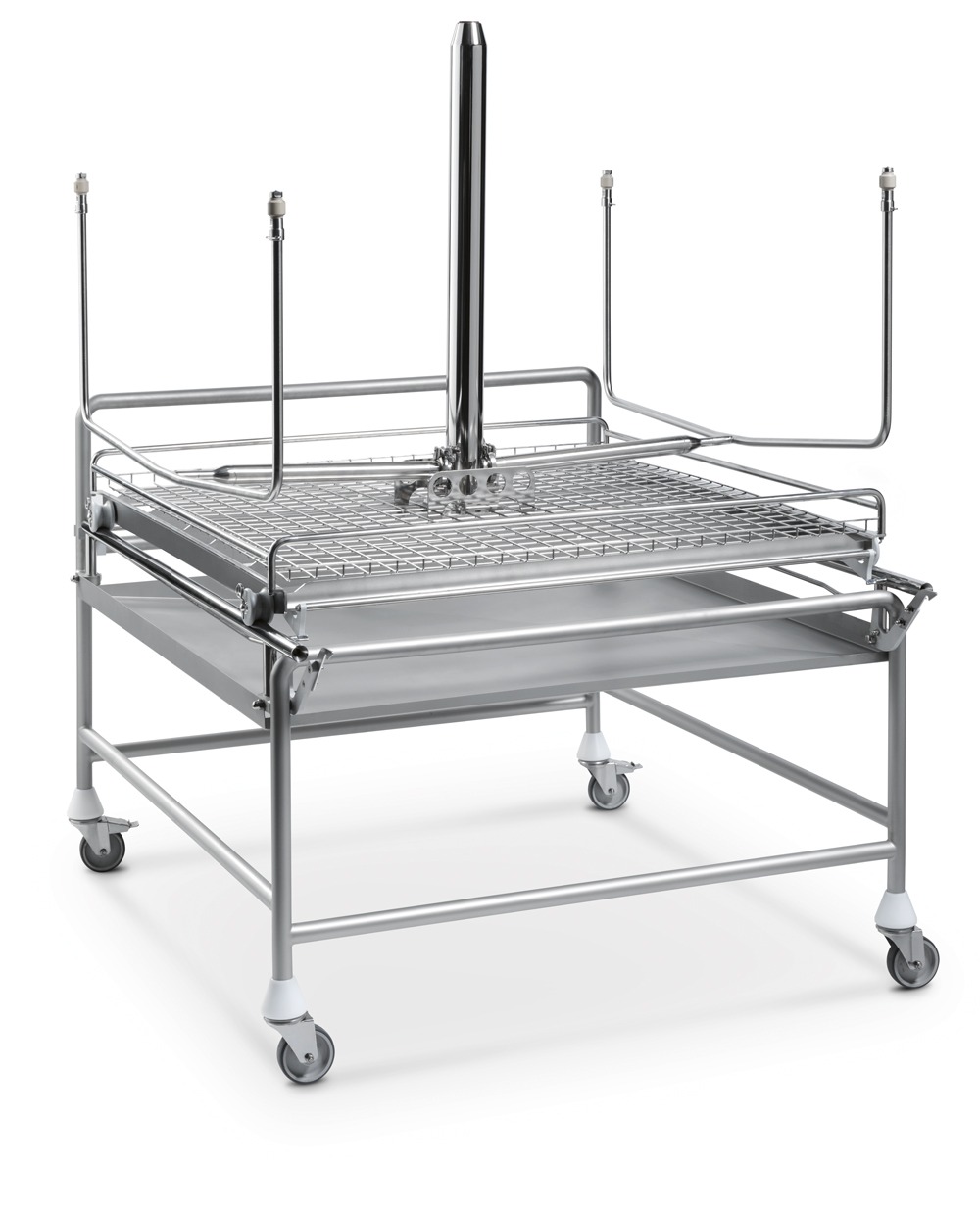

Rack for components

Technical information

Aquaria technical data
Inlet water flow (l/min)70
Water inlet pressure (bar)3
Recirculation Working pressure (bar) 66
(OPT) Once-through Working pressure (bar)8
Water maximum temperature (°C)85
Process air delivery (m3/h) 600
Process air maximum temperature (°C)85
Reference machine weight (kg)2,000
Washing chamber volume (l)1,440
