Safety in containment.

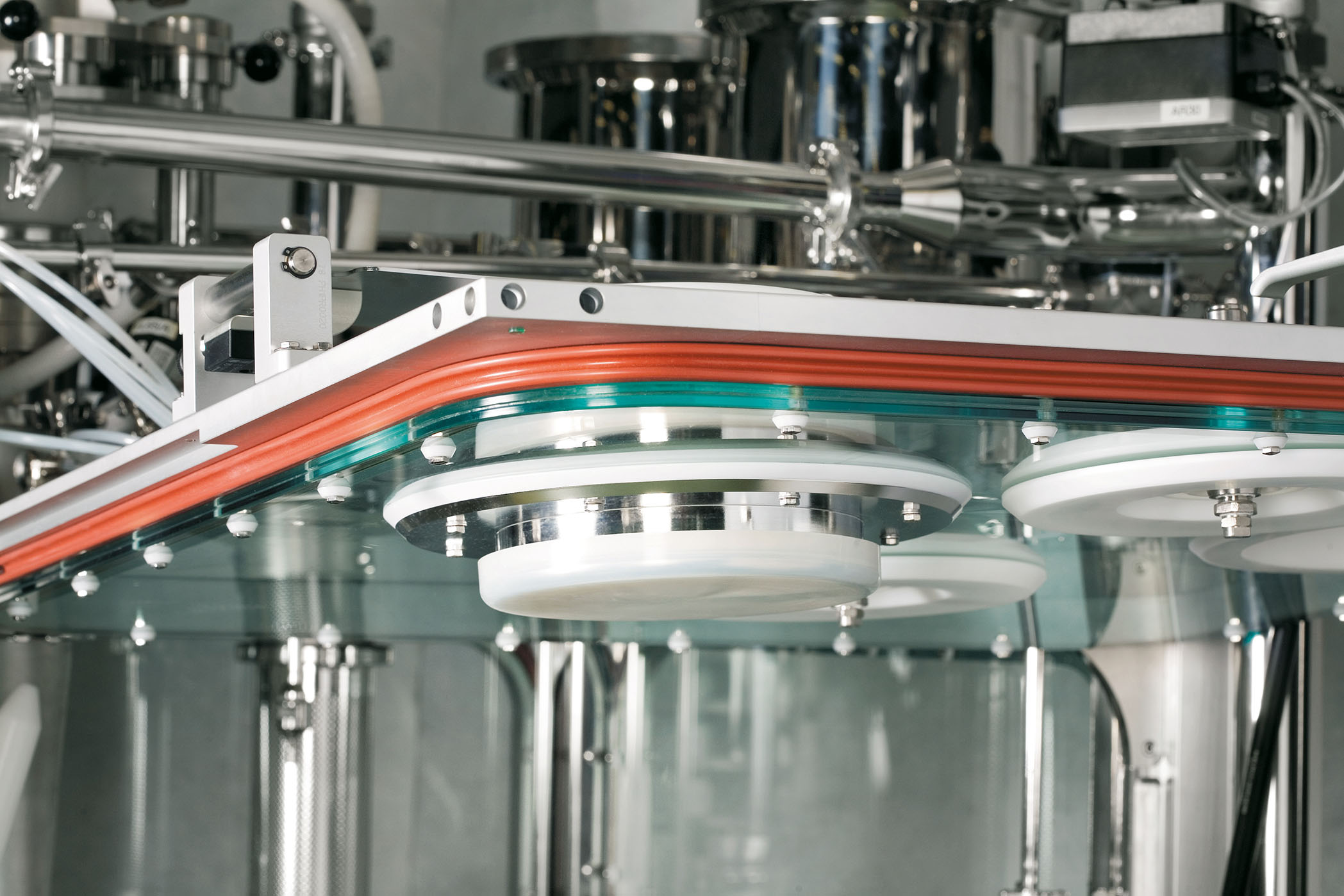

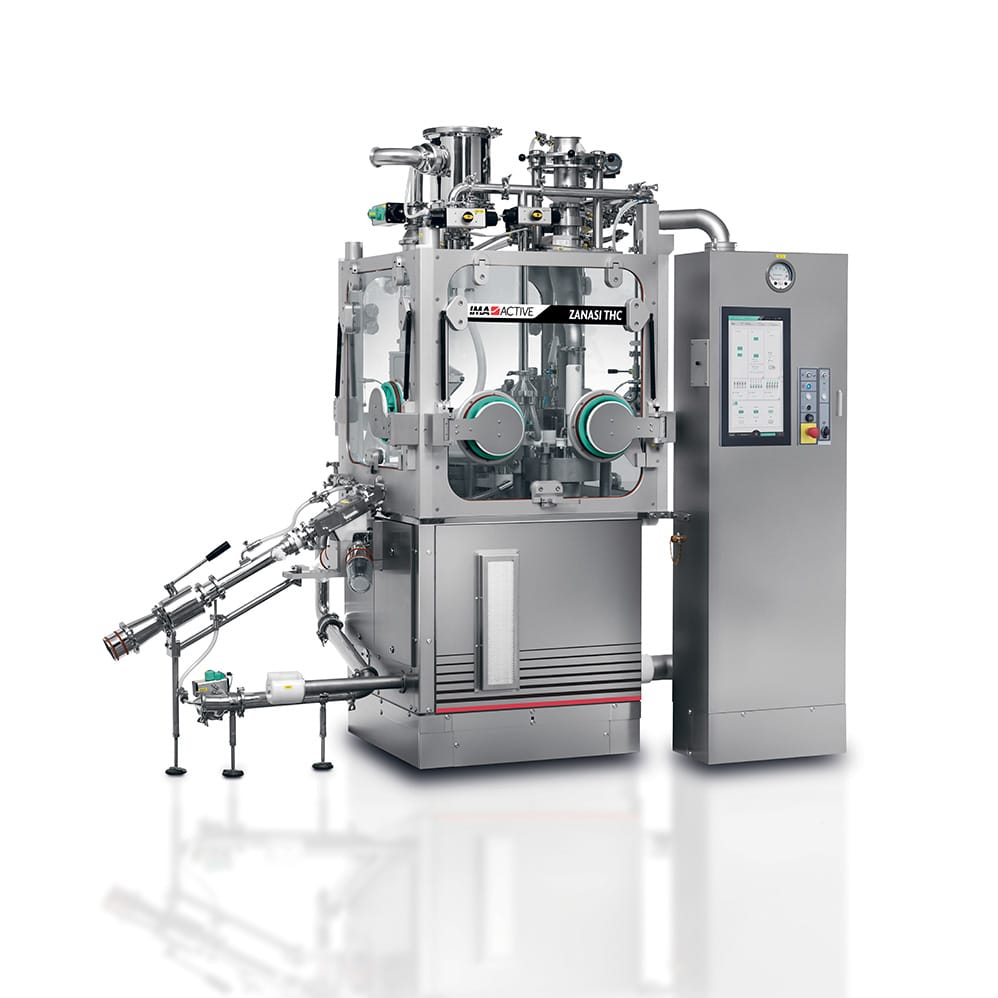

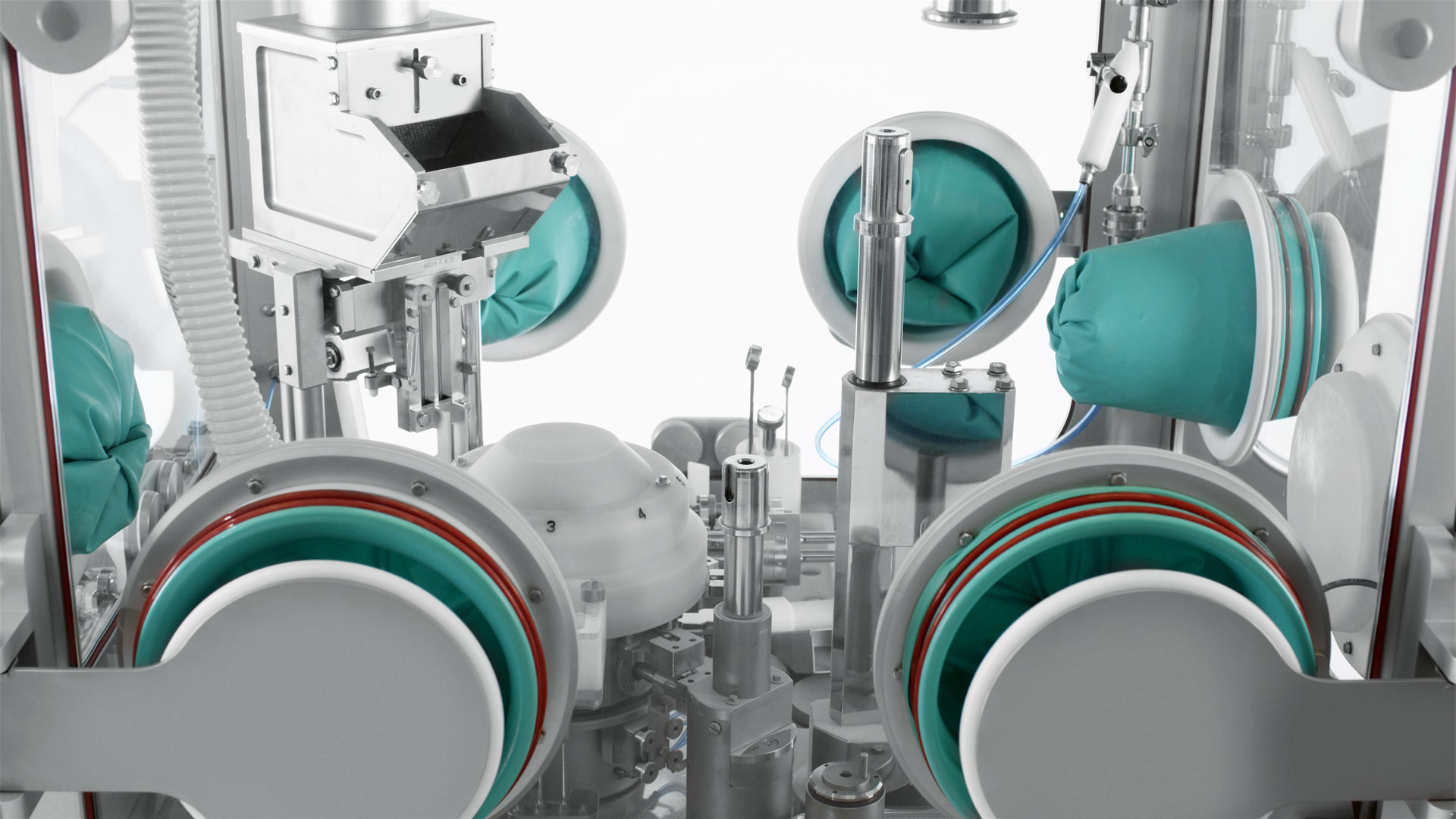

Zanasi THC is designed for the safe testing and handling of HAPI, representing the highest level of containment within the Zanasi series. Combining production safety with operational versatility, it provides the ideal solution for contained capsule‑filling applications. The system guarantees the required containment level for OEB 5 products and is equipped with special seals that isolate the processing area, glove ports for safe internal access, and an integrated washing system. Together, these features ensure maximum protection for both operators and the surrounding environment.
Production plant
IMA Active
Combined dosing of various products within the same capsules.
High dosing accuracy and separate adjustment of machine working parameters.
Designed to ensure a quick and efficient size changeover, allowing operators to switch formats with minimal downtime and maintain a smooth production flow
Built with a simple construction and an ergonomic interface that make daily operation easier.

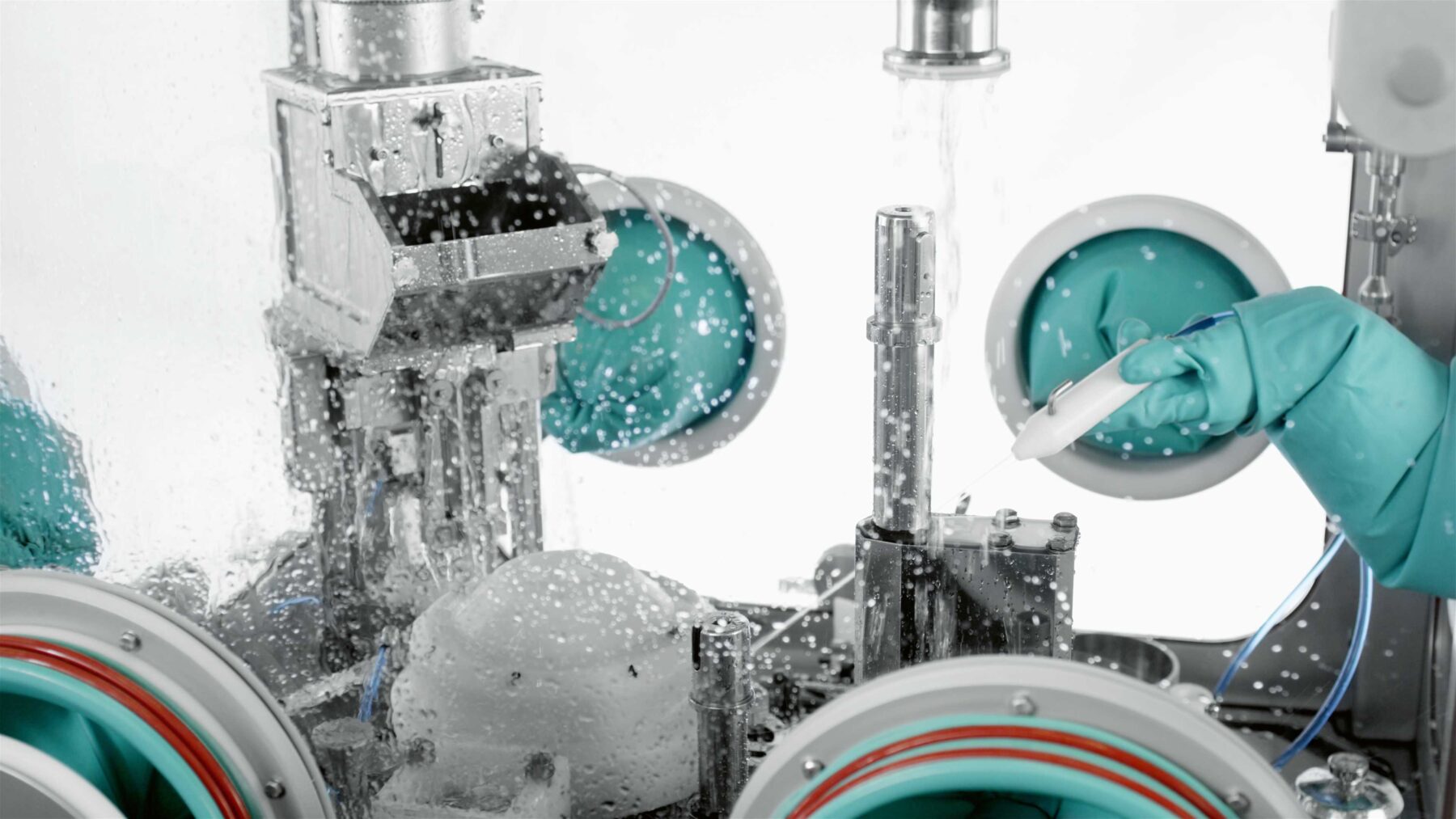

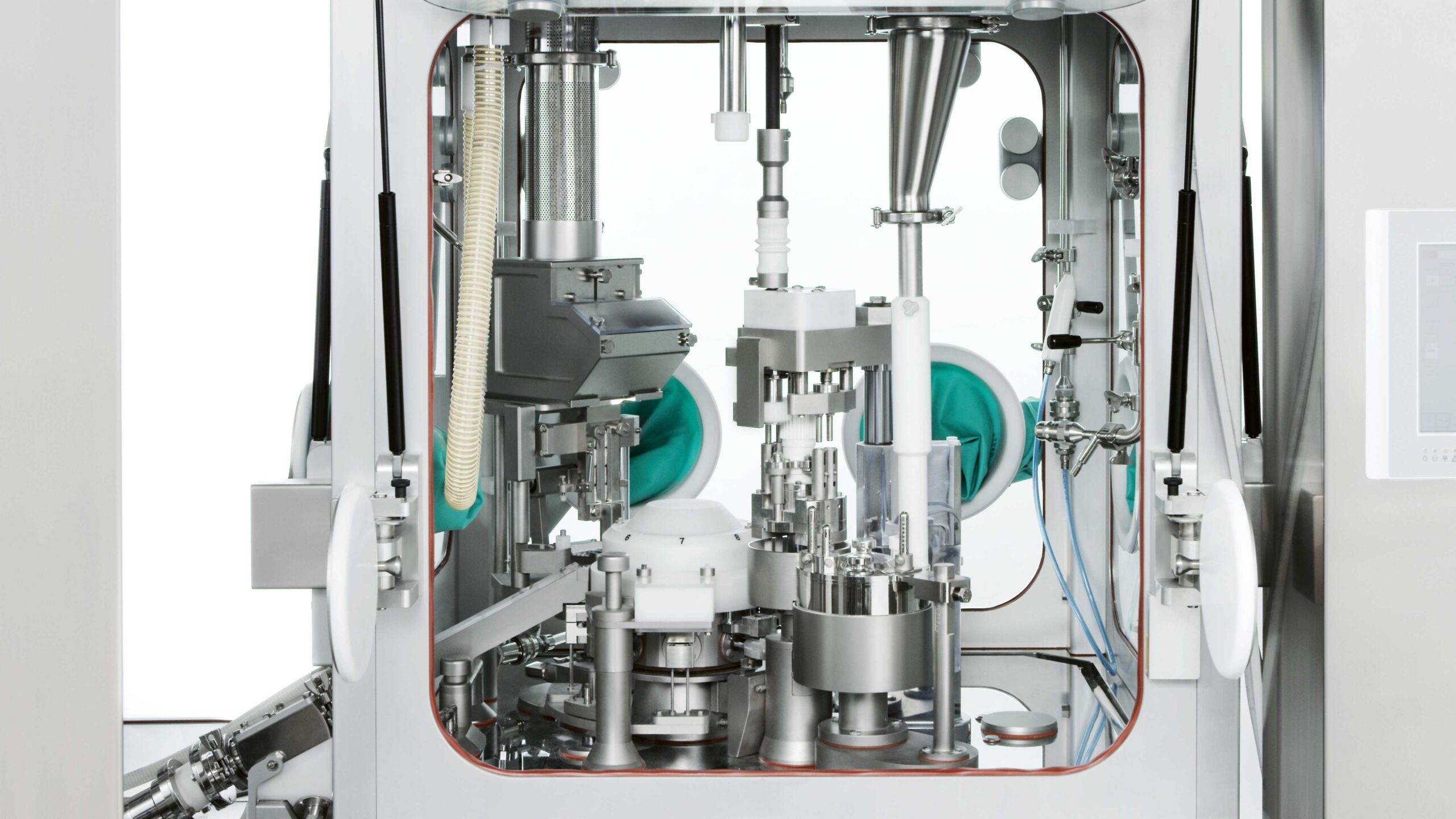

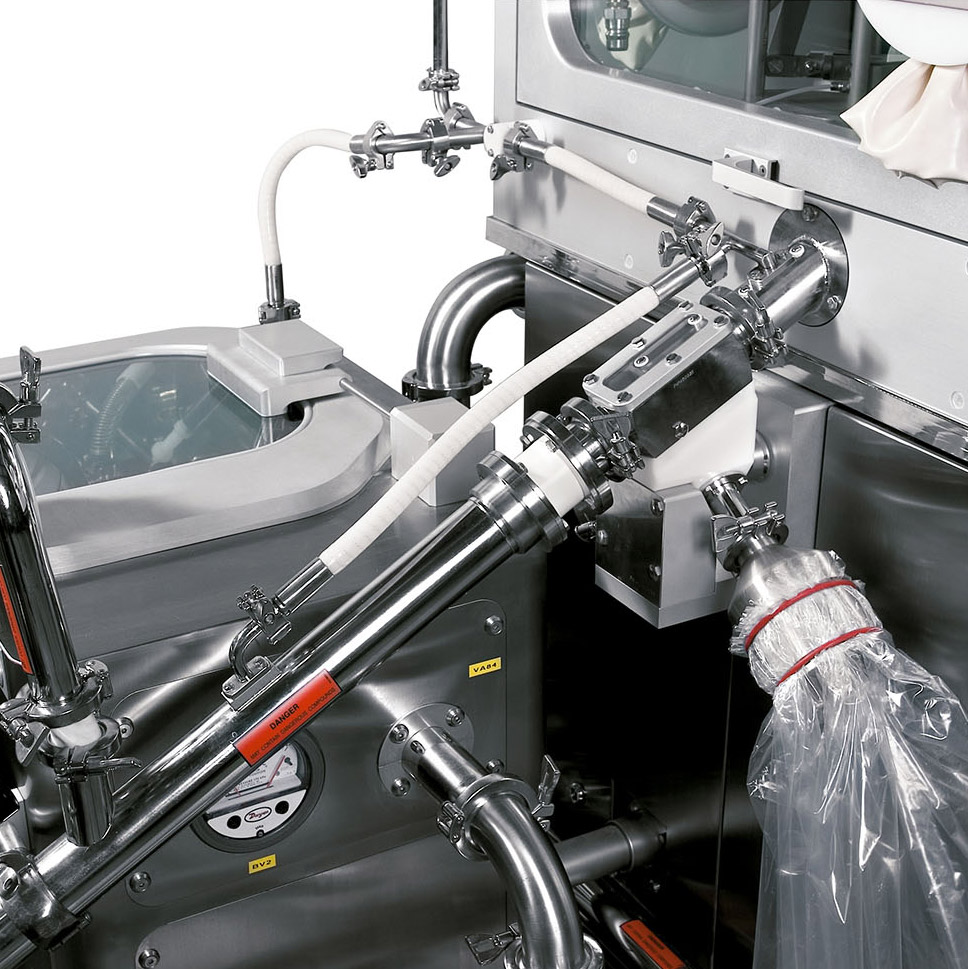

The processing area is fitted with spray nozzles and mobile spray guns to dump down airborne particulate after the filling process. Size parts are dismantled and placed in a tray inside the work area before activating the cleaning cycle.
| Zanasi THC technical data | |||
| MODEL | ZANASI THC 16 | ZANASI THC 48 | ZANASI THC 70 |
| Maximum output (capsules/hour) | 16,000 | 48,000 | 70,000 |
| Number of capsules per cycle | 2 | 6 | 9 |
| Capsule size | 000-5, supro A-E, DB, DBAA | 000-5, supro A-E, DB, DBAA | 000-5, supro A-E, DB, DBAA |
| Maximum installed power (kW) | 1,800 | 1,800 | 1,800 |
