Precision in every particle

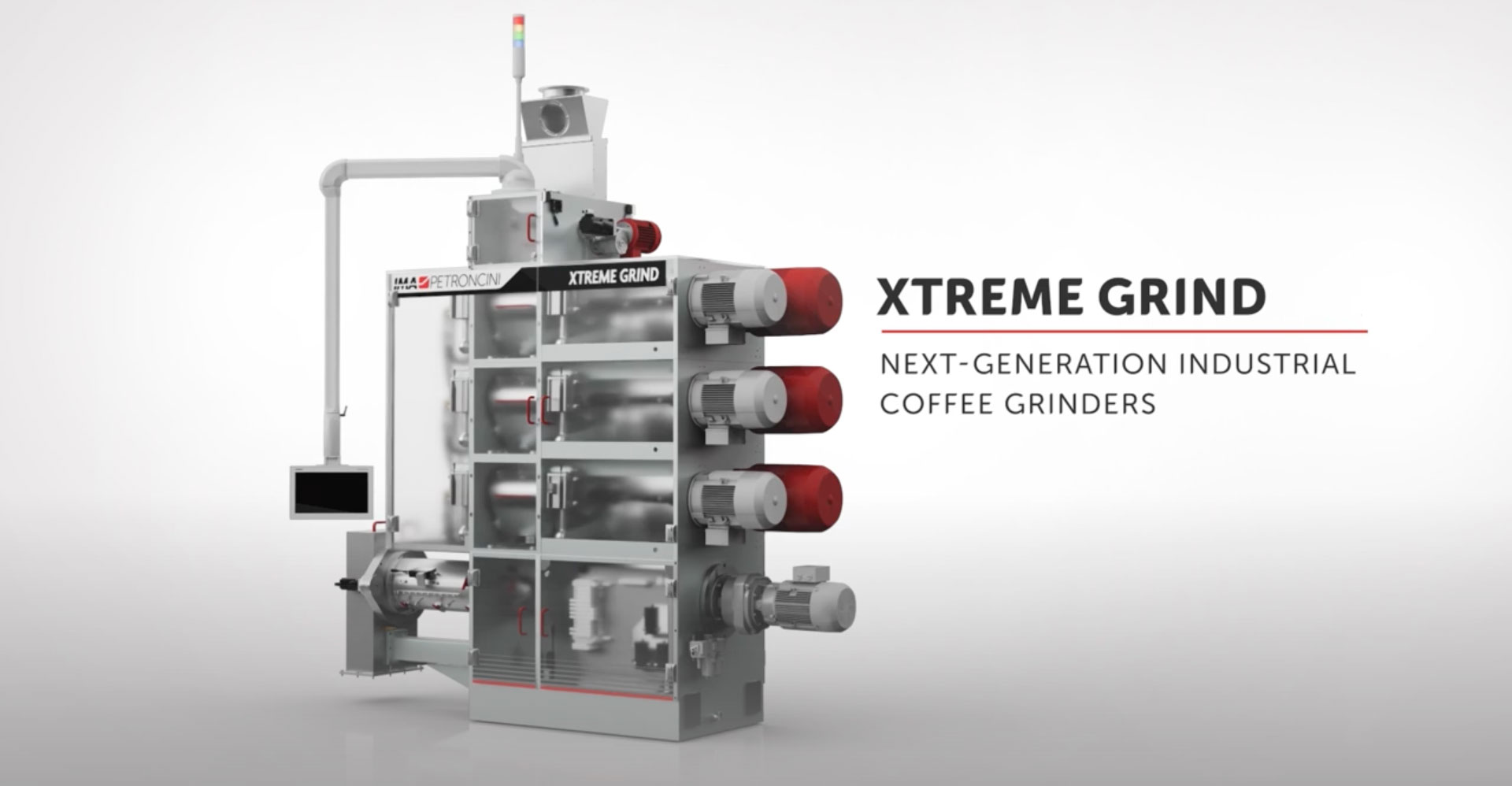

Precision, flexibility and productivity: these are the hallmarks of XTREME GRIND, the new IMA grinder series designed to deliver outstanding grinding uniformity, consistent product quality and maximum operational efficiency.

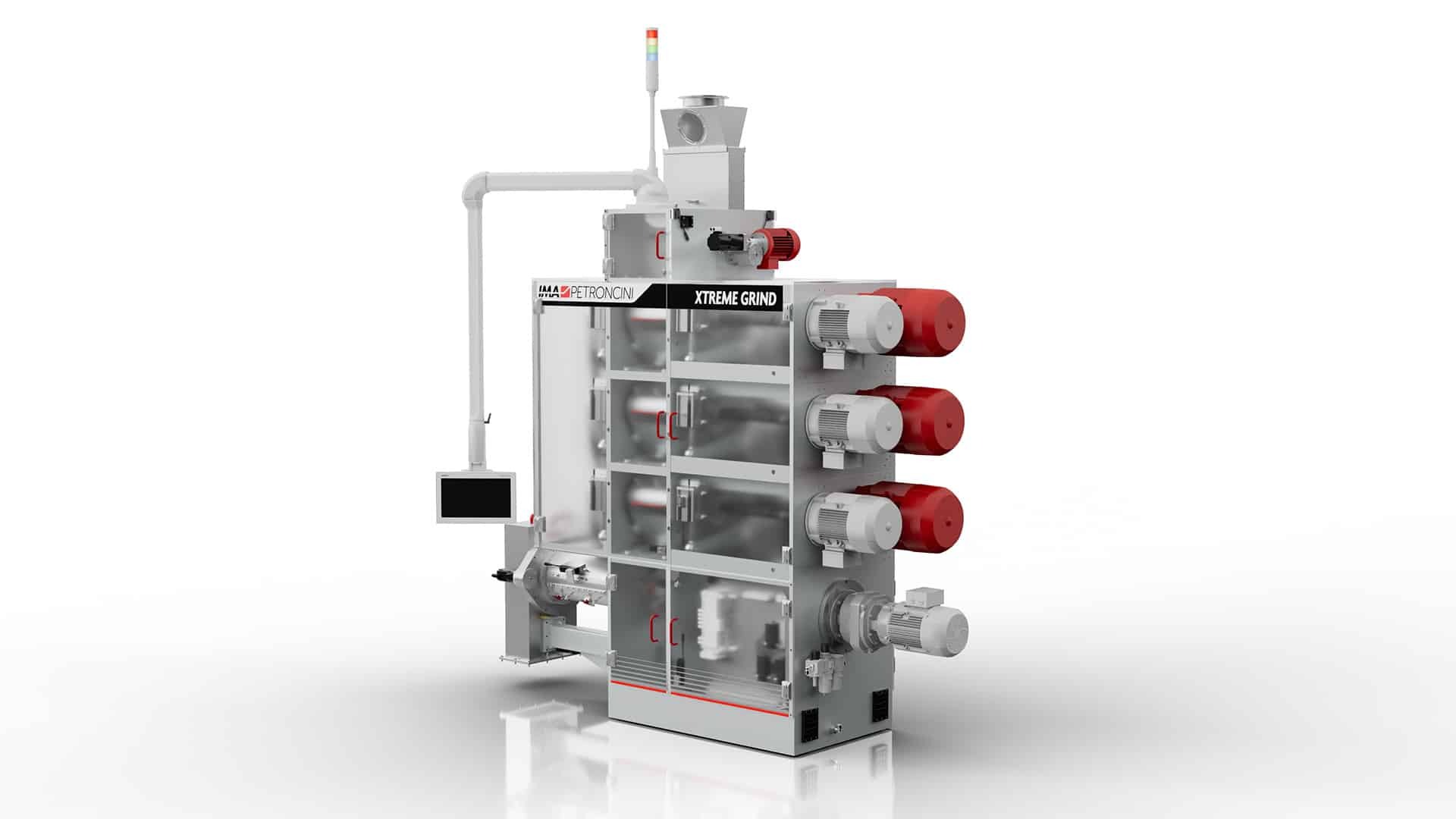

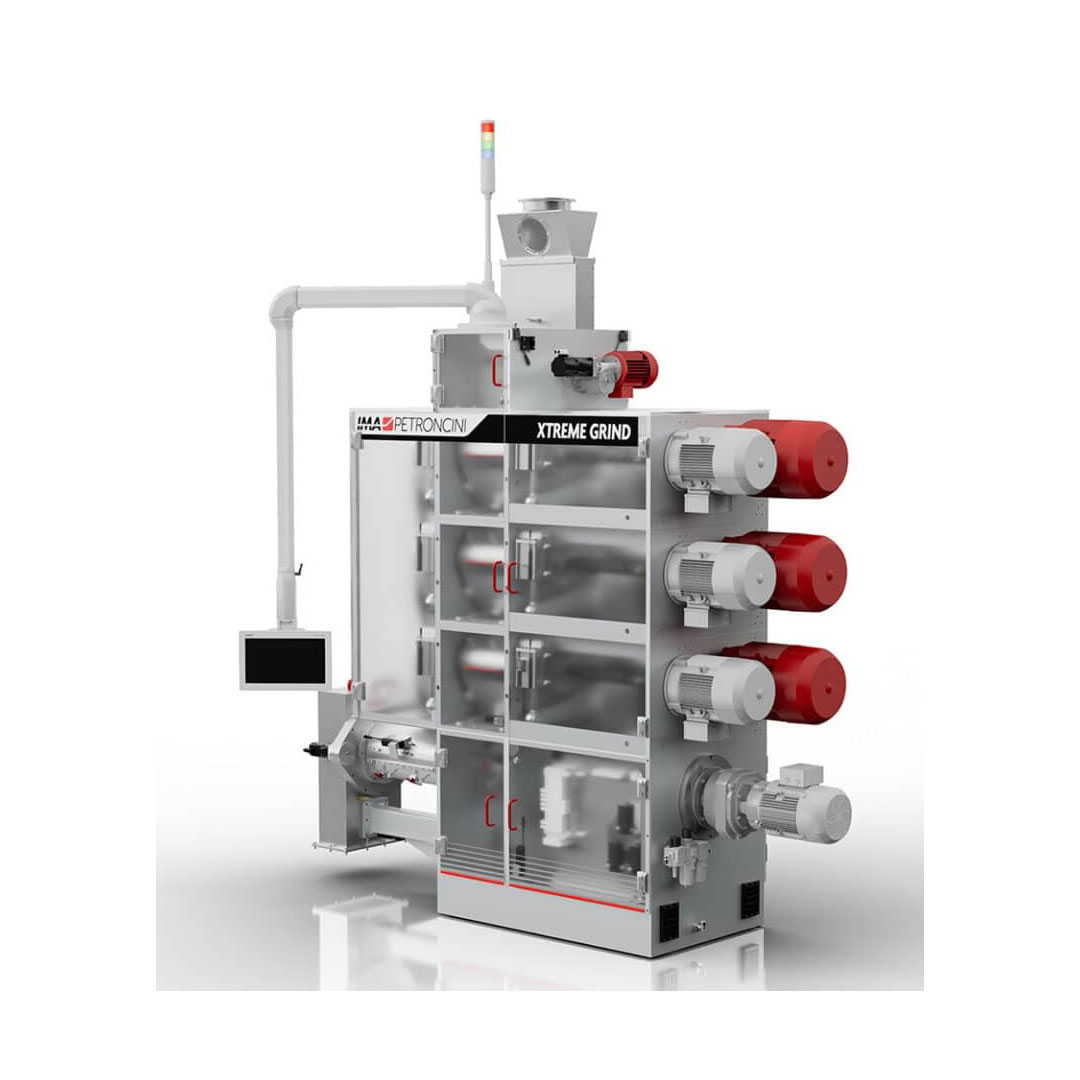

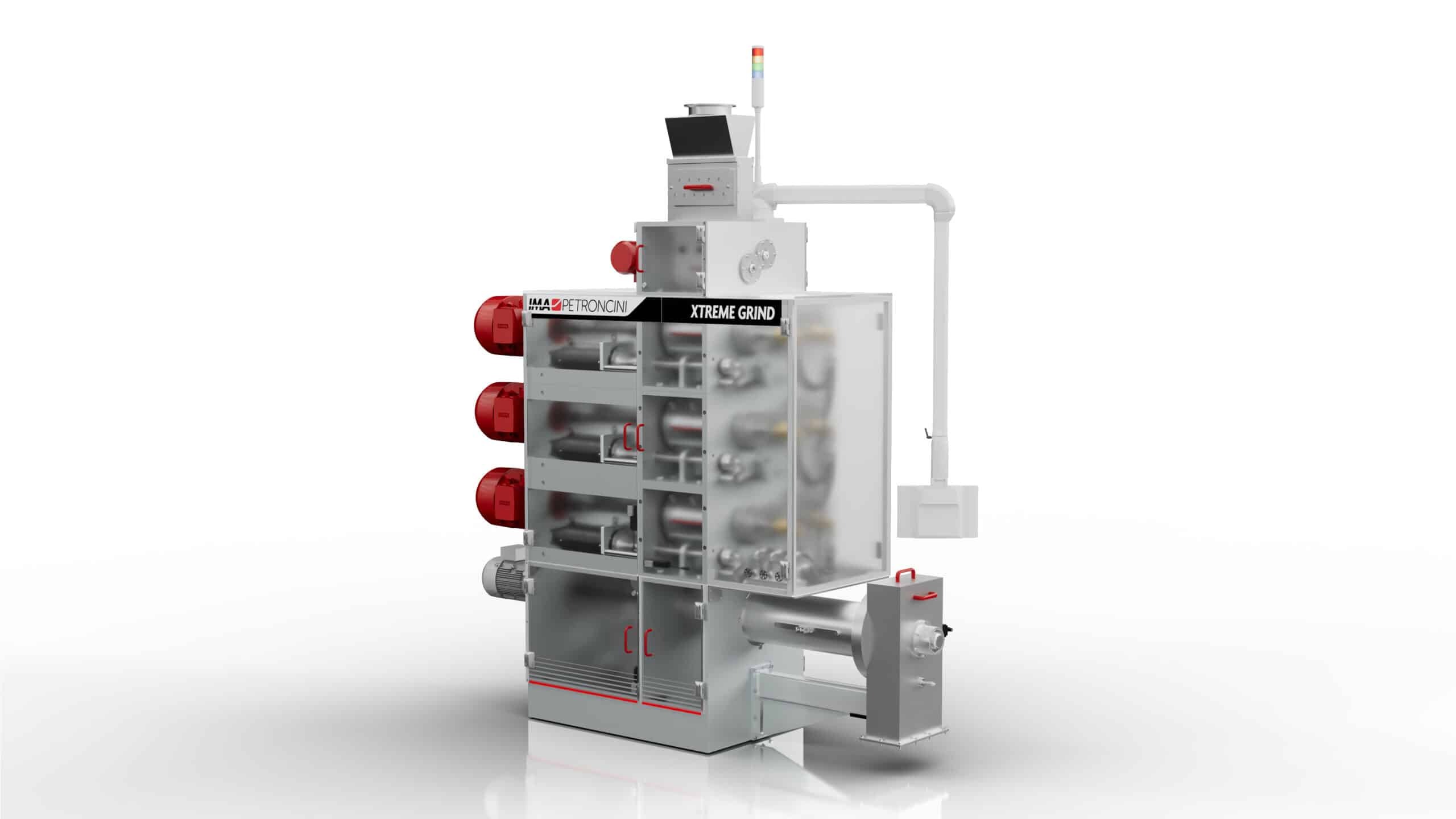

Built on a compact, modular steel frame, XTREME GRIND can be configured with two or three grinding stages, depending on production requirements. Its robust construction ensures stability even at high throughputs, guaranteeing reliability and long-term performance.

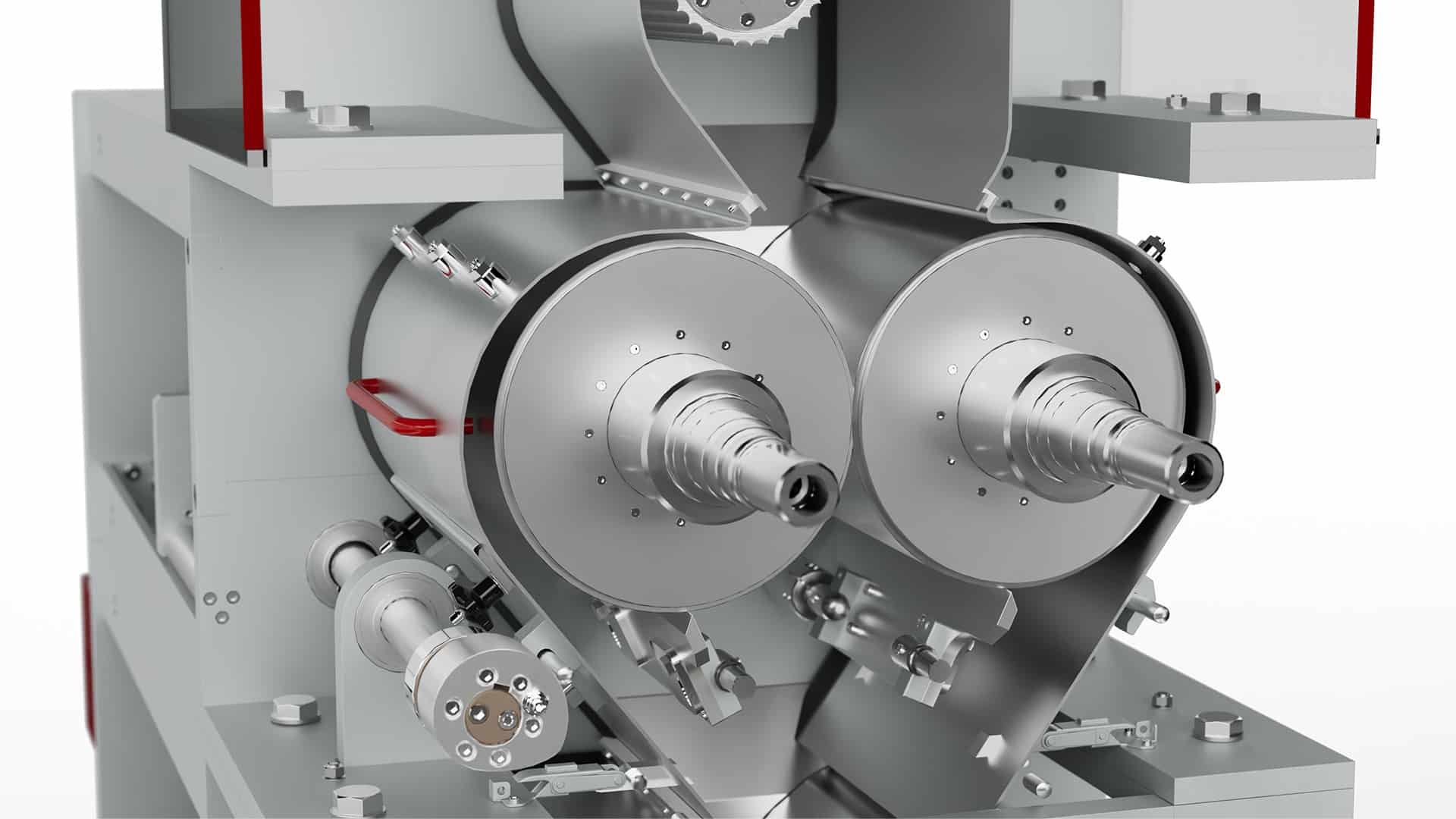

At the heart of XTREME GRIND are its rolls, manufactured from highly wear-resistant materials and designed with ultra-precise corrugations. Their specific geometry cuts rather than crushes the beans, minimizing friction and heat generation, thus preserving the coffee’s aromatic compounds. Each roll is driven by independent servomotors, allowing extremely precise control of speed and gap settings. Automatic adjustment between production batches ensures quick recipe changeovers and perfect repeatability.
An integrated water-cooling system, compatible with chillers or external thermal control systems, keeps the rolls at optimal temperature, safeguarding product quality at all times.
Available in three models for medium and high grinding capacities, XTREME GRIND is engineered to handle the most demanding production cycles, while providing the flexibility and automation required to process different coffee profiles with ease.
Production plant
IMA Coffee Petroncini
Uniform particle size for superior cup quality
Two or three grinding stages with modular design
Servo-driven motors, recipe-based settings, automatic gap and speed adjustment
Roller technology designed to cut, not compress, preserving aroma compounds
Constant density for stable extraction and packaging
Magnetic deferrization and automatic roller release to protect machine and product
Water-cooled rollers for optimal temperature control
HMI with recipe management, real-time monitoring, and IoT integration (IMA Sentinel & Smart PC Edge)
XTREME GRIND features a modern, intuitive HMI based on Windows 10 IoT, providing real-time process monitoring, unlimited recipe management and advanced alarm diagnostics.
XTREME GRIND has been designed with advanced automation and servo-driven motors. Its software, XTREME24 enables a recipe-based settings, controlling gap and speed adjustment automatically and with safety protocols integrated. If the rolls exceed a critical temperature, the system automatically stops the machine to protect the product.
Thanks to its cloud connectivity, XTREME GRIND can be fully integrated with IMA Sentinel and IMA Smart PC Edge, enabling real-time data acquisition, KPI monitoring, remote diagnostics and seamless integration within digital production environments.
• 600 kg/h filter coffee, 300 kg/h espresso, 120 kg/h Turkish coffee.
• 1,200 kg/h filter coffee, 600 kg/h espresso, 250 kg/h Turkish coffee.
