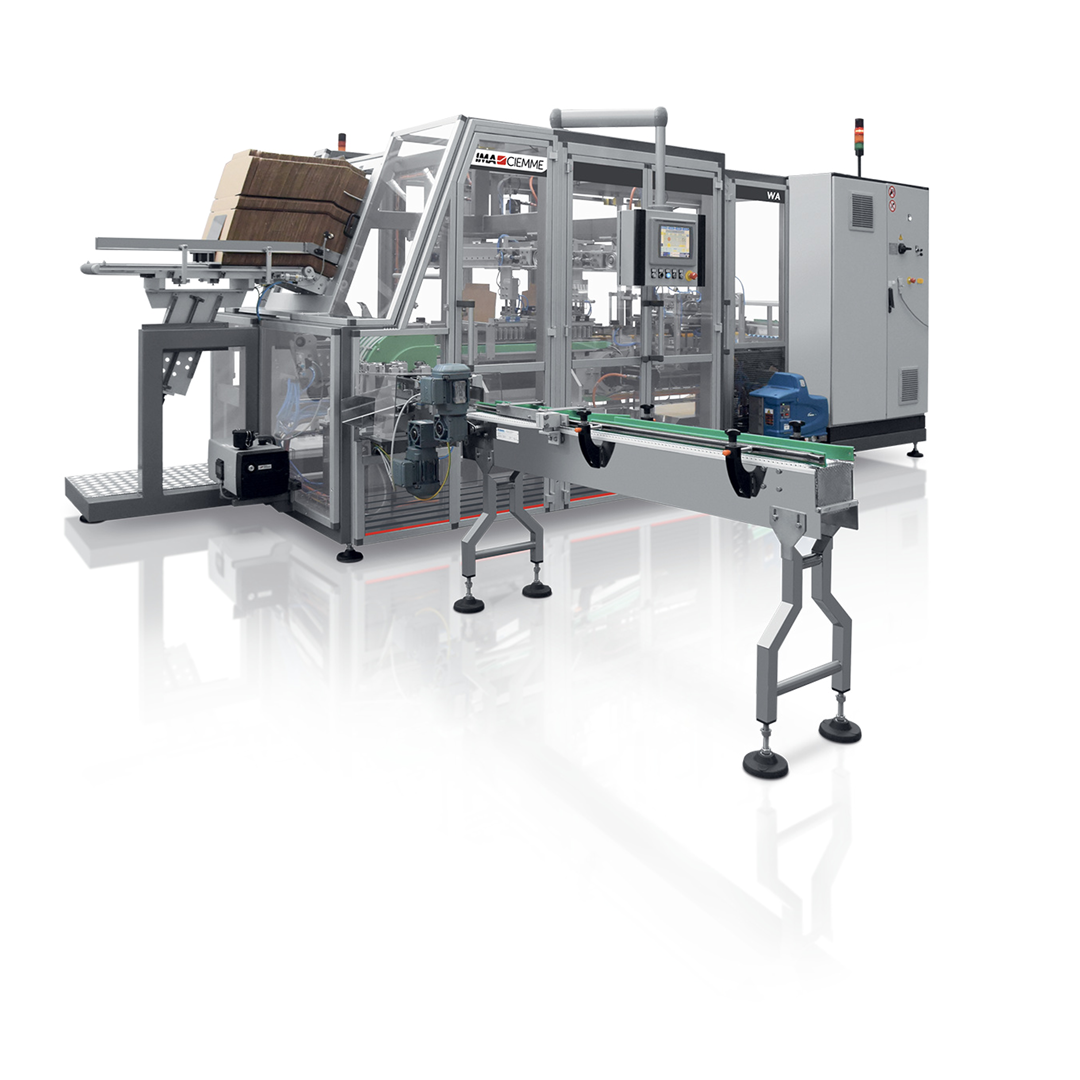

WACP Series Case Packing
Machine overview
Wraparound Packer: the best solution for incomparable presentation.

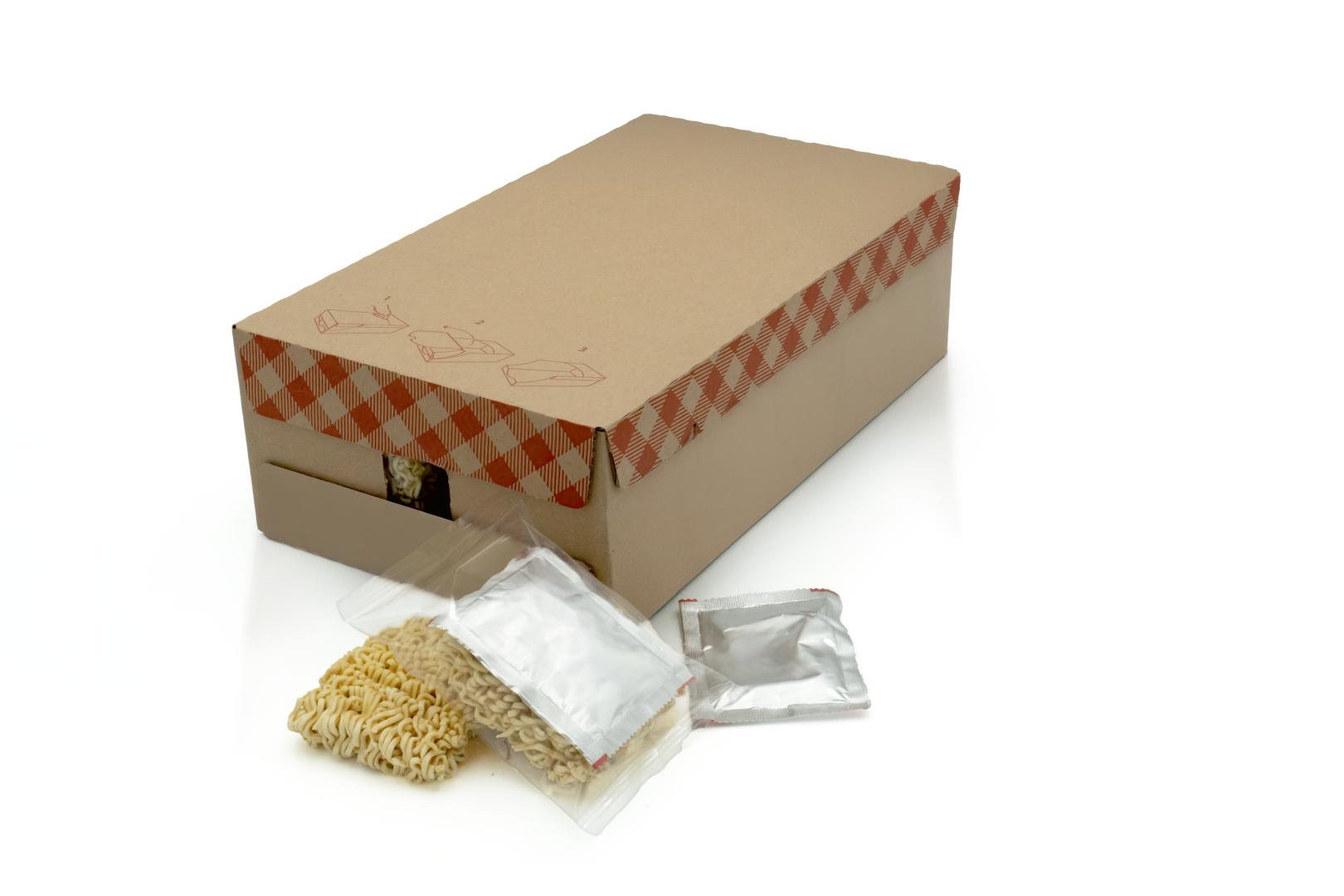

A wide assortment of product types and shapes, for example bags, cartons and wrap packaging, can be boxed in various wraparound cartons. Regardless of content type, each product is carefully and securely packed. They can be collated, grouped and packaged standing, on edge or lying down, in one or more rows, and in one or more layers.

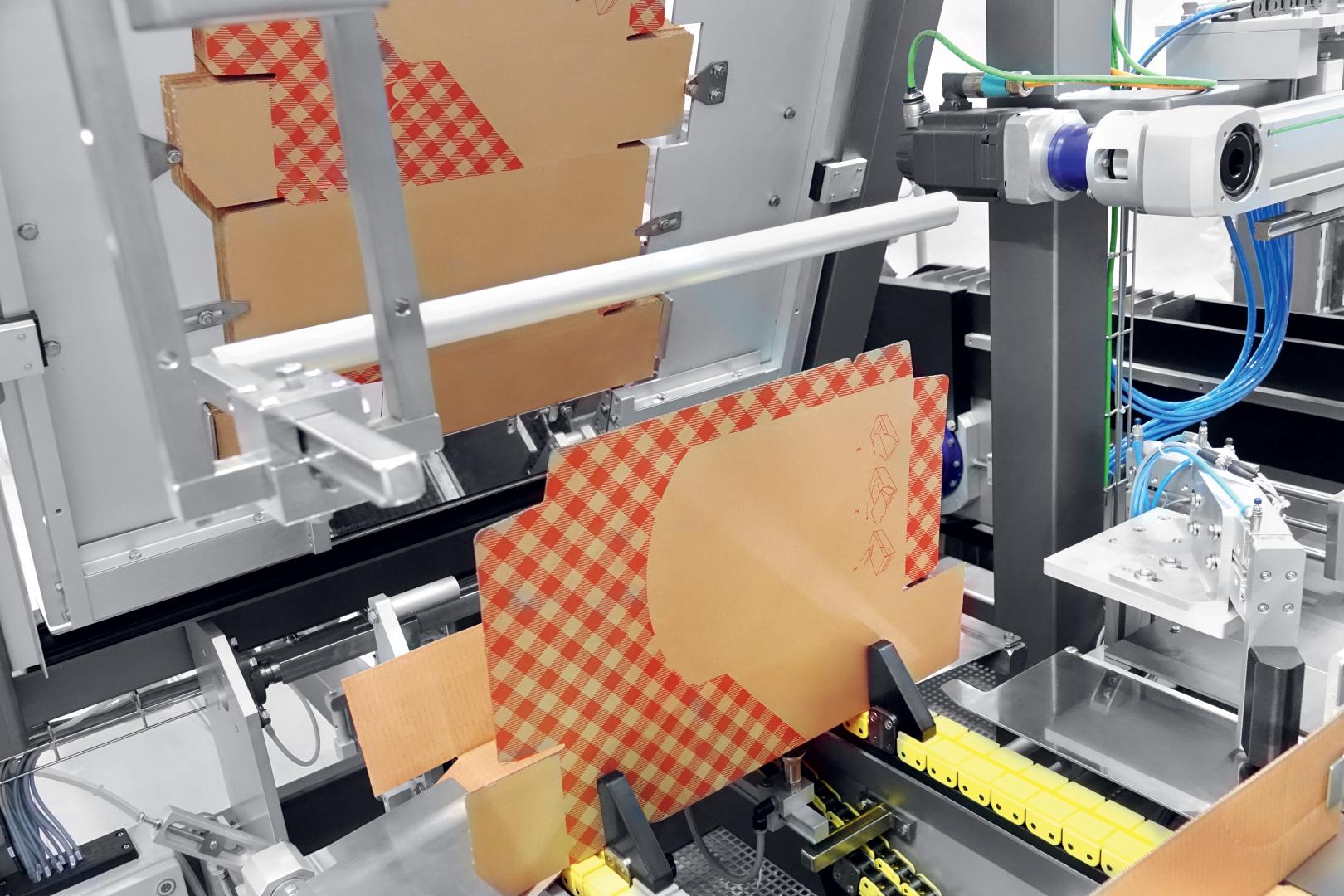

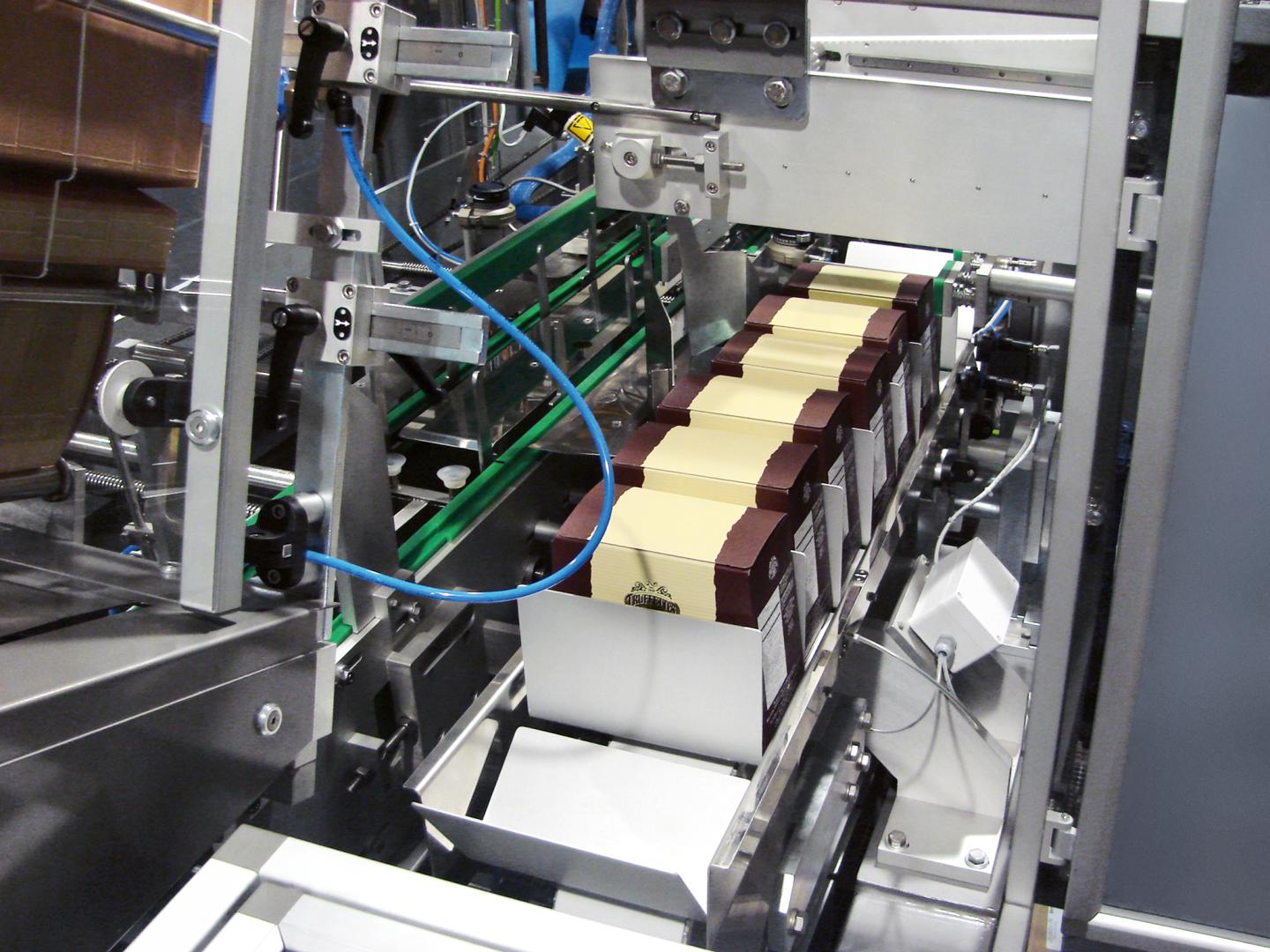

– Products are fed separately (accelerating belts) and grouped into cases
– The group of products is positioned on the flat case blank

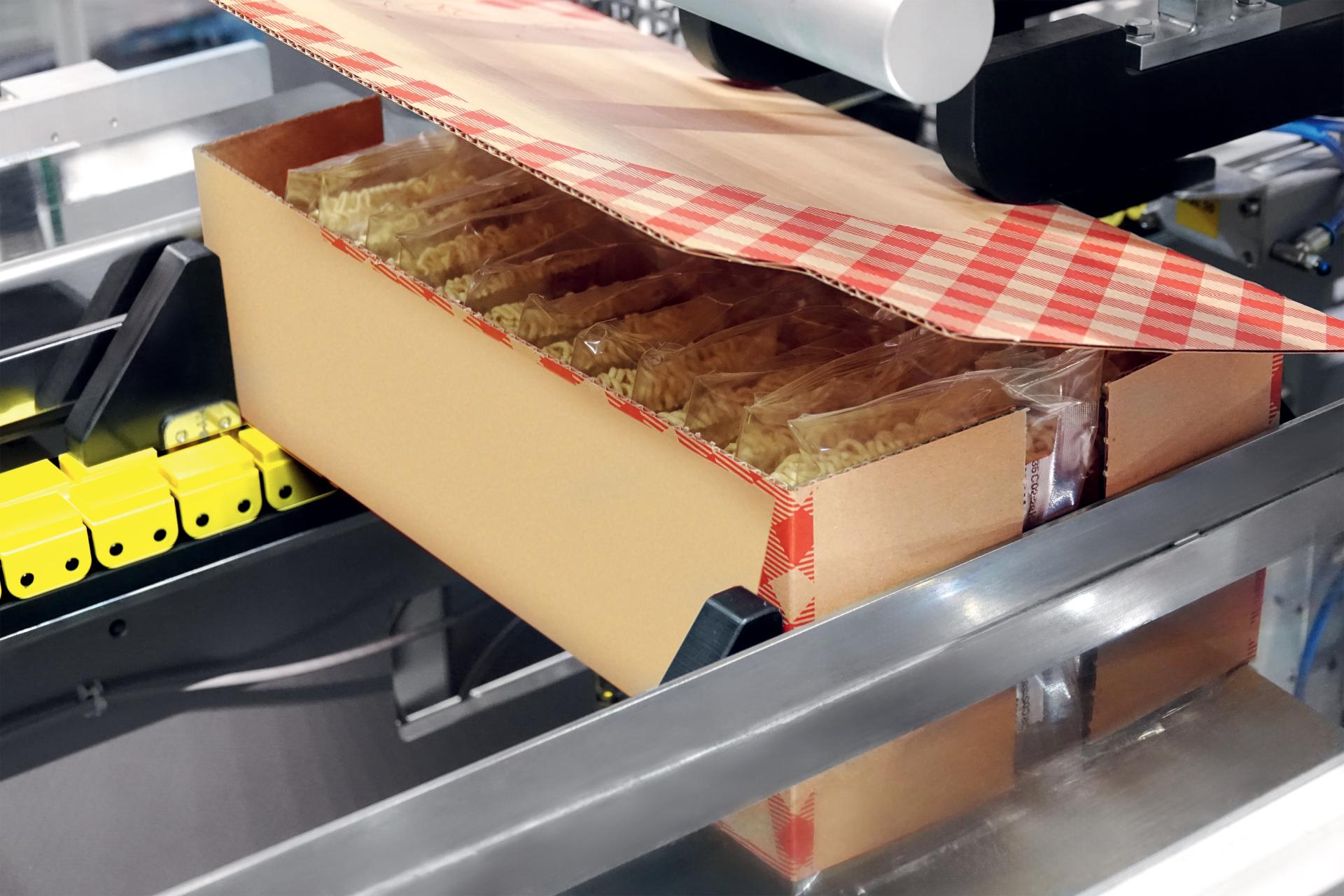

– The case blank is folded around the entire group of products

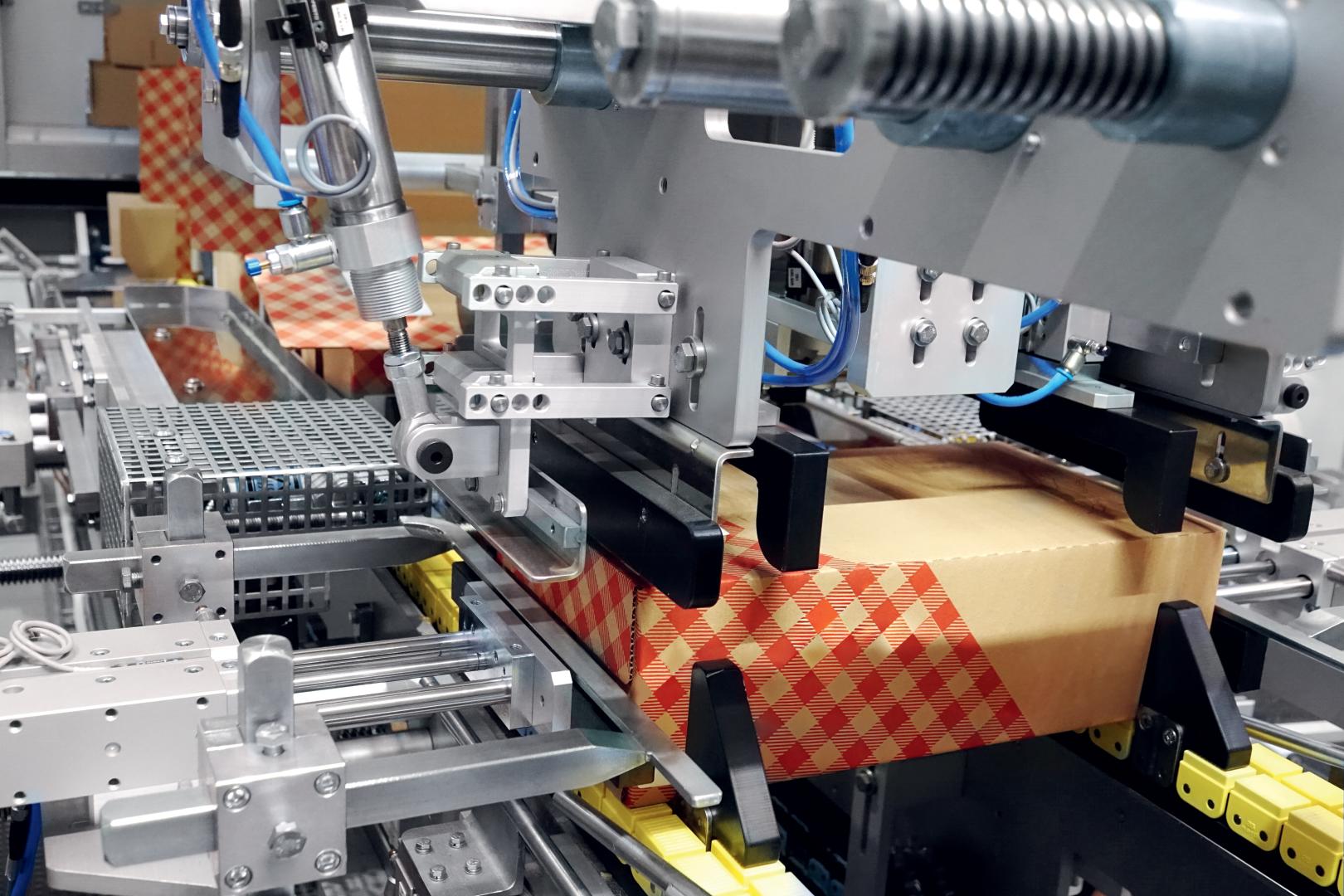

– The cover is closed and fixed with hot glue
The WA allows the use of recycled cardboards.
Production plant
IMA Ciemme
Machine highlights
-
Wide size range
Wide flow pack and box size range provides flexibility for current and future needs.
-
Flexible pack
Pack Style flexibility: can handle display boxes, wraparound cases, trays with hood packages.
-
Fast changeover
Quick, reliable format changeover by use of customised format kits and spindle adjustments.
-
Case closure
Cases can be closed with adhesive tape.
Machine details
Technical information
| WACP TECHNICAL DATA | |
| Line Speed | 20 cases/min. |
| Box size | 200x230x100 |
| Power required | Total installed power: 26 Kw |
| Compressed Air | Exercise pressure: 6 bar |
