WA PRO 16 Weighing and Counting
Machine overview
Performance and hygiene for high-volume production.

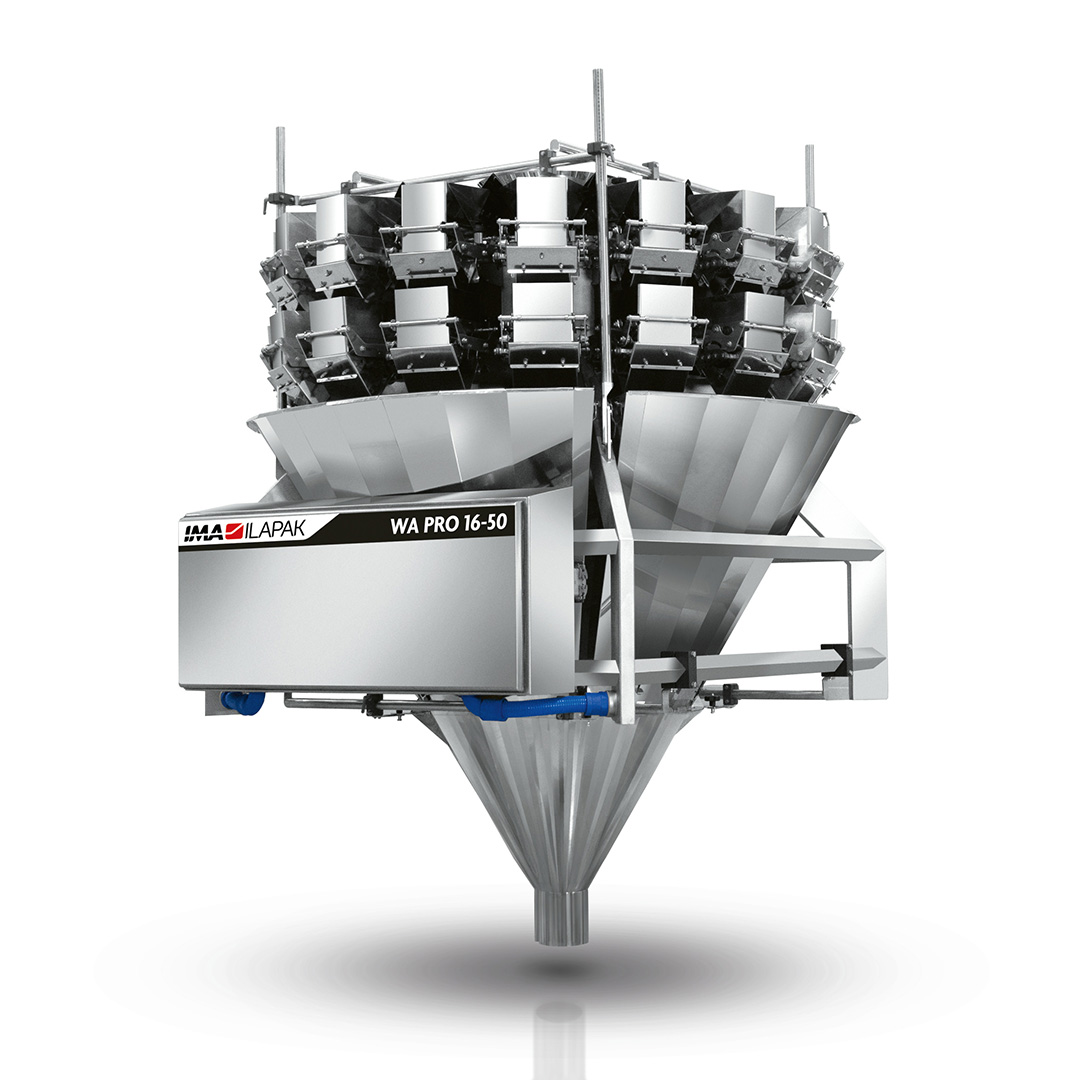

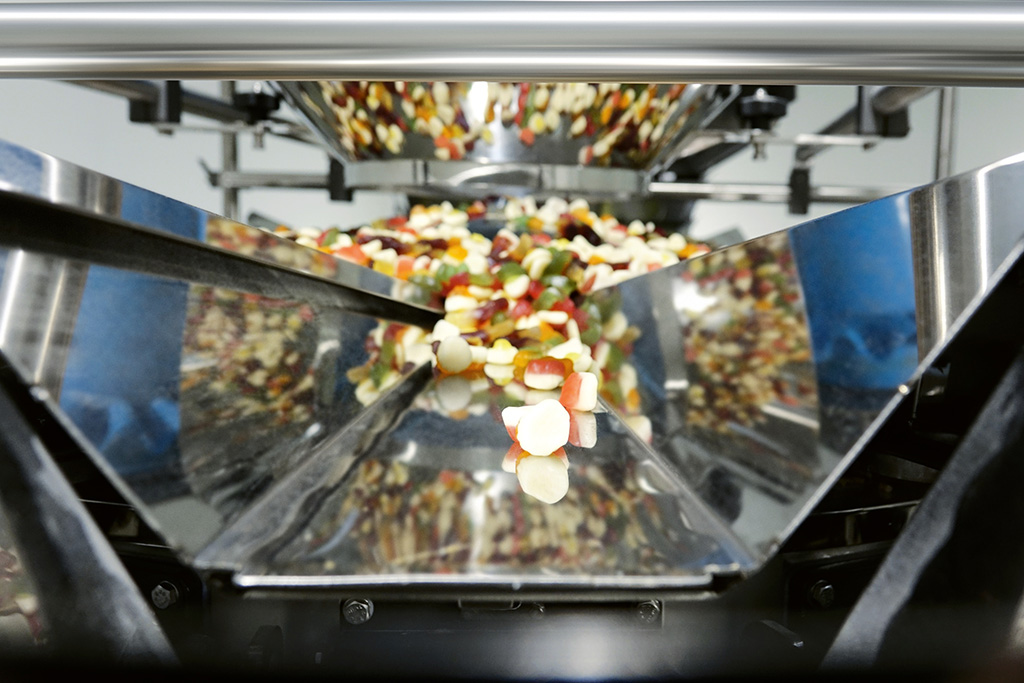

The WA PRO 16 is a high-precision, multi-head weigher built to handle medium to large product weighments in rigorous food production environments. Its full stainless-steel structure and washdown capability make it ideal for industries such as meat, cheese, frozen produce and dry foods.
With a hygienic, tool-free design and removable flap bucket system, the WA PRO 16 ensures fast sanitation and easy servicing. Combined with its intuitive HMI interface and OEE monitoring tools, the machine delivers outstanding reliability, flexibility and uptime.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
Stainless-steel construction
Full stainless-steel build for wet and hygienic environments.
-
Hygienic design

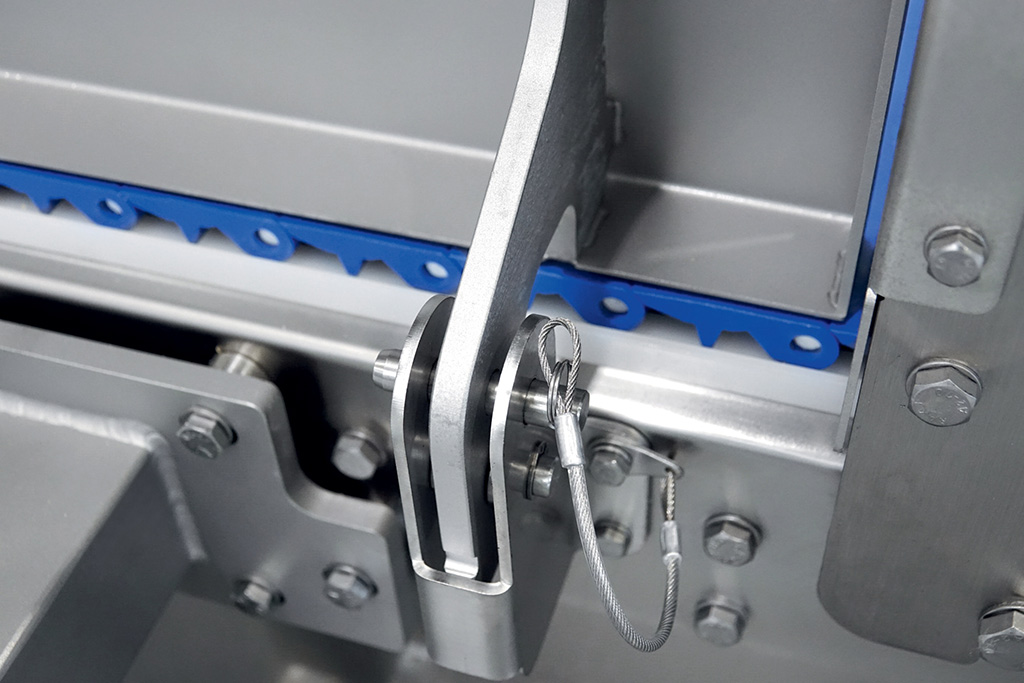

Top-level hygiene, tool-free, quick-release components.
-

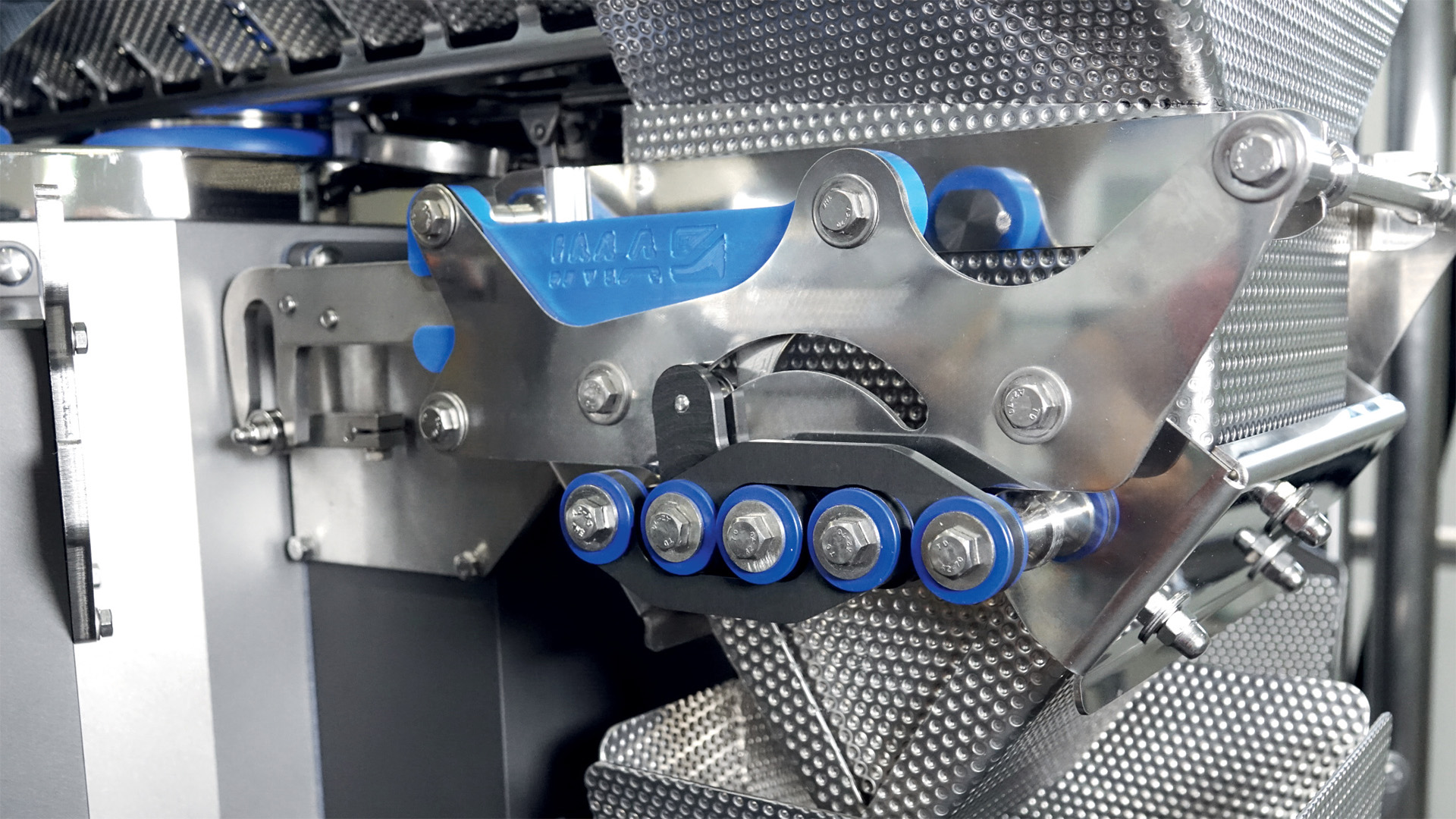

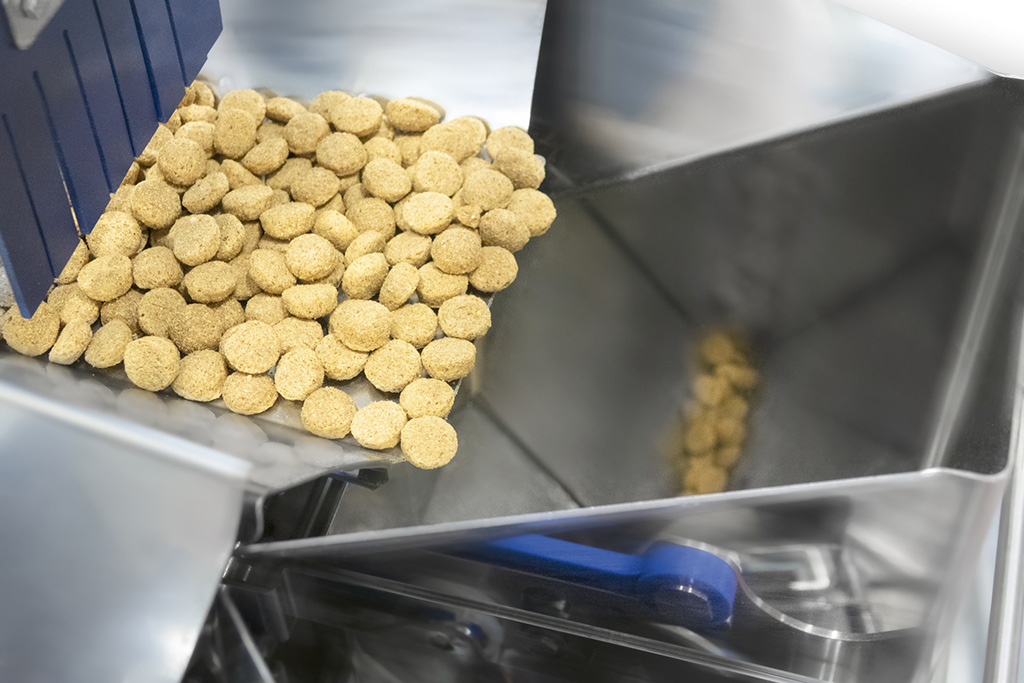

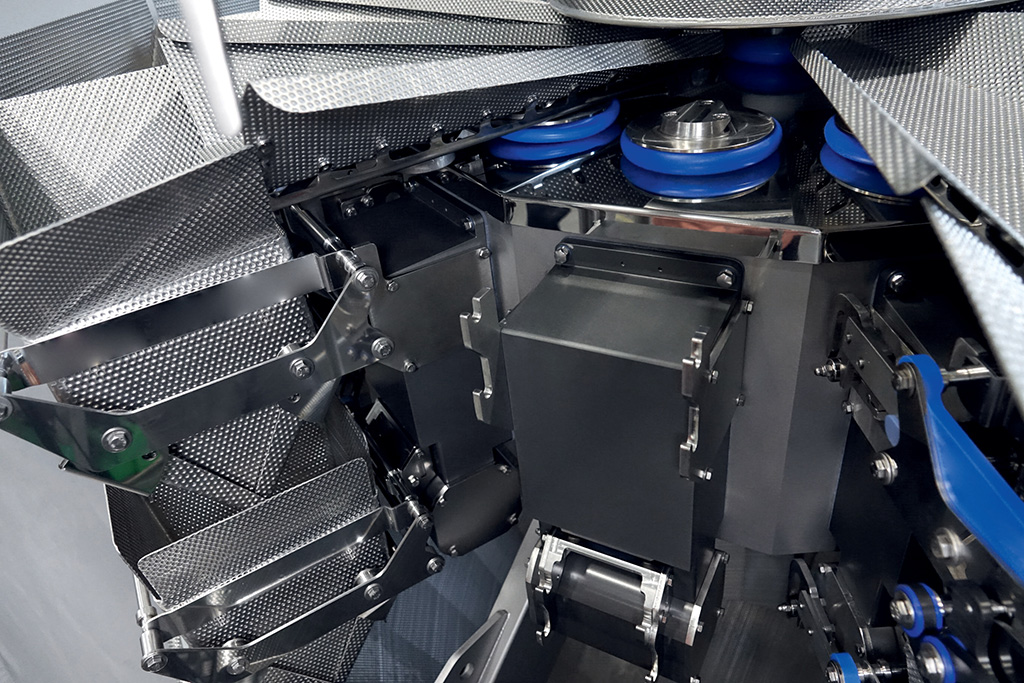

Open-close bucket system
Open-close bucket system with removable flaps.
-
Weighments
Ideal for medium to large weighments.
-
HMI
User-friendly HMI with OEE insights.
-
Versatility
Designed for fresh, frozen and dry applications.
Machine details
Technical information
| Max. Speed | 130 wpm |
|---|---|
| Weigh Heads | 16 |
| Bucket Volume | 5.0 l |
| Max. Discharge Volume (Single Dump) | 12.5 l |
| Discharge Weight Range (Single Dump) | 100 g – 3000 g |
| Max. Piece Length | 150 mm |

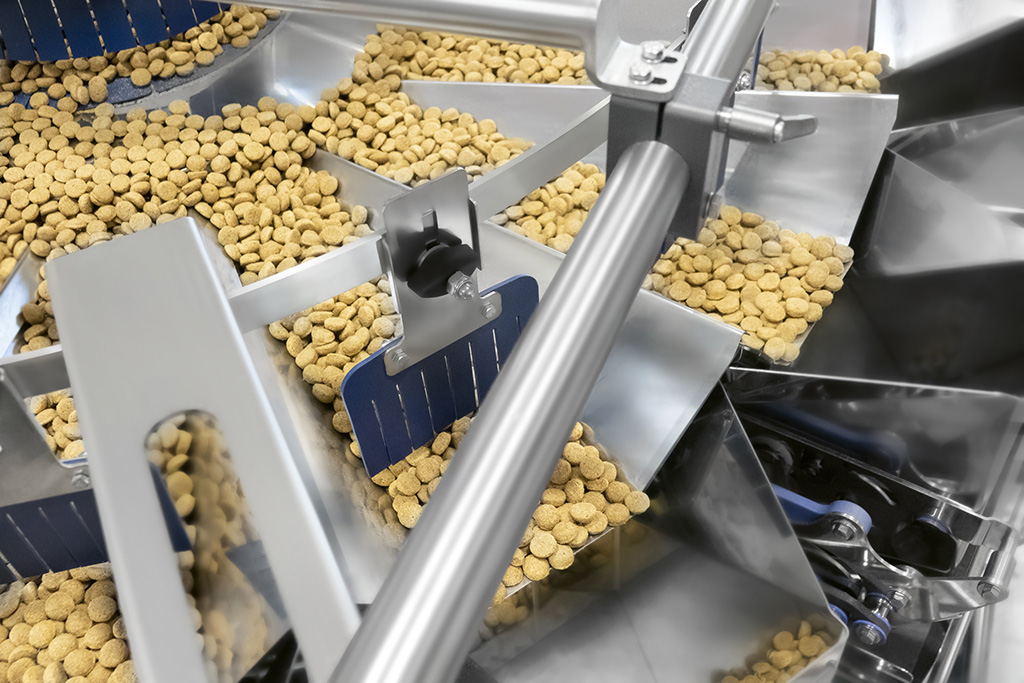

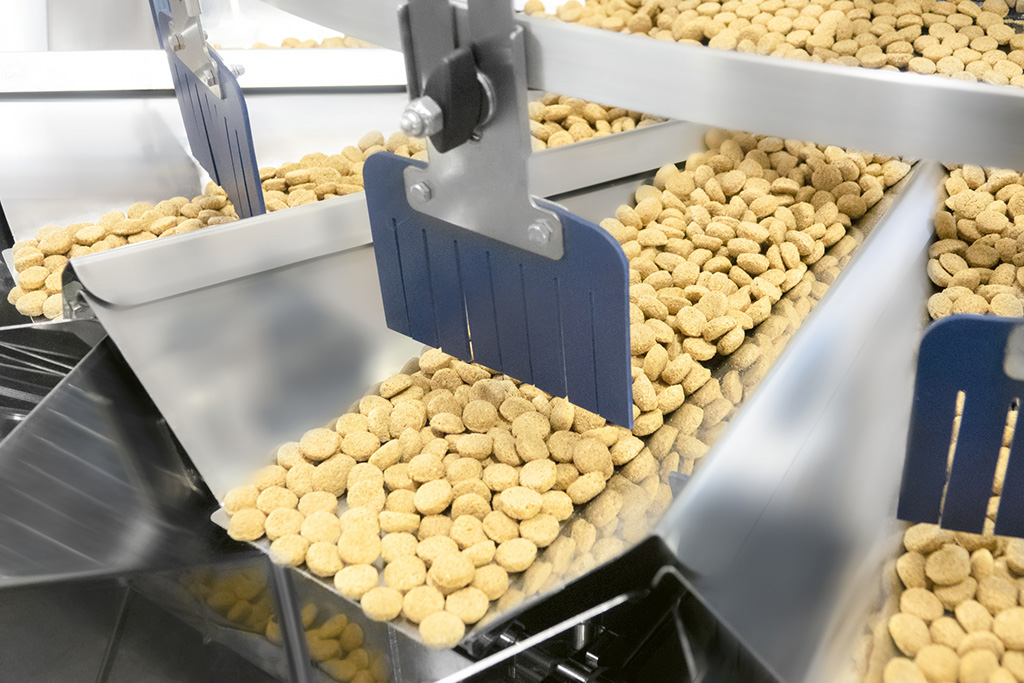

| Product Distribution | Vibratory or rotary distribution cone with loadcell to control product infeed |
| Product Contact Parts | AISI 304 stainless steel, Embossed plate* and special coatings* |
| Drive | Springless, high-speed stepper motors |
| Loadcells | C3 accuracy class, OIML approved R76 class |
| Electronic Platform | Industrial PC |
| HMI | 12″ (18″) colour touch screen with remote control capability (augmented reality feature*) |
| Program Memory | Over 1000 recipes |
| Power Supply (Options Excluded) | 230 VAc ±5%, 1 phase, neutral, GND, 50/60 Hz, 1.2 kW, 6 A (3 A @ 480 V) |
| Compressed Air (Options Excluded) | 180 l/min @ 7 bar |

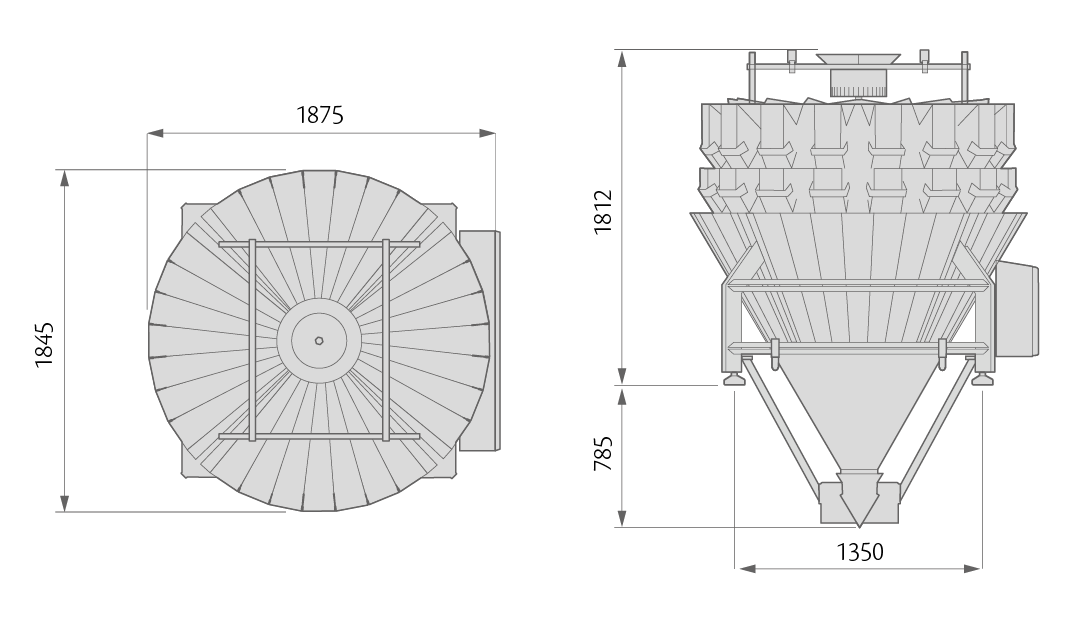

| Machine Dimensions (W × D × H) | 1845 × 1875 × 1812 mm |
| Machine Weight | 1000 kg |
*optional
