WA PRO 12 Weighing and Counting

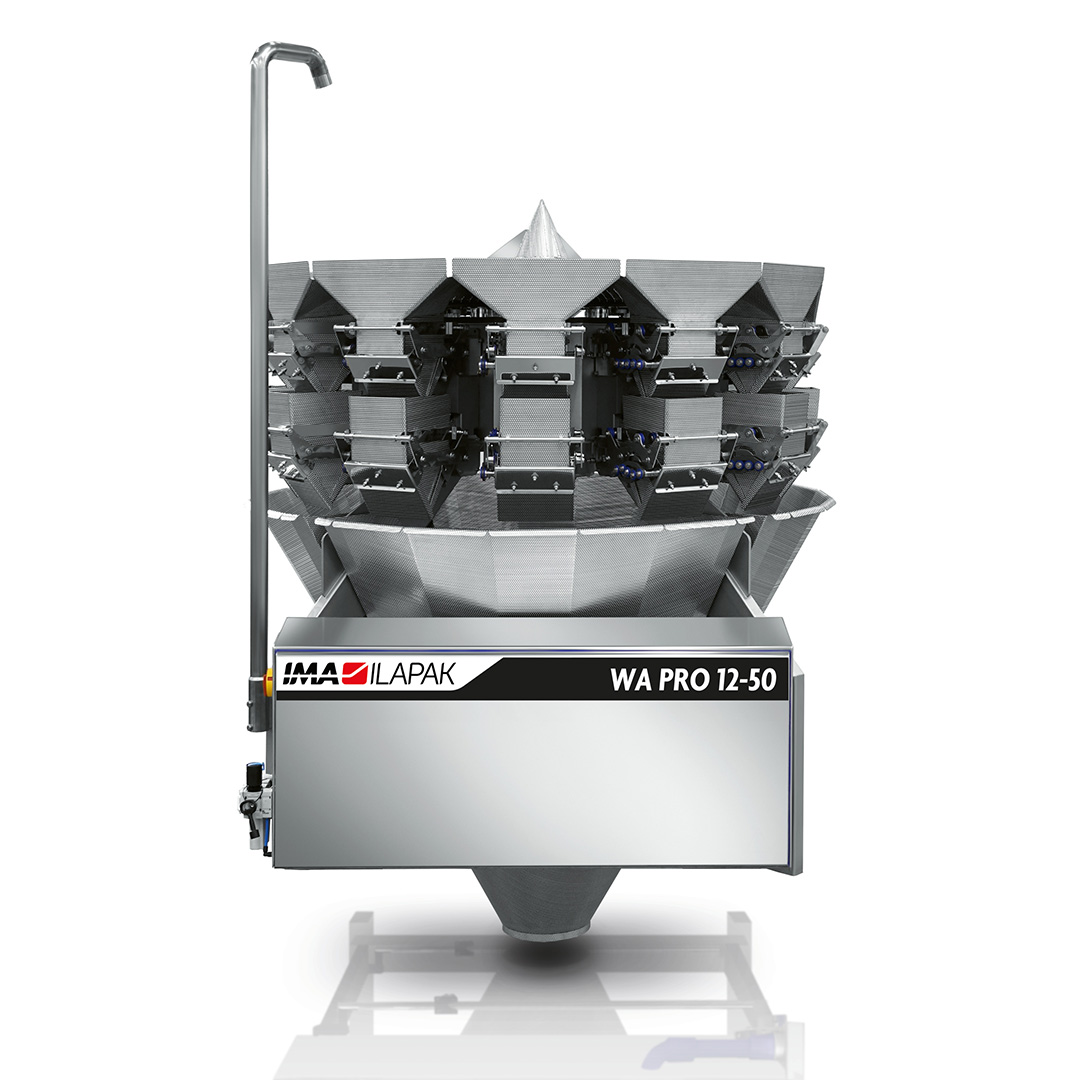

Machine overview
Engineered for hygiene. Designed for performance.
The WA PRO 12 is a premium stainless-steel, multi-head weigher developed for the most demanding sanitary applications in the food industry. Designed with hygiene, flexibility and efficiency in mind, this machine features a tool-free, quick-release design that enables fast cleaning and maintenance.
Thanks to its corrosion-resistant build, intuitive HMI with OEE support tools, and dual operation in weighing or counting modes, the WA PRO 12 offers maximum uptime and adaptability. It is ideal for cheese, meat, produce and a wide range of fresh, frozen and dry foods.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
Built for washdown environments
Full stainless-steel construction for washdown environments.
-
Hygienic design

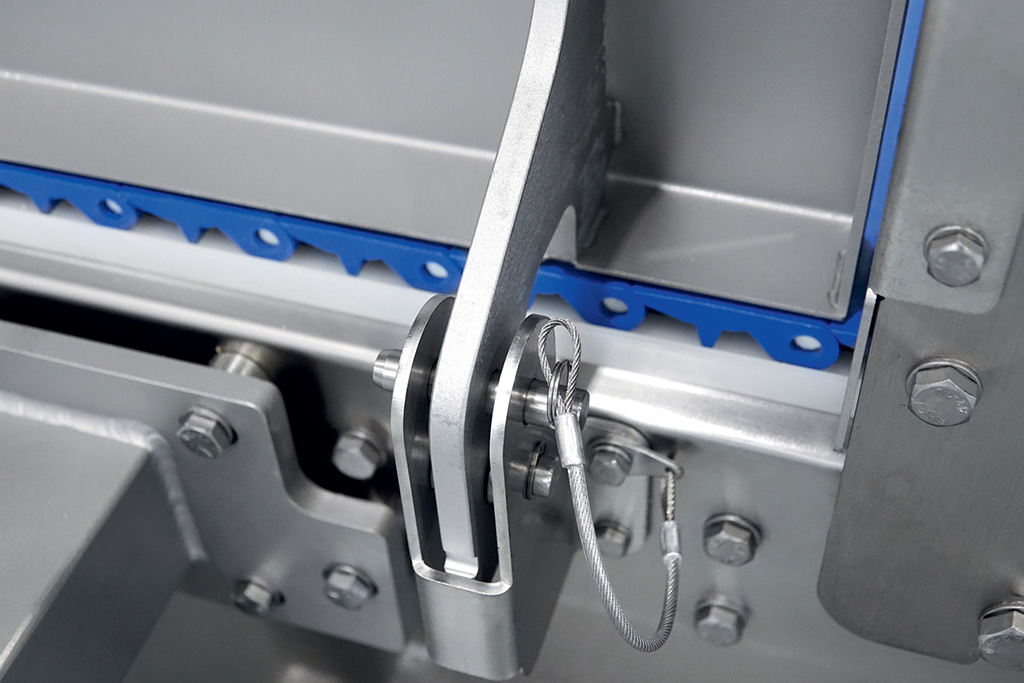

Top-level hygienic design with tool-free change parts.
-

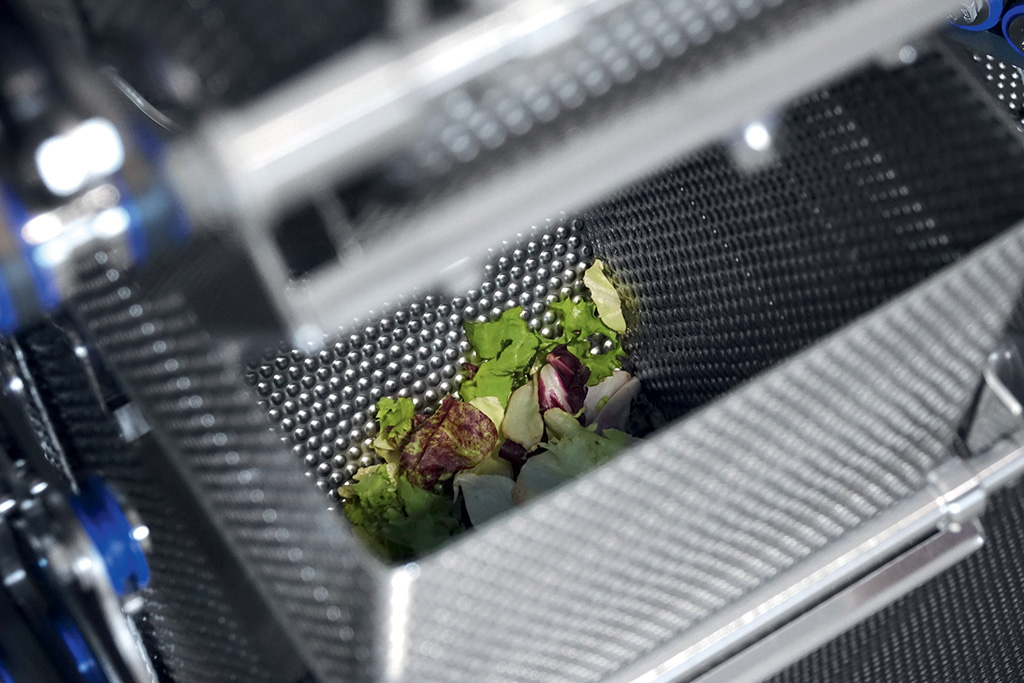

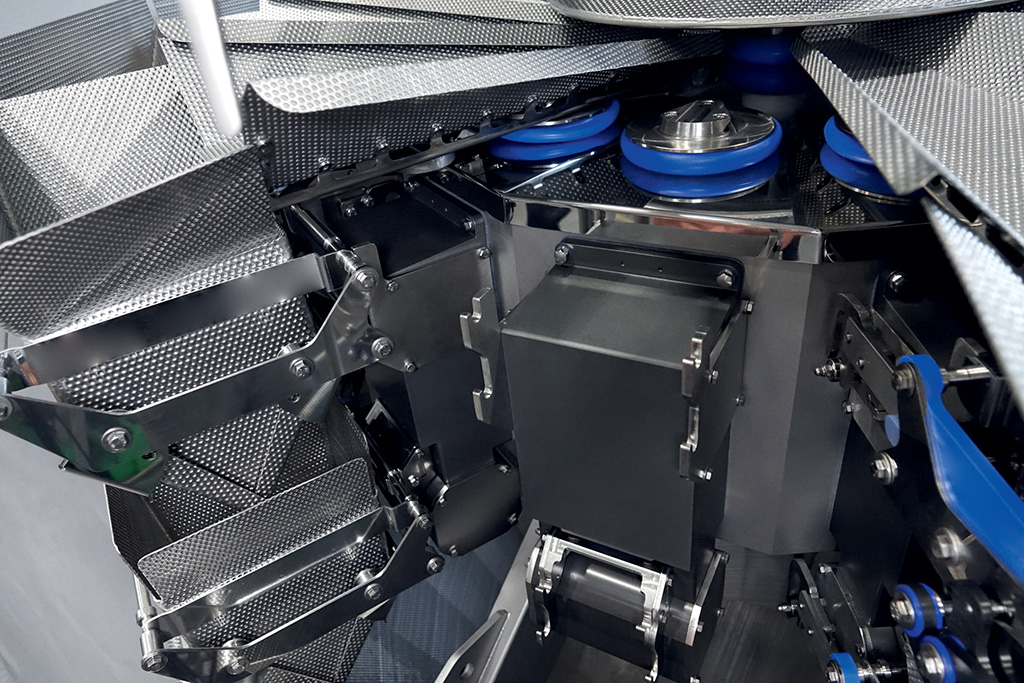

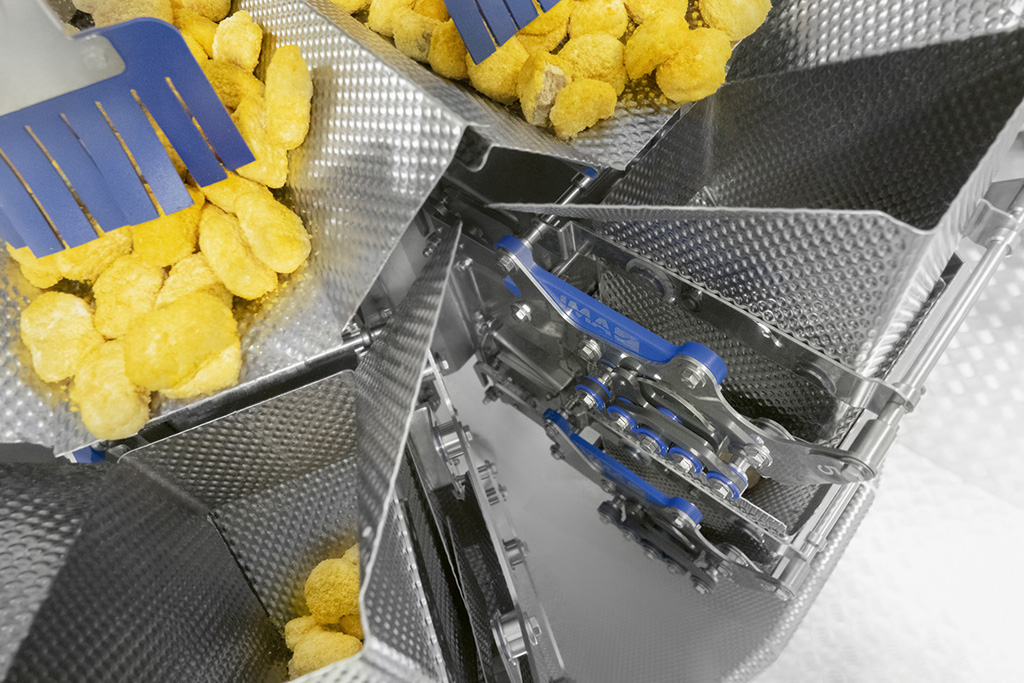

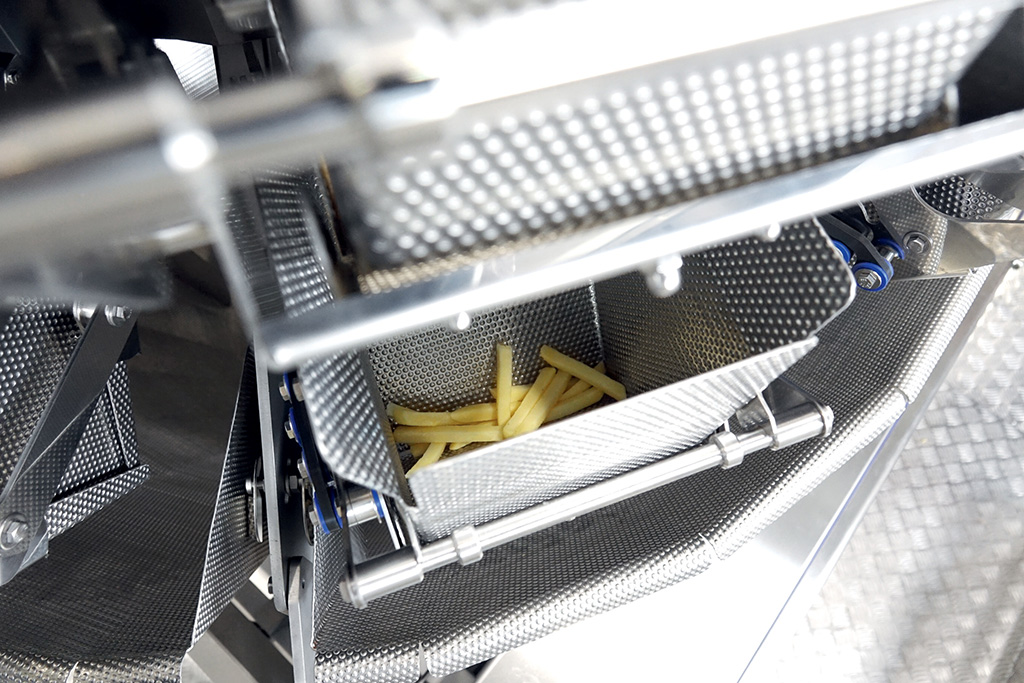

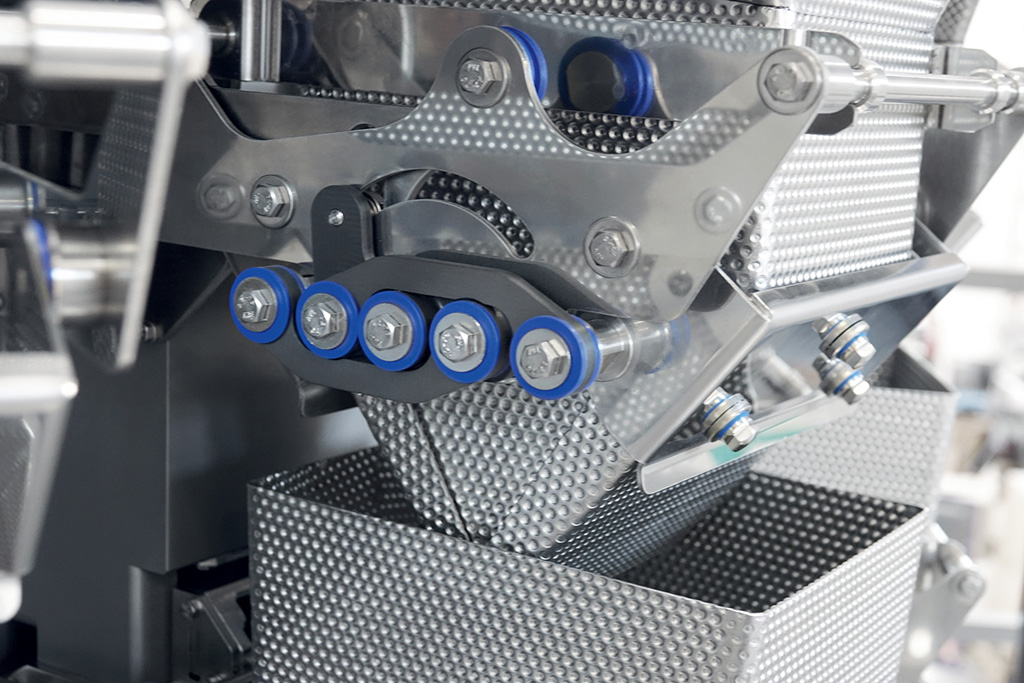

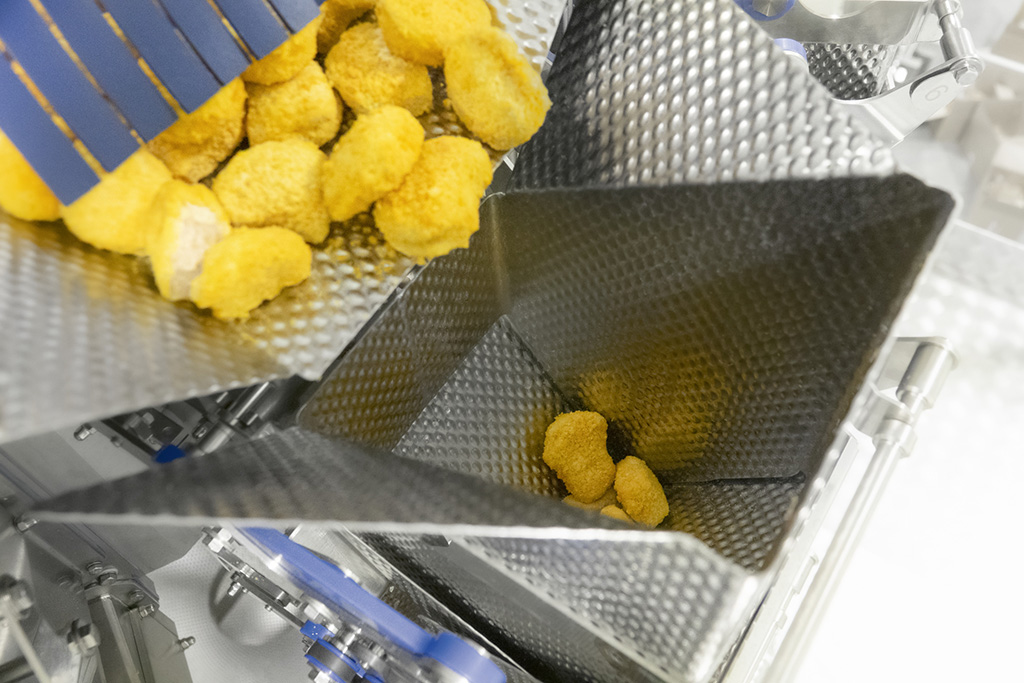

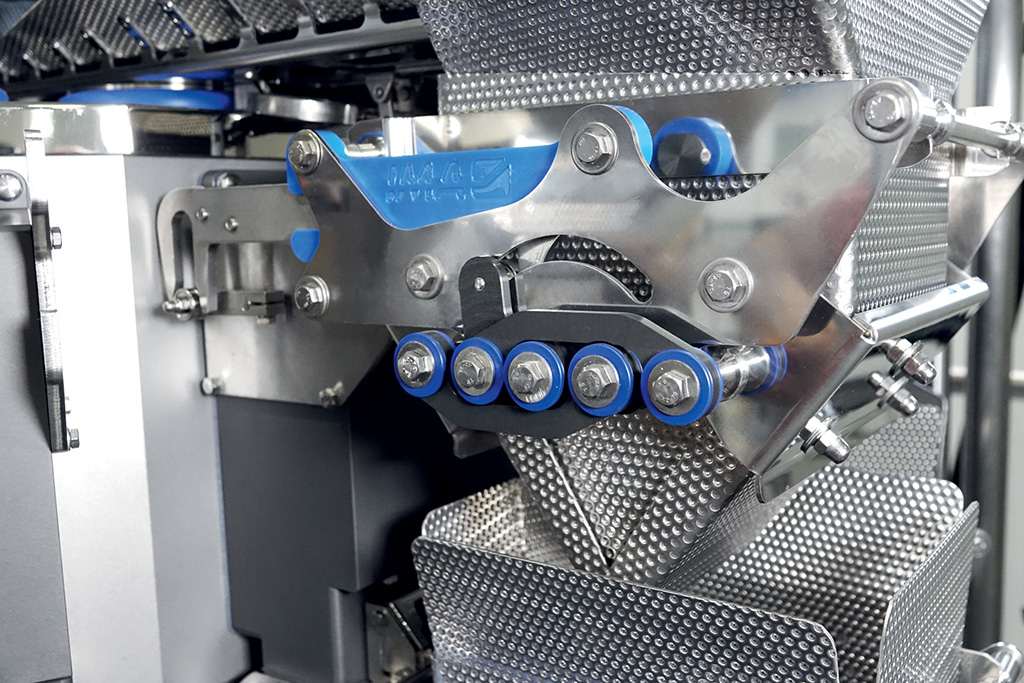

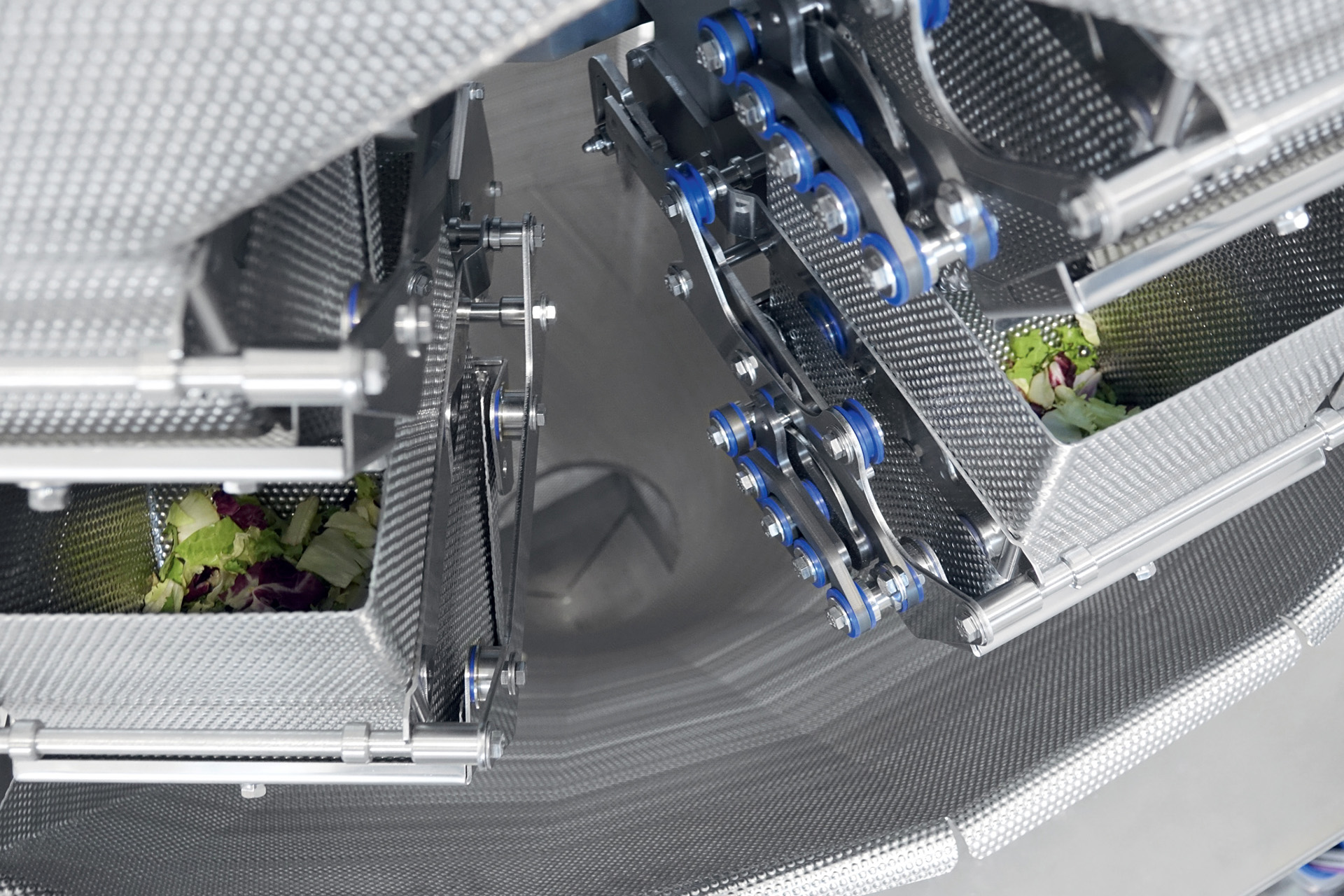

Open-close bucket system
Open-close bucket system with removable flaps.
-
HMI
User-friendly HMI with OEE monitoring.
-
Configurations
Weighing or counting configuration.
-
Product safety
Fast sanitation, minimal downtime, optimal product safety.
Machine details
Technical information
| Max. Speed | 70 wpm |
|---|---|
| Weigh Heads | 12 |
| Bucket Volume | 5 l |
| Max. Discharge Volume (Single Dump) | 9.5 l |
| Discharge Weight Range (Single Dump) | 100 g – 3000 g |
| Max. Piece Length | 150 mm |

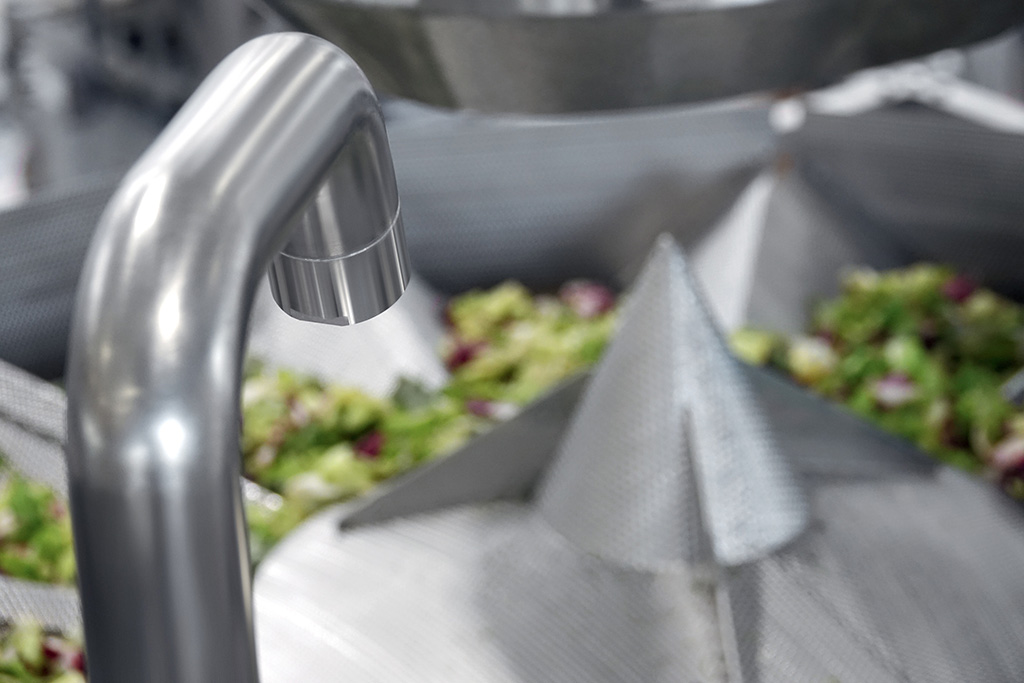

| Product Distribution | Vibratory or rotary distribution cone with loadcell to control product infeed |
| Product Contact Parts | AISI 304 stainless steel, Embossed plate* and special coatings* |
| Drive | Springless, high speed stepper motors |
| Loadcells | C3 accuracy class, OIML approved R76 class |
| Electronic Platform | Industrial PC |
| HMI | 12″ (18″*) colour touch screen with remote control capability (augmented reality feature*) |
| Program Memory | Over 1000 recipes |
| Power Supply (Options Excluded) | 230 Vac ±15%, 1 phase, neutral, GND, 50/60 Hz, 1.2 kW, 6 A (3 Ø @ 480 V) |
| Compressed Air (Options Excluded) | 180 l/min @ 7 bar |

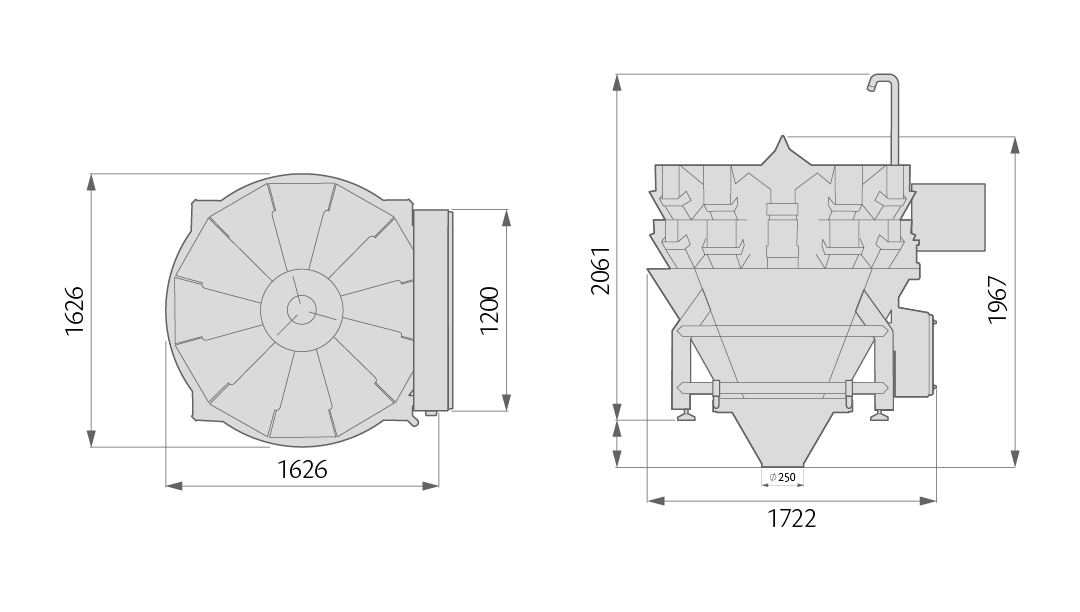

| Machine Dimensions (W × D × H) | 1626 × 1626 × 2061 mm |
| Machine Weight | 800 kg |
