Precision meets performance — in a compact multi-head solution
The IMA Ilapak WA 14-25 is a compact, high-performance multi-head weigher designed for dry, fresh, and frozen products across bakery, cheese, meat, produce, and other food sectors. Available in weighing or counting mode, it features fast-change, easy-to-clean product contact parts in plain, embossed, or coated finishes. With a hygienic wash-down design and intuitive HMI interface, the WA 14-25 ensures minimal downtime, fast troubleshooting, and accurate, efficient operation — even in demanding production environments. It’s the ideal solution for manufacturers requiring maximum output and flexibility within a compact footprint.
Production plant
IMA Ilapak Italia S.p.A.
Perfect for space-constrained production lines without compromising performance.
Functions in both weighing and counting modes to suit a variety of product types.
Wash-down compatible and designed to meet strict food safety standards.
Integrated troubleshooting and intuitive controls for simplified operation and minimal training.
Quick-release components designed to reduce downtime and improve OEE.
Available from 10 to 24 heads for tailored accuracy and speed across a wide range of applications.
| Max. Speed | 90 wpm |
|---|---|
| Weigh Heads | 14 |
| Bucket Volume | 2.5 l |
| Max. Discharge Volume (Single Dump) | 6.25 l |
| Discharge Weight Range (Single Dump) | 25 g – 1500 g |
| Max. Piece Length | 120 mm |
| Product Distribution | Vibratory or rotary distribution cone with loadcell to control product infeed |
| Product Contact Parts | Stainless steel AISI 304, Embossed plate* and special coatings* |
| Drive | Springless, high speed stepper motors |
| Loadcells | C3 accuracy class, OIML approved R76 class |
| Electronic Platform | Industrial PC |
| HMI | 12″ (18″*) colour touch screen with remote control capability (augmented reality feature*) |
| Program Memory | Over 1000 recipes |
| Power Supply (Options Excluded) | 230 Vac ±5%, 1 phase, neutral, GND, 50/60 Hz, 1.2 kW, 6 A (3 A @ 480 V) |
| Compressed Air (Options Excluded) | 180 l/min @ 7 bar |

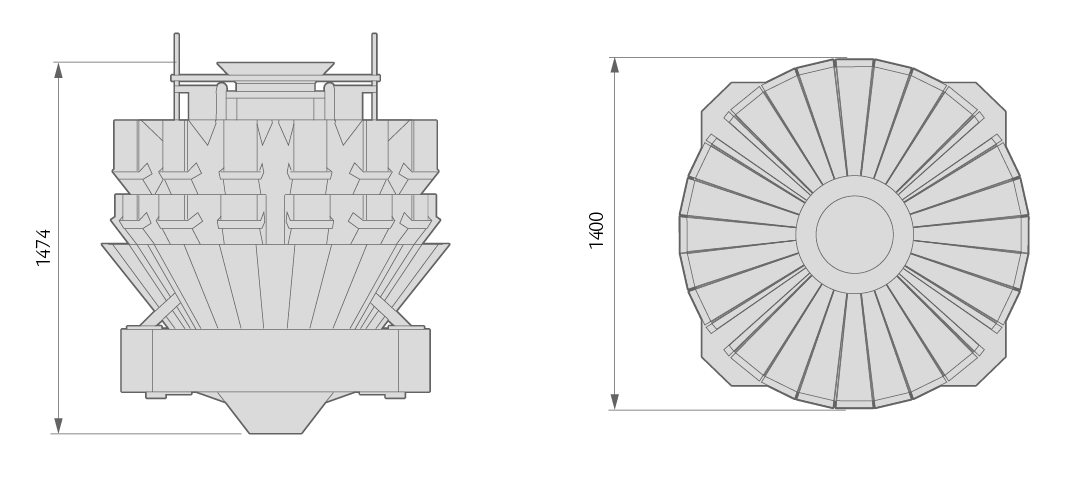

| Machine Dimensions (W × D × H) | 1402 × 1402 × 1474 mm (55.2 × 55.2 × 58.03″) |
| Machine Weight | 650 kg |
*optional
