Shaping washing to your needs.

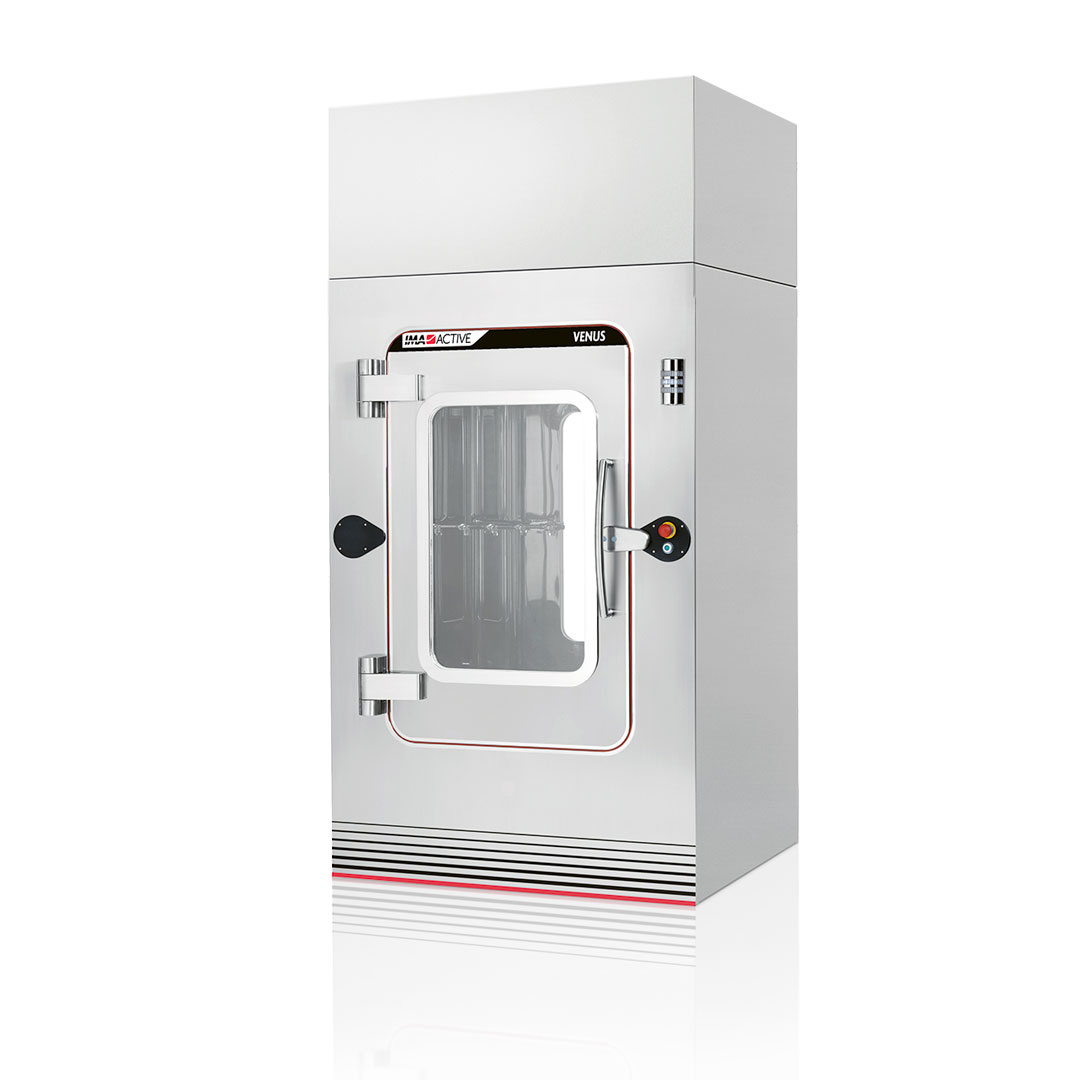

Venus is the all-in-one, fully automatic industrial parts washer for pharma containers and components of different sizes and volumes. Available in two models (900 and 1200), Venus works with a water recirculation system at low pressure and high flow rate.
A combination of IMA Active’s technological expertise and knowledge of the pharmaceutical industry, Venus achieves top-level performance while minimising water and detergent consumption.
Venus water recirculation system allows consumption saving and reduces the disposal of dirty water at the end of the washing cycle, while granting optimal equipment performance. The AHU allows energy efficiency thanks to the recovery of treated air which is used to cool/heat the incoming air thus maintaining optimal system performance.
Production plant
IMA Active
Detergent groups with automatic dose regulation.
Air Handling Unit with extraction fan for drying. AirJetStream for faster drying as an option.
Suitable for through-the-wall installation to keep clean and non-clean areas separate.

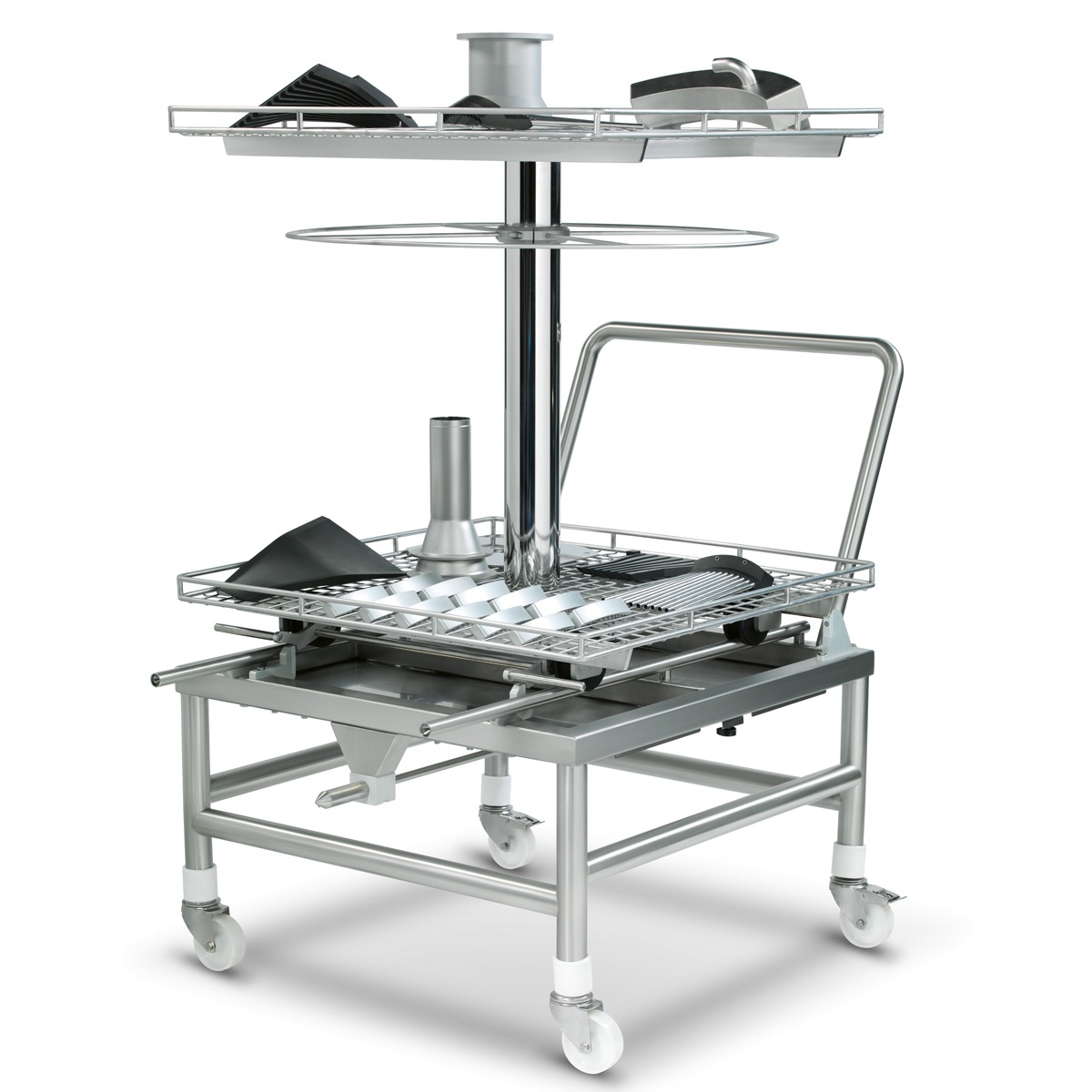

Two-shelf basket for increased throughput. Drum and hose washing racks as an option.

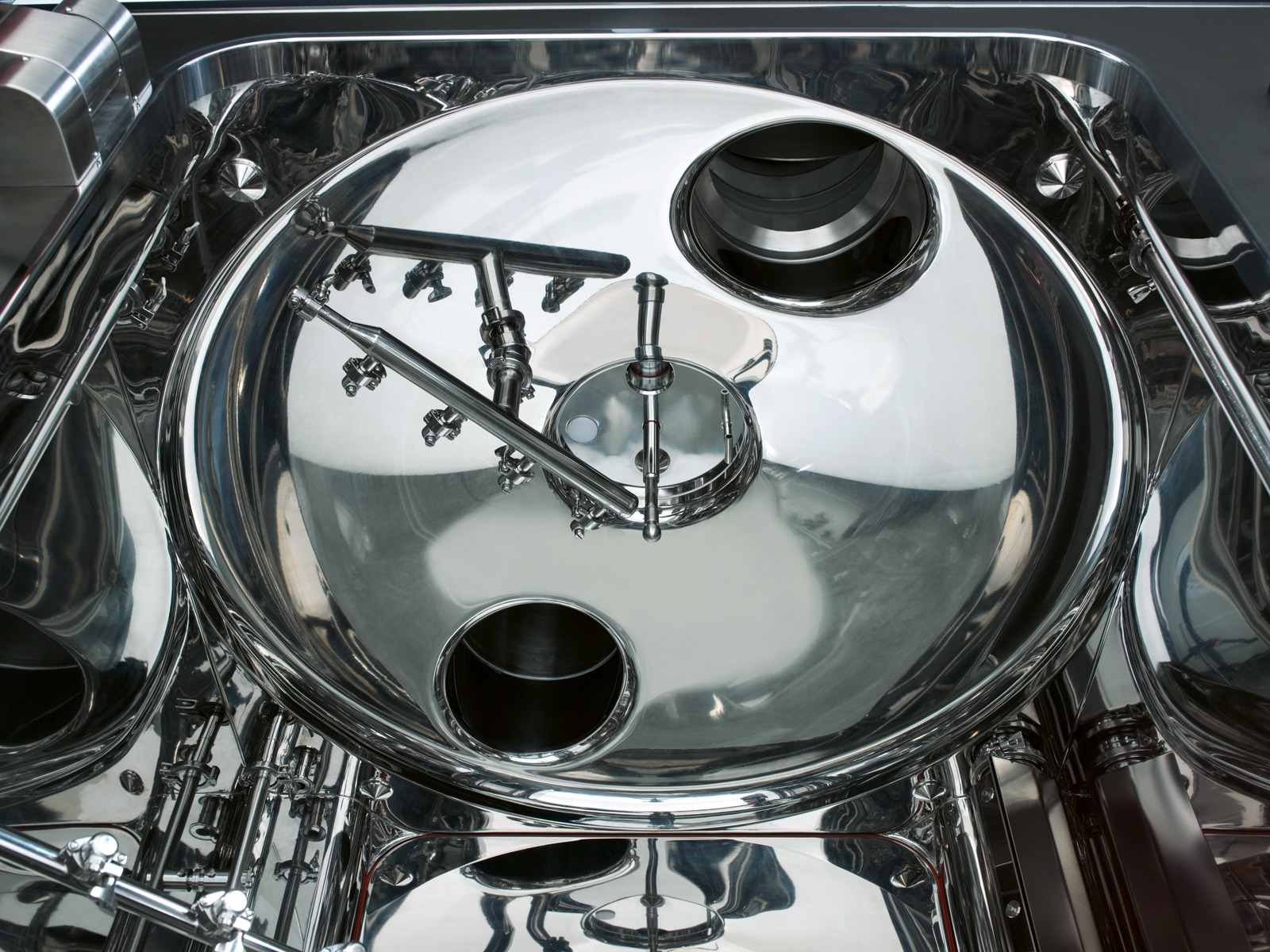

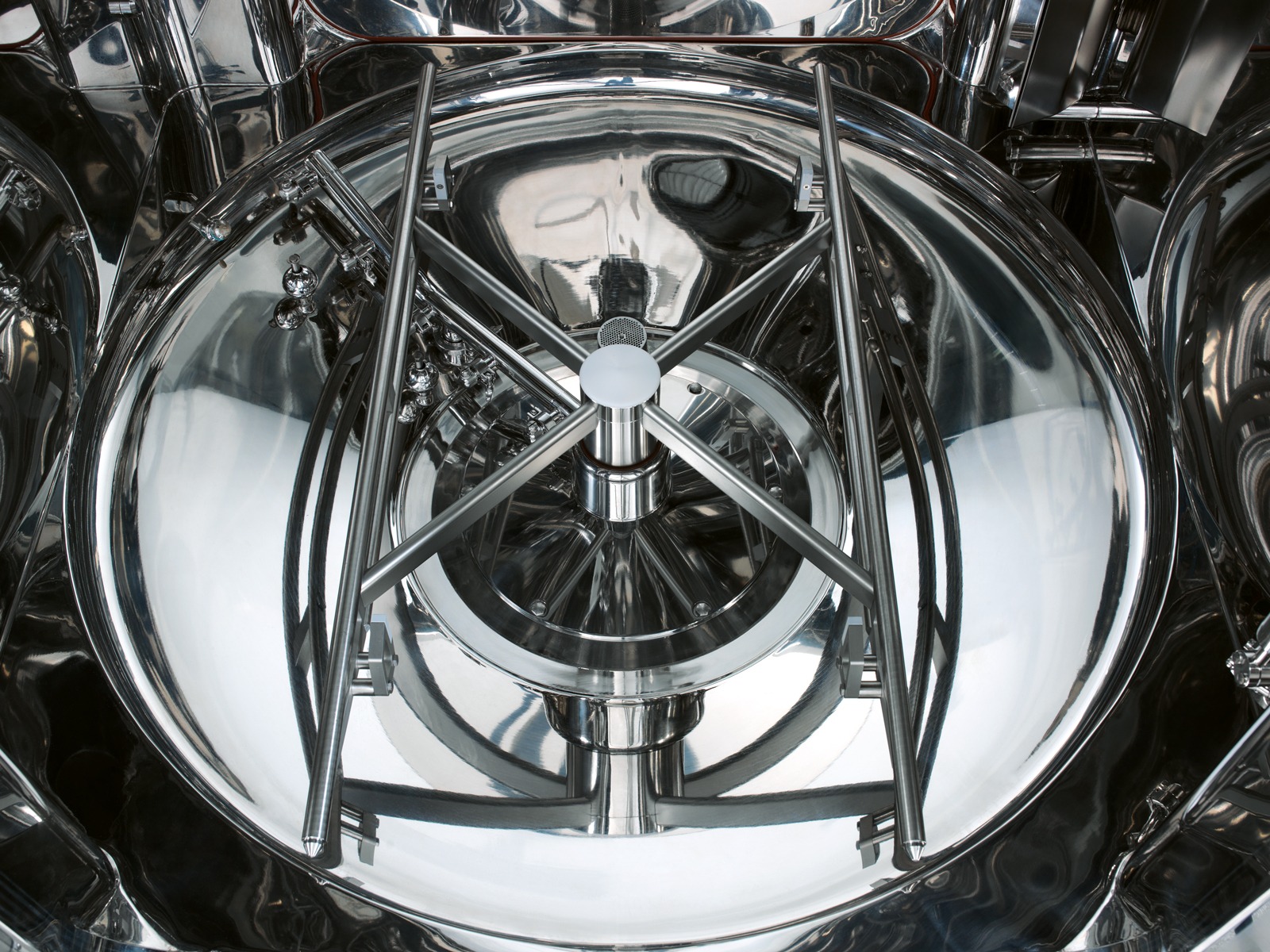

The strategically positioned nozzle ramps, combined with the rotating platform, guarantee complete water coverage. Different racks and baskets are available for optimal washing even in the case of pharma components with a complex design.
| Venus technical data | ||
| MODEL | Venus 900 | Venus 1200 |
| Water inlet flow (l/min) | 50 | 50 |
| Water inlet pressure (bar) | 1±3 | 1±3 |
| Recirculation working pressure (bar) | 5 | 5 |
| (OPT) Once through working pressure (bar) | 10 | 10 |
| Water maximum temperature (°C) | 85 | 85 |
| Process air delivery (m3/h) | 1,500 | 2,500 |
| Process air maximum temperature (°C) | 85 | 85 |
| Reference machine weight (kg) | 1,800 | 2,100 |
