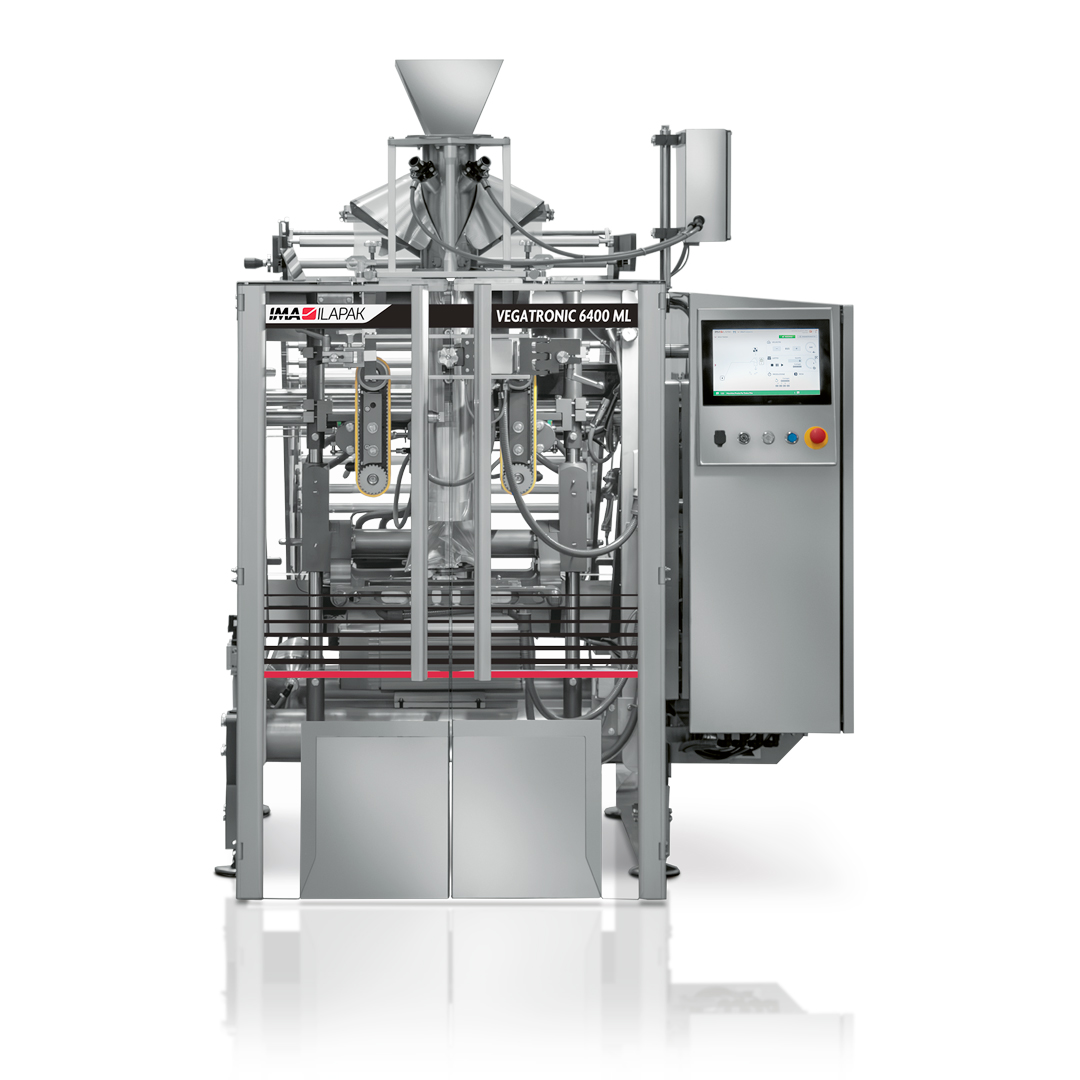

VEGATRONIC 6400 ML Vertical Form Fill and Seal

Machine overview

High‑Performance Continuous‑Motion VFFS for Medium to Large Bag Formats

A continuous‑motion VFFS solution engineered to deliver outstanding efficiency and reliable performance across a wide range of applications. The Vegatronic 6400 ML features an open‑frame, hygienic design that ensures easy cleaning and full accessibility, fully supporting the most stringent food‑safety standards.
Designed for medium to large bag formats, it handles multiple materials and bag styles with ease, delivering exceptional flexibility and cost‑effective production for the fresh‑produce, IQF and dairy sectors.

Production plant

Ilapak Italia S.p.A.

Machine highlights

  1. Designed for medium and large bag capacity

    Supports high‑volume packaging for increased productivity and versatility.

  2. Hygienic Open Frame Design

    Provides easy access to all machine components, enabling continuous monitoring, faster change‑overs and improved operational efficiency.

  3. Extreme sealing pressure

    Can handle thick films and guarantee tight seals for MAP applications.

  4. Maximum versatility

    Wide range of pack styles: pillow, BB ,Quattro, Flexcan, Easypack, and seal options.

  5. Ultrasonic sealing option

    Drastic reduction of leak rate, film saving, energy saving.

Machine details

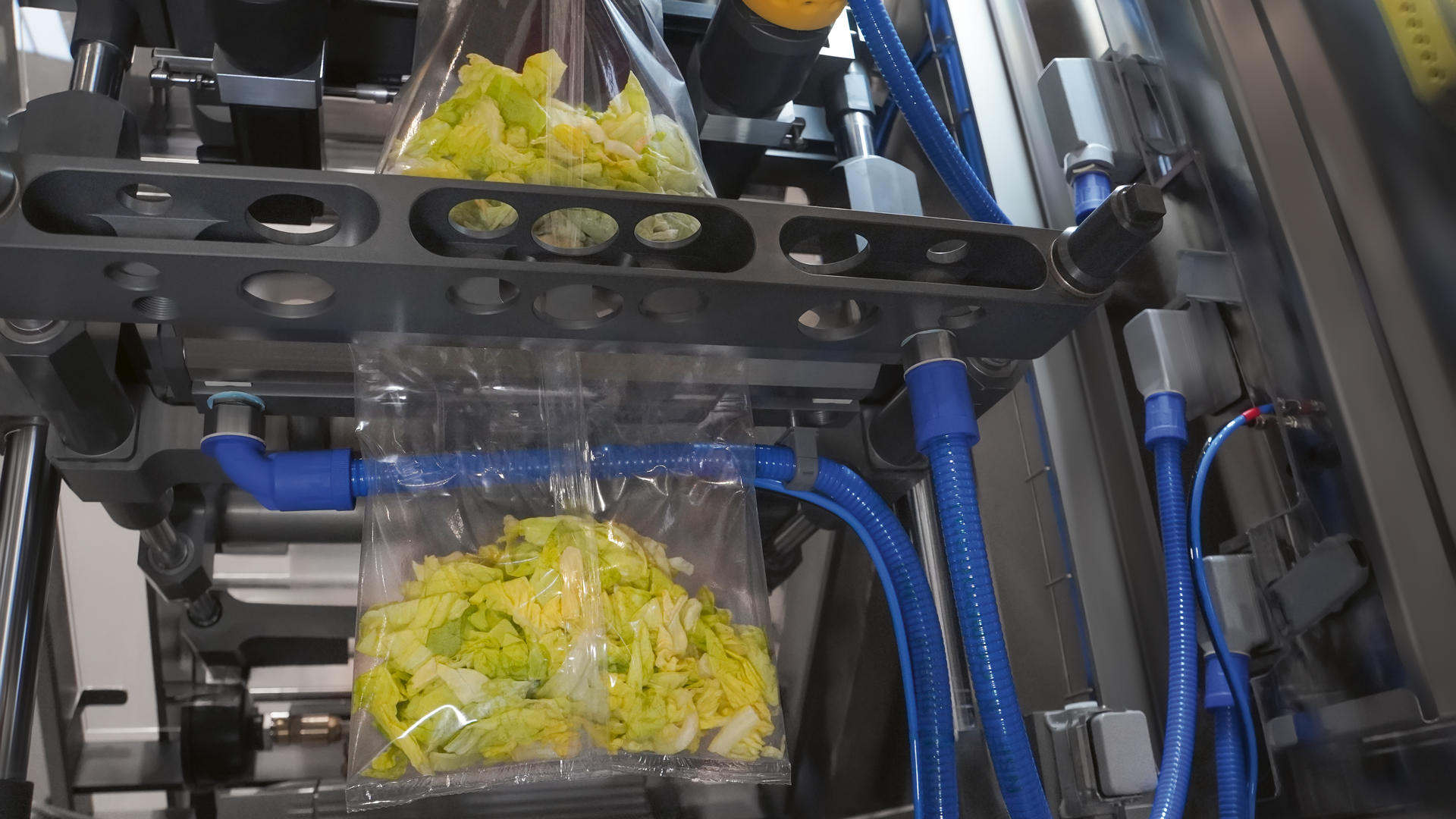

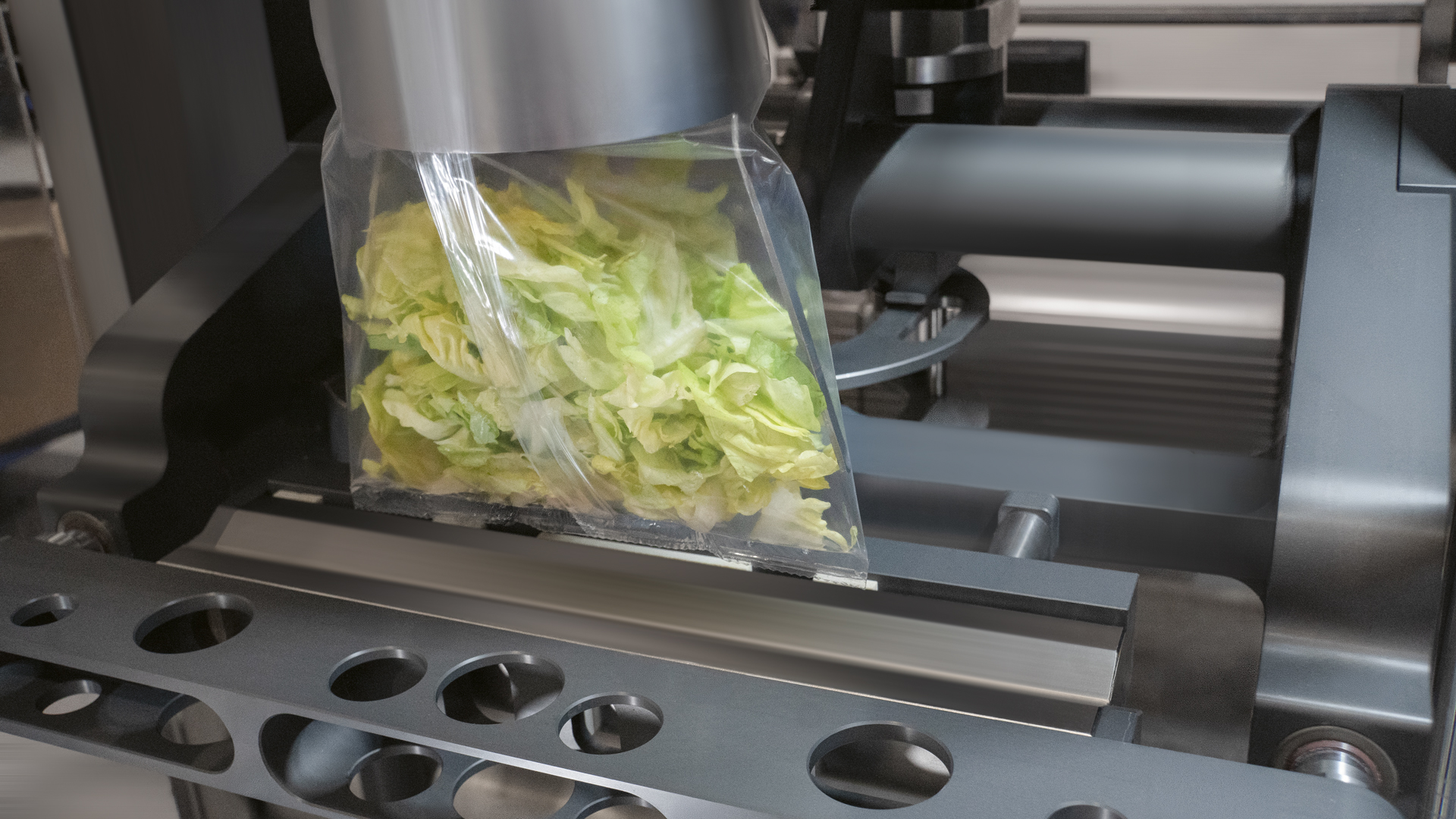

Transversal sealing for large fresh‑cut salad bags

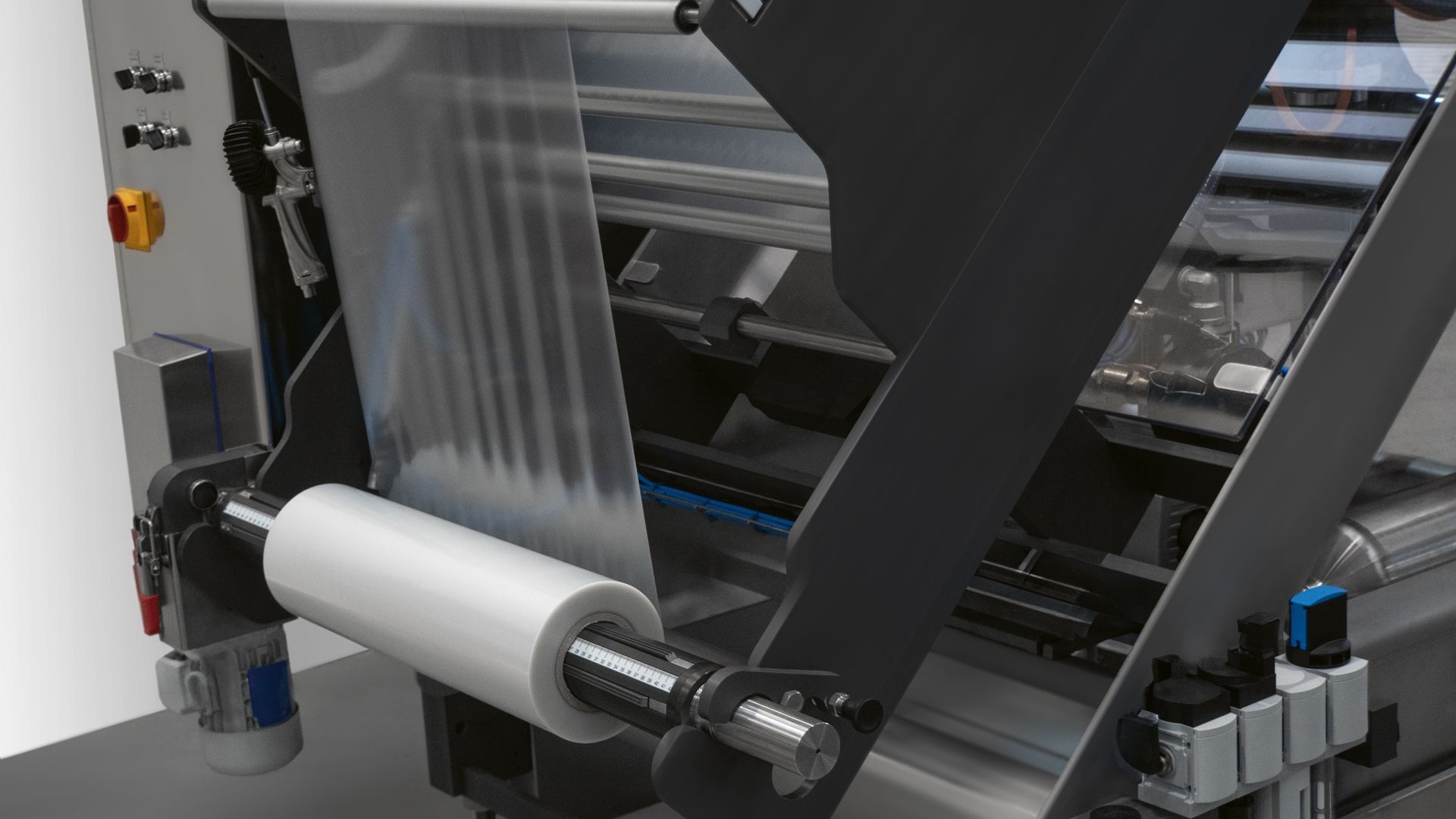

Rear section of the machine showing film reel

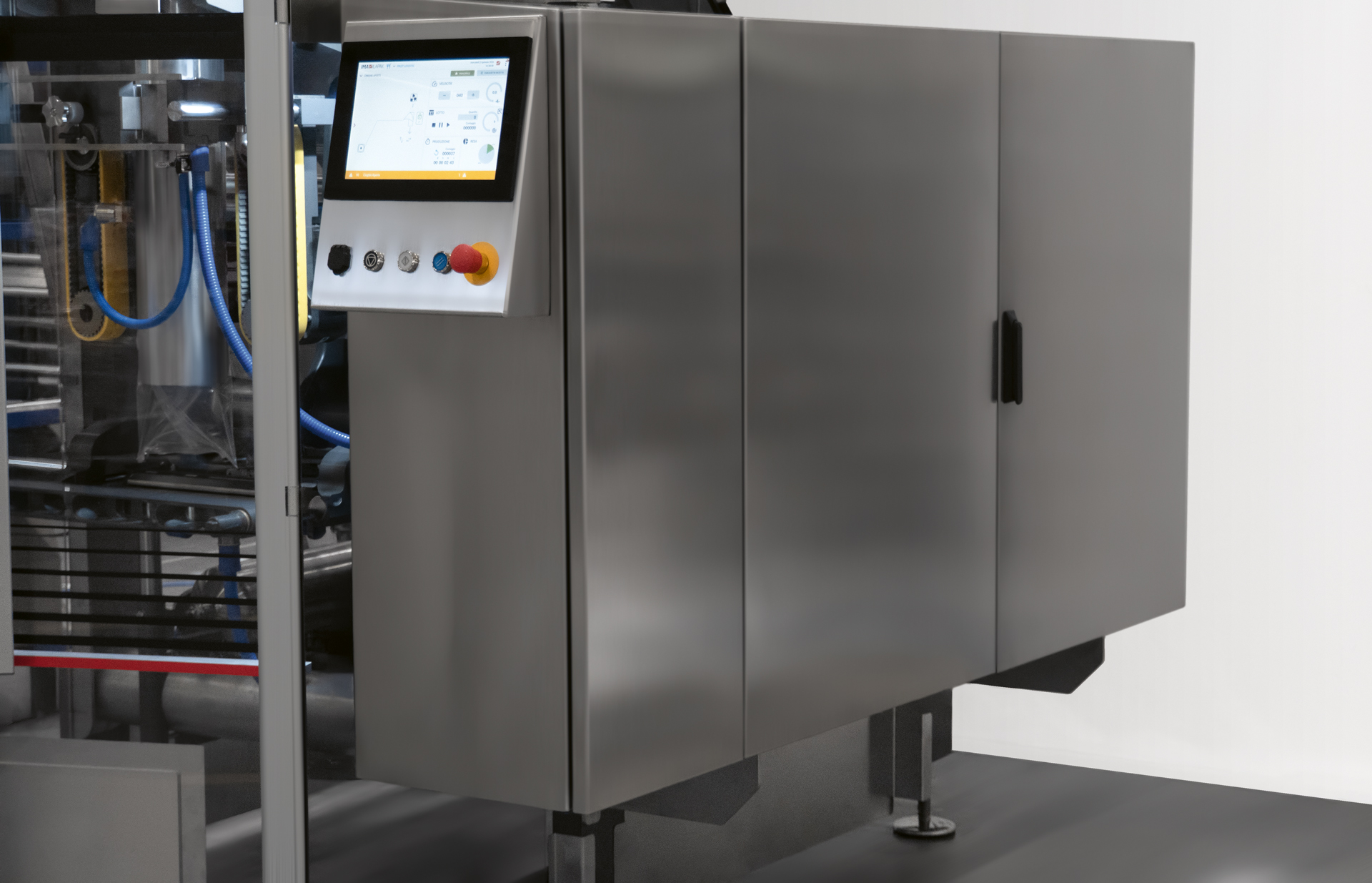

Side and HMI view of the bagging machine

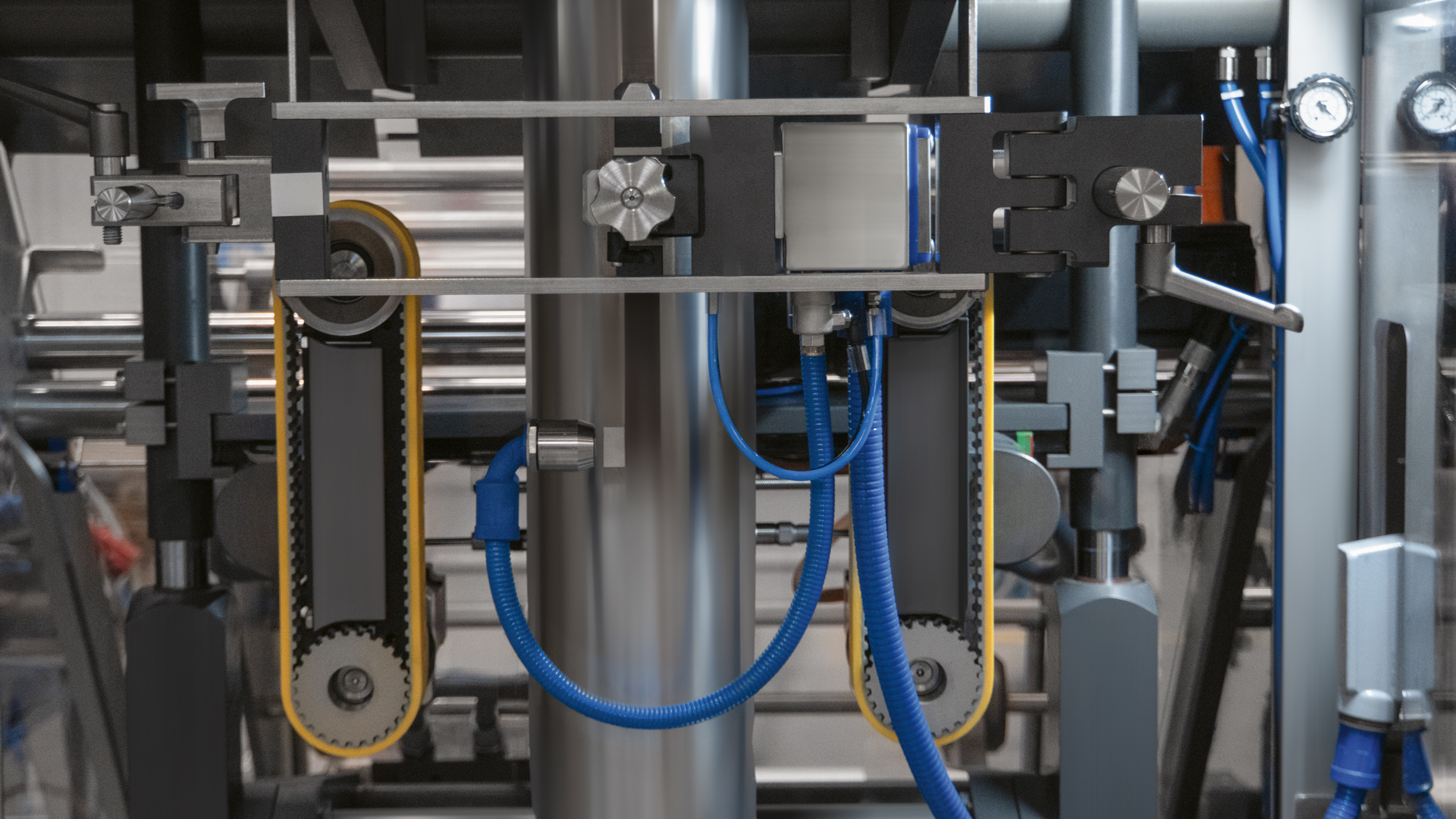

Front view with rollers and longitudinal sealing

Technical information

VEGATRONIC 6400 ML TECHNICAL DATA

Machine Speed

120 cpm

Wrapping Materials

Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene

Electronic Platform

Industrial B&R PLC and Allen Bradley PLC*

Program Memory

100+ programs

HMI

12″ colour touch screen TFT (Allen Bradley / B&R)

Power Requirement

400V, 3PH + GND, 50Hz, 25 A, 13.9 kW

Compressed Air

Up to 125 l/min at 6 bar; up to 400 l/min at 6 bar for LDPE

Electrical Cabinet

Right-hand version (left-hand optional)

Machine Dimensions (W x D x H)

1606 x 2485 x 1600 mm

Machine Finishing

Stainless steel

Machine Weight

1500 kg

Bag Dimensions

Bag Max Width

380 mm (370 mm for LDPE)

Bag Min Width

50 mm (2″)

Bag Max Length

500 mm (22.75″)

Film reel dimensions

Film Reel Max Width

830 mm

Film Reel Max Outer Diameter

600 mm

Film Reel Core Diameter

76 mm / 152 mm
