VT6400 DZ Vertical Form Fill and Seal

Machine overview

High‑Speed Open‑Frame VFFS for Large Doy‑Zipper Bags

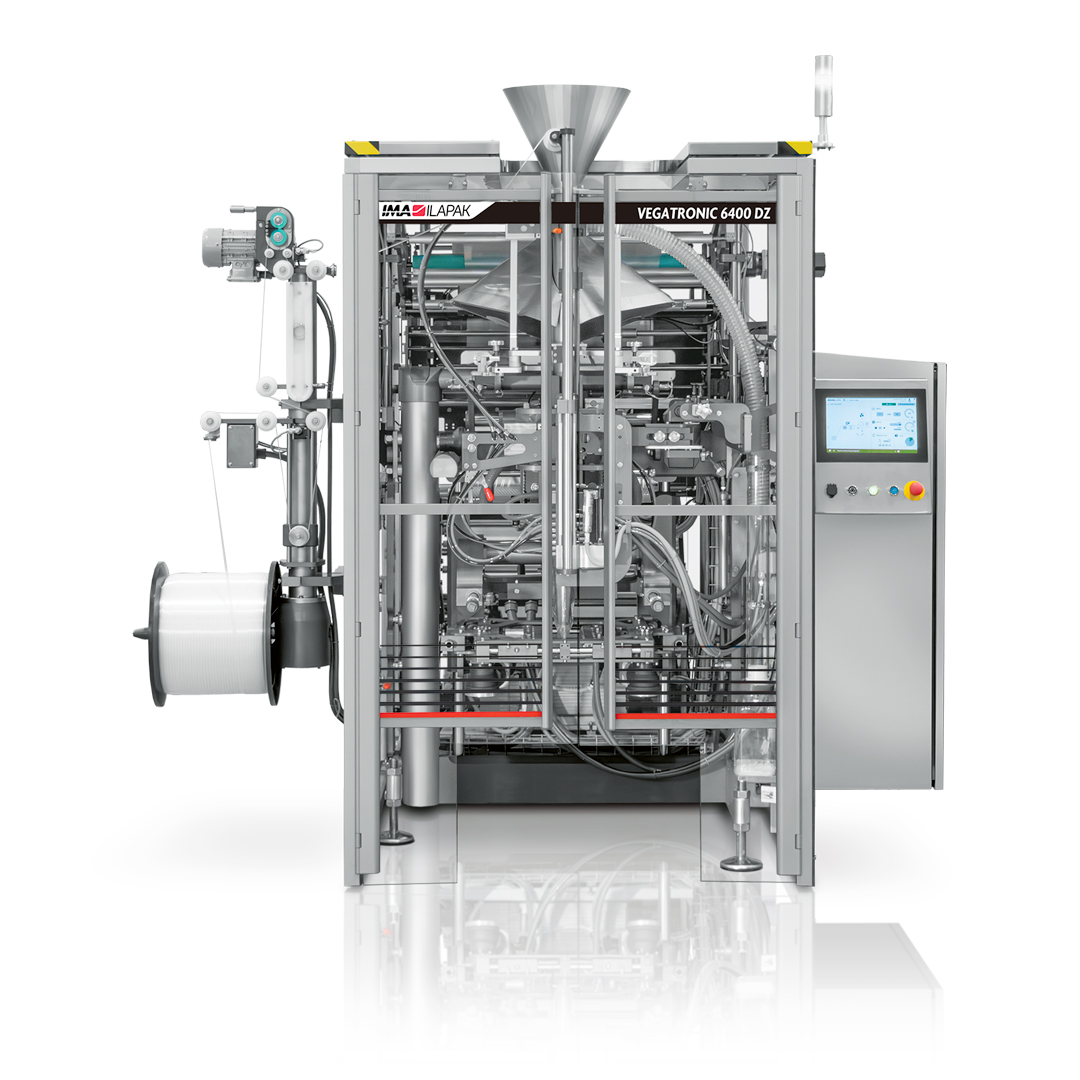

The VEGATRONIC 6400 DZ is an open‑frame, continuous‑motion VFFS machine specifically designed for large Doy‑Zipper bags. It is equipped with 400 mm sealing jaws and a high‑speed zipper applicator, delivering outstanding performance and seal integrity.
Ideal for a wide range of applications—including snacks, confectionery, dairy products, bakery minis, pet food, and stock cubes—the machine reaches mechanical speeds of up to 120 packs per minute.
Fast format changeovers and exceptional versatility in pack styles make the VEGATRONIC 6400 DZ a highly efficient solution. It supports multiple formats, from Pillow and Block Bottom (BB) to Quad Seal, 3‑Side Seal (3SS), and Doy‑Shark with zipper, ensuring maximum flexibility across production needs.

Production plant

Ilapak Italia Spa

Machine highlights

  1. Large bag capability

    Designed to handle large-format bags without compromising precision or performance

  2. Wide range of pack styles

    Supports multiple package formats to meet diverse market and product requirements

  3. Fully automatic format change by recipe

    Fast, repeatable format changes through stored recipes, minimizing downtime and errors

  4. High-speed

    Optimized for high-speed operation while ensuring consistent and reliable packaging quality

  5. Ergonomic design for easy cleaning and maintenance

    User-friendly layout that simplifies cleaning, maintenance, and daily operation

  6. Wide range of packaging materials

    Compatible with a broad selection of packaging materials, including sustainable options

Technical information

VEGATRONIC 6400 DZ TECHNICAL DATA

Machine speed

Pillow: 120 cpm. Doy & Quattro: up to 100 cpm

Wrapping materials

Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene and paper-based

Electronic platform

Industrial PLC B&R, Allen Bradley*

Program memory

100 programs

HMI

12” HMI colour touch screen, Allen Bradley, B&R*

Power requirement

400 V, 3PH + GND, 50 Hz, 37 A, 20.5 kW

Compressed air

up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE

Electrical cabinet

Right-hand version, left-hand version*

Machine dimensions

2316 x 2265 x 2004 mm ( 91.18 x 89.17 x 78.9’’)

Machine finishing

Stainless steel

Machine weight

1900 kg (4189 lb)

BAG DIMENSIONS

PILLOW

Max width

380 mm (15”), 370 mm (14.5”) for LDPE

Min width

50 mm (2”)

Max length**

600 mm (23.6”)

DOY

Max width

350 mm (13.7”)

Min width

127 mm ( 5”)

Max length**

350 mm ( 13.7”)

QUATTRO

Max width

based on max film width of 630 mm

Min width

215 mm ( 8,5”)

Max length**

600 mm ( 23.6”)

FILM REEL DIMENSIONS

Max width

Pneumatic shaft: 630 mm (24.75”)

Max outer diameter

500mm (19.75”)

Core diameter

76 mm (3”), 152 mm (6”)*

* optional
** greater length feasible on request
