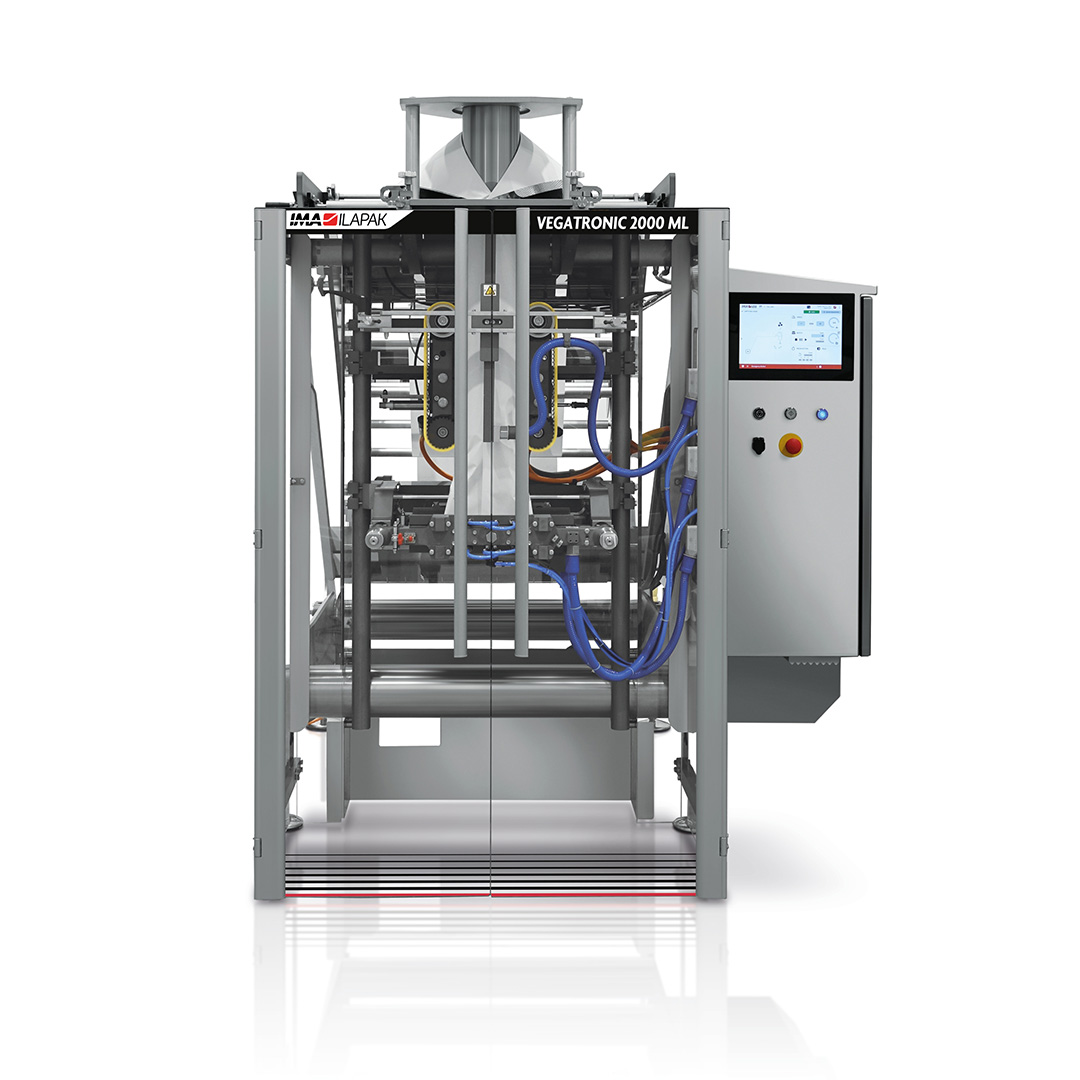

VEGATRONIC 2000 ML Vertical Form Fill and Seal
Machine overview
Advanced intermittent-motion VFFS bagger.
The IMA Ilapak VEGATRONIC 2000 ML is a state-of-the-art, intermittent-motion vertical bagger that combines exceptional flexibility, easy changeover and sanitary open-frame design to meet the evolving needs of the fresh food, dairy and IQF industries.
Designed for manufacturers requiring tool-free switching between different film types (heat-seal, LDPE) and pack styles (pillow, stand-up pouches), the VEGATRONIC 2000 ML offers unparalleled adaptability and user-friendliness.
With simple film threading, built-in tutorial videos and the option to retrofit the HMI screen onto a remote portable device, this machine puts the operator first, ensuring smooth operation and minimised downtime.
Production plant
IMA Ilapak Italia S.p.A.
Machine highlights
-
High-efficiency intermittent VFFS machine
Low cost of ownership and lowest cost per pack.
-
Hygienic open-frame design
Easy access to all components, fast changeovers, simple monitoring and cleaning.
-
Extreme sealing pressure
Perfect for thick films and MAP applications, ensures hermetic seals.
-
Maximum versatility
Wide range of bag styles (Pillow, Block Bottom, Quad, FlexCan, EasyPack, Doy-Shark) and seal options (including hang holes).
-
Ultrasonic sealing option
Reduced leak rates, film savings and lower energy consumption.
Machine details
Technical information
| Machine Speed | 100 cpm |
|---|---|
| Wrapping Materials | Heat-sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene |
| Electronic Platform | Industrial B&R PLC and Allen Bradley PLC* |
| Program Memory | 100+ programs |
| HMI | 12″ HMI colour touch screen TFT and Allen Bradley* |
| Power Requirement | 400 Vac ±5%, 3 phase, neutral, GND, 50/60 Hz, 11.5 kW, 17.5 A |
| Compressed Air | Up to 125 l/min at 6 bar, up to 400 l/min at 6 bar for LDPE |
| Electrical Cabinet | Right-hand version, left-hand version* |

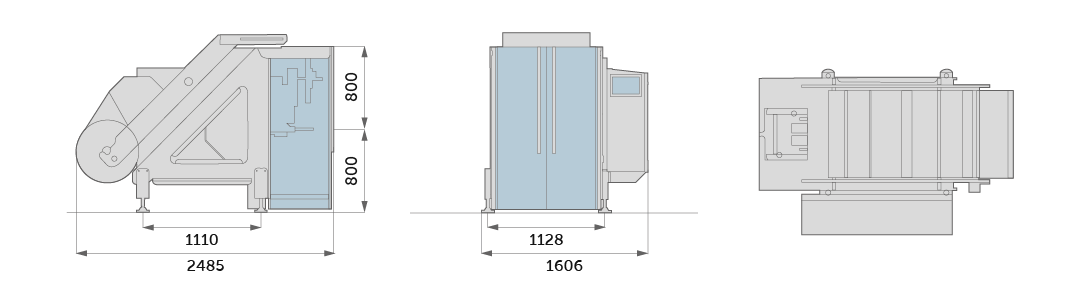

| Machine Dimensions (W × D × H) | 1606 × 2485 × 1600 mm |
| Machine Finishing | Stainless Steel |
| Machine Weight | 1350 kg |
| BAG DIMENSIONS | |
| Max. Width | 380 mm, 370 mm for LDPE |
| Min. Width | 50 mm (2″) |
| Max. Length** | 480 mm (22.75″) |
| FILM REEL DIMENSIONS | |
| Max. Width | 830 mm |
| Max. Outer Diameter | 600 mm (23.75″) |
| Core Diameter | 76 mm, 152 mm* |
*Optional
**Greater length feasible on request
