V3600 Bagging
Machine overview
Double the heads. Double the speed. One compact solution.

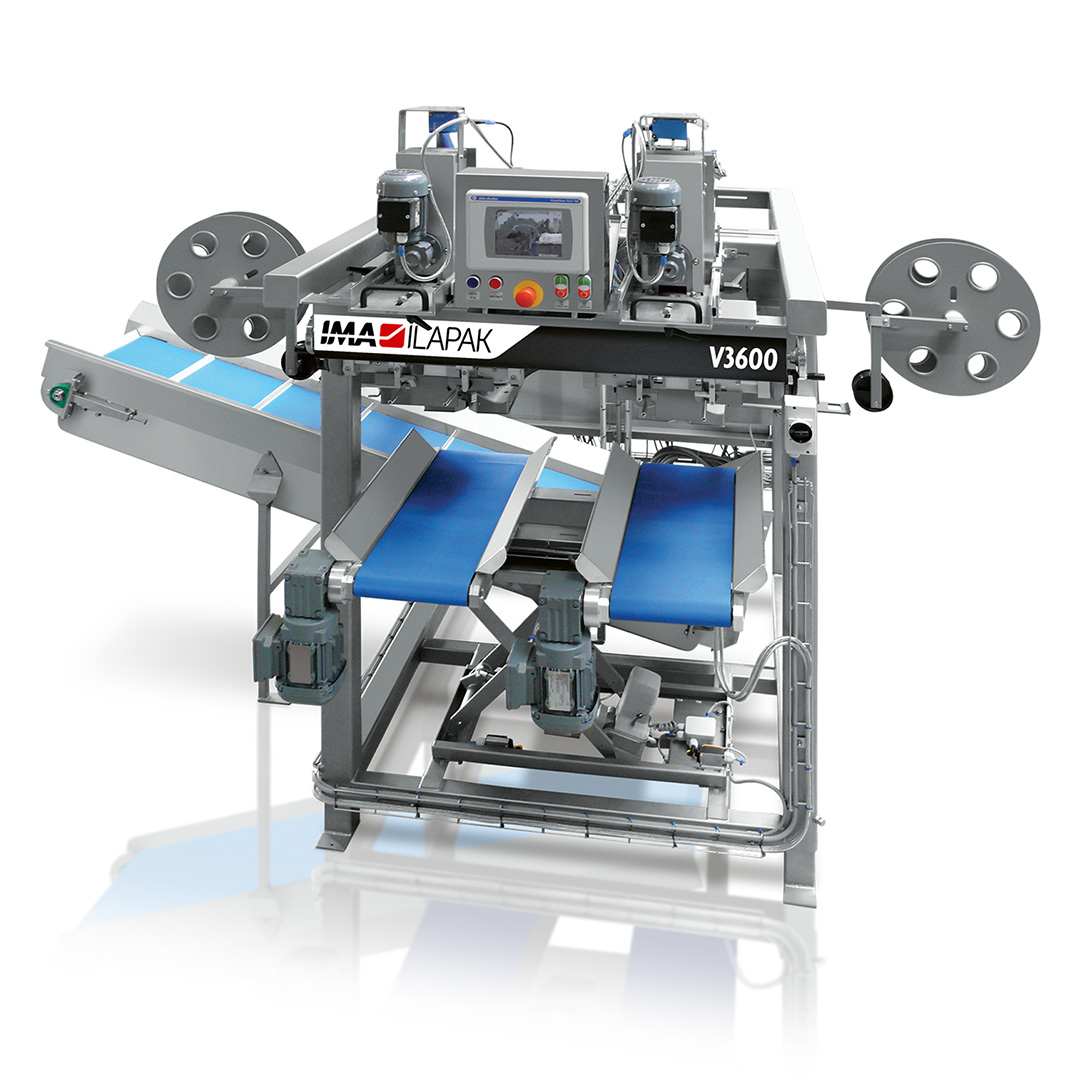

The IMA Ilapak V3600 is a robust, high-speed wicketed bagger that integrates two independent bagging heads within a single, space-efficient frame.
Each head operates autonomously and is equipped with its own discharge conveyor, enabling simultaneous filling and closing of pre-made wicket bags, achieving speeds of up to 60 bags per minute.
Designed for operational flexibility, the V3600 supports a variety of bag closing technologies, allowing easy customisation based on specific product or market requirements.
Whether used for bakery items, produce, frozen goods or other flowable or irregular products, the V3600 delivers consistent results in a compact, easy-to-maintain layout that optimises floorspace without sacrificing performance.
Production plant
IMA ILAPAK Verpackungsmaschinen GmbH
Machine highlights
-
Double wicket heads
Double wicket heads for parallel bagging and closing.
-
Performance
Up to 60 bags per minute throughput.
-

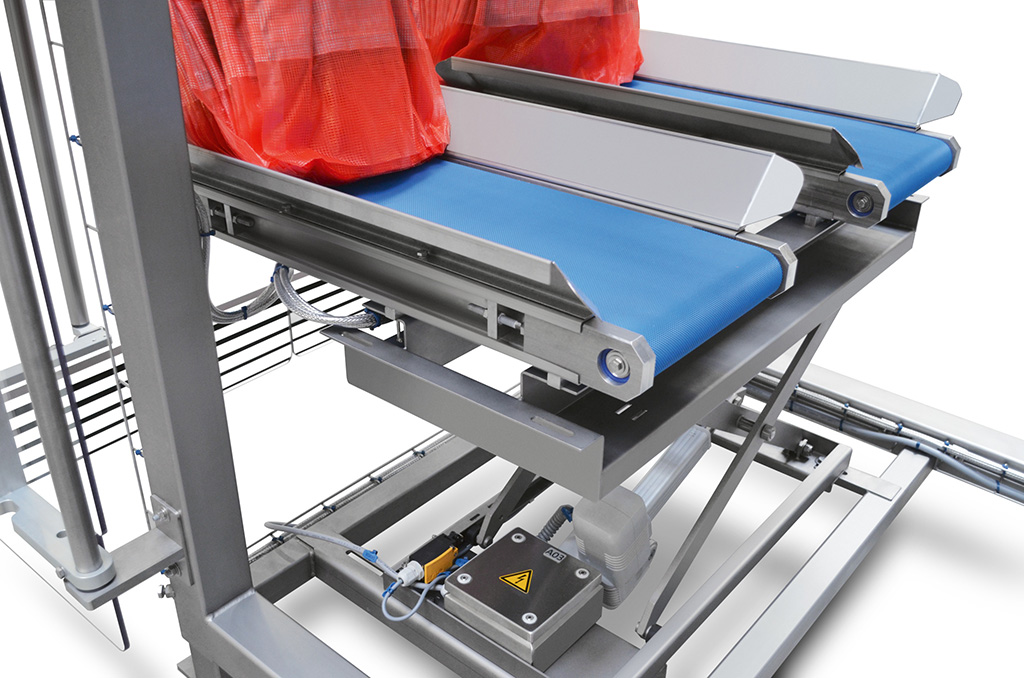

Discharge conveyors
Independent discharge conveyors for efficient bag handling.
-
Compatibility
Compatible with a wide range of closing systems.
-
Space-efficient
Space-saving design: two baggers in one compact frame.
-
Suitable for various categories
Ideal for pre-made wicket bags across various product categories.
-
Modularity
Modular configuration for integration with upstream equipment.
-
More uptime
Fast changeover and easy maintenance for higher uptime.
Machine details
Technical information
| Machine Speed | Up to 60 bags/min* |
|---|---|
| Electronic Platform | Allen Bradley CompactLogix 5380 |
| Program Memory | 35 programs |

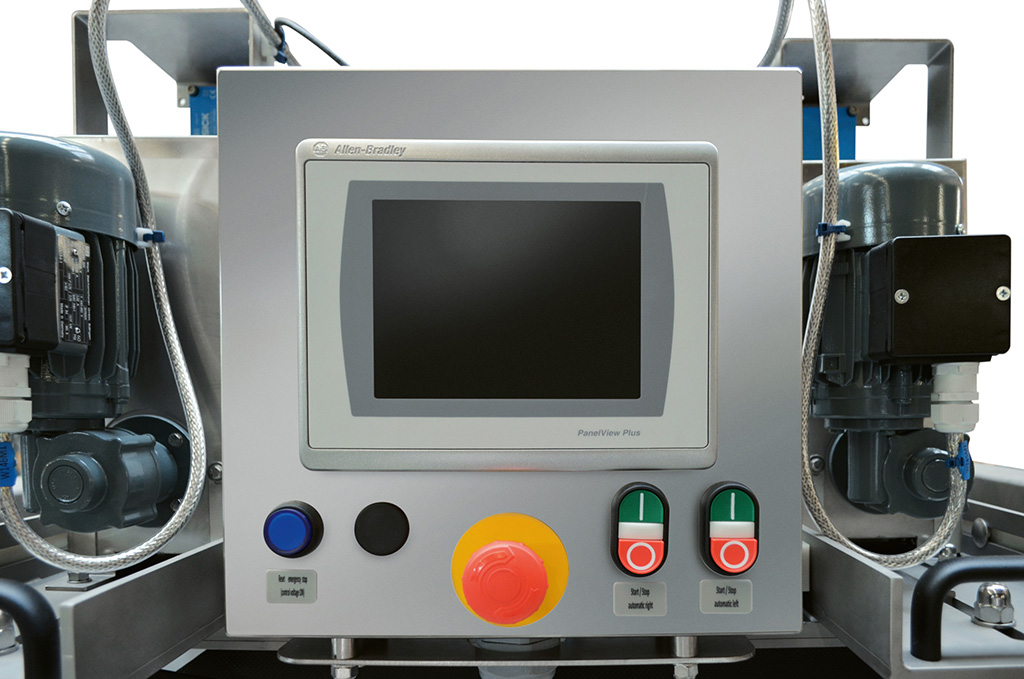

| HMI | Allen Bradley PanelView Plus 7 Performance Terminal Color |
| Power Requirements | 230 Vac ±5%, 3-phase, neutral, GND, 50/60 Hz, 10 kW, 12 A |
| Compressed Air | Air: 6 bar, dry and clean – approx. 300 l/min |
| Electric Cabinet | Right-hand version, Left-hand version |

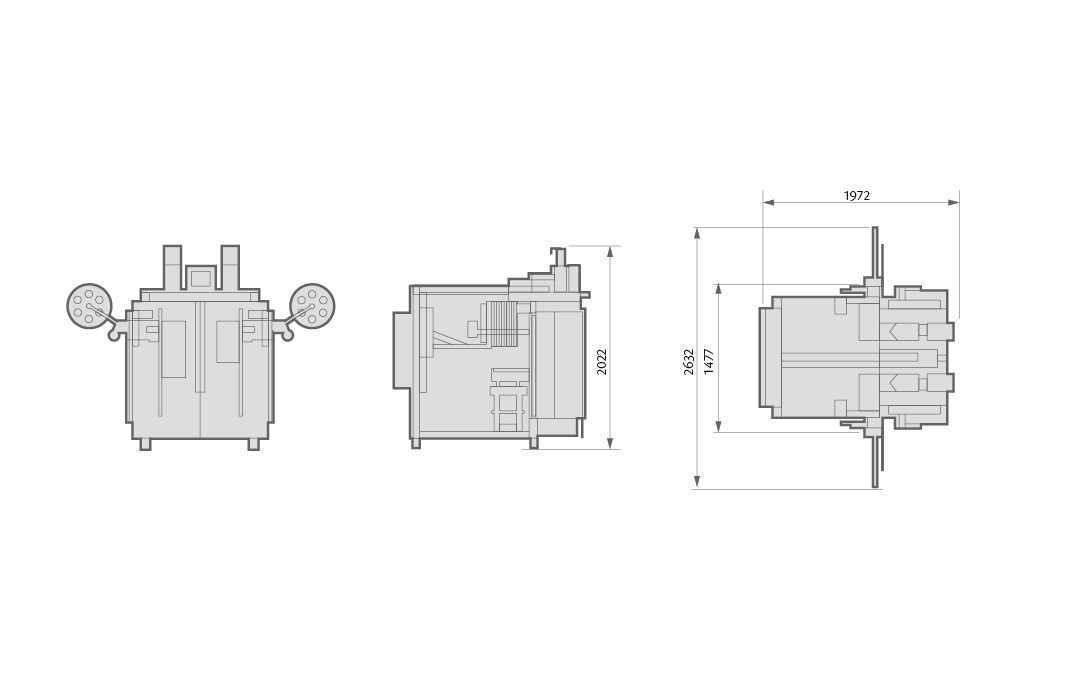

| Machine Dimensions | Approx. 1965 × 1670 × 1950 mm (77.5″ × 65.5″ × 77″) |
| Machine Finishing | Stainless Steel |
| Machine Weight | Approx. 800 kg (1750 lbs) |
| Bag Styles | Poly, poly/mesh and full mesh bags |
| Min.-Max. Width | 254–368 mm (10″–14.5″) |
| Wicket Hole Size | 15.9 mm (diameter 5/8″) |
| Bag Magazine | Approx. 500 bags per side |
| Closure Methods | Standard Kwik Lok 865 Bag Closer with or without Printer |
* depending on bag sizes and product
