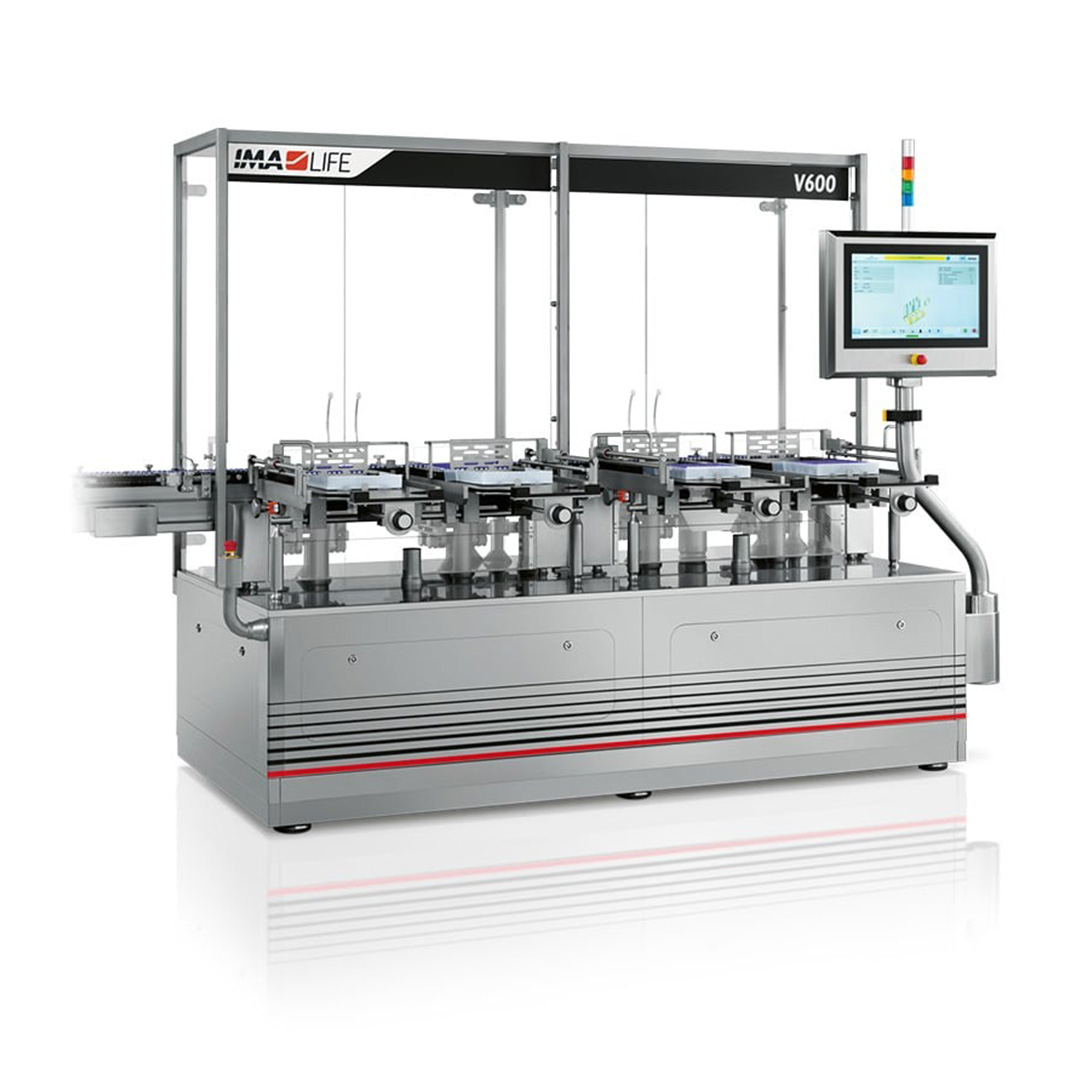

V Series Aseptic Processing
Machine overview
Loaded with versatility and without intervention

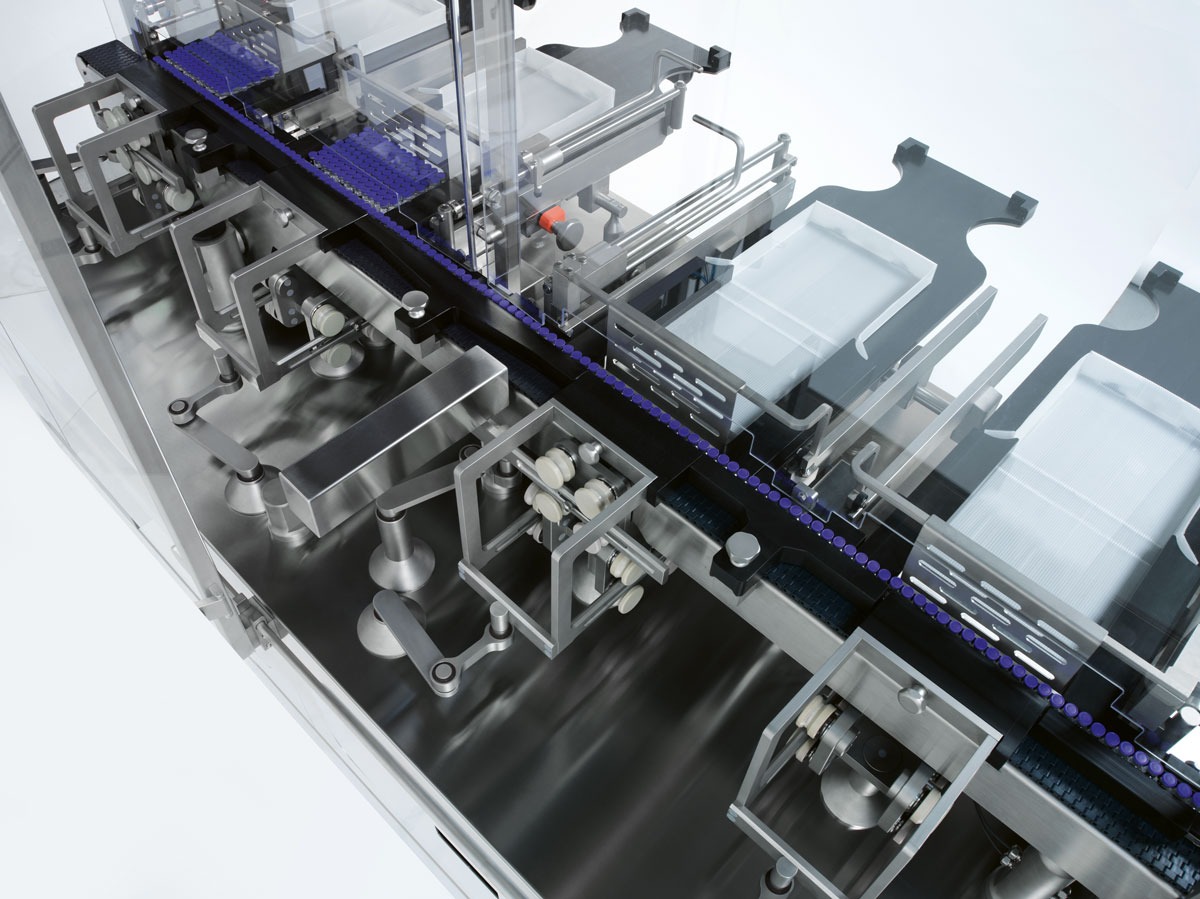

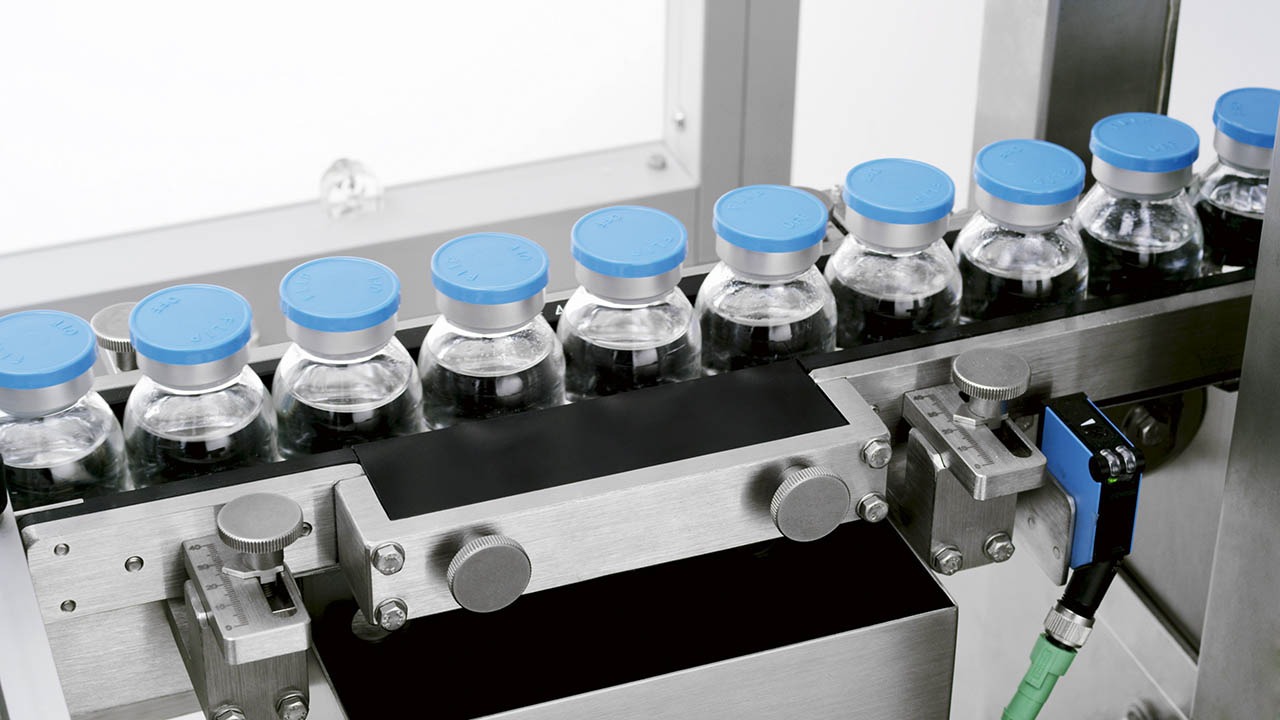

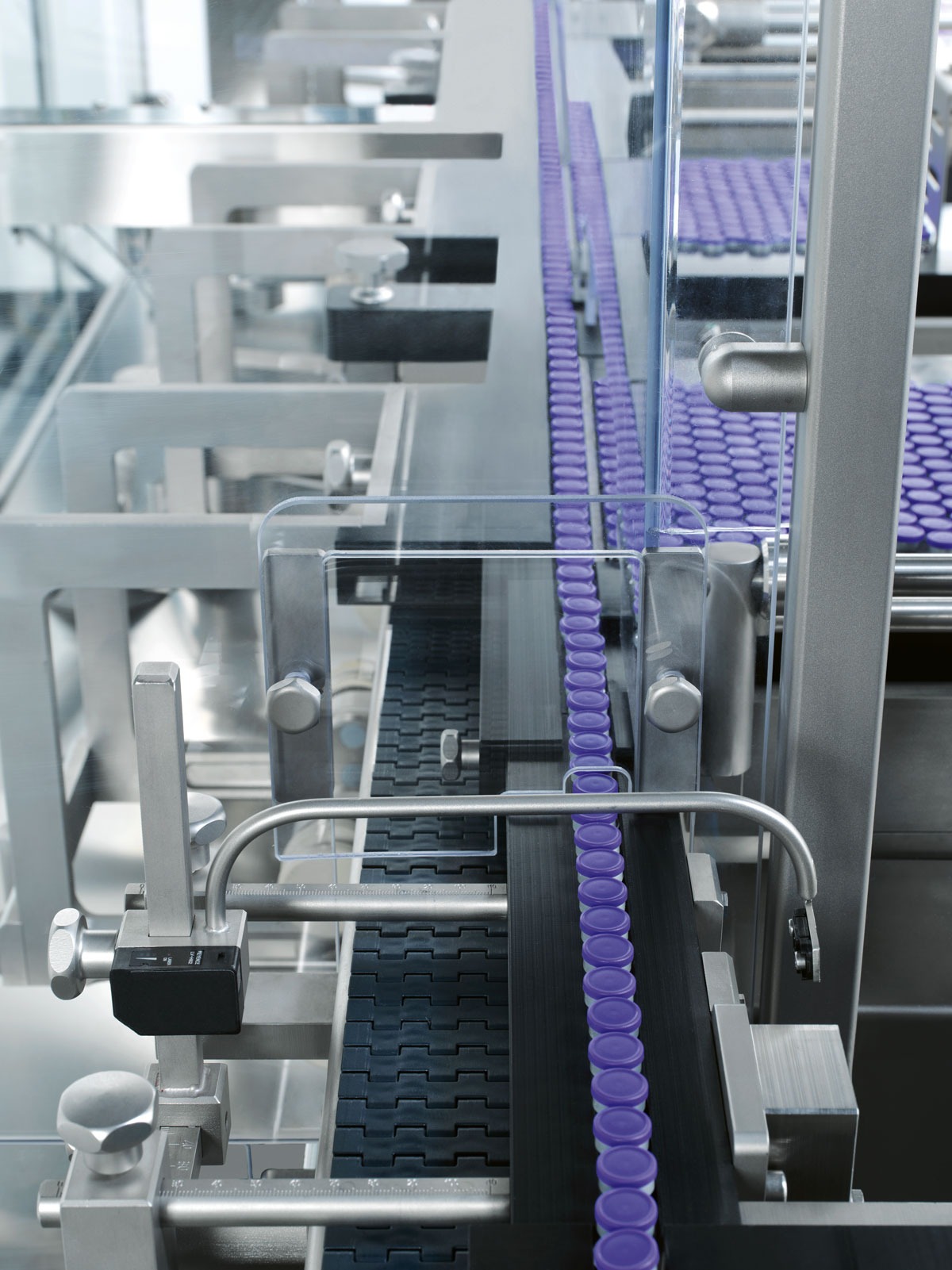

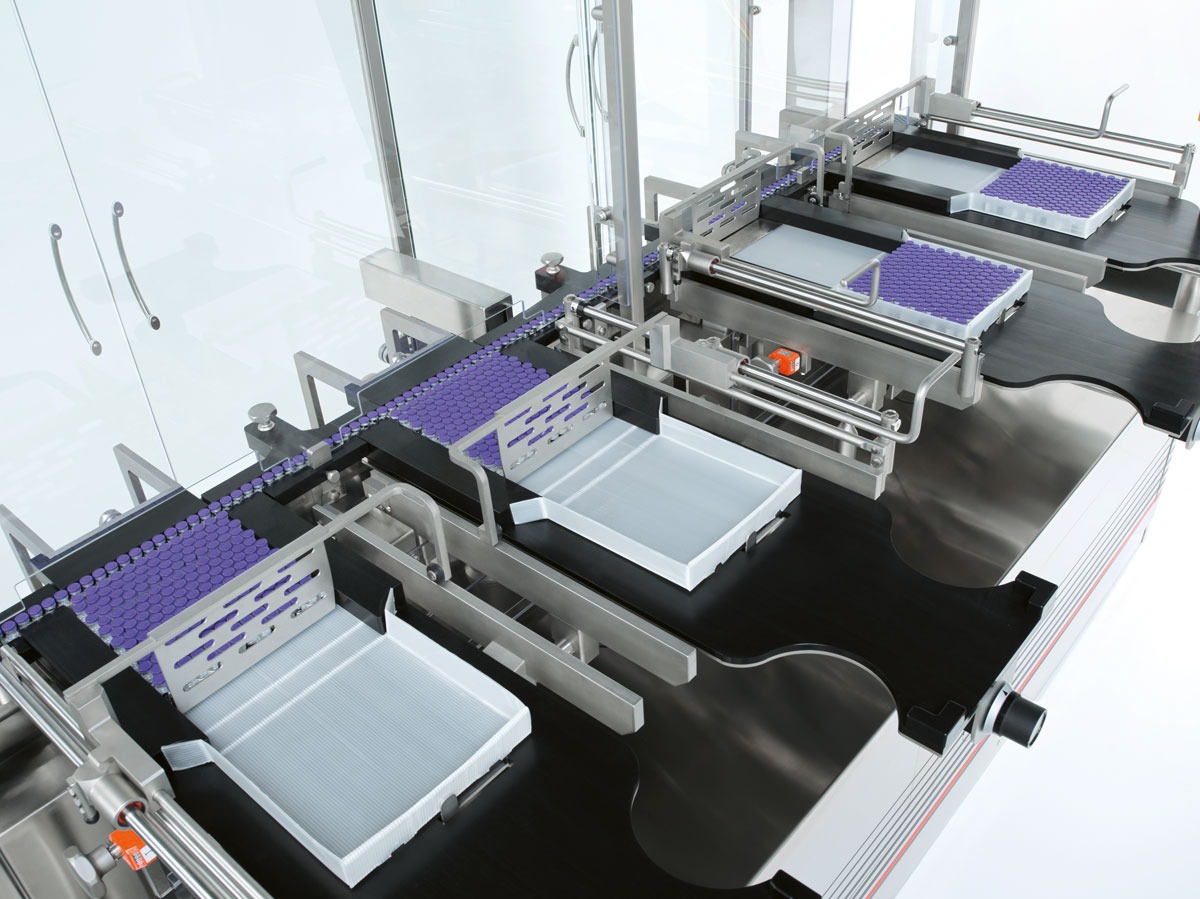

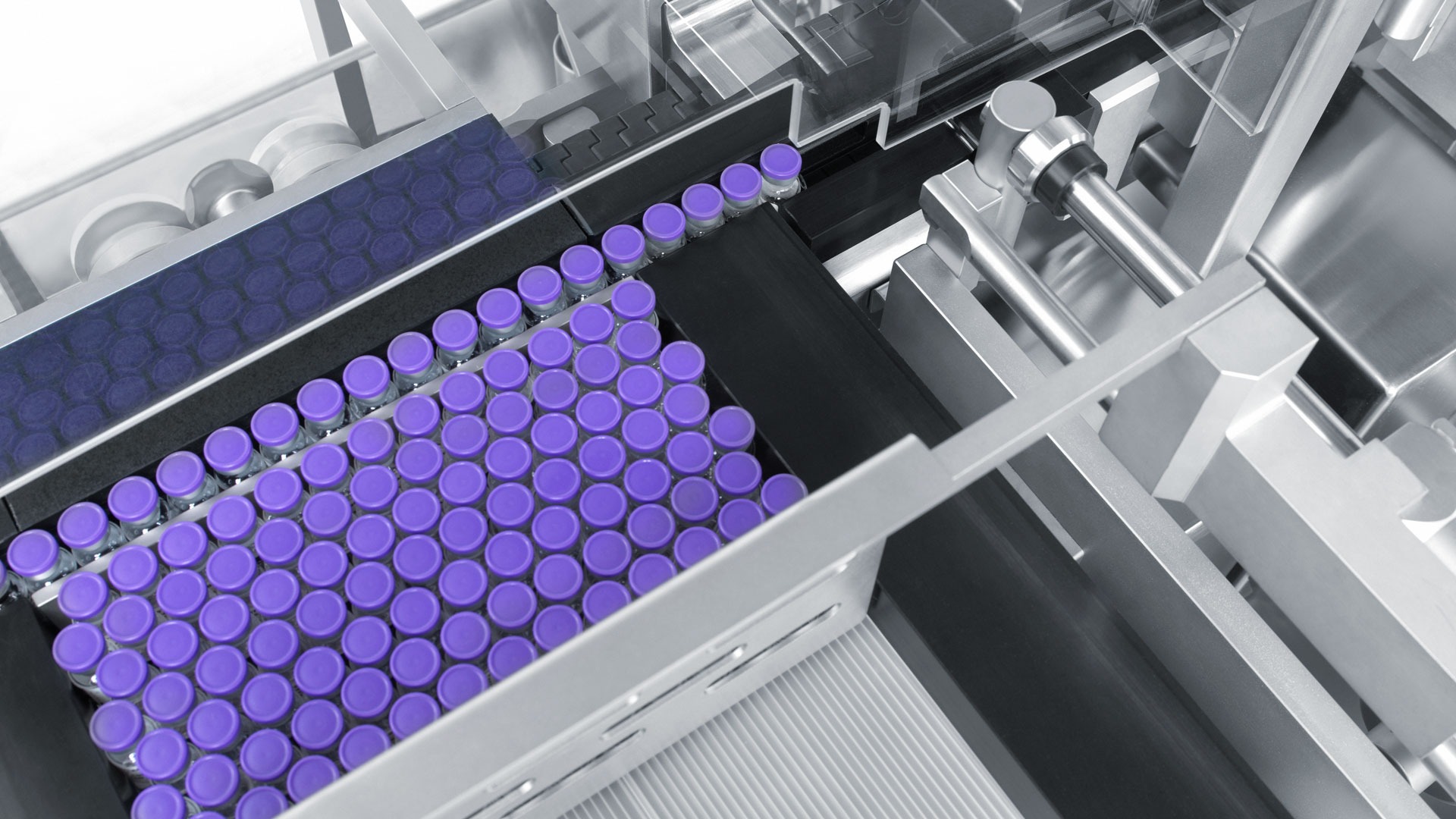

The automatic tray loaders of the V and VL series are the ideal solution
for loading vials onto plastic, metal or paperboard trays, including lyophiliser trays.
Many different models are available to suit each customer’s request: from single
to double station, compact version, in-line and with up to four tray loaders.
Production plant
IMA Life
Machine highlights
-
Zero contamination
No mechanical parts in contact with vial mouth or cap to avoid any damage or contamination.
-
High-speed performance
High performance with both SVP (small volume) and LVP (large volume) vials at high speeds.
-
Suitable for cleanrooms
Stainless steel finish combines with components that are compatible with sterilising agents.
-

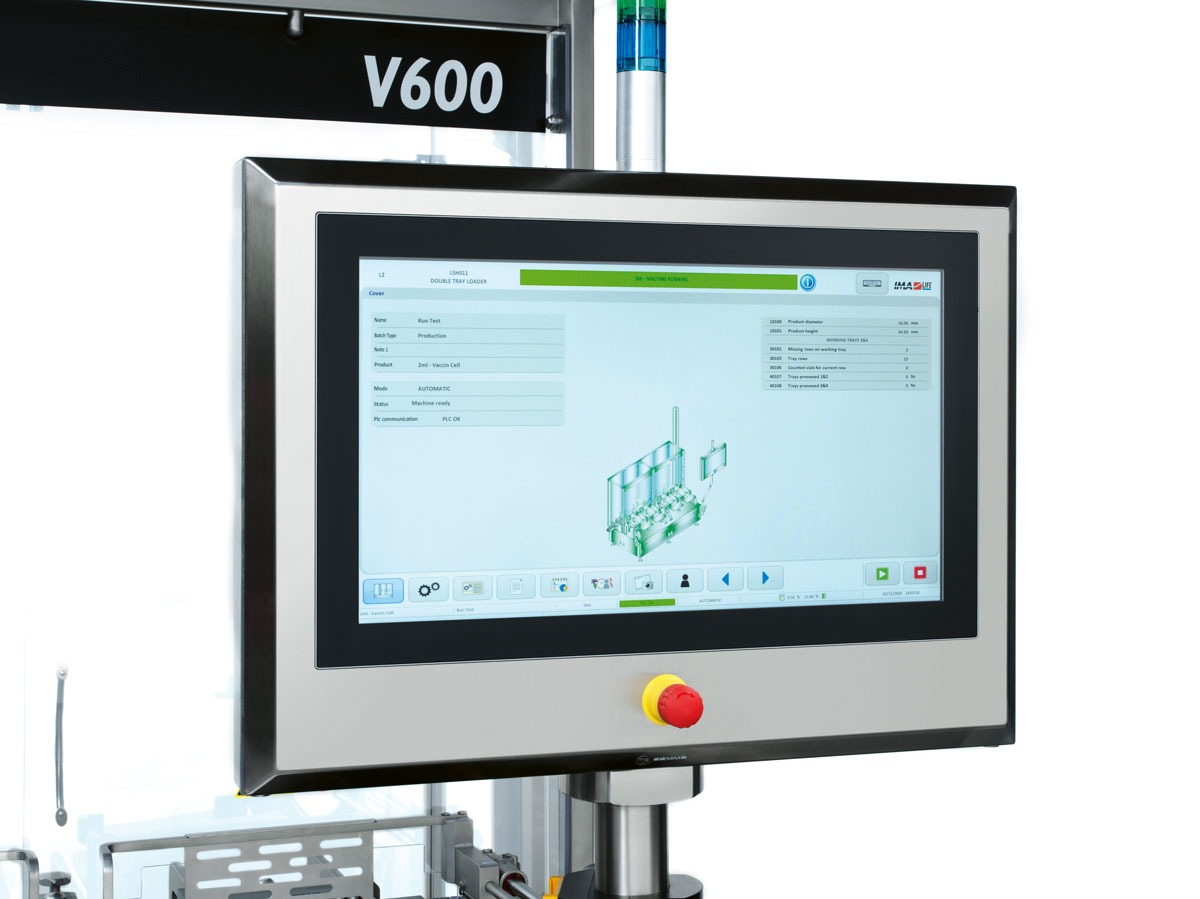

User-friendly HMI
Ability to set output rate, select format and number of rows on each tray.
-
Easy changeover
High flexibility and simple changeover by means of calibrated mechanical adjustments.
Machine details
Technical information
| V-VL SERIES Technical Data | |||||||

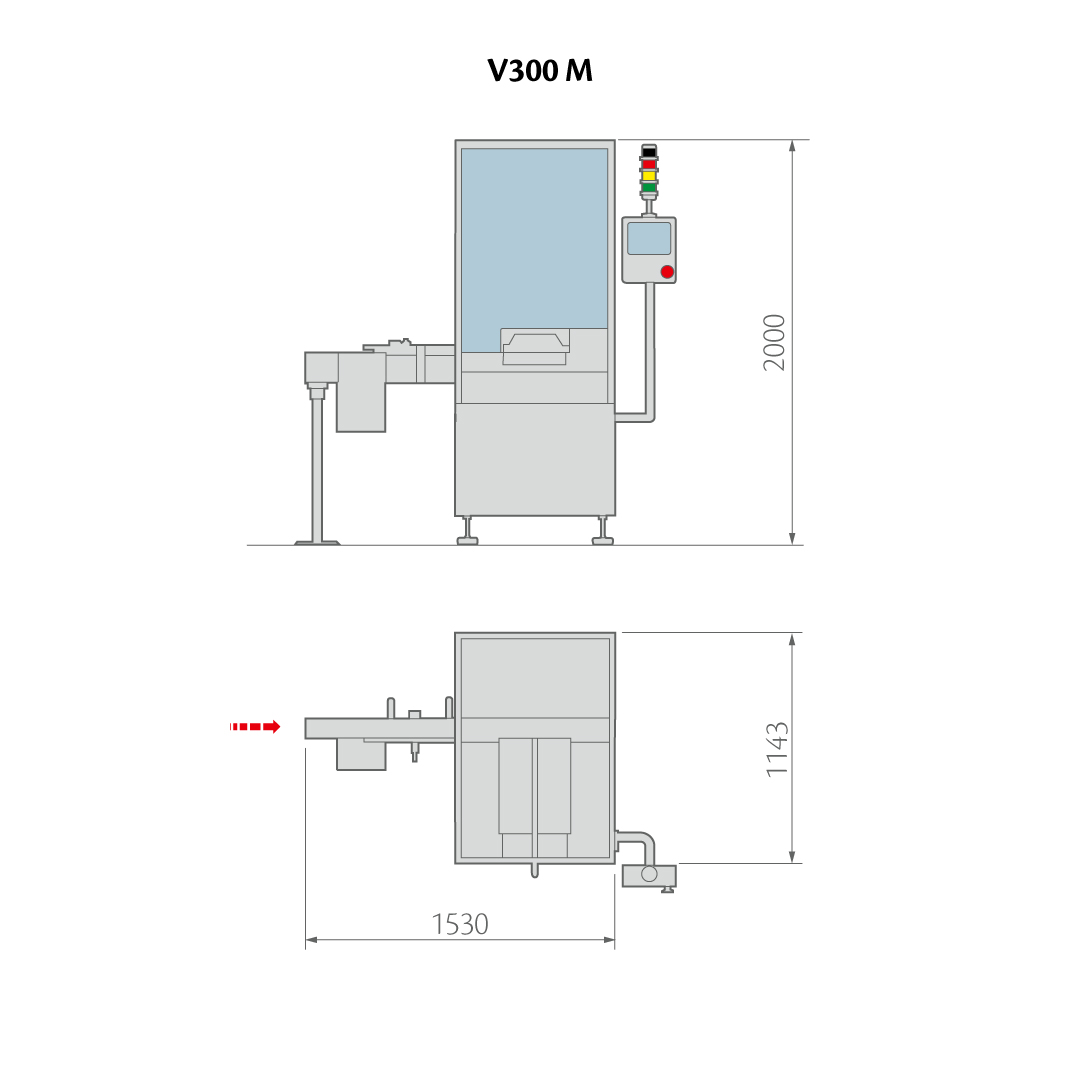

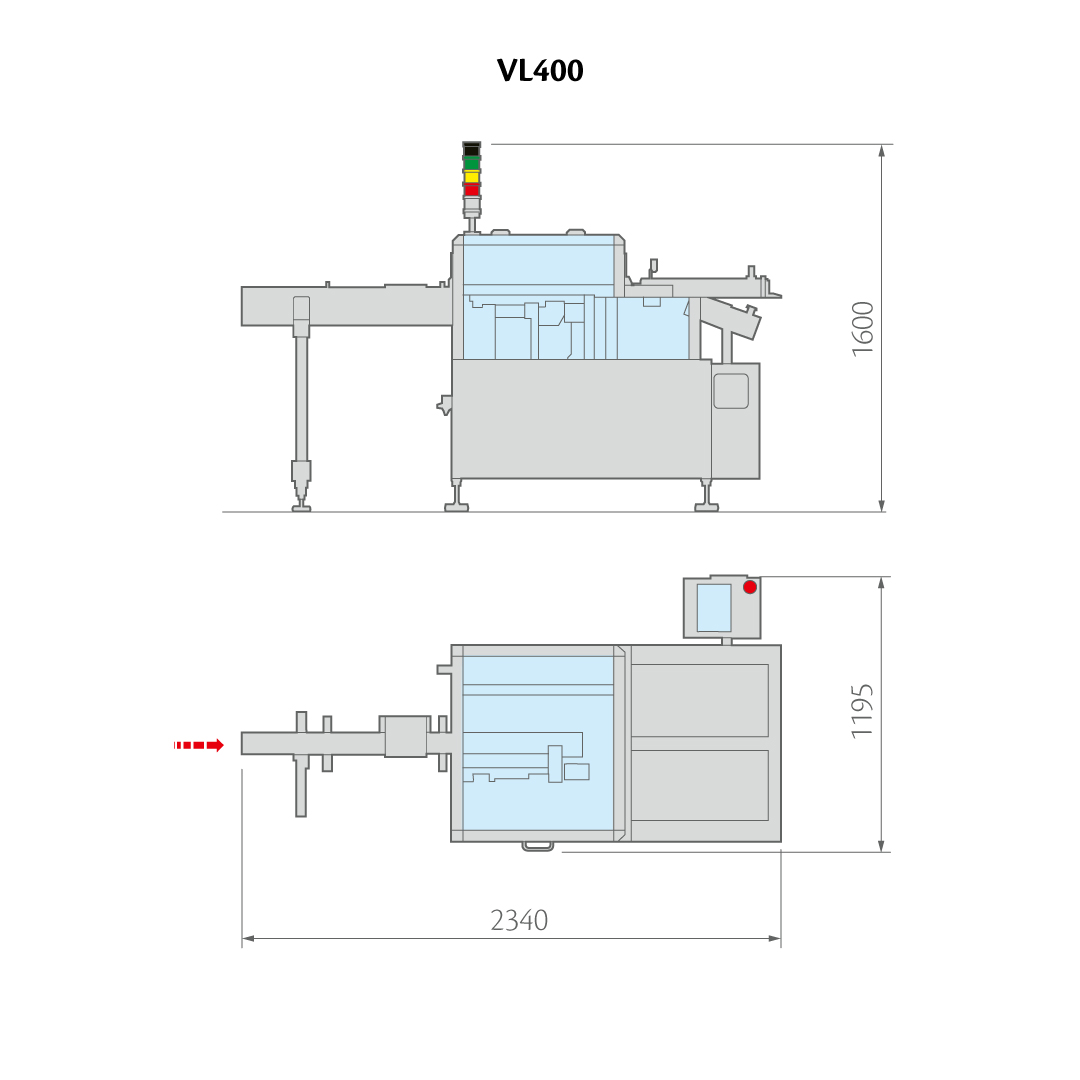

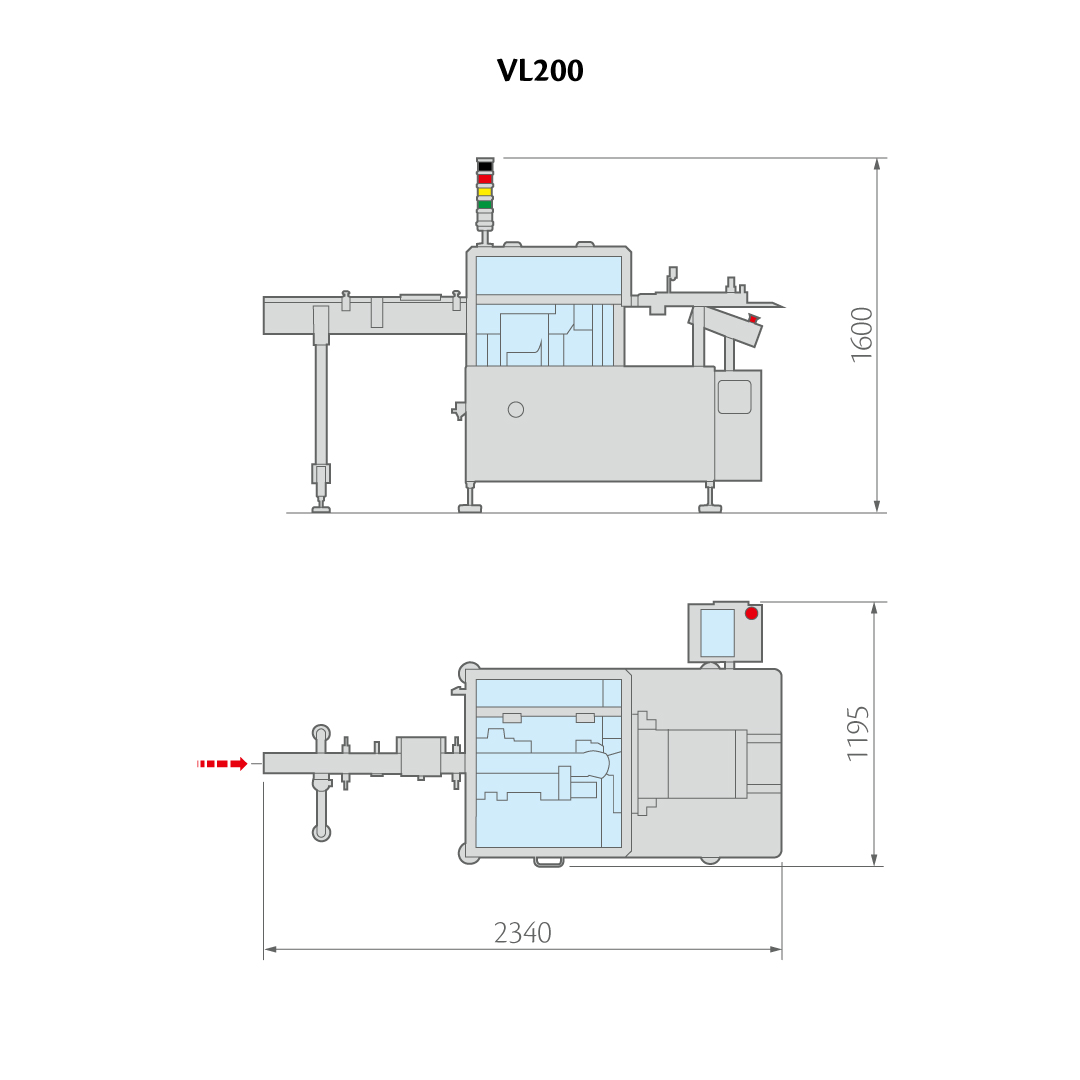

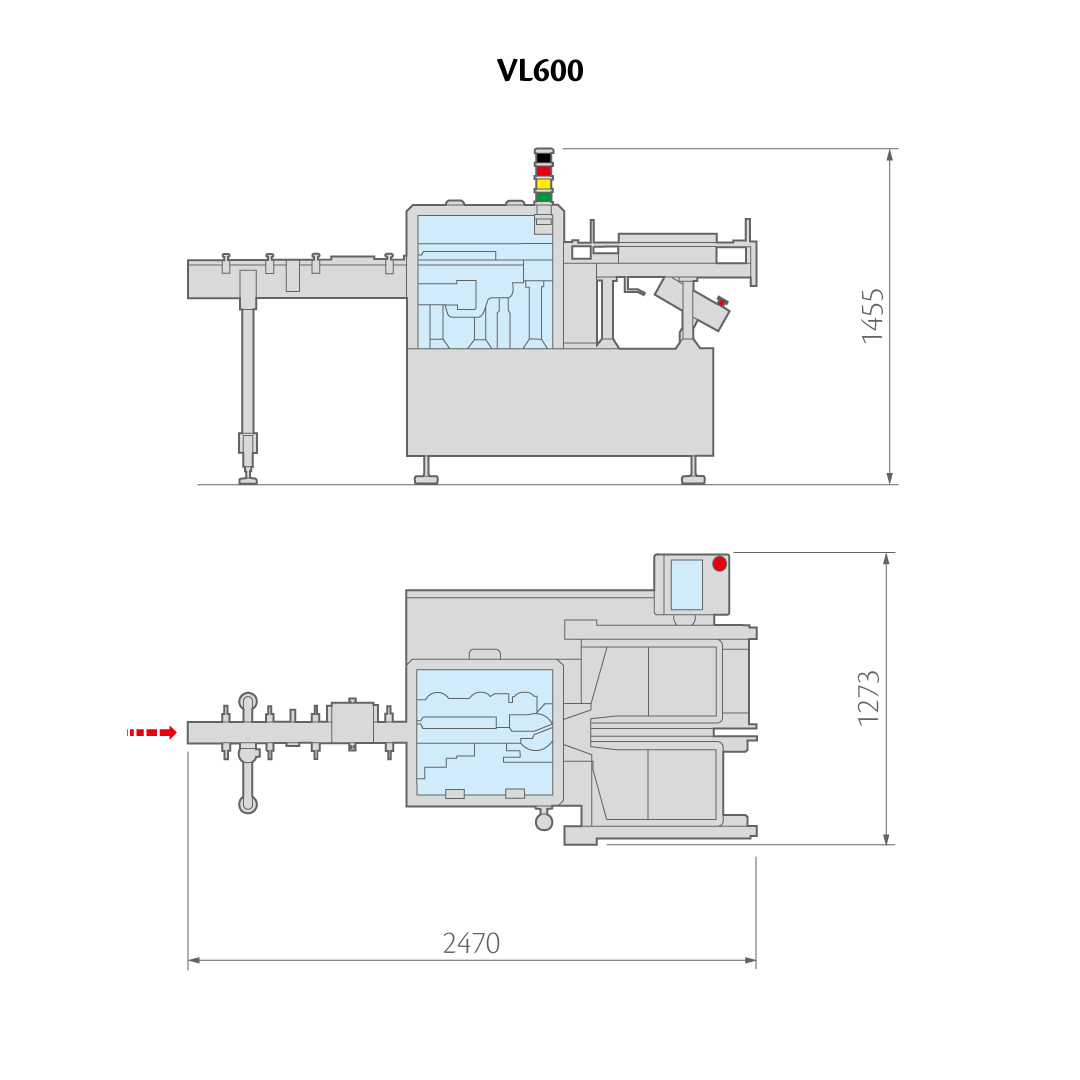

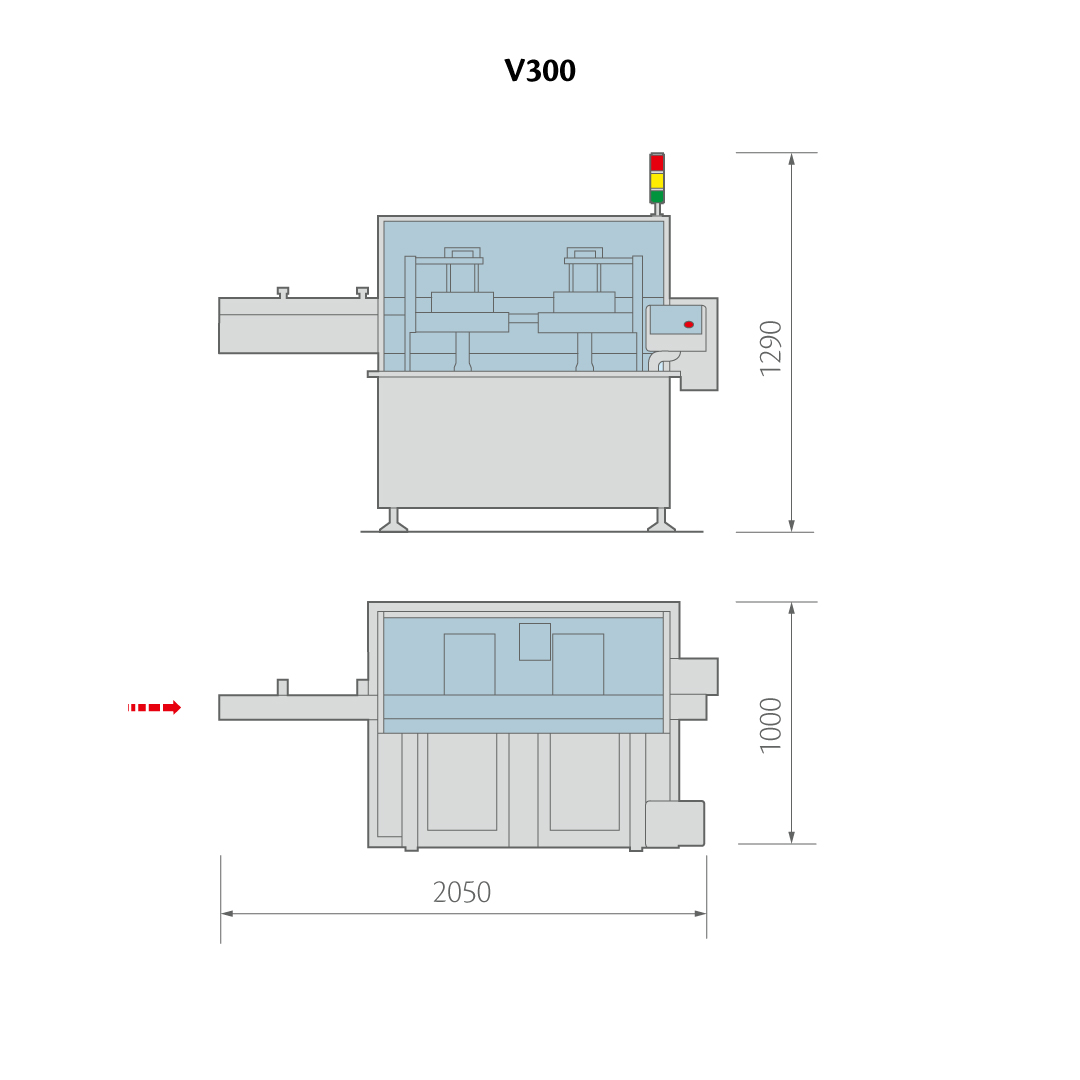

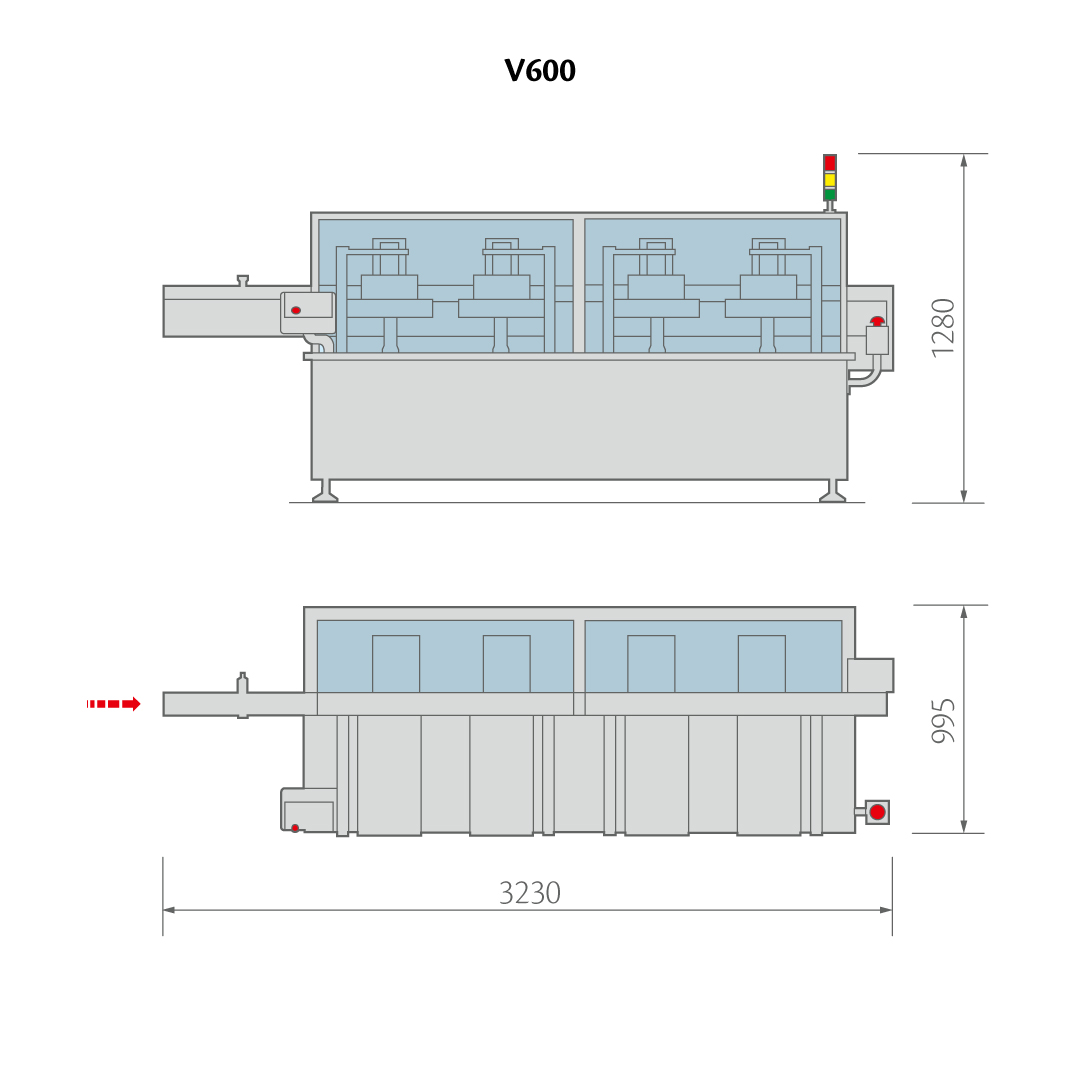

| Model | V300 M | V300 | V600 | VL200 | VL400 | VL600 | |
| Output | 19 or 27 strokes/minute* | 200 pieces/minute | 400 pieces/minute | 600 pieces/minute | |||
| Standard voltage | 400 V – 50Hz | 400 V- 50Hz | |||||
| Installed power (KW) | 1 | 15 | 1 | ||||
| Bottle size | Ø 14 to 52 mm | Ø 16 to 52 mm Maximum height 180 mm | Ø 16 to 36 mm** Maximum height 130 mm | Ø 16 to 52 mm Maximum height 130 mm | |||
| Tray dimension (mm) | n.1 standard 350×500 | n.2 standard 350×500 | n. 4 standard 350×500 | n.1 -350×500 | n.2 -350×500 | ||
*Depending on vial diameter and tray size – 27 only for brushless version | |||||||
