UNIVERSA Primary wrapping
Machine overview
Get the best of the wrapping technologies.

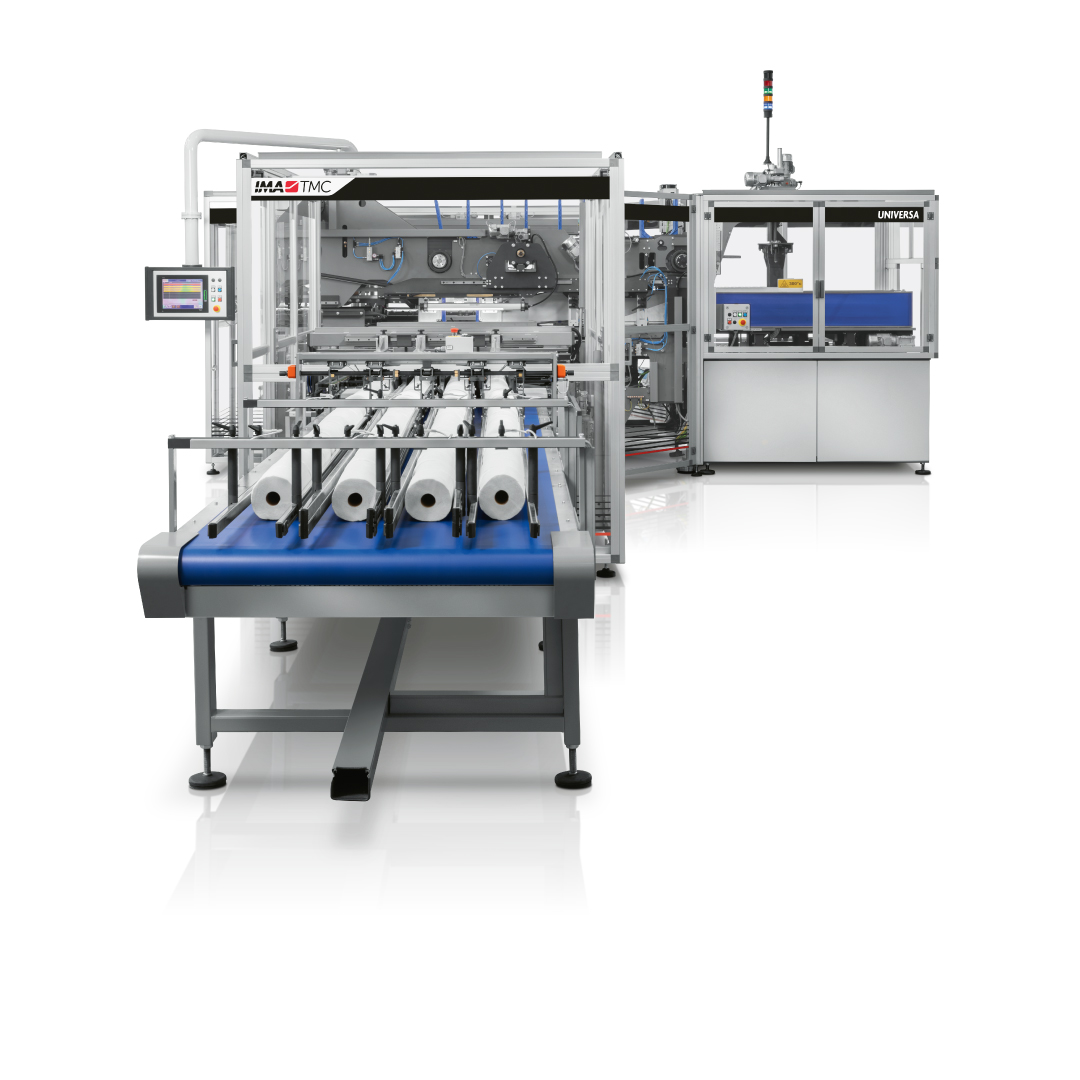

From TMC expertise in wrapping technologies, UNIVERSA is the automatic wrapping machine for bathroom tissue and household towel rolls that combines maximum flexibility and versatility with high production performance and ease of use.
Combined to the converters of tissue products, UNIVERSA can wrap single, double and triple-layer packs at high speed (up to 200 packs per minute), with rolls placed both horizontally and vertically. It can also pack individual bathroom tissue or household towel rolls, in the BRT (Bathroom Tissue) configuration up to 50–60 rolls per pack, and the HHT (Household Towel) configuration up to 20 rolls per pack.
An innovative tutoring system is installed in the control panel and guides the operator step by step, supporting their efficiency. The control panel also guides changeover operations for easy machine management.

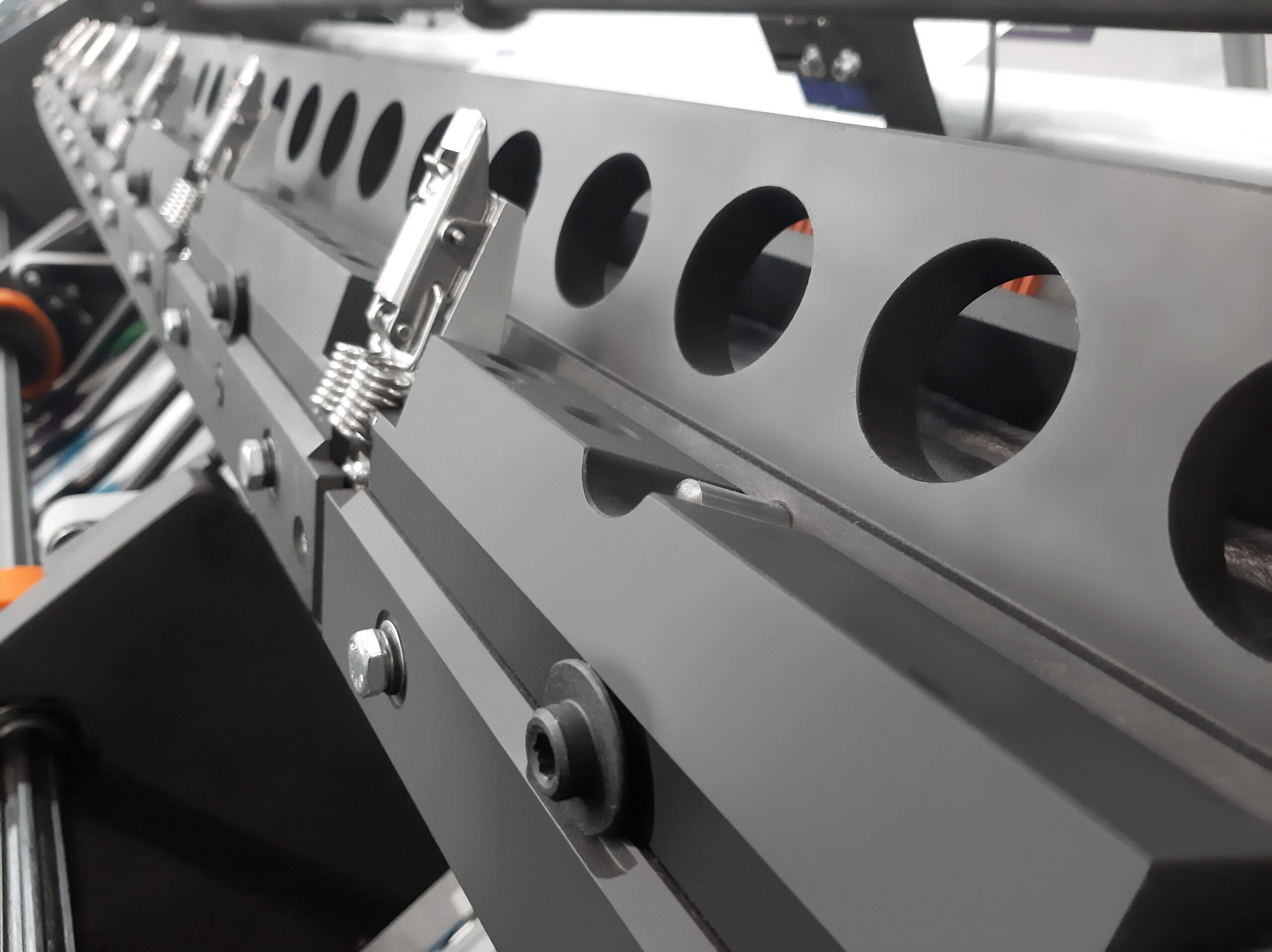

UNIVERSA can store recipes for fast, accurate and repetitive settings; changeover operations require a reduced number of parts and adjustments, which do not require tools.
Production plant
IMA TMC
Machine highlights
-
Conveyor system

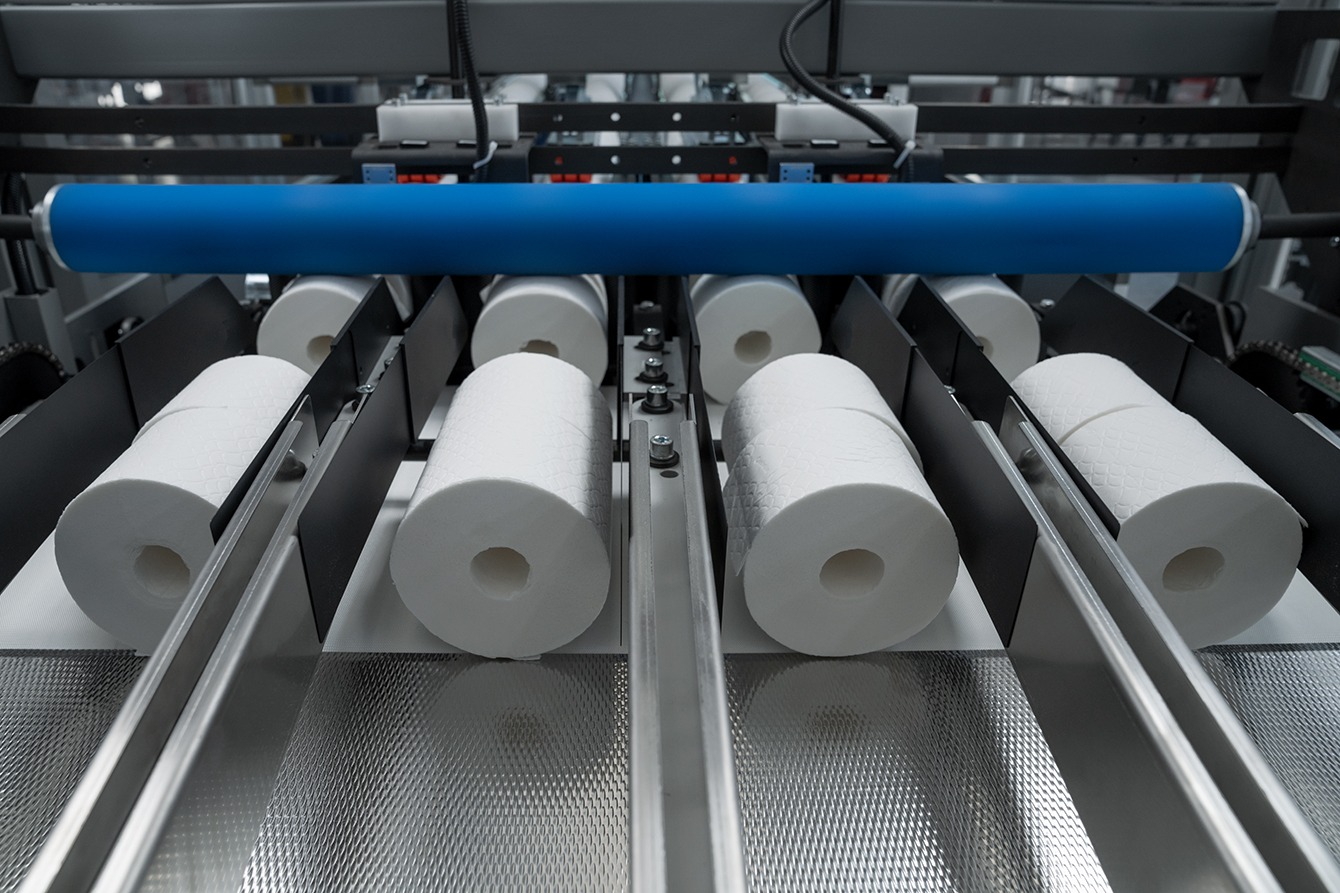

Four-lane infeed conveyor to bring the rolls coming from the upstream line to the doser section.
-
Doser belts

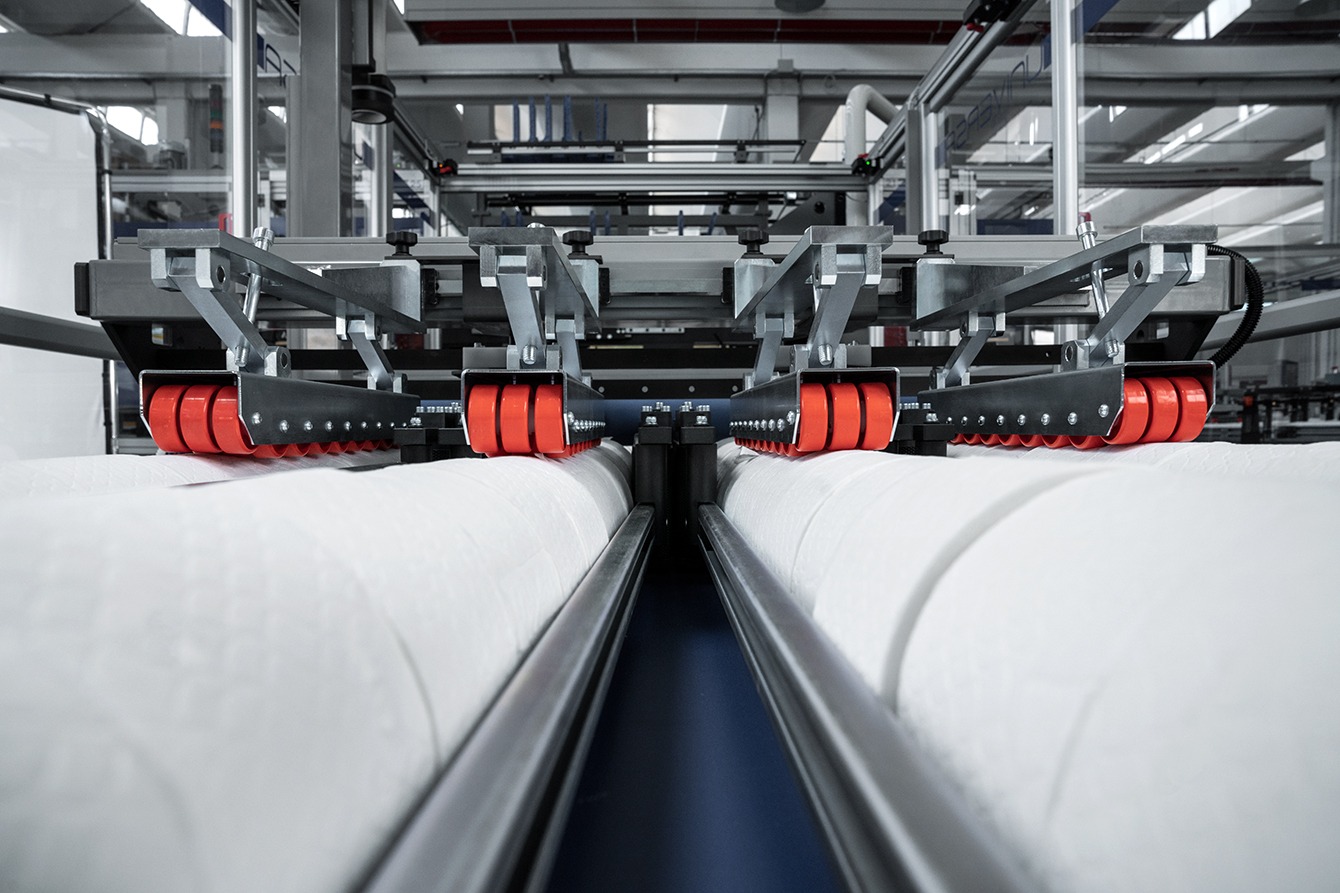

The four doser belts, positioned on the product infeed group, count the exact number of rolls to create the desired pack configuration.
-
Performance
High-quality, self-lubricating chains with self-tensioning system to ensure high efficiency and significant reduction of machine downtime for maintenance.
-
Twin bar

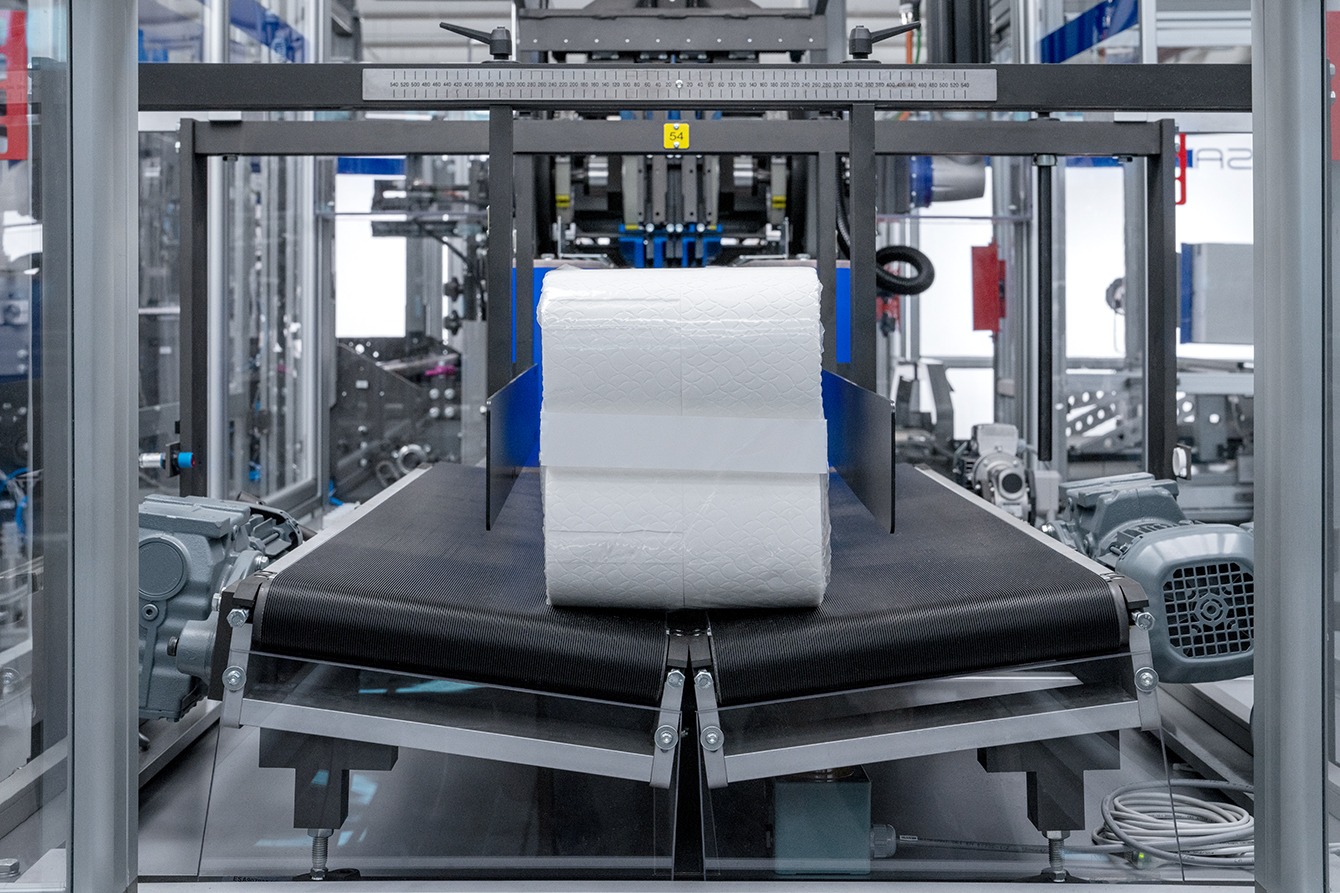

A twin bar can be used in the stratifier to ensure a smooth passage of the product from the stratifier to the double bar section.
-
Dragging unit

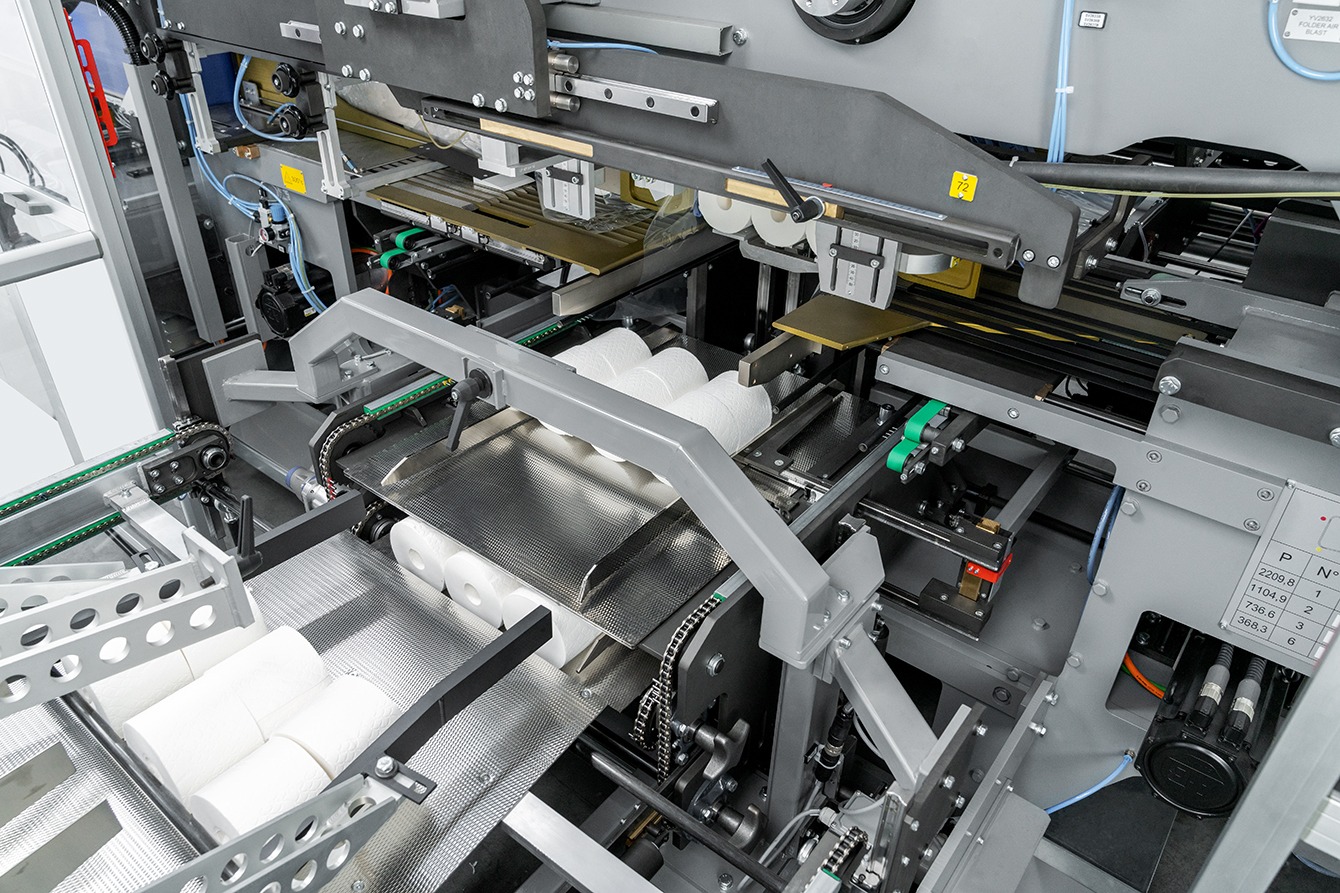

Overhead dragging unit with four chains for the sequential movement of packs from the elevator area to the sealing area.
-
Changeover
Easy management and guided changeover operations via touchscreen control panel.

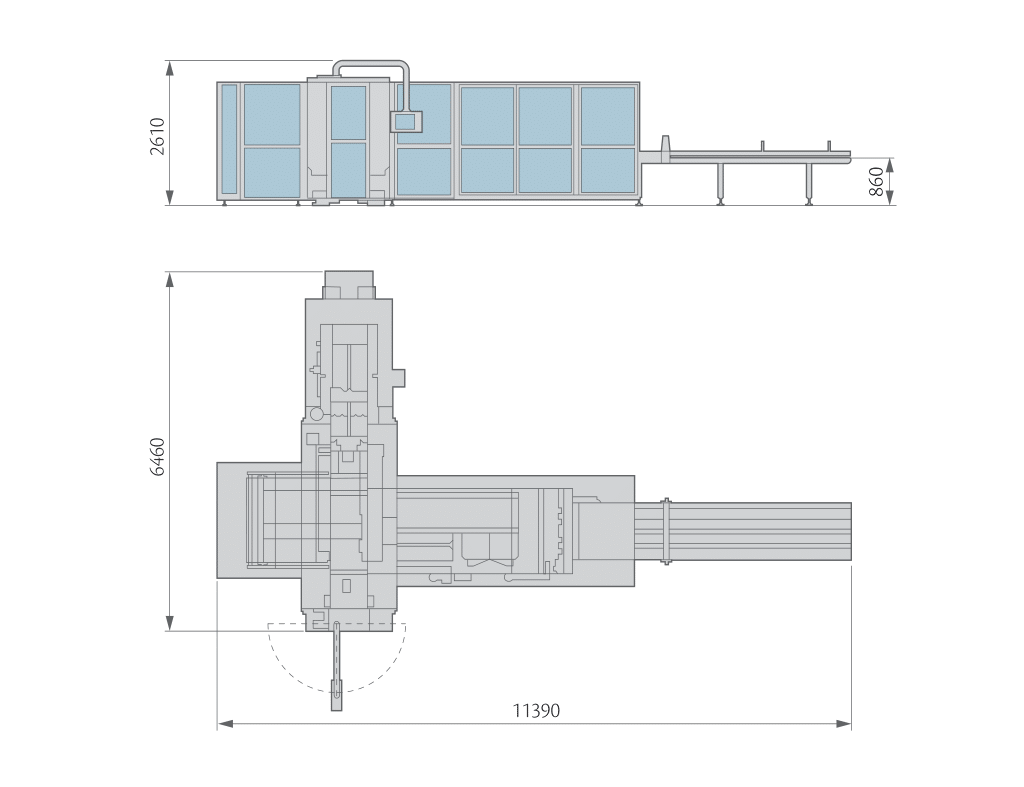

Machine details
Technical information
| UNIVERSA TECHNICAL DATA | ||
|---|---|---|
| Max. mec. speed | up to 220 cy/1′ | |
| Servo Motors | 20 to 24, depends on possible options | |
| Infeed Product Range | MIN | MAX |
Diameter | 90 mm | 170 mm on 4 lanes; |
Cut-Off | 90 mm | 300 mm |
| Outfeed Product Range | MIN | MAX |
Width | 90 mm | 600 mm |
Depth | 180 mm | 600 mm |
Height | 90 mm | 300 mm |
| Poly Capability | MIN | MAX |
Reel width | 320 mm | 1500 mm |
Repeat length | 225 mm | 850 mm |
| * Optional Required | |
