SUPERA Primary wrapping
Machine overview
Wrap quickly, with any material.

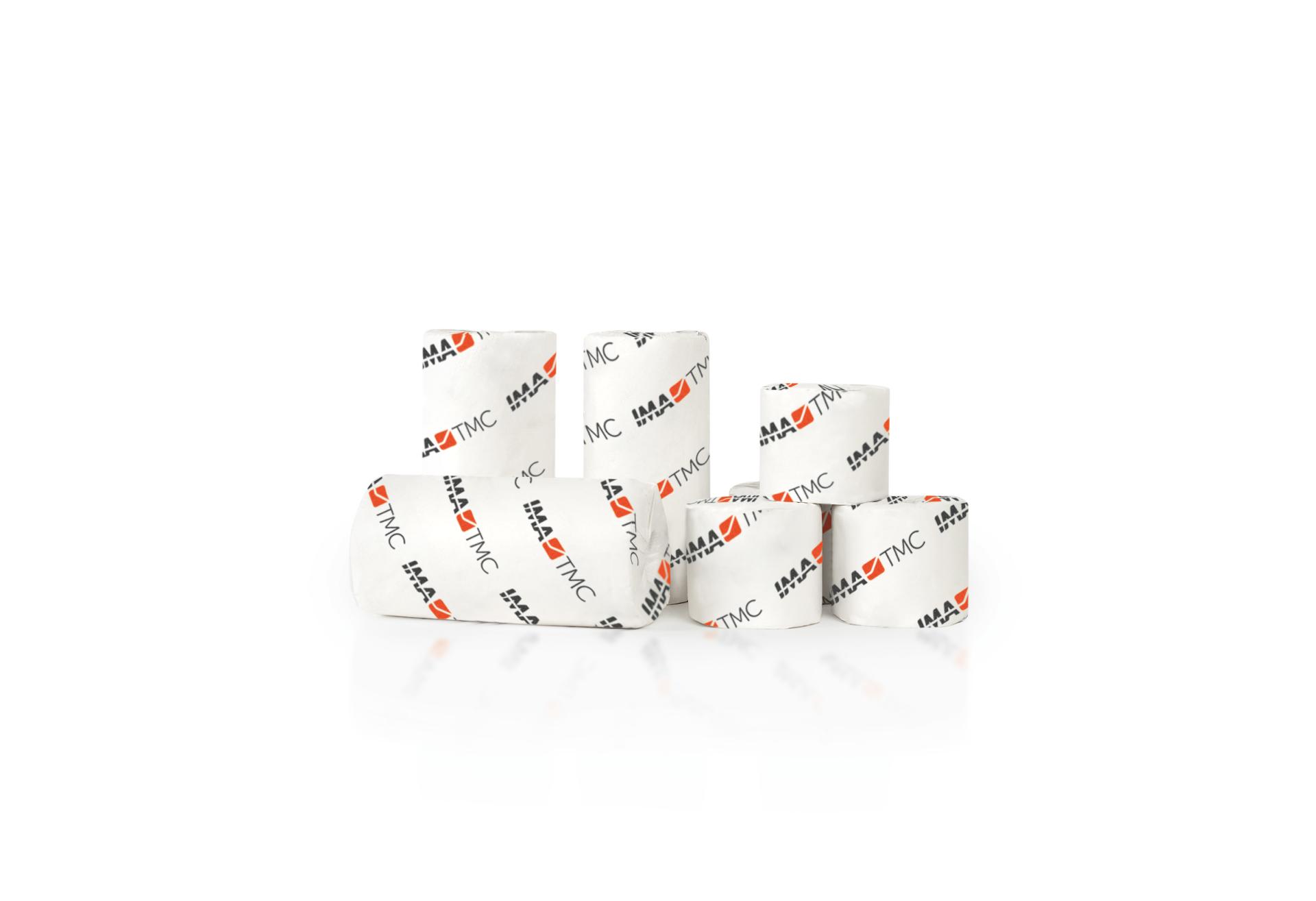

SUPERA is an innovative single-roll packaging machine designed for wrapping bath and kitchen towel rolls in polyethylene, polypropylene and paper.
It delivers high production speeds thanks to the unique innovative technologies used for the first time in this type of application.
SUPERA wrapper is fully automated by motion systems composed of brushless servomotors.

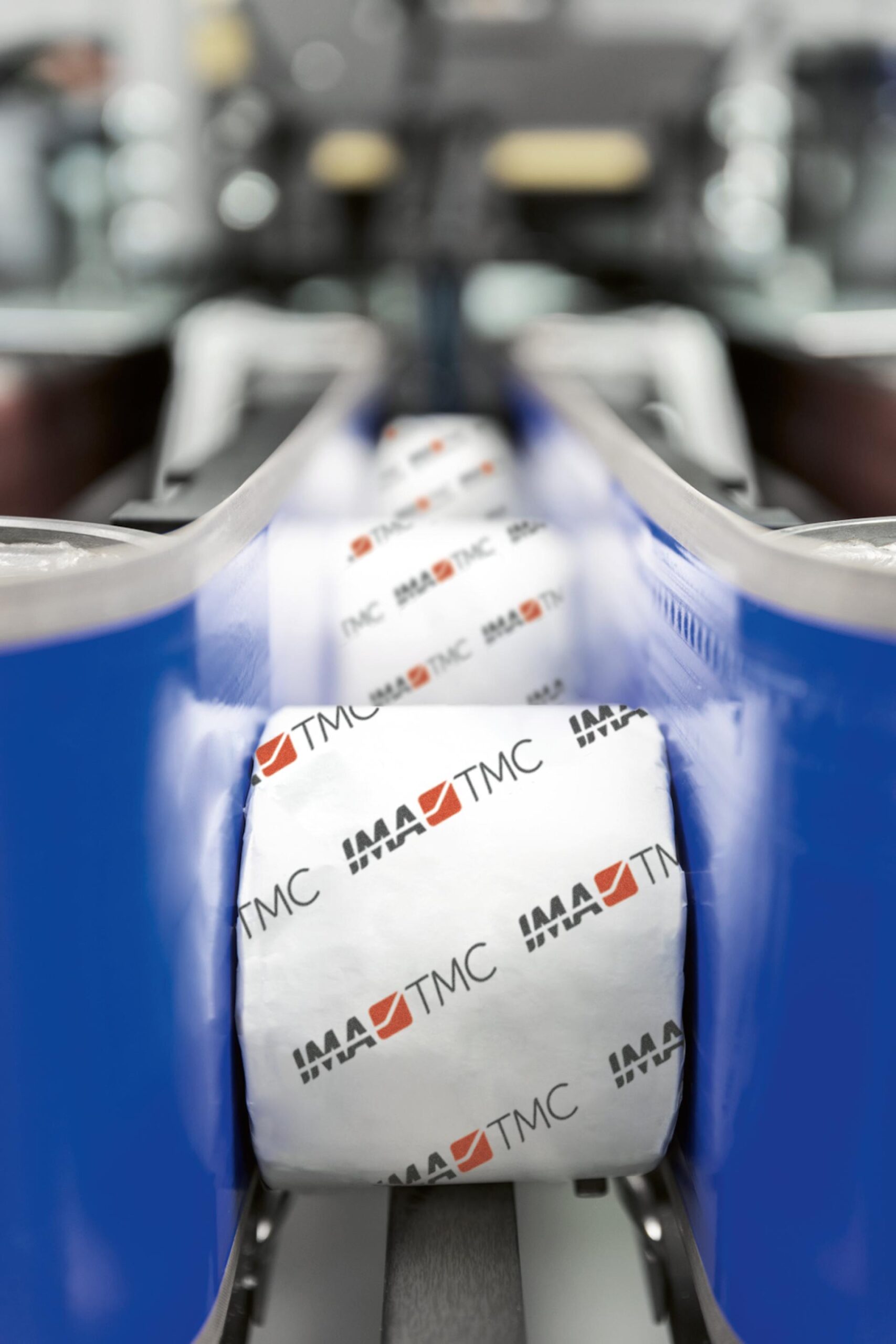

The motorised belt is controlled by an inverter, for roll accumulation. The group includes a photo-eyes series device to control the right position and the presence of rolls.
Its hexalateral elevator keeps rolls correctly positioned even at high operating speeds.
The integrated tuck group option, designed as a modular concept, allows SUPERA to perform paper roll wrapping at the highest speeds on the tissue market: up to 250 packs/minute.
Easy management and guided changeover operations are carried out through the touchscreen control panel. SUPERA enables full size adjustments stored in recipes for fast, accurate and repetitive settings.
Production plant
IMA TMC
Machine highlights
-
Speed
SUPERA wraps at the highest speeds on the tissue market.
-
Savings
Maximises paper savings in comparison with similar machines on the market.
-
Automation
SUPERA is fully automated by motion systems and brushless motors.
-
Vision system
SUPERA embeds photo-eyes series devices to control the right position and presence of rolls in the infeed unit.
-
Changeover
Easy management and guided changeover operations.
Machine details
Technical information
| SUPERA TECHNICAL DATA | ||
| Max. mech. speed | 300+ cy/1′ | |
| Max. prod. speed | 250+ p/1′ | |
| No. of lanes | 1 | |
| Infeed Product Range | MIN | MAX |
| Diameter | 90 mm | 150 mm |
| Length | 90 mm | 280 mm |
| Outfeed Product Range | MIN | MAX |
| Width | 90 mm | 150 mm |
| Length | 90 mm | 300 mm |
| Height | 90 mm | 150 mm |
| Reel Dimensions | MIN | MAX |
| Width | 320 mm | 800 mm |
| Diameter | – | 450 mm (1000 mm optional required) |
| Core Diameter | 70 – 76 mm | |
