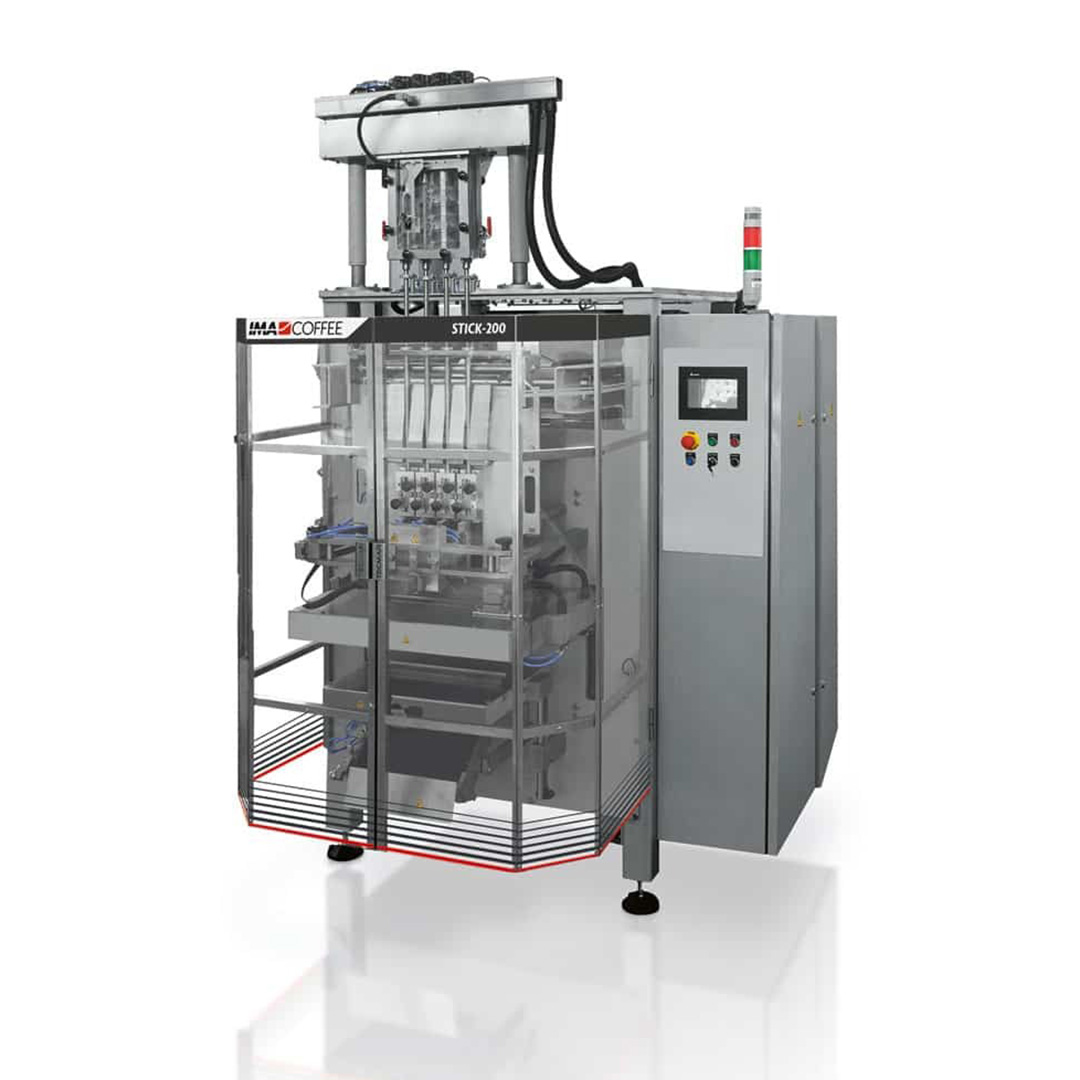

STICK PACK Series Stick Pack Filling
Machine overview
Multilane vertical machines for sticks.
The STICK PACK machines guarantee a high-performance output in the packaging of ground coffee and soluble products.
The design of the machines is based on an open-frame architecture that provides easy cleaning and accessibility for maintenance and operational adjustments.
The machines are controlled by a PLC and equipped with a user-friendly HMI.
With fully servo-driven movement, the machines are able to produce and fill stick-type sachets from 0.5 to 50 cc at a speed of up to 1120 sachets per minute.
Production plant
IMA Tecmar
Machine highlights
-
Motorised
Servo-driven mechanisms.
-
Versatility
Adaptable to different sizes of packages and products.
-
Integration
Able to integrate collator systems, automatic cartoners and end-of-line solutions.
-
Features
Vacuum traction system and automatic coil splicer.
-
Additional systems
In-line weight control systems, encoders, output tapes, chargers, inert gas and optionals.
Machine details
Technical information
| Sachet Width | Sachet Length | No. of lines | Reel | Speed Strokes/min. | |
| STICK-200 | 15 – 60 mm | Up to 240 mm | Up to 12 | Diameter 450 mm | Core 3” | Up to 70 |
| STICK-400 | 15 – 60 mm | Up to 240 mm | Up to 16 | Diameter 450 mm | Core 3” | Up to 70 |
