STERI LIF3 Aseptic Processing

Machine overview

Ready to fill

The number of specialised injectable and infusion medications in the healthcare marketplace has surged in the last few years and requires patient-centred, safe and flexible production methods. STERI LIF3 ensures these requirements.
STERI LIF3 is a fully automatic filling/stoppering and capping machine to process nested syringes, vials & cartridges and efficiently responds to the increasing market demand for higher numbers of small batches in different container formats. STERI LIF3 uses robotic, isolator-barrier systems, and single-use disposables. It combines filling, stoppering and capping operations, minimising space and preserving sterility requirements.

Production plant

IMA Life

Machine highlights

  1. High yields

    Extremely precise filling operations for high product yield.

  2. 100% IPC

    100% and statistical IPC.

  3. Multiple dosing

    Multiple dosing options at up to 1200 pcs/h.

  4. Easy upgrade

    Can integrate with automated upstream de-bagging and de-lidding processes.

  5. Capping

    Integrated capping station for vials.

  6. Brushless technology

    Completely brushless driven.

  7. Sanitisation

    Ideal for exposure to H2O2 sanitisation.

  8. Zero cross-contamination

    Capping station segregated from filling and stoppering area to avoid cross-contamination.

High flexibility

Flexible and repeatable filling are becoming more crucial due to changes in the pharmaceutical industry. That happens best with a closed robotic filling system. STERI LIF3 robotic arms offer repeatability with the flexibility to easily change the process or the type of container being filled.

Machine details

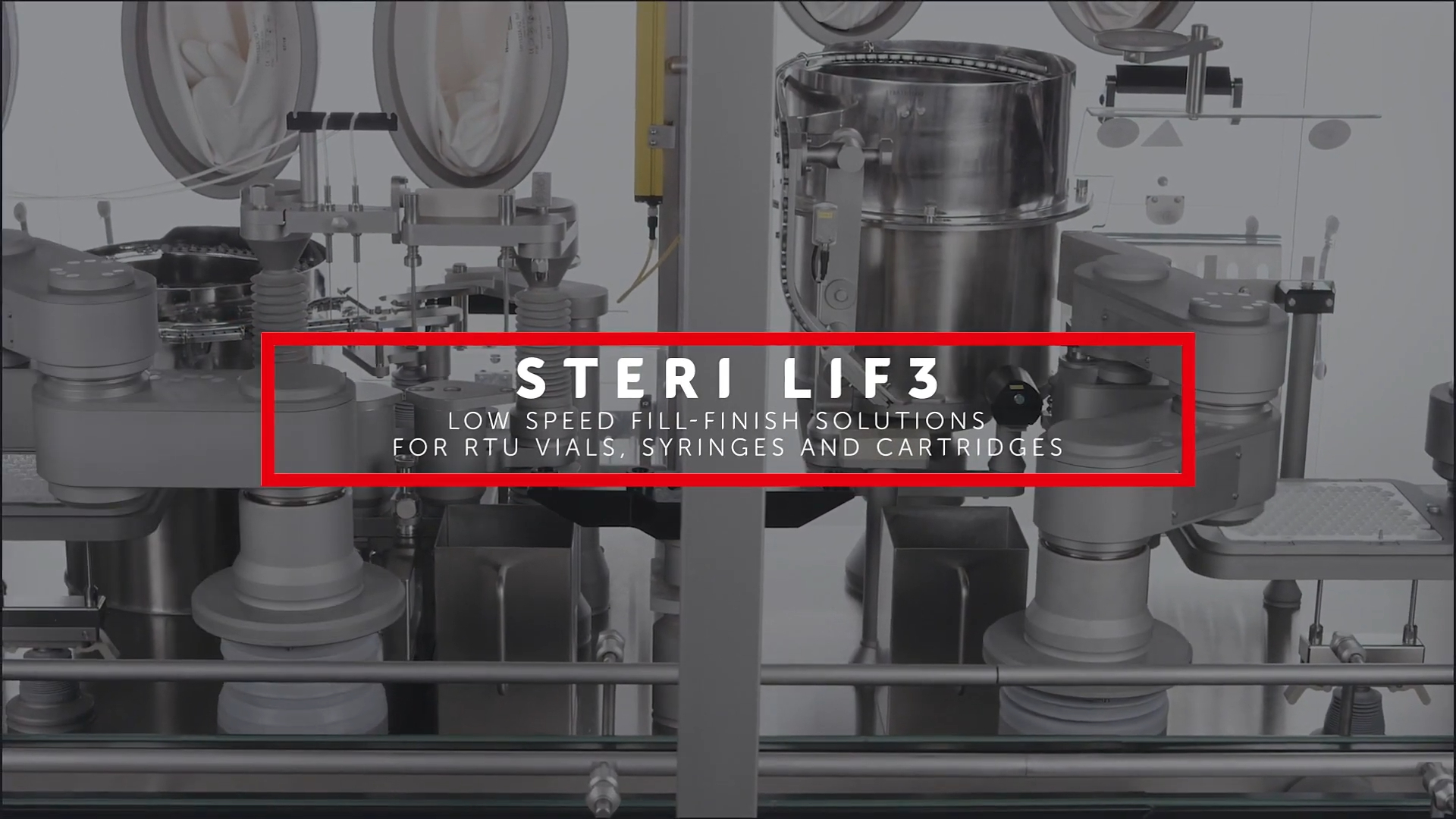

Machine video trailer

Internal top view

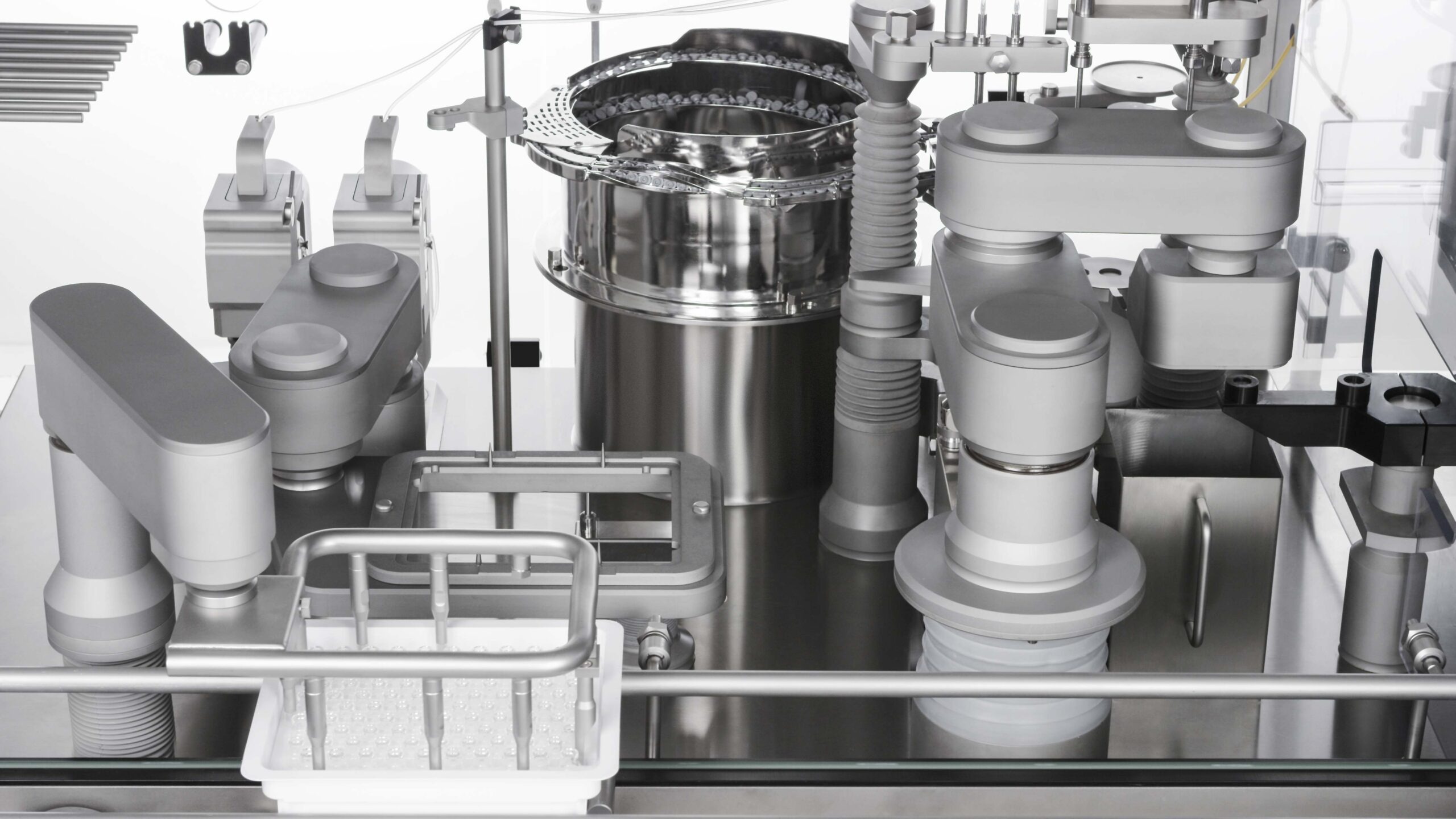

Nest pick up

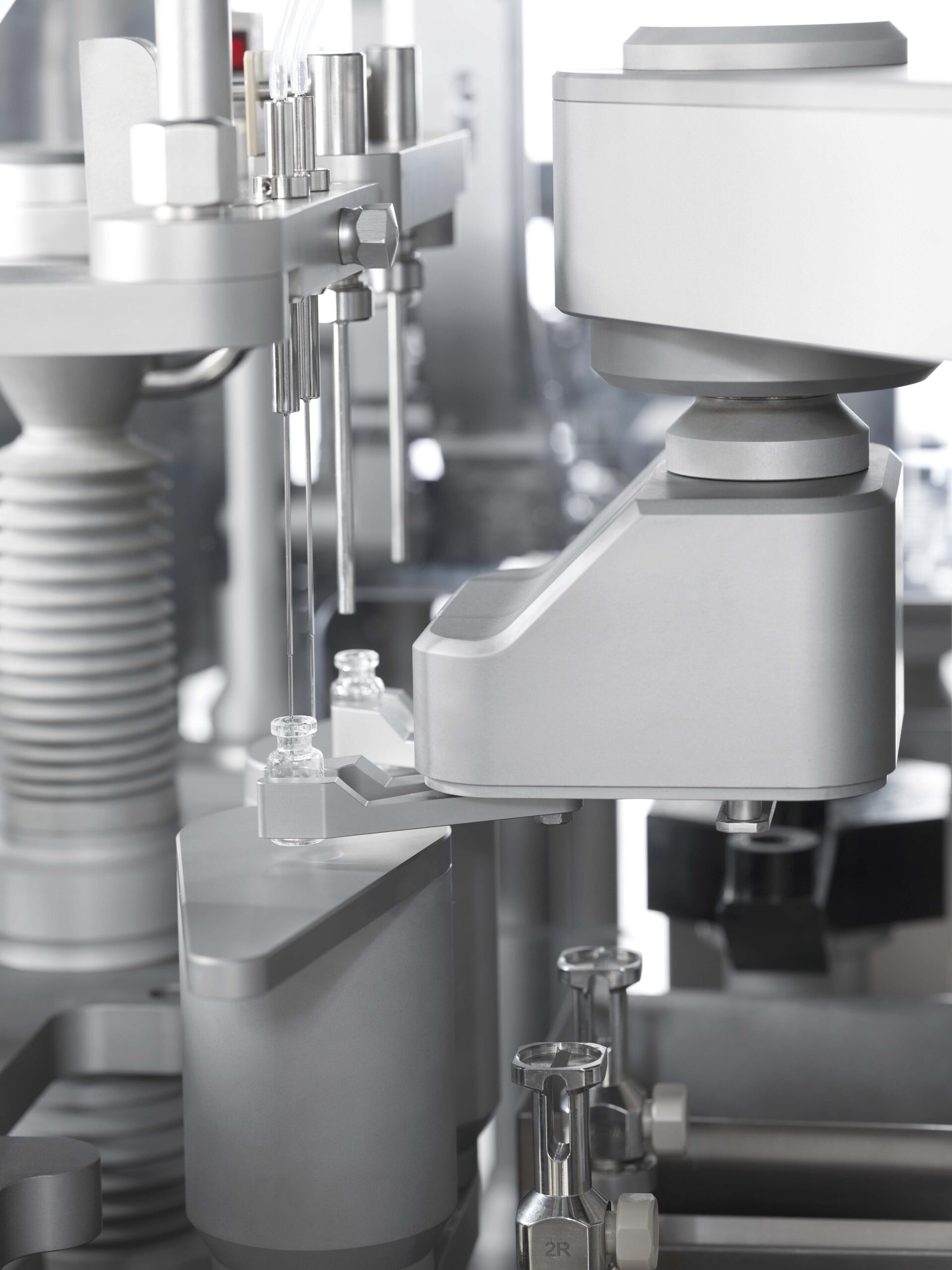

Filling area

Stoppering

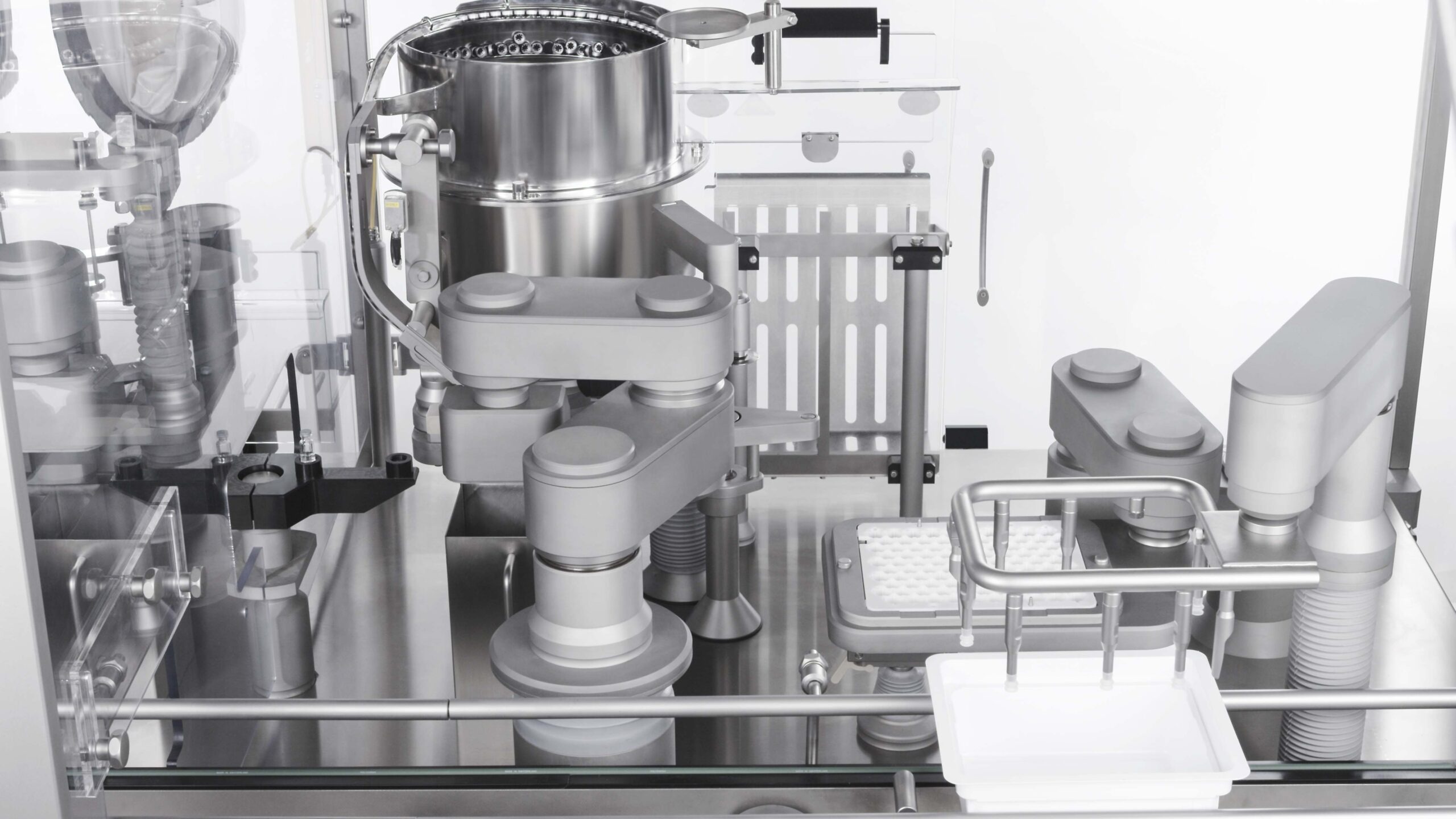

Transfer of the RTU vials to the capping area

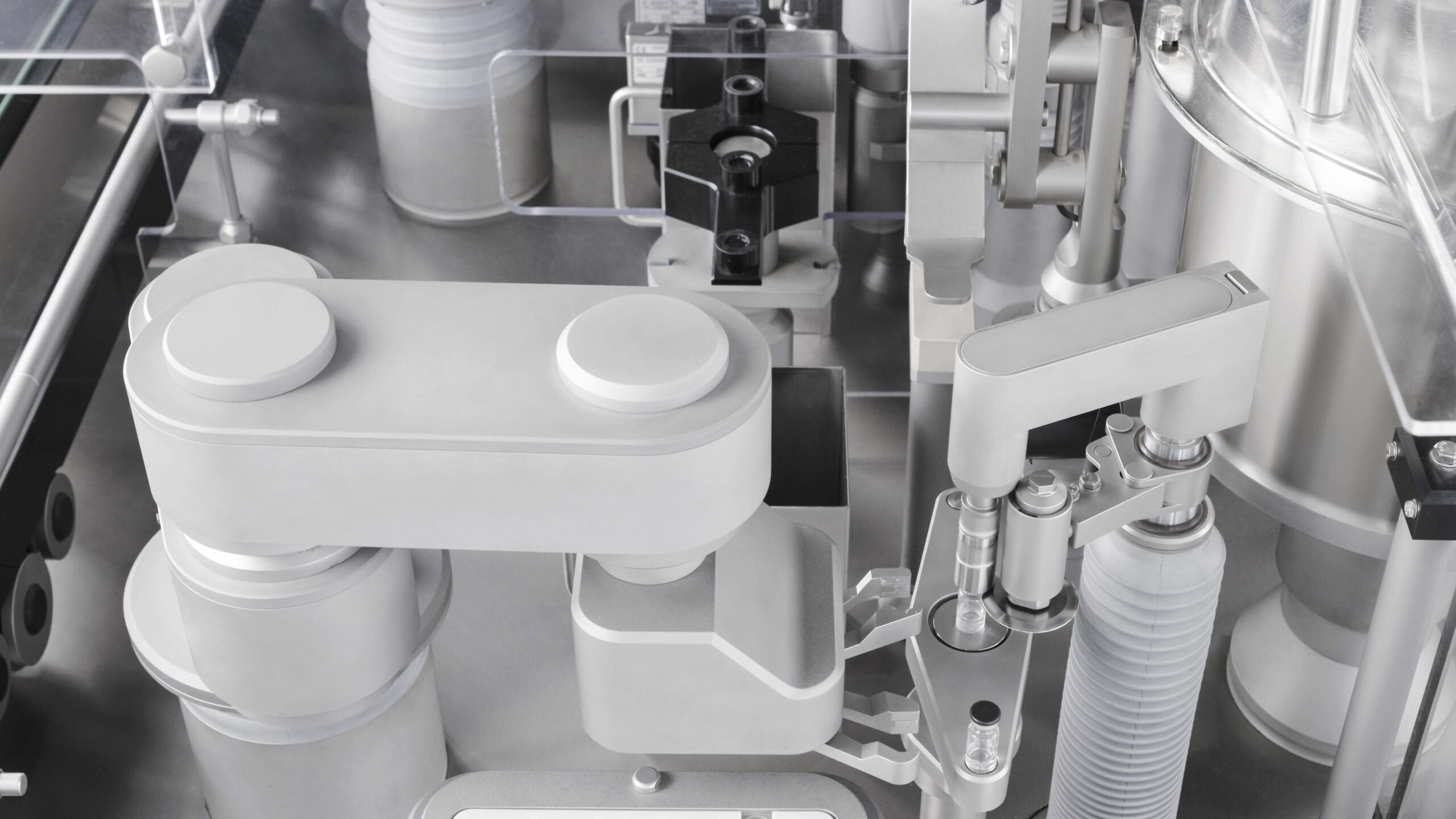

Capping of the RTU vials

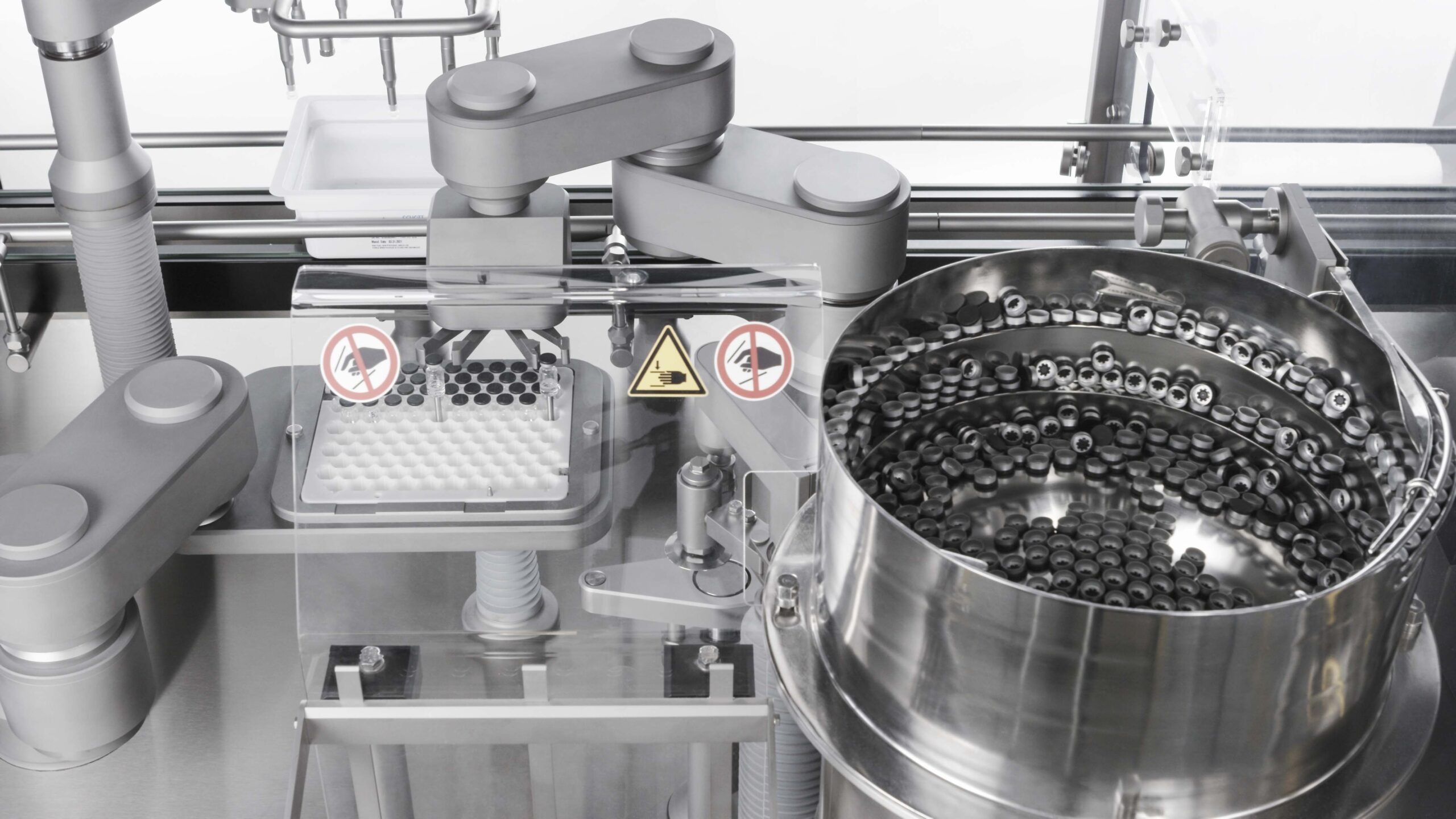

Capping overview

General overview of the working area

Nest outfeed

Technical information

FeaturesSTERI LIF3
AutomationFully robotic automated
Footprint (mm)3,300 x 1,300 x 2,080 [L x W x H]
In-Process Control100% at full speed
RTU vial dimensionsØ 16 – 42.4 mm
Vial outputup to 1,200 pcs/h
RTU syringe dimensions0.5 – 50 ml
Syringe outputup to 1,200 pcs/h
RTU cartridge dimensions1 -20 ml
Cartridge outputup to 1,000 pcs/h
Suitable for high-potentYes
Loading from depyrogenation tunnelNo
