SR Series Capsule Filling for Coffee
Machine overview
Maximum versatility and flexibility.
The SR Series is a range of versatile and flexible latest-generation machines, equipped for the filling and sealing of capsules on 4 and 6 lanes. The mechanical stations are moved by a camshaft system. 15” touchscreen operator control panel, for utilisation and monitoring of machine function status.
The coffee is dosed through an auger system, which is driven by a brushless motor. Prearrangement for nitrogen tunnel. In-line weighing system. Capsules can be closed at the top with aluminium film, a micro-perforated film, flter paper, a triplex-coupled film, a PP film or a compostable lid. Filters and diaphragms can be inserted into the capsule and on its bottom. The machine can treat coffee, tea leaves and any soluble product.
Production plant
Spreafico Automation s.r.l.
Machine highlights
-
Empty capsule feeding
Feeding system for empty capsules, open-side up.
-

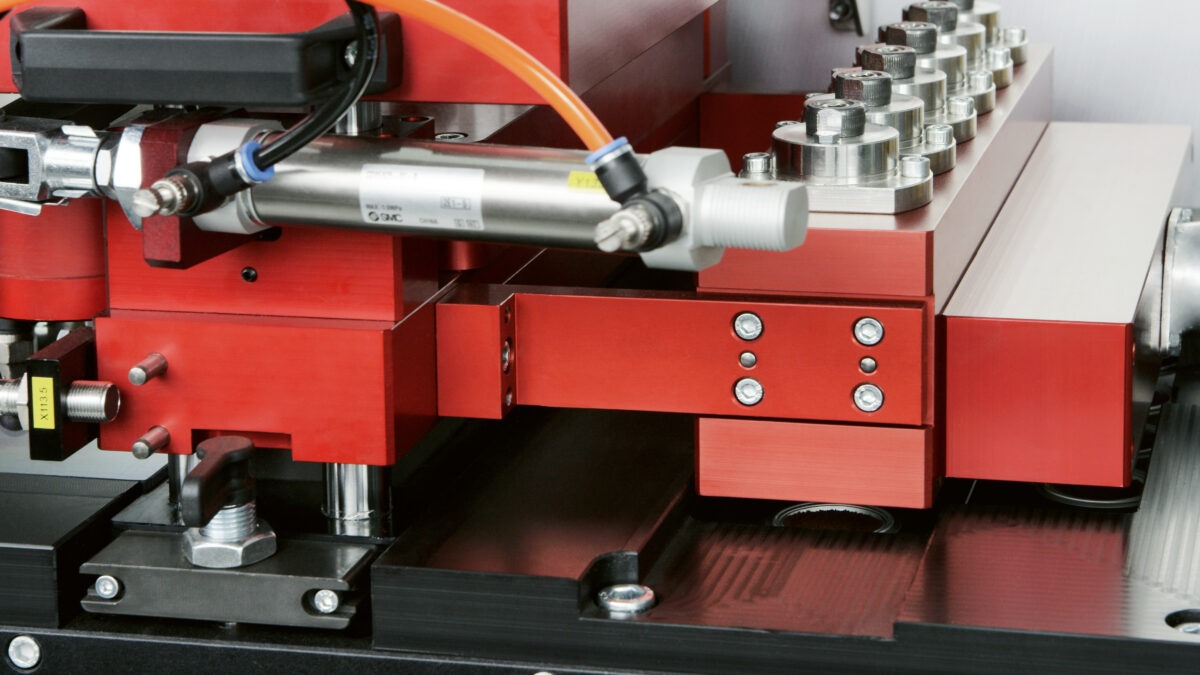

Camshaft system
Mechanical stations moved by a camshaft system.
-

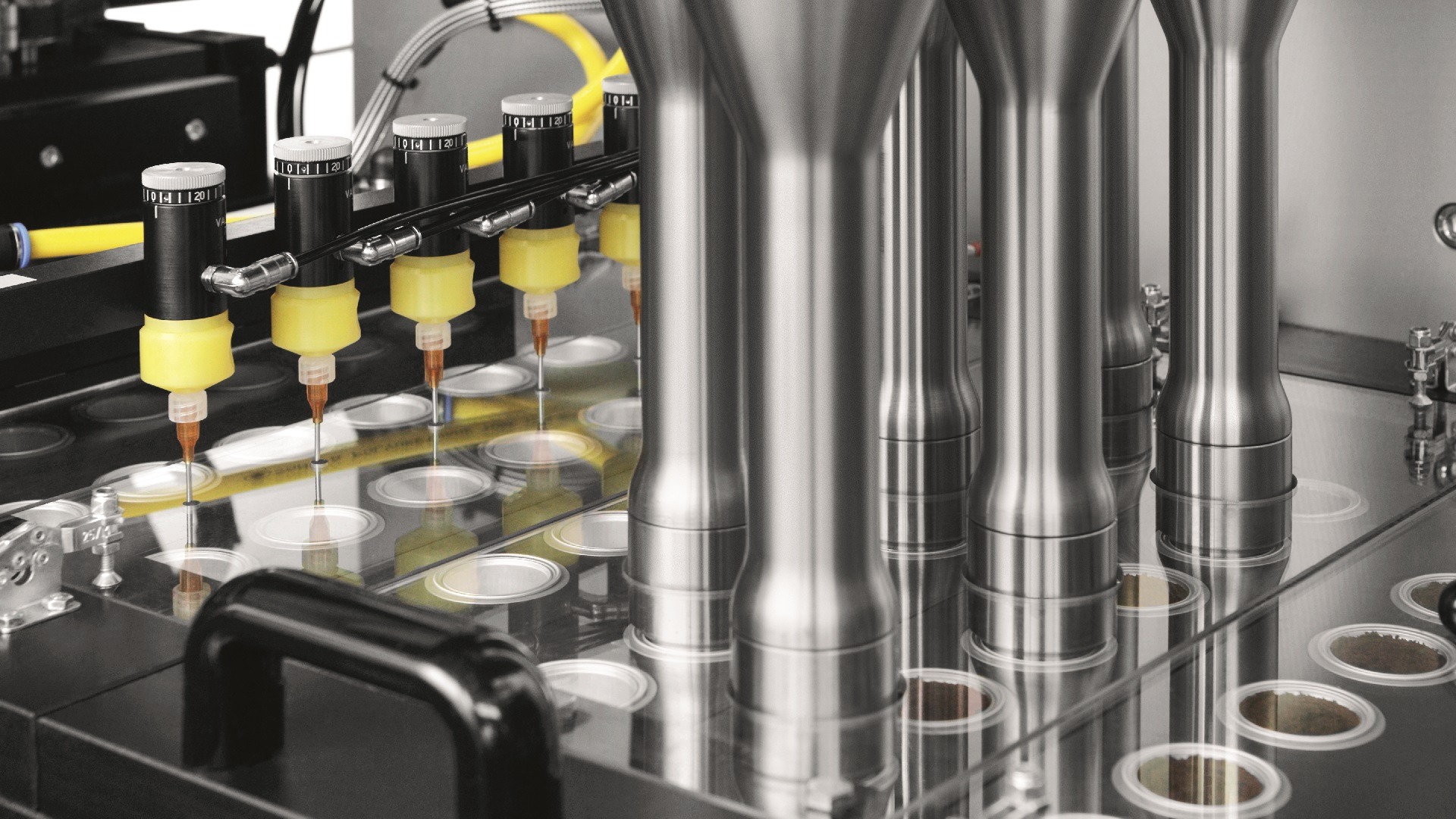

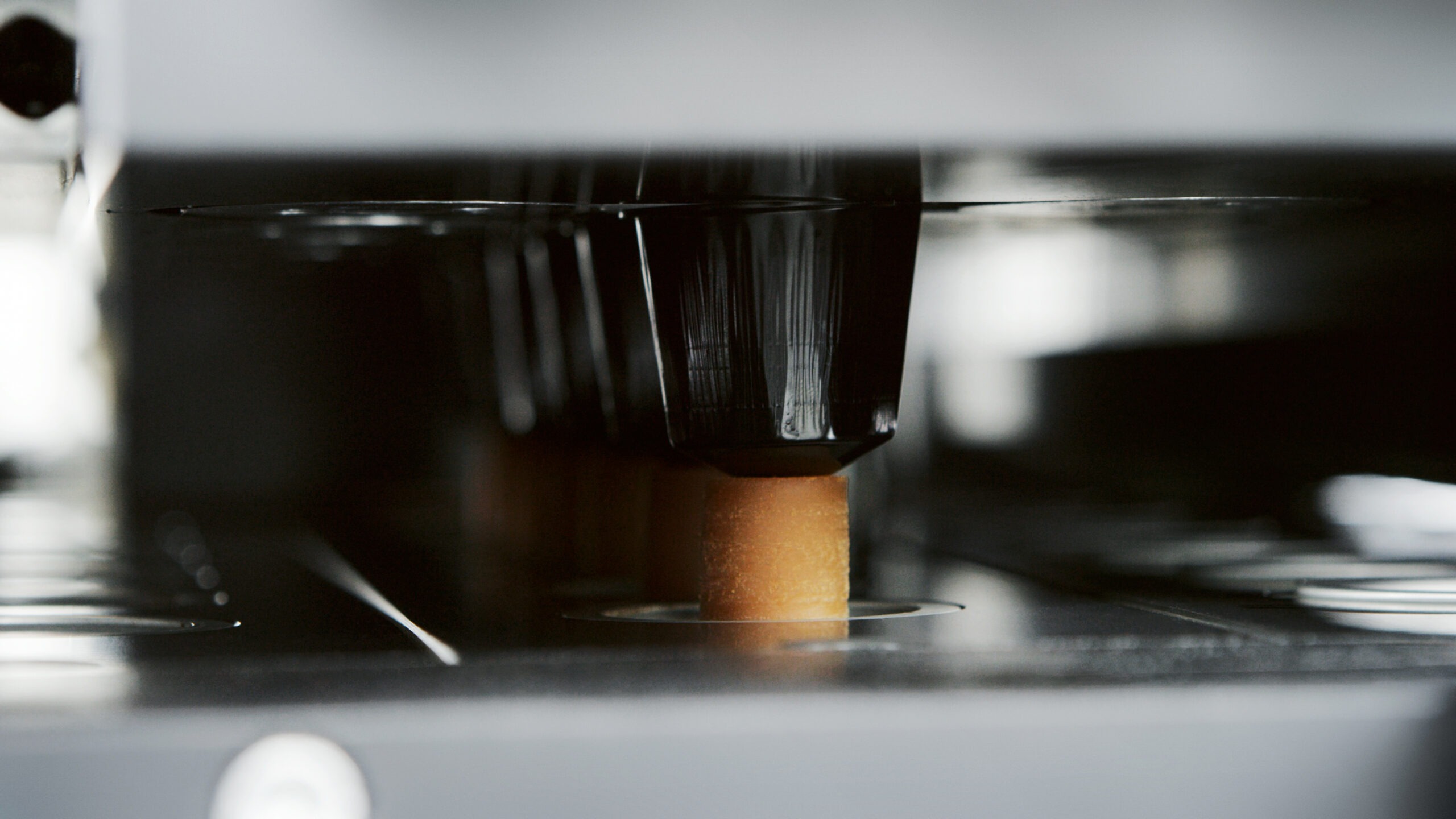

Coffee dosing
Coffee dosed through an auger system driven by a brushless motor.
-

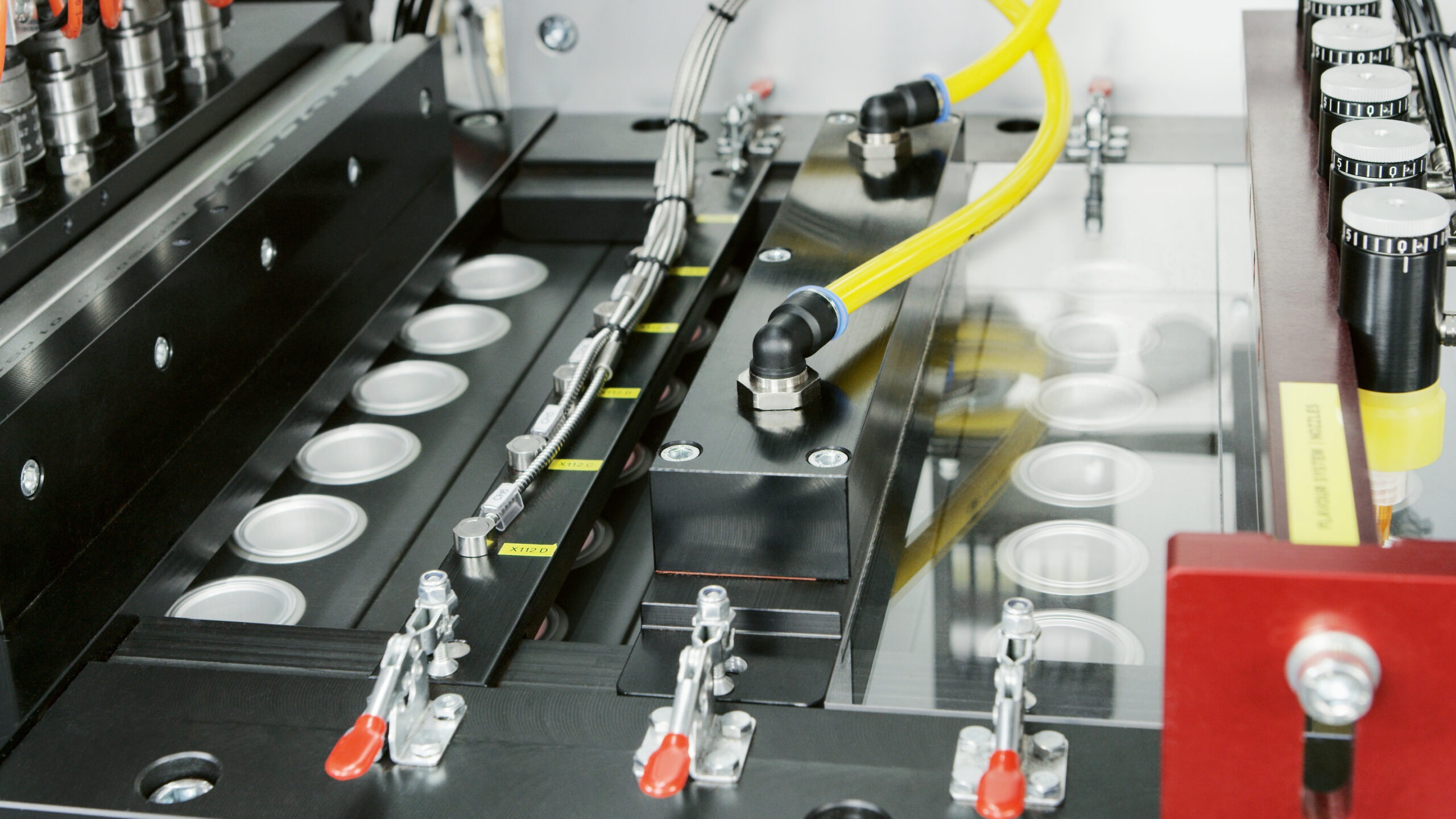

Nitrogen tunnel
Prearrangement for nitrogen tunnel.
-
Versatility
Suitable for coffee, tea leaves and any soluble product.
-

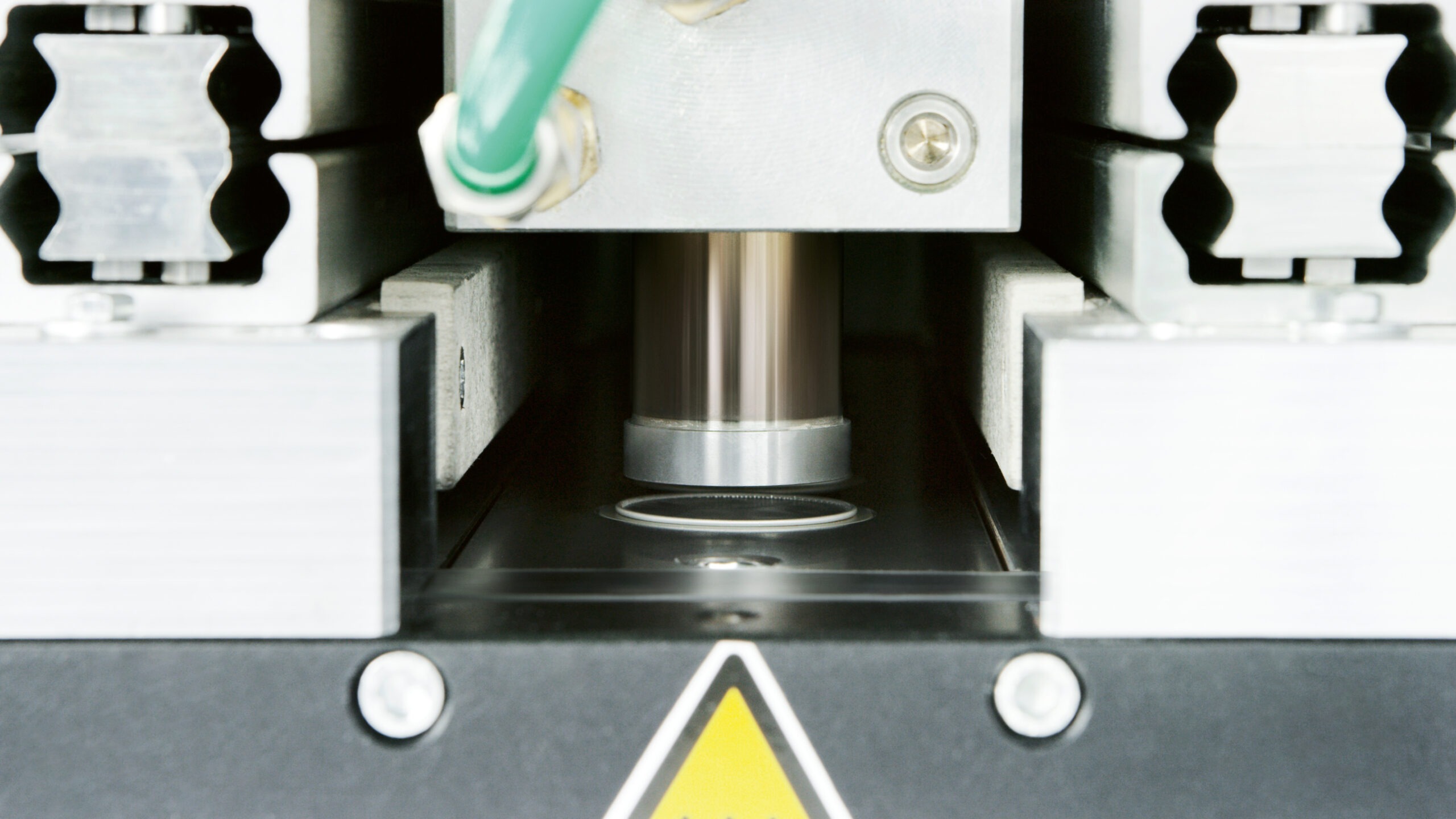

Sealing
Sealing station for alu or filter paper.
-
Several capsule types
Ready to fit standard, barrier, compostable and compostable barrier capsules.
-
Weighing system
100% check-weighing with immediate feedback to maintain desired range.
Machine details
Technical information
| SR4 | SR6 | |
|---|---|---|
| Production speed (capsules/min) | up to 240 | up to 360 |
| Power consumption (kW) | 13.8 – 14.5 | 18 – 23 |
| Machine weight (kg) | 3000 – 3500 | 3500 – 4800 |
| Nitrogen consumption (Nm3/h) | 57.6 – 61.2 | 64.8 – 93.6 |
| Compressed air consumption (Nm3/h) | 36 | 55 |
| Compressed air pressure (bar) | 5.5 – 7 | 5.5 – 7 |
