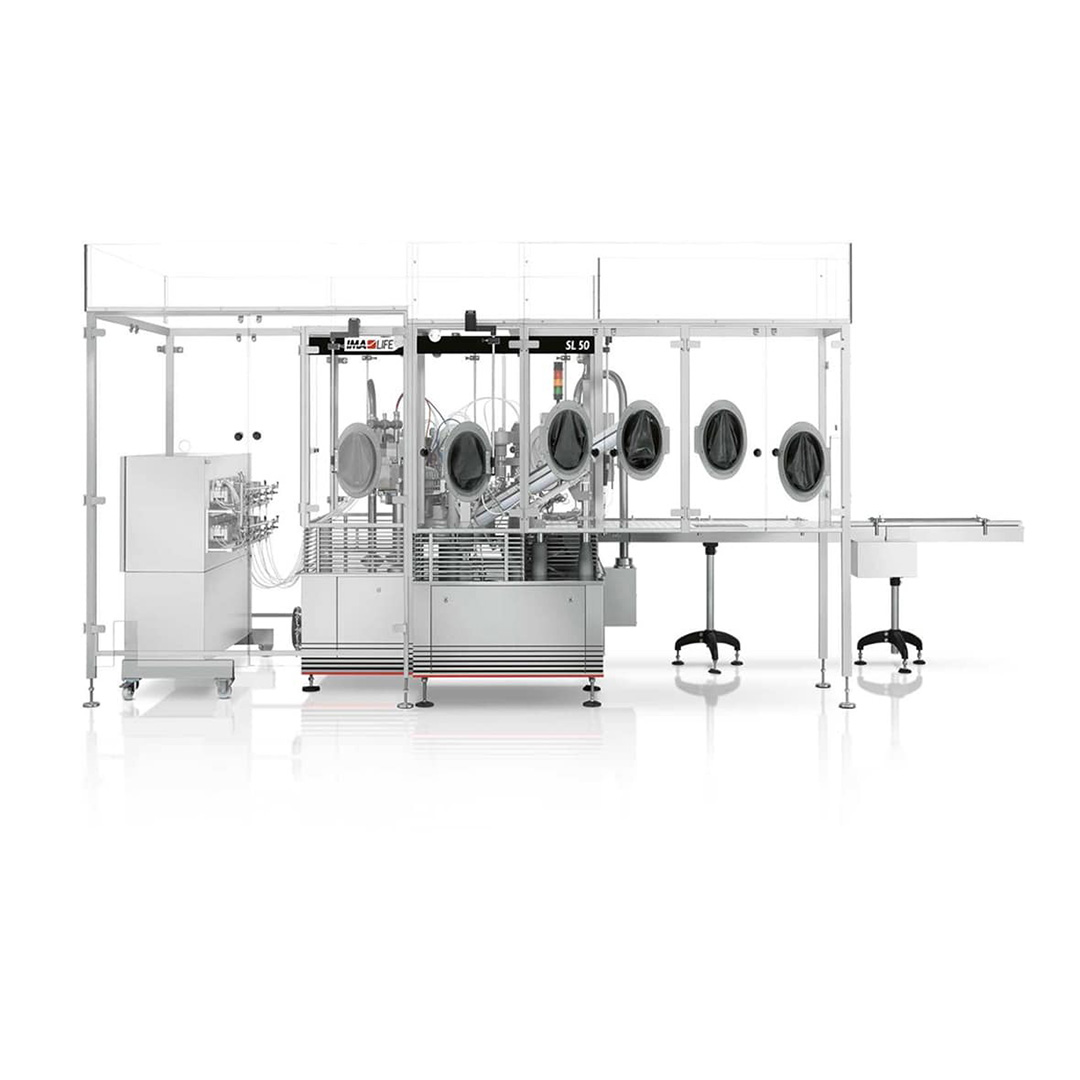

SL Series Non-Aseptic Processing

Machine overview

Multiple opportunities for single-dose containers

The SL SERIES of filling and sealing machines for single-dose containers ensures overall flexibility so as to meet a wide range of needs, for industrial-scale production or small production batches. The use of single-dose containers to package sterile, pharmaceutical or cosmetic products is becoming increasingly popular thanks to the numerous advantages that this type of container offers in terms of product safety, administration accuracy and ease of use.
The SL SERIES is designed and built to fill and seal single-dose plastic containers in 5-unit dose strips with maximum dosing up to 15 ml and equipped with different filling systems according to product viscosity.  Thanks to the wide range of models available, our product portfolio can meet any production specification and layout configuration.

Production plant

IMA Life

Machine highlights

  1. Extremely versatile

    Suitable for ophthalmic products, oral vaccines, oral and nasal drops, disinfectants, aerosol solutions and diagnostic reagents, as well as for nutraceutical and cosmetic products.

  2. Top performance

    High production speed (up to 75 strips/min).

  3. Variety of plastics

    So flexible, it handles single-dose containers in many different types of plastic.

  4. Compliance

    cGMP-compliant.

  5. Space-efficient

    Compact, suitable for limited spaces, ideal for use in existing or new production sites.

  6. Versatility

    Sealing of different plastic materials and capacities.

  7. Excellent integration

    Perfect integration into high-speed production lines.

Maximum flexibility

Maximum flexibility, in-line configuration and excellent integration underpin the renowned reliability of our machines. Combined, these factors ensure that our lines provide top performance throughout all stages of the production process.

Machine details

Machine video trailer

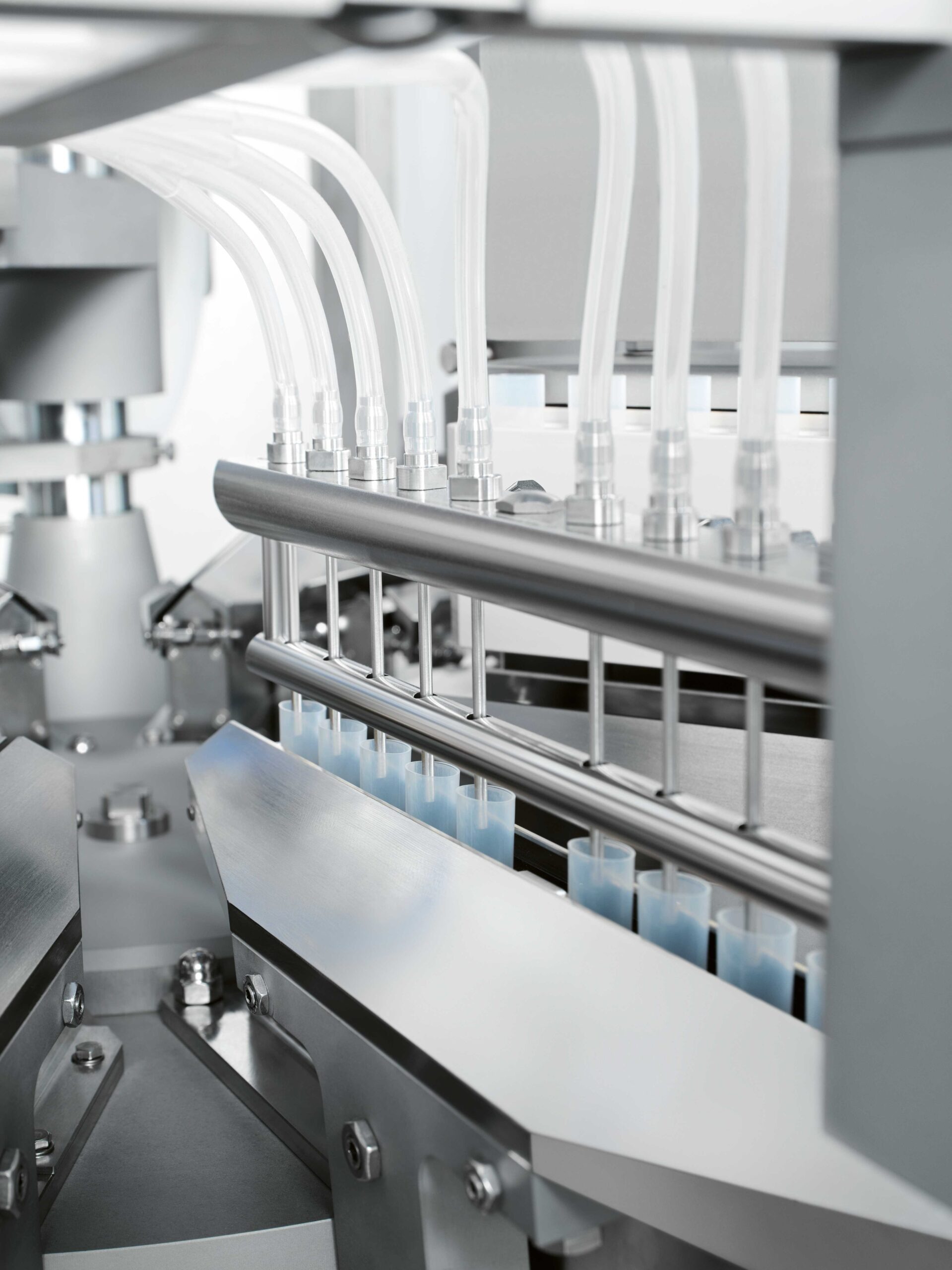

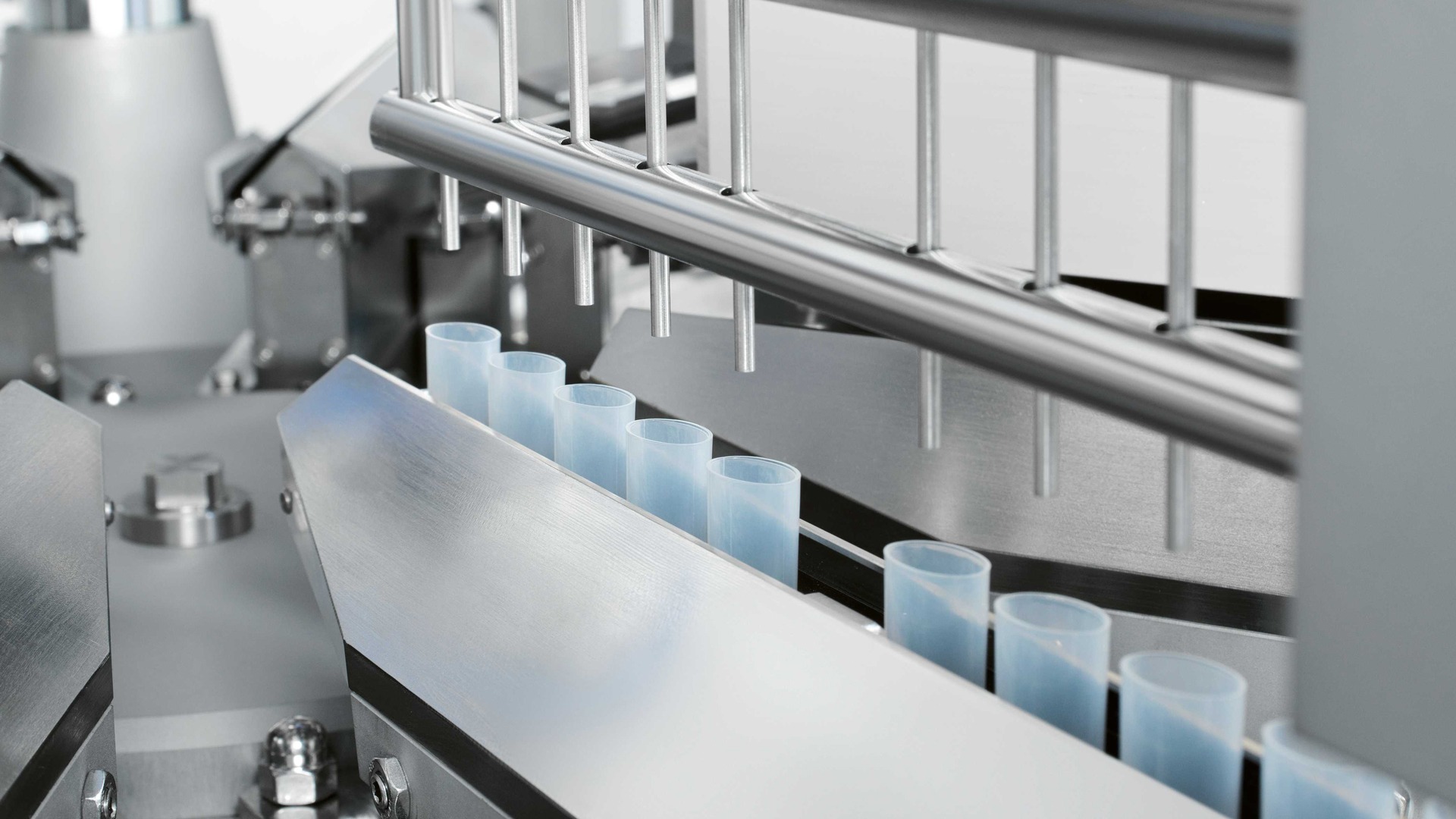

Filling by peristaltic pumps

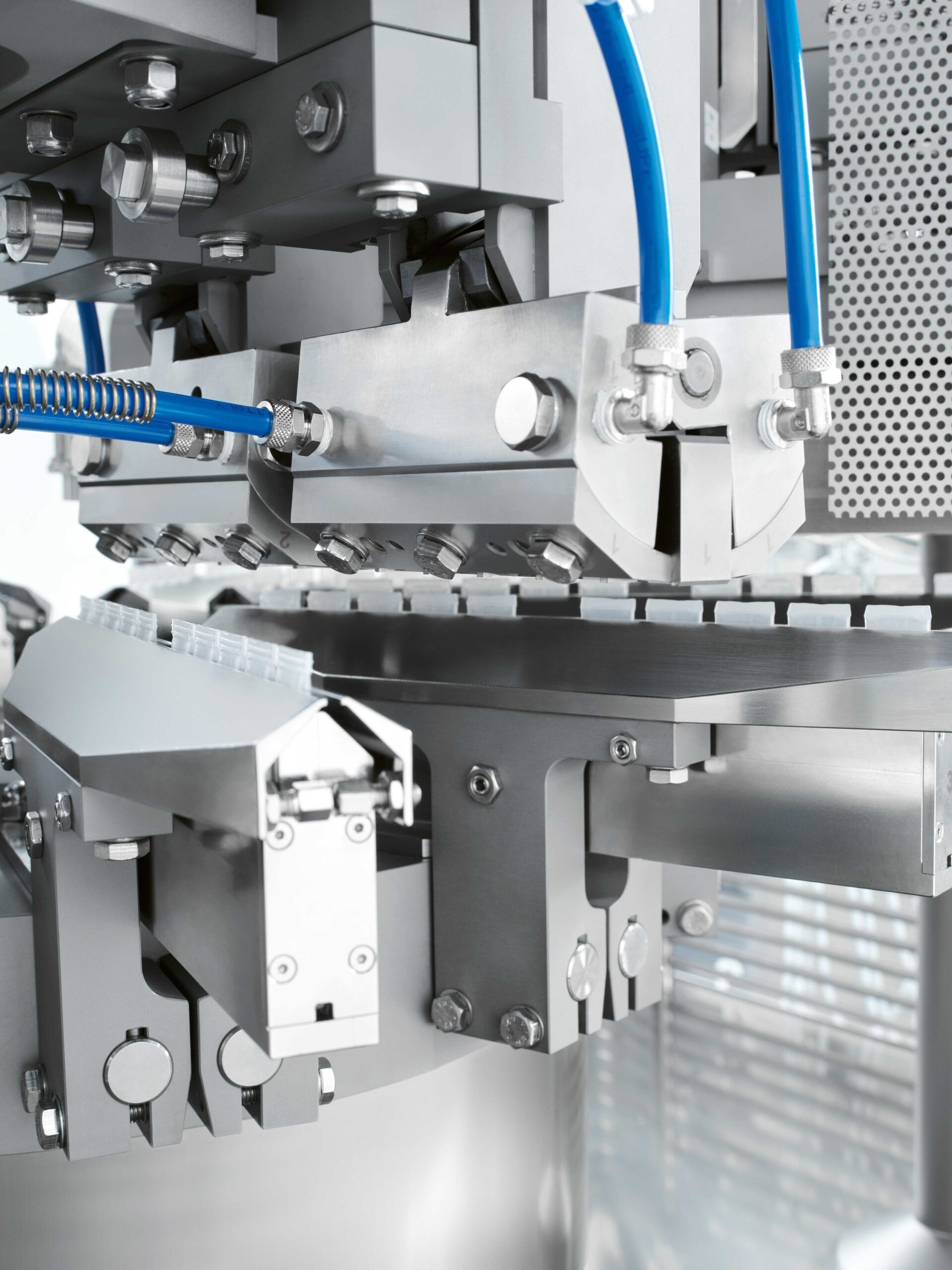

Sealing station

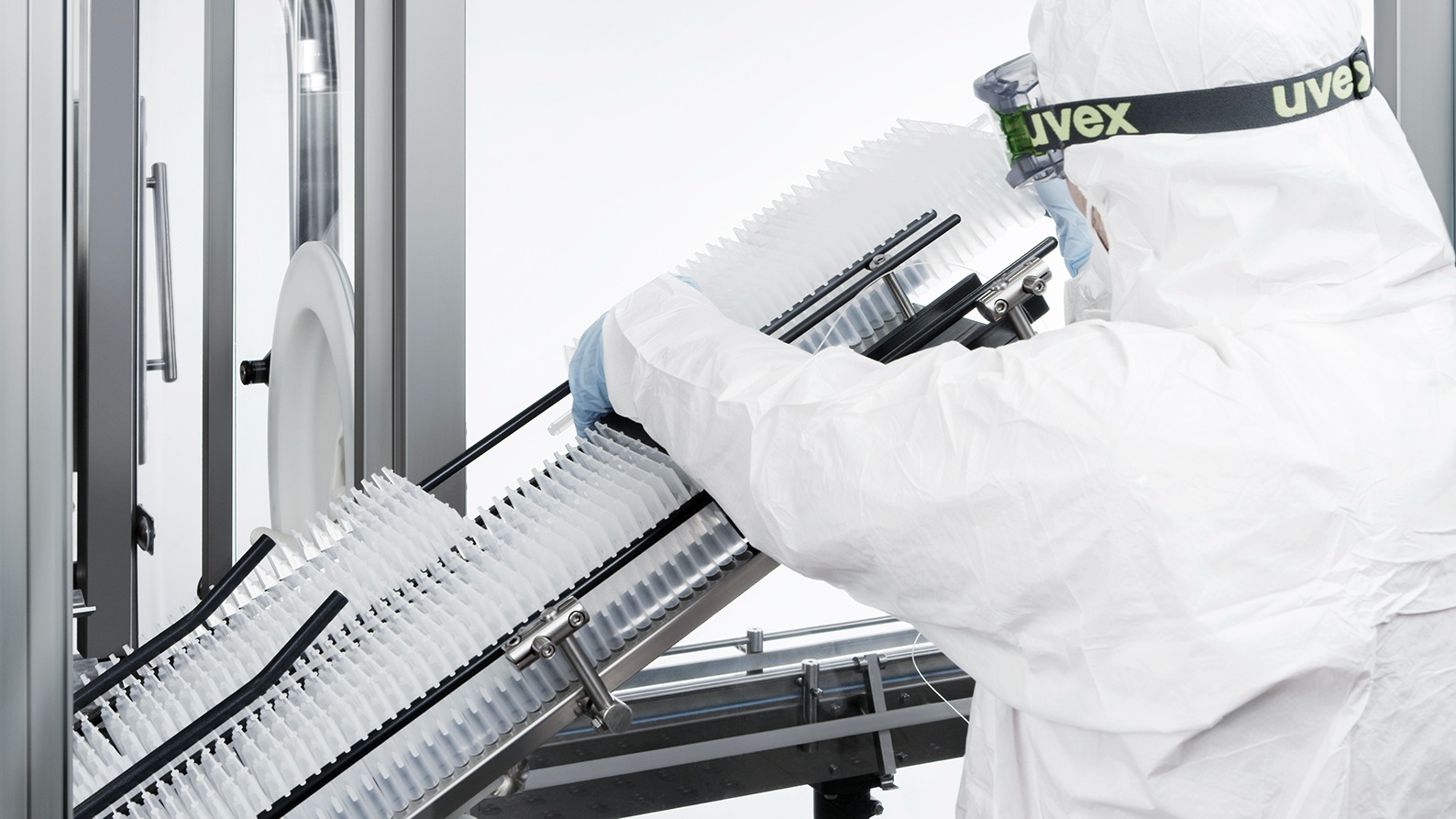

Feeding system

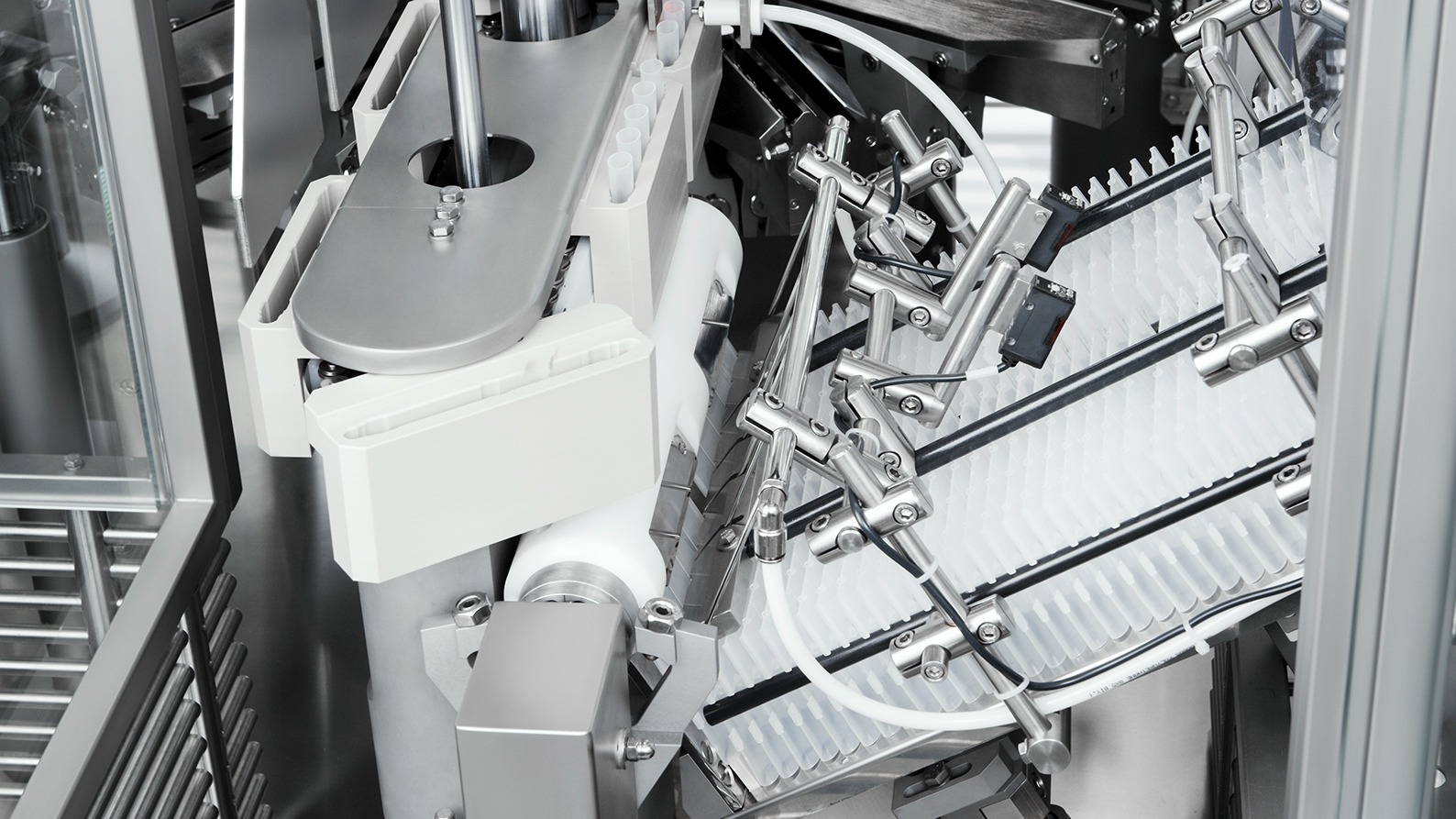

Feeding overview

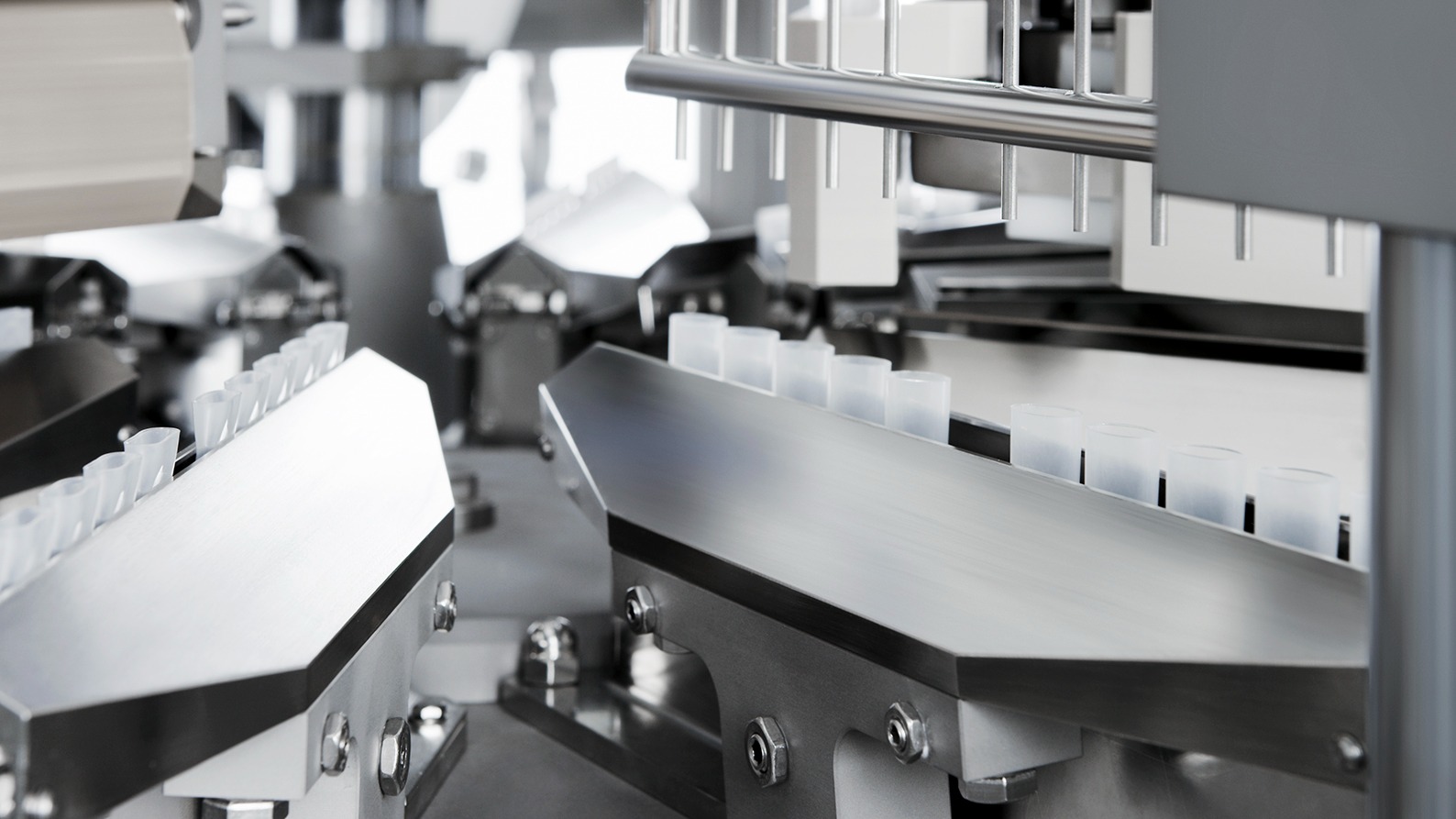

SL 50 filling

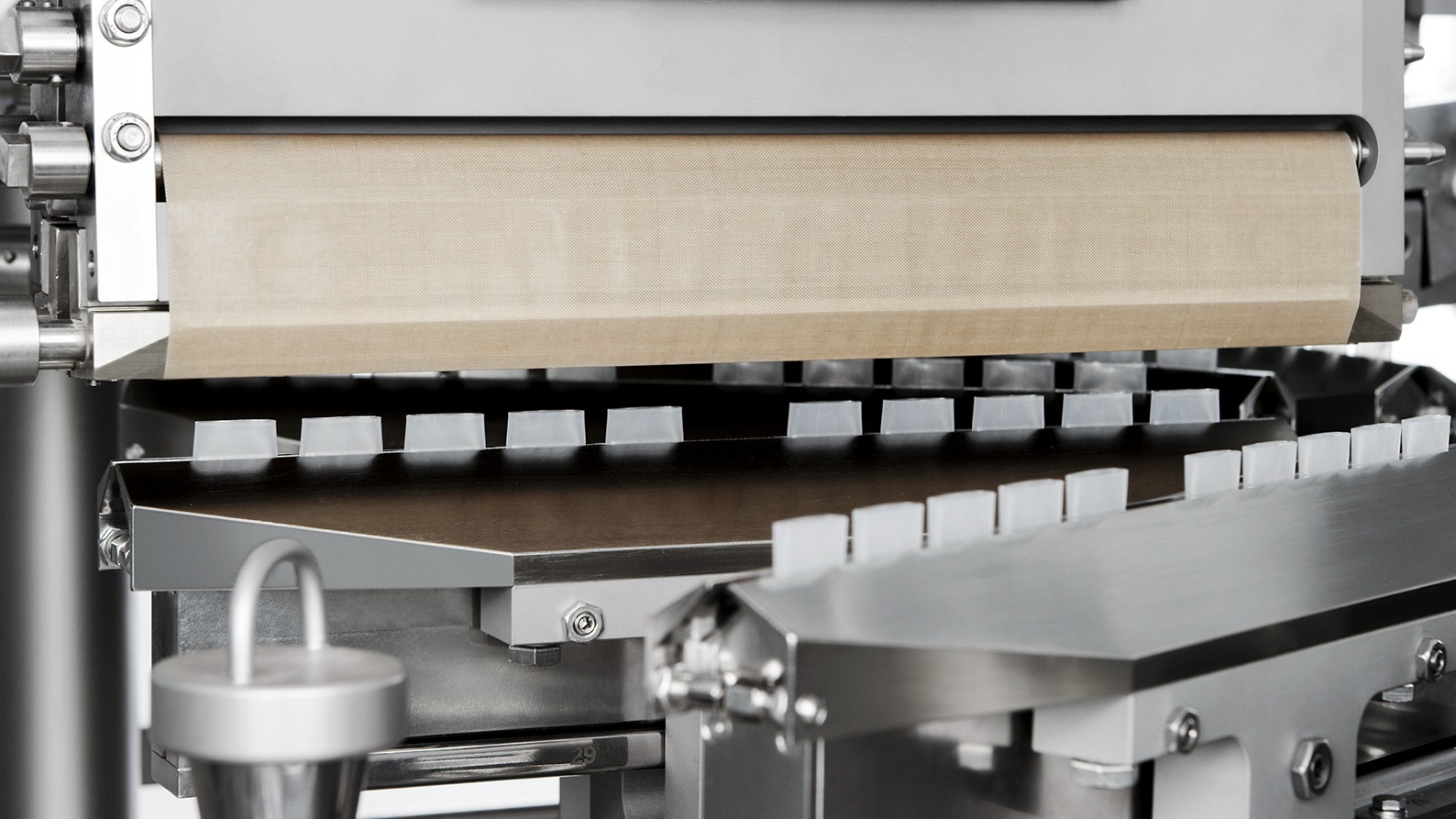

SL 50 first heating station

SL 50 second sealing station

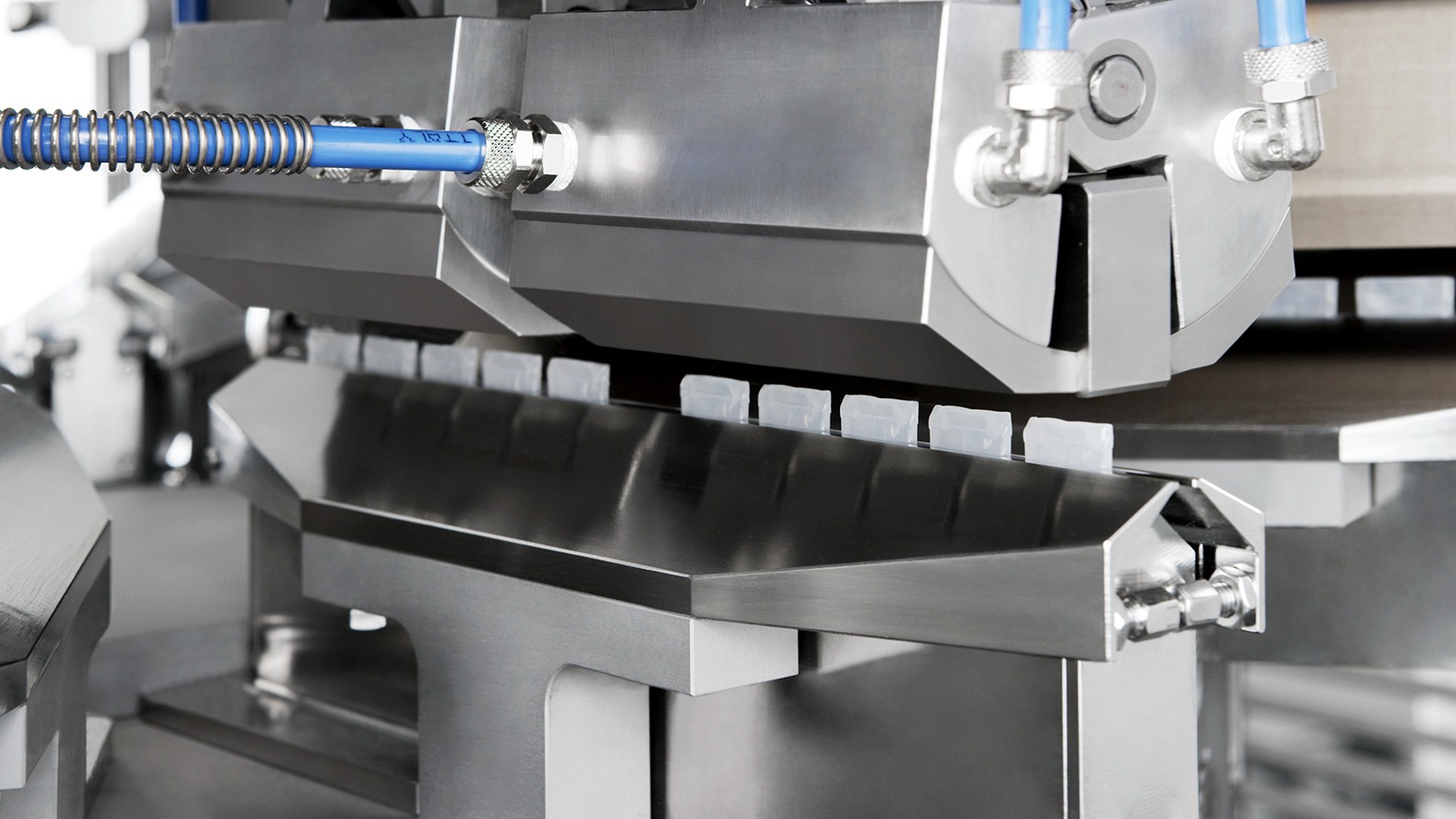

SL 50 third cooling&forming station

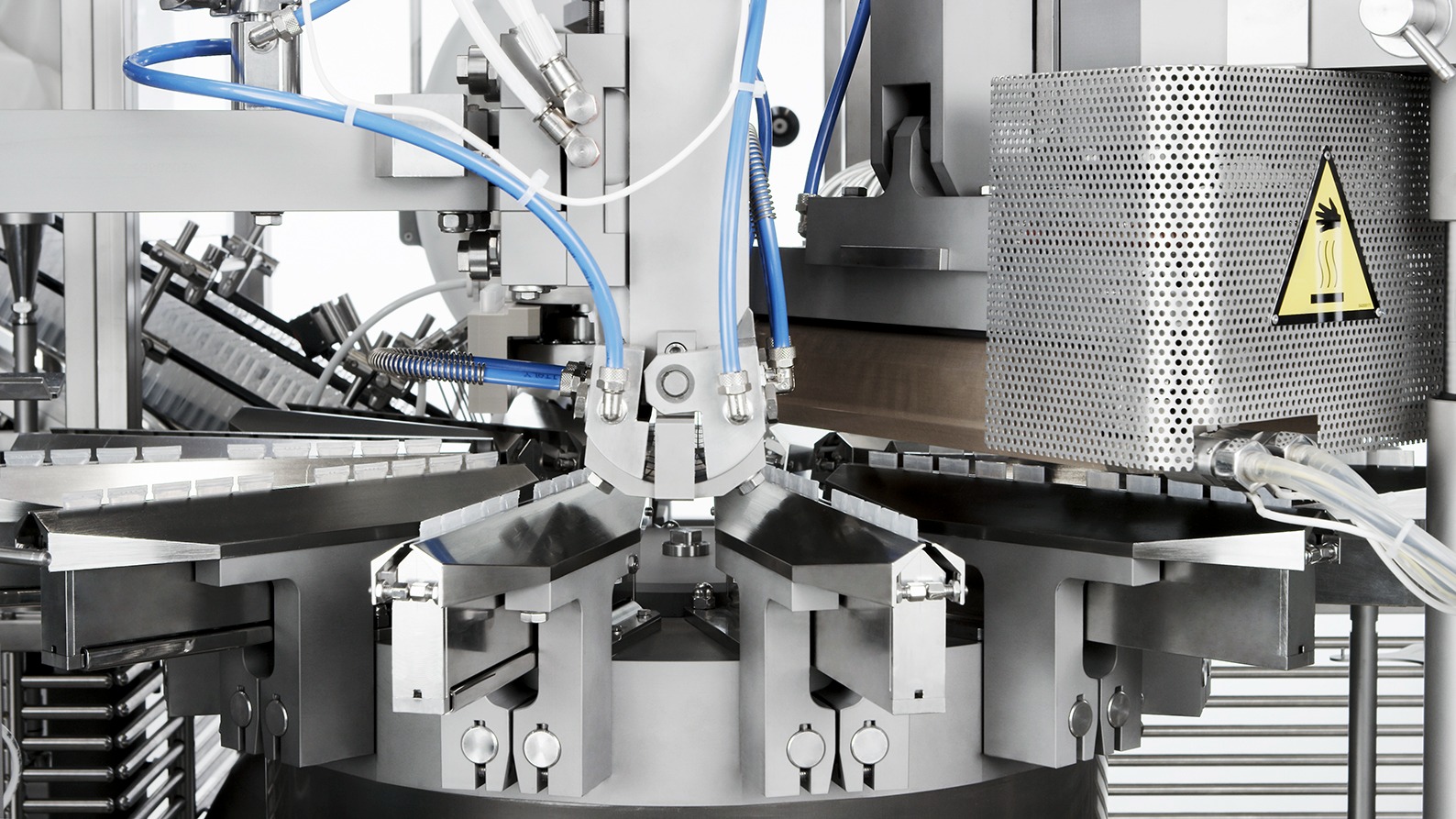

SL 50 working station side view

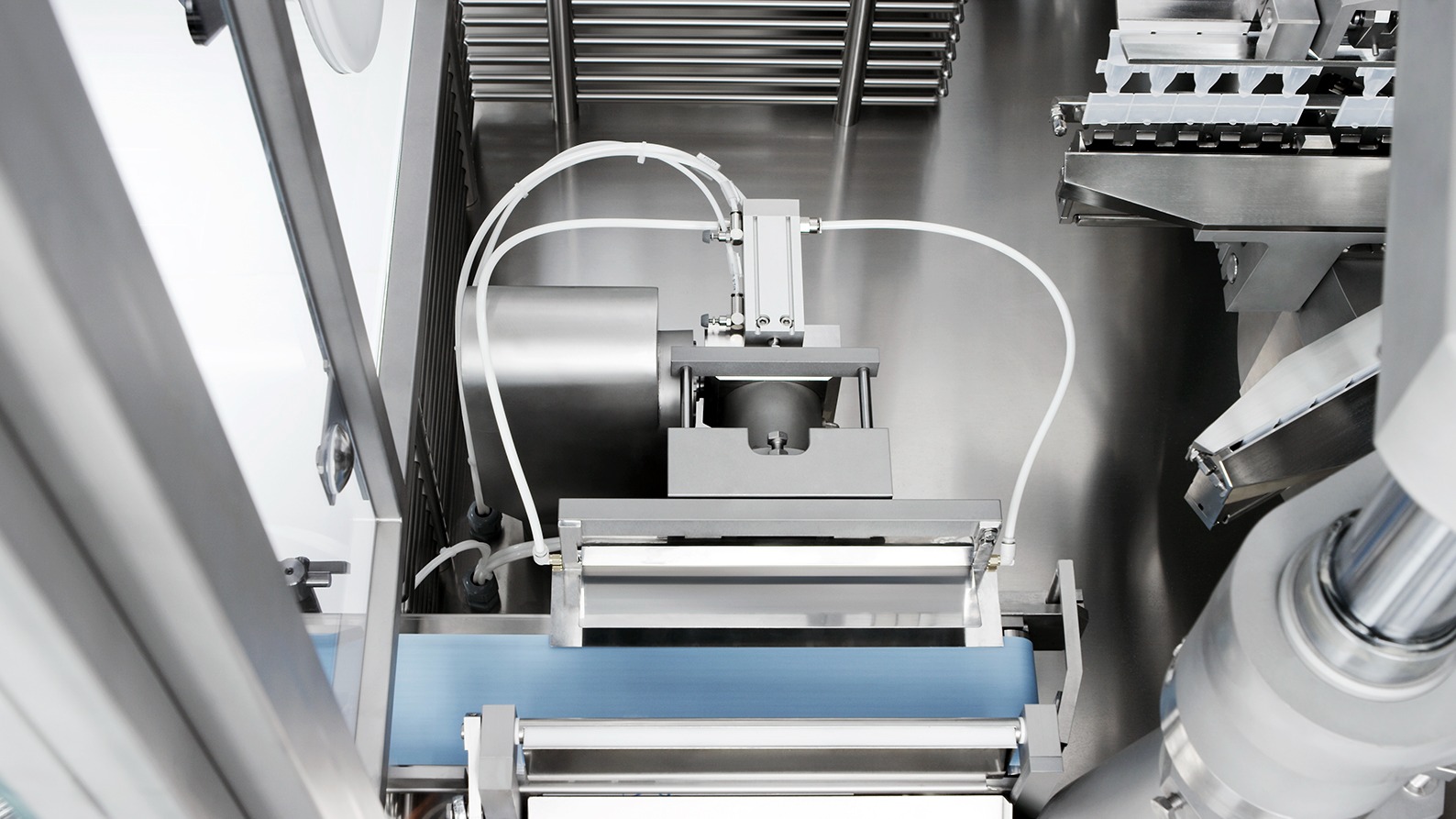

SL 50 outfeed

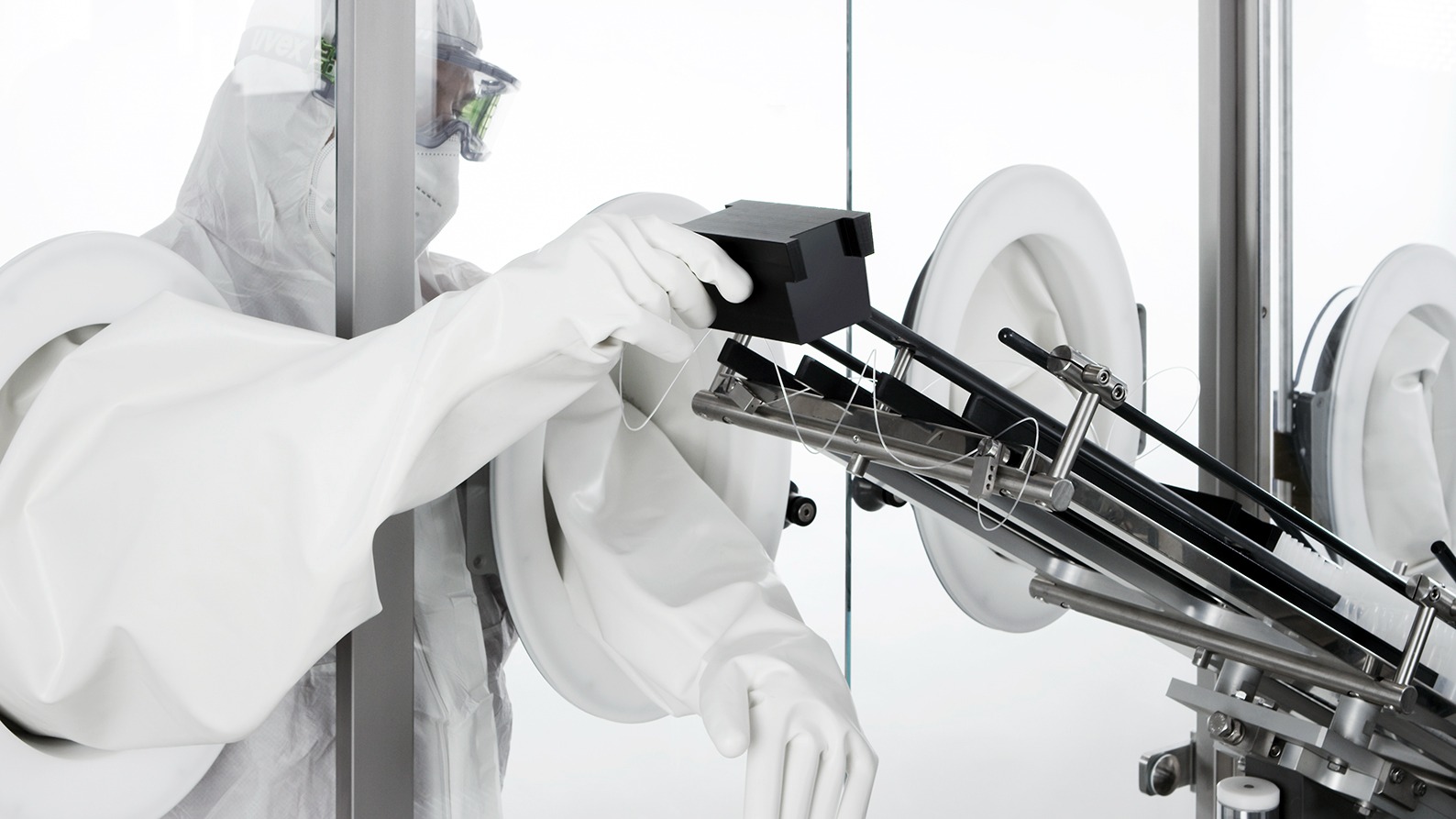

SL 50 strip loading

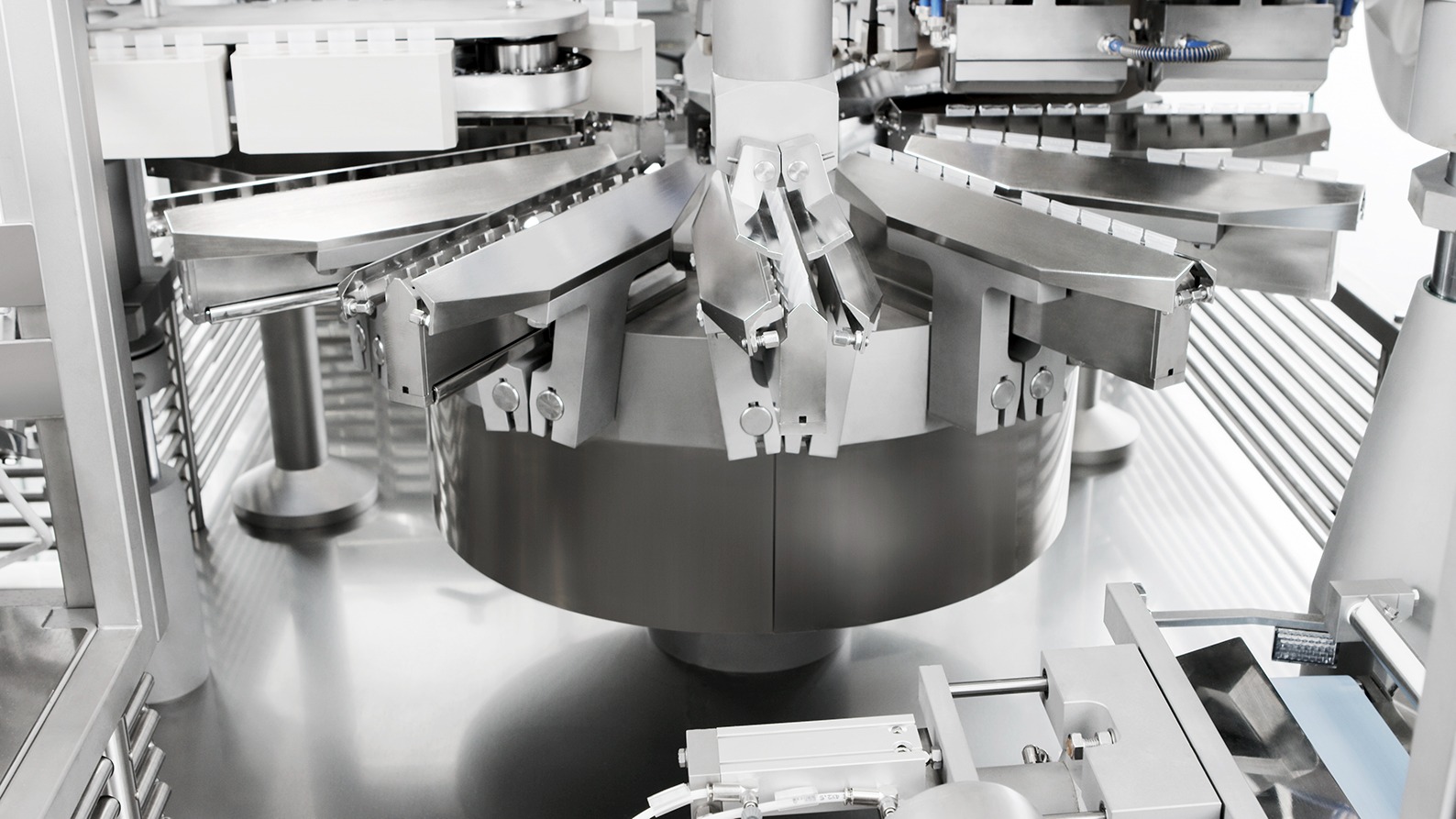

SL 50 final transfer

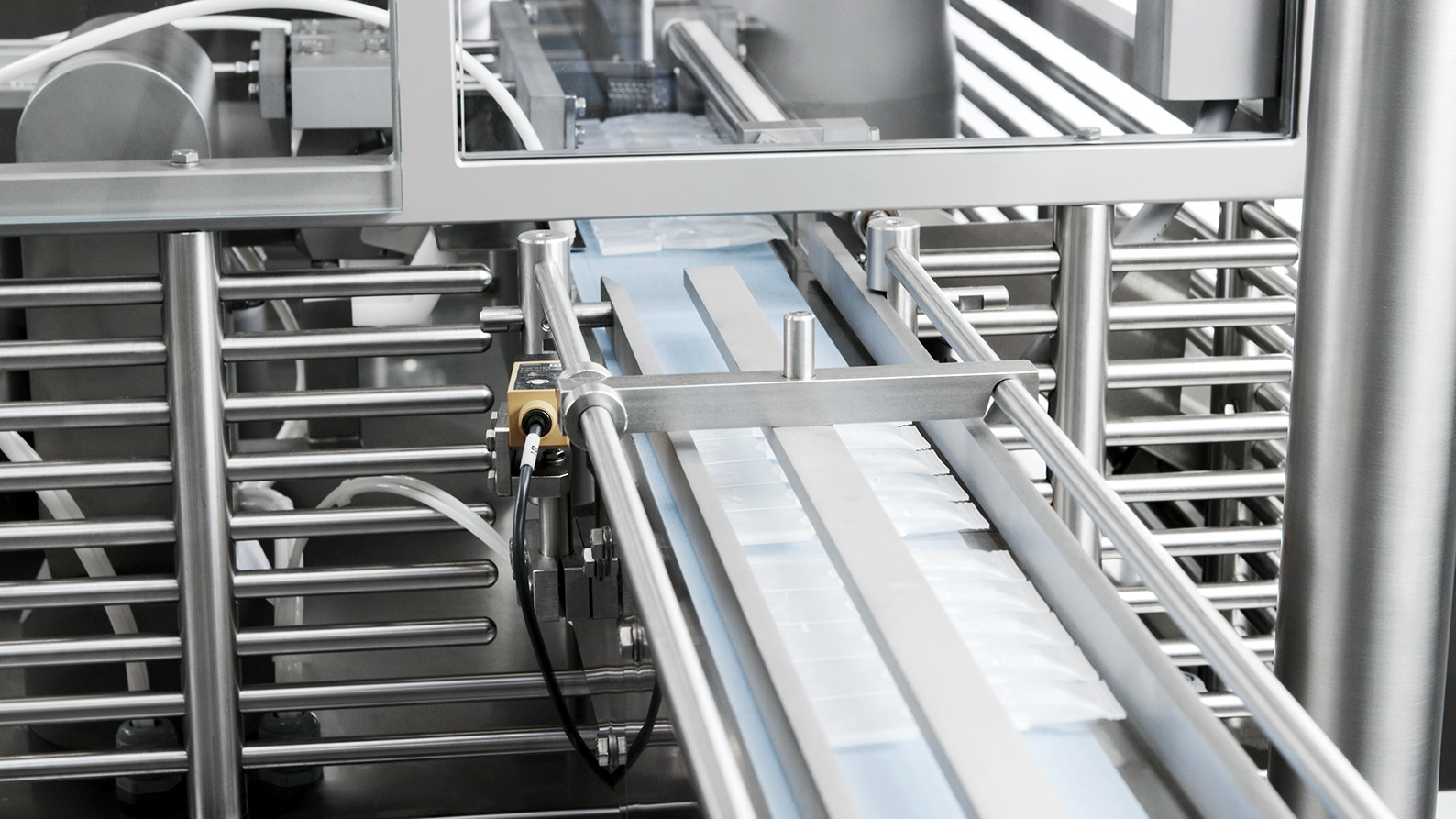

SL 50 exit belt

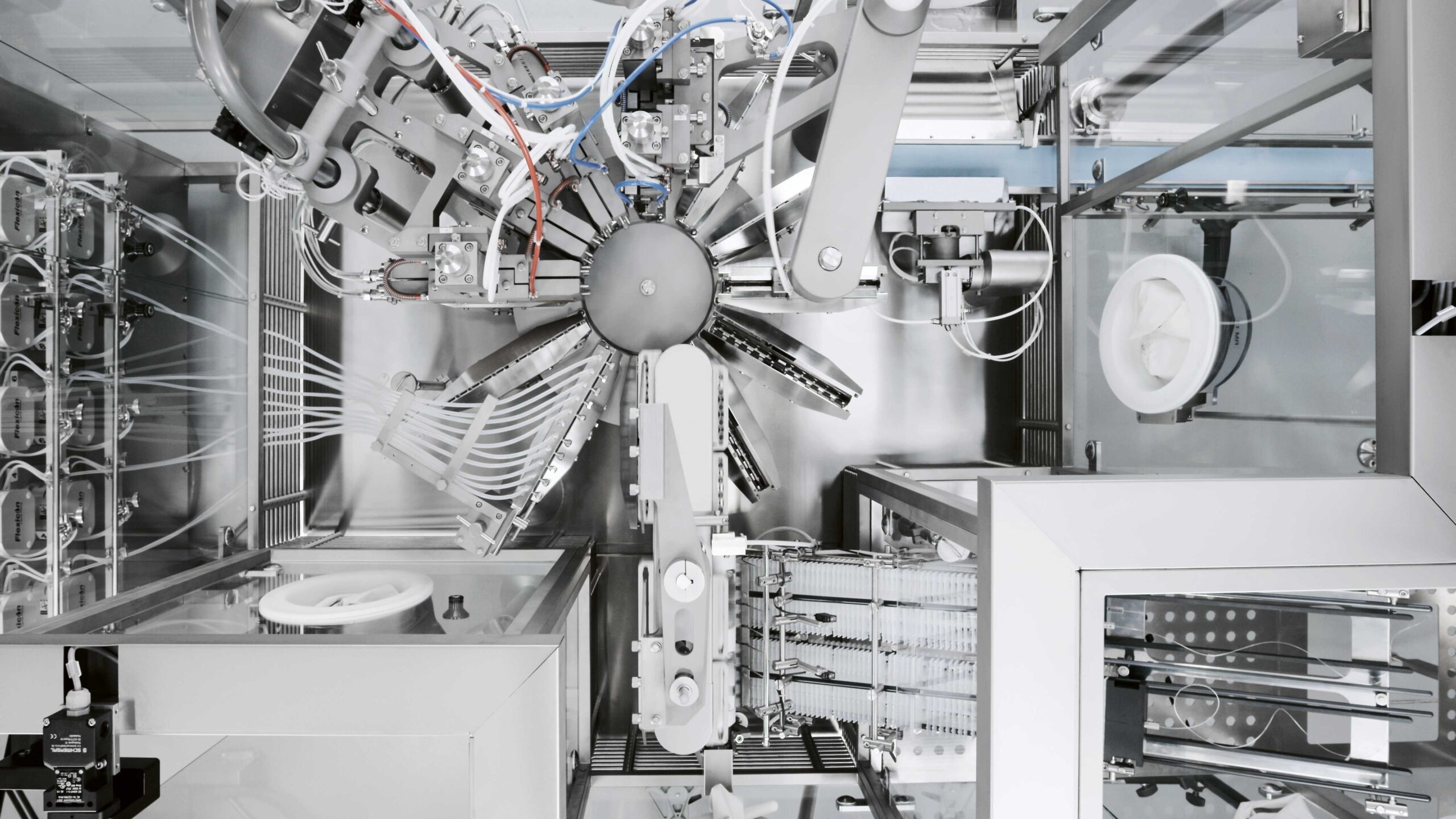

SL 50 working station top view

Technical information

SL SERIES TECHNICAL DATA
 SL 25SL 50SL 75
Max.Max.Max.
H (mm)909090
L (mm)21013595
Dosage (ml)1051
Dosing headsUp to 5Up to 10Up to 15
Production speedUp to 25 strip/minUp to 50 strip/minUp to 75 strip/min
Installed power6 kw6 kw6 kw
Standard power supply400 V – 50 Hz400 V – 50 Hz400 V – 50 Hz
Weight (kg)2,2002,6002,800
