SL 6 Suppository and Ovule Form, Fill and Seal
Machine overview
Modular FFS line for suppository production: flexible solutions for thermoforming, filling and sealing.

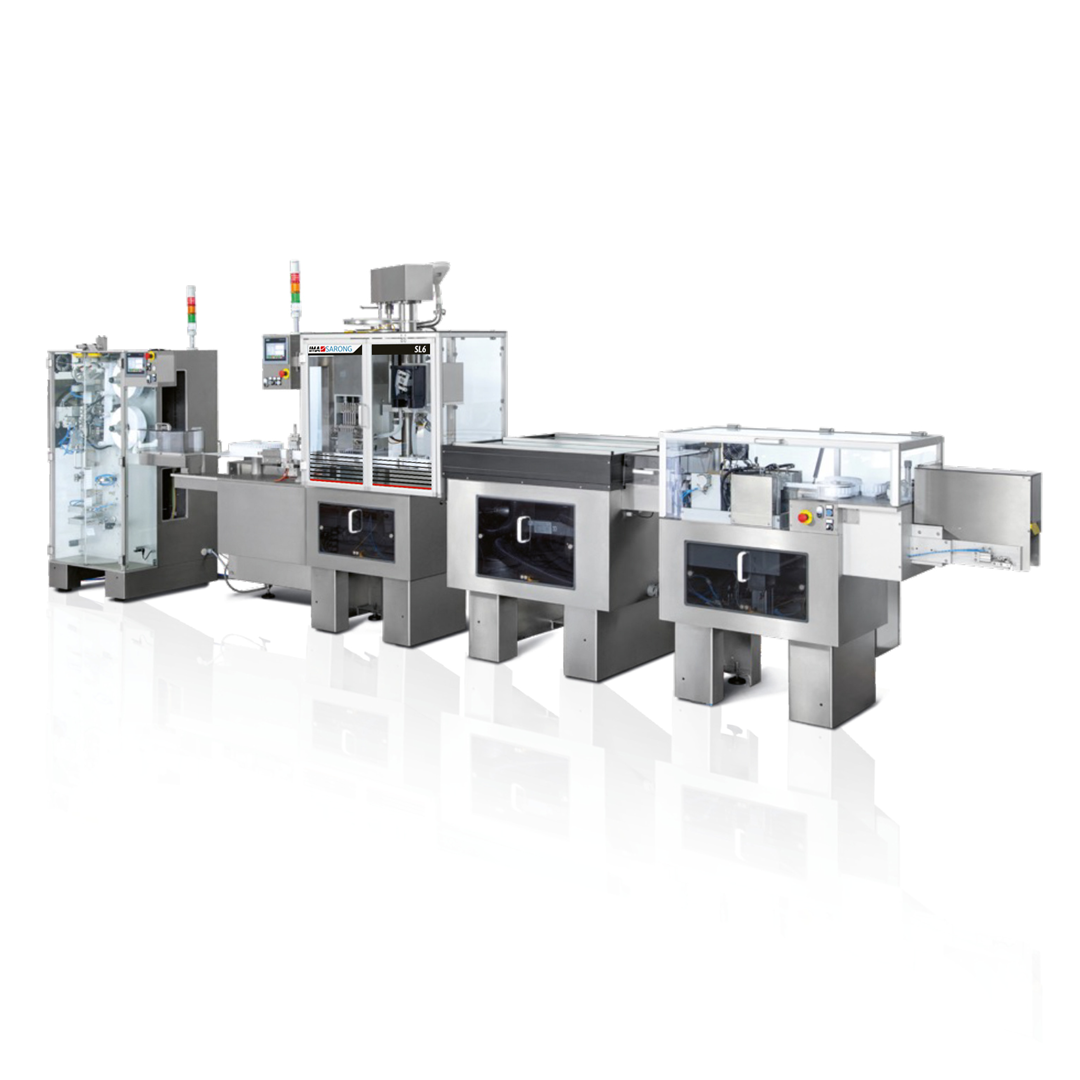

Four independent modular units make up the line:
• PA 2000 – thermoforming unit, which winds out the two reels of plastic film and moulds them (through compressed air blowing) to form cavities in a continuous strip.

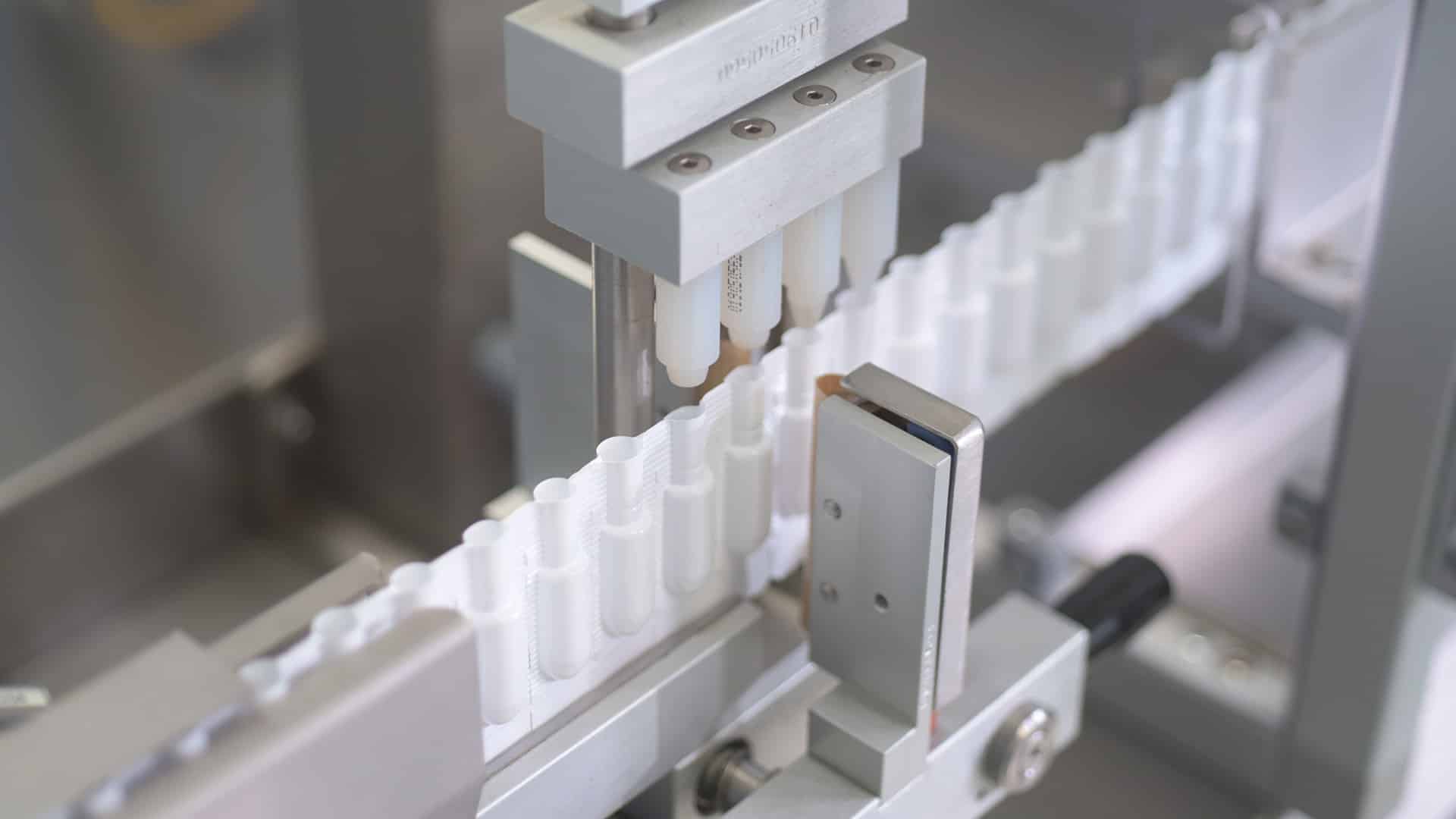

• SG 6 R – filling unit, which fills the suppository mass into the cavities formed in the strip.
• SG 6 F – cooling unit, which solidifies the suppository mass.
• SG 6 S – sealing/cutting unit, which seals each cavity, stamps a code number, knurls strips and cuts them into any number of suppositories.
Being a modular line, purchasing a single SL 6 unit is a feasible option.
An entry-level option for starting a suppository/ovule production can be represented by purchasing a SG 6 RFS, a modular FS machine, which works from rolls of pre-formed plastic suppository cavities and includes the filling (SG 6 F), the cooling (SG 6 F) and the sealing/cutting units (SG 6 S), leaving the PA2000 thermoforming unit as a second investment step.
Production plant
IMA Sarong
Machine highlights
-
Flexible configuration
The SL 6 modular line allows for customised set-ups based on production needs.
-
Efficient production
Capable of continuous operation, streamlining the suppository manufacturing process.
-
Entry-level option
The SG 6 machine provides a cost-effective way to start suppository production with pre-formed cavities.
-
Interchangeable units
Each unit can be purchased independently, allowing for phased investments in production.
-
Scalable solution
The line can easily expand as production demands increase, accommodating future growth.
Technical information
| SL 6 TECHNICAL DATA | |
| Max. Output | 12,000 suppositories/h |
| Packaging materials | PVC, PVC/PE, PVC/PVDC/PE |
| Product tank | 34 L, electrical heating, double – jacketed |
| Filling volume range | 0.5 – 3.6 ml |
| Cooling Time | 8 min. approx. |
