SFK Series Tray packing

Machine overview

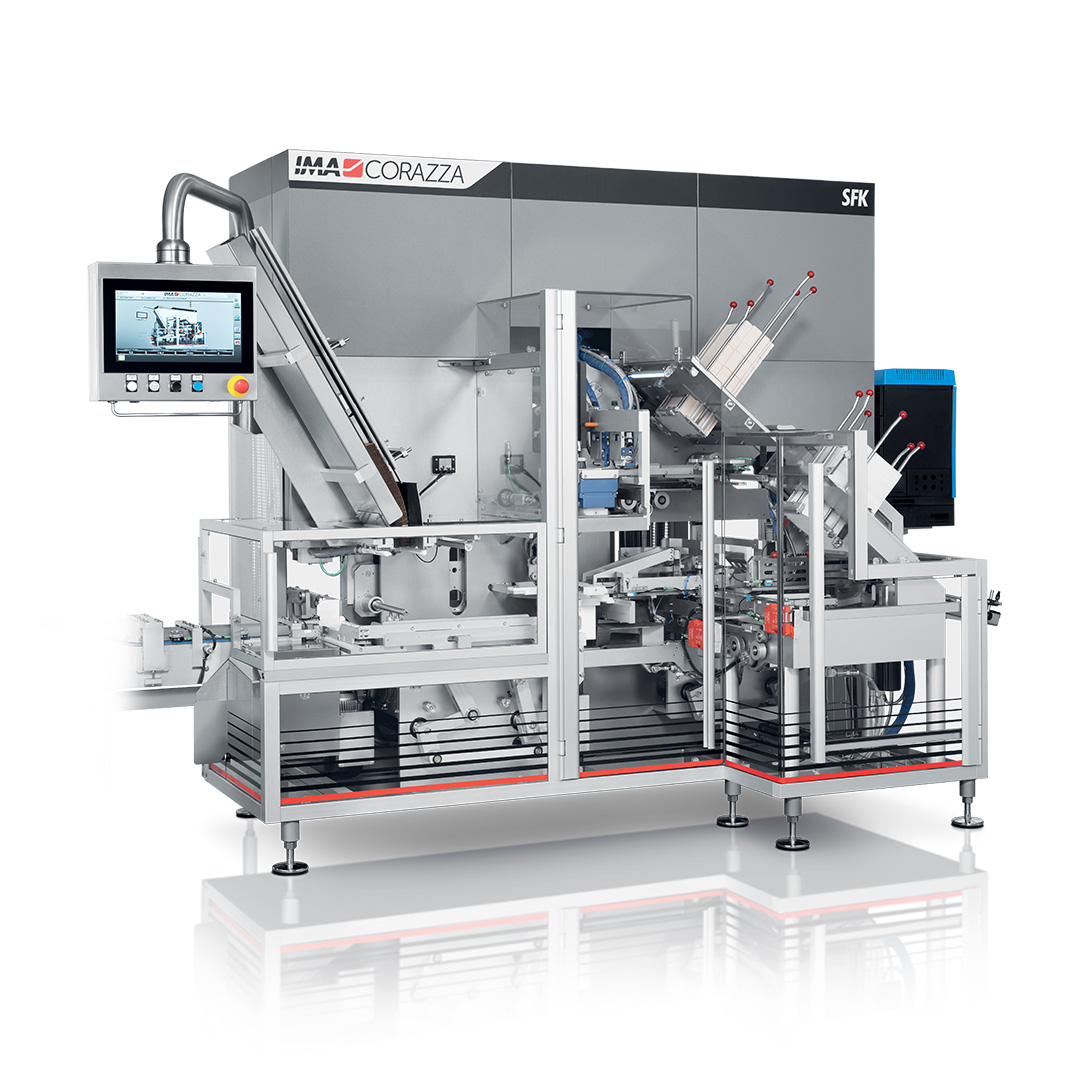

Tray forming and sleeving machine

The SFK Series of tray forming and sleeving machine is able to handle square and rectangular portions of cheese in any shapes, reaching a speed of up to 120 ppm.
This machine series stands out for a very compact footprint, easy operations and quick changeover.
The machine is available in different configurations and with many optionals according to customer’s needs.

Production plant

IMA Corazza

Machine highlights

  1. Speed up to 120 ppm

    High productivity with square and rectangular cheese portions processed at rates of up to 120 packs per minute.

  2. Extremely compact footprint

    A space-saving design that fits easily into production lines where available room is limited.

  3. Rapid format changeover

    A layout built to minimize downtime through fast and intuitive format adjustments.

  4. Tailored configurations and options

    Modular setups and a wide range of optional features adaptable to each customer’s specific requirements.

Machine details

Portion grouping

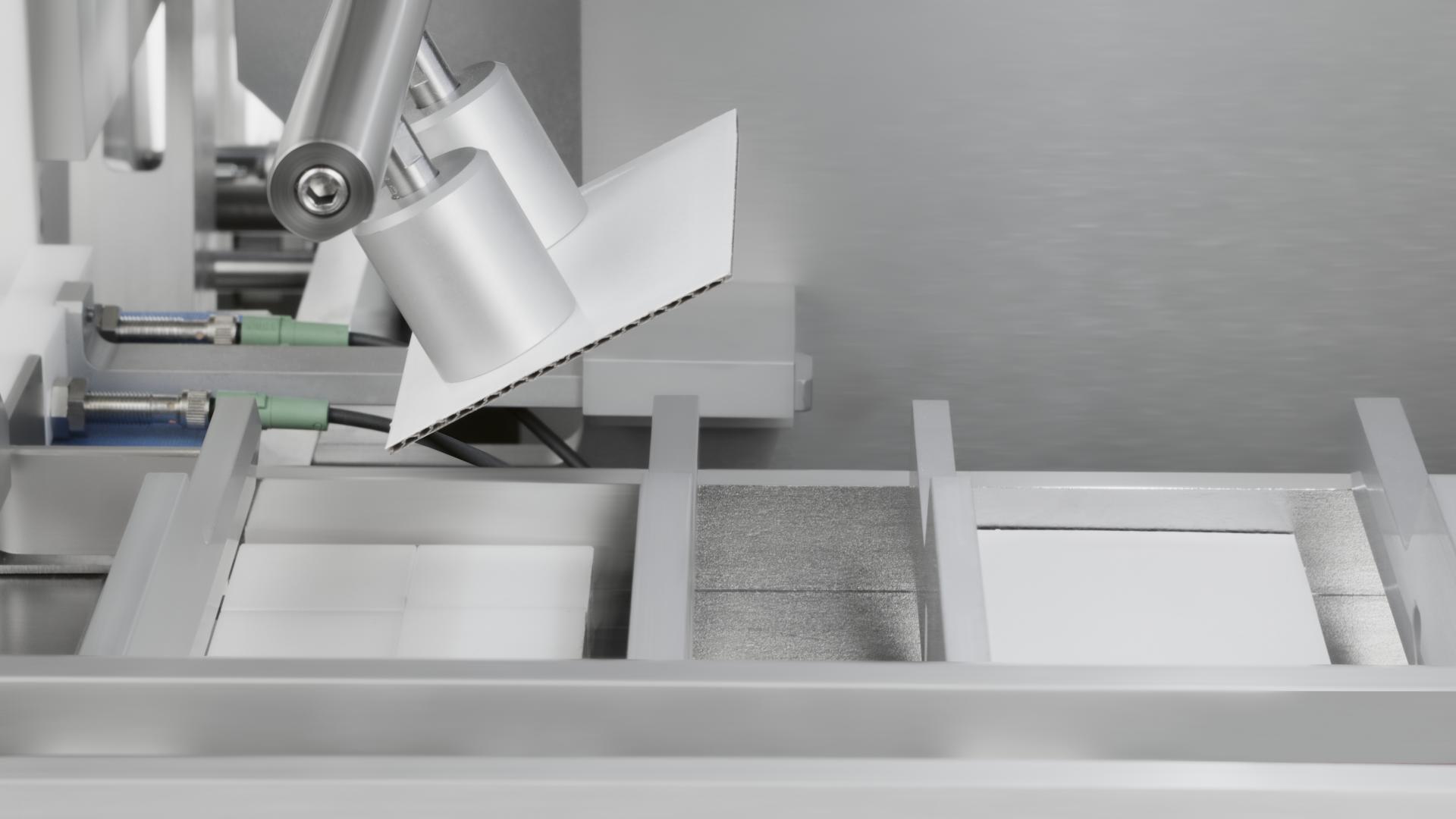

Fake bottom infeed

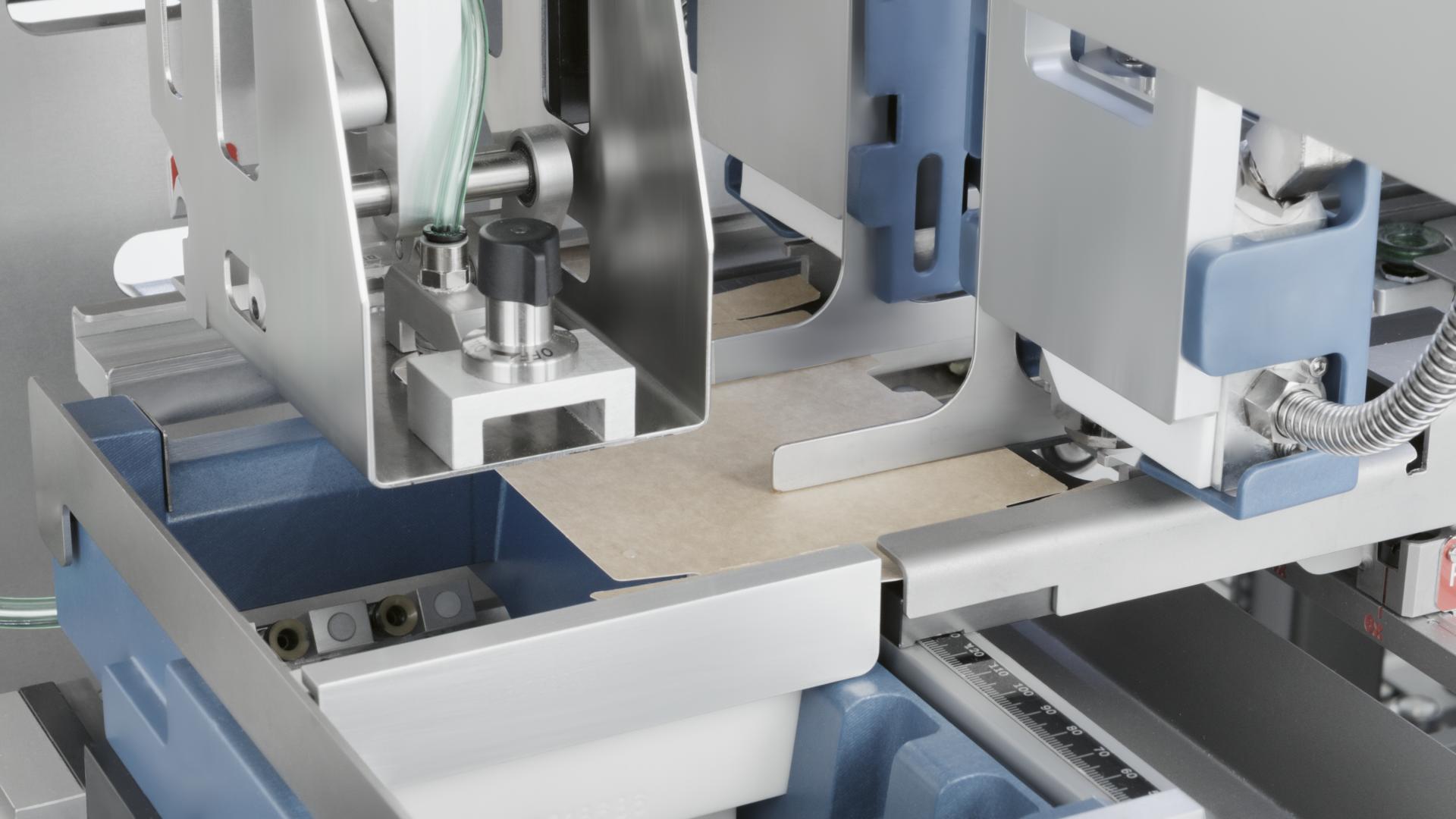

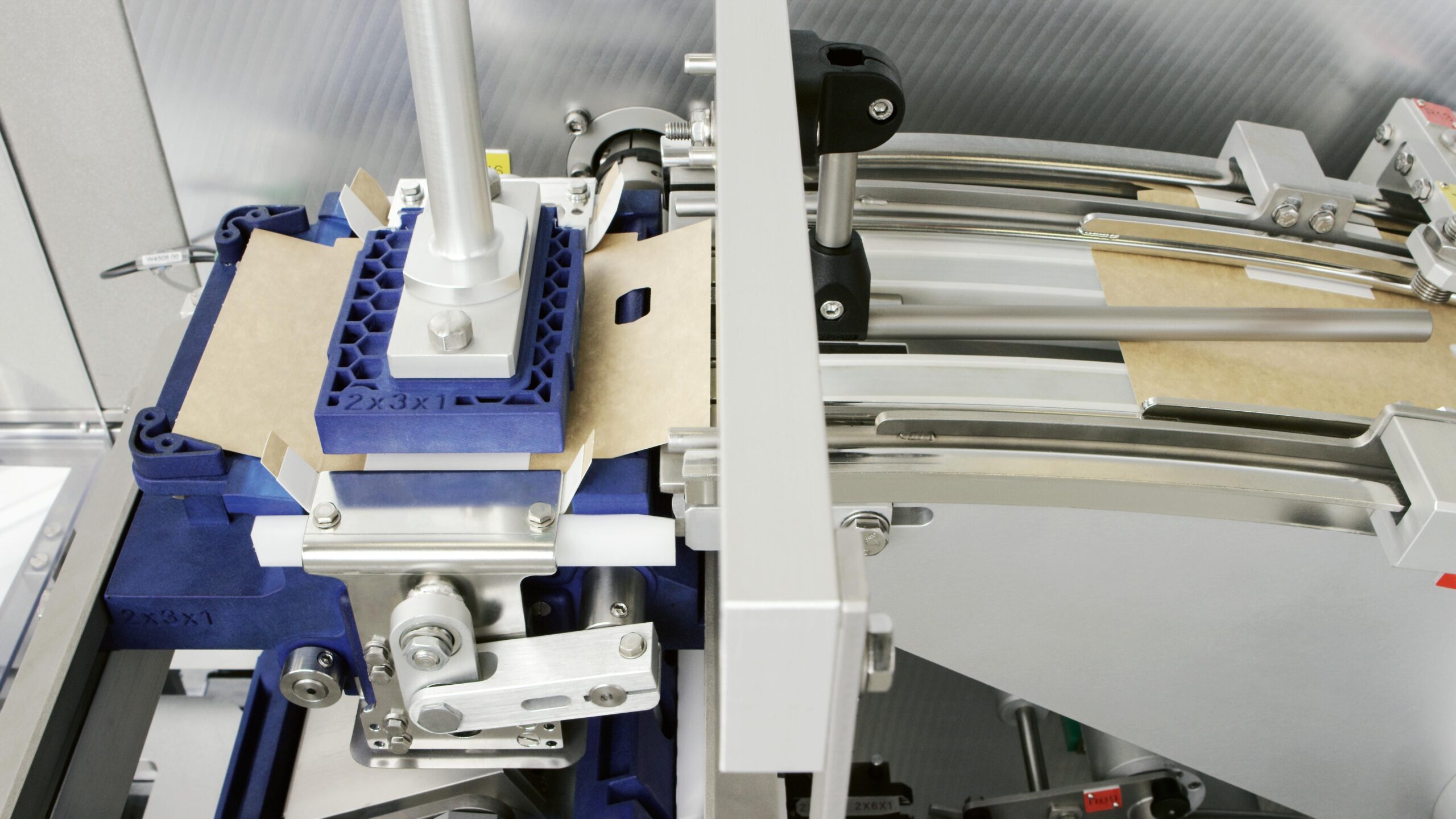

Tray forming

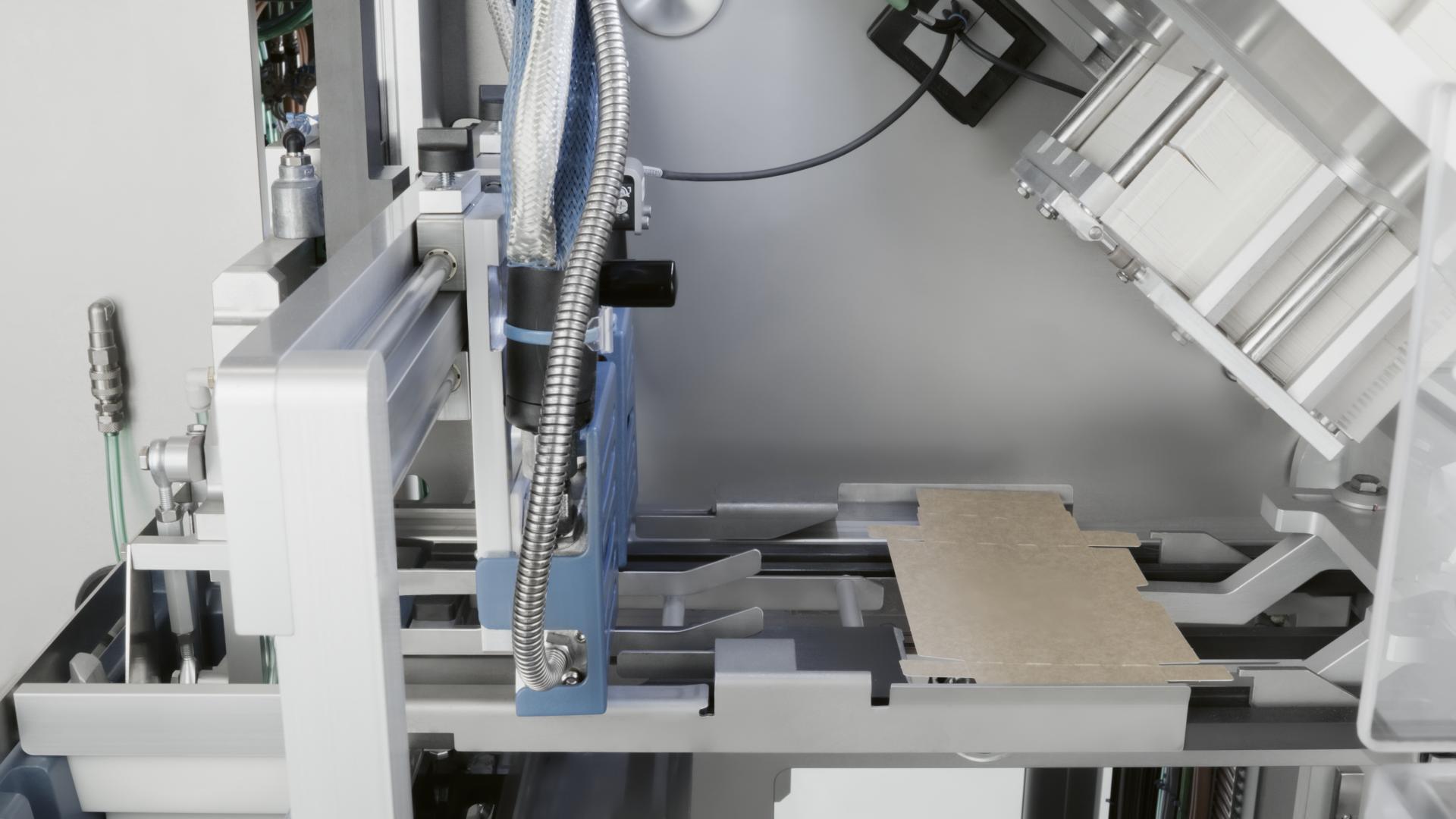

Tray infeed

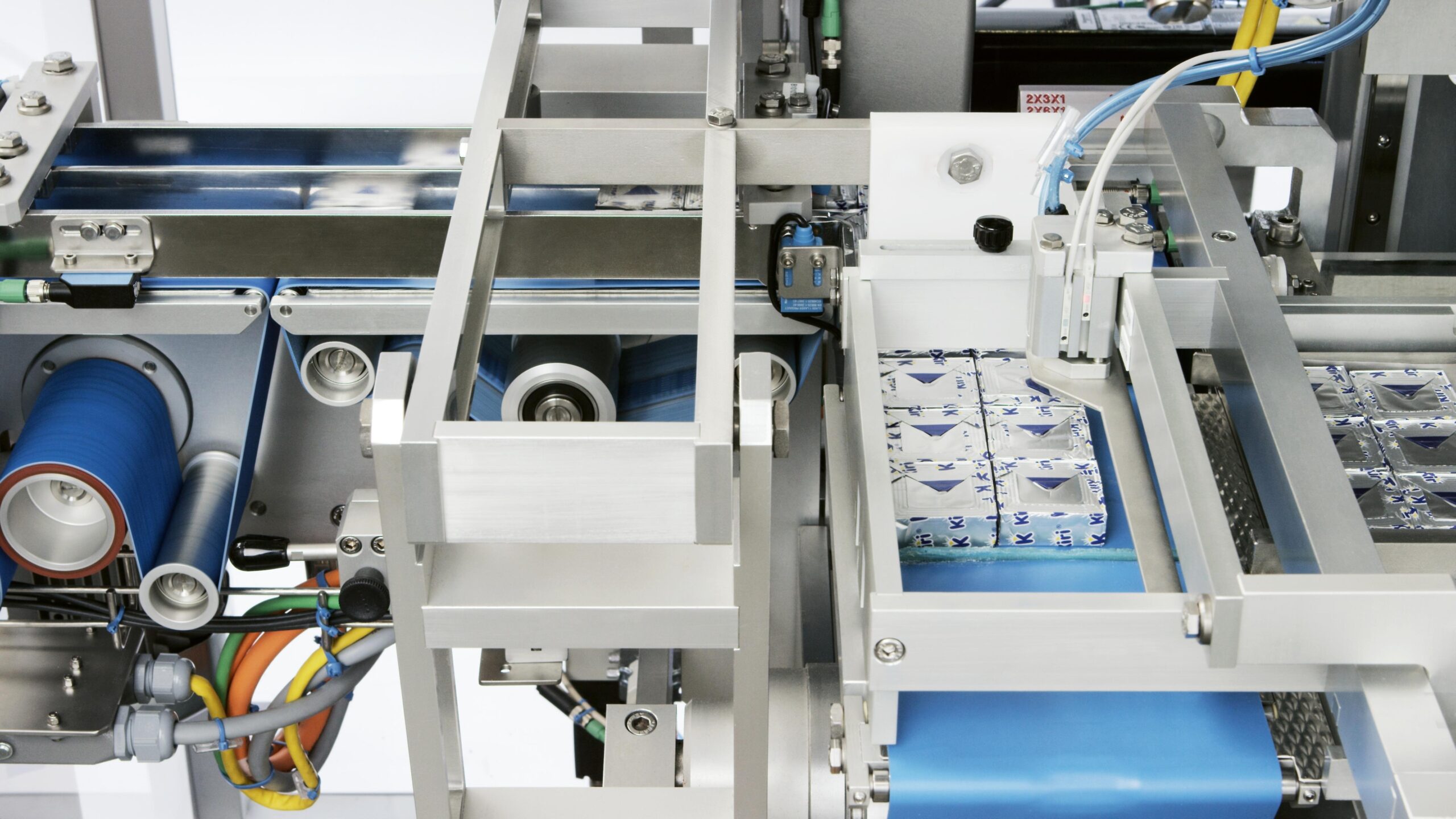

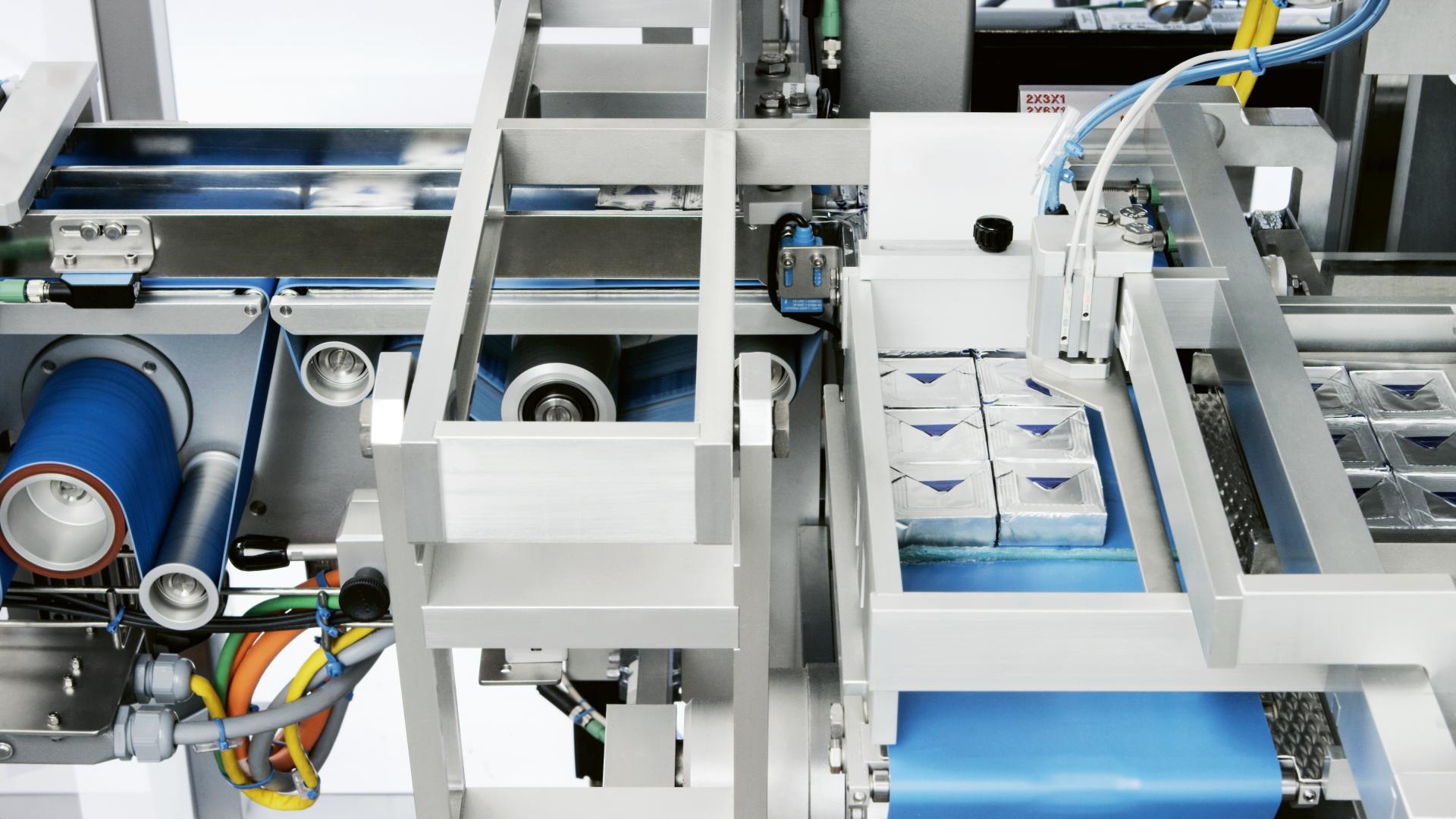

Tray filling

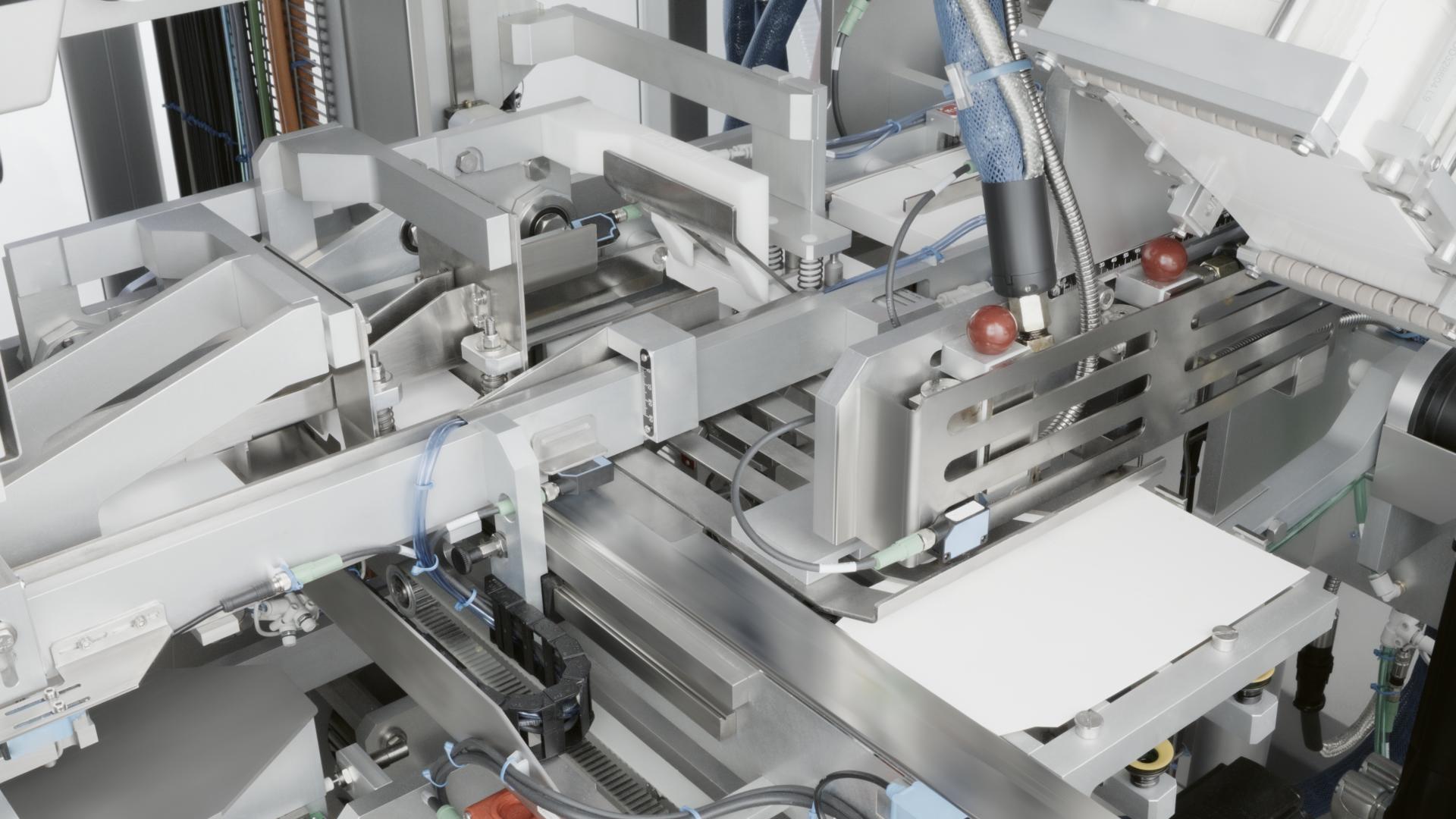

Sleeve infeed

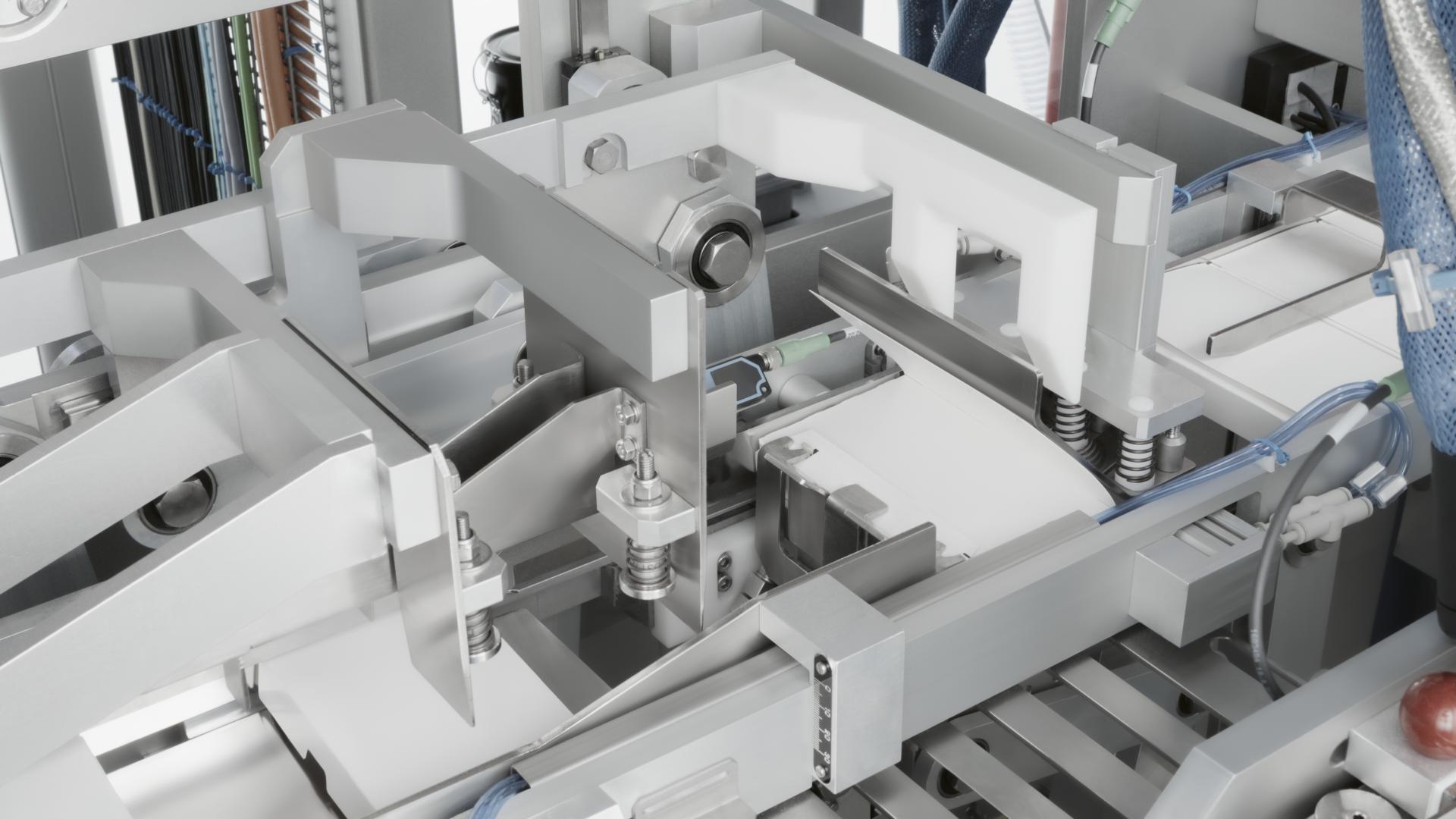

Sleeve formation

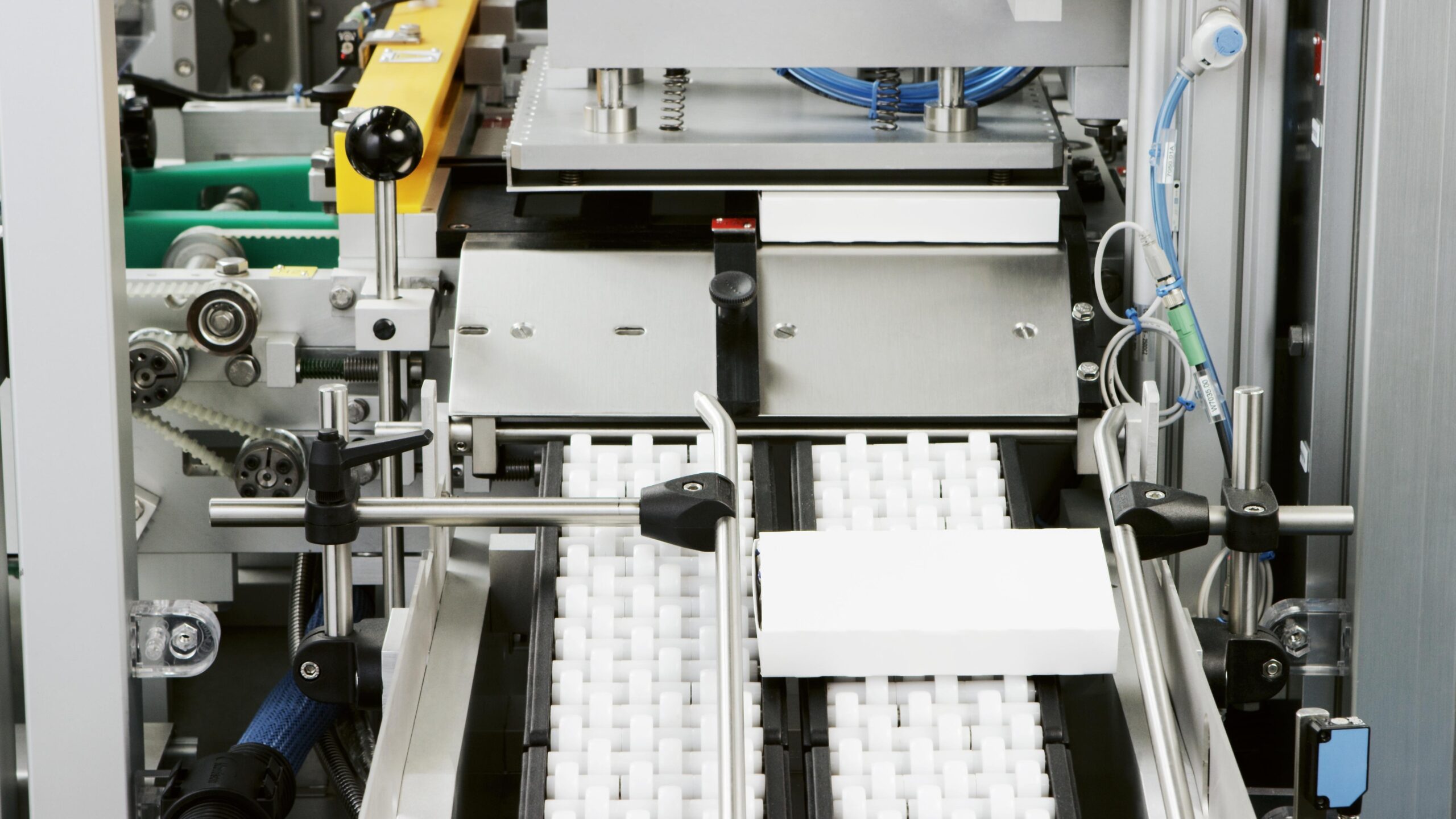

Tray outfeed

Technical information

SFK SERIES TECHNICAL DATA
Production capacityUp to 75 boxes/min.
Full load current3P x 400 Volt – 50 Hz – 7 Amp
Compressed air consumption150 Nl/min. (op. pressure 6 bar)
Vacuum2 m³/h (op. vacuum 600 ± 50 mm Hg)
Weight3,200 Kg Approx.

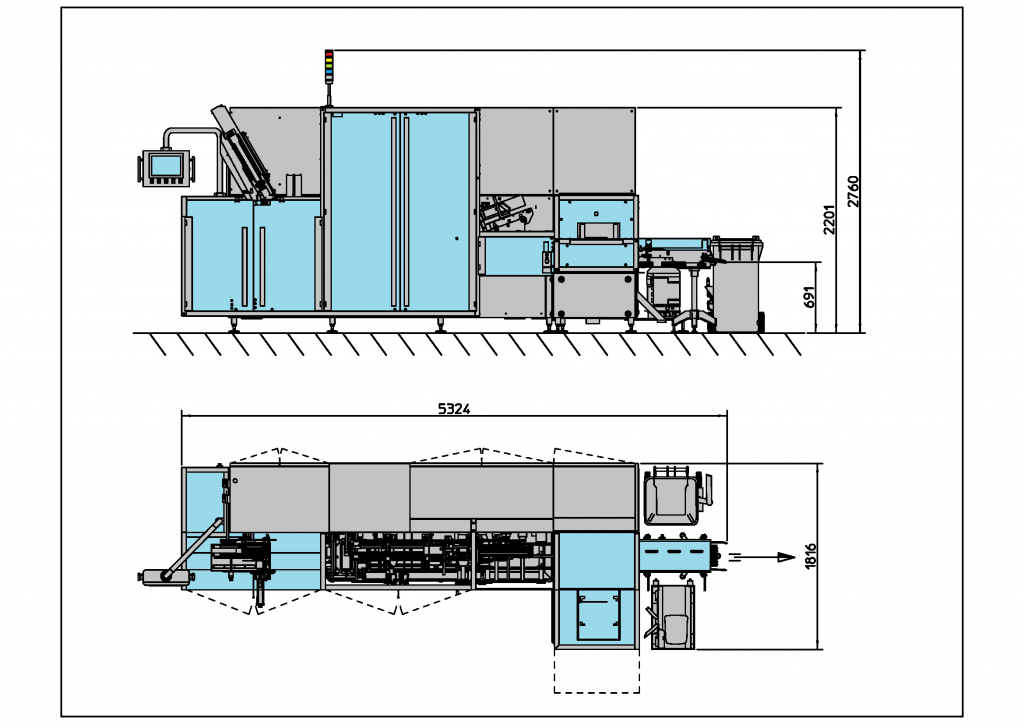

Box dimensions

A (min ÷ max)
80 ÷ 124
B (min ÷ max)
80 ÷ 250
C (min ÷ max)
12 ÷ 45
Lanes1 ÷ 3
Layers1 ÷ 3
