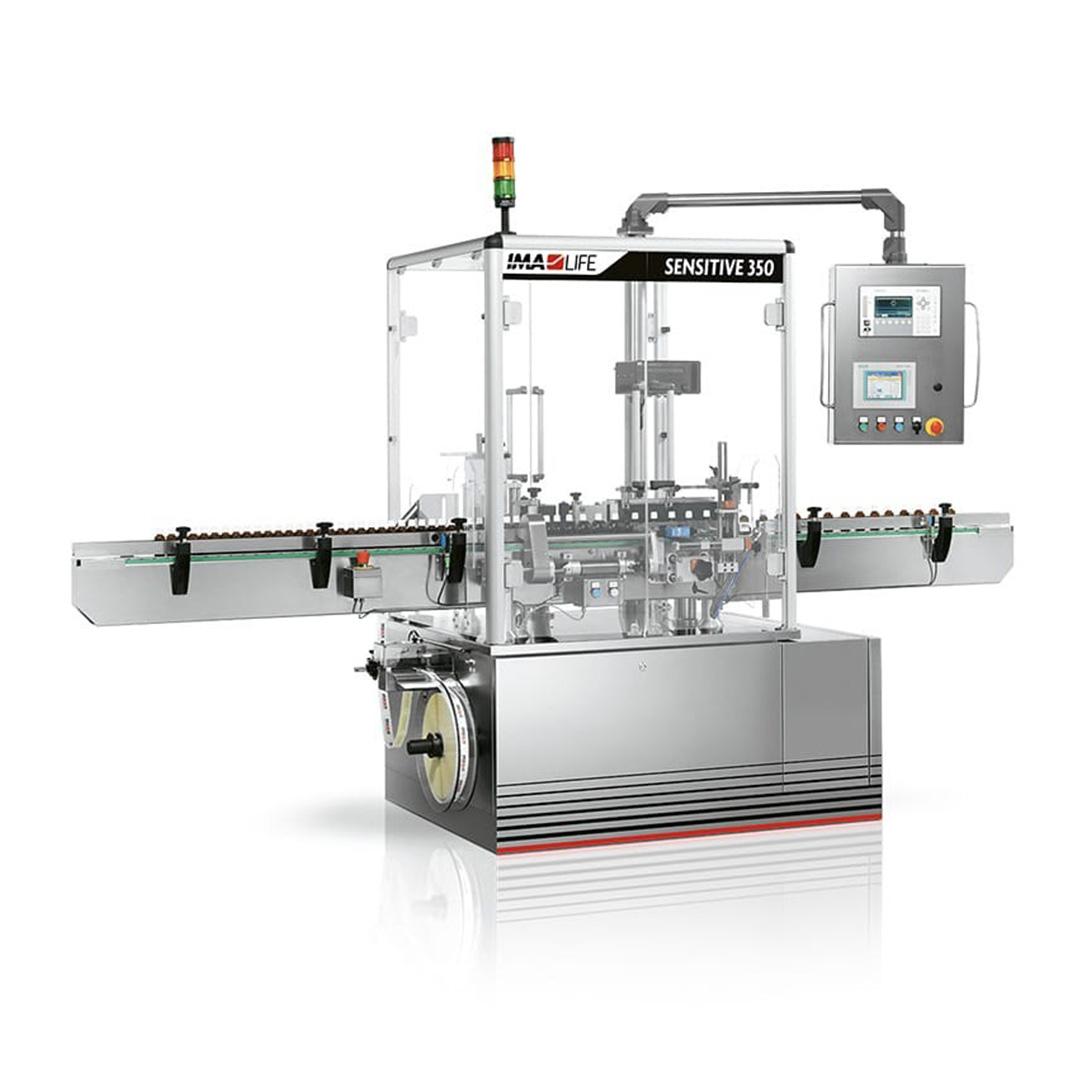

SENSITIVE 350 Labelling

Machine overview

All-around concept

Sensitive 350 is a linear labelling machine suitable for applying self-adhesive, wrap-around labels to cylindrical glass, metal and plastic containers. Hallmarks of the machine include design simplicity and effectiveness when handling cylindrical containers, perfect  for clear, essential labels containing vital information for drug identification.
The machine is equipped with one side labelling head which applies the label accurately. This level of precision is also due to appropriate spacing between the containers and an easy-to-regulate application group. The labelling unit is installed on the machine basement for direct access to the labelling reels. Supervision and monitoring of the overall process is done via PLC with a user-friendly HMI.

Production plant

IMA Life

Machine highlights

  1. Smart design

    Compact and ergonomic design with a stainless steel finish.

  2. Available versions

    Can be supplied as a stand-alone version or integrated in complete processing and packaging lines.

  3. Stepping motor

    Drives the label dispensing and application group.

  4. Rejection unit

    Manages containers with missing labels and/or incorrectly printed data.

  5. Safety system

    Detects fallen bottles with machine stop and alarm on the control panel.

  6. Accessibility

    Straightforward access across the entire labelling process, quick clearance and cleaning.

Printing and serialisation

Sensitive 350 is conceived for easy integration of overprinting devices such as hot-foil, thermal transfer, laser and inkjet. A wide range of overprinting control systems can also be installed: single character overprint control by video camera (OCV/OCR), bar code or Data Matrix control, etc.

Machine details

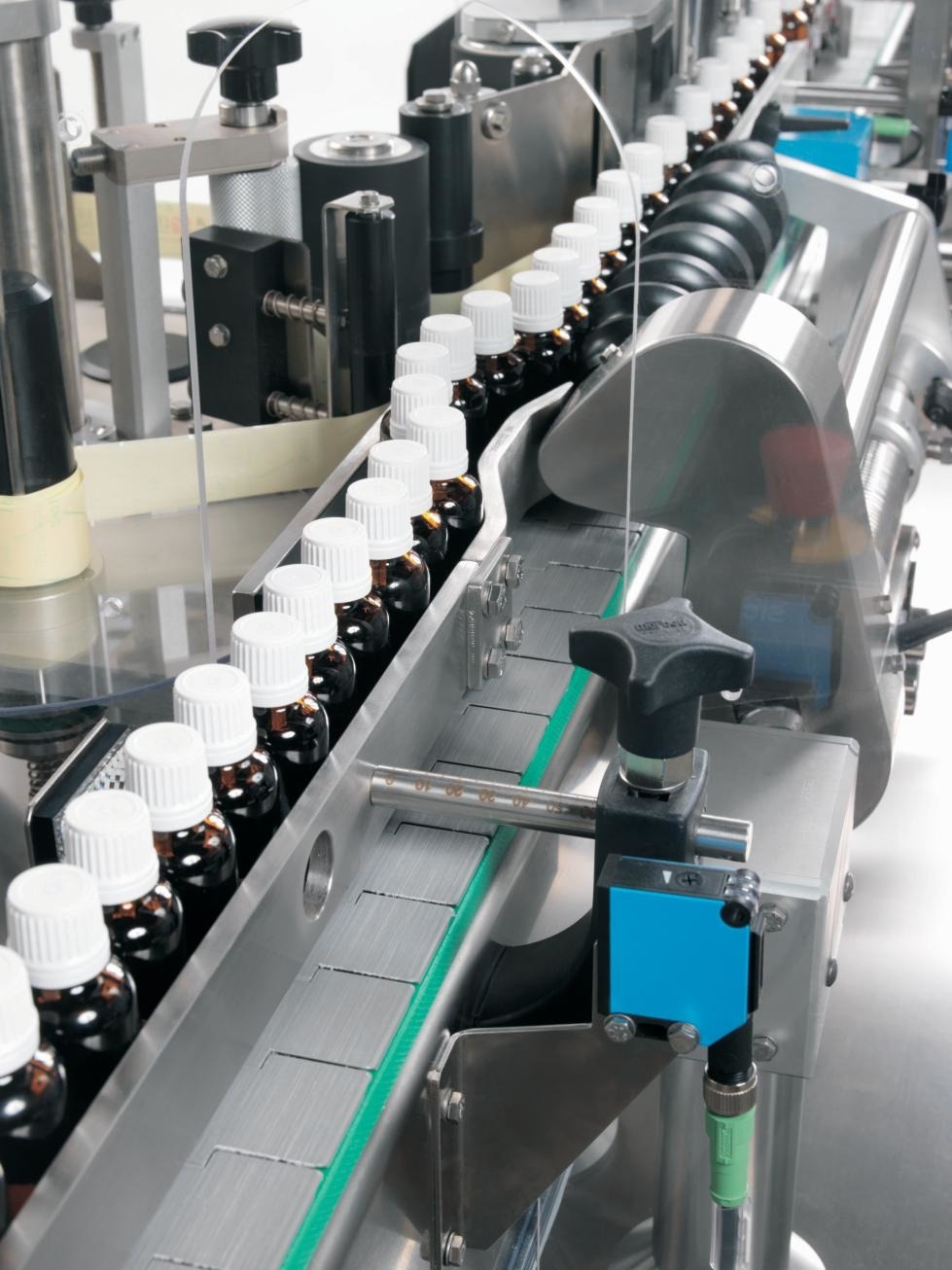

Bottle infeed

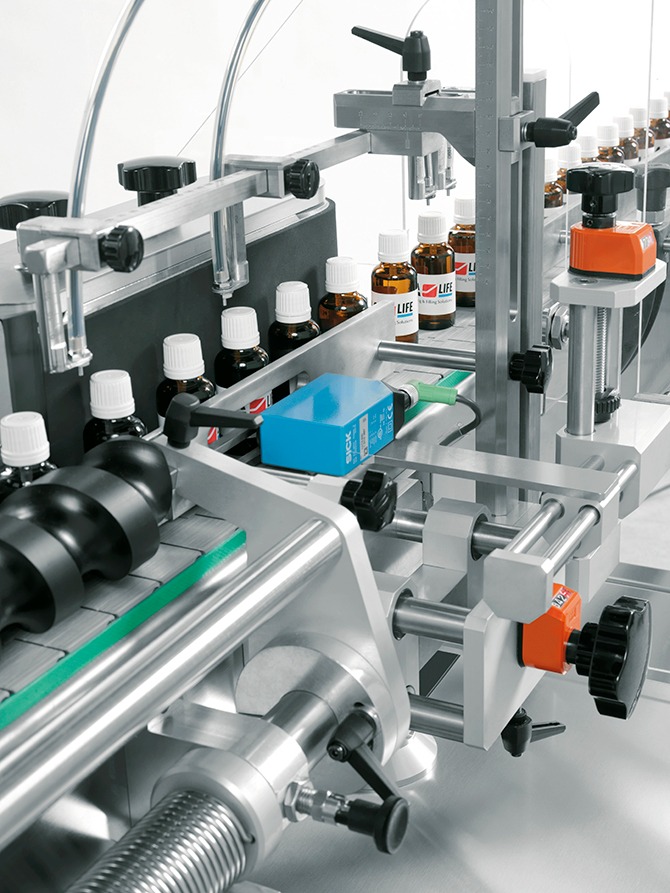

Infeed screw and label application

Label release and folding

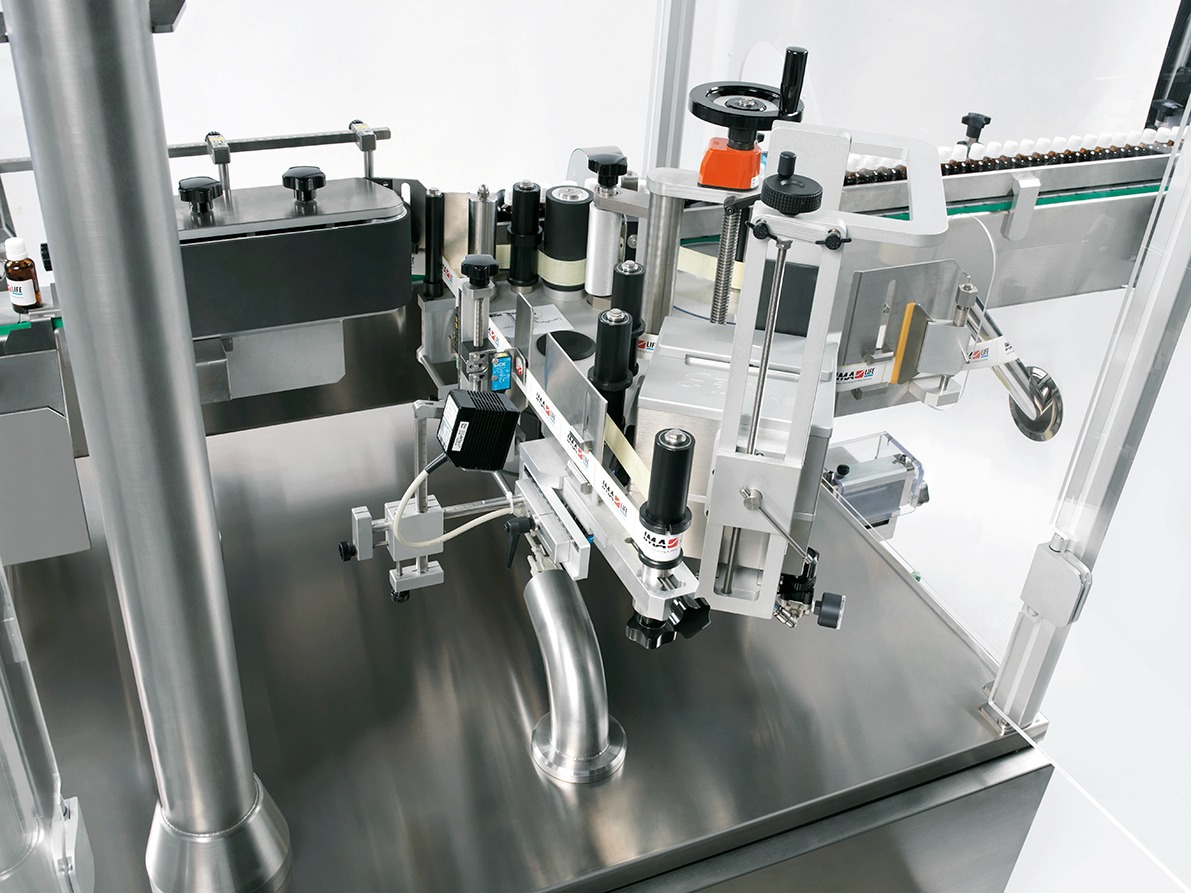

Labelling unit

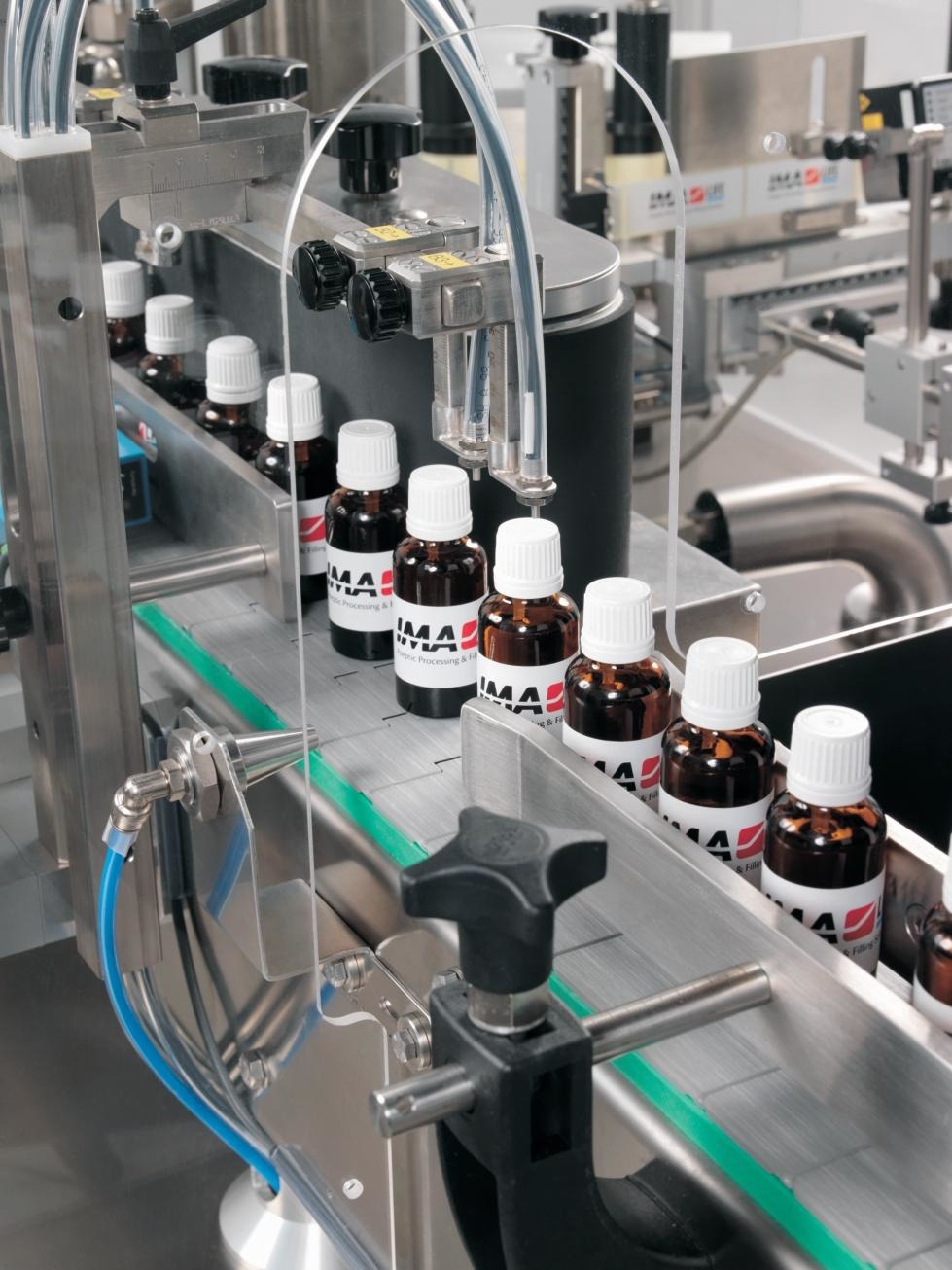

Label presence check

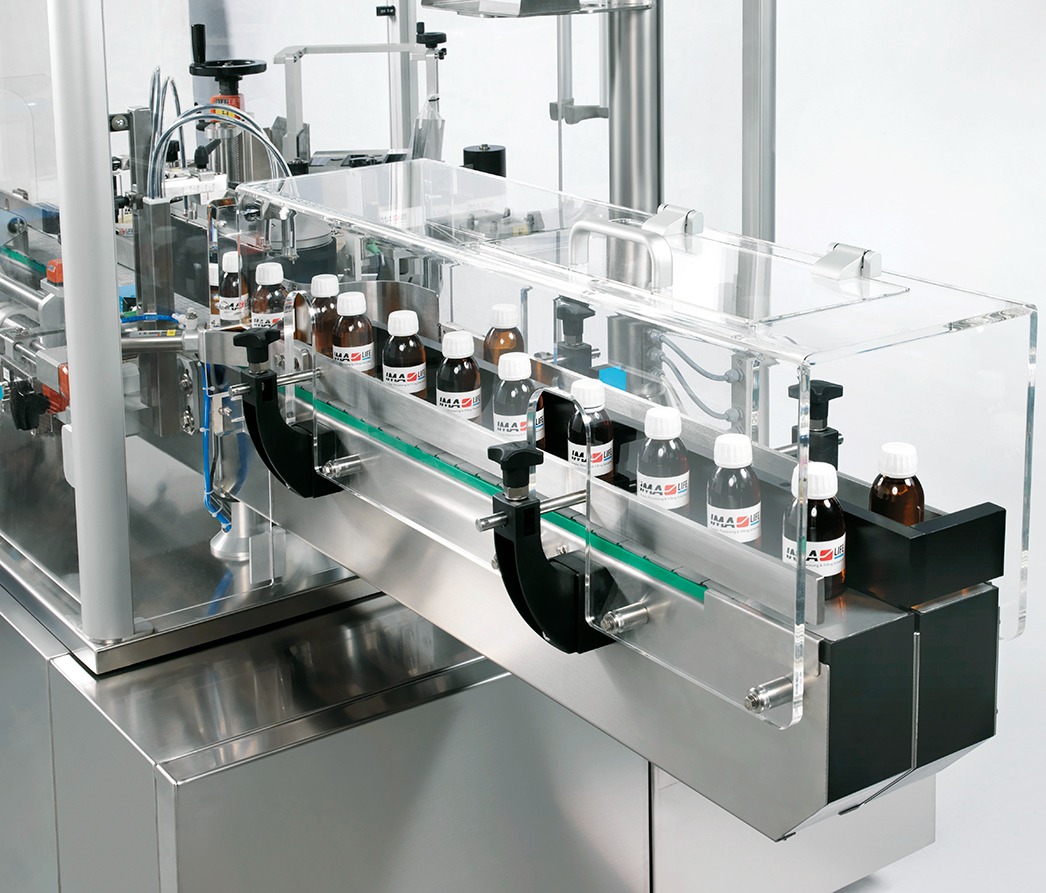

Bottle outfeed

Technical information

TECHNICAL DATA SENSITIVE 350
Maximum output (pieces/minute)350
Installed power (kW)2
Standard voltage400 V – 50 Hz
Bottle maximum height (mm)220
Bottle diameter (mm)16-78
Label height (mm)10-100
Label length (mm)15-250
Label reel diameter (mm)400
Label accuracy (mm)±1
