SC SYSTEM Capsule Filling

Machine overview

Feeding only perfect capsules.

SC System capsule feeding and selection device improves capsule filler productivity by automatically selecting all crushed or ovalised capsules.

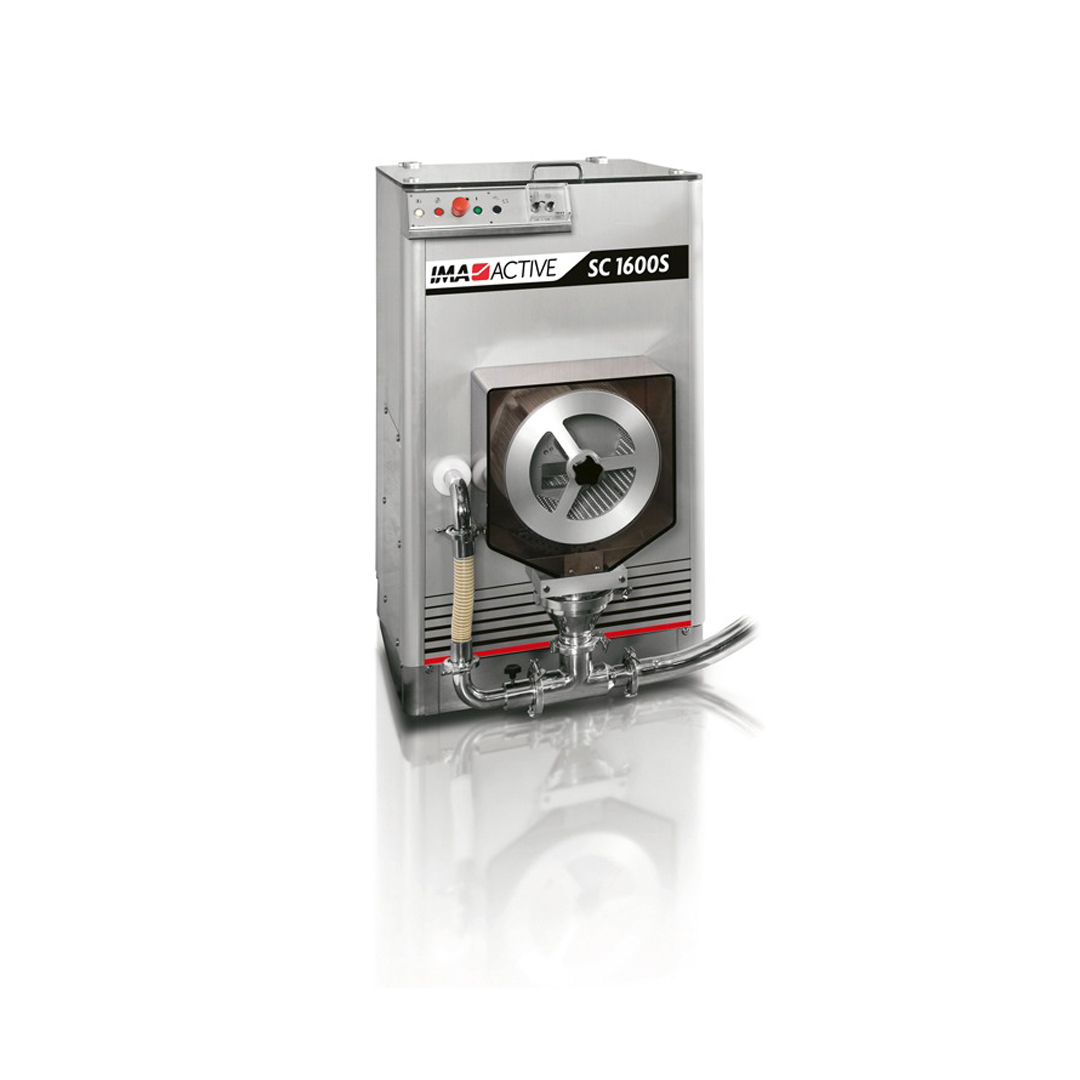

SC System consists of a capsule container, placed near the capsule filling machine, provided with a continuous rotating wheel with a series of calibrated holes so that only perfect capsules can pass through. After selection, capsules are fed into the machine hopper with an uplifting belt or a blow of air.

Production plant

IMA Active

Machine highlights

  1. Range of selecting wheels

    Different selecting wheels available depending on capsule size.

  2. Rapid size changeover

    Quick and easy size changeover ensures seamless production, optimized efficiency, and total reliability.

  3. Smart hopper control

    Automatic stop and restart when the capsule minimum load level is reached inside the filling hopper.

  4. Precise capsule selection

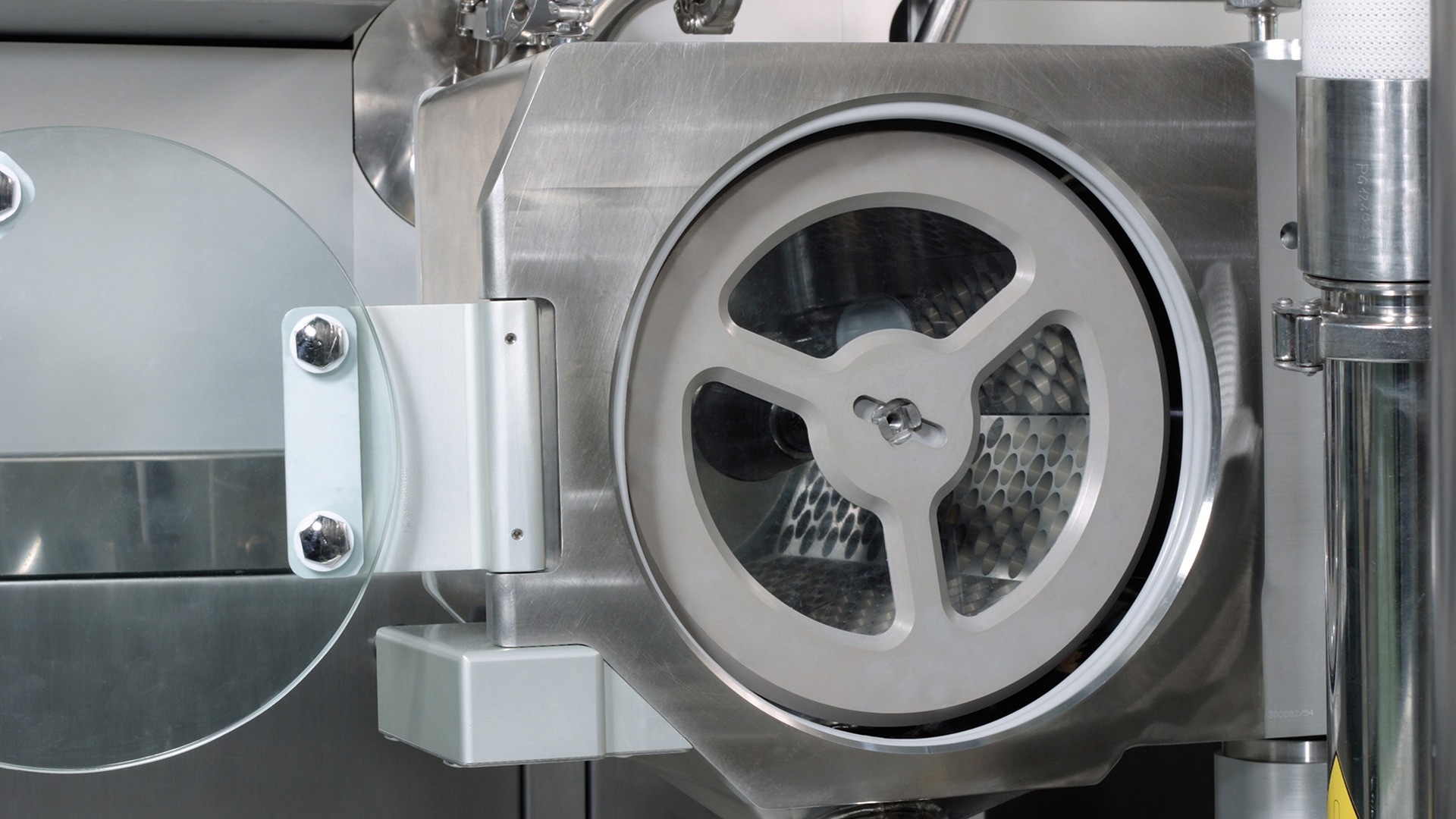

    A rotating wheel with calibrated holes allows only perfect capsules to pass, holding back crushed or oversized ones.

Ideal solution for high-speed performance

Thanks to their high capsule-feeding capacity, SC System devices are perfectly suited for integration with high-speed capsule-filling machines.

Technical information

SC System technical data
ModelSC 600SC 1600
Production (cps/h)200,000 for sizes 000, 00, 0l, 1 l
230,000 for sizes 1, 2, 3, 4, 5, Supro		200,000 for sizes 000, 00, 0l, 1 l
230,000 for sizes 1, 2, 3, 4, 5, Supro
Net weight (kg)200290
Container capacity (l)

270
(=approx. 150,000 caps. Size 0)

270
(=approx. 150,000 caps. Size 0)

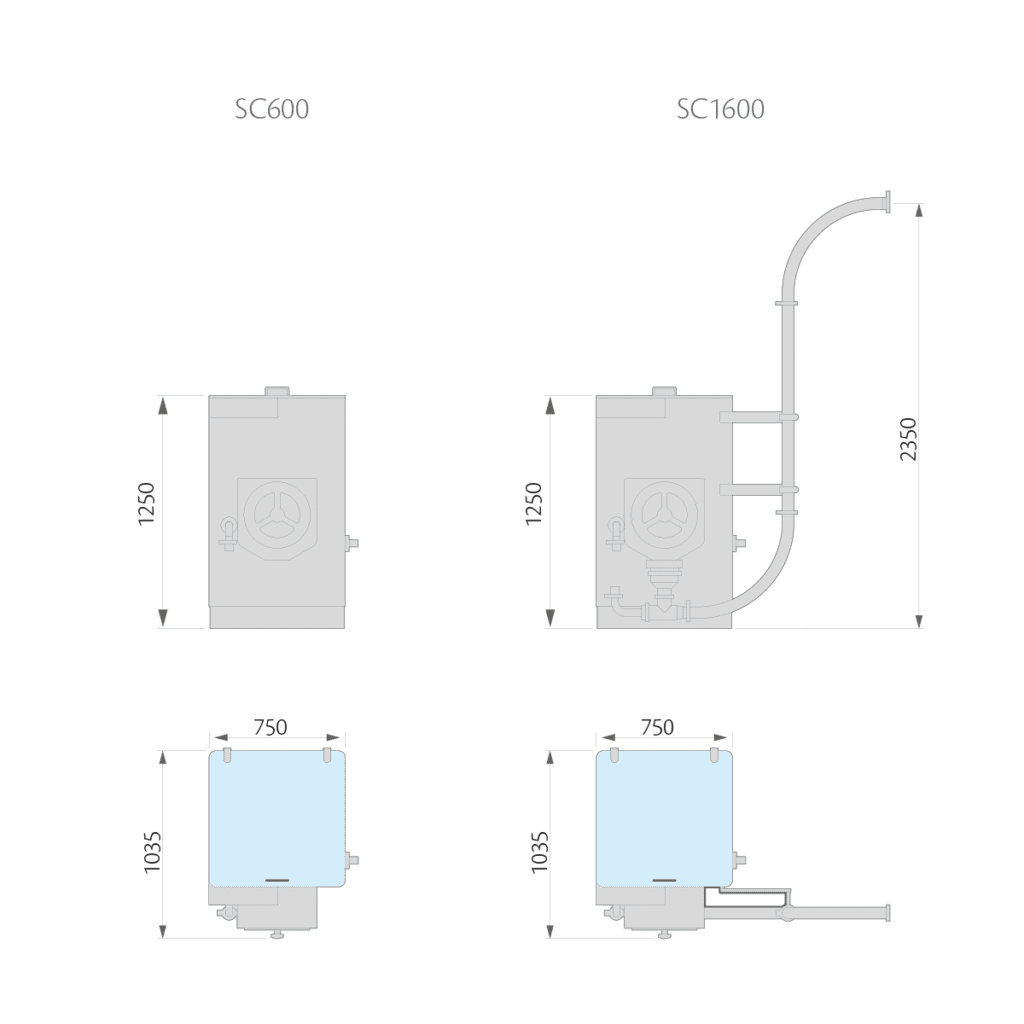

Height at load level (mm)1,2501,250
Capsule outlet height (mm)4692,350
