SB Series

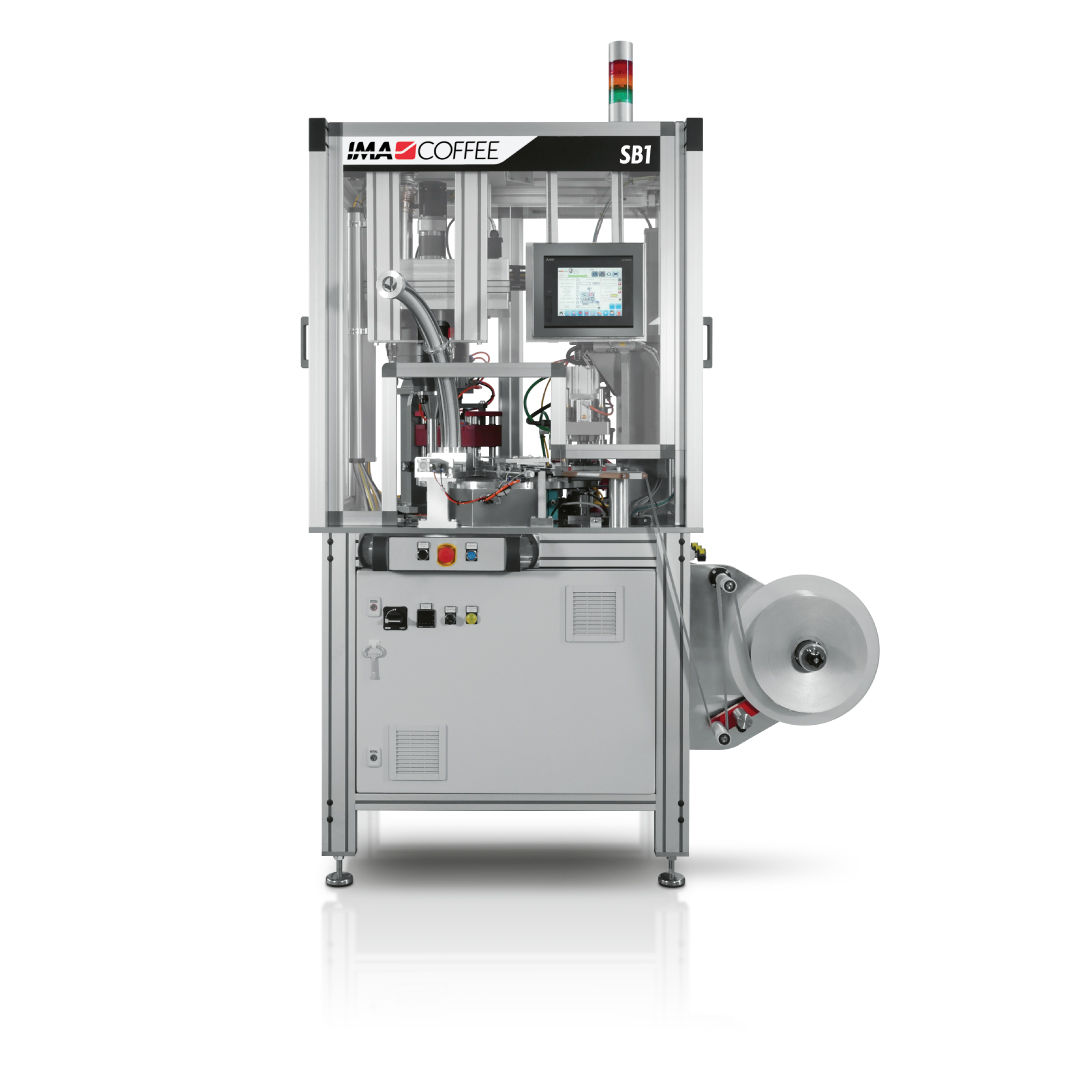

Machine overview
The perfect solution for small productions.
The ergonomic design assures great accessibility for maintenance, service and easy cleaning; furthermore the pull-out dosing system significantly reduces line downtimes.
Thanks to a very fast size changeover, the SB1 can handle Nespresso-compatible capsules in plastic, aluminium and compostable materials.
Capsules can be fed manually by the operator and individually inserted into the rotary table or stacked into a magazine and placed onto the rotary table by means of an automatic de-stacking unit.
Capsules can be closed at the top with aluminium film, a micro-perforated film, flter paper, a triplex-coupled film, a PP film or a compostable lid.
According to the machine configuration, speed can reach up to 25 capsules per minute.
Production plant
Spreafico Automation s.r.l.
Machine highlights
-
Great accessibility
Ensuring easy operation, cleaning and maintenance.
-

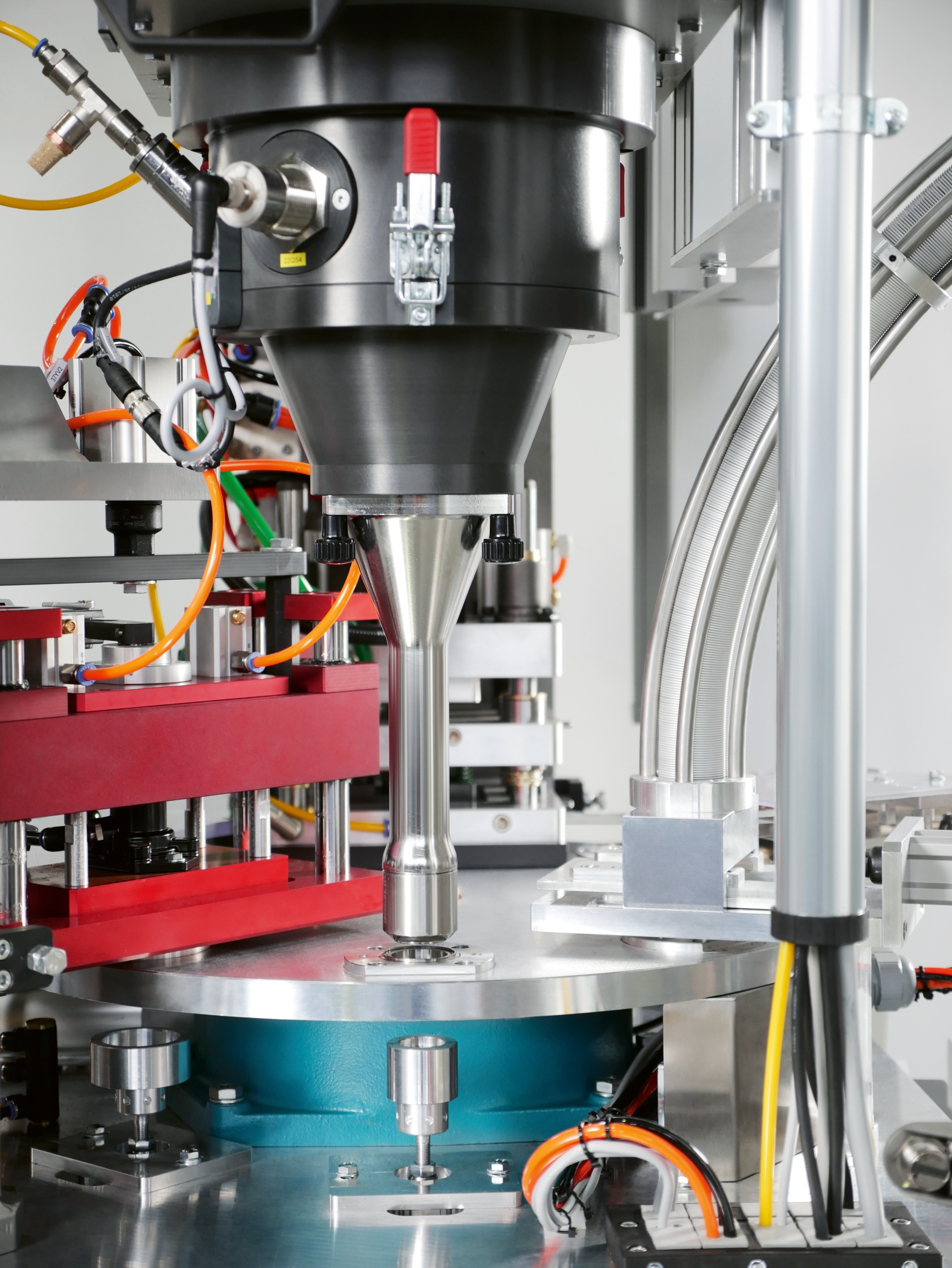

Extremely precise dosingsystem
Delivering accurate and consistent product filling.
-
Production in modified atmosphere
Preserving product freshness and quality over time.
-
Minimal maintenance requirements
Reducing downtime and overall operating costs.
Machine details
Technical information
| SB1 | |
|---|---|
| Production speed (capsules/min) | up to 25 |
| Power consumption (kW) | 2 |
| Machine weight (kg) | 600 |
| Nitrogen consumption (Nl/min) | 250 |
| Compressed air consumption (Nl/min) | 380 |
| Compressed air pressure (bar) | 6 |
