SAMA Sandwiching

Machine overview

Automatic Sandwiching Machines

The SAMA Series consists of fully automatic, electronically controlled sandwiching machines designed for high-precision production of cream-filled biscuits or crackers. Using servo-driven wire-cut technology for accurate and consistent dosing, the SAMA machines deliver reliability, efficiency, and flexibility for modern industrial production lines.
When combined with the EURO 88 flow wrapping machine, it offers real-time synchronization and a compact footprint with direct product transfer for pile-pack configurations.

Production plant

IMA Eurosicma

Machine highlights

  1. Servo Driven Wire Cut Dosing

    Ensures precise and consistent cream deposition for uniform sandwich products.

  2. High-Capacity Operation

    Available in two models to match different production needs, delivering up to 3.000 sandwich biscuits per minute.

  3. Flexible Downstream Integration

    Compatible with a wide range of collection and handling systems, including rows multipliers, rotary and penny stackers, exit conveyors and portion feeders.

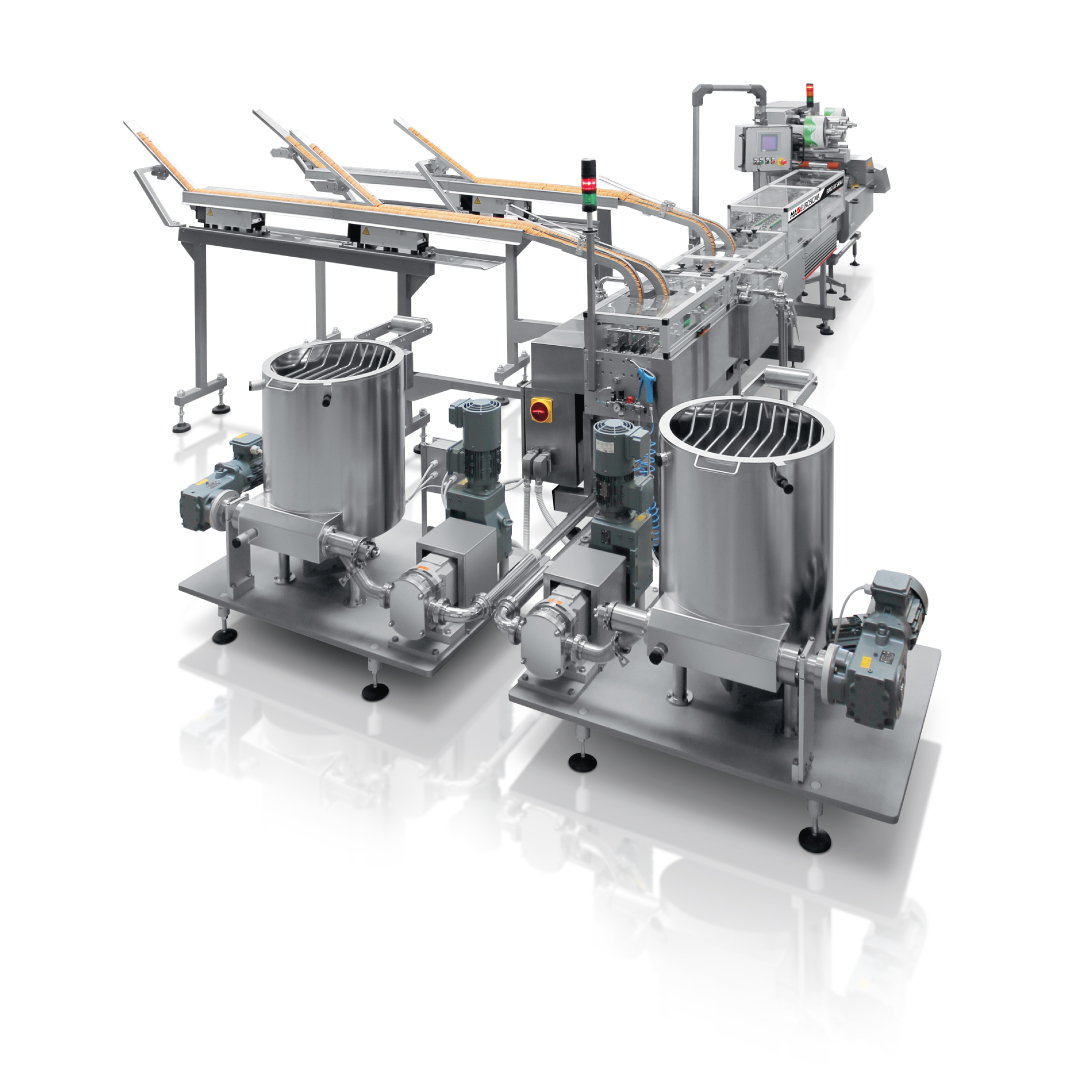

  4. Seamless Integration with EURO 88

    Real time synchronization between SAMA 2 and the EURO 88 wrapping machine enables compact layouts and direct product transfer for pile pack applications.

  5. Seamless Integration with EURO 88

    Real time synchronization between SAMA 2 and the EURO 88 wrapping machine enables compact layouts and direct product transfer for pile pack applications.

Machine versions

SAMA 2

The SAMA 2 features two production lanes and achieves an actual output of 1.400-1.500 sandwich biscuits per minute. Ideal for medium to high production lines, it guarantees excellent accuracy thanks to the integrated servo-driven dosing system.

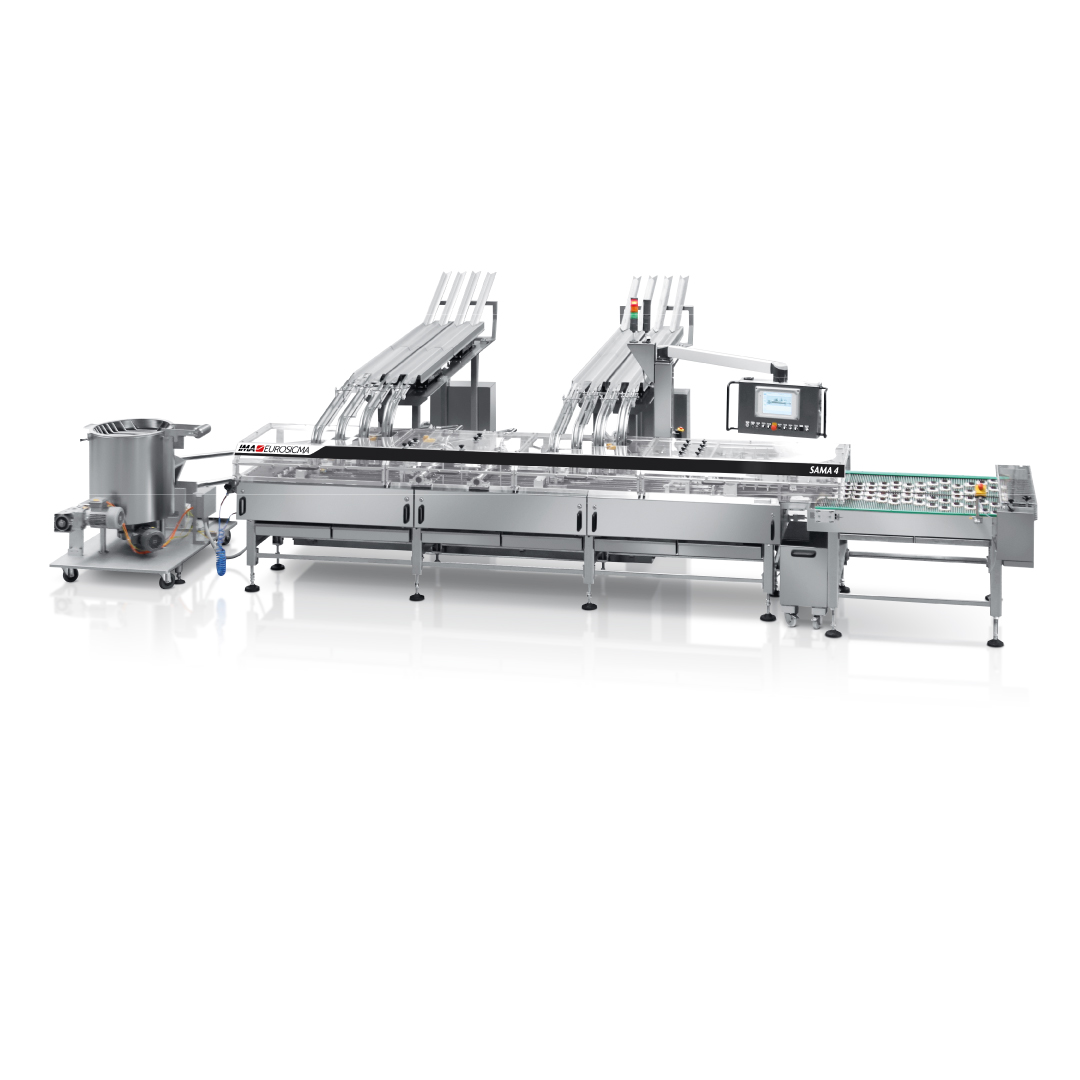

SAMA 4

The SAMA 4 is equipped with four production lanes, doubling the productivity of the SAMA 2. It reaches up to 2.800-3.000 sandwich biscuits per minute, making it the best choice for high-capacity industrial environments.
It maintains the same precision, electronic control, and compatibility with various downstream systems.

Technical information

FILM REEL DIMENSIONS
 Lenght (mm)
 Min.Max.
Inner diameter7079
External diameter–380
Reel width350/500 (opt) / 650 (box motion)
Max weight (kg)25
PRODUCT SIZE RANGE SAMA 2/SAMA 4
 Min.Max.
Lenght4070
Width4070
Diameter4070
