Optimum hygienic standards

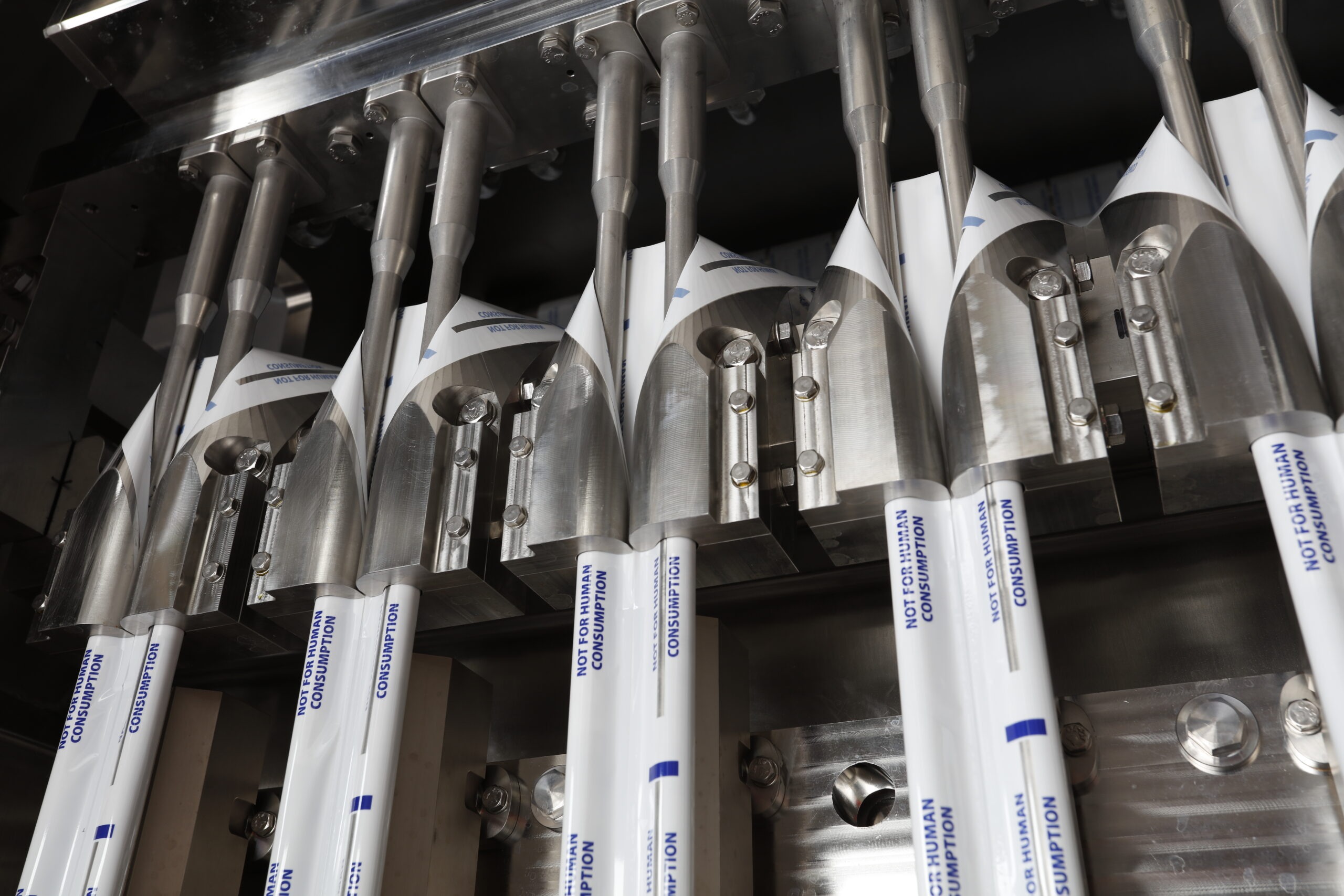

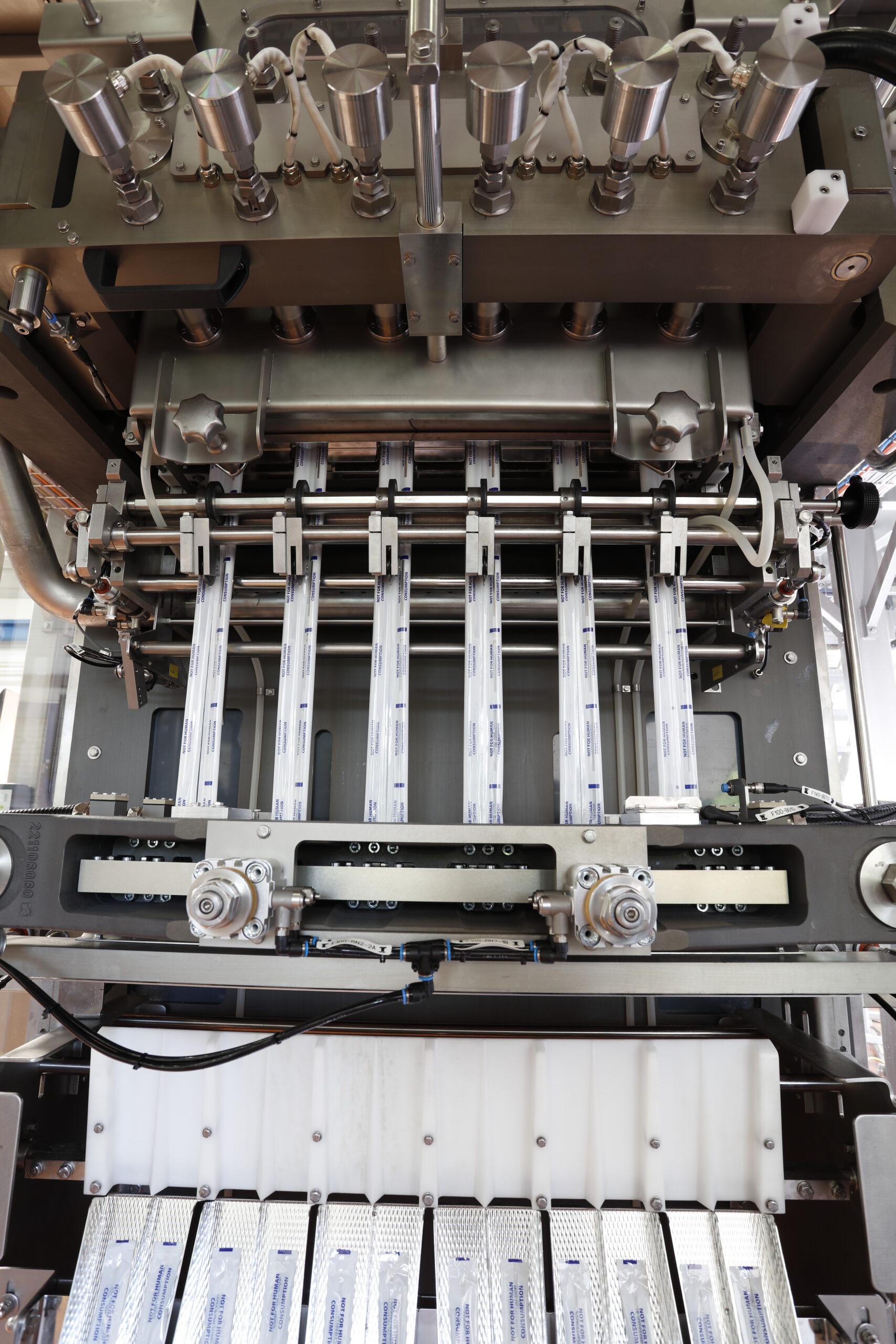

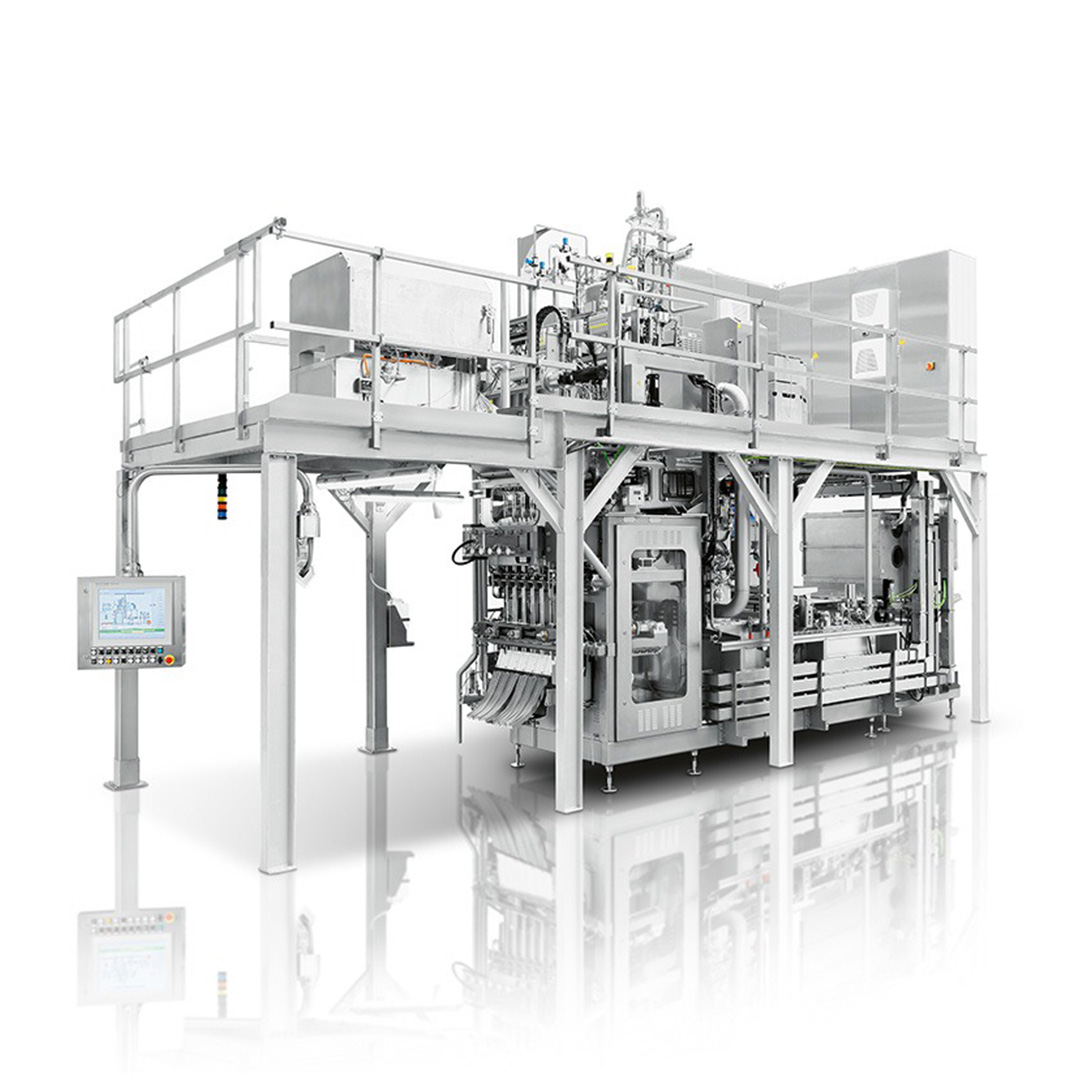

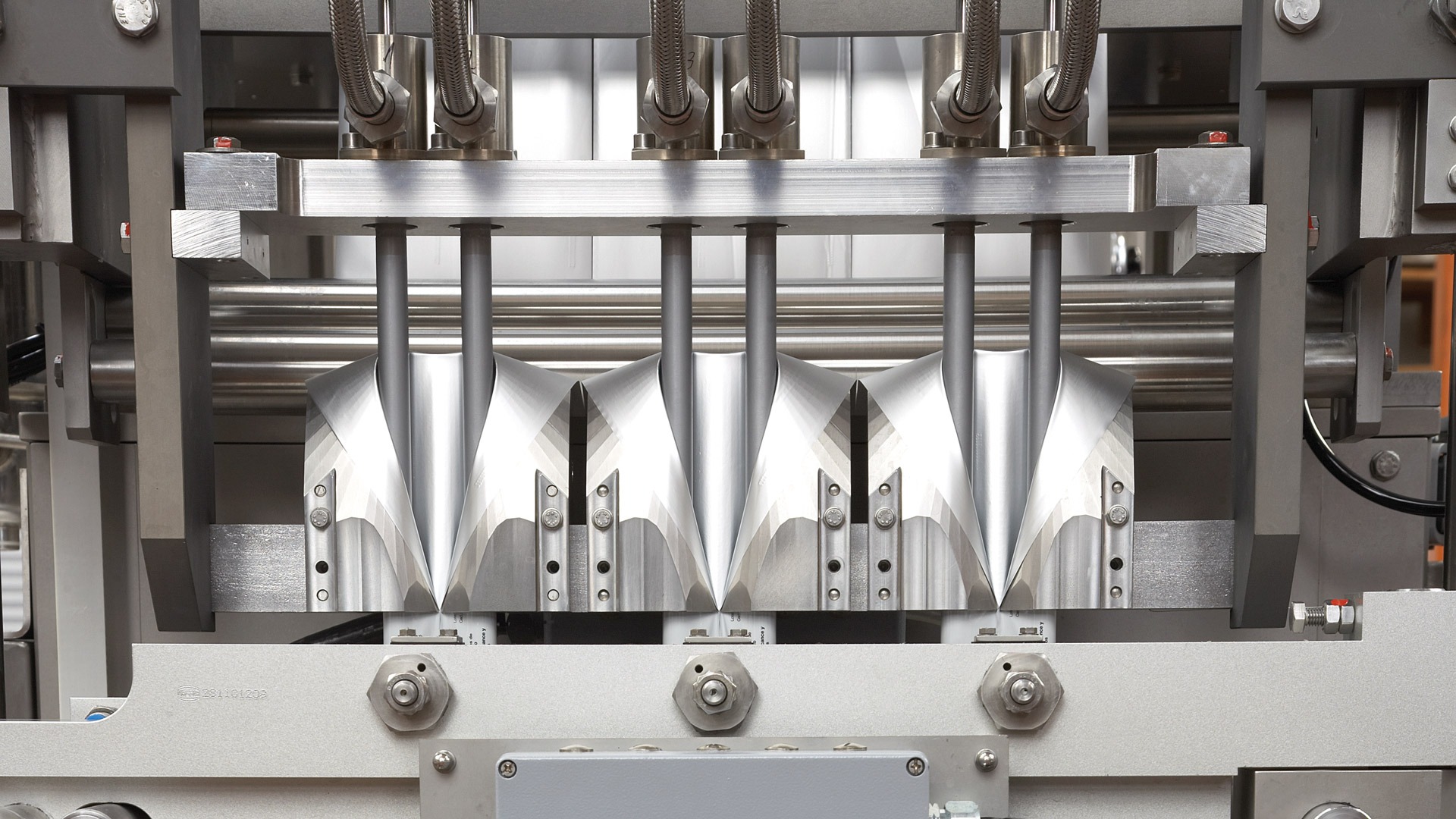

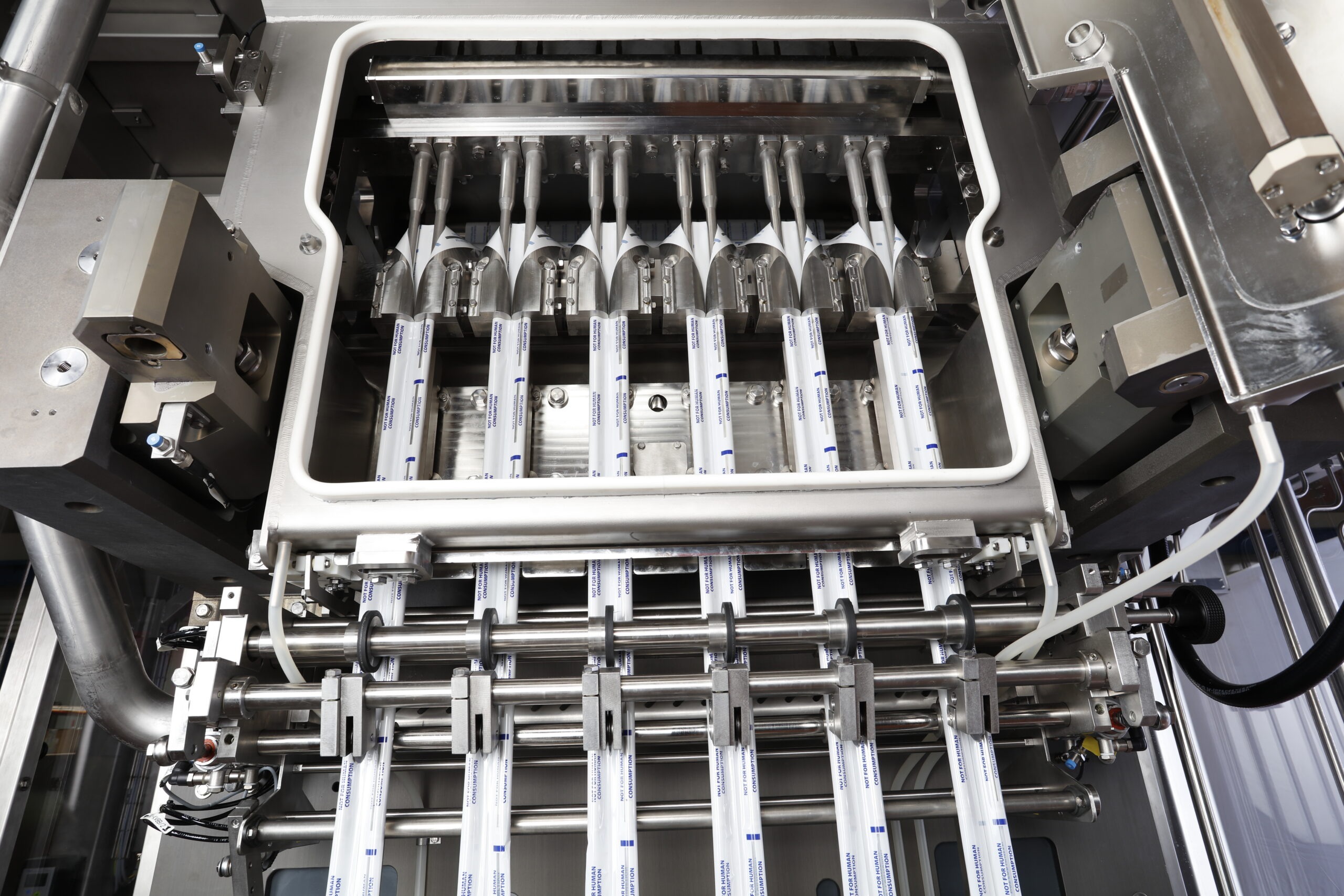

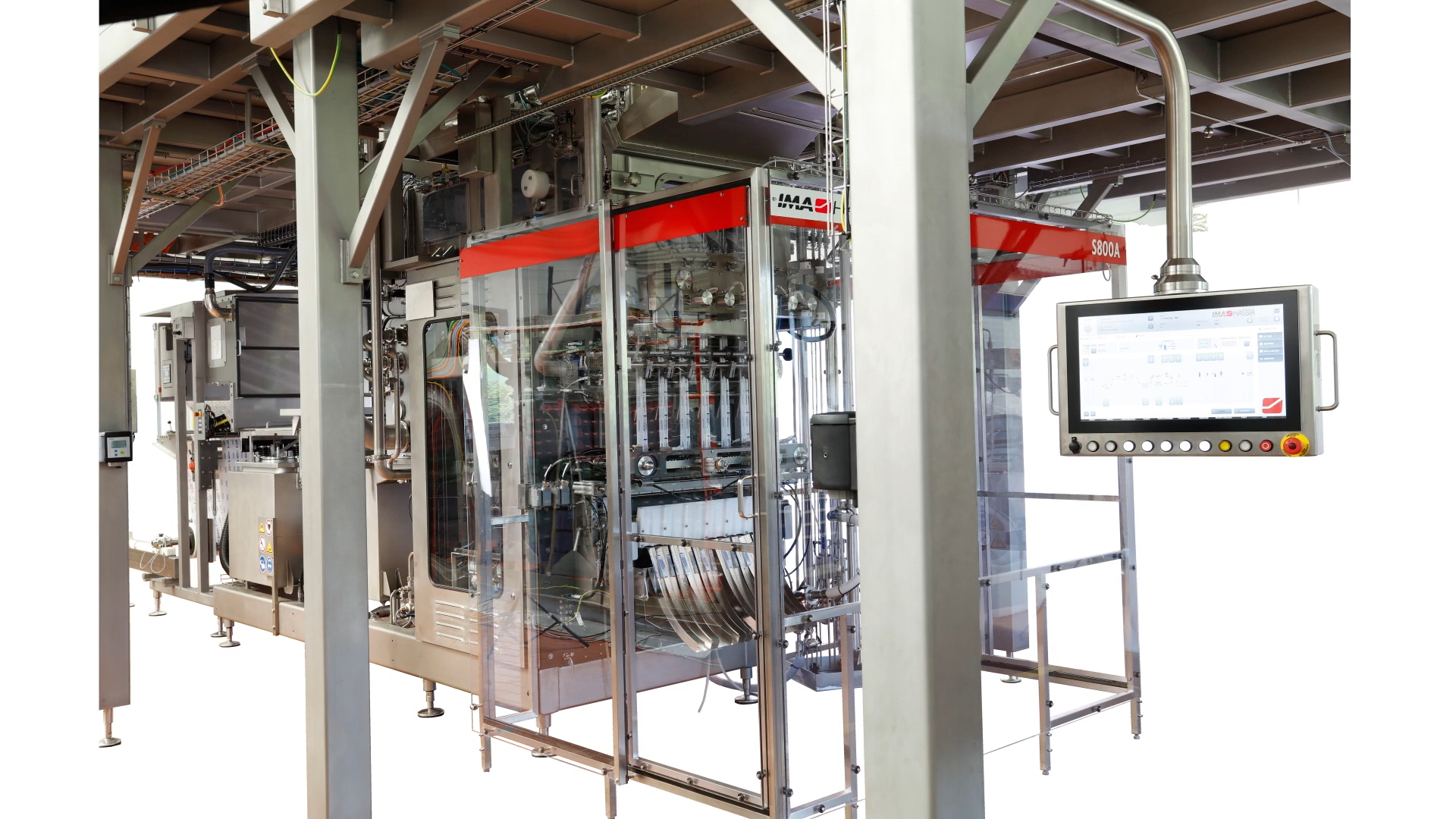

The perfect solution for convenience packaging for dairy and food products requiring long shelf life. The vertical form, fill and seal machine for stick packs S800A ensures sterilisation on all sides of the stick pack, each being formed, filled and sealed under aseptic conditions in a sterile tunnel. Processing typically at speeds of 24.000 – 39.600 stick packs/h, the S800A can be designed to comply with customer-specific or product specific requirements. Size configuration can also be adapted to production capacity.
Production plant
IMA Hassia
Long shelf life thanks to aseptic processing.
Active packaging material sterilization with microbial reduction >LOG 5.
FDA-and 3A-compliant machine design.
Product specific filling systems with high filling accuracy.
Mono-materials (PE or PP) possible.
The versatility of aseptic stick pack technology is demonstrated above all in the field of easy-to-use pre-portioned sterile products and where extended shelf life is required.
| TECHNICAL DATA S800A | |||
| Material width | max. 800 mm | Draw-off length | min. 80 mm – max. 230 mm |
| MATERIALS | |||

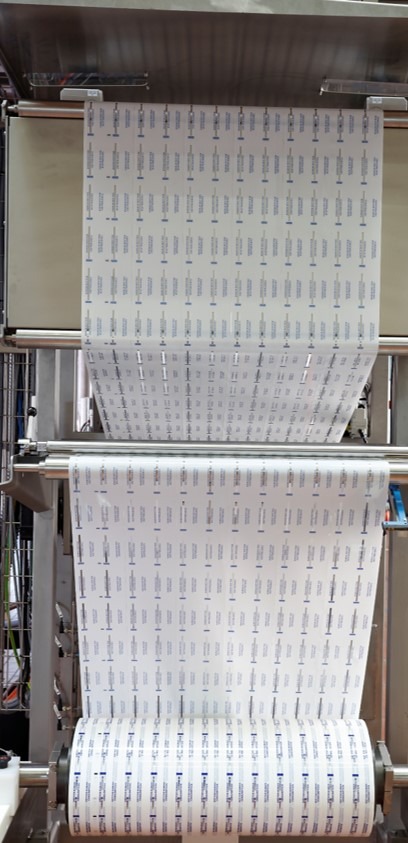

| Materials | PET/PETmet/PE or other heat sealable materials which are resistant against H2O2 sterilisation, PE and PP possible as monomaterials | ||
| Output | 24.000 – 39.600 stick packs/hour | ||
| STANDARD EQUIPMENT | |||

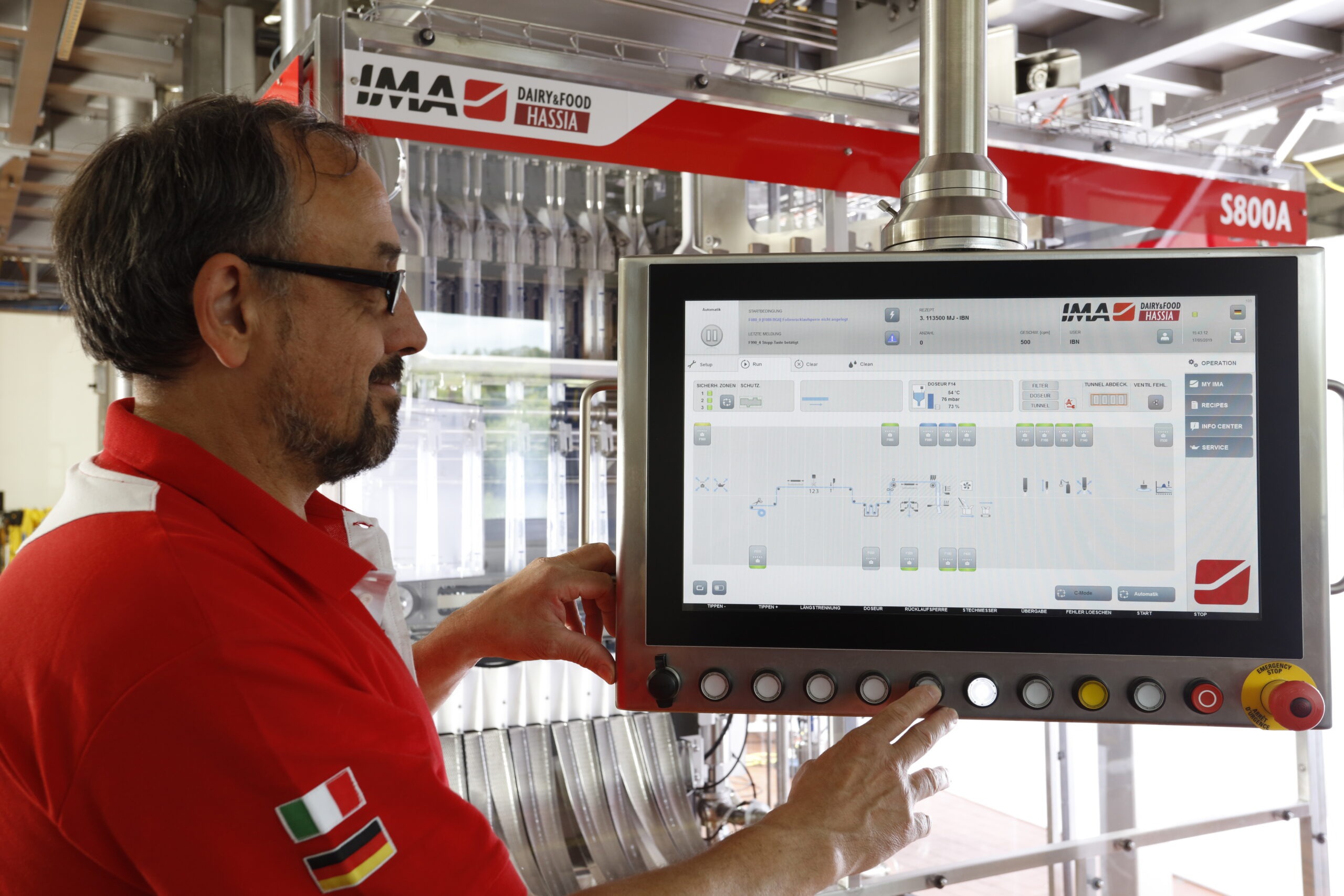

| Control System | Controller and servo motors Rockwell Automation | ||
| Reel diameter | max. 800 mm | ||

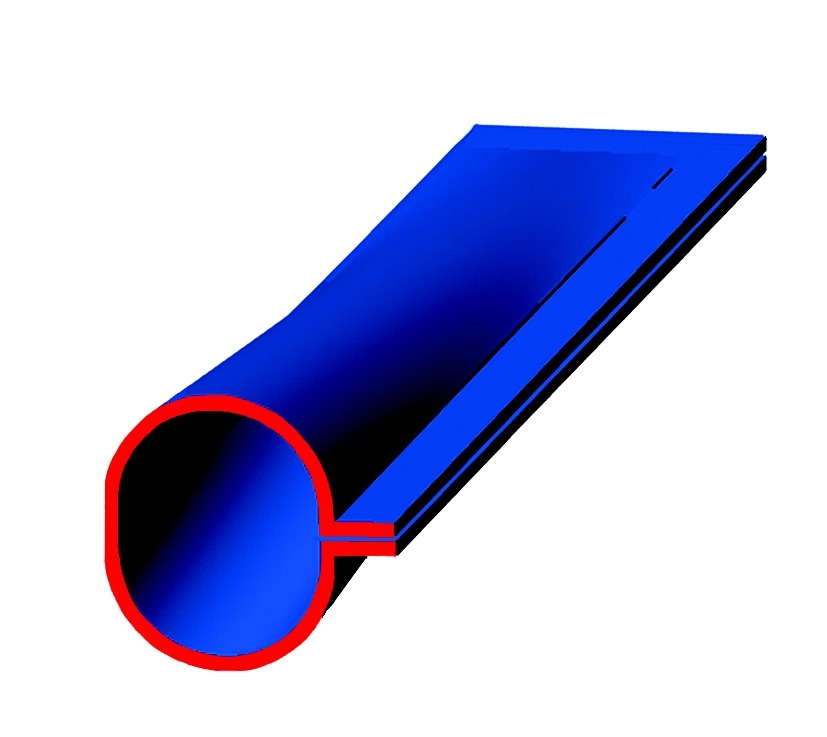

| Stick Pack seal | 3-sided sealed stick pack | ||
| Hygiene class | FDA Aseptic Design | ||
| OPTIONS | |||
| FDA-Aseptic machine operation | Pre-scored material needed for operation according to FDA regulations | ||
| Coding | Laser | ||
| Stick Pack configurations | Twin stick packs (possible with different volumes and products) with perforation (3-sided sealed stick packs only), stick pack chains with perforation | ||
| Others | X-ray/metal detector integration, stick pack counting, discharge conveyor, end-of-line packaging equipment | ||
