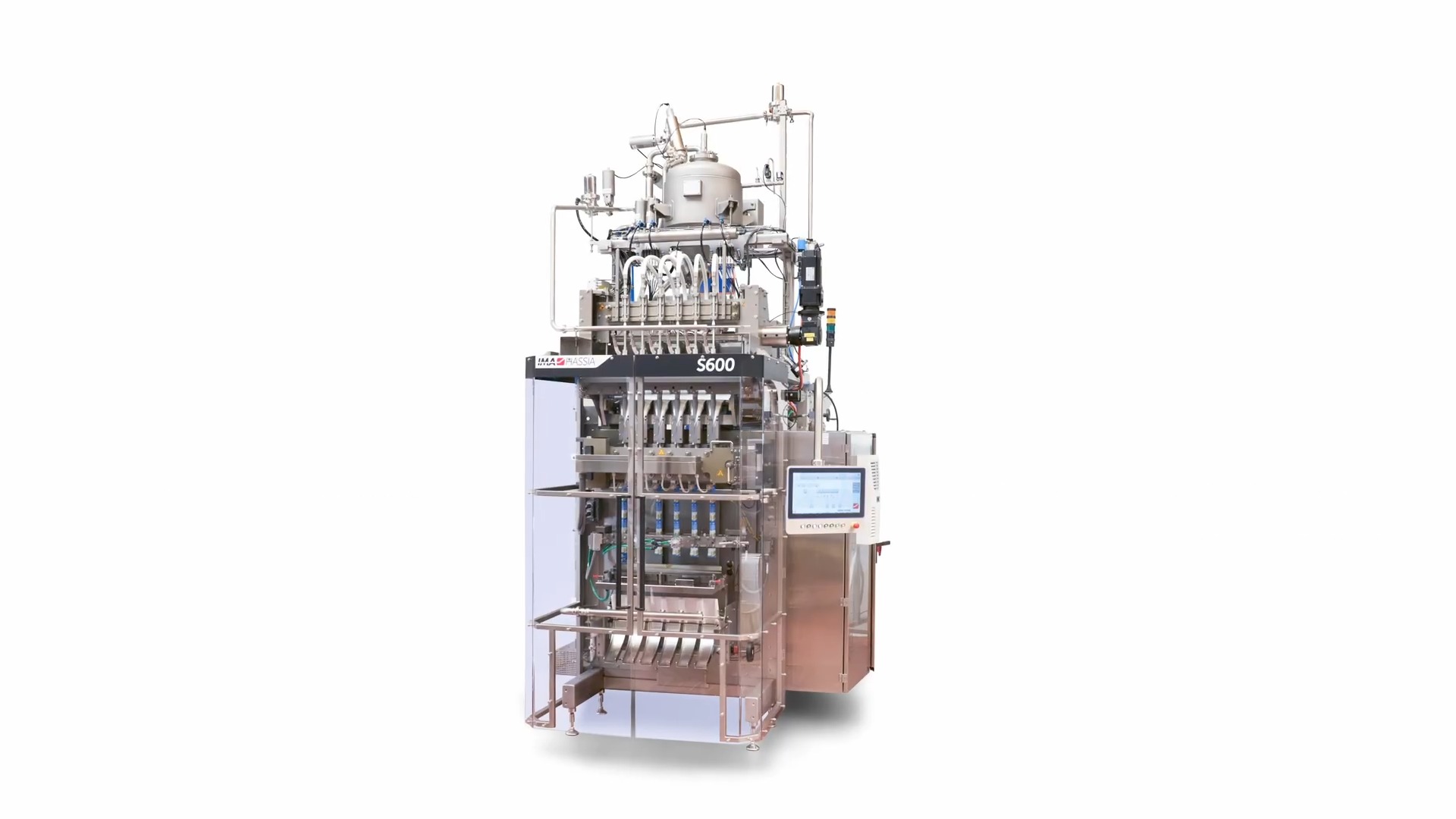

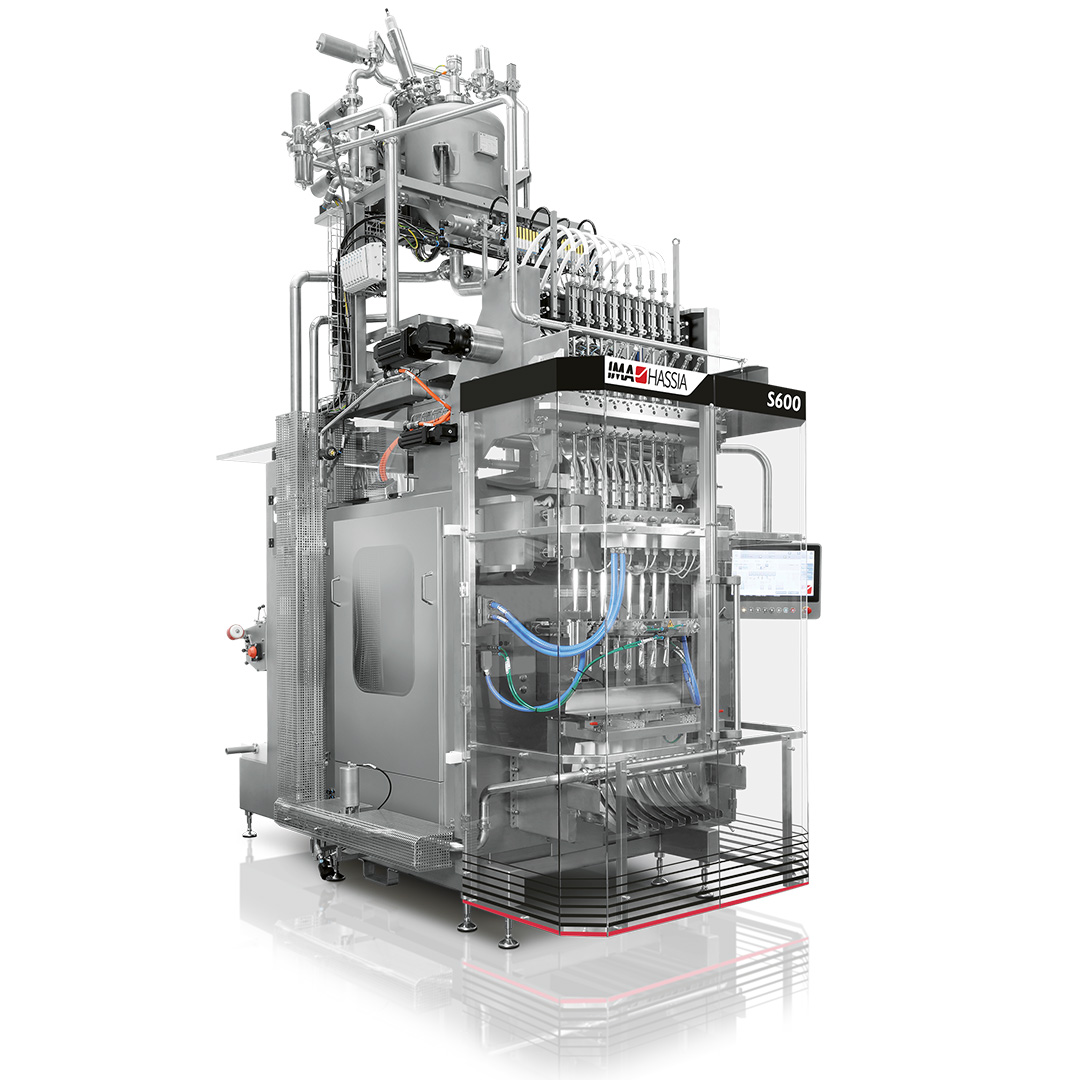

S600 Stick Pack Filling
Machine overview
Versatility of stick pack technology for easy-to-use pre-portioned products.
Processing typically at speeds of up to 45,000 stick packs/h, the S600 can be designed to comply with customer-specific or product-specific requirements.
The practical and consumer-friendly stick packs offer interesting applications for newly developed products as well as established branded products. Stick packs made on IMA Hassia machines can be printed on all sides for high visibility and offer adequate protection of pre-portioned products.
Production plant
IMA Hassia
Machine highlights
-
Product handling
Careful product handling with a focus on quality assurance.
-

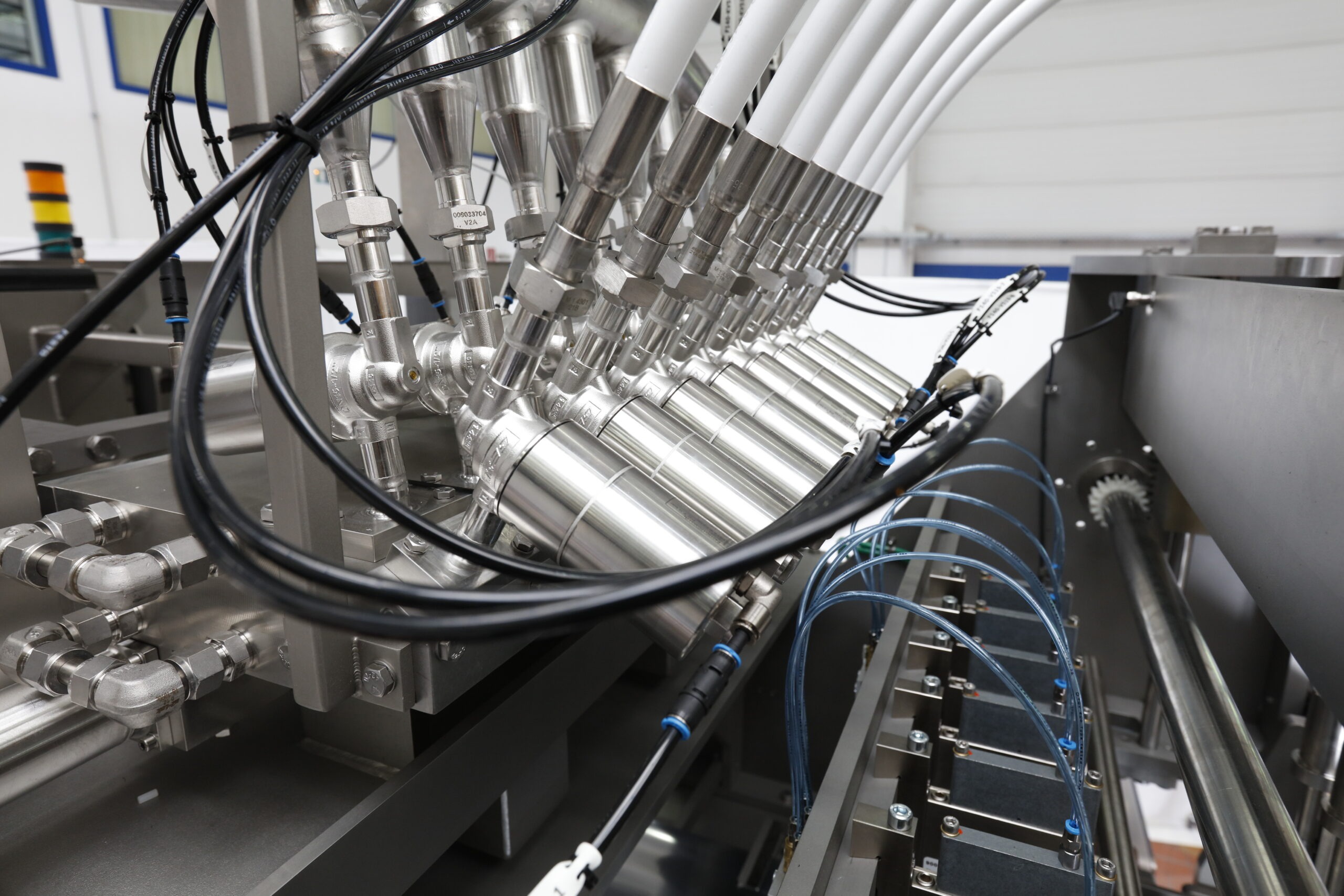

Fillers
Fillers adjusted to product requirements.
-
Accuracy
High filling accuracy.
-
Hygiene standards
Optimum hygiene standards ensured.
-
Operability
Excellent operability.
Machine details
Technical information
| TECHNICAL DATA S600 | |||
| Material width | max. 700 mm | Draw-off length | min. 80 mm – max. 230 mm |
| MATERIALS | |||
| Materials | PET/PETmet/PE or other heat sealable materials | ||
| Output | 14,400 – 45,000 stick packs/hour | ||
| STANDARD EQUIPMENT | |||
| Control System | Controller and servomotors Schneider Electric or Rockwell Automation | ||
| Reel diameter | max. 800 mm | ||
| Stick Pack longitudinal seal | Fin seal | ||
| Hygiene class | Clean (VDMA I+II) | ||
| OPTIONS | |||
| Longitudinal seal | 3-sided seal, overlap seal | ||
| Coding | Inkjet, laser | ||
| Stick Pack configurations | Twin stick packs (possible with different volumes and products) with perforation (3-sided sealed stick packs only), stick pack chains with perforation | ||
| Hygiene class | Ultra-clean (VDMA III by means of packaging material decontamination and purge air overlay in the product area) | ||
| Others | X-ray/metal detector integration; stick pack counting, discharge conveyor, end-of-line packaging equipment | ||
