PRIME Bottle and Jar Filling and Closing
Machine overview
Excellent by design.

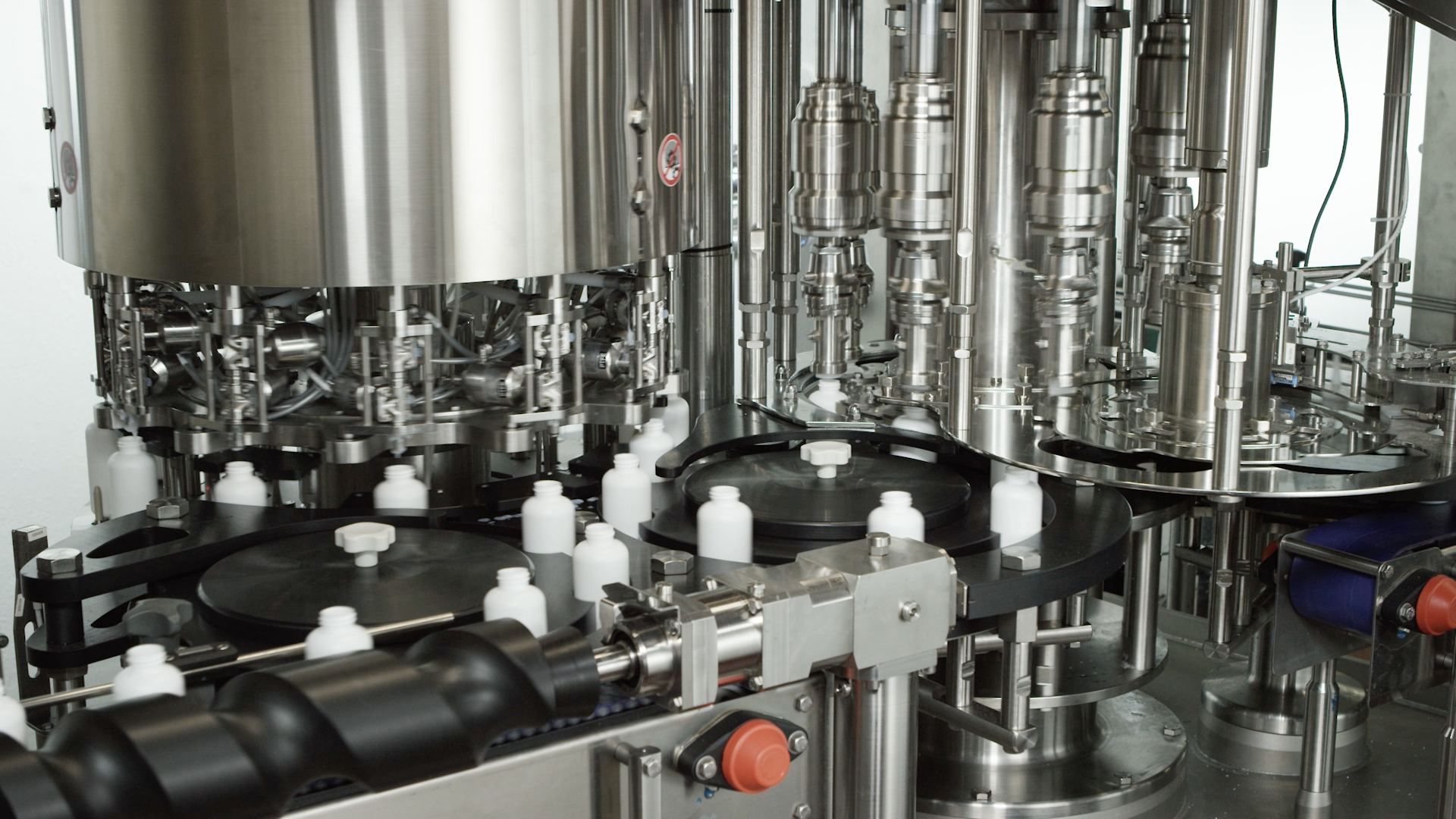

Handling rigid containers with a 50 to 750 ml capacity, PRIME 200 is a cleverly designed filling and capping machine making widespread use of stainless steel.
Built in AISI 304, the basement slopes to encourage drainage while all parts in contact with products are made of AISI 316L. Design also plays a key role in reducing water and cleaning agent consumption during washing cycles.
Production plant
IMA Fillshape
Machine highlights
-
Dosing systems
Different dosing systems available: piston filler with servomotors and magnetic or mass flowmeters.
-
Safety barriers
Safety barriers separate from the machine frame.
-
CIP & SIP
CIP and SIP with automatic or manual dummy bottles.
-
Touchscreen HMI
Equipped with touchscreen HMI.
-
Electronic capper
Universal electronic capper for press-on or screw caps, with positioning and torque control (optional).
-
Tool-free changeover option
Format changeover without tools as an option.
-
Pentabloc version
Optional pentabloc version, available with labeller integrated before or after filling.
Technical information
| TECHNICAL DATA PRIME | |||
Speed | Container volume | Max. container size | |
PRIME 60 | 3.600 | 50 – 750 ml | 120 x 120 x 250 mm |
PRIME 200 | 12.000 | 50 – 750 ml | 120 x 120 x 250 mm |
