PANDA RED BS RS Horizontal Form, Fill & Seal
Machine overview
Flexible flowpack machine for simple automatic systems.

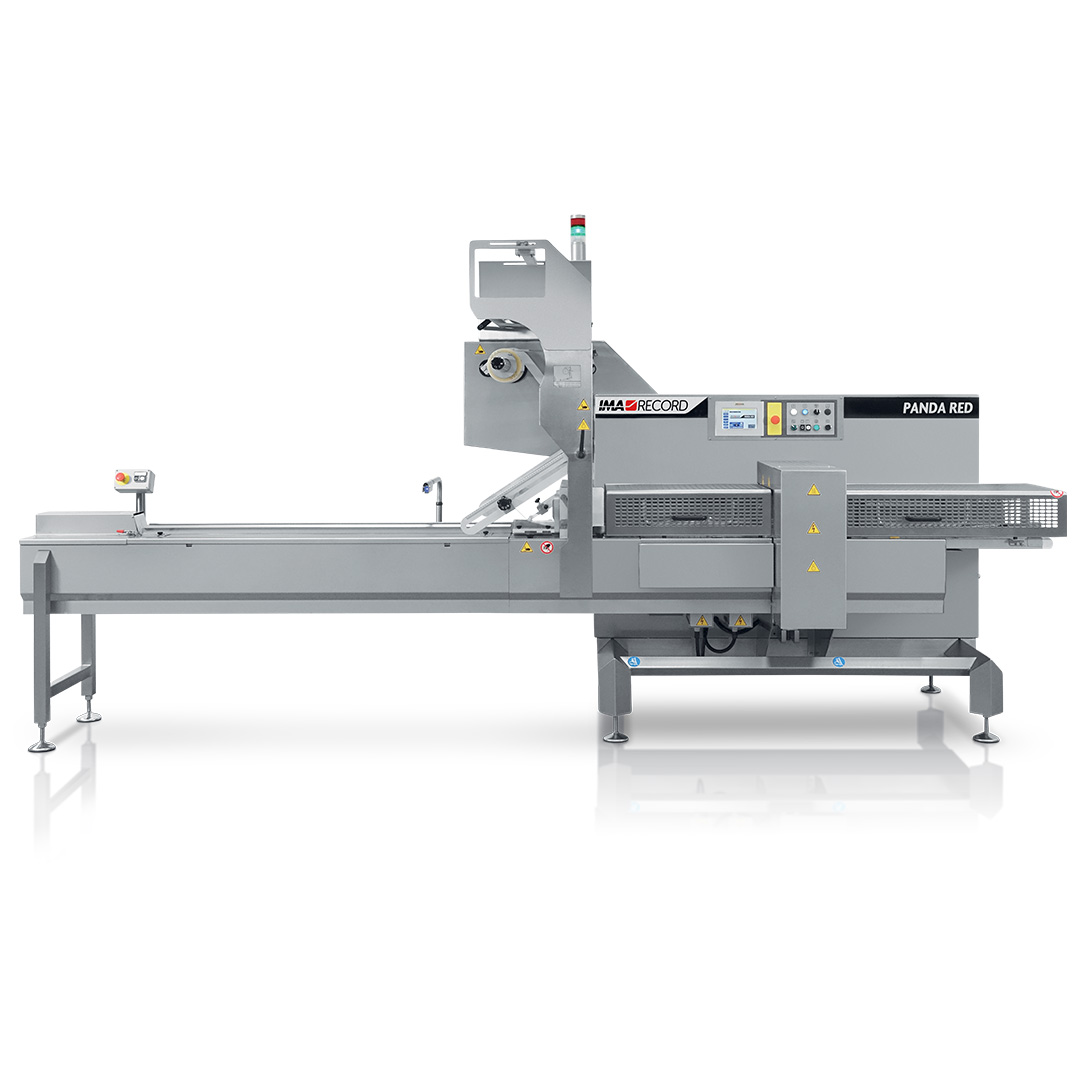

The PANDA RED BS RS horizontal flow wrapping machine is a versatile and reliable solution designed for both food and non‑food applications. It can be integrated with multiple automatic feeding systems provided by IMA Record and equipped with all the main options needed to achieve the required performance level. Available with rotating sealing jaws, it achieves packaging speeds of up to 240 ppm.
100% Made-in-Italy, the PANDA RED features an intuitive HMI and is ready for remote assistance as well as integration with local ERP networks.
Production plant
IMA Record
Machine highlights
-
Flexible flowpack solution
Designed for a wide range of food and non‑food applications, ensuring maximum adaptability.
-
Ready for automation
Compatible with multiple IMA Record automatic feeding systems for efficient and streamlined production.
-
Medium-speed performance

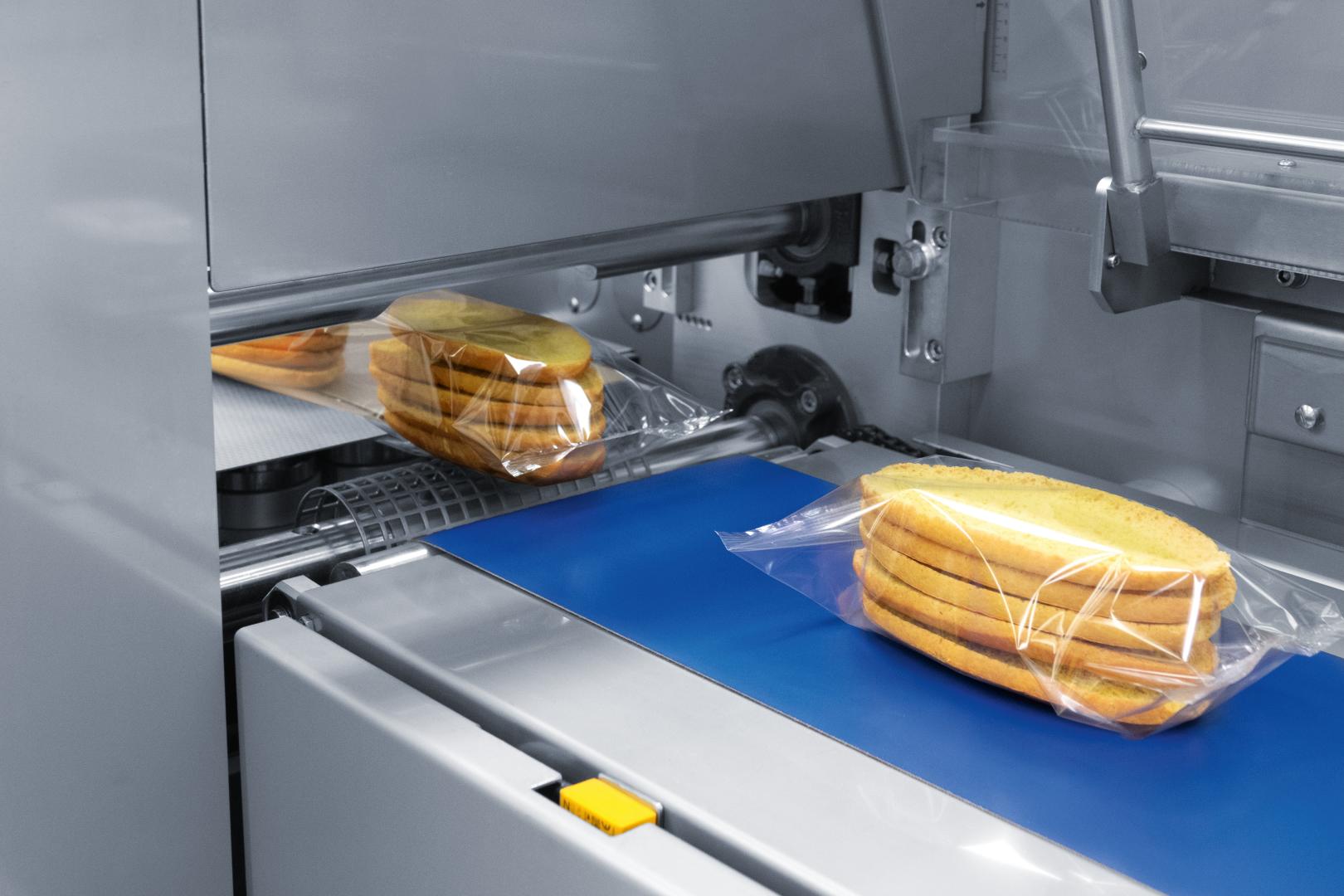

Rotating sealing jaws enable packaging speeds of up to 240 ppm while maintaining sealing quality.
-
Built for food safety
Stainless steel frame and washdown infeed option meet strict hygiene requirements, ideal for IQF environments.
-
Smart connectivity
Equipped with a user‑friendly HMI and ready for remote diagnostics and ERP network integration.
Technical information
| PANDA RED BS RS | |
| Machine speed (ppm max.) | 240 |
| Product width (mm max.) | 750 |
| Product depth (mm max.) | 280 |
| Product height (mm max.) | 120 (160) |
| Film width (mm max.) | 730 |
| Cut-off length (mm max.) | 850 |
| Jaw width (mm max.) | 350 |
| Film linear speed (m/min.) | 40 |
