PANDA LS Horizontal Form, Fill & Seal
Machine overview
Hermetic sealing for fresh and sensitive products.
The PANDA LS Series is designed for applications that require hermetic sealing and optimal protection of fresh or delicate products.
Thanks to long-dwell sealing technology, the PANDA LS Series guarantees airtight seals even when using barrier or complex multilayer films.
The stainless steel structure, rounded edges and easy sanitisation features make the PANDA LS Series ideal for food environments with strict hygiene requirements.
Production plant
IMA Record
Machine highlights
-
Long-dwell hermetic sealing
Ensures airtight packaging for fresh produce and food products in general.
-
MAP (Modified Atmosphere Packaging) available
Designed to extend shelf life and preserve product freshness.
-
Hygienic washdown design
Stainless steel ergonomic frame with optional full washdown configuration for strict hygiene standards.
-
Full line integration
Compatible with IMA Record’s automatic feeding systems for complete process flow solutions.
Machine versions

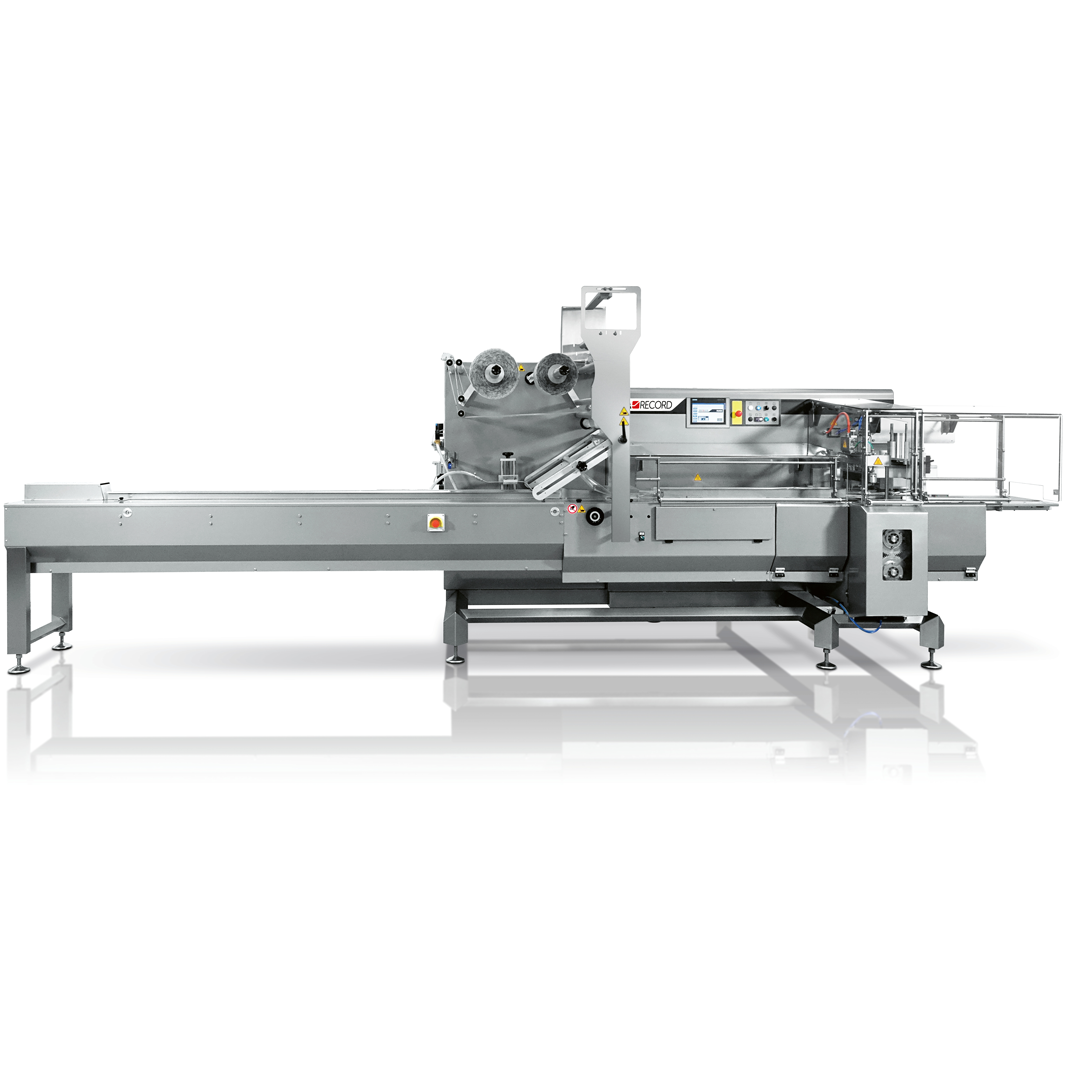

PANDA BS LS
The PANDA BS LS is a bottom-seal flow wrapper equipped with long-dwell sealing jaws to guarantee hermetic seals for fresh or sensitive food products.
It reaches speeds of up to 80 ppm and is also available with MAP technology to extend product shelf life.

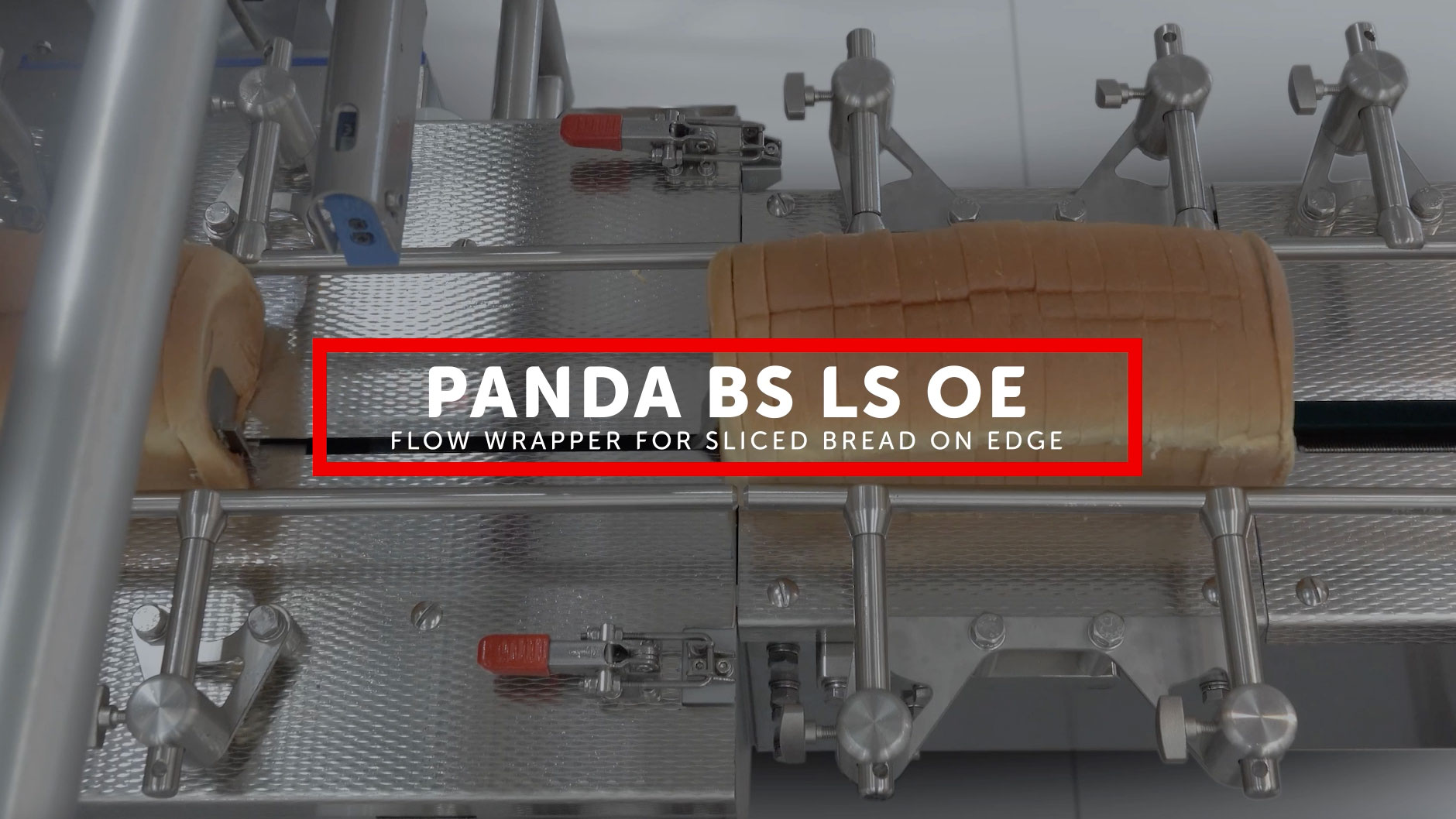

PANDA BS LS OE
The PANDA BS LS OE is the On Edge version of the PANDA BS LS and is ideal for products such as biscuits, crackers and sliced bread. This flow wrapper is suitable for both semi-automated and fully automated applications, meeting a wide range of production needs, and can be integrated with the automatic feeding systems provided by IMA Record.

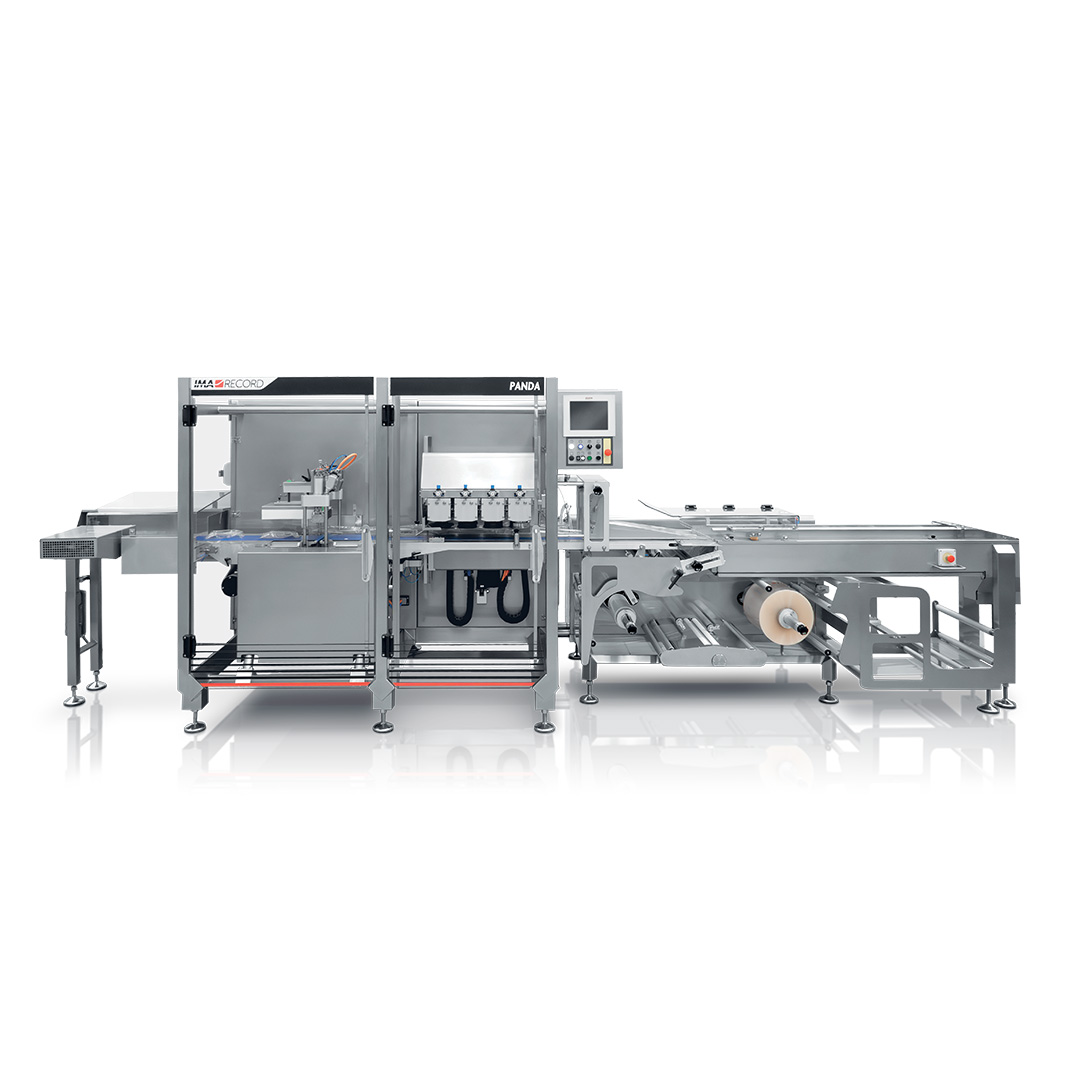

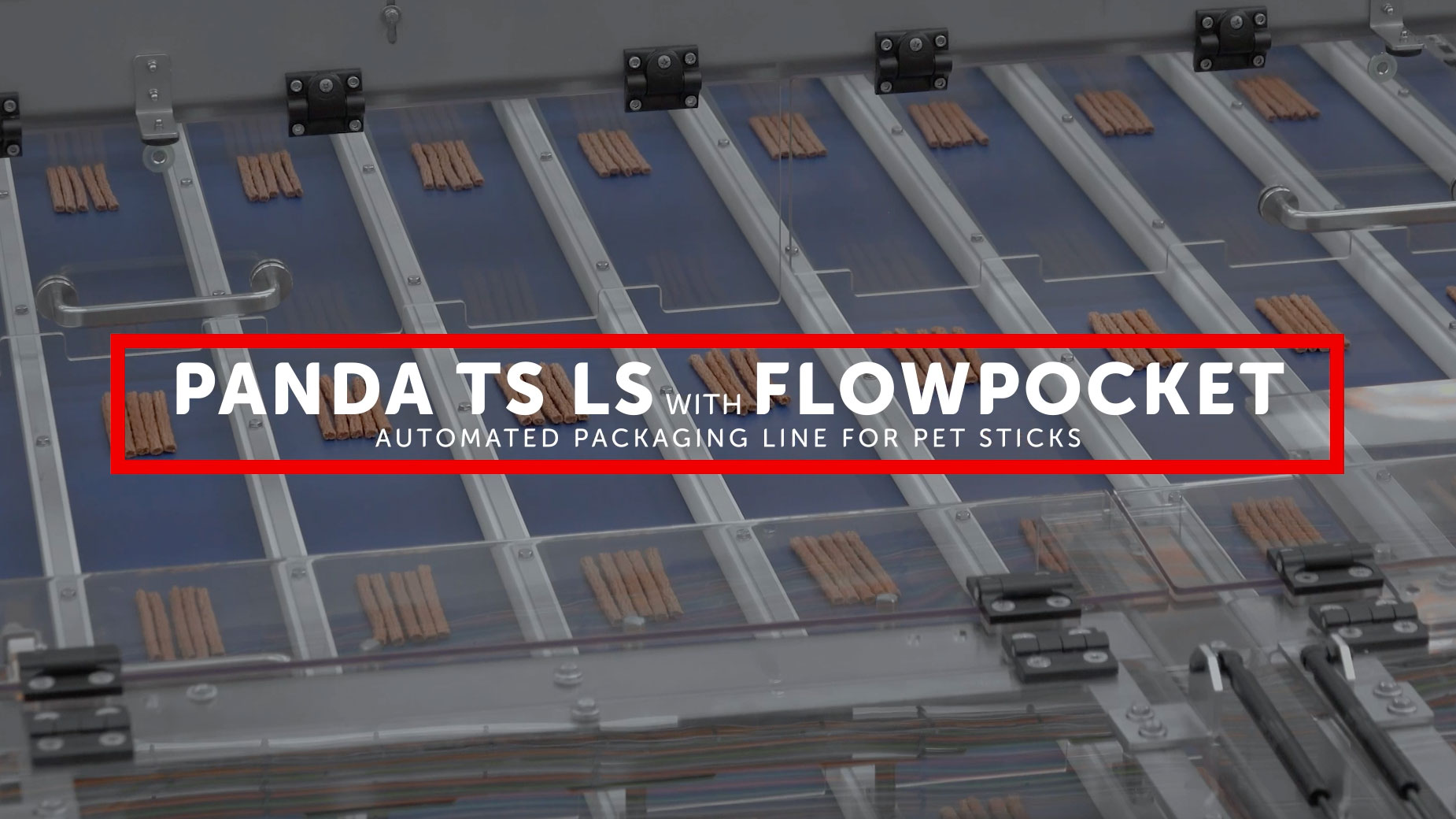

PANDA TS LS
The PANDA TS LS is the top-seal version with long-dwell sealing technology, specifically suited for irregular or unsupported products.
It provides hermetic packaging up to 80 ppm, with MAP (Modified Atmosphere Packaging) option available, and features an open frame for better visibility and maintenance access.
Technical information
| PANDA LS TECHNICAL DATA | |||
| PANDA BS LS | PANDA BS LS OE | PANDA TS LS | |
| Machine speed (ppm max.) | 80 | 60 | 80 |
| Product width (mm max.) | 850 | 300 | ∞ |
| Product depth (mm max.) | 320 (370) | 150 | 320 (370) |
| Product height (mm max.) | 160 (180) | 160 (180) | 160 (180) |
| Film width (mm max.) | 730 (930) | 730 | 730 (930) |
| Cut-off length (mm max.) | 950 | 400 | ∞ |
| Jaw width (mm max.) | 350 (400) | 170 | 350 (400) |
| Film linear speed (m/min.) | 50 | 50 | 30 |
