OTTO Primary wrapping

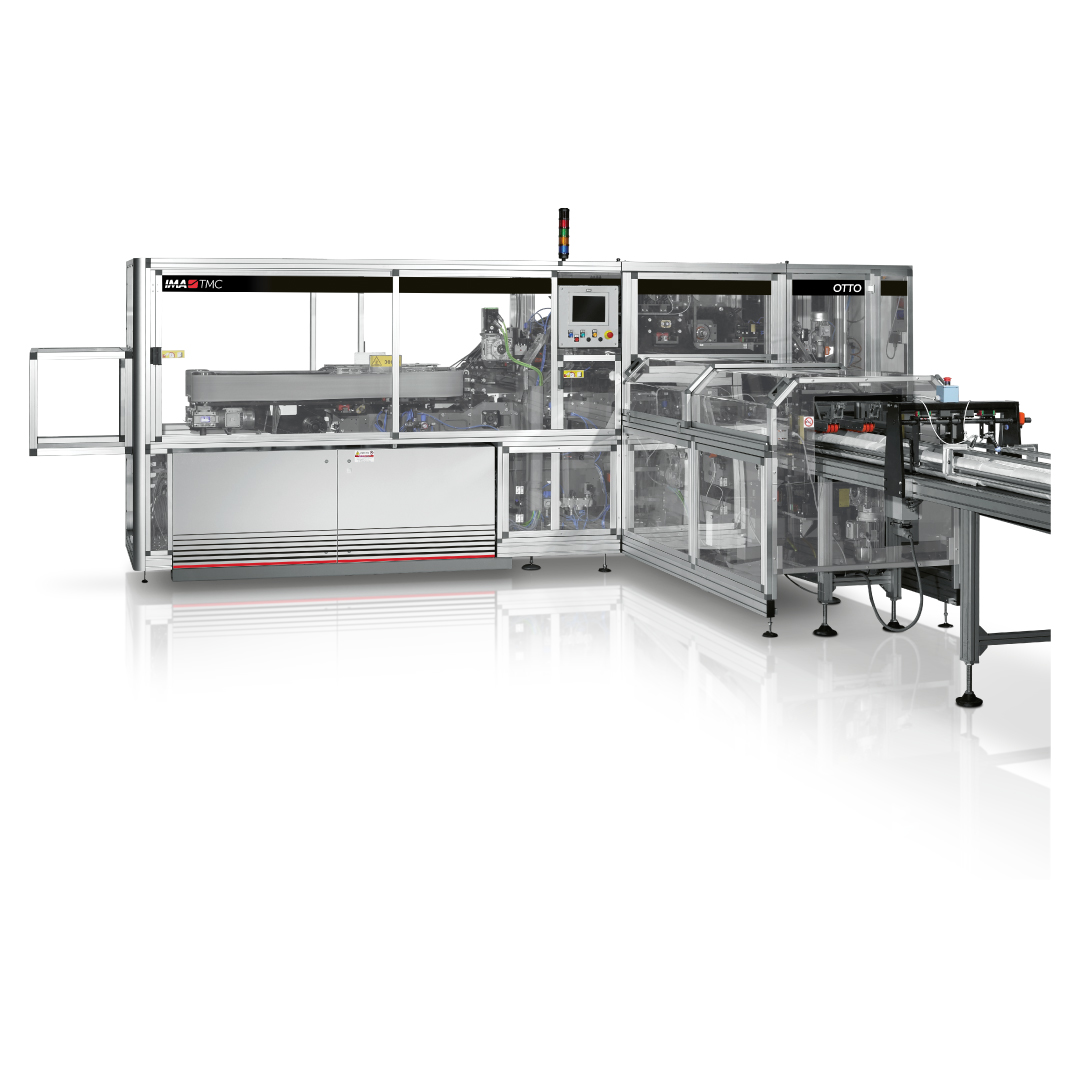

Machine overview
Speed beyond expectations.
OTTO wrapping machine is designed to wrap bathroom tissue and household towel rolls in single layer at very high speed.
OTTO is the only wrapper on the market that can perform three different folding styles:
• Fold & Seal
• Twist & Tuck
• Twist & Seal, for pack configurations of 1 lane.

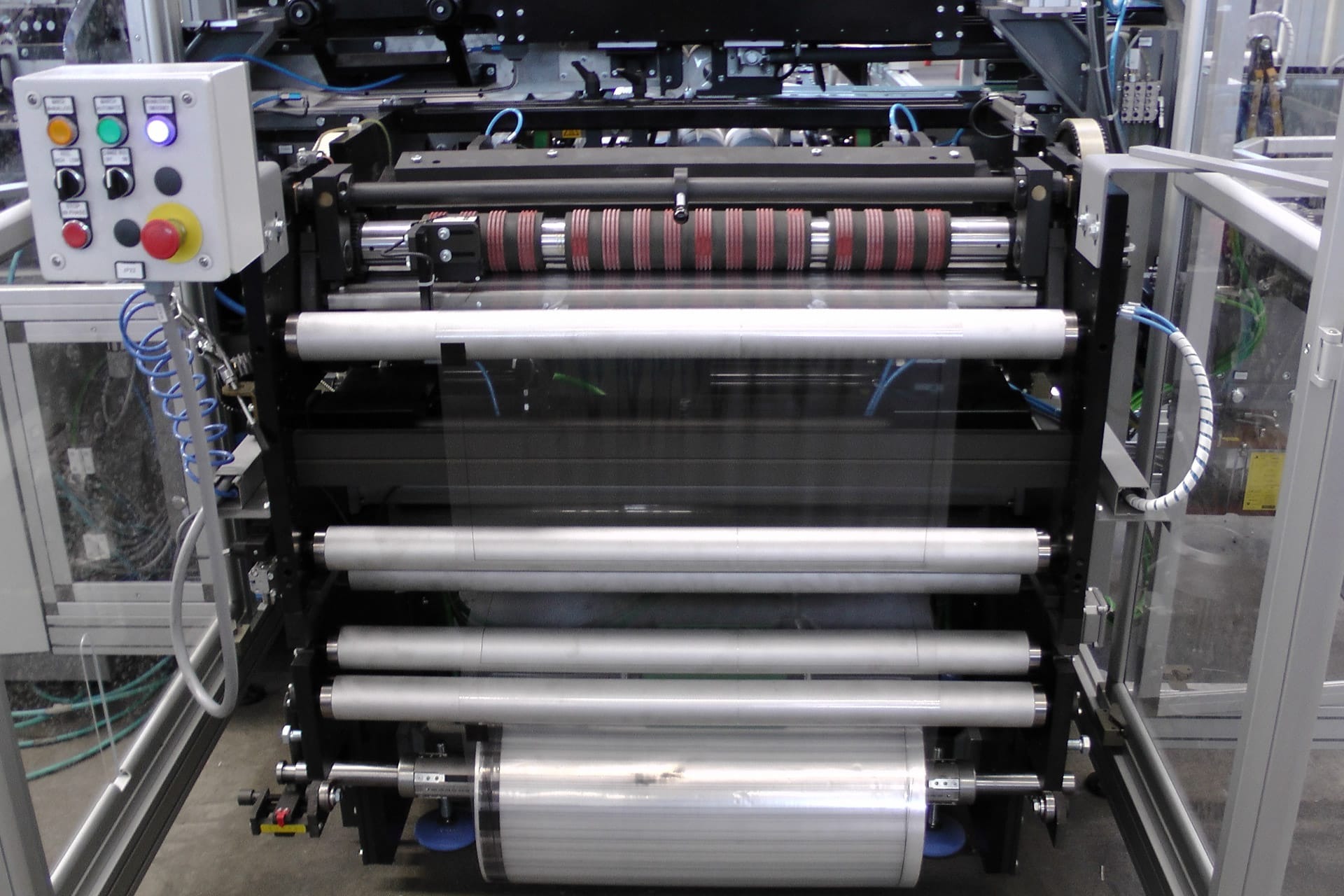

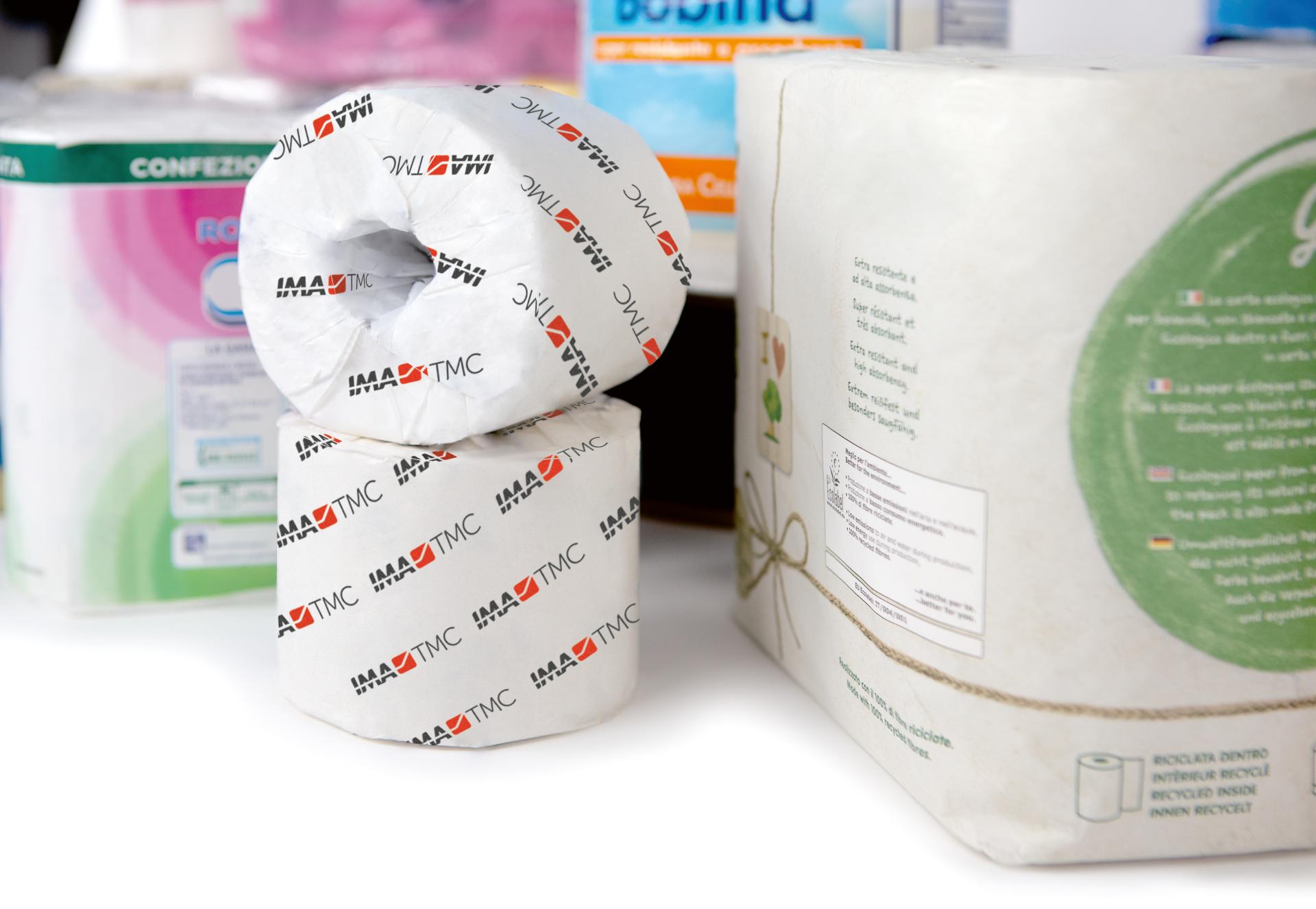

Packs can be wrapped in polyethylene, polypropylene or paper, allowing a more sustainable packaging. This machine can wrap single layer pack configurations of 1 or 2 lanes, by selecting the requested pack configuration through its fully automatic operation.
Easy management and guided change-over operation can be quickly carried out through the touch screen control panel. Full size adjustments can be stored in recipes for fast, accurate and repetitive setting. Wide flexibility and reduced downtime to change from one pack configuration to another is guaranteed, also thanks to a reduced number of change-over parts to be replaced and simple adjustments that require no tools to be carried out.
Production plant
IMA TMC
Machine highlights
-

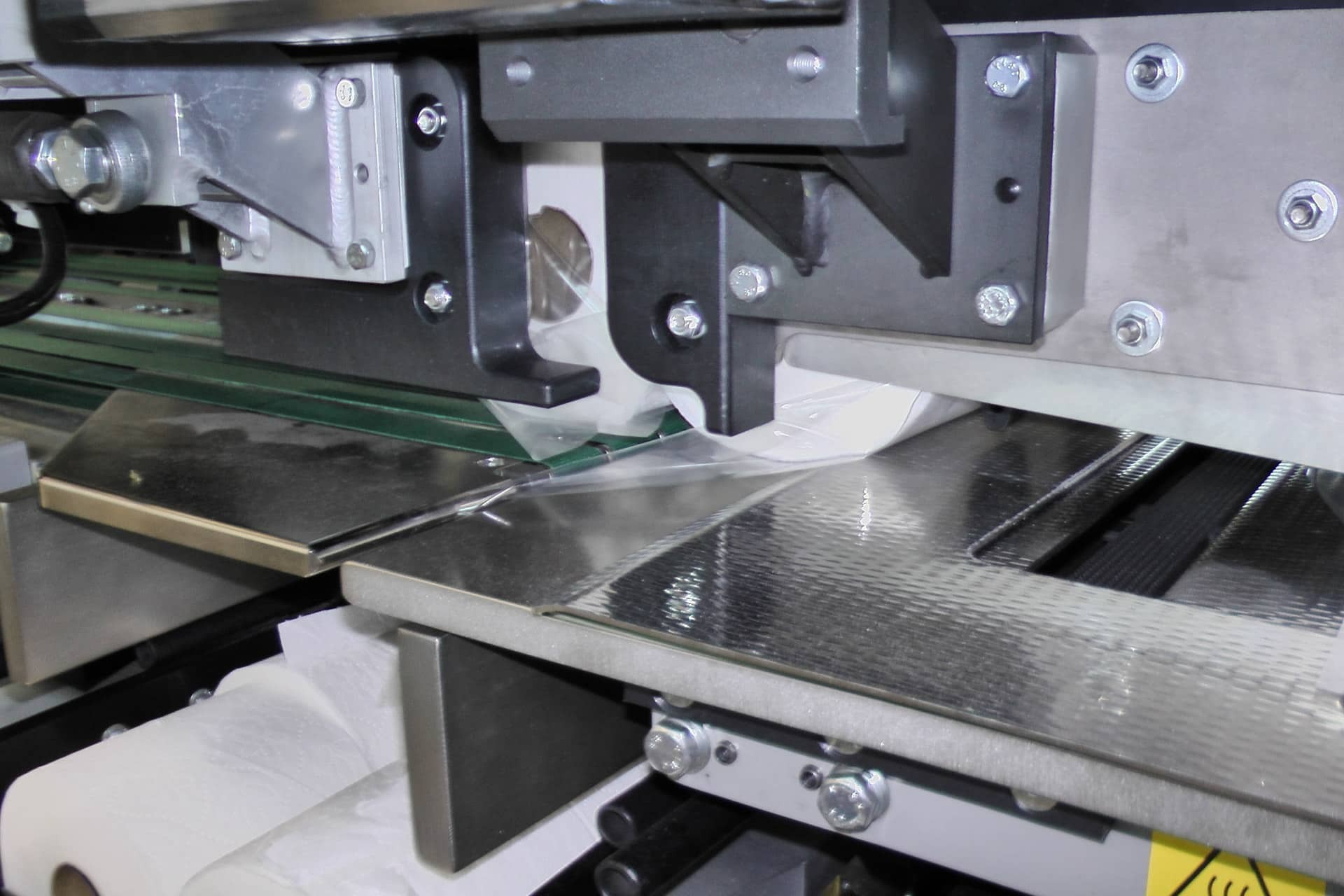

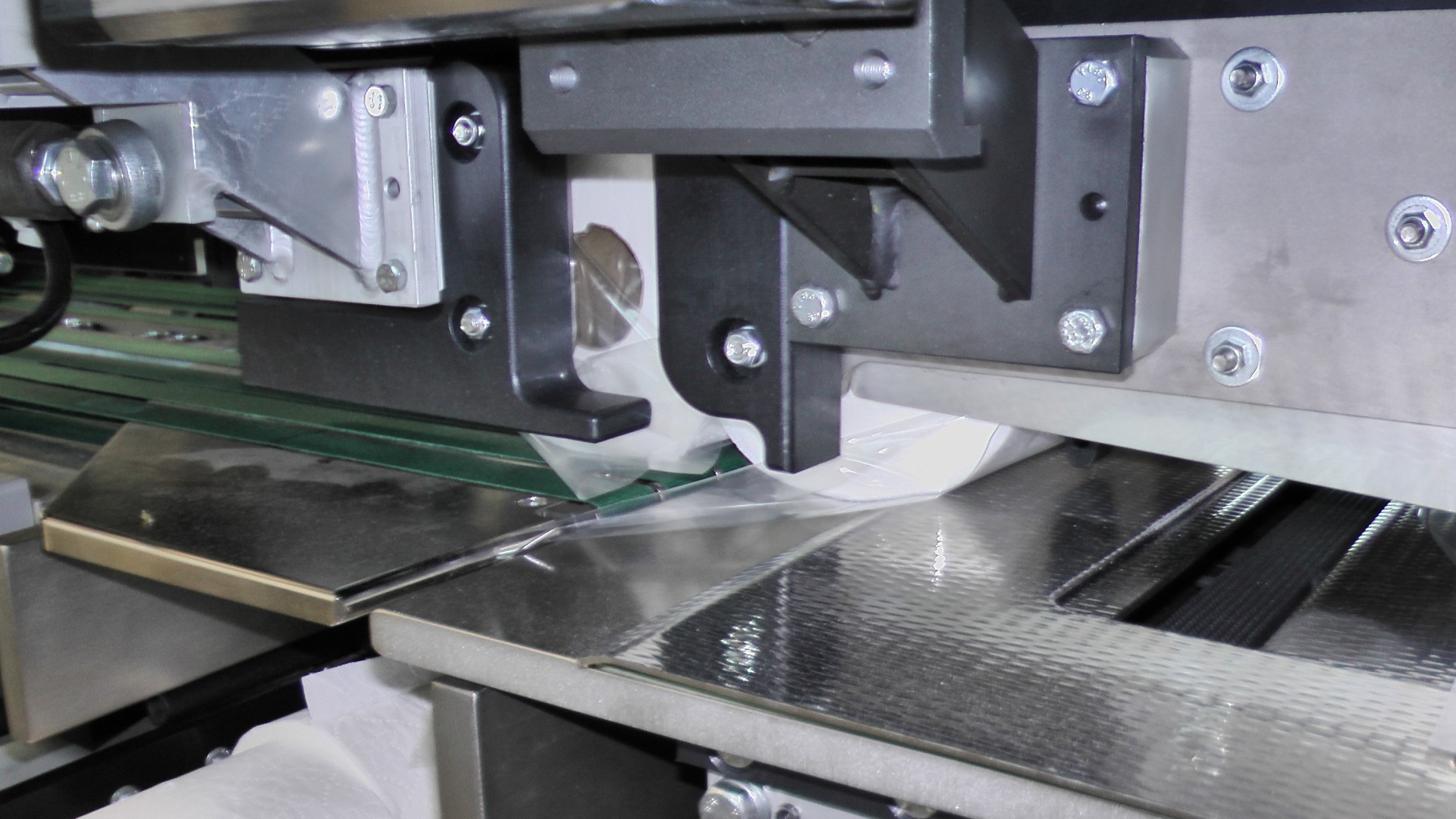

Folding
The OTTO can perform the Twist & Seal folding style, an innovative folding system patented by TMC
-
Recipes
Full size adjustments stored in recipes for fast, accurate and repetitive setting
-
Maintenance
The sealing unit features the exclusive ON-OFF pneumatic switch, enabling easy and quick maintenance
-
Accessibility
Excellent accessibility and visibility for easy management of the machine in complete safety
-

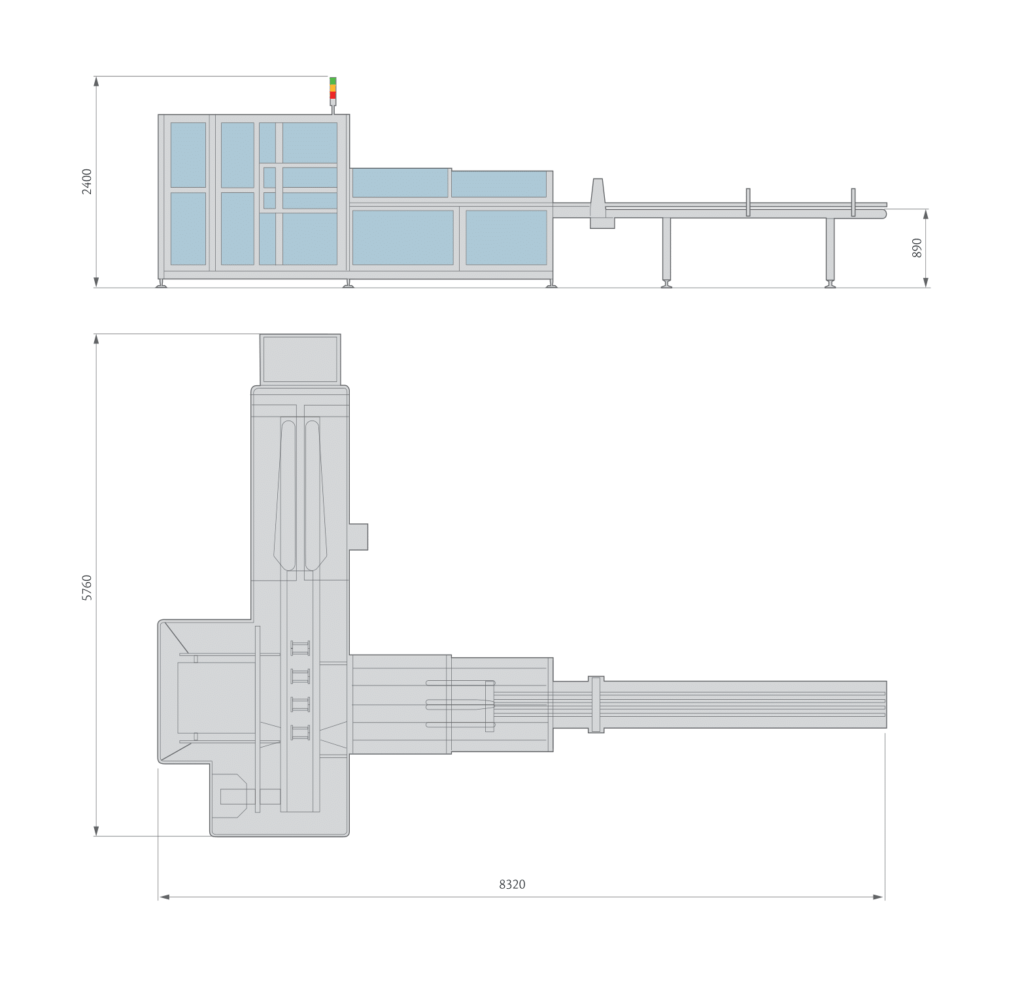

Layout
Rationalization of the space required for the placement of the layout, also thanks to the presence of an integrated electrical cabinet.
Folding styles
OTTO is the only wrapper on the market that can perform three different folding styles also with sustainable packaging materials, making your production flexible and always up-to-date.
Machine details
Technical information
OTTO TECHNICAL DATA | ||
| Production Speed | up to 200 packs/minute, depending on pack configuration | |
| Servo Motors | 12 – 15 | |
| Aut. Adjustments | 1 | |
| Product Range | MIN | MAX |
| Diameter | 90 mm (3,5”) | 150 mm (5,9”) |
| Lenght | 90 mm (3,5”) | 300 mm (11,8”) |
| Machine Range | MIN | MAX |
| Width | 90 mm (3,5”) | 300 mm (11,8”) (opt. with folders kit) |
| Lenght | 90 mm (3,5”) | 300 mm (11,8”) |
| Height | 90 mm (3,5”) | 150 mm (5,9”) |
| Poly Capability | MIN | MAX |
| Reel width | 320 mm (12,6”) | 800 mm (31,5”) |
| Repeat length | 225 mm (8,85”) | 450 mm (17,7”) |
