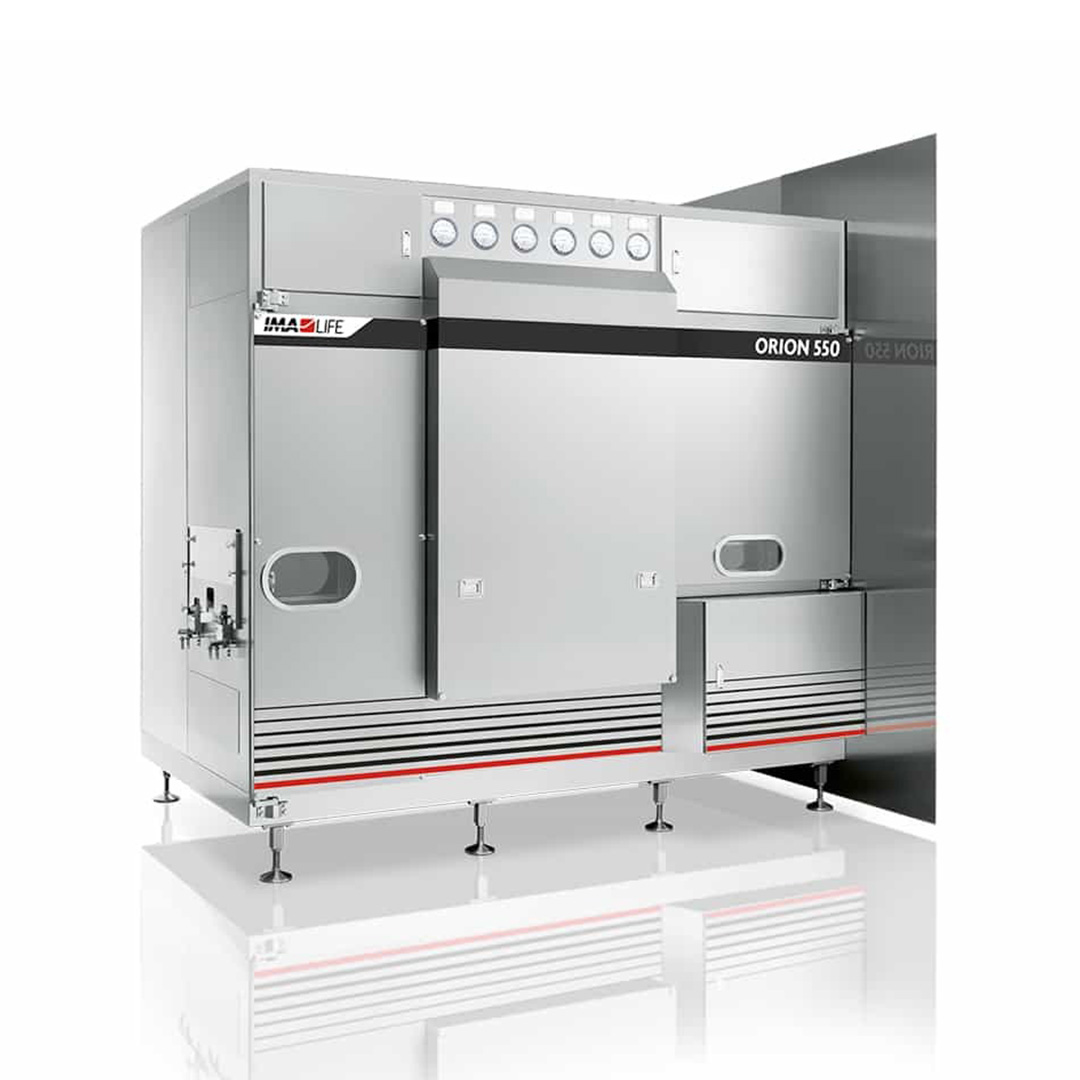

ORION series Aseptic Processing

Machine overview

Depyrogenation efficiency and effectiveness, like no other

ORION is a laminar flow tunnel for depyrogenation and sterilisation of glass containers like vials, ampoules and cartridges. The tunnel is suitable for integration in continuous aseptic production lines which require a process by dry heat. It is also suitable for baking the silicone coating of glass containers.

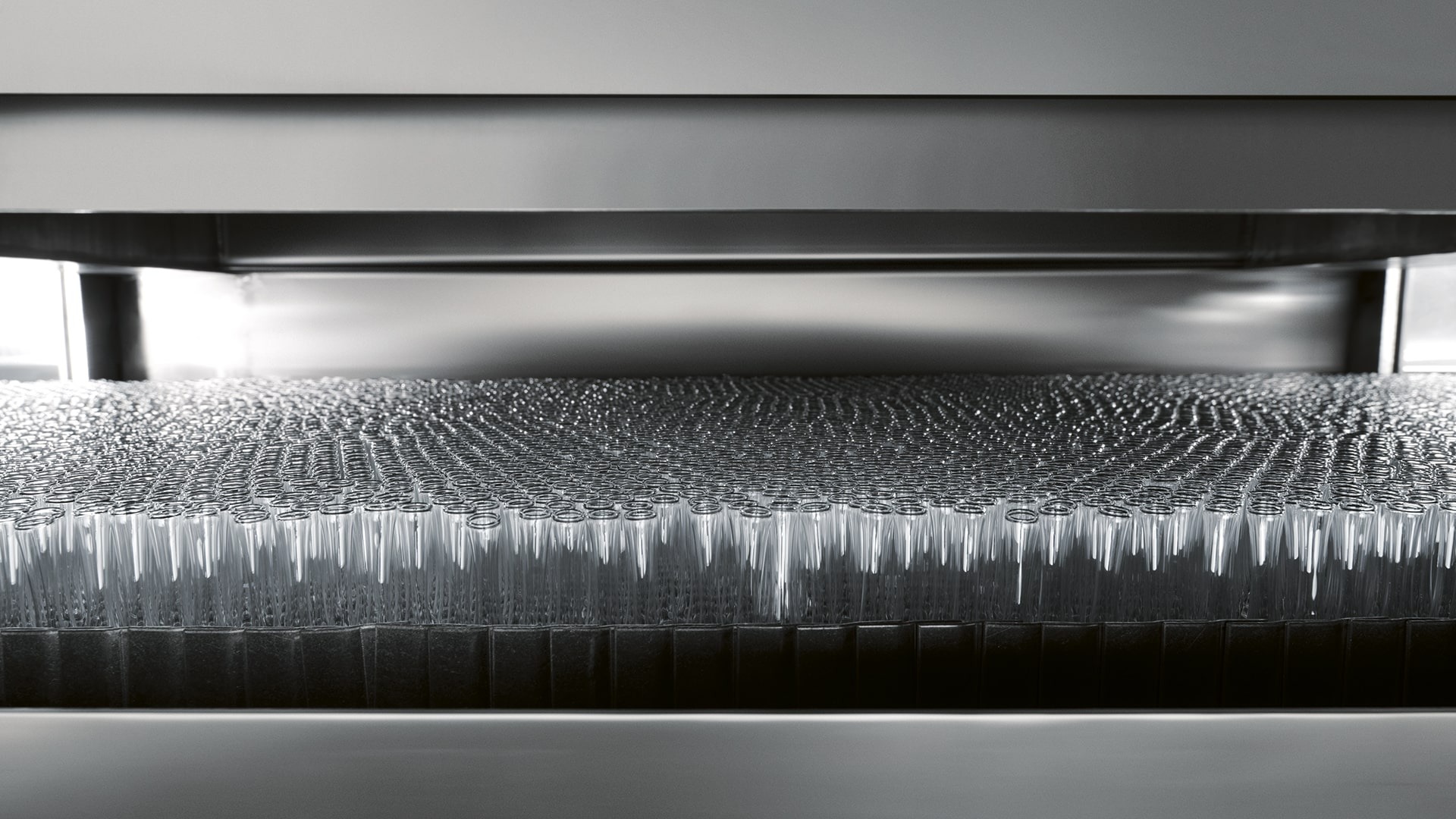

The machine is designed with three laminar flow zones: infeed, heating and cooling. Each zone complies with the ISO 14644-1 and 14644-2 regulation and is separated by means of motorized gates which are opened and automatically closed according to the production flow.

Production plant

IMA Life

Machine highlights

  1. Easy access

    Hinged doors for easy access inside the machine for calibration and testing.

  2. Easy maintenance

    Side access for easy maintenance.

  3. Robust architecture

    Made entirely in AISI 304 stainless steel with self-supporting structure.

  4. Pharma grade 316L mesh conveyor

    Wire mesh conveyor belt in AISI 316L stainless steel.

  5. Process data recording

    Process recorder for logging the main working parameters.

  6. Separated control cabinet

    Separated control cabinet made in AISI 304 stainless steel, protection IP54-rated IP54 protection.

Machine details

Machine video trailer

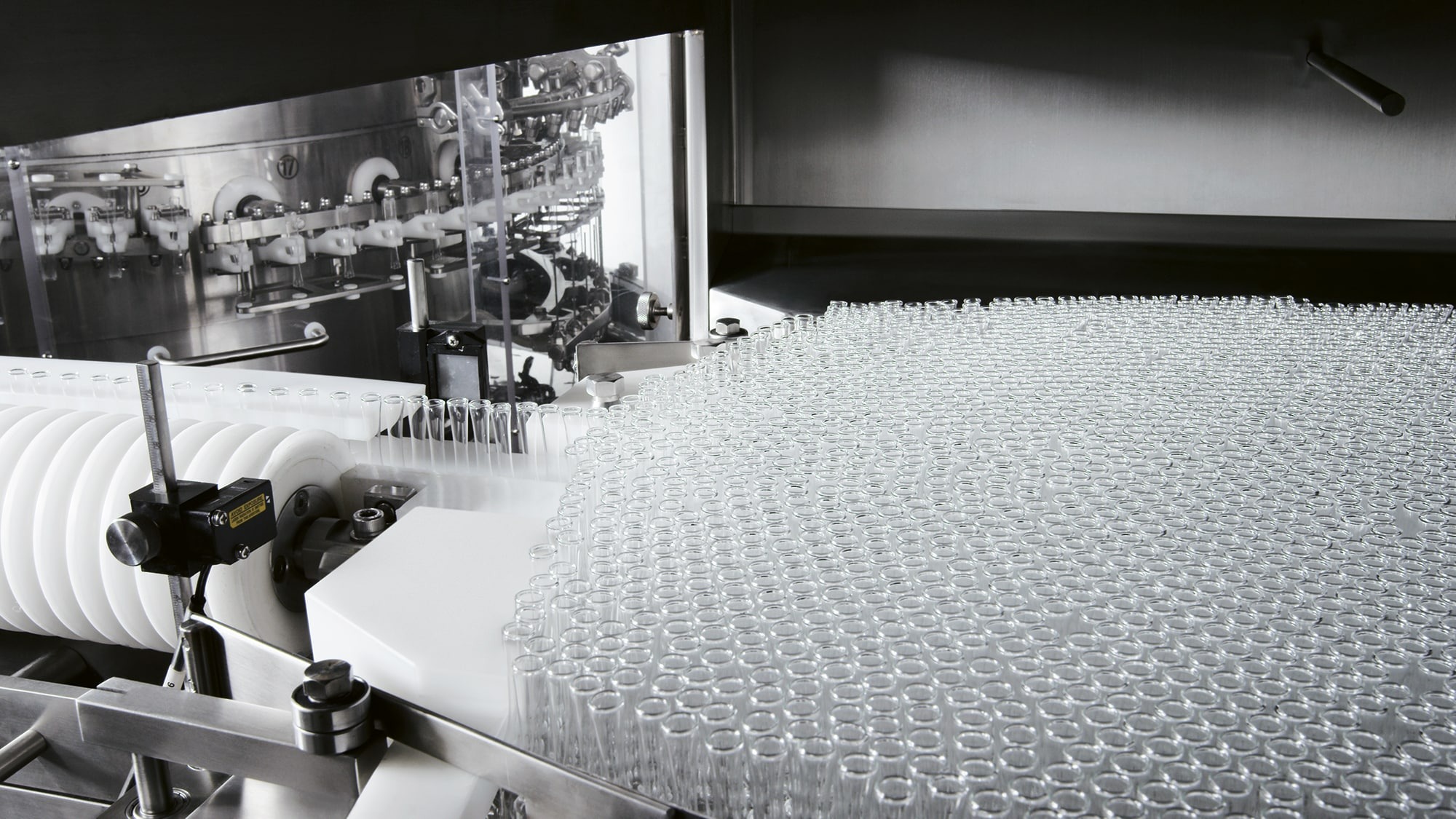

Connection between the washing machine and the depyrogenation tunnel

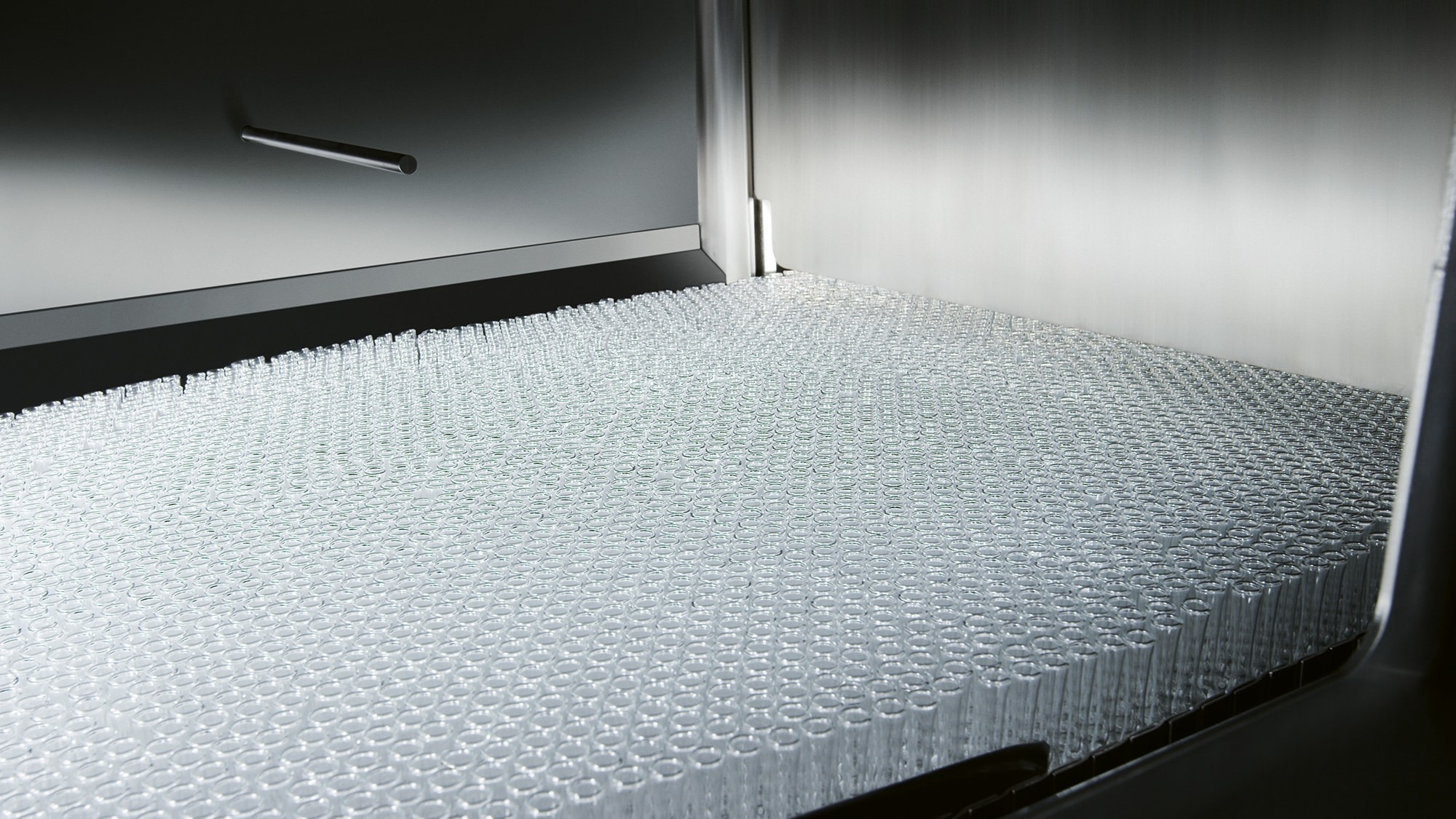

Inlet zone

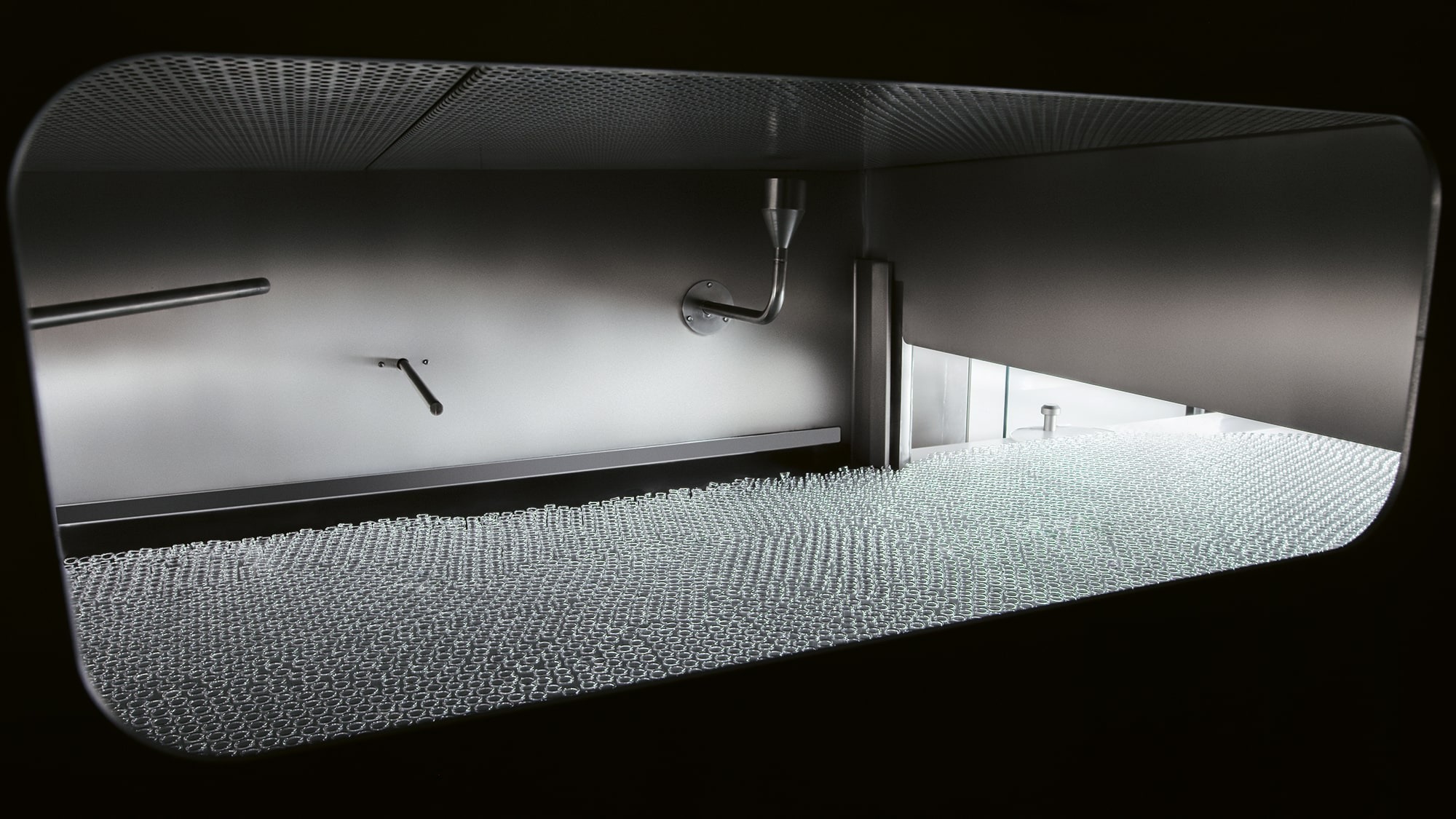

Cooling zone

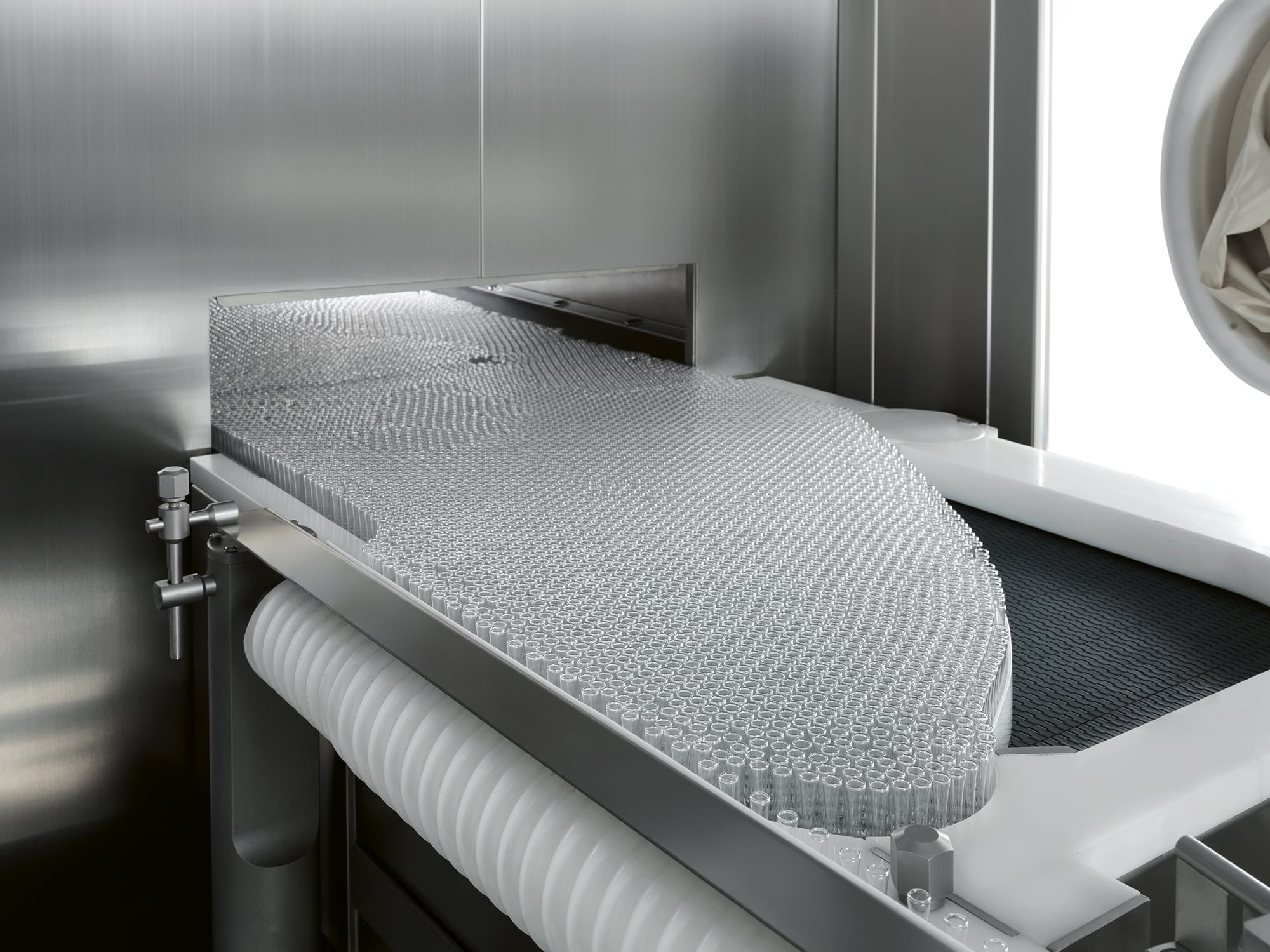

Outfeed zone

CLARIS 8 washing machine in-line with ORION 550 depyrogenation tunnel

Technical information

ORION TECHNICAL DATA
 ORION 550ORION 870ORION 1250
A (mm)2,6902,6903,000
B (mm)2,8003,6004,400
C (mm)1,8502,1802,520
Standard voltage400 V – 50 Hz
Installed power (kW)406070
