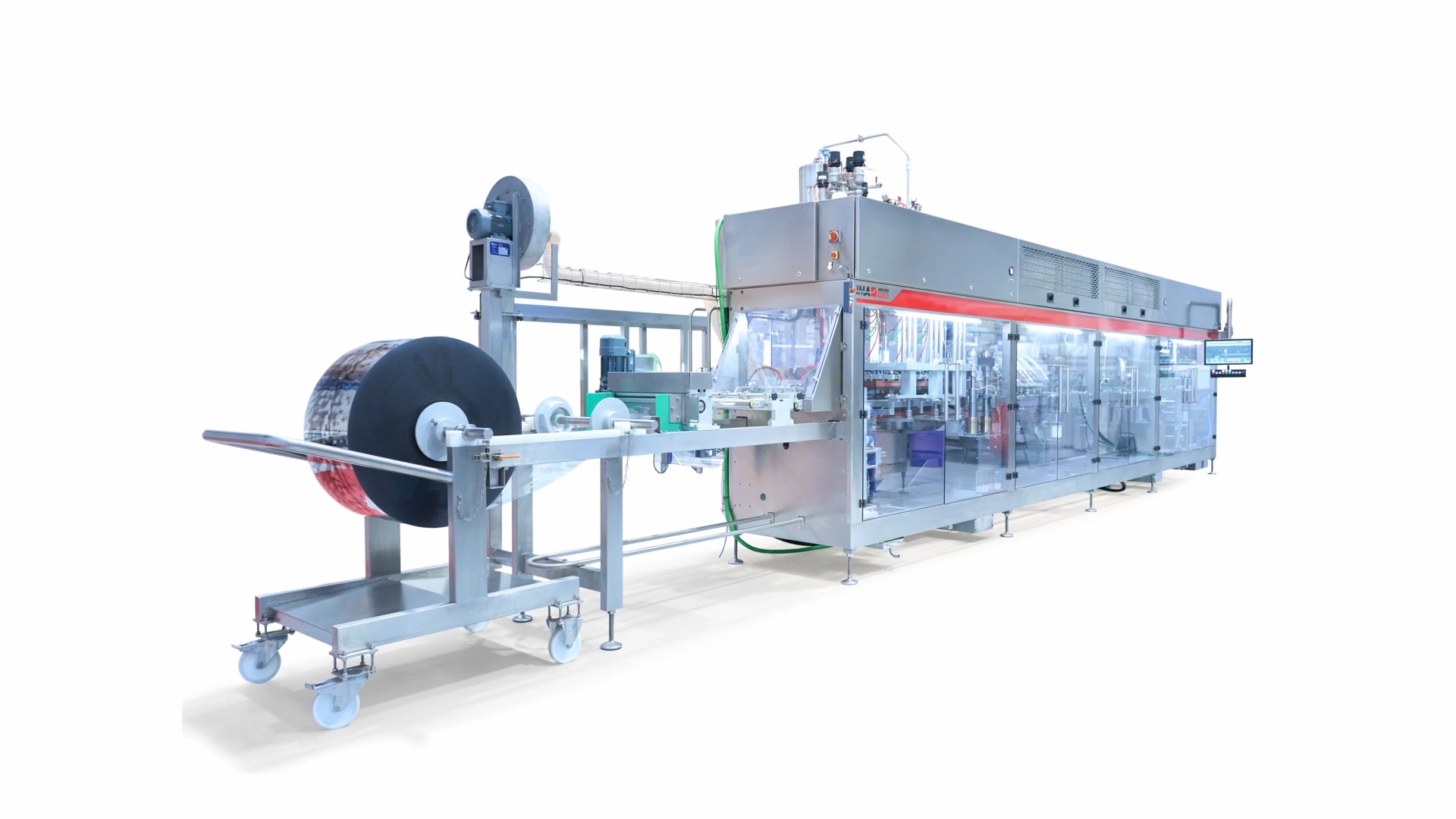

MTA-C Series Cup Forming, Filling and Sealing
Machine overview
Versatile cup forming, filling and sealing solution.
Cup forming, filling and sealing machines with a high degree of standardisation for low to medium capacity. Equipped for a large range of cup designs in all packaging material types. Nominal output ranges up to 28,800 cups/h according to cup type and size. Available in clean, and ultra-clean execution.
The machines of the MTA-C Series are mainly used in the dairy industry.
Production plant
IMA Intecma
Machine highlights
-
Capacity
Capacity range from 21,600 to 28,800 cups/h
-
ZERO Technology®
Latest generation of patented ZERO Technology® tools applied to forming, labelling, filling and cutting stations in this machine.
-
Sustainability
The machines are ready for the use of sustainable materials like PET, PLA or PP.
-
Flexibility

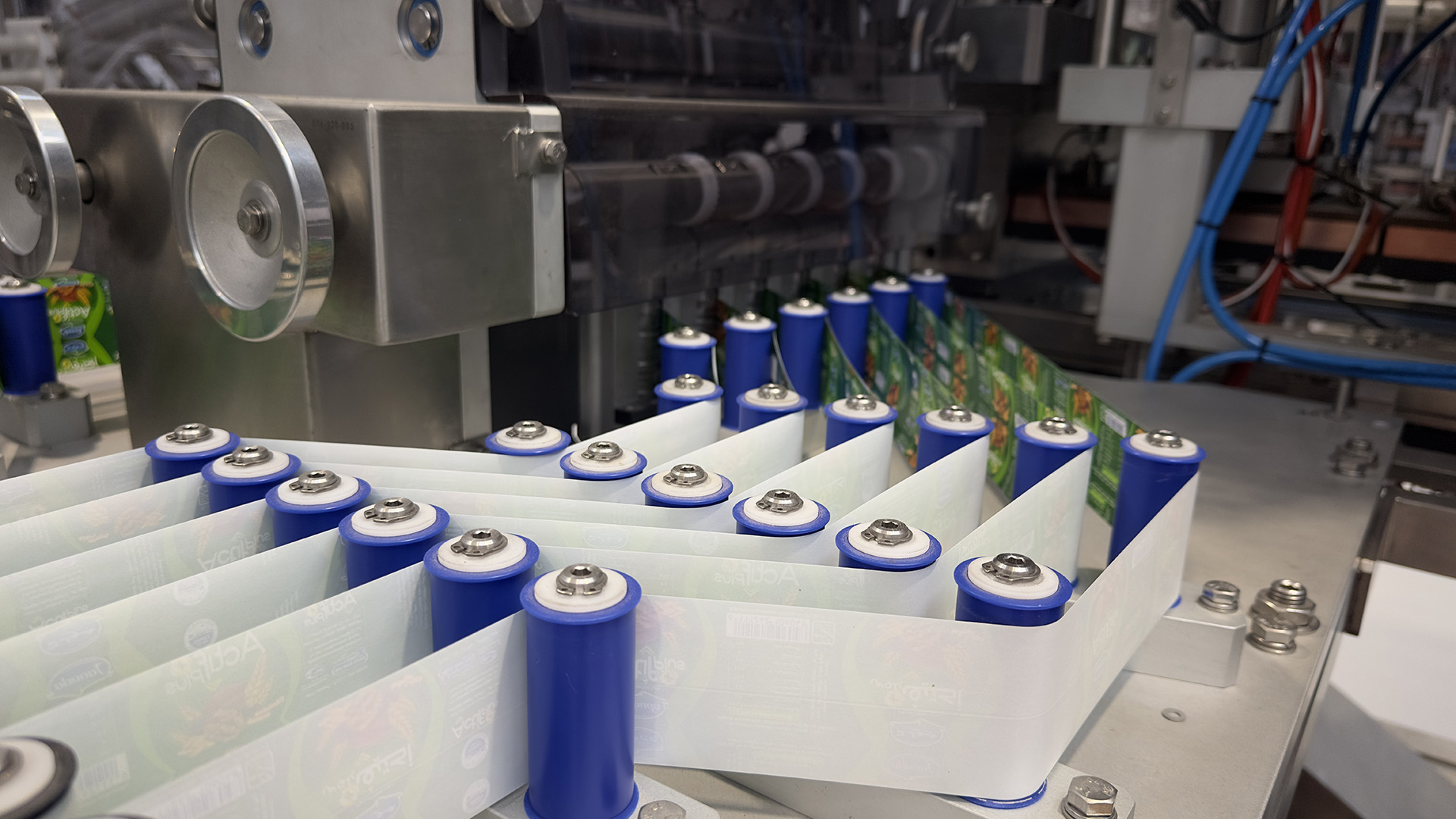

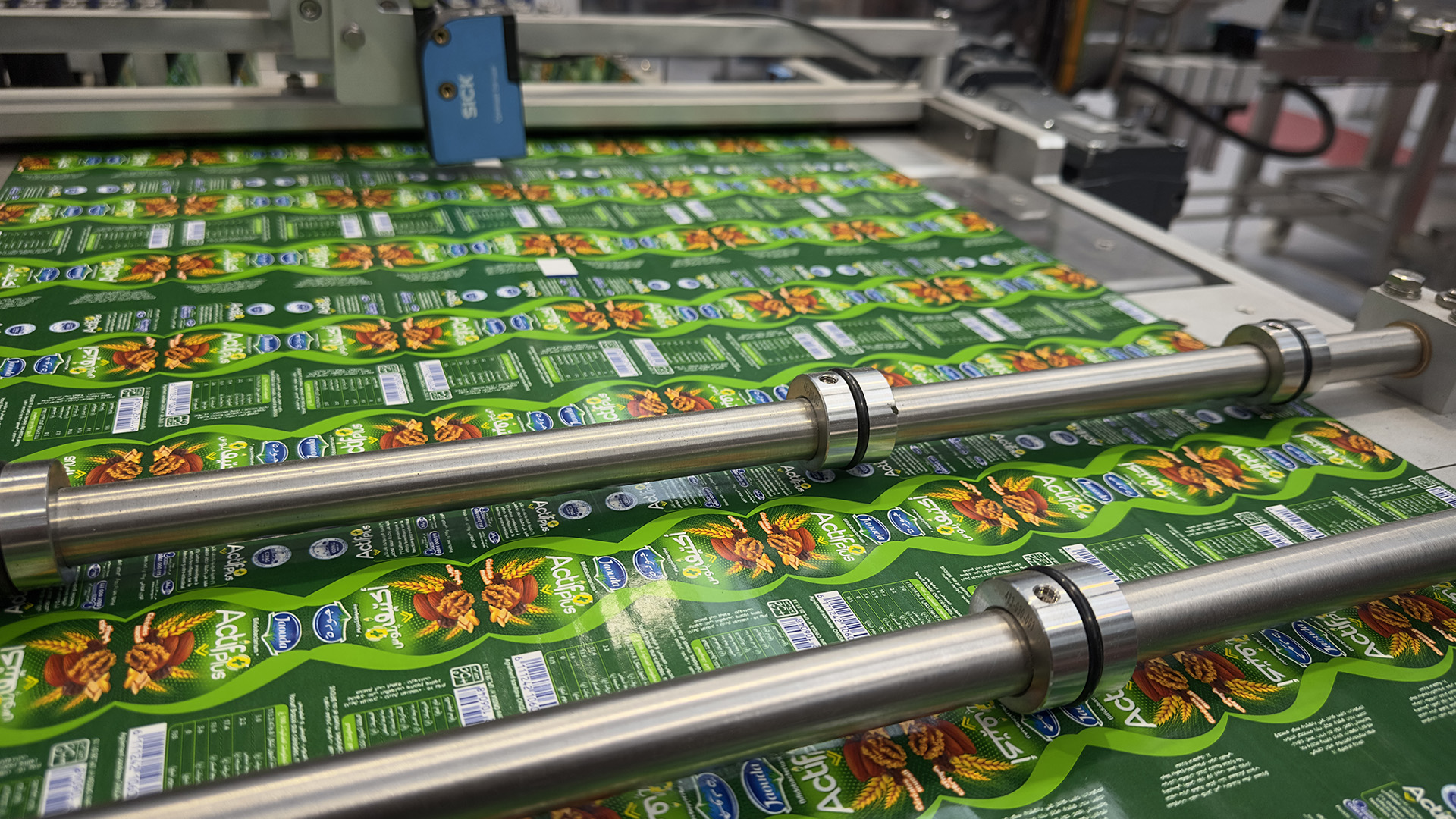

Flexibility to use different label heights and different cup shapes.
-
Short installation period
Installation within 2 weeks and start-up time.
-
Fast changeover
Quick changeover times.
Machine details

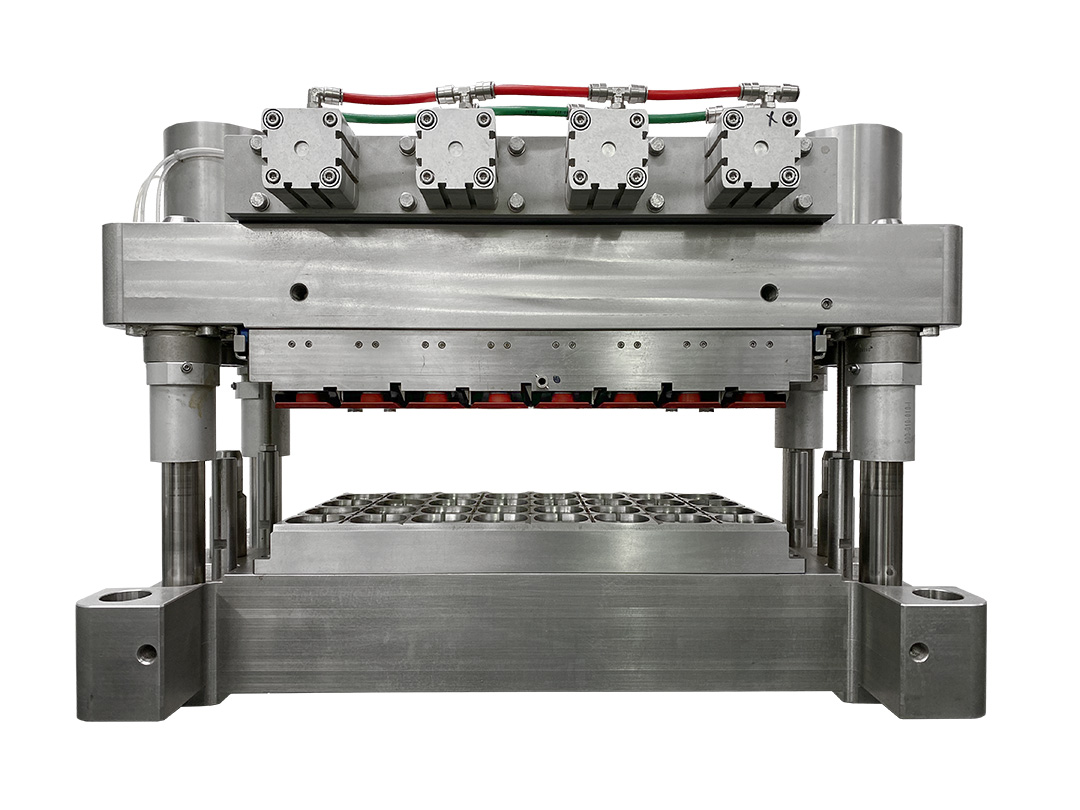

ZERO Technology® tools
With the patented ZERO Technology® tools which can be used in all FFS machines, IMA Intecma offers the perfect solution for the use of mono-materials such as PET, PP and PLA.
Functionality and sustainability are on the same level in packaging development. This has to be taken into consideration when developing alternative packaging concepts with sustainable materials such as mono-materials as well as materials from renewable resources. IMA Intecma offers solutions to save material:
▪ Better material characteristics
▪ Thinner wall thickness for cups
▪ Thinner foil thickness
▪ Optimised thermoforming
▪ Optimised processing
In order to offer sustainable packaging solutions, we work from the beginning of a project in close cooperation with customers and packaging material suppliers to develop solutions for saving packaging material and at the same time take into consideration the environment, the market, the customer‘s product and the overall packaging concept.
Together with our customers and material suppliers we test new packaging materials made from renewable or recyclable materials to ensure that these can be processed on our packaging machines and that the greatest possible machine output is guaranteed.
Technical information
| TECHNICAL DATA MTA-C Series | |||
| Material width | max. 578 mm | Draw-off length | max. 250 mm |
| Cup size range | 20-500 ml | Forming depth | max. 100 mm |
| TYPICAL MATERIALS | |||
| PET, PP, PP Multilayer, PLA, PS, PS Multilayer, PVC | |||
| TYPICAL OUTPUT RANGE AND APPLICATION EXAMPLES | |||
| Range | 28,800 cups/h | ||
| STANDARD EQUIPMENT | |||
| Control System | Controller and servomotors: Siemens PLC | ||
| Reel diameters | Plastic reel Ø 1.200 mm, Lid reel Ø 300 mm, Label reel Ø 600 mm | ||
| Punching principles | Single cup with grid, single cup low waste, multi-format with different punching configurations | ||
| Hygiene class | Clean* | ||
| OPTIONS | |||
| Bottom web | 2nd reel for flying reel change | ||
| Lid material | 2nd reel and/or 2nd reel with magazine for flying reel change | ||

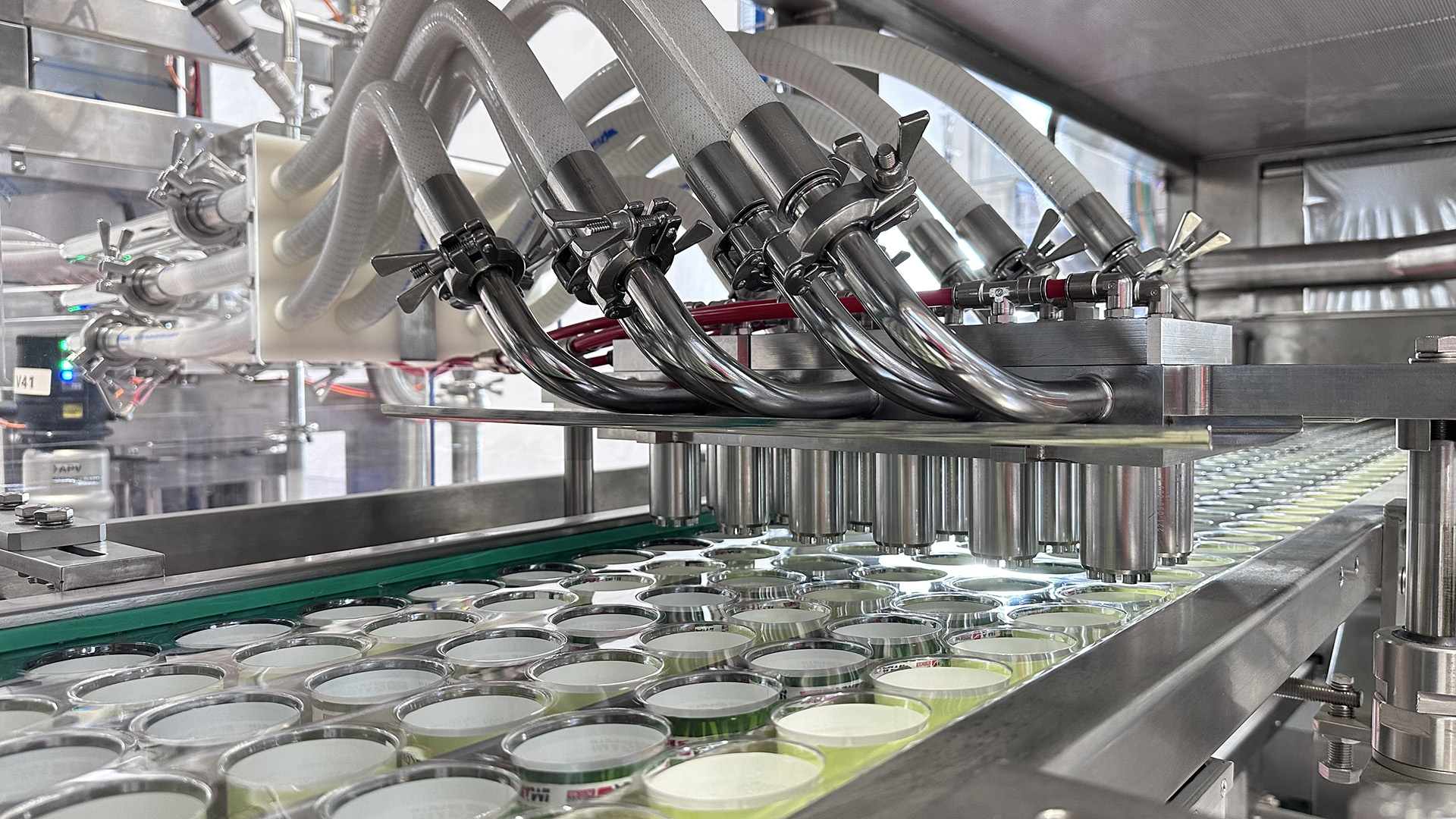

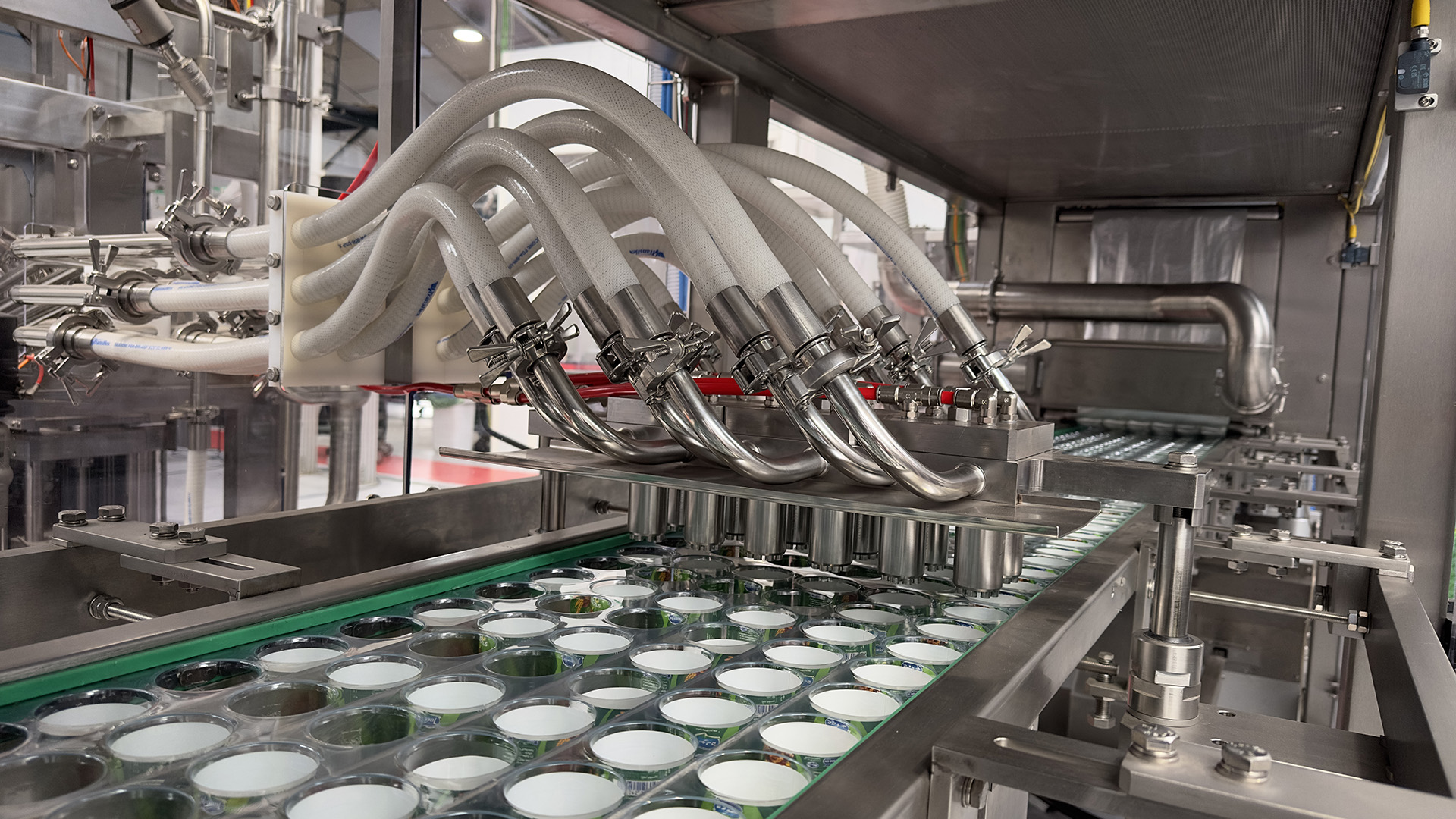

| Dosing system | 2 fillers (pre-/post fill) | ||
| Hygiene class | Ultra-clean (VDMA III+IV) | ||
| Cup discharge and secondary packaging | Walking beam, pick & place systems or other end-of-line equipment | ||
* Depending on customer specification
