The IMA Ever‑Evolving System invites you into a new era of manufacturing.
Bundle and wrap for top performance production lines.
Able to bundle and wrap products at speeds of up to 100 bundles/min, this solution is ideal as part of a high-performance production line.

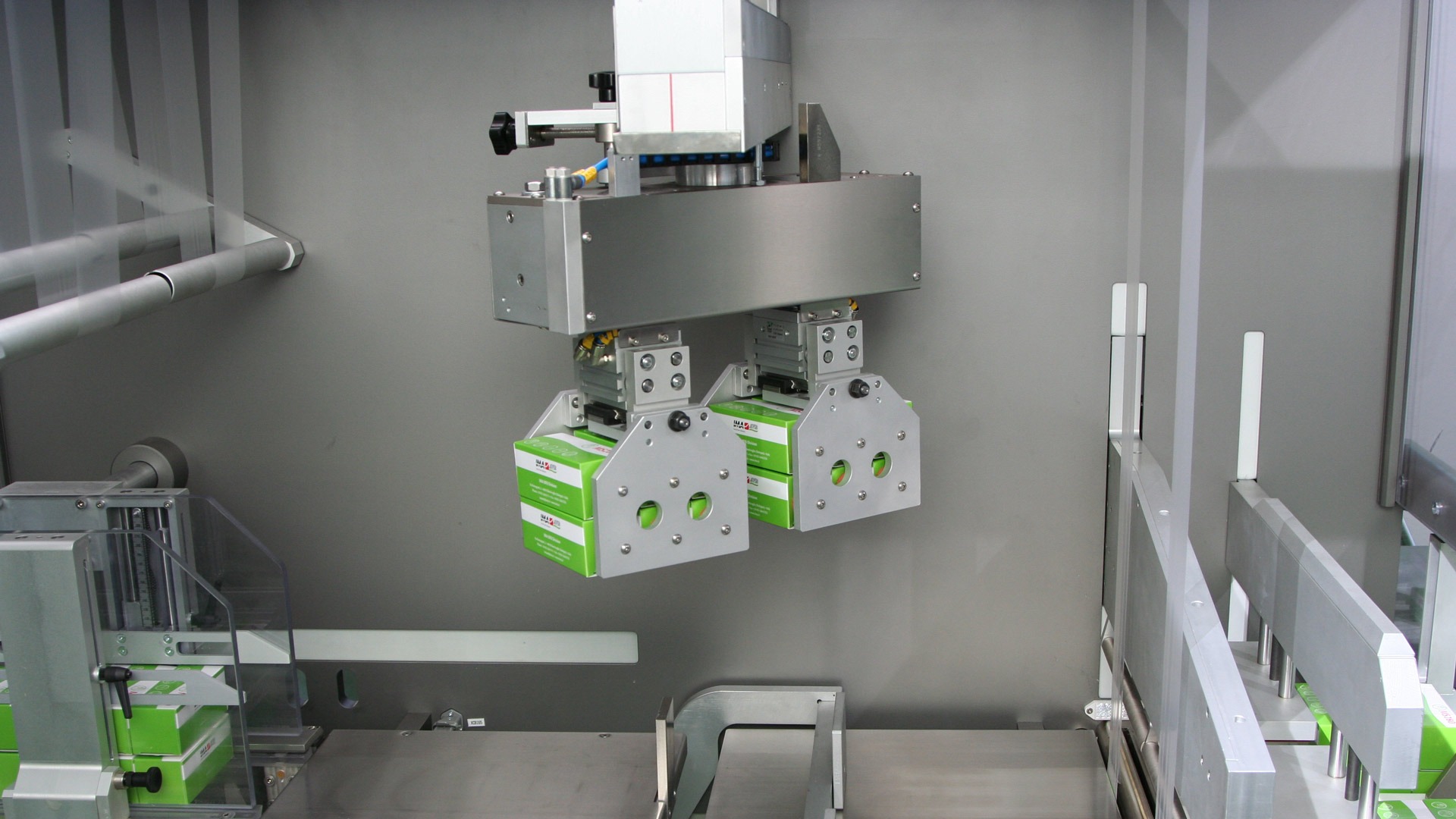

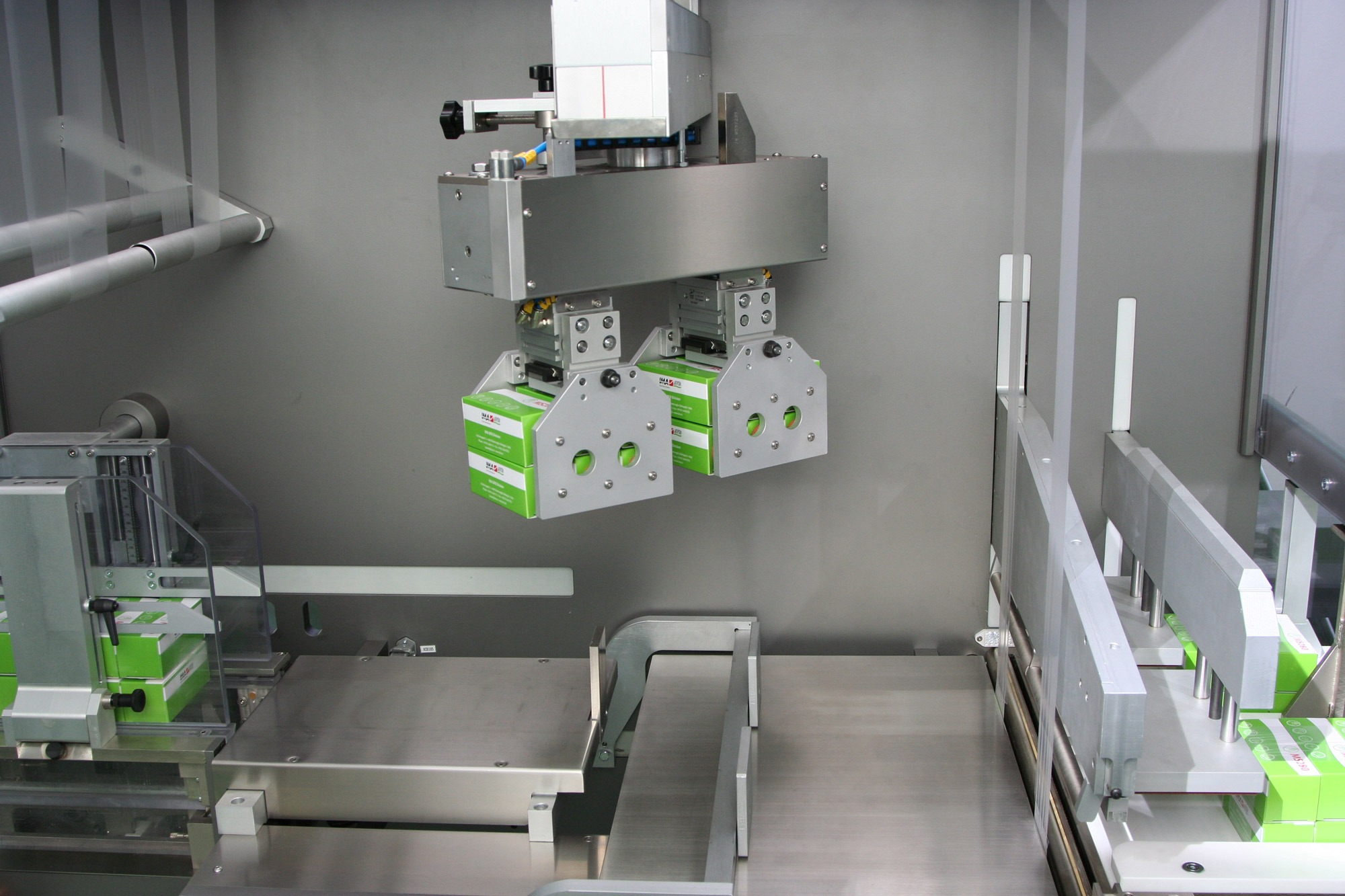

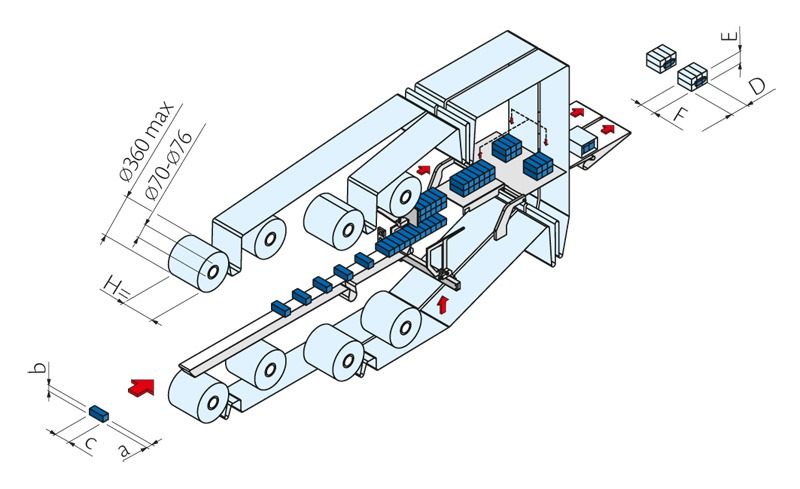

Equipped with a pick and place unit which stacks cartons in several layers, the MS280 also collects bottles in rows before shrink wrapping in the integrated shrink tunnel.

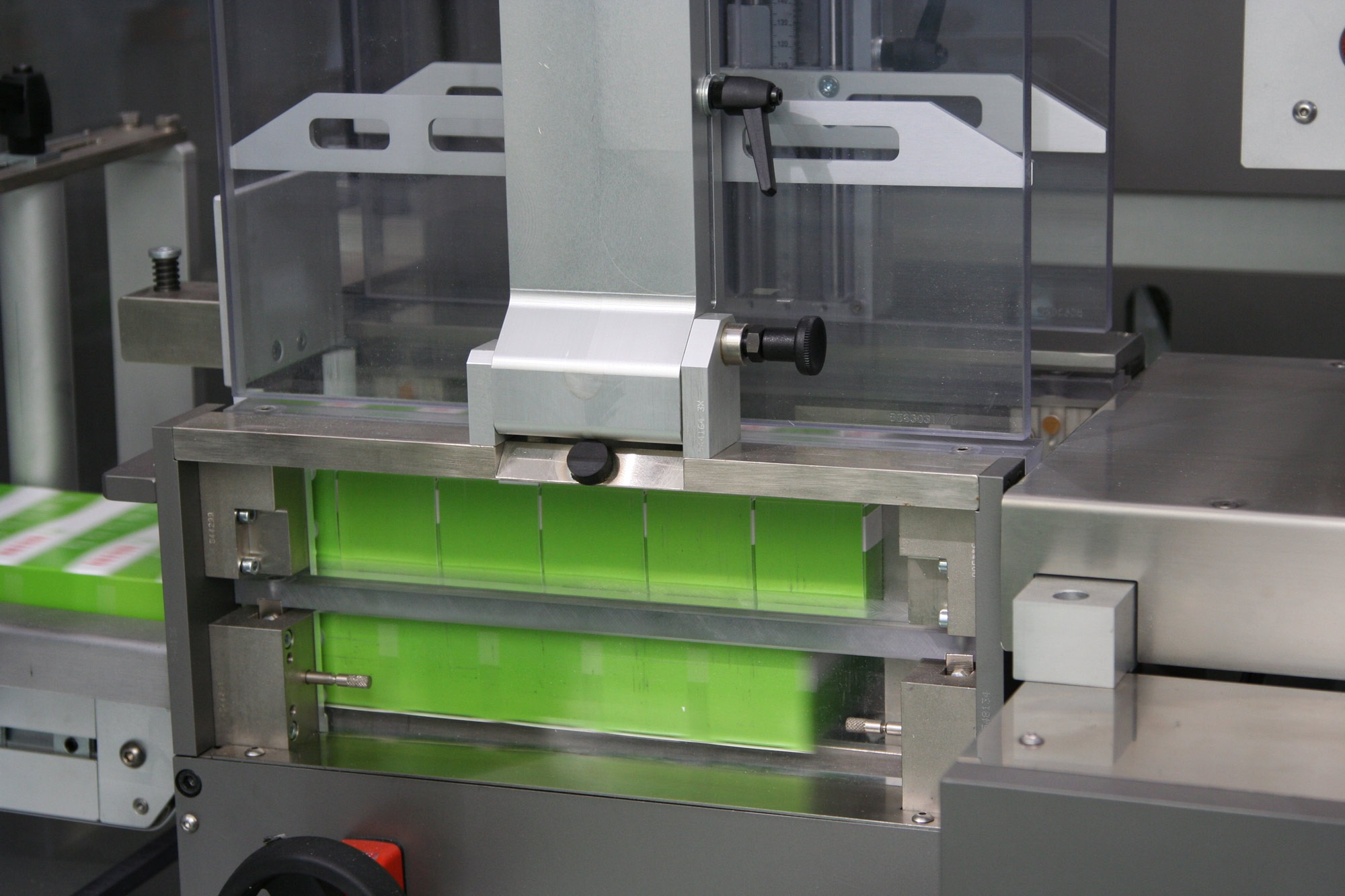

Fitted with a new electronic sealing system, tight film wrapping is ensured for improved product protection.
Should shrink wrapping be required, a shrink tunnel can be installed as an integral part of the machine.
Production plant
IMA BFB
Balcony-type design to enable maximum accessibility to machine parts for easy cleaning and maintenance.
All drives located at the back of machine, thereby separating them from the product flow area.
Tool-free size changeover in just 10 minutes with digital indicators to assist with adjustments.
Ergonomic design with shaft featuring quick expansion lock device for rapid film reel change.
| TECHNICAL DATA MS280 SERIES | |||||||
| Carton size range | A | B | C | D | E | F | H |
| Min. | 20 | 15 | 60 | 60 | 30 | 60 | 80 |
| Max. | 180 | 100 | 220 | 180 | 210 | 220 | 280 |
| Bottle size range | A | B | C | D | E | F | H |
| Min. | 30 | 100 | 30 | 30 | 100 | 80 | 80 |
| Max. | 110 | 210 | 110 | 220 | 210 | 190 | 280 |
| Production | 100 bundles/min. | ||||||
