MODULA Series Labelling

Machine overview

Make your process modular, make MODULA your motto

The assembly and labelling of pre-filled glass syringes is a delicate process that must preserve the syringe and the drug it contains.

Recently developed by IMA Life, MODULA is the converging element between aseptic filling and secondary packaging.

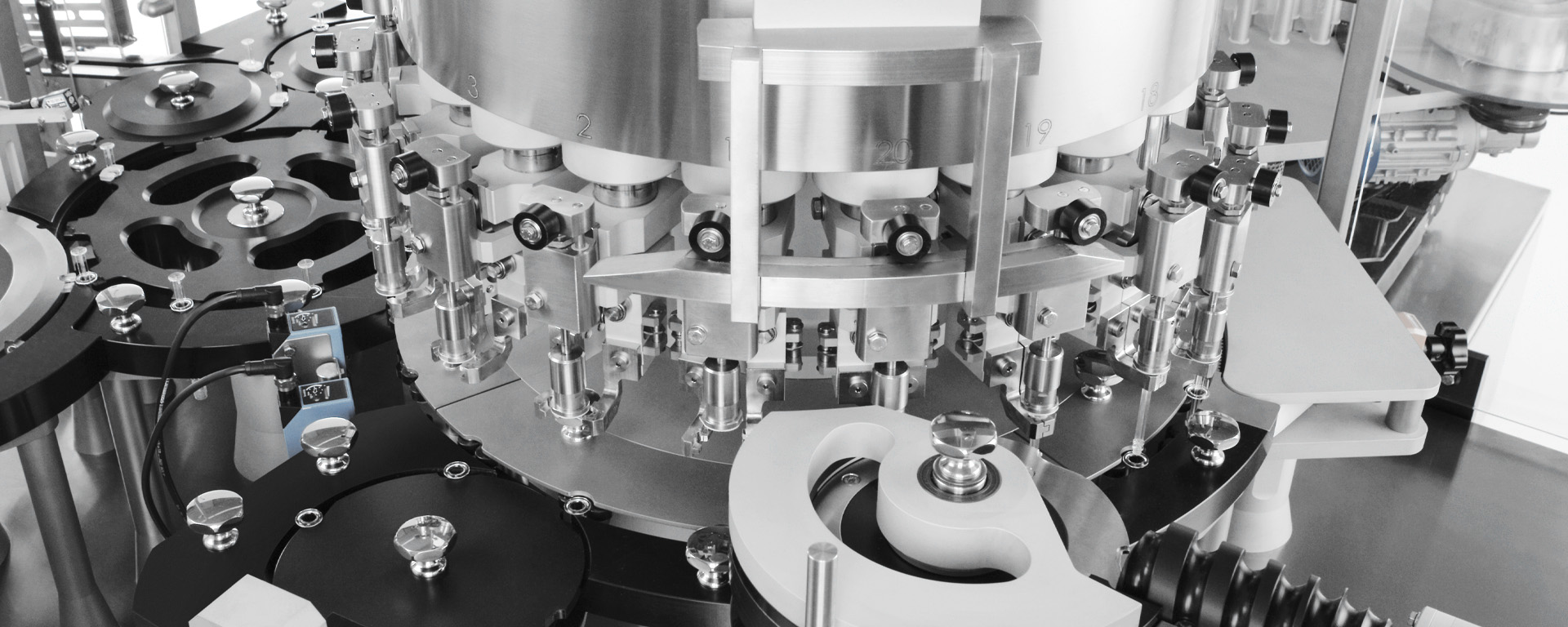

MODULA is an assembly machine for pre-filled glass syringes capable of performing several operations: plunger rod insertion, labelling, backstop assembly.

Available in four models and designed with a continuous motion principle, it covers low-medium output requirements and provides a high level of automation.

Production plant

IMA Life Pharmasiena

Machine highlights

  1. Zero waste

    A control device detects syringe absence, avoiding application of plunger rod, label or backstop.

  2. Easy access

    Excellent visibility of the whole process and great accessibility to the working area for immediate maintenance.

  3. Space-efficient

    Compact footprint and essential design.

  4. Changeover

    Quick size changeover.

  5. User-friendly HMI

    User-friendly HMI with Siemens touch screen.

Easy integration in packaging lines

Modula can be integrated with upstream denester or inspection machine and with downstream equipment for secondary packaging up to end-of-line. Precision, safety, high production performance are some of the advantages IMA guarantees as one-stop supplier.

Machine details

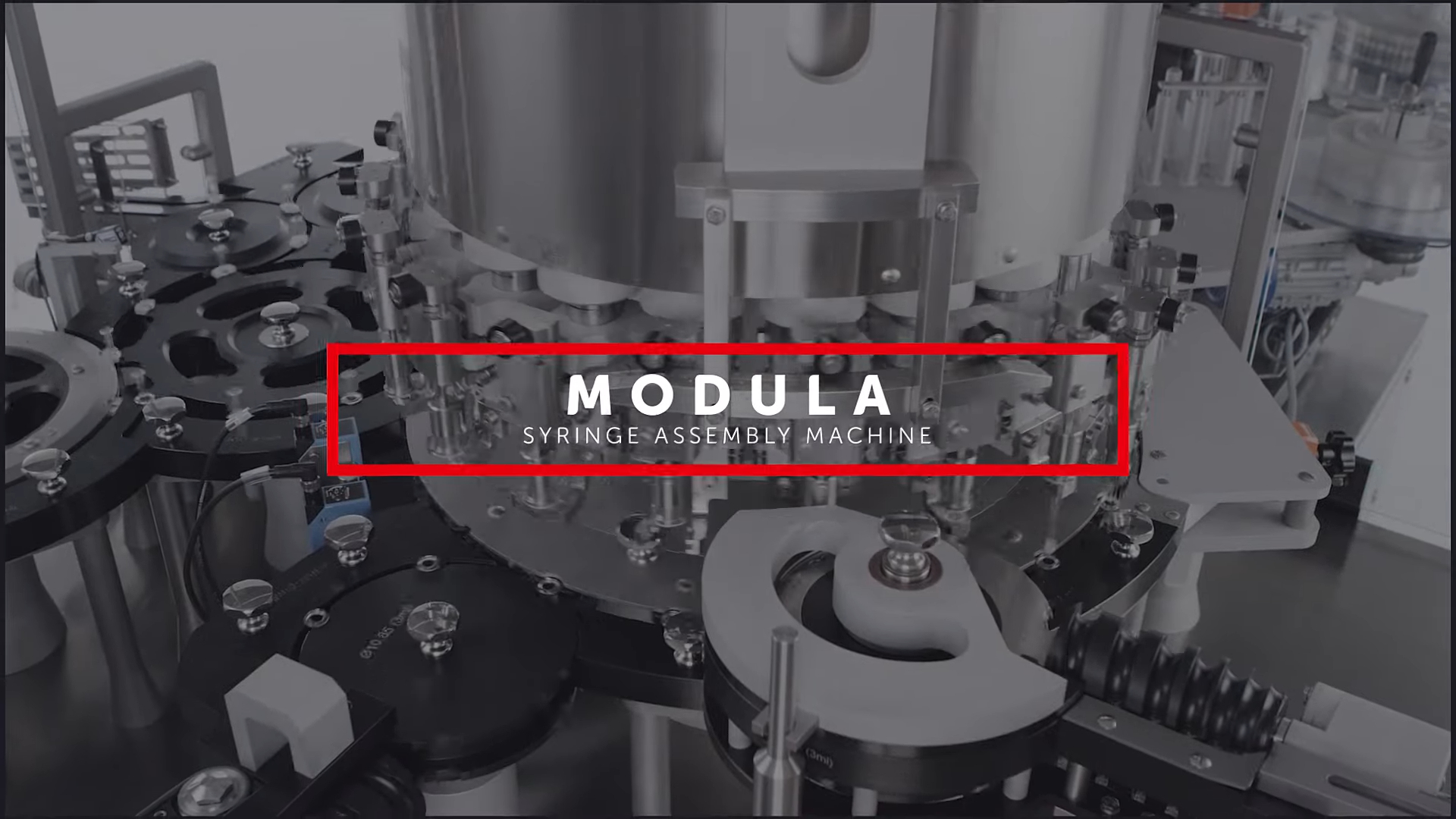

Machine video trailer

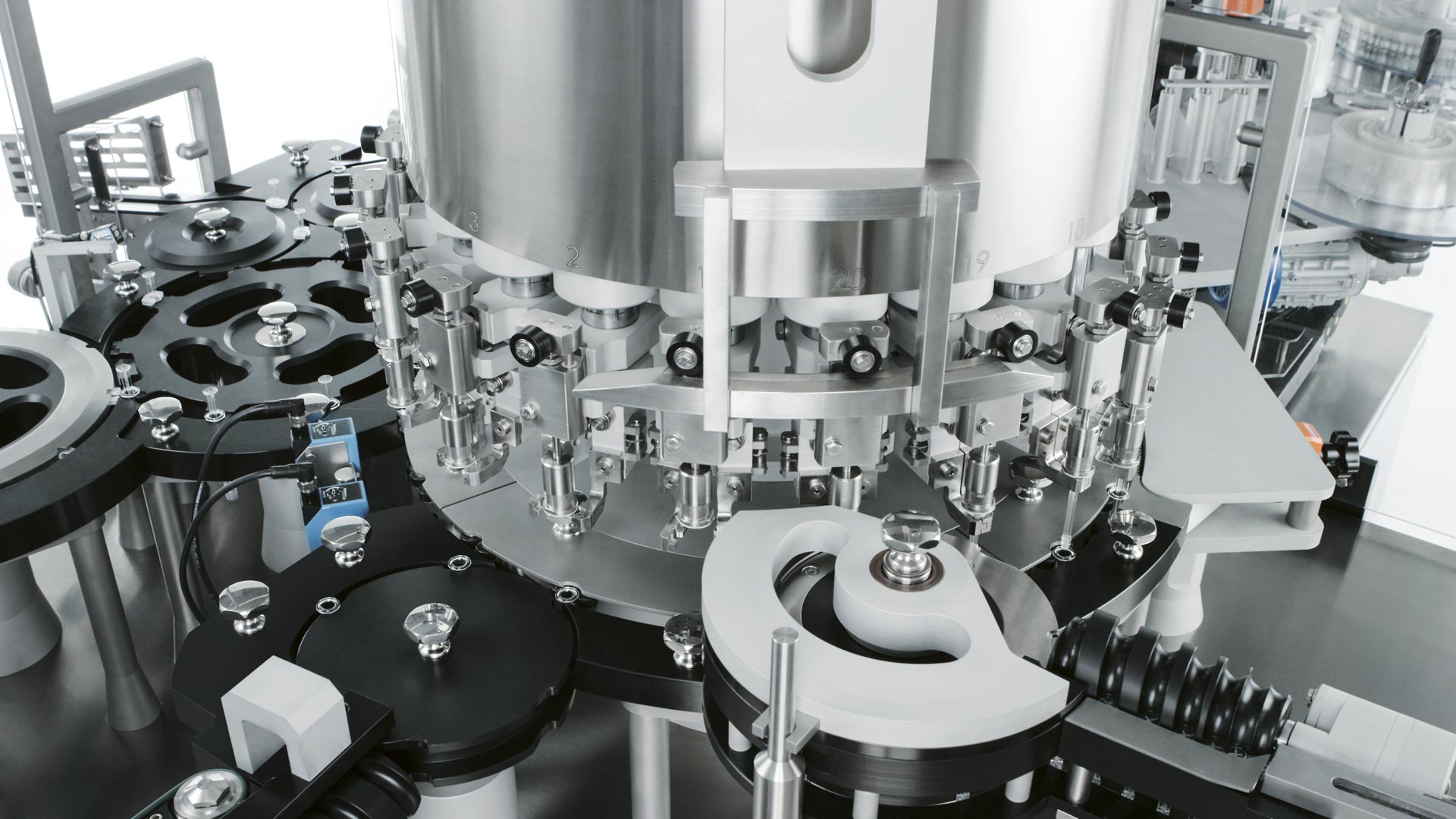

Work area

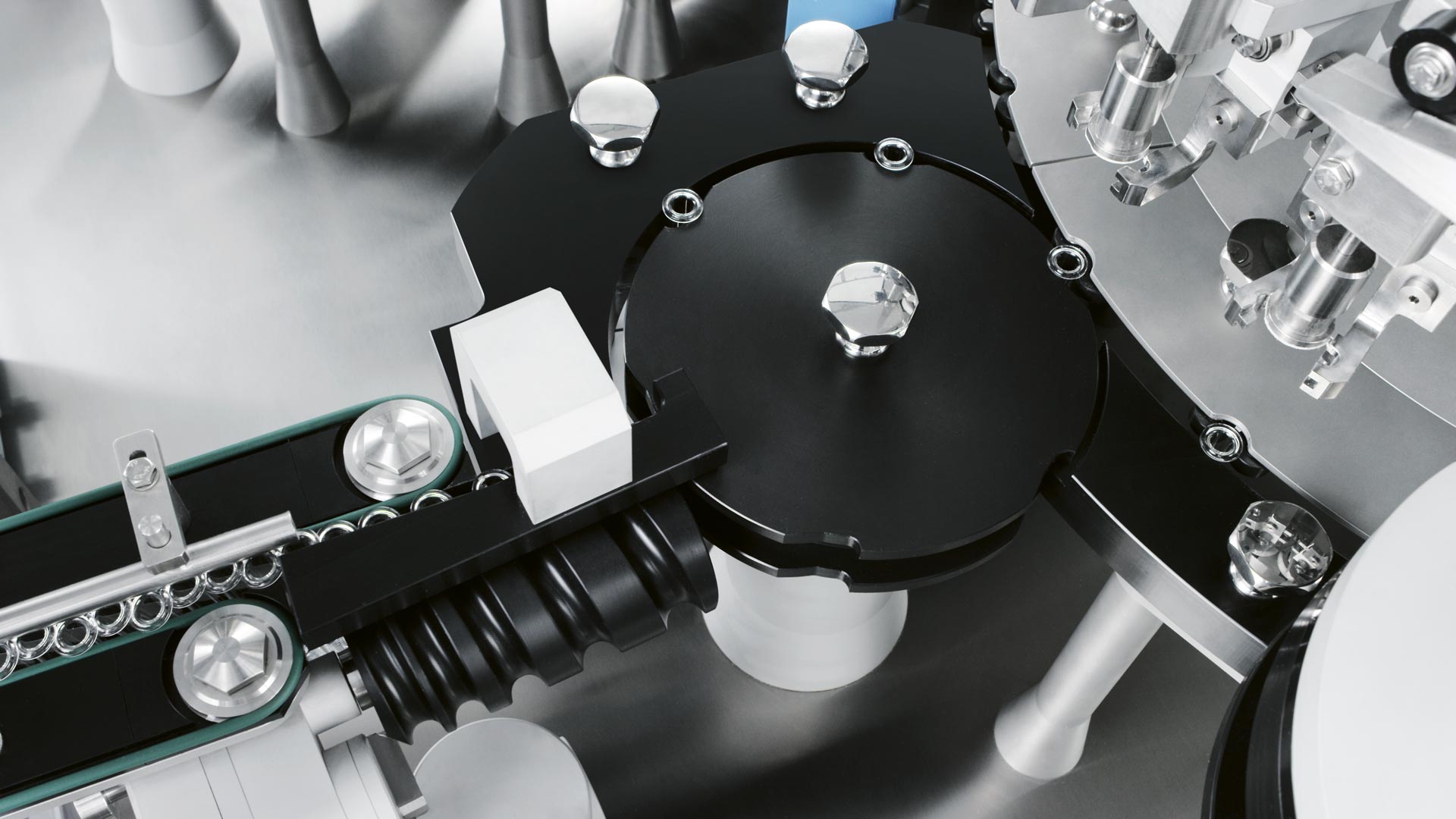

Syringe feeding

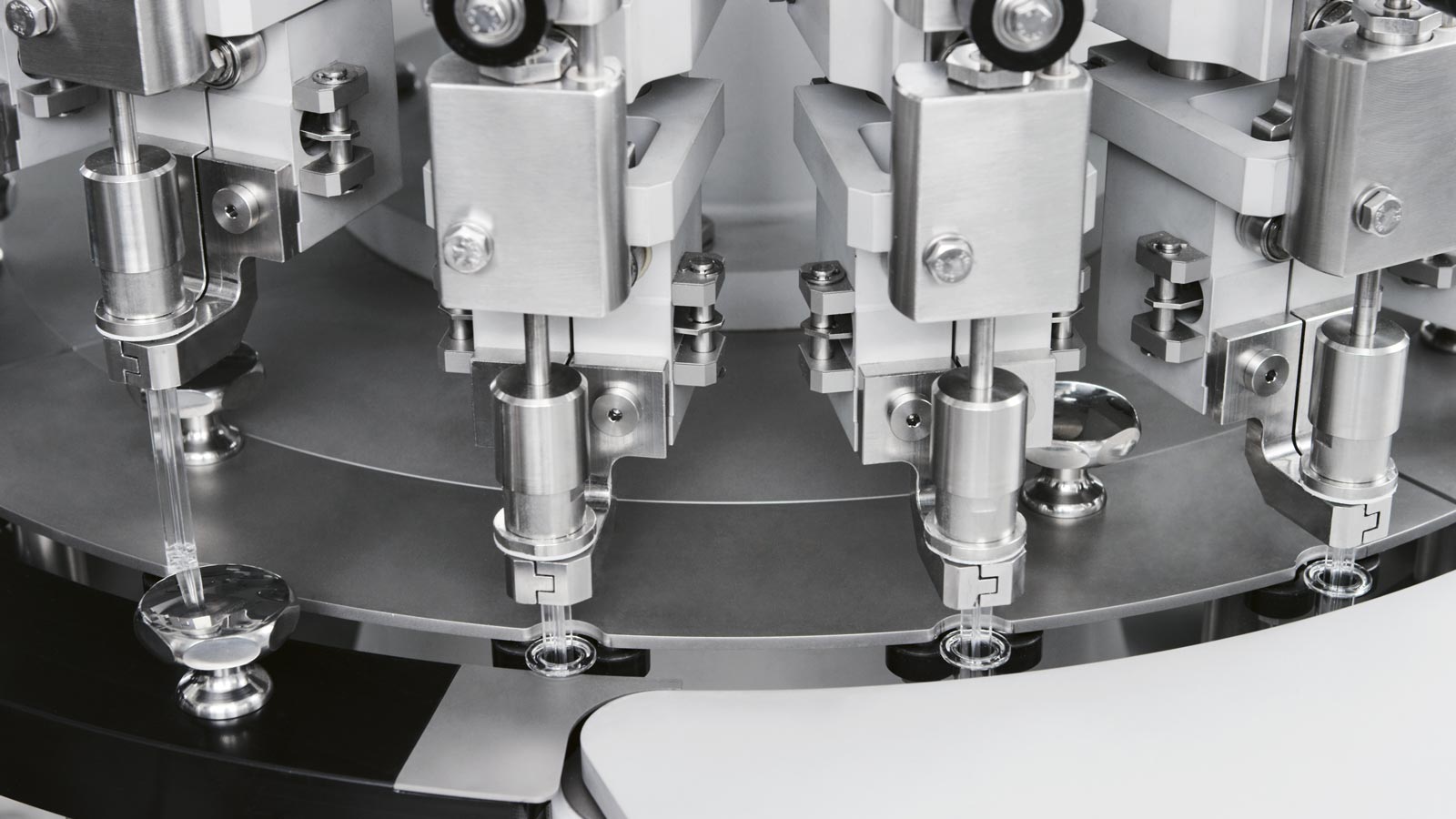

Plunger rod insertion and screwing

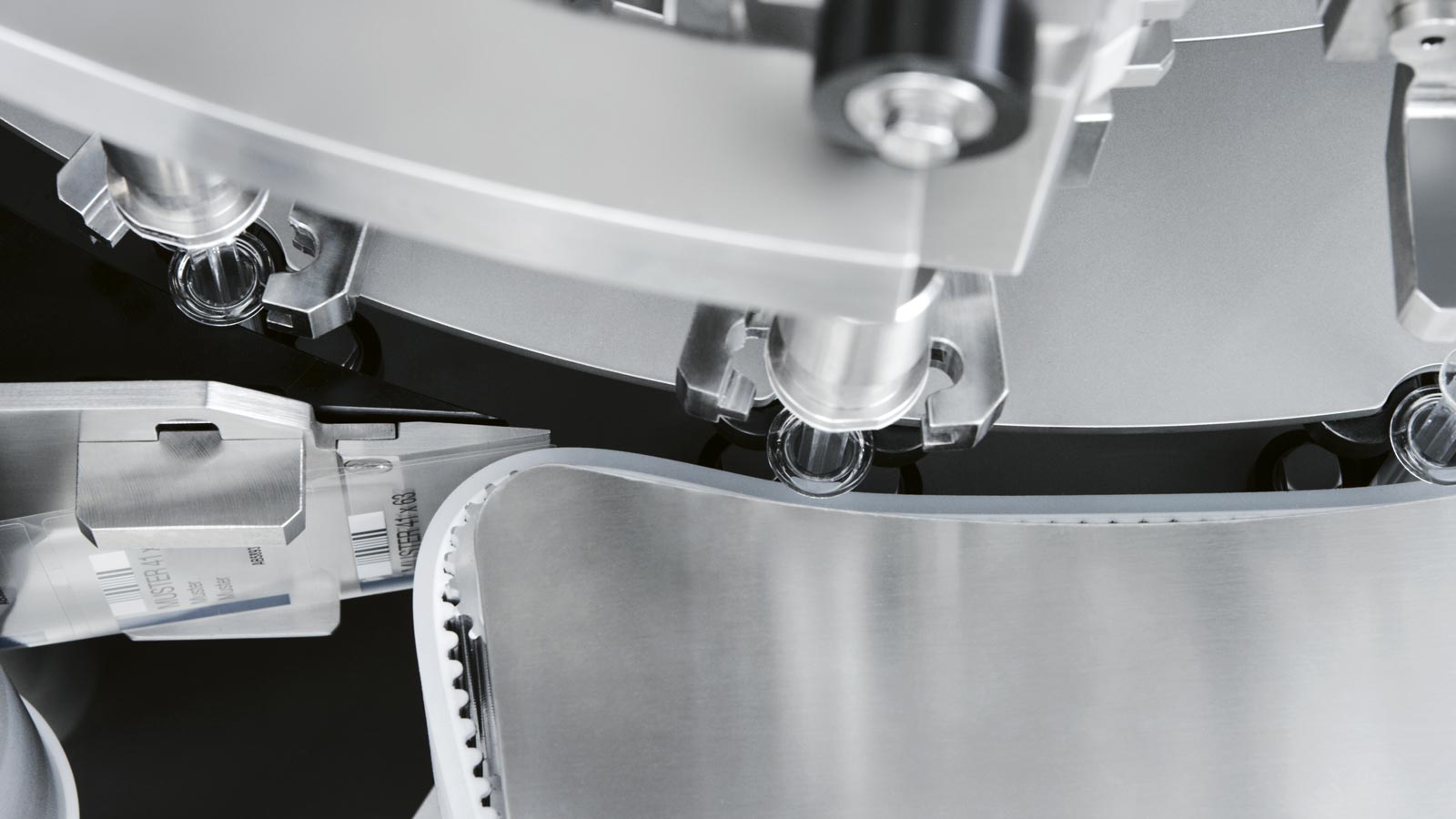

Label application and folding

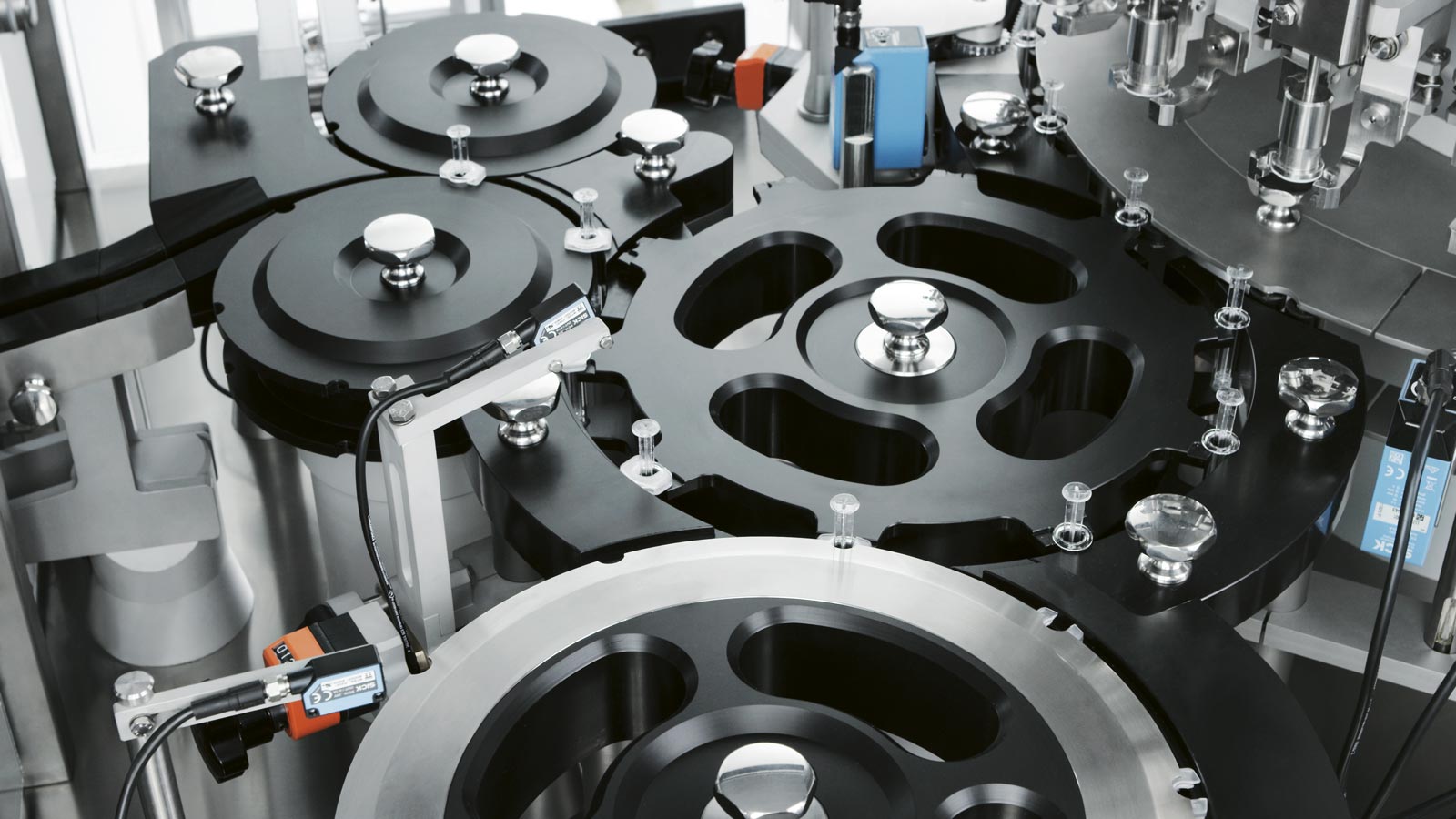

Backstop assembly and syringe exit

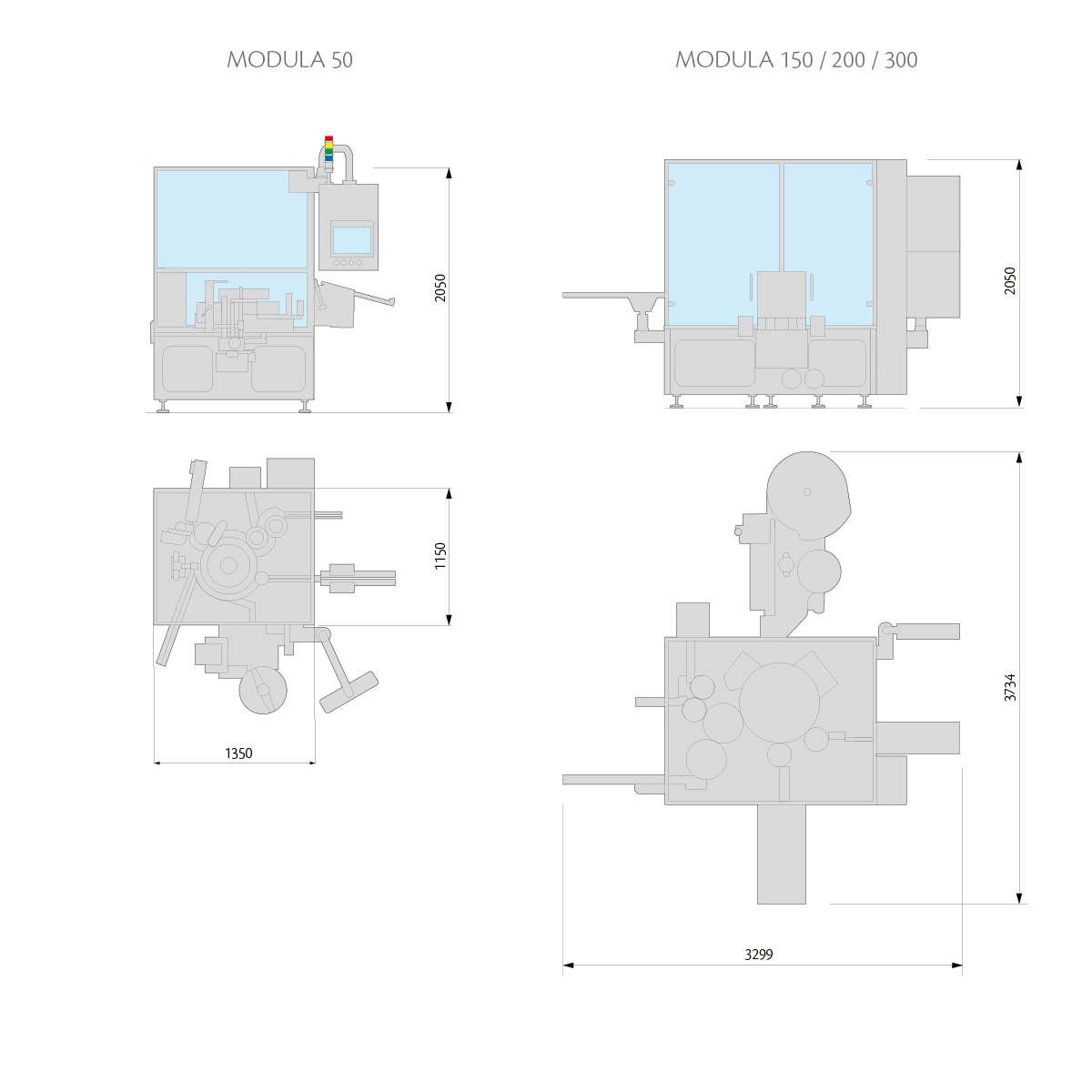

Technical information

MODULA TECHNICAL DATA
 MODULA 50MODULA 150MODULA 200MODULA 300
Maximum output (syringes/minute)50150200300
Syringe size (ml)0.5 – 20
Installed power (kW)6
Standard voltage400 V – 50 Hz
Weight (kg)6001,800

EYES ON ASSEMBLY

The machine features a central transport carrousel, which delicately guides the syringes through all steps and a positive transport system of the syringes and all the components requiring assembly, so as to ensure high precision in each phase.
Various types of sensors can be installed to check plunger rod presence and height, label application, backstop presence, flying labels on carrousel, rejection, etc.
