MINILINE Counting/Dosing

Machine overview

Mini space, maxi possibilities.

MINILINE is a bottle transport, filling and capping system that can integrate all the functions required to form a complete counting line with a simple and superior footprint: desiccant insertion, tablet or capsule counting, cotton insertion, capping and induction sealing and can be configured for any product or container requirement.

Furthermore, it can switch from one format to another very quickly. Start-up implements the required production speed immediately, thus ensuring high OEE even when running small batches. The GMP design allows for easy cleaning with exceptional visibility without any hidden entrapment points. The compact design fits in a fraction of the space compared to traditional stand-alone equipment.

Production plant

IMA Swiftpack

Machine highlights

  1. Integrated solution

    MINILINE is a bottle transport, filling and capping system that can integrate all the functions required to form a complete tablet and capsule counting line with a simple footprint.

  2. Bottle position control

    Positive control of bottle position throughout the whole path.

  3. Size changeover and cleaning

    With a minimum amount of size parts and easy quick removal, MINILINE allows for a very fast and efficient size changeover and cleaning procedure.

  4. Real-time bottle status

    Single HMI to manage all the integrated functions: real-time bottle status indicator provides an instant visual snapshot of all the bottles within the system.

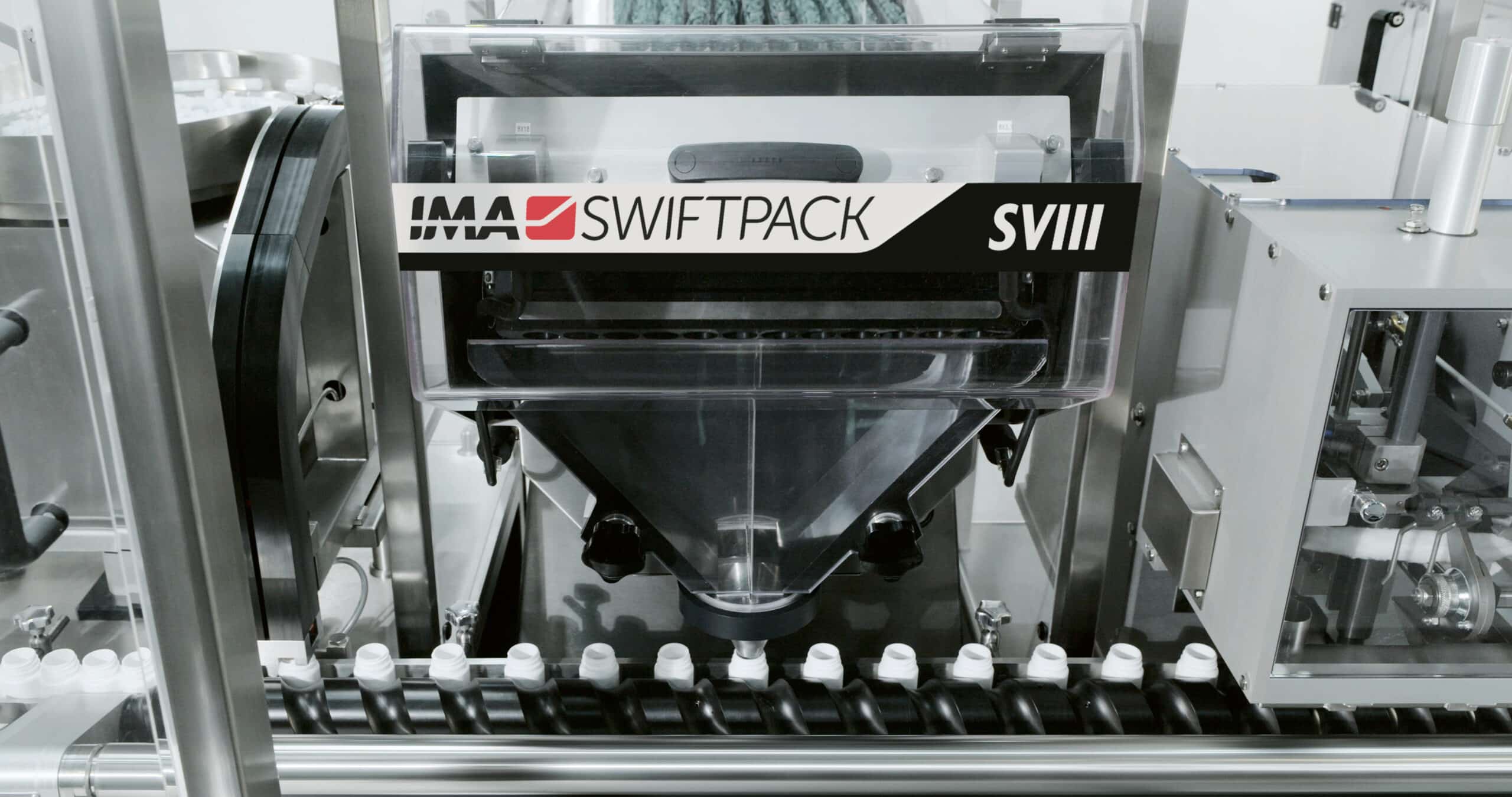

SVIII counter integration

The SVIII counter can be easily integrated into the new MINILINE with maximum guaranteed performance.

Machine details

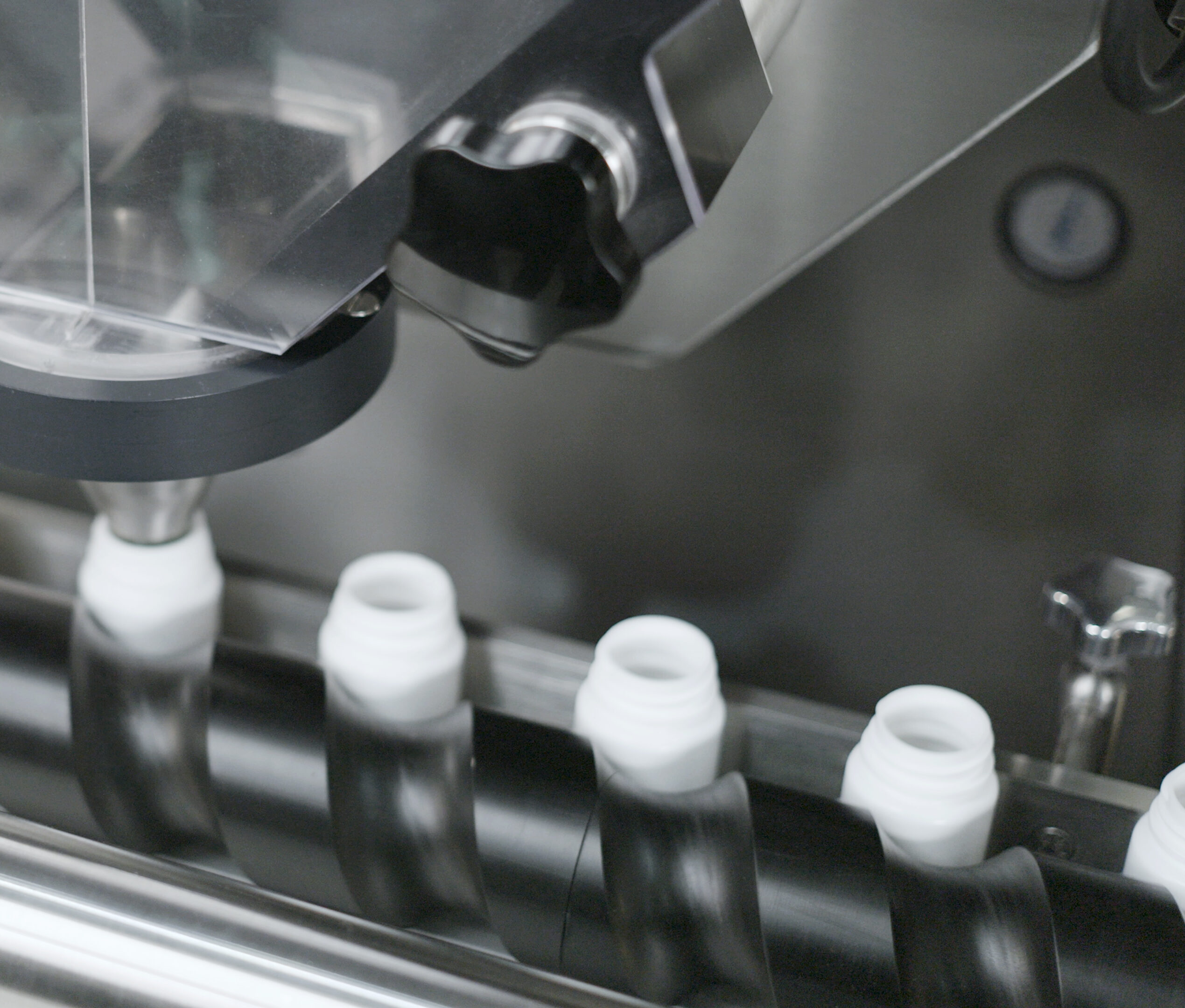

Bottle handling

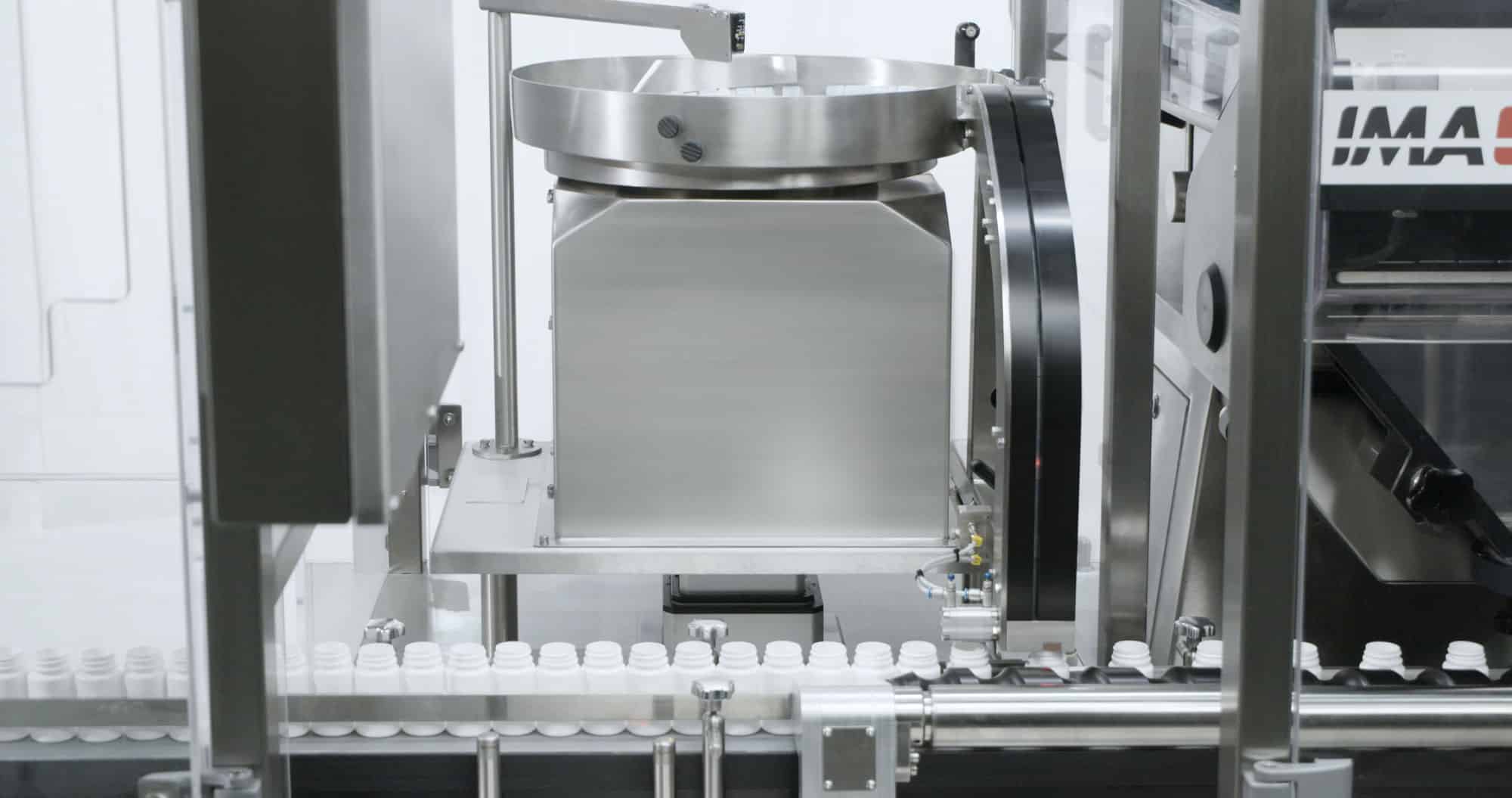

Desiccant insertion – Optional

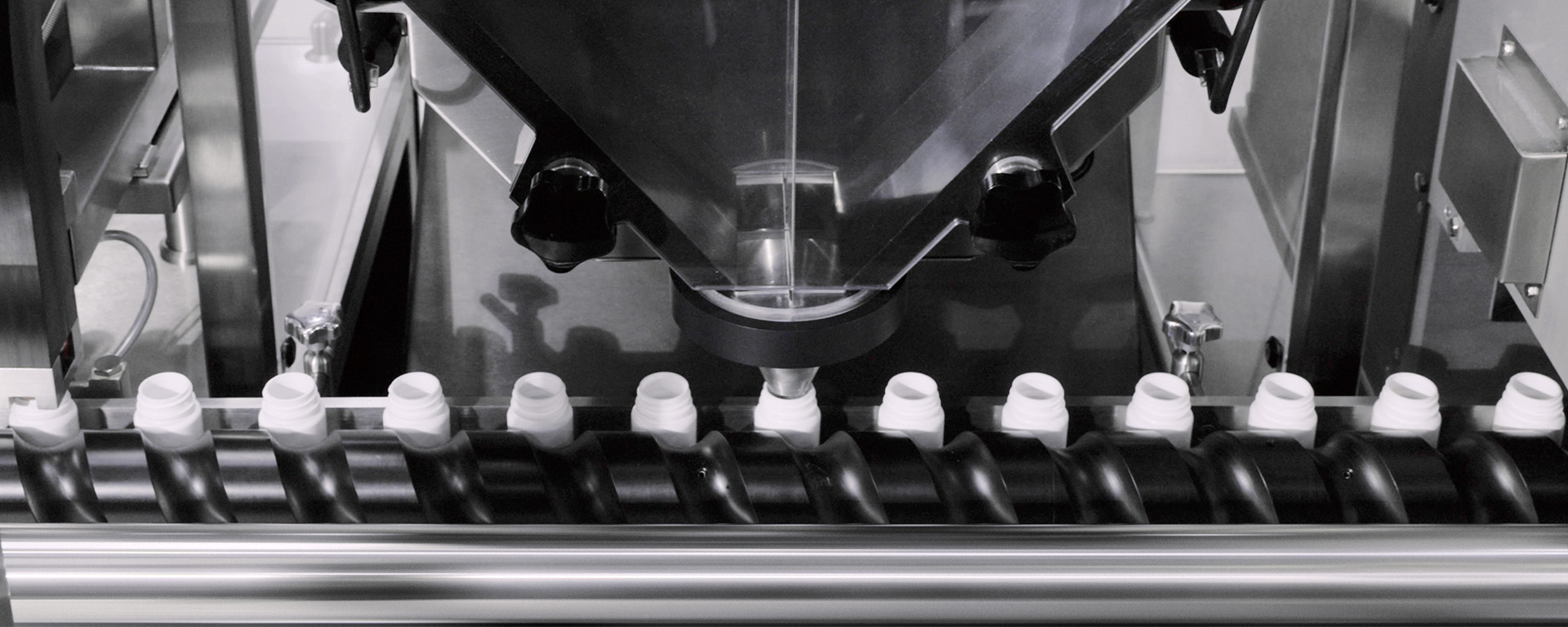

Tablet/capsule counting

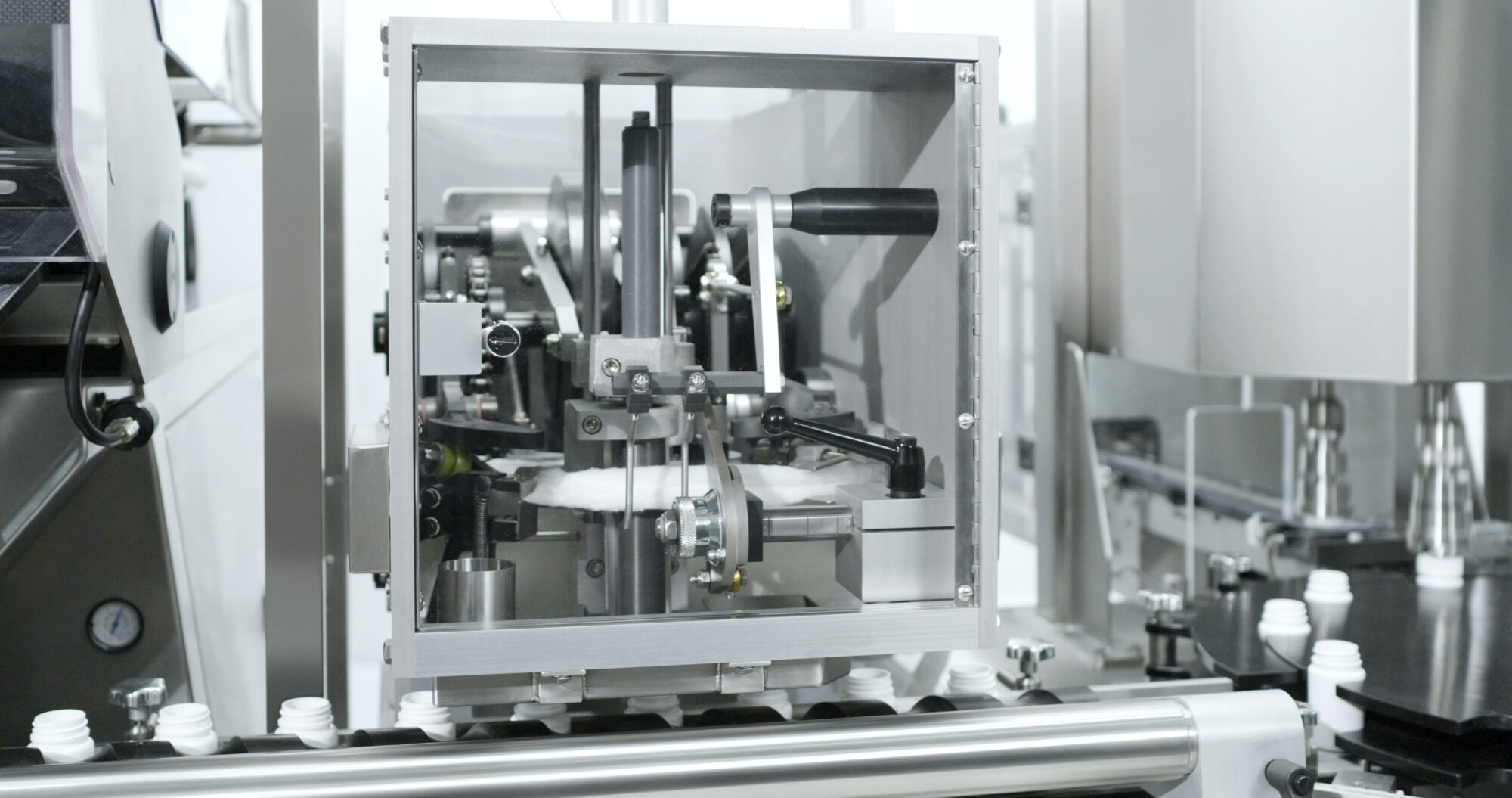

Cotton insertion – Optional

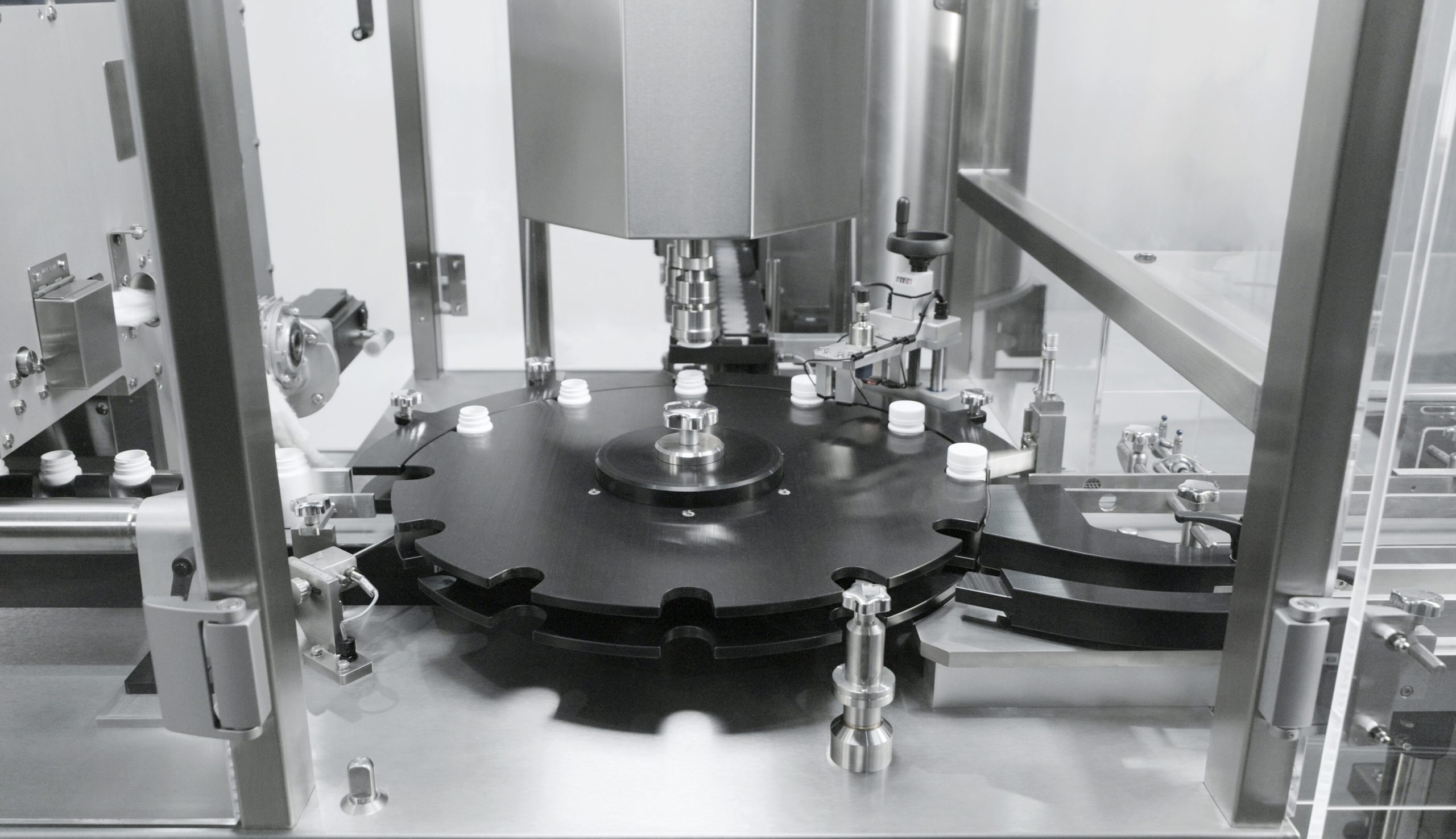

Capping

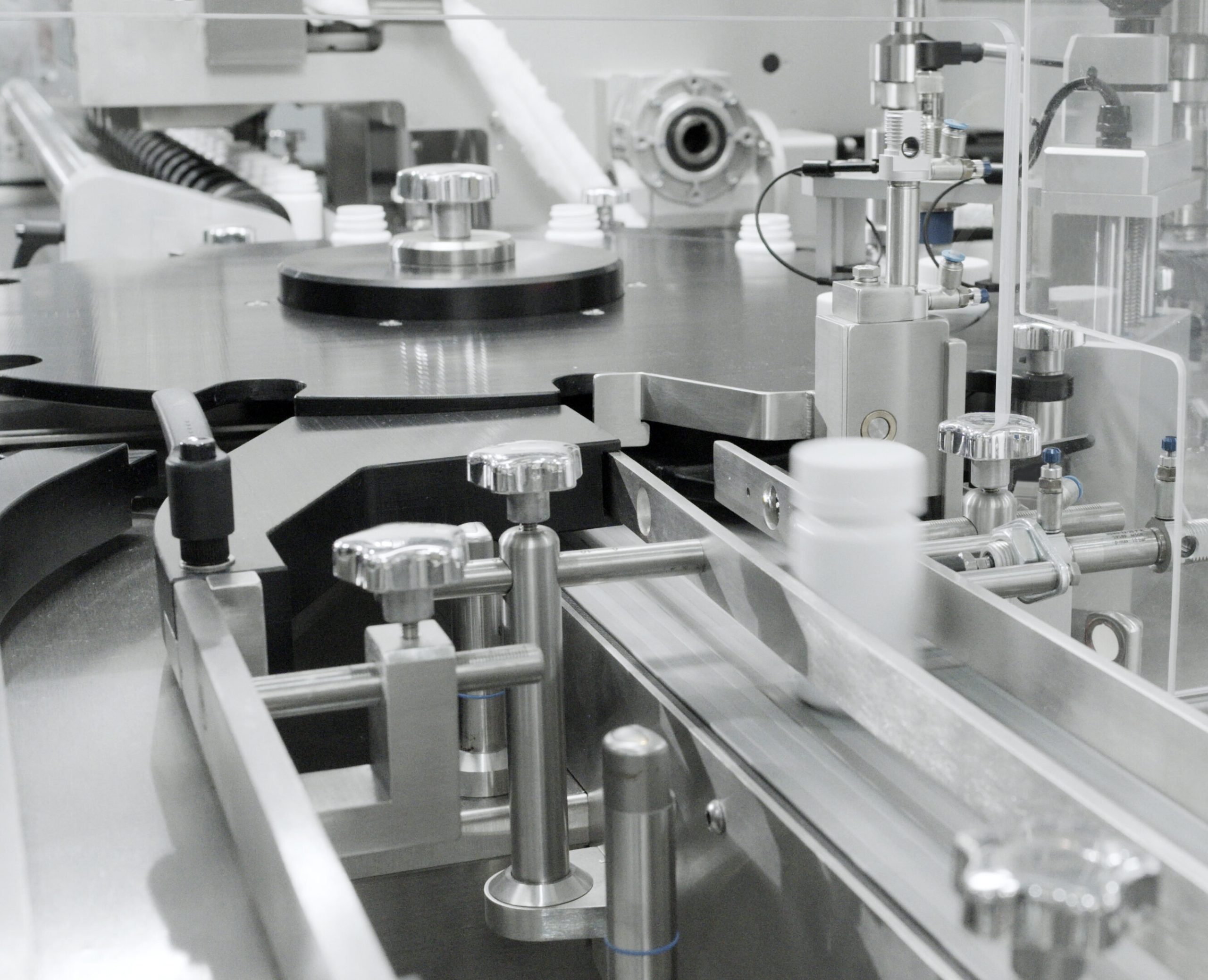

Bottle exit

Technical information

TECHNICAL DATA MINILINE
Production outputUp to 50 bottles/min. or 6,000 tablets/min.*
Container diameter range25 mm – 100 mm
Container height range40 mm – 200 mm
Cap diameter range20 mm – 60 mm
Desiccant1,2 and 3 gram – 1 – 10 canisters per bottle
CottonCotton, Rayon and Polyester 50 mm – 100 mm length

*Depending on product and bottle shape and size
