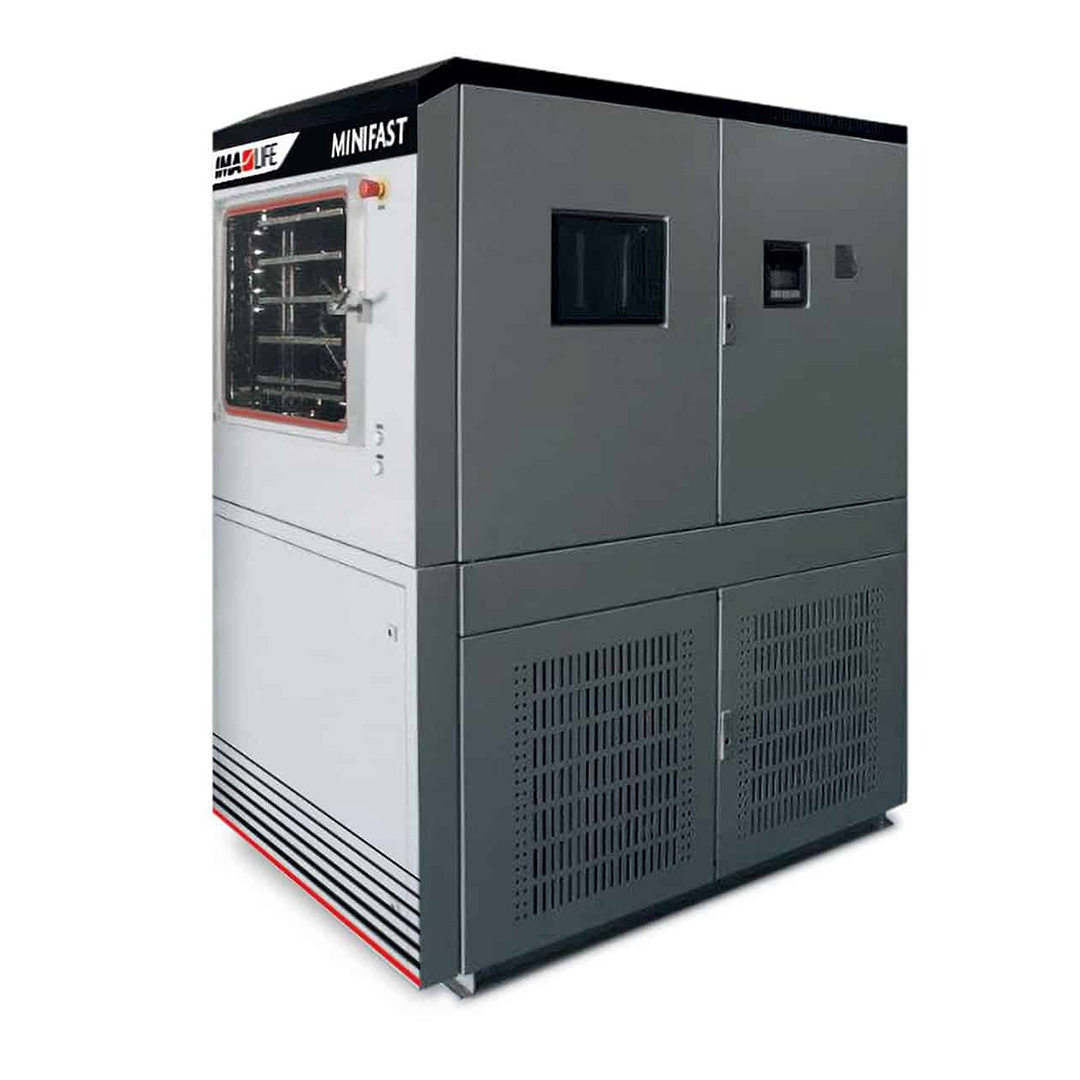

MINIFAST Series Freeze-Drying
Machine overview
Advanced. Mini. Fast.
Freeze-drying technology comes in all sizes and MINIFAST is the ideal size for the R&D requirements of a laboratory environment. MINIFAST is a laboratory solution designed according to the same technical performance and quality standards as a production-scale lyophiliser.
The product is available in MINIFAST 04 and MINIFAST 10 configurations, with shelf areas of 0.4 and 1.1 m2.
Product shelves are designed and manufactured using the IMA Life patented FUSION™ design to enhance performance, reduce operating costs and increase reliability.
Production plant
IMA Life
Machine highlights
-
Pilot model
Pilot scale for R&D and small production batches.
-

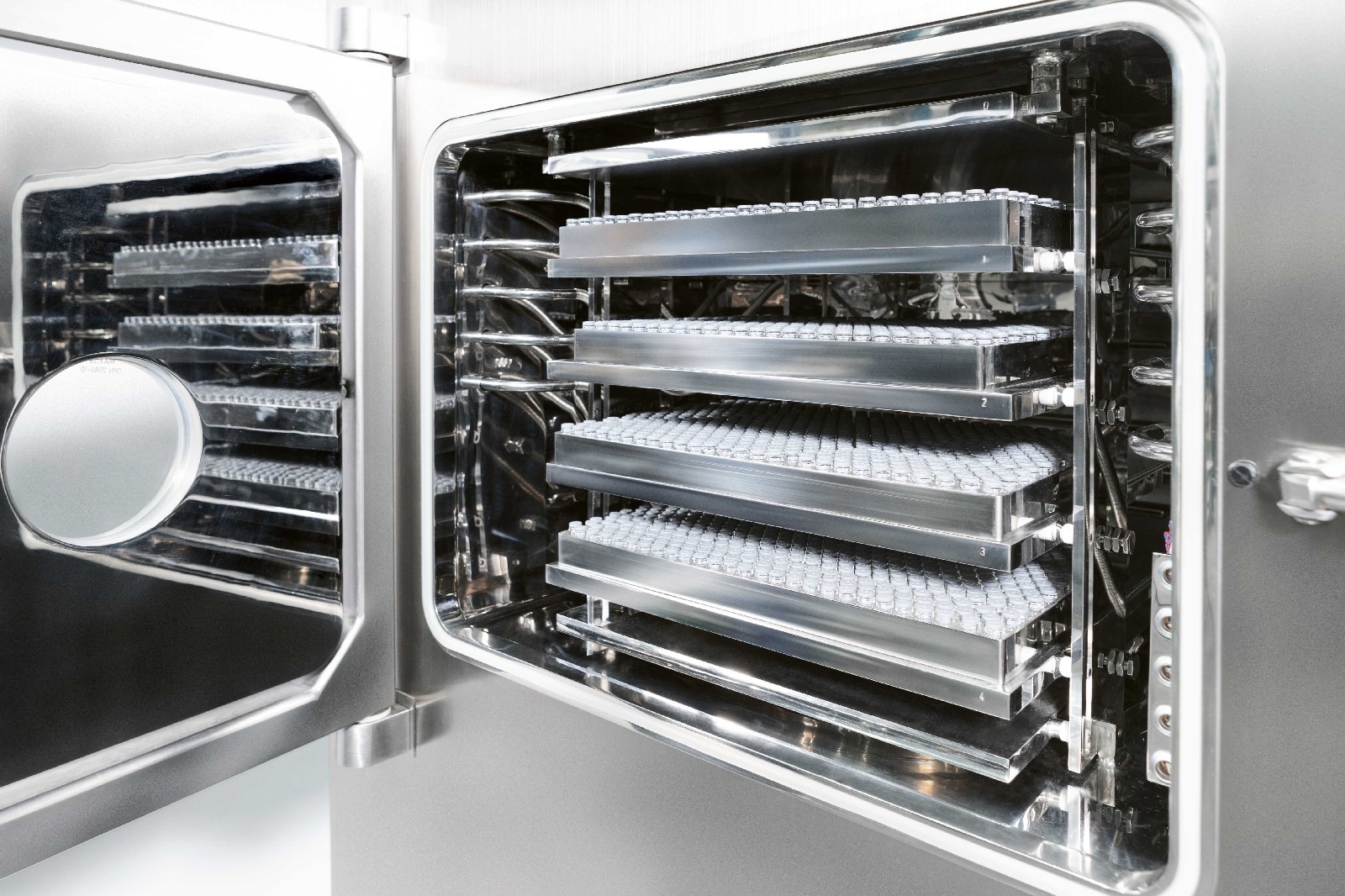

Stainless steel chamber
Rectangular chamber in AISI 304L or AISI 316L.
-
Surface areas
Shelf areas available from 0.4 m2 and 1.1 m2.
-
Condenser capacity
Ice condenser ultimate temperature of -80°C.
-
Pre-aeration
Automatic pre-aeration with Air or N2.
-
Induced nucleation
Ready to be integrated with KRYOSEQ LAB® for nucleation control.
-
PAT tools
PAT tools for better process understanding and optimisation.
-
SCADA system
Lyomaster Scada control system.
Ice condenser capacity
MINIFAST ice condenser capacity range goes from 8 kg to 20 kg, with minimum condensing temperatures of -85°C as standard.

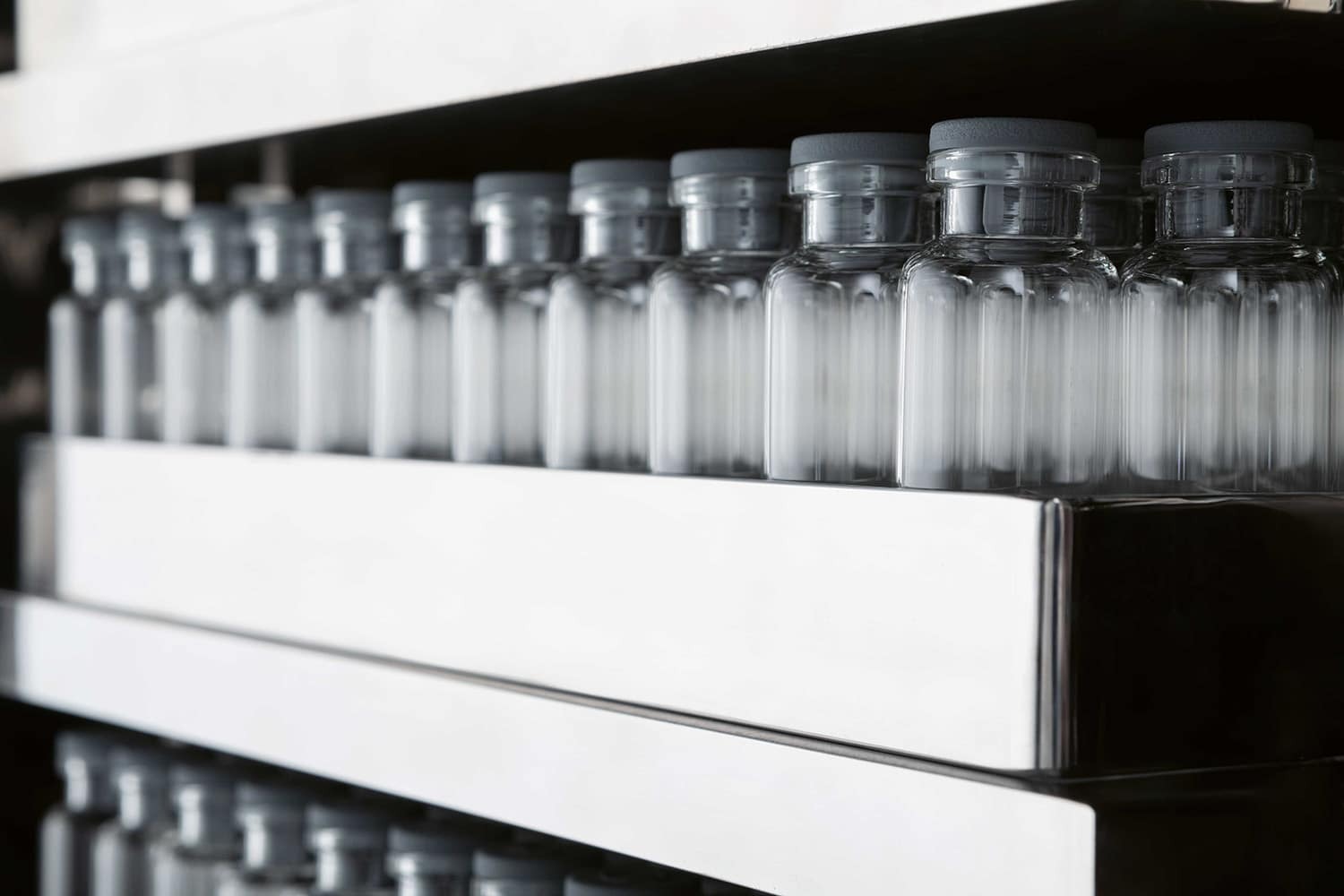

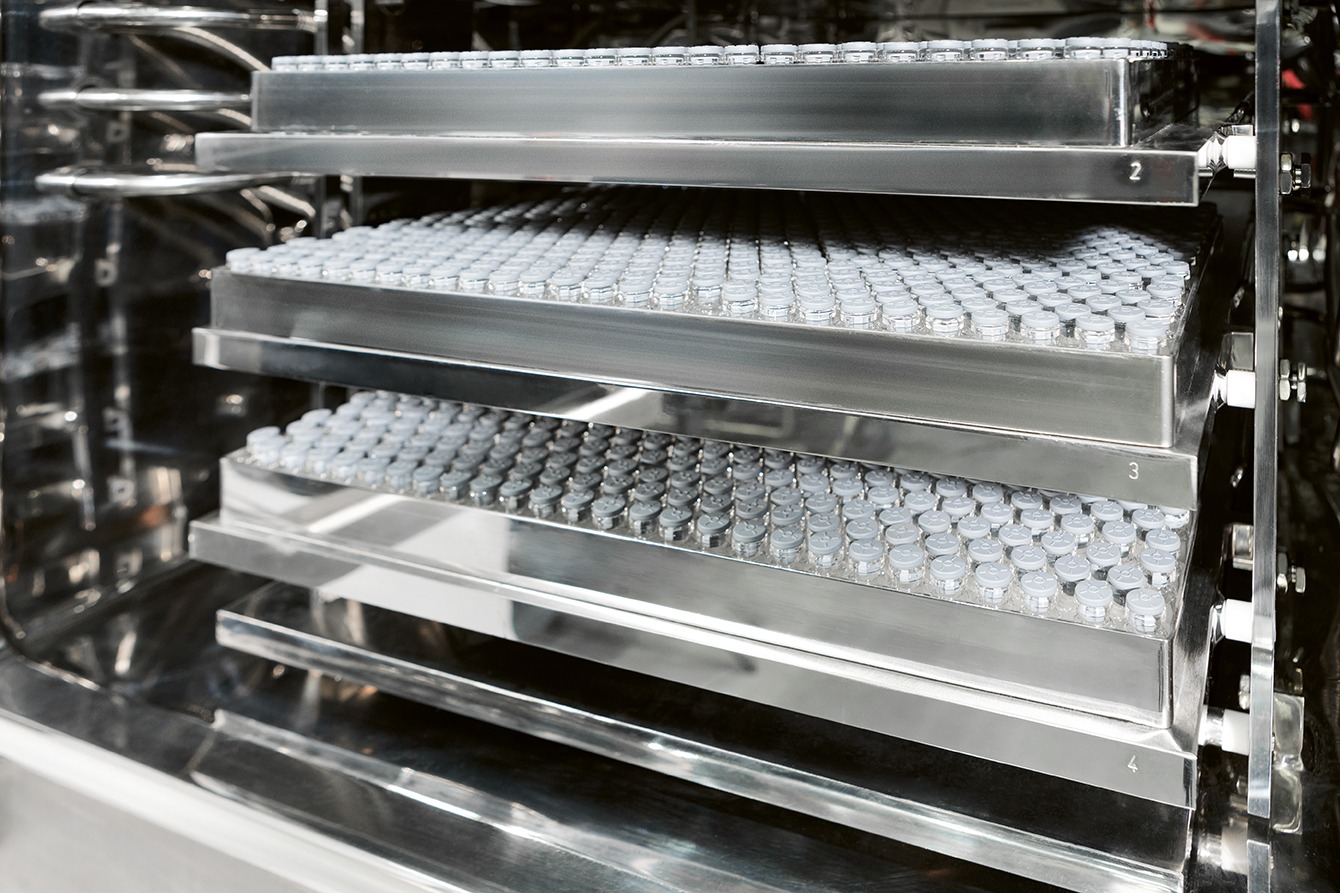

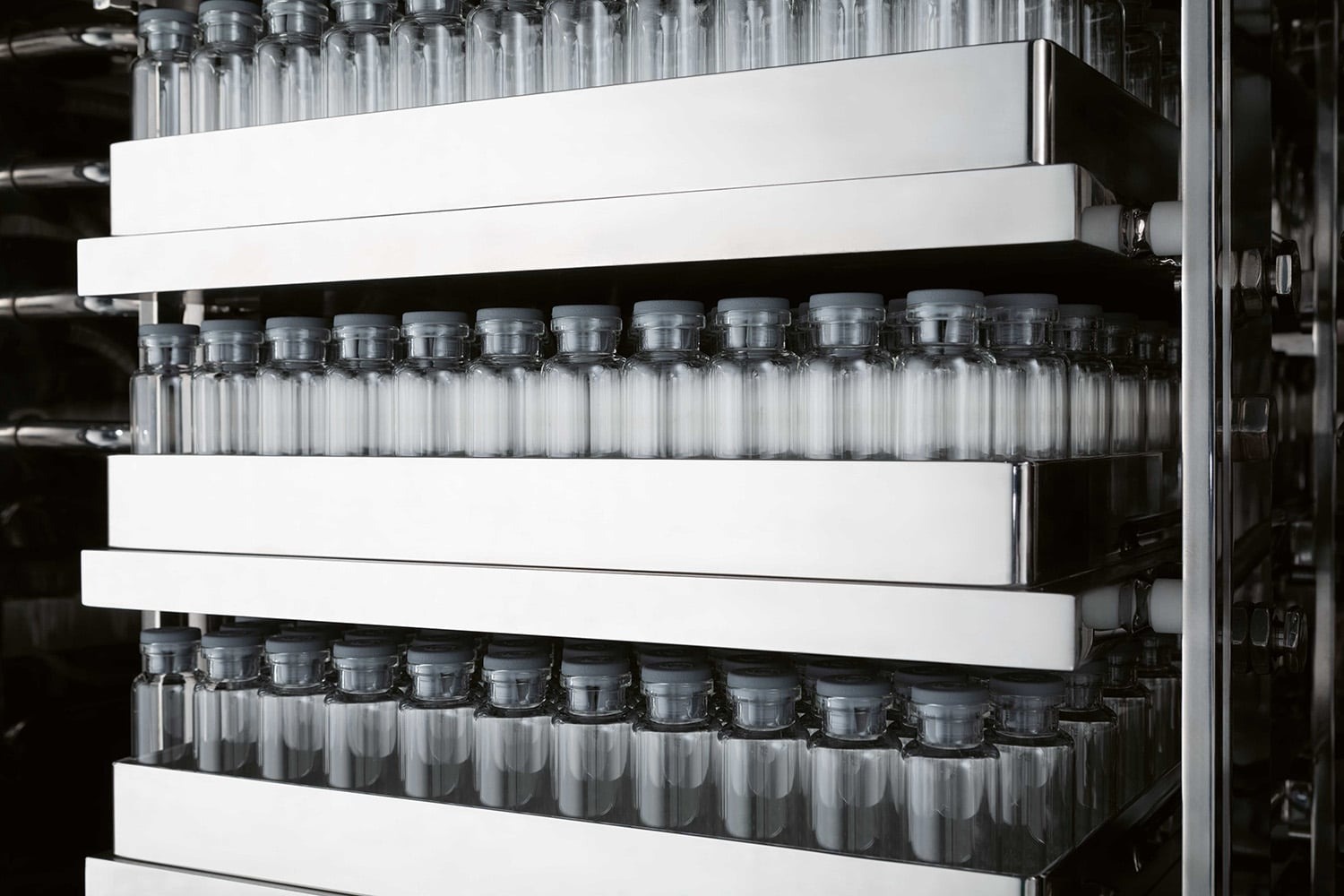

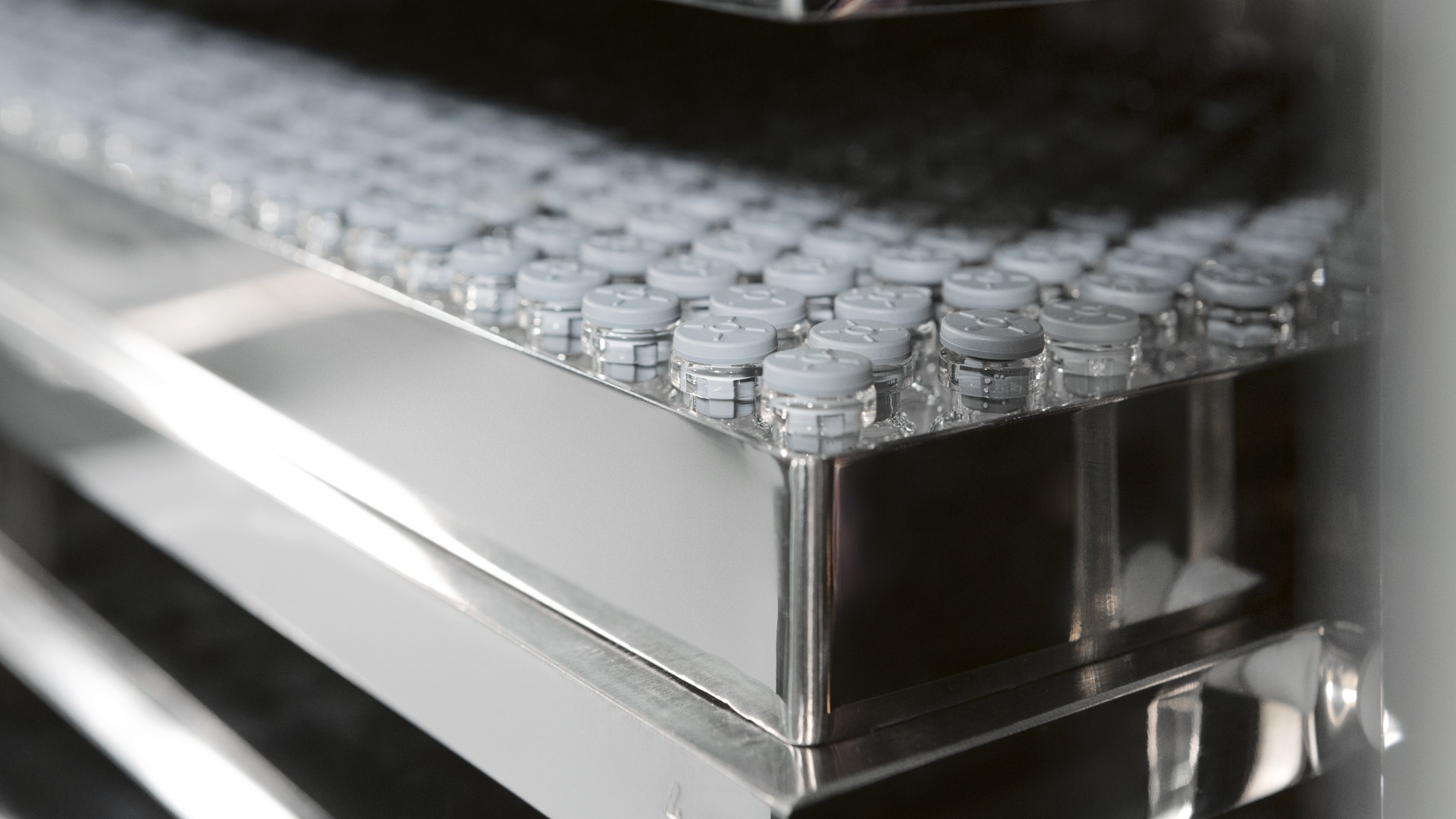

FUSION™ and FUSION PLUS™ shelves
MINIFAST shelves are designed and manufactured in-house with IMA Life’s patented FUSION™ technology, to ensure higher quality and enhance process reliability. The FUSION™ and FUSION PLUS™ shelves are lighter and more resistant than conventional solutions and offer enhanced heat transfer properties.

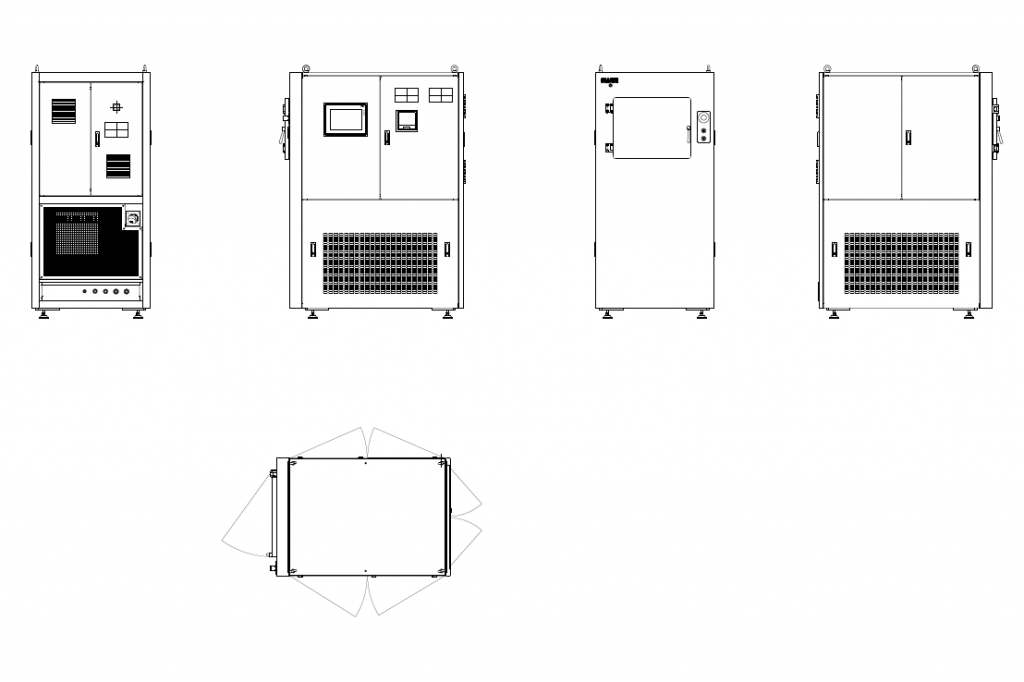

Machine details
Technical information
| MINIFAST TECHNICAL DATA | ||||||
| Model | Shelf area range (m2) | Shelf Spacing and alternative (mm) | Shelf size (w x d) (mm) | Number of shelves and alternative | Maximum vials loading capacity (2R vial) | Min. condenser capacity (kg @ 12.7 mm ice) |
| MINIFAST 04 | 0.4 | 80/120 | 315 x 455 x 18 | 3/2 | 1,701/1,134 | 8 |
| MINIFAST 10 | 1.1 | 80/160 | 455 x 615 x 18 | 4/2 | 4,536/2,268 | 20 |
