MD20 Tea bag packaging

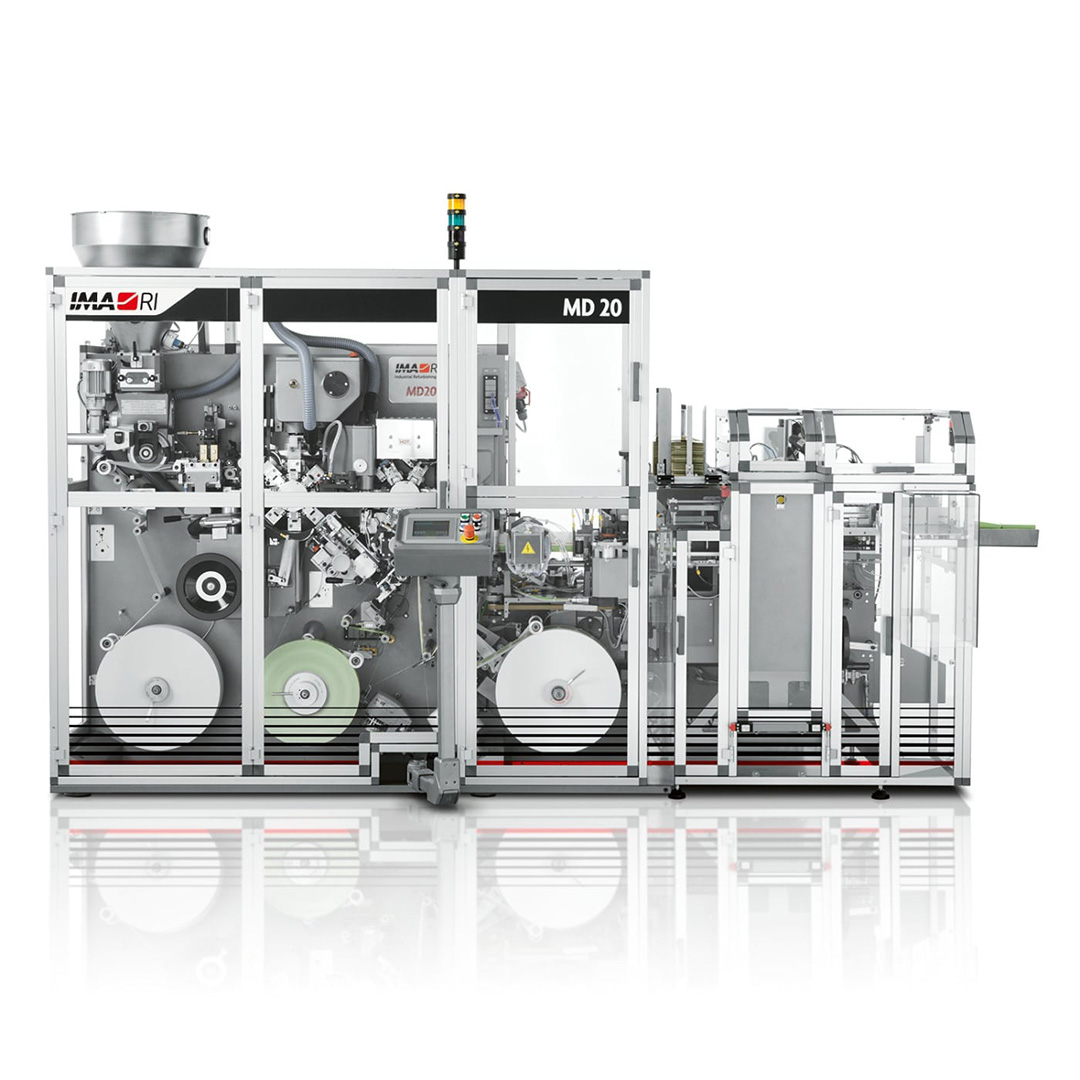

Machine overview
Simple and versatile.

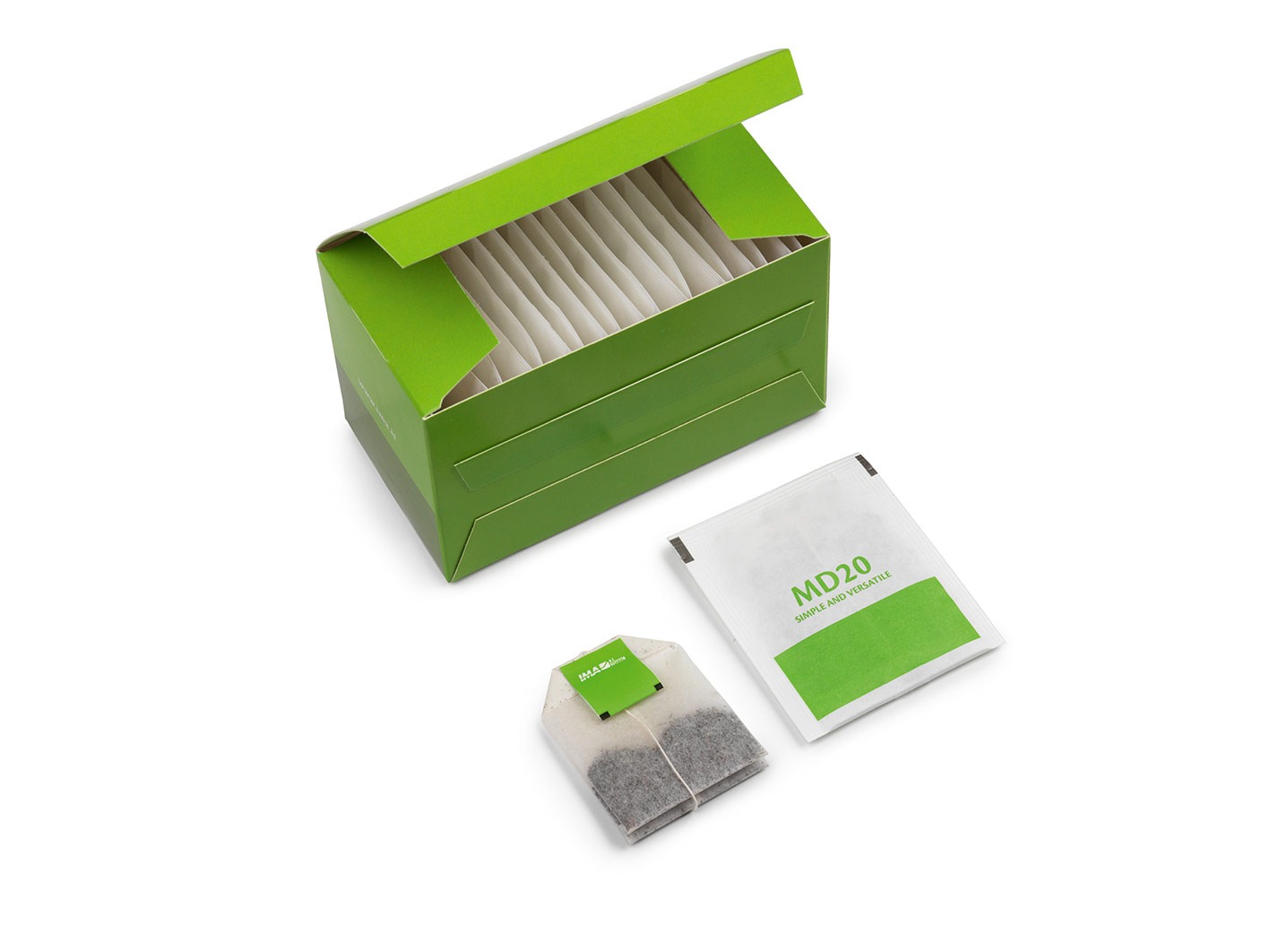

A mid to low-speed packaging machine for non-heat-sealable, double-chamber, knotted bags for tea and herbs, the MD20 processes either naked bags or bags in heat-sealed outer envelopes.
Equipped with an optional automatic cartoning attachment for pre-glued cartons, the MD20 can also be fitted with a hand-removal unit for counted or uncounted teabags, according to customer needs.
Production is constantly monitored by dedicated supervision software and a video camera which checks knotting and teabag conformity.
Production plant
IMA R.I.
Machine highlights
-
Knotting sequence
Bags closed firmly with two subsequent knots using the same connected thread.
-
Rotating hopper
Special rotating hopper ensures better handling of non-free-flowing products.
-
Bag rejection
Single bag rejection increases production efficiency and quality.
-
Knot conformity

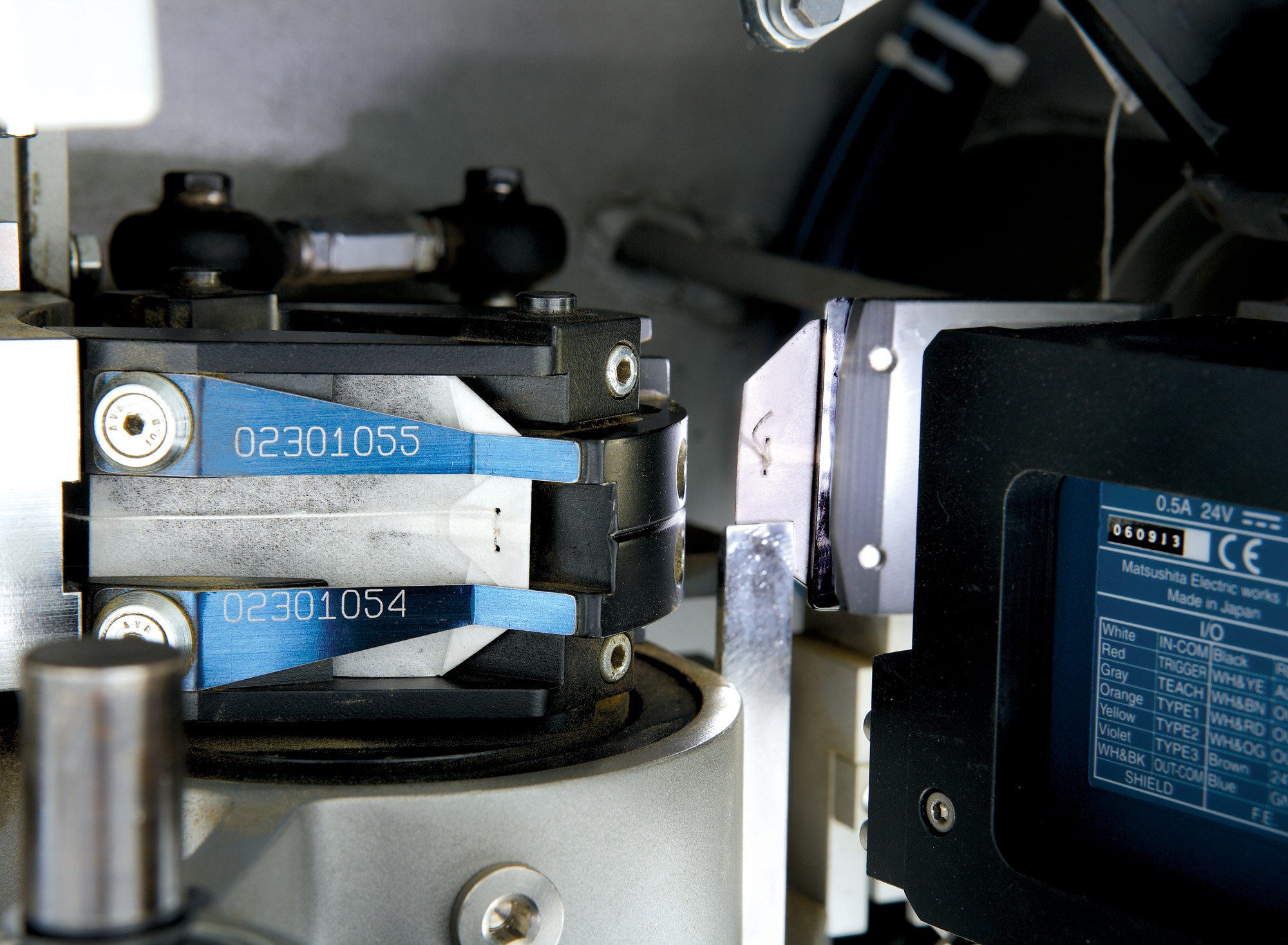

Knot conformity constantly controlled via video camera.
-
Jumbo bags
Produces jumbo bags (45 x 63 mm) ideal for herbal teas.
-
Packaging material savings
Significant savings on packaging material reaching up to 8% on best-in-class solutions.
-

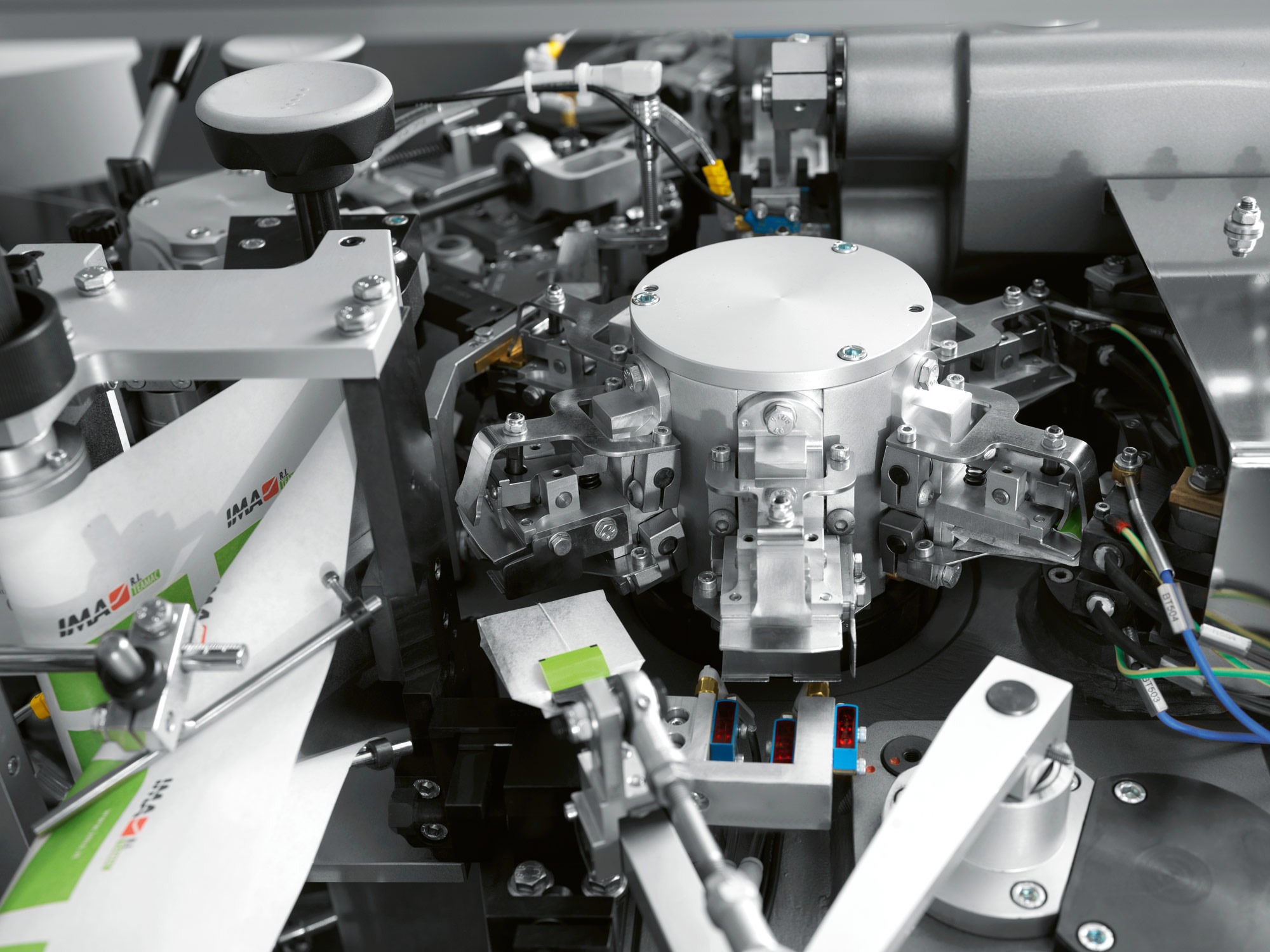

Outer envelope materials
Processes all paper, aluminium and PE materials for outer envelopes from 80 down to 40 µm.
-
Fewer spares
Reduced needs for spare parts.
Knotting technology
In order to ensure a more firmly knotted teabag, safeguarding the flavour and contents of the tea or herbs, the MD20 fixes each bag with two subsequent knots from a single connected thread, without the need for auxiliary thread.

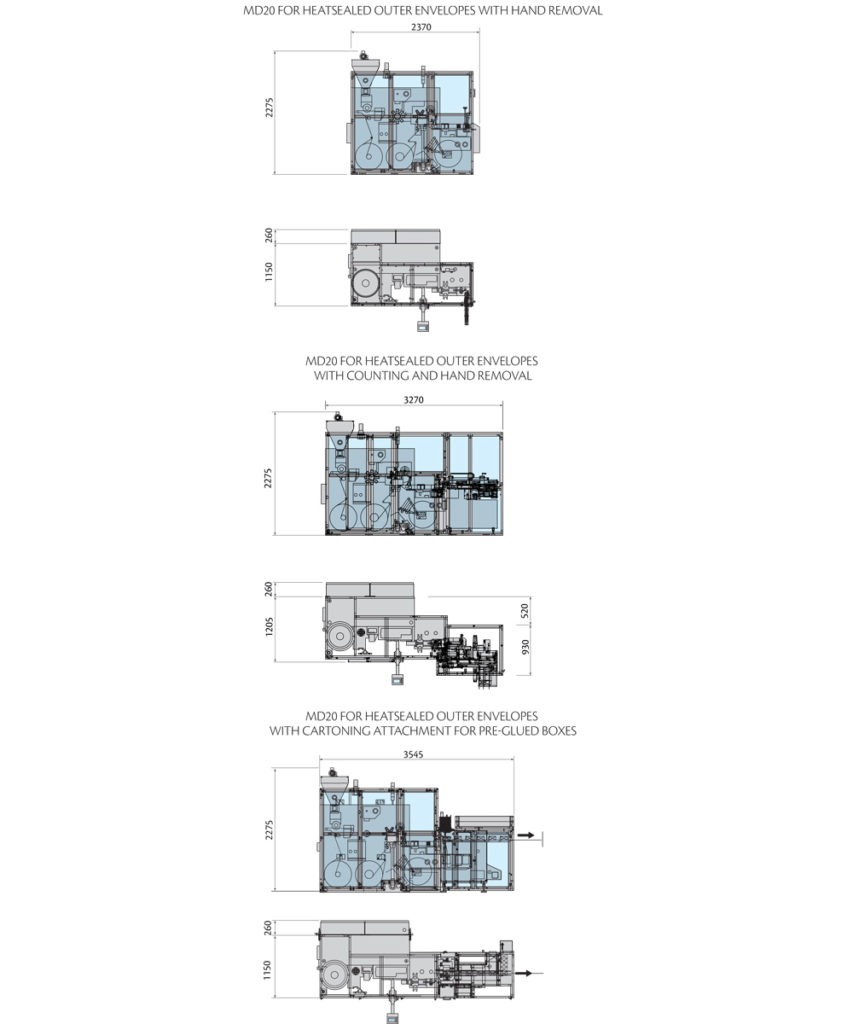

Machine details
Technical information
