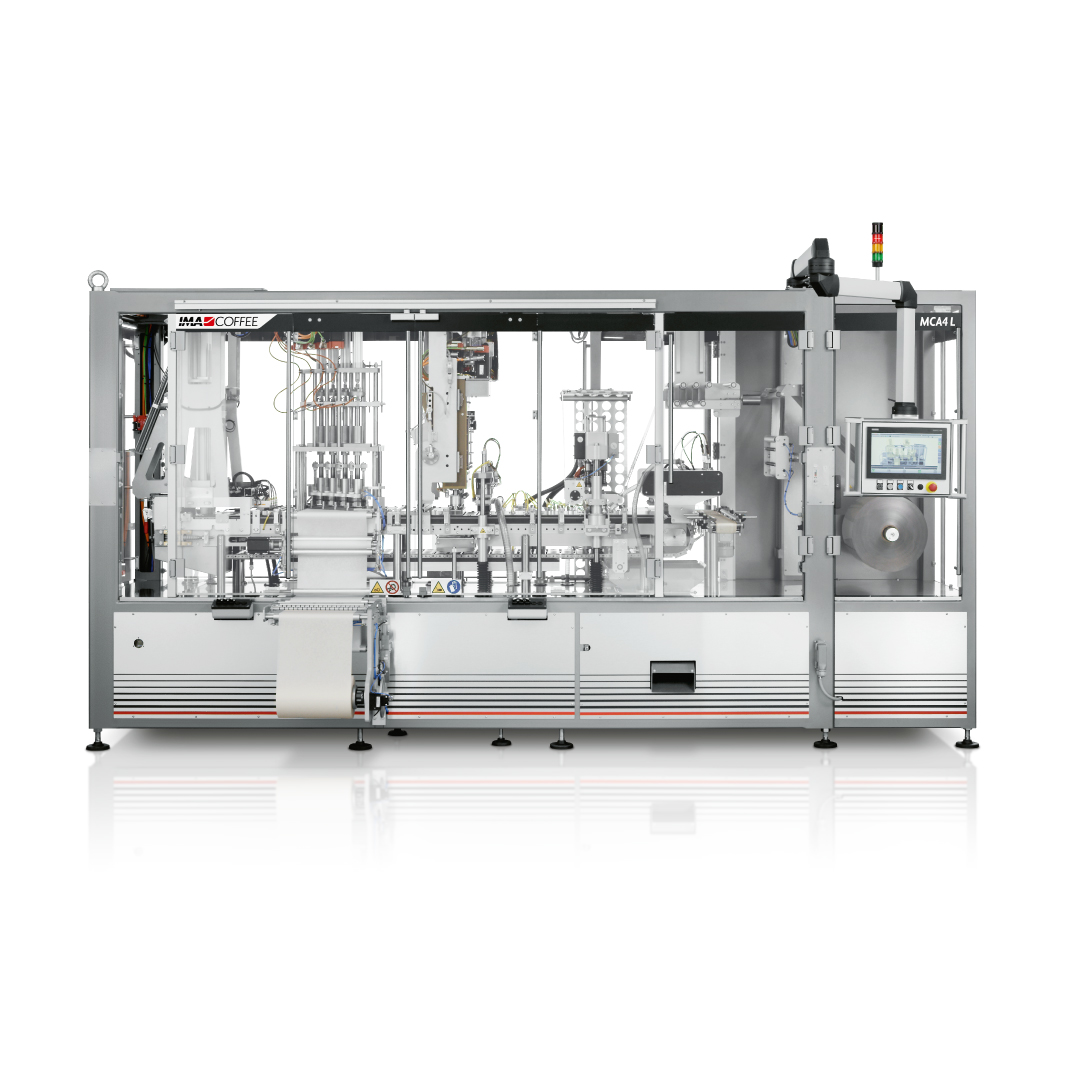

MCA Series Capsule Filling for Coffee
Machine overview
Cost-effective packaging and tried and tested reliability.

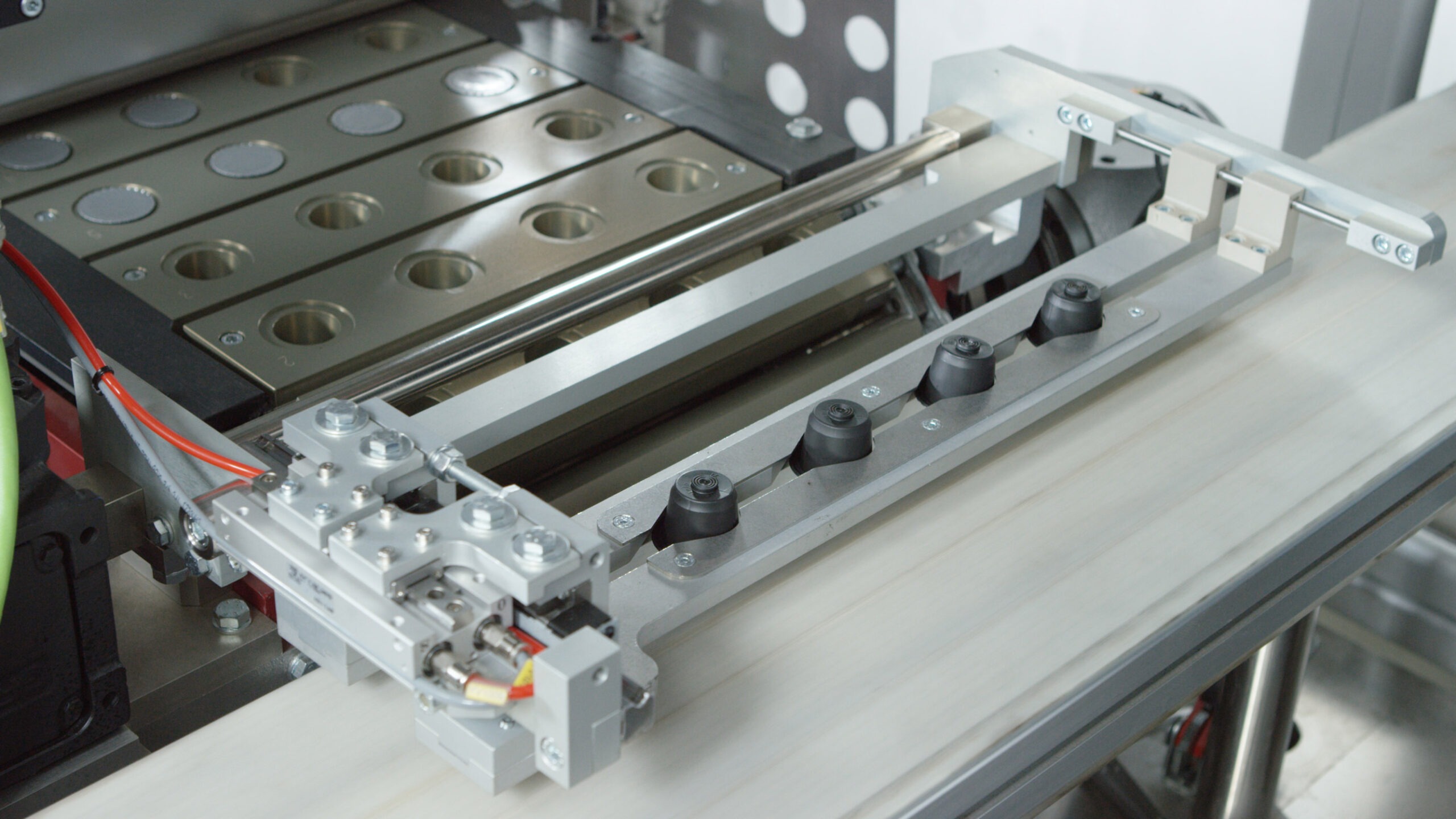

The series of machines with a handling chain has four lanes, input pick & place, plus a cutting and welding device for filters (bottom lid and/or top lid) in a unique station.

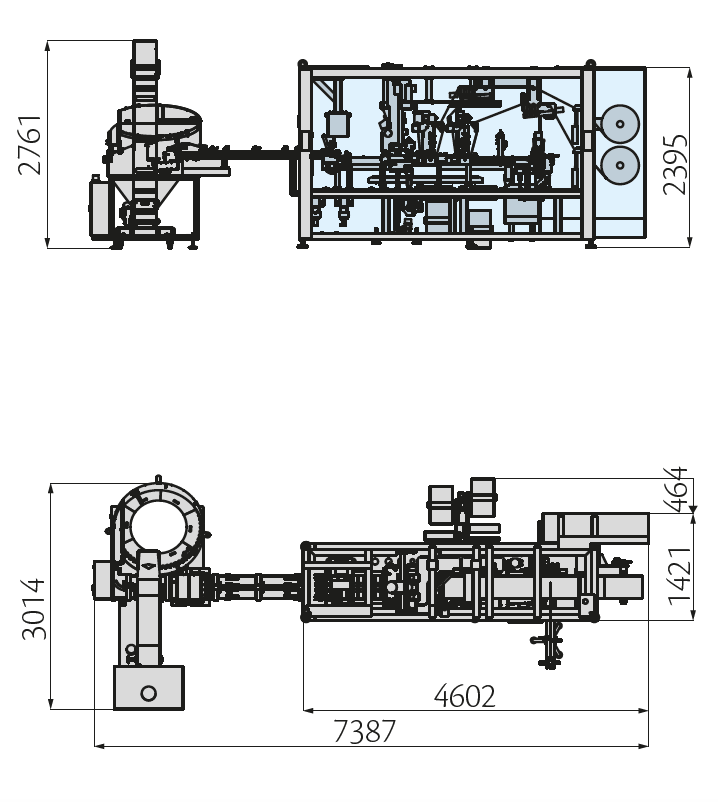

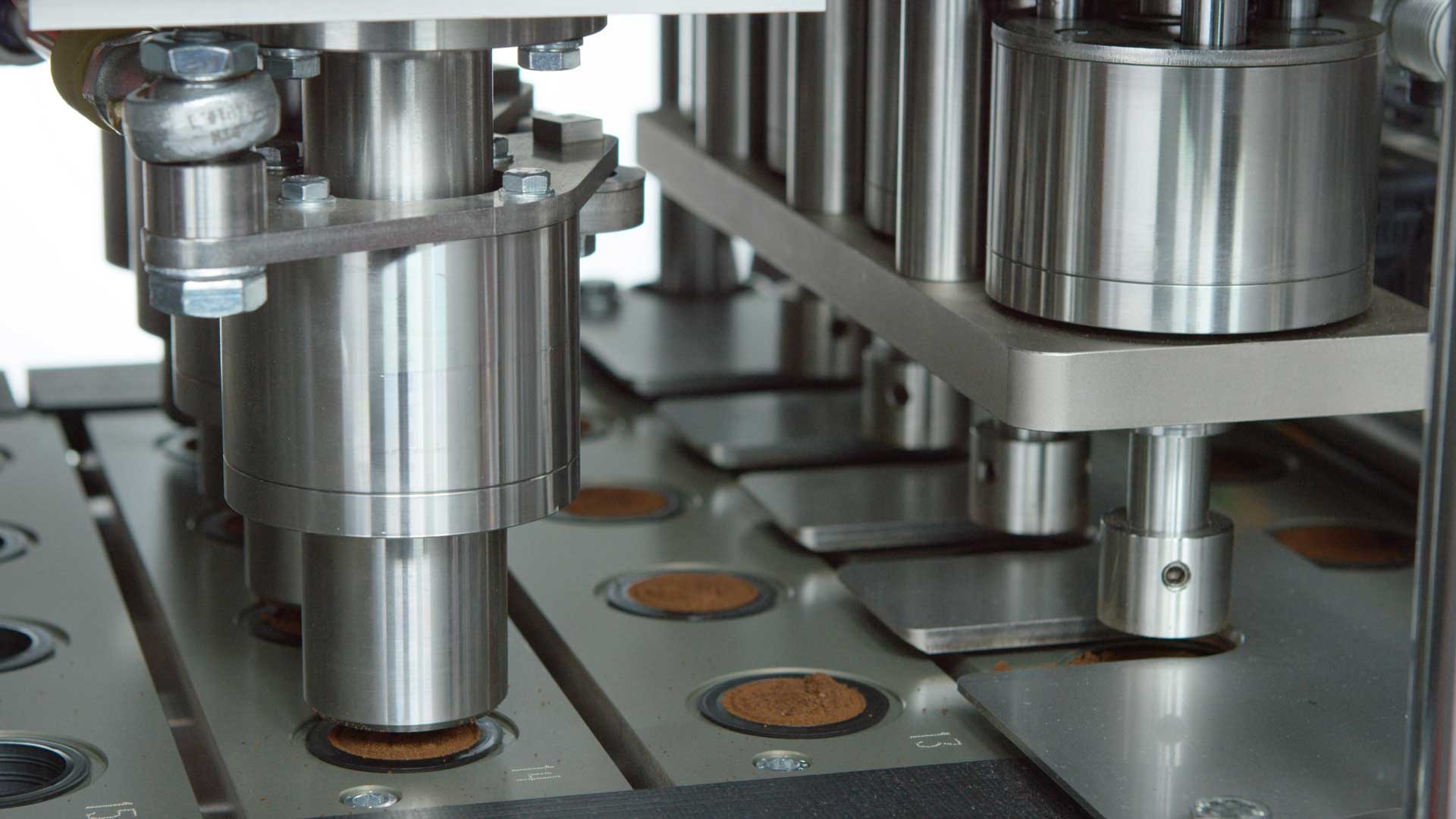

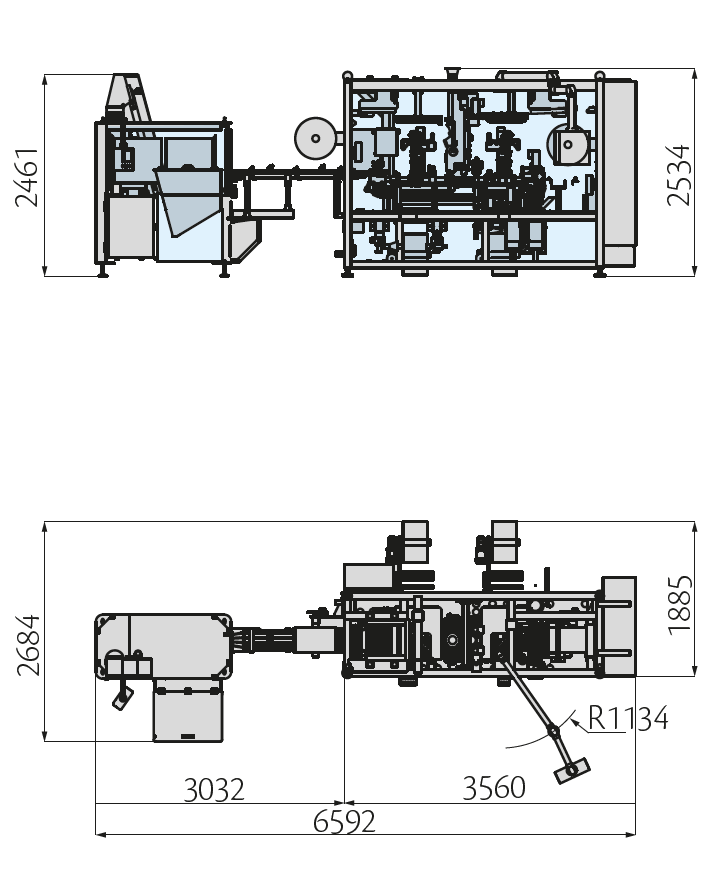

Dosing is carried out by a volumetric dosing screw and the weight accuracy is ± 0.2 g. Models include the MCA4 and MCA4-L (long version) for reliable medium-high production.
Further to coffee, these machines are designed to dose different products with the application of a kit for herbal and instant products. Multiple capsule systems are possible thanks to a simple format change and the MCA Series can be fitted with a host of accessories including integrated vertical packaging units, a nitrogen injection device, check-weigher, vision system and more.
Production plant
IMA Coffee
Machine highlights
-
Compact linear footprint
Maximising space efficiency.
-
Modular design
For greater customisation and adaptability to specific production needs.
-
Servo motor-driven movements
For precision, reliability, and smooth operation.
-
PC-controlled machinery
Ensuring consistent performance and process monitoring.
-
Intuitive HMI for easier operation
Set-up, and quick adjustments.
-

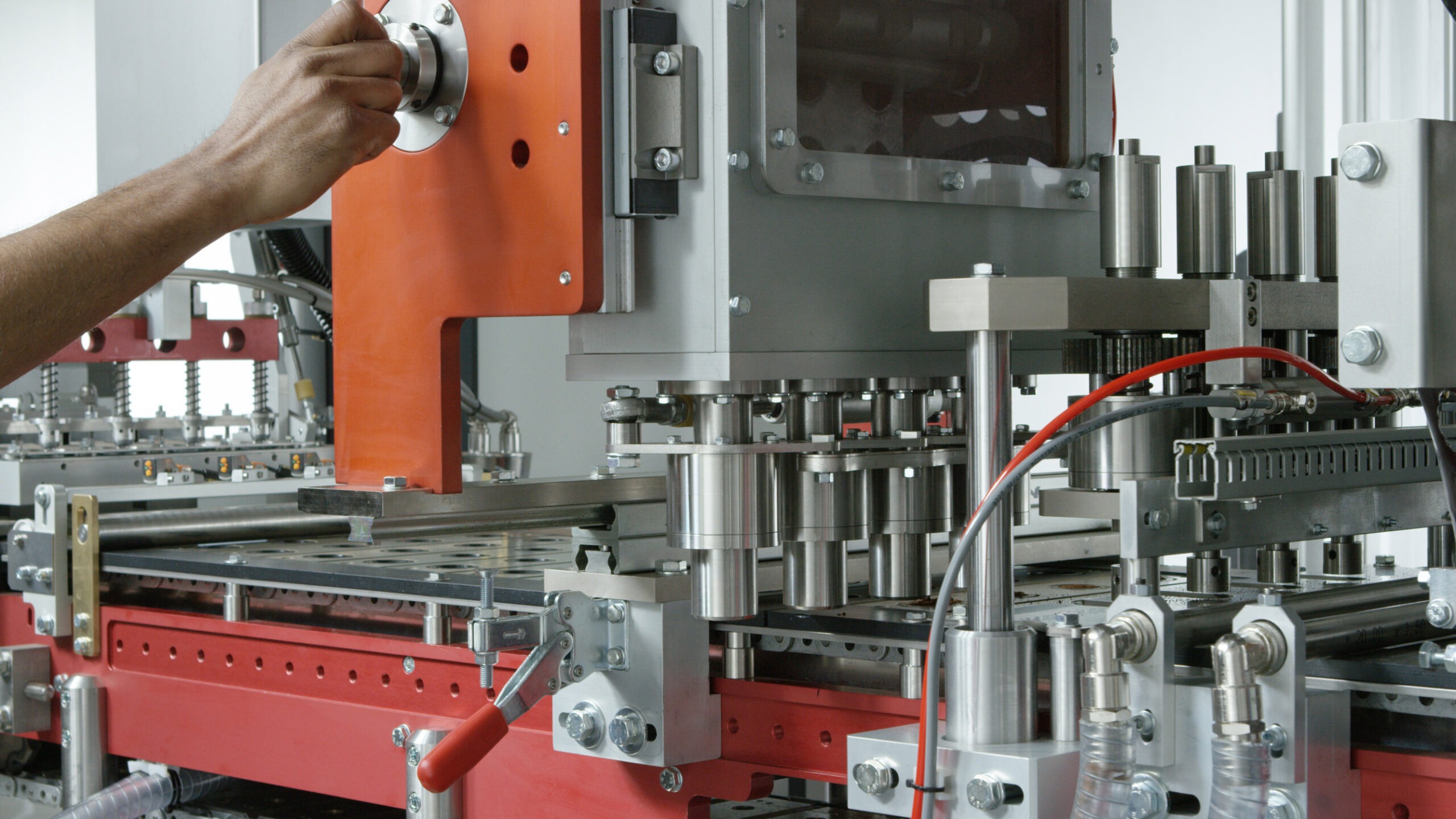

Easily extractable dosing unit
Allowing efficient cleaning and maintenance.
-
Cost-effective solutions
Ideal for low to medium production output.
Machine details
Technical information
| MCA4 | MCA4-L | |
| Production speed | 240 capsules/min. | 240 capsules/min. |
| Installed Power | 18 kW | 24 kW |
| Machine Weight | 2,200 Kg | 2,800 Kg |
| Expected compressed air consumption | 300 Nl/min. | 350 Nl/min. |
| Compressed air pressure | 7 bar | 7 bar |
| Material reel diameter Material reel width | 400 mm MAX 300 mm MAX | 400 mm MAX 300 mm MAX |
