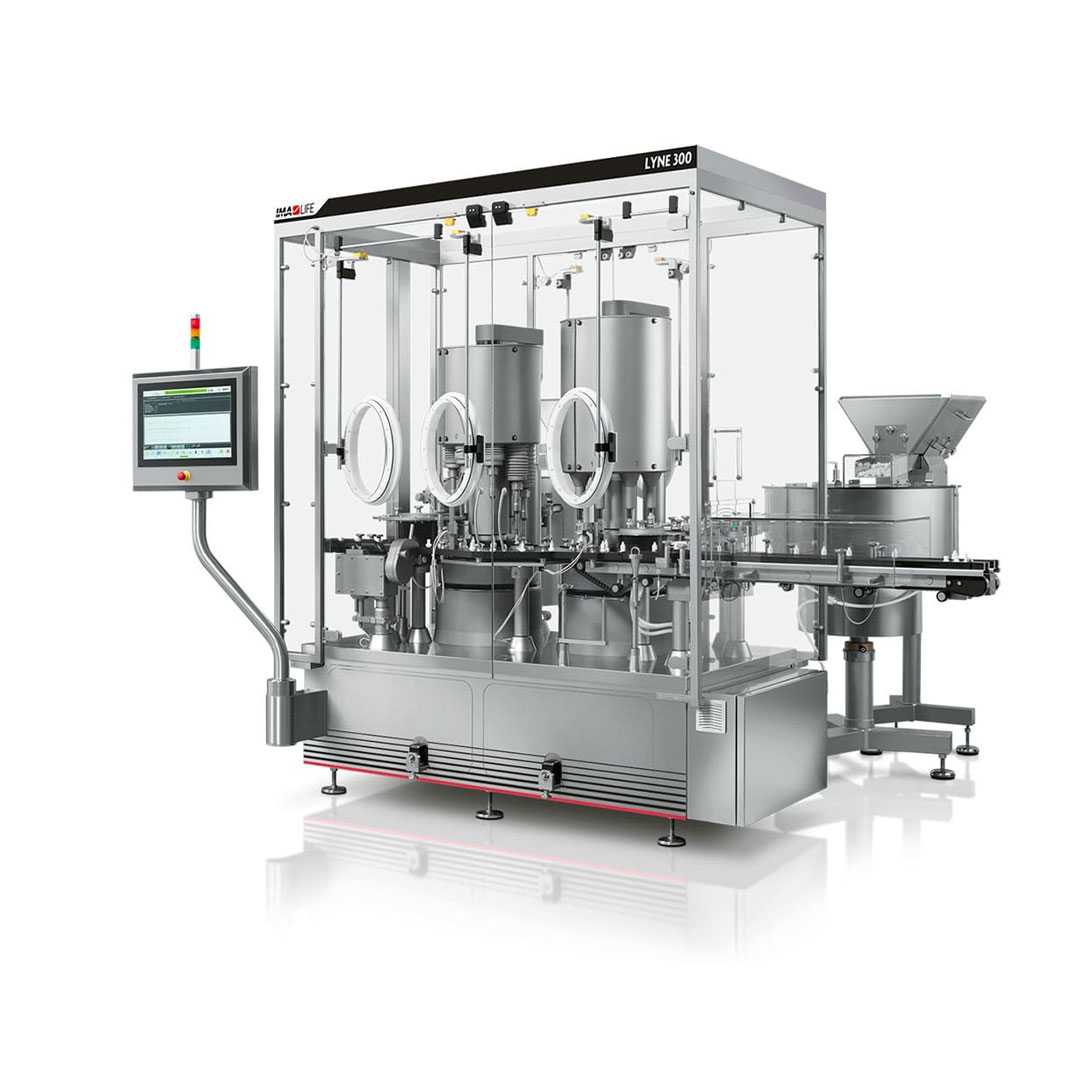

LYNE 300 Aseptic Processing
Machine overview
Closing fast. Keeping safe.
LYNE 300 is a high-speed closing machine for vials and bottles handling up to 30 packaging types on one unique machine.
Able to process any assortment of pharma and parapharmaceutical products on the same machine (ophthalmics, oral solutions and suspensions, nasal sprays, etc.), it can apply screw or pressure-caps, alu-PFP caps, screw or snap-on nasal spray pumps with or without dip tube onto glass and plastic containers and can handle all types of innovative eye drop packaging types.
Configured with one or two closing units according to customer request, LYNE 300 can operate in aseptic and non-aseptic environments, under cRABS or isolators.
Production plant
IMA Life
Machine highlights
-

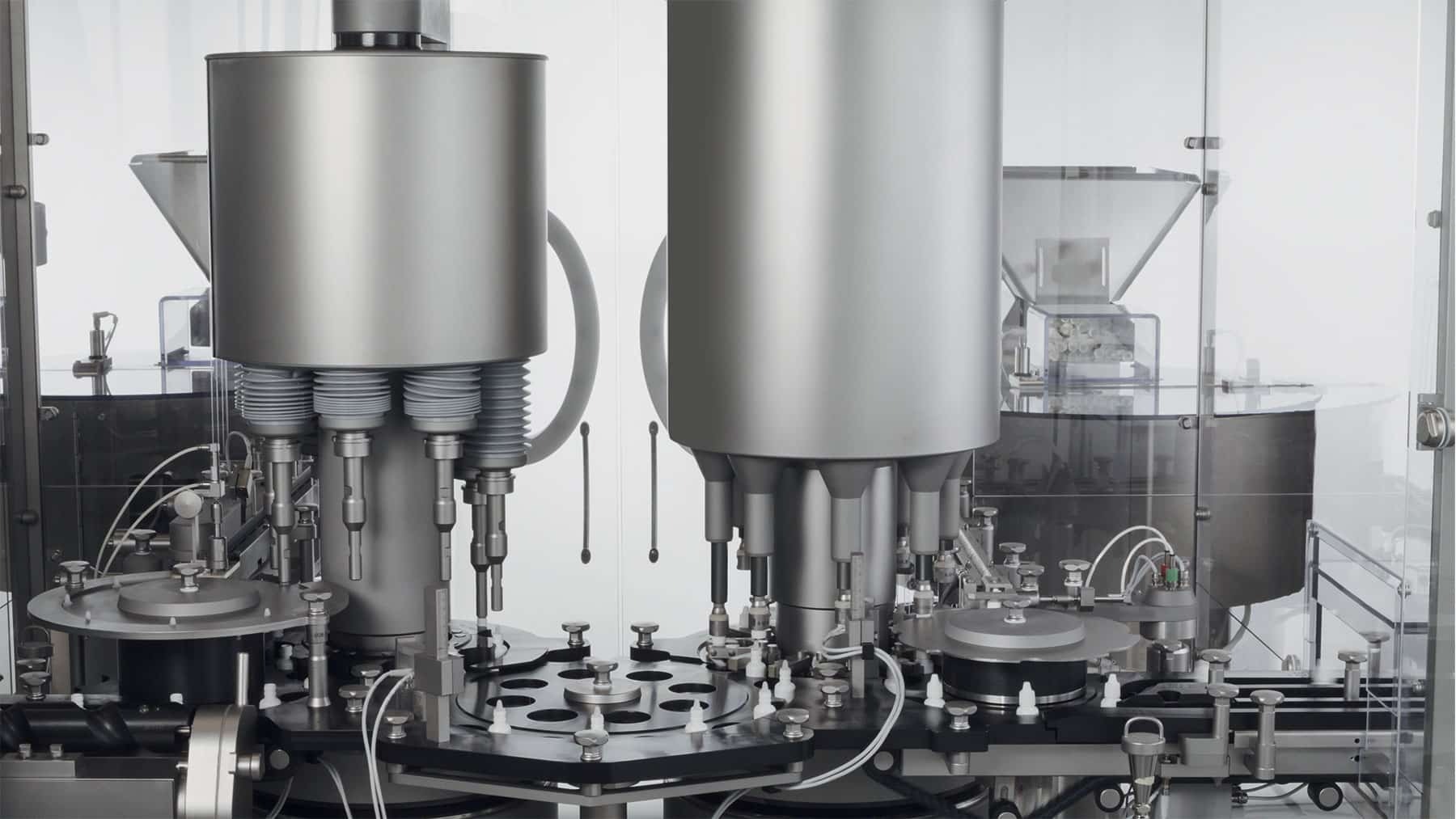

Closing units
Can be configured with one or two closing units.
-

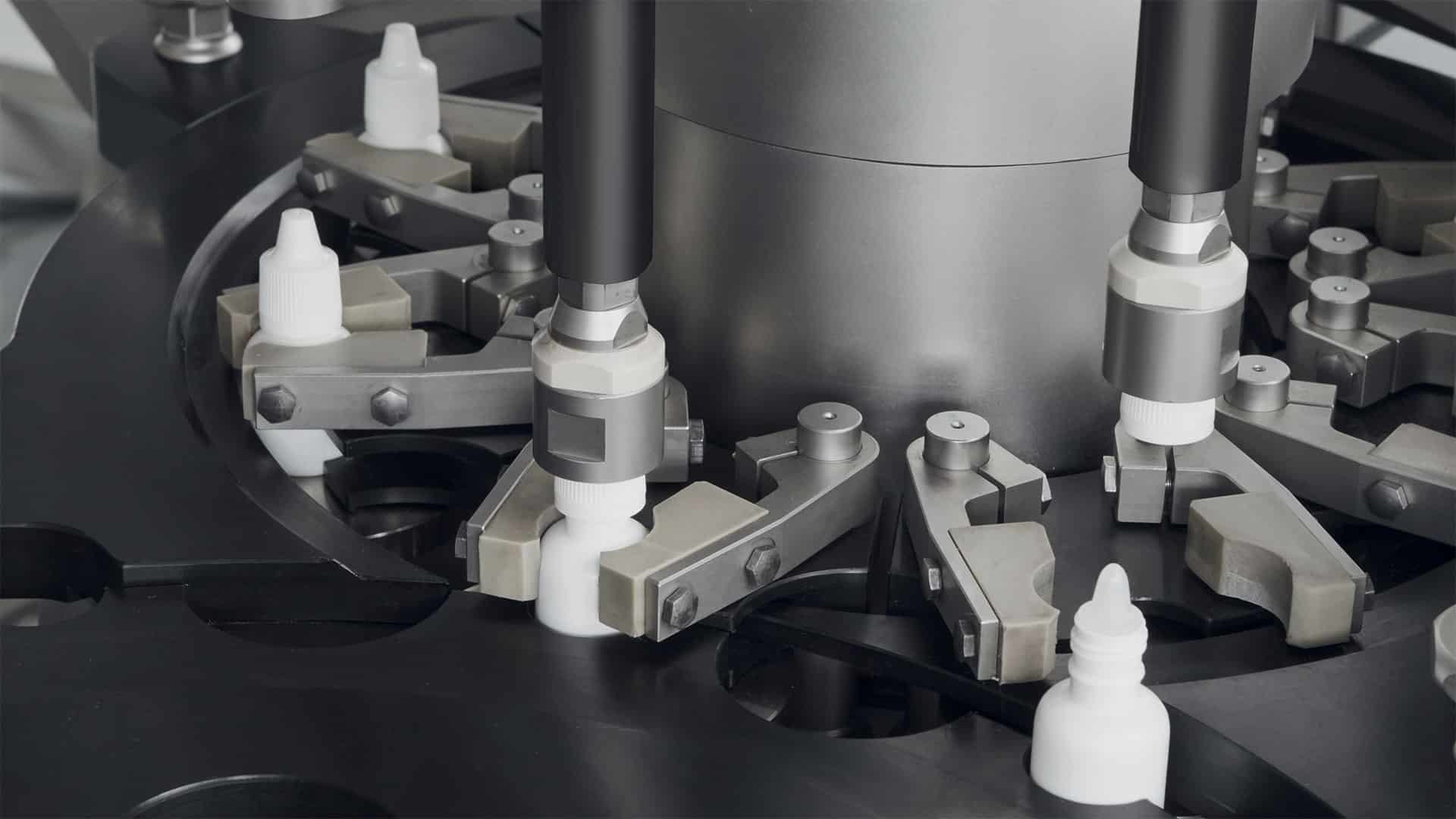

Torsiometer
Control: direct torque management via integrated torsiometer.
-
Linear motors
Mechanical or electronic heads with linear motors.
-
HMI-controlled recipes
HMI-controlled recipes to facilitate final tightening.
-
Format changeover
Rapid automated format changeover.
-
Quality control
Can be fitted with many different vision systems for quality control.
-
Ergonomics
Compact and ergonomic design with stainless steel finishing.
Machine details
Technical information
| LYNE 300 | |
| Maximum output (pieces/minute) | 300 |
| Container diameter (mm) | 16-85 |
| Container height | According to the closure to be applied |
| Installed power (kW) | 12 |
| Standard voltage | 400 V – 50 Hz |
| Weight (kg) | 2200 |
