KONTINUA Stand-Up Pouch Form Fill and Seal

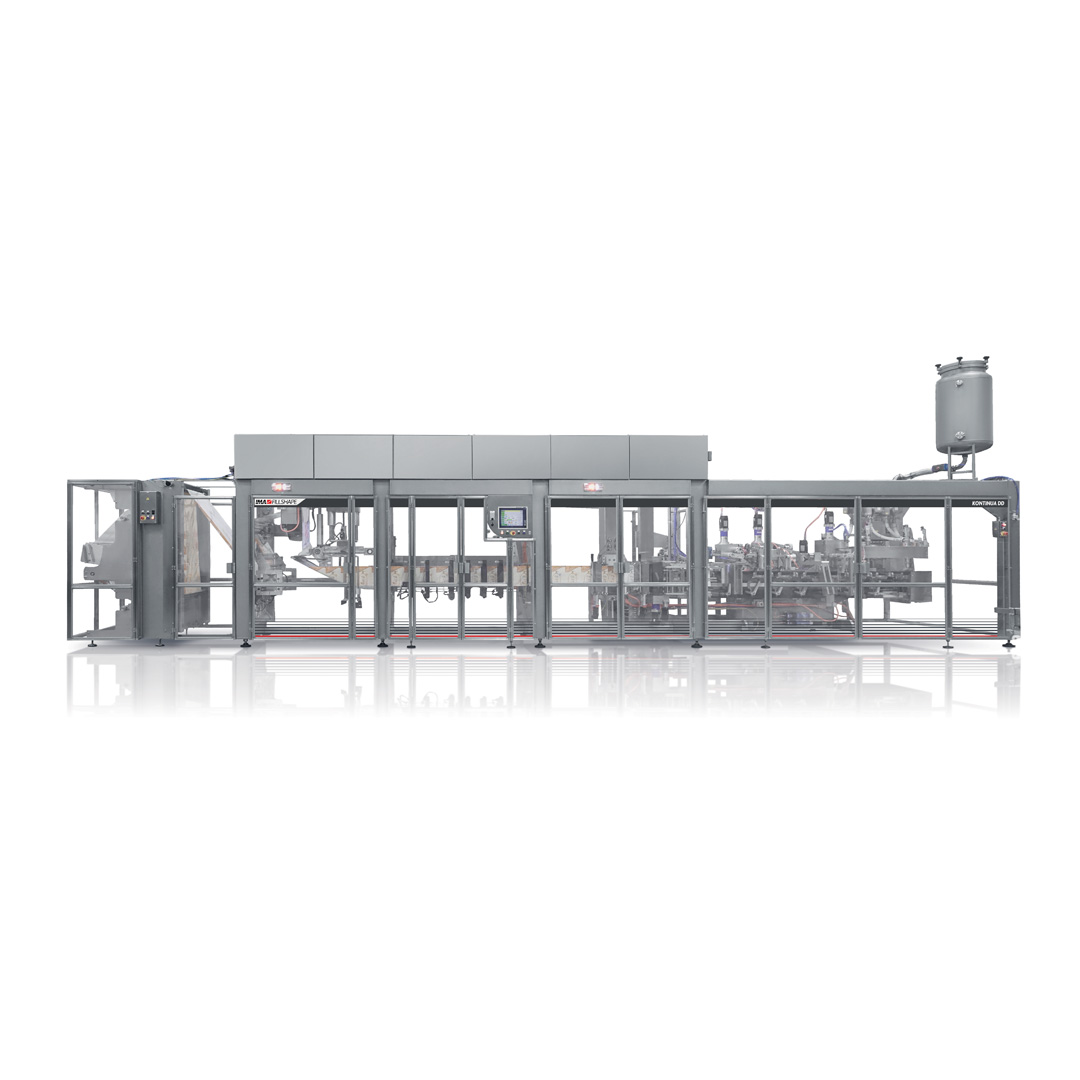

Machine overview

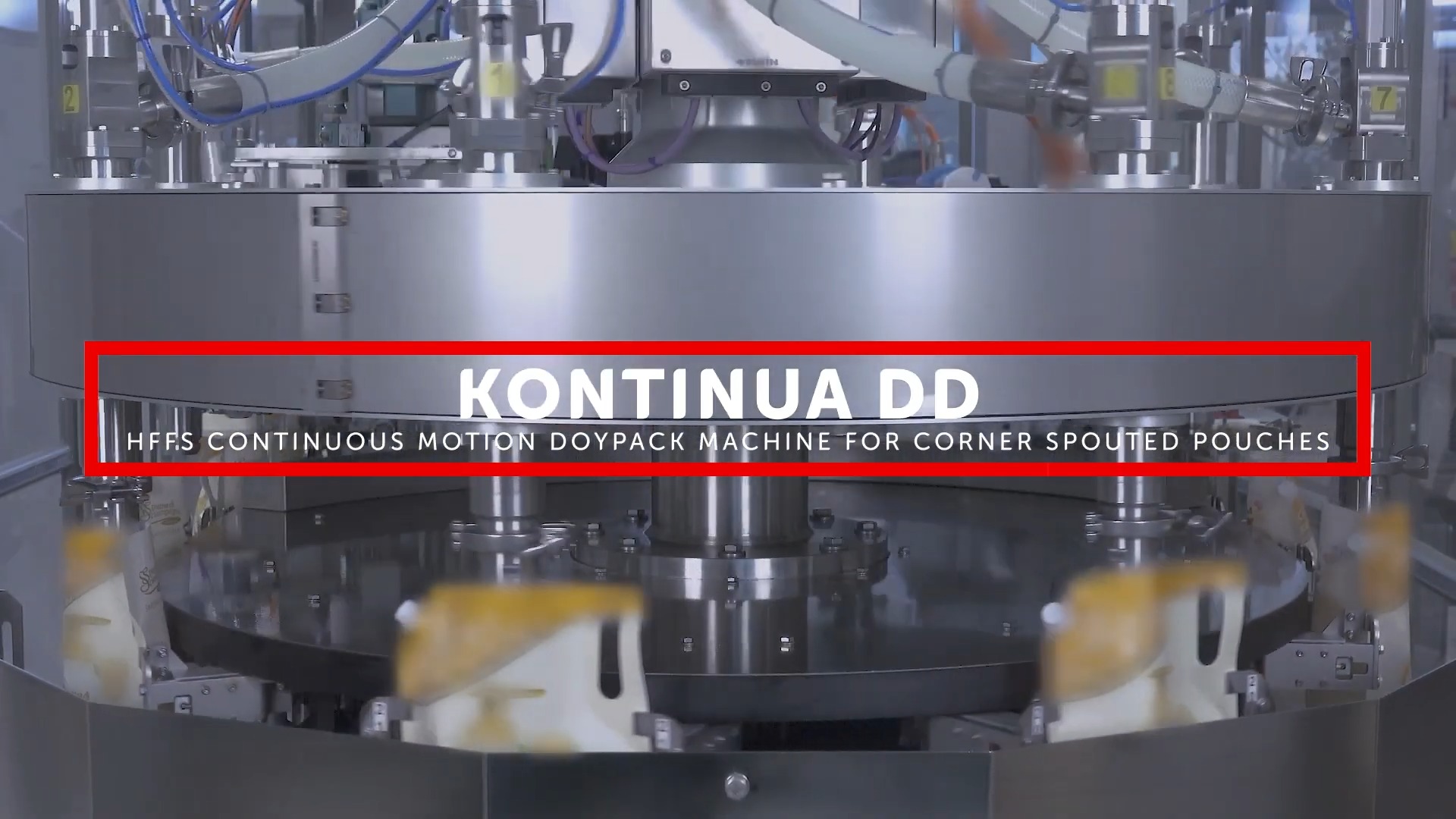

High-speed doypack machine.
Revolutionary new range of innovative high-speed pouch machinery with a unique dual-motion system composed of an intermitted module for pouch forming and application of fitments, combined with a continuous unit for product filling. This IMA Fillshape solution has been designed to form flat film roll stock into high-quality doypack bags, with fully integrated filling solutions for liquid products. Given its versatility, the KONTINUA machine is suitable for a wide number of bag dimensions and filling volumes, as well as being able to equip the doy pouches with corner spout application, shaped round corners and a handle punch.
Production plant
IMA Fillshape
Machine highlights
-
Servo punch
Rotary servo punch.
-
Forming triangle
Servo controlled forming triangle.
-
Fin alignment
Dual motion to control the film tension and to actively keep the top fins aligned.
-
Pre-heater
Corner spout pre-heating system.
-
Extraction carousel
Pouch extraction carousel at machine outfeed.
Machine details
Technical information
| KONTINUA TECHNICAL DATA | |
| Noise level | no more than 80db |
| Maximum reel dimension | eØ 600mm – 23.622” |
| Reel core | iØ 76/152mm – 3”/6” |
| Electrical consumption | 400/480VAC – 50/60Hz |
| Pressure and air consumption | 6 bar – 750Nl/min + 600Nl/min |
| Minimum/Maximum pouch width | 120/135mm – 4.724”/9.251” |
| Minimum/Maximum pouch height | 90/330mm – 7.480”/12.992” |
| Minimum/Maximum pouch gusset height | 15/60mm – 0.59”/2.362” |
| Target output – up to 1000 ml | 100 ppm |
| Target output – up to 2.5 lt | 50 ppm |
| Filling stations | 8 |
