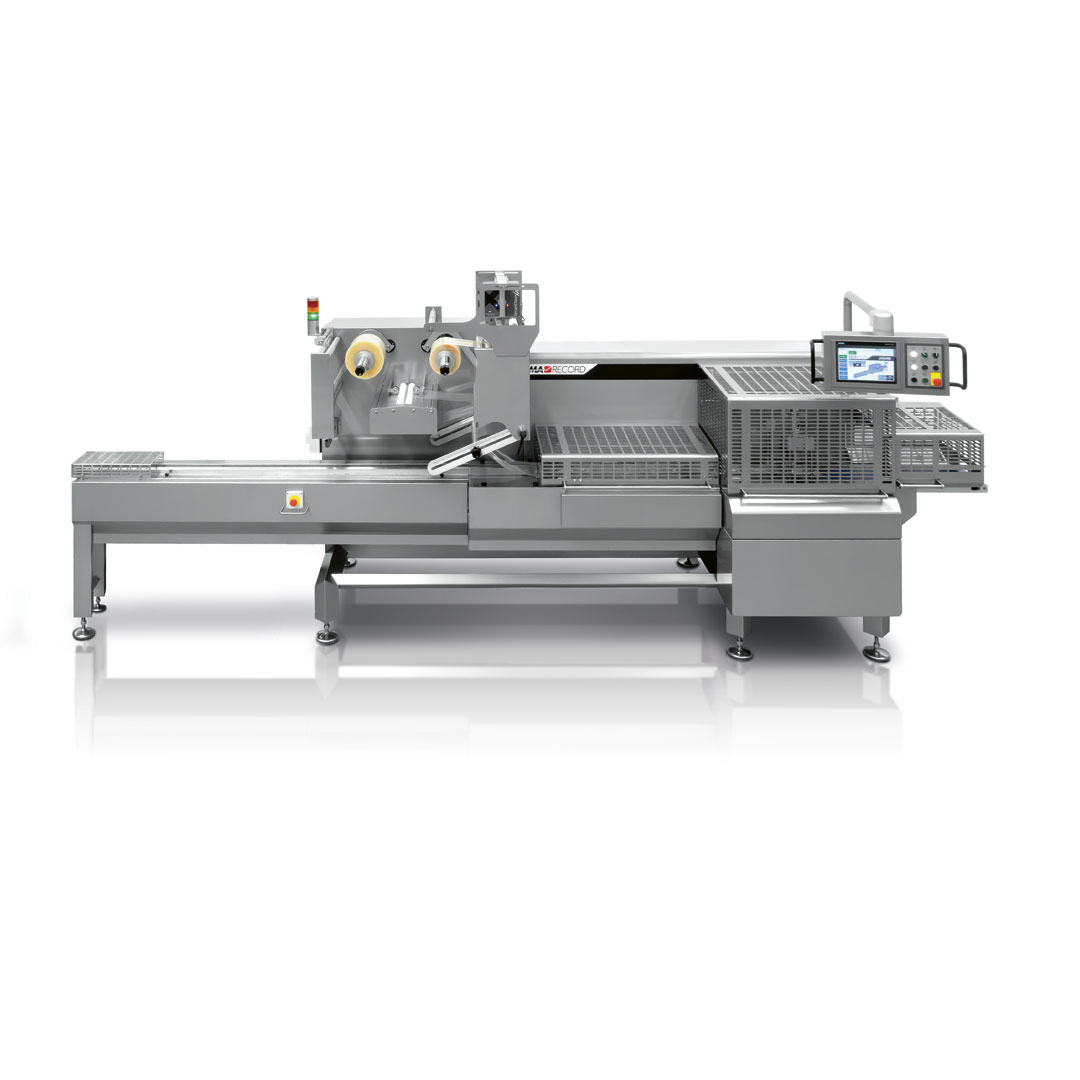

JAGUAR RS Horizontal Form, Fill and Seal

Machine overview

High‑speed and reliable flowpack machine for automated production lines.

JAGUAR is the flagship flowpack machine in the IMA Record range, designed to deliver high performance and seamless integration into high‑speed automated production lines.
100% Made in Italy, it combines speed, efficiency and robustness, reaching outputs of up to 360 ppm while handling a wide variety of small to medium‑sized food and non‑food products.
Its key strengths — high speed, reliability, hygienic design and easy maintenance — make JAGUAR the ideal solution for ensuring consistent performance and maximum operational efficiency.
Every detail has been engineered for perfect compatibility with IMA Record’s automatic feeding systems, enabling smooth integration within a complete processing flow.
The JAGUAR BS RS can be equipped with a full set of optional devices to meet the most demanding customisation and performance requirements.

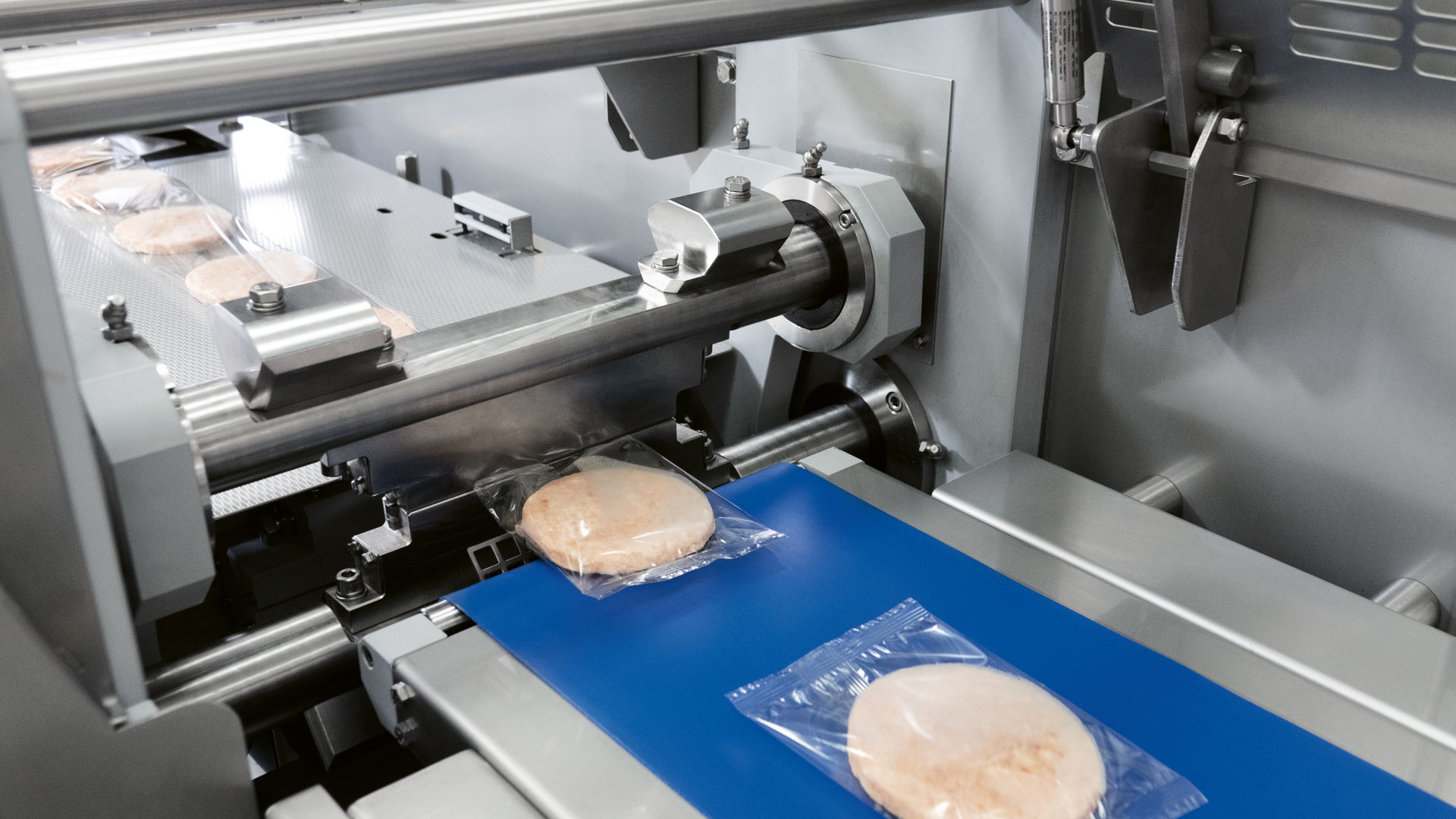

The JAGUAR BS RS with rotating sealing jaws (single or double), is designed for high‑speed applications using simple wrapping materials, including heat‑shrinkable films. This sealing technology ensures product protection and an aesthetically appealing final pack.

Production plant

IMA Record

Machine highlights

  1. High‑speed performance

    Achieves outputs of up to 360 packs per minute, ideal for high‑productivity environments.

  2. Seamless integration into automated lines

    Fully compatible with IMA Record feeding systems for grouping, stacking and aligning products.

  3. Hygienic and robust design

    Engineered for easy cleaning and maintenance, ensuring long‑term reliability.

  4. Double reel set-up with automatic splicer

    Standard double‑reel set-up with automatic film splicer for uninterrupted production.

  5. Operator‑friendly interface

    Control panel fitted on a swivel arm for optimal accessibility and ergonomics.

  6. Advanced film handling

    Includes driven film unwind roller with load cell, second pair of heated rollers and double drive for longitudinal rollers.

Technical information

JAGUAR BS RS
Machine speed (ppm max.)360
Product width (mm max.)750
Product depth (mm max.)140
Product height (mm max.)100
Film width (mm max.)430 (730)
Cut-off length (mm max.)300 (850)
Jaws width (mm max.)170 (250)
Film linear speed (m/min.)60
