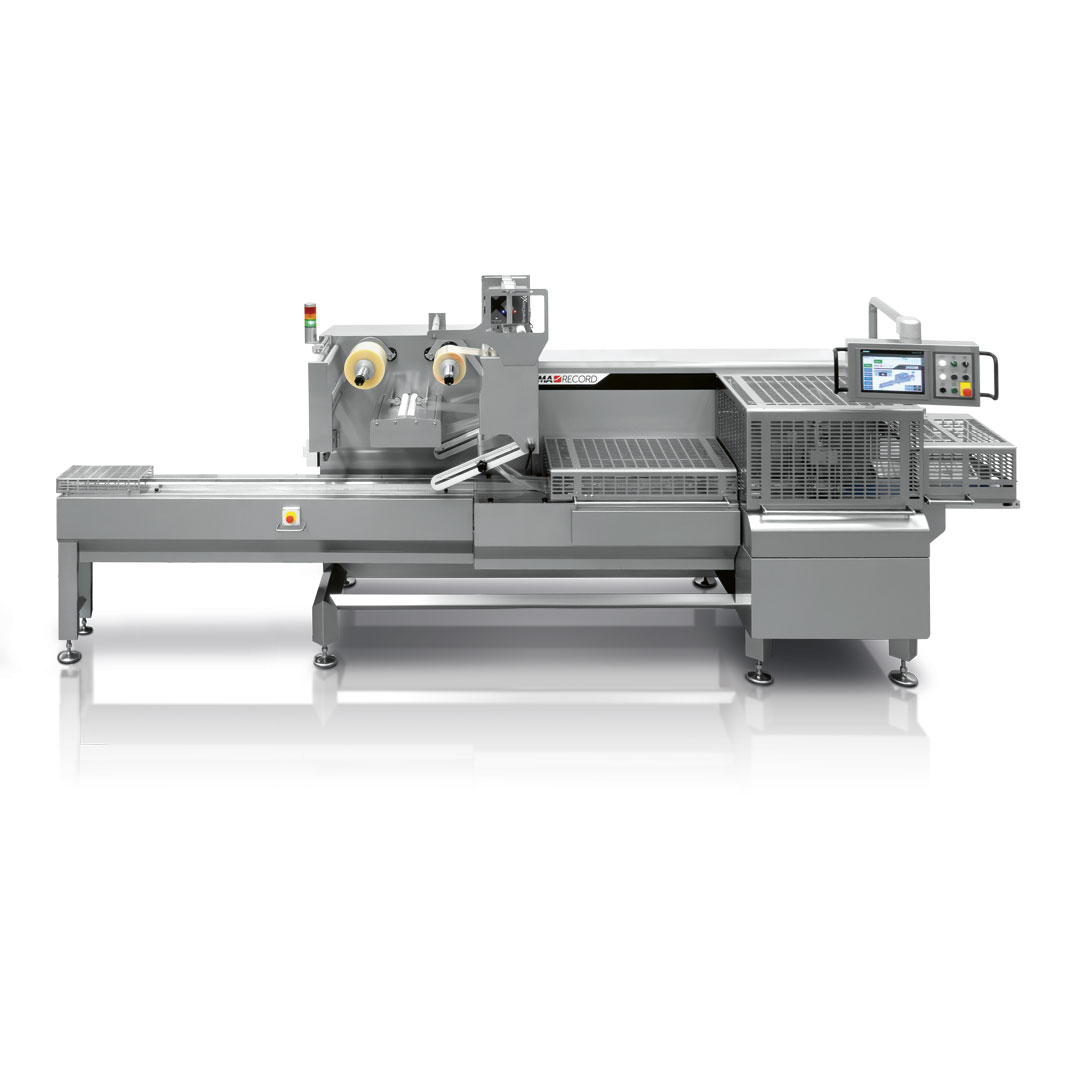

JAGUAR LS Horizontal Form Fill and Seal

Machine overview

High‑speed and reliable flowpack machine for fresh products

The Jaguar BS LS is a high‑performance flowpack machine designed by IMA Record for the packaging of fresh produce and a wide range of food products. Equipped with a Long‑Dwell sealing head, it ensures hermetic seals even when using complex multilayer materials and barrier films, guaranteeing product protection and extended shelf life.
Reaching speeds of up to 130 ppm, the Jaguar BS LS stands out for its reliability, robustness, and full compatibility with automated feeding systems, making it perfectly suited for high‑efficiency production lines. The machine is also available with MAP (Modified Atmosphere Packaging), providing advanced packaging capabilities for products requiring controlled atmosphere conditions.

Production plant

IMA Record

Machine highlights

  1. Hermetic sealing performance

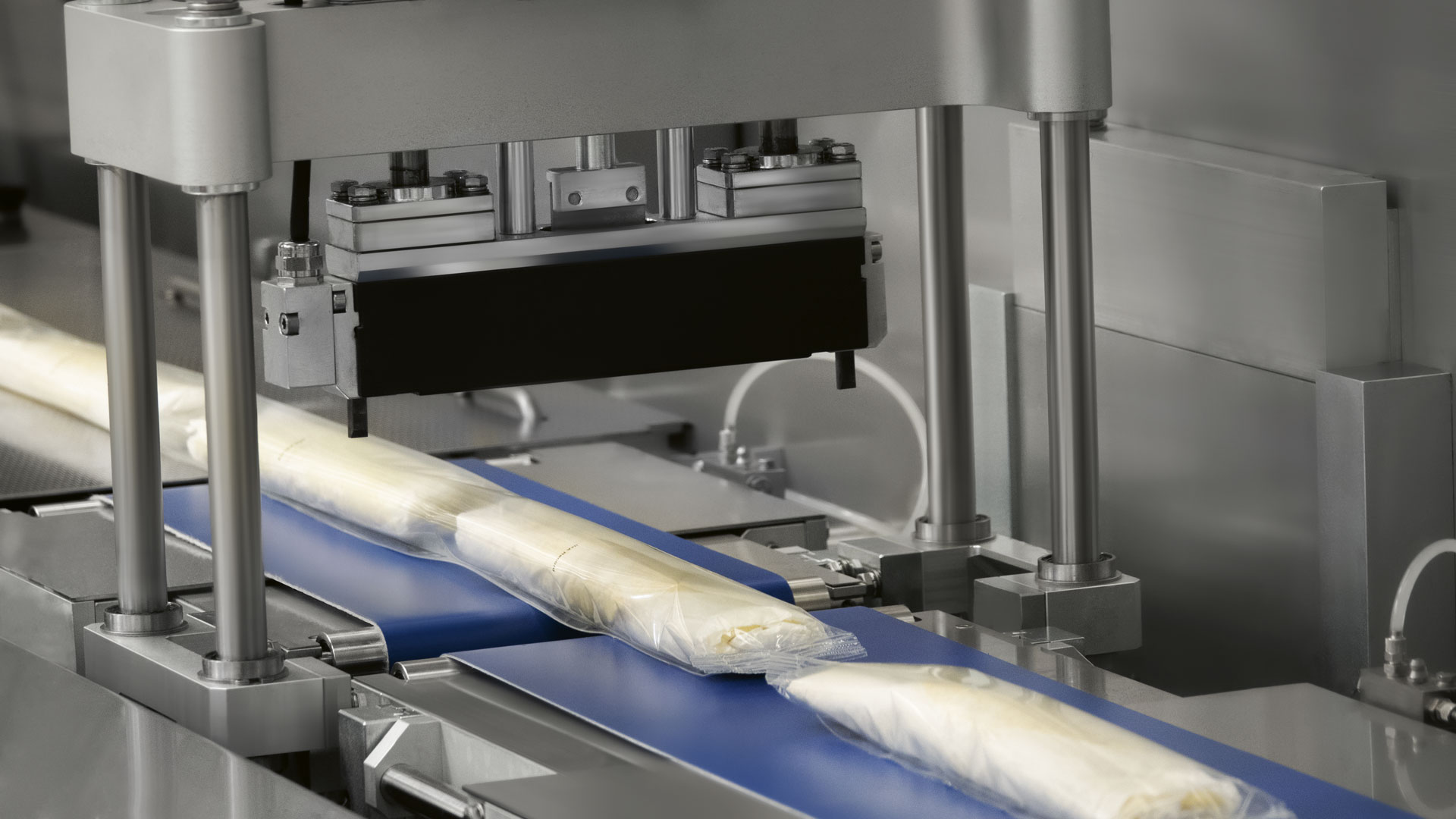

    The Long‑Dwell sealing head delivers secure and reliable seals, even with complex or high‑barrier films.

  2. Up to 130 packs per minute

    High‑speed operation designed to meet productivity demands in modern packaging lines.

  3. MAP configuration available

    Modified Atmosphere Packaging option for extended freshness and enhanced product protection.

  4. Seamless integration with automatic feeding systems

    Works effortlessly with IMA Record’s feeding solutions for grouping, stacking, and aligning products.

  5. Robust and reliable Italian engineering

    Built with high‑quality materials and designed for durability, easy maintenance, and long‑term performance.

  6. Hygienic and robust design

    Engineered for easy cleaning and maintenance, ensuring long‑term reliability.

  7. Double reel mounting with automatic splicer

    Standard double‑reel setup with automatic film splicer for uninterrupted production.

  8. Operator‑friendly interface

    Control panel mounted on a swivel arm for optimal accessibility and ergonomics.

  9. Advanced film handling

    Includes driven film unwind roller with load cell, second pair of heated rollers, and double drive for longitudinal rollers.

Technical information

JAGUAR BS LS
Machine speed (ppm max.)130
Product width (mm max.)750
Product depth (mm max.)140
Product height (mm max.)140
Film width (mm max.)430 – 730
Cut-off length (mm max.)
850
Jaws width (mm max.)170
Film linear speed (m/min.)
50
