Latest-generation side fold wrapping technologies
The side fold wrapping machine I Series is the latest development in wrapping technology for pressed soup cubes and tablets and it’s designed to offer extremely high efficiency and productivity.
This fully electronic state-of-the-art machines series stands out for flexibility in format changeover, compact footprint, plug-in design of the main groups and negligible operating costs.
The new HMI facilitates the human-machine communication, providing performance data, statistic report and remote machine assistance.

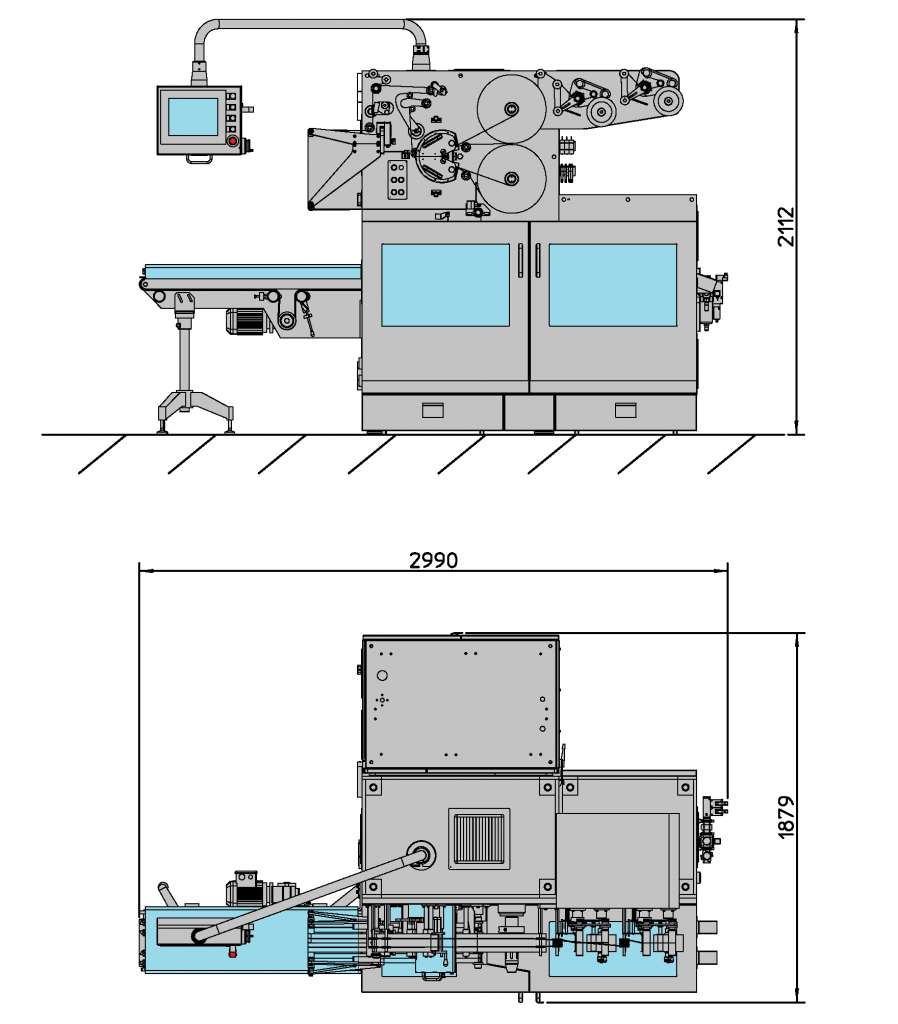

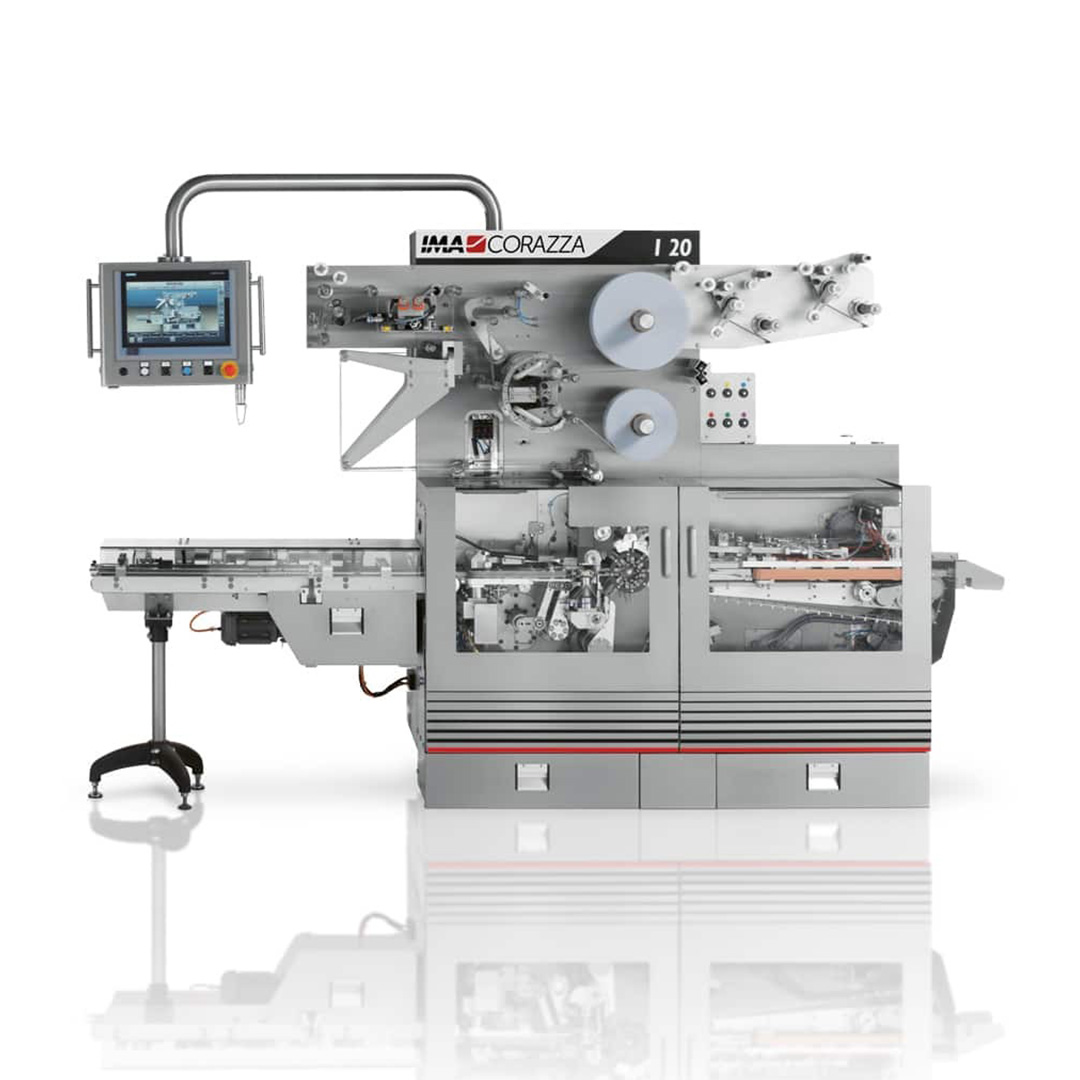

The I20, high-speed double-lane execution, is able to wrap up to 2.000 ppm.

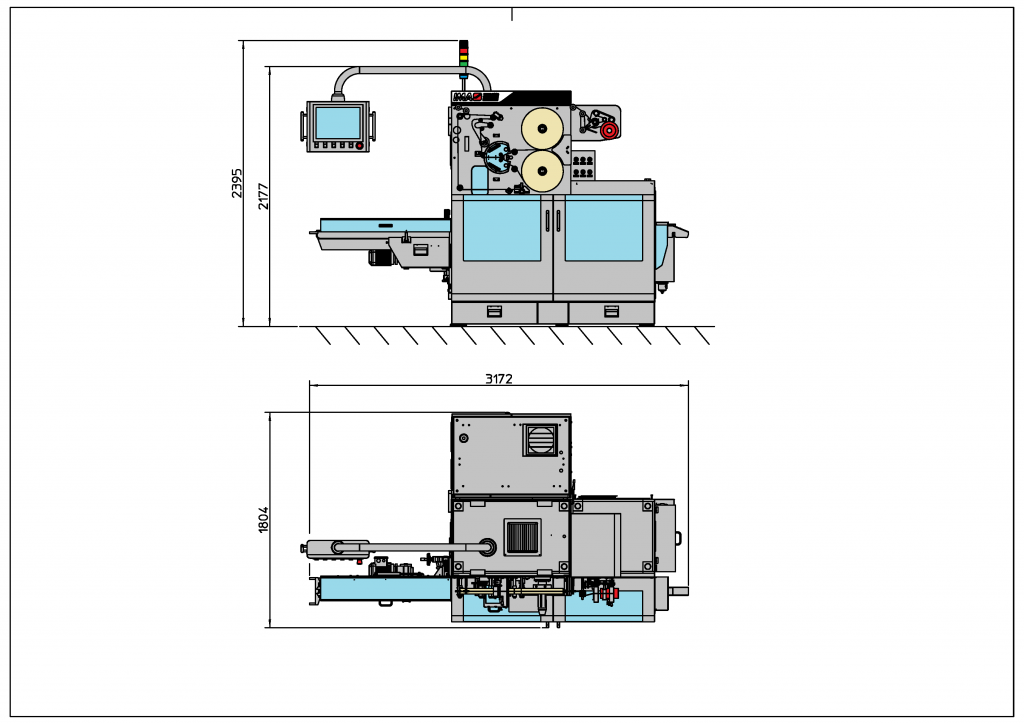

The I10, medium-speed single-lane execution, reaches up to 1.000 ppm.
Production plant
IMA Corazza
The I series is a versatile wrapping machine with double-lane design for enhanced productivity. It will handle pressed soup cubes as well as chocolate of milk-based products.

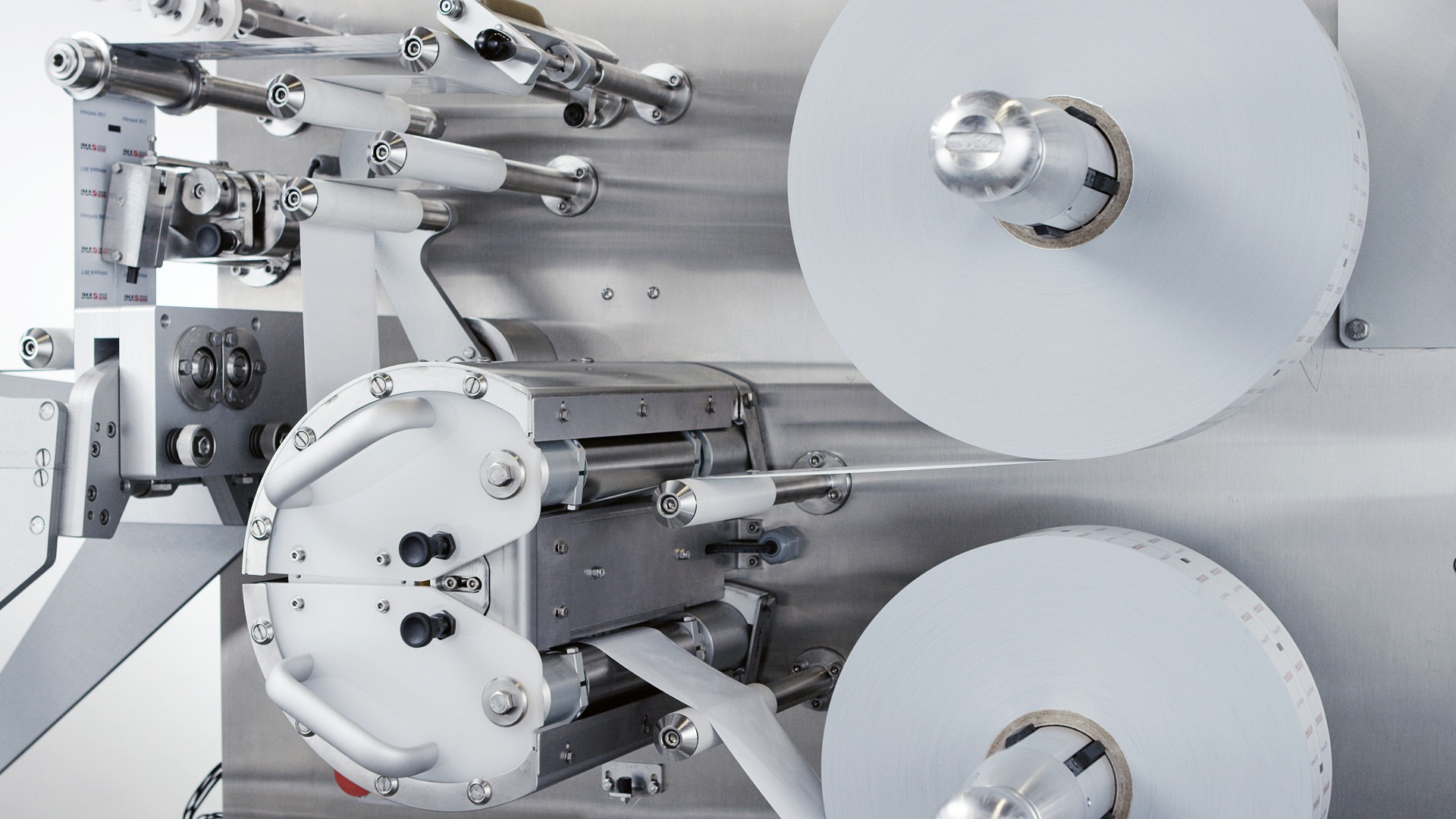

Product size changeover requires a mere 4 hours. An automatic splicing device further improves processing efficiency.
The machine’s exceptionally compact footprint is achieved through a new wrapping feeding system, while the design allows for easy opening and straightforward access.
Remote assistance functionality enables fast support, diagnostics, and troubleshooting, helping to minimize downtime and improve operational reliability.
| Machine model | I10 | I20 | ||||
| Production capacity | Up to 1,000 portions/min. | Up to 2,000 portions/min. | ||||
| Full load current | 3P x 400 Volt – 50 Hz – 10 Amp | 3P x 400 Volt – 50 Hz – 10 Amp | ||||
| Compressed air consumption | 400 Nl/min. (min. op. pressure 6 bar) | 400 Nl/min. (min. op. pressure 6 bar) | ||||
| Weight | 2,700 Kg approx. | 3,100 Kg approx. | ||||
| Shape | Tablet | Cube | Double Cube | Tablet | Cube | Double Cube |
Box dimensions
Other sizes available upon request. | A (min ÷ max) | |||||
| 13 ÷ 36 | 15 | 28 | 13 ÷ 36 | 15 | 28 | |
| B (min ÷ max) | ||||||
| 13 ÷ 24 | 15 | 14 | 13 ÷ 24 | 15 | 14 | |
| C (min ÷ max) | ||||||
| 8 ÷ 12 | 15 | 14 | 8 ÷ 12 | 15 | 14 | |
| Weight (min ÷ max) | ||||||
| 8g ÷ 12g | 4g ÷ 5g | 2 x 4g | 8g ÷ 12g | 4g ÷ 5g | 2 x 4g | |
