FTC570 Cartoning

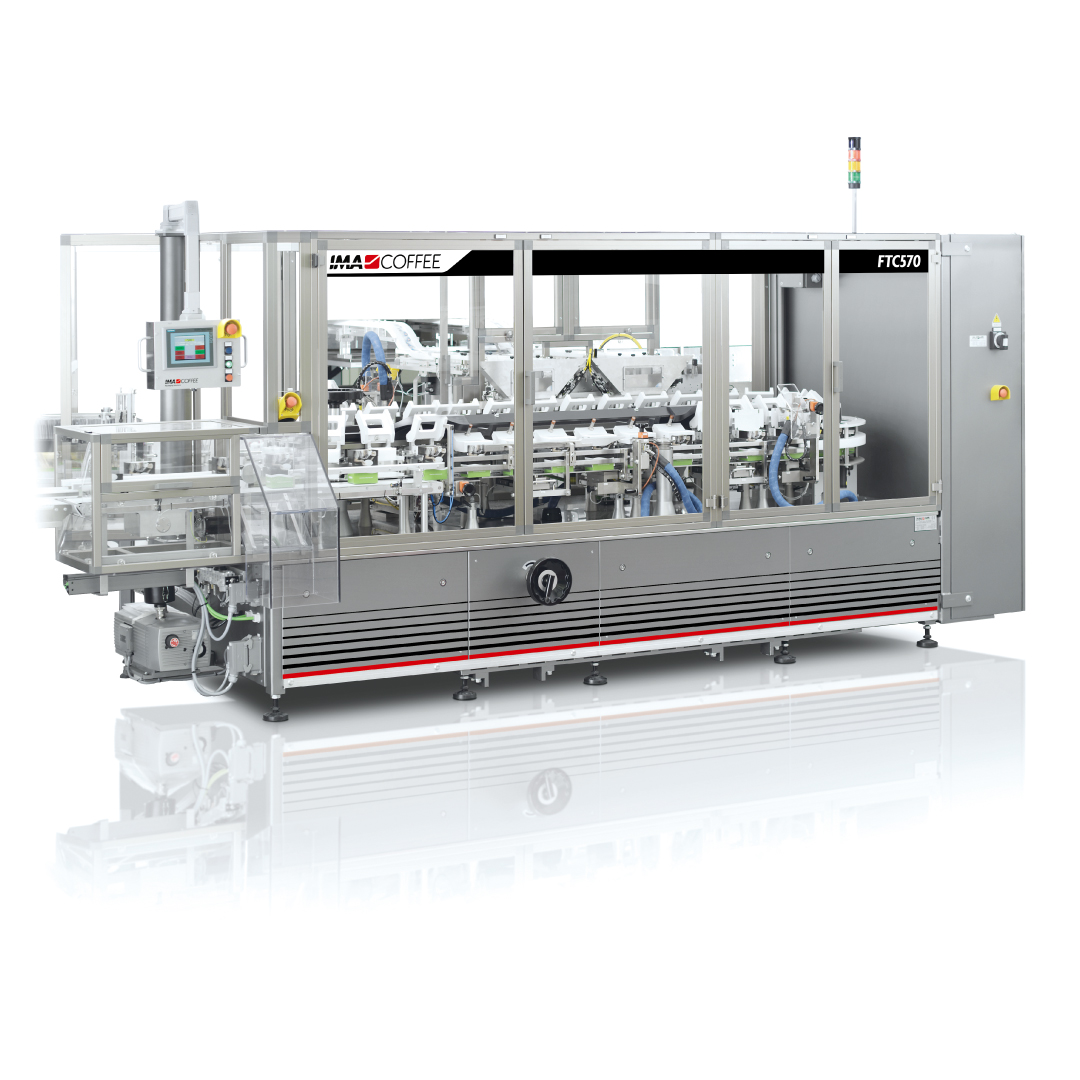

Machine overview

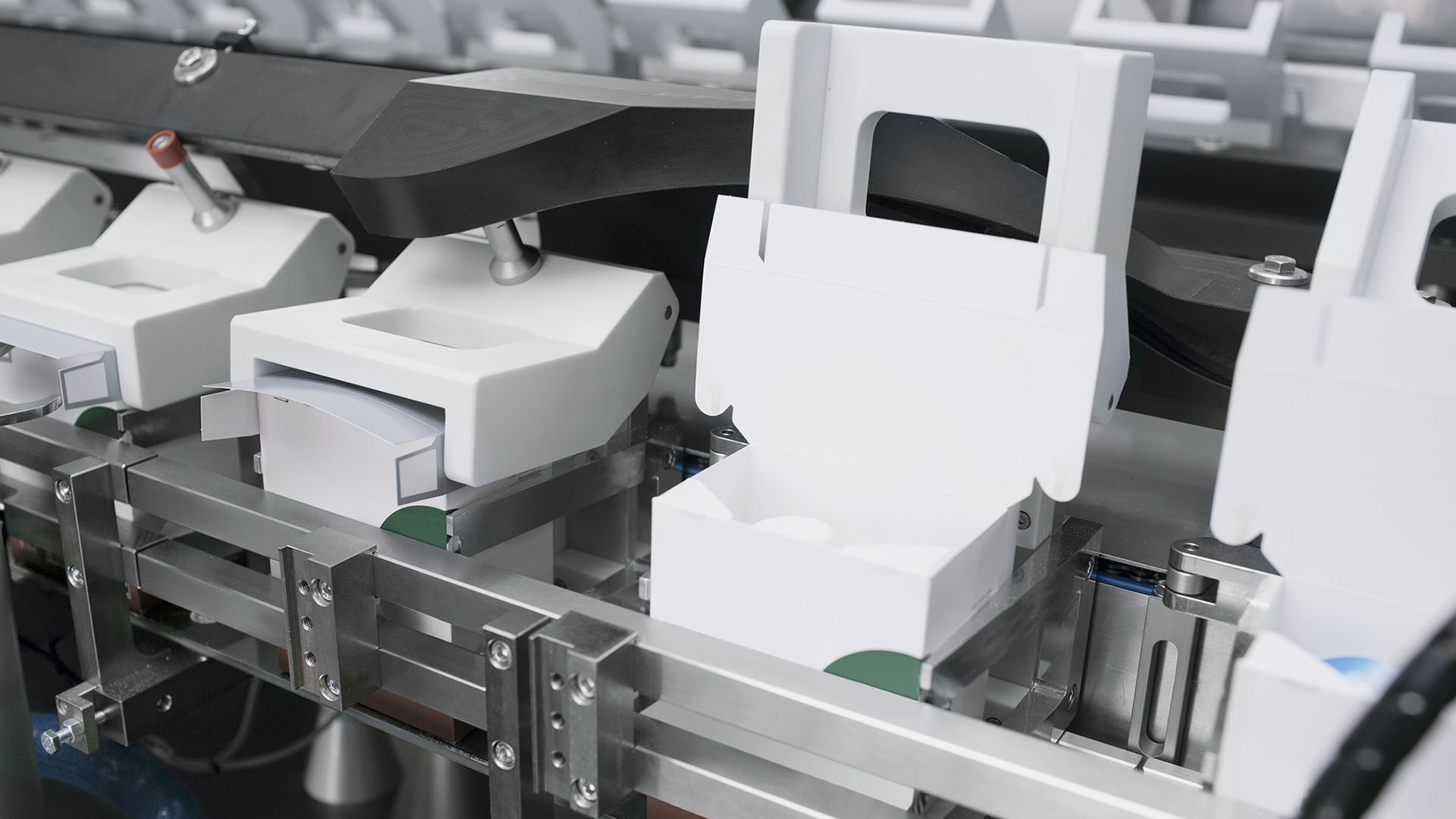

Continuous vertical cartoner for coffee capsules in bulk format.

Continuous vertical cartoner for big sizes, managing up to 200 ppm. Versatile and flexible, FTC570 can handle different capsule types. FTC570 is equipped with a glueing control system, data coding with Ink-Jet or Laser technology, rejection systems and different infeeding groups (slat counters, volumetric dosing units, multihead weighers).
Managing up to 840 capsules/min, this vertical cartoner is exceptionally versatile and requires minimal maintenance. When production needs to change fast, this is the ideal solution suited to different infeed groups.

Production plant

IMA Coffee

Machine highlights

  1. Versatile processing capability

    Accommodating different capsule sizes and a variety of carton pack shapes.

  2. Accurate filling and counting

    With capsules loaded into cartons via hoppers.

  3. Rotating
    drum with
    suction cups

    Enables precise carton pick-and-place into buckets.

  4. Advanced
    closure system

    Including flip-top upper closure, glueing control, and bottom closure glueing unit for consistent, secure packaging.

Machine details

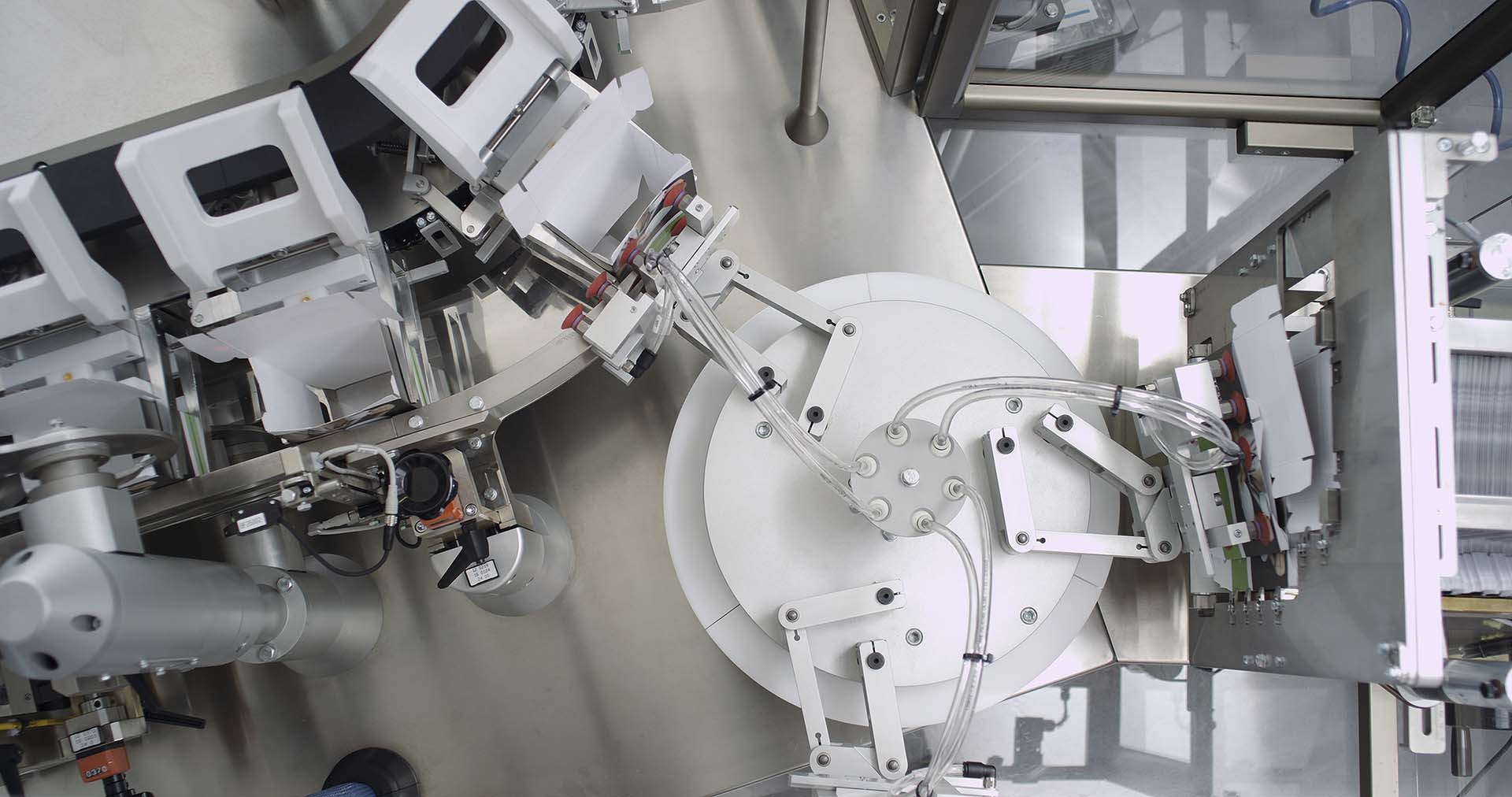

Carton rotating picking turret

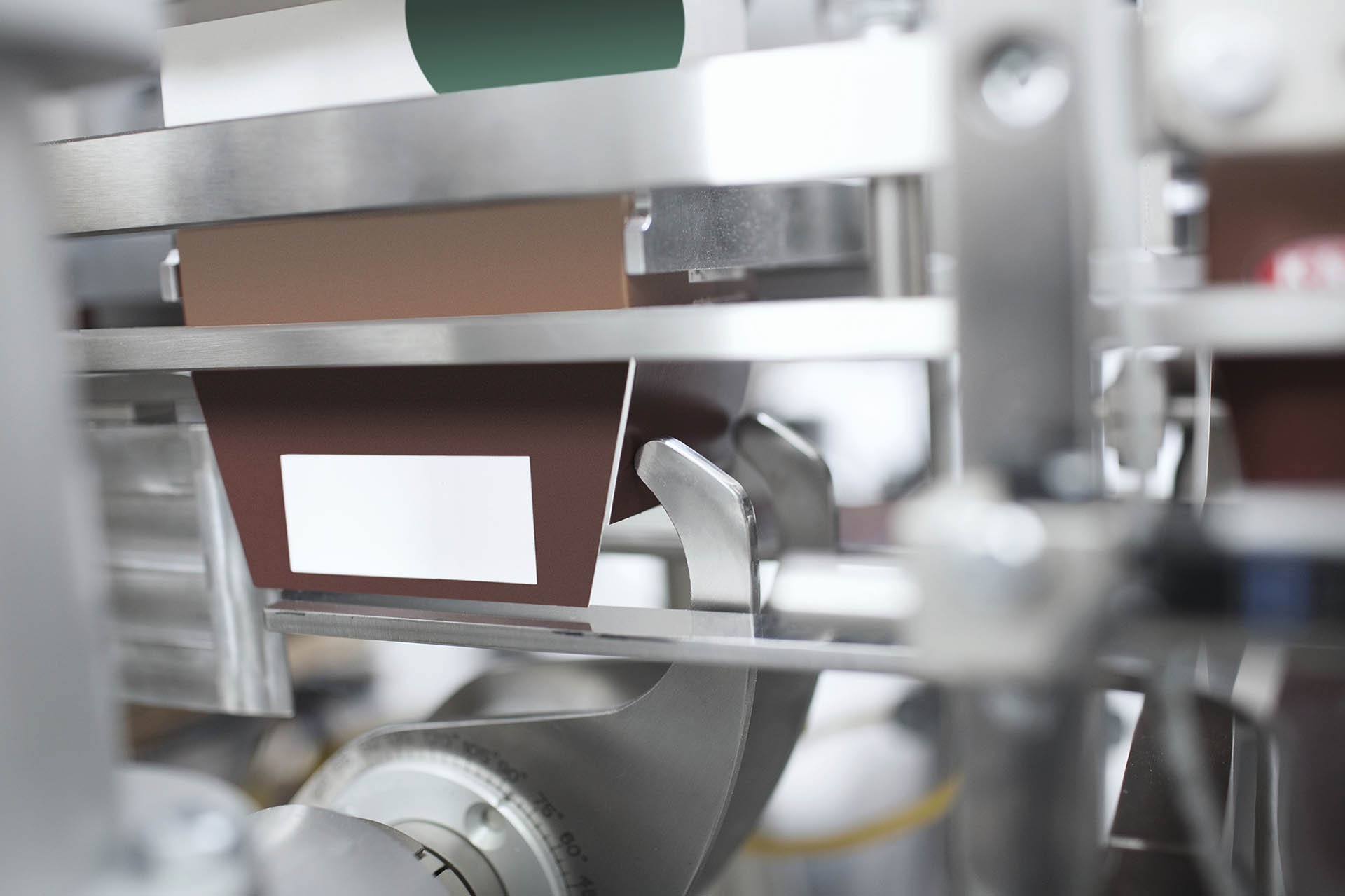

Bottom closure

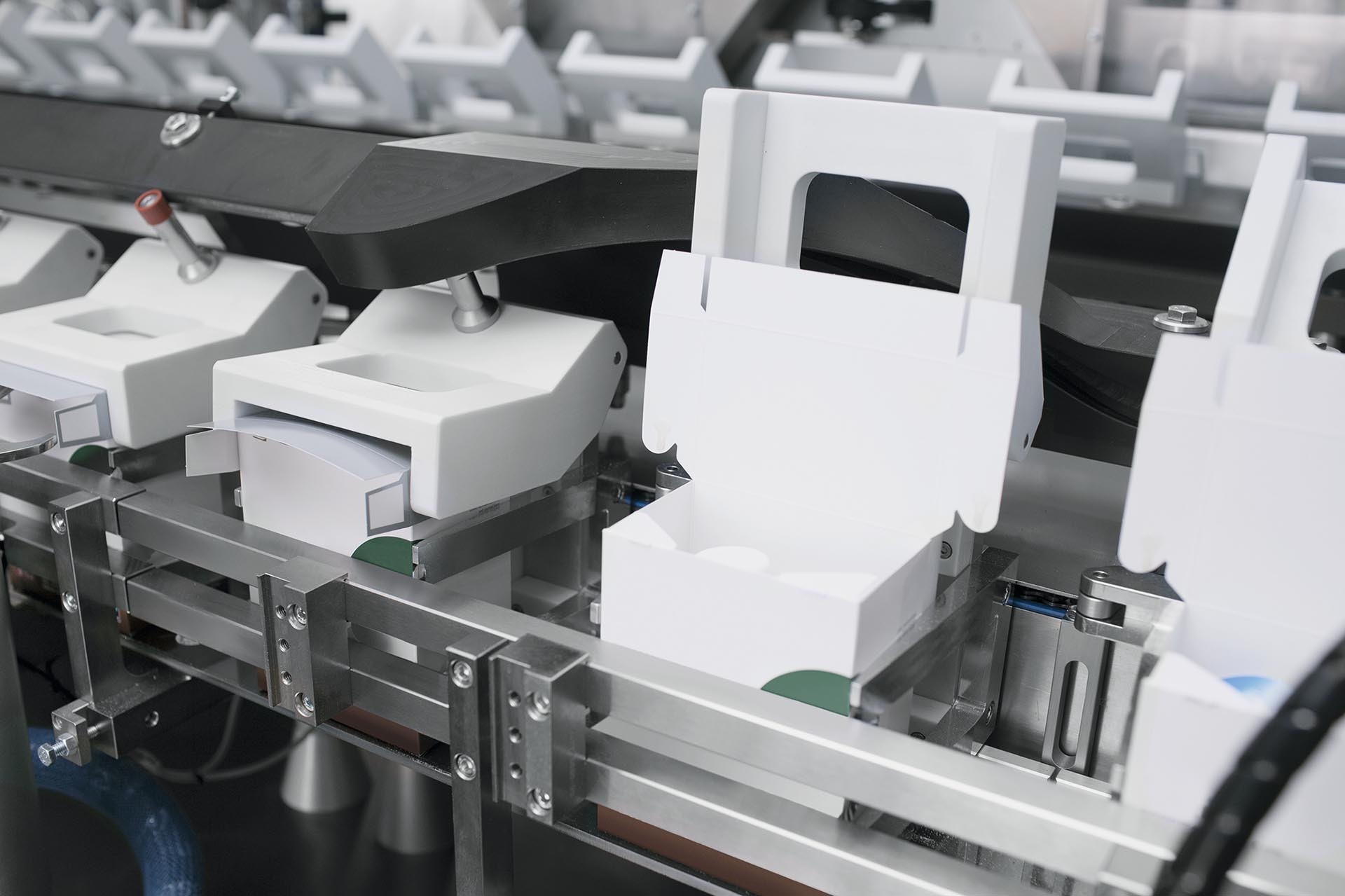

Top closure

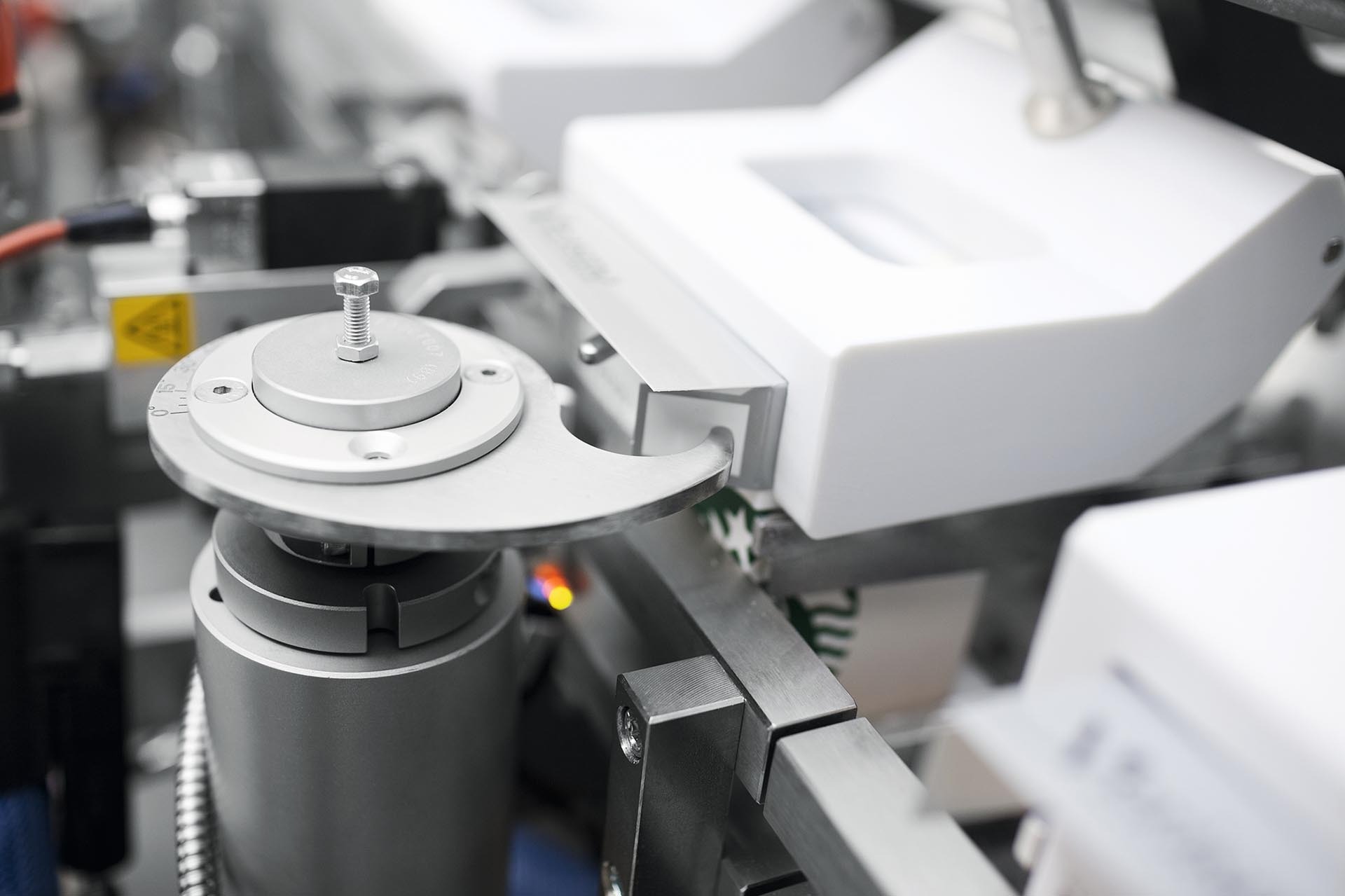

Side flap folding

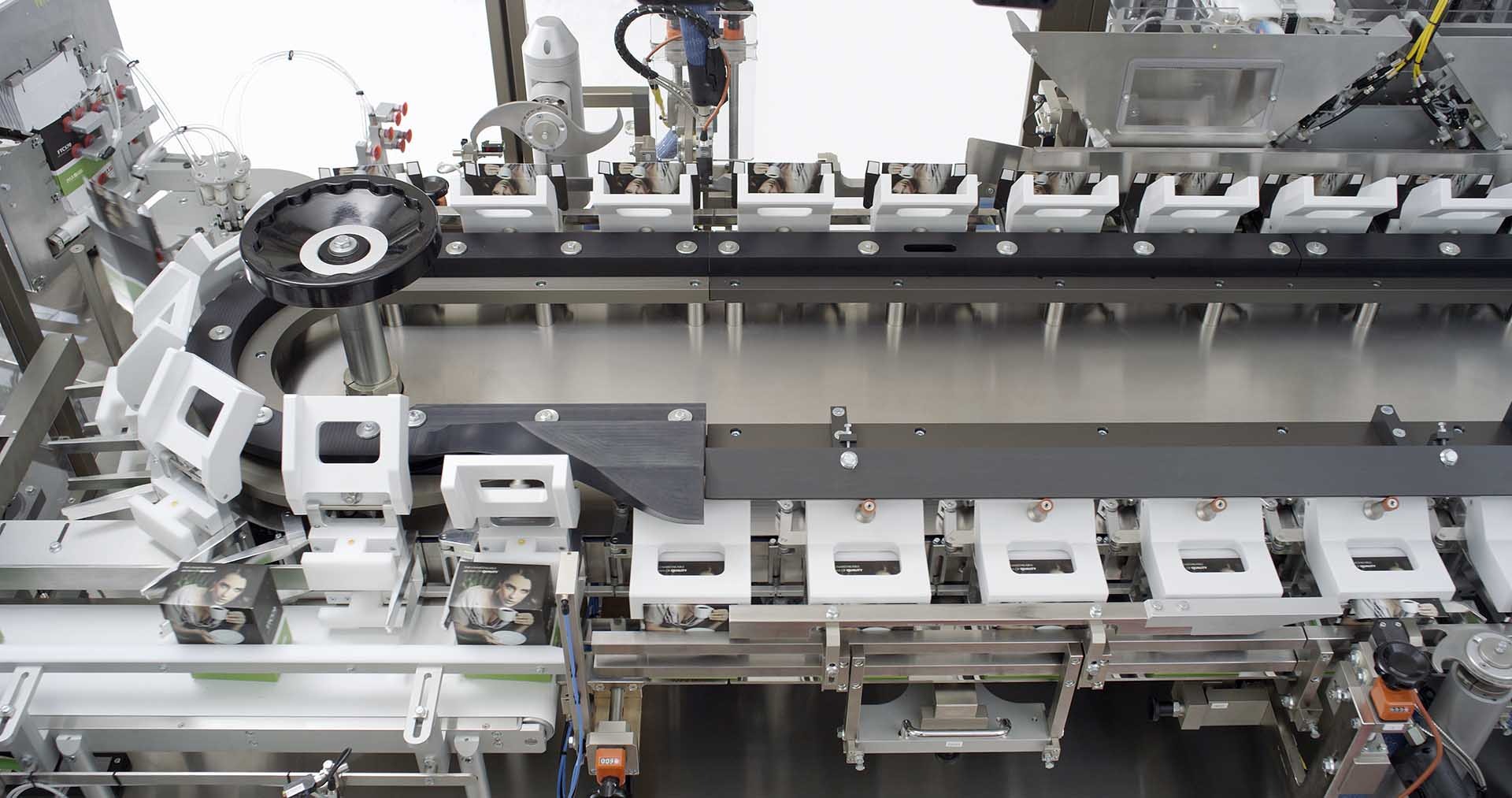

General overview

Technical information

TECHNICAL DATA FTC570
Production range  Min.Max.
A60110
B60110
C100200
D3555
E2550
ProductionUp to 200 ppm
Installed power14 kW
Operating pressure6 bar
Maximum air consumption350 Nl/min
Weight3,320 Kg
