FTC530 Cartoning

Machine overview

Wide format range and extreme flexibility in closure styles

An extremely versatile solution, the FTC530 machine is an horizontal cartoner that can process a huge variety of package styles, from a simple sleeve to multi-panel wallets and other customised packages covering the needs of Pharmaceutical, Nutraceutical, (Functional Food and Supplements), Gum & Candies, and Food.

The FTC530 is available in either intermittent or continuous motion versions according to the specific production requirement, adapting perfectly to customer needs.
IMA’s extensive experience in special projects has enabled us to adapt this machine to process completely different products: large dimensions, irregular shapes and delicate consistency are just a few examples.
According to the specific application and customer needs, the equipment can be designed to reach medium or high speeds.

Production plant

IMA Gima

Machine highlights

  1. Large capacity carton magazine

    Ensures long, uninterrupted production runs with fewer refills and increased overall efficiency.

  2. Highest finished product quality

    Delivers consistent, precise forming and closing for premium-quality cartons every time.

  3. Hygienic design

    Built with smooth surfaces and easy access to support strict hygiene and safety standards.

  4. Wide range of carton styles

    Handles multiple carton formats and shapes, offering major flexibility for diverse packaging needs.

  5. Versatile product handling

    Manages various product types and shapes smoothly, ensuring gentle, reliable processing.

  6. Complete accessibility and quick line clearance

    Full machine access designed to speed up inspection and changeovers for minimal downtime.

Machine details


Multi-panel wallet

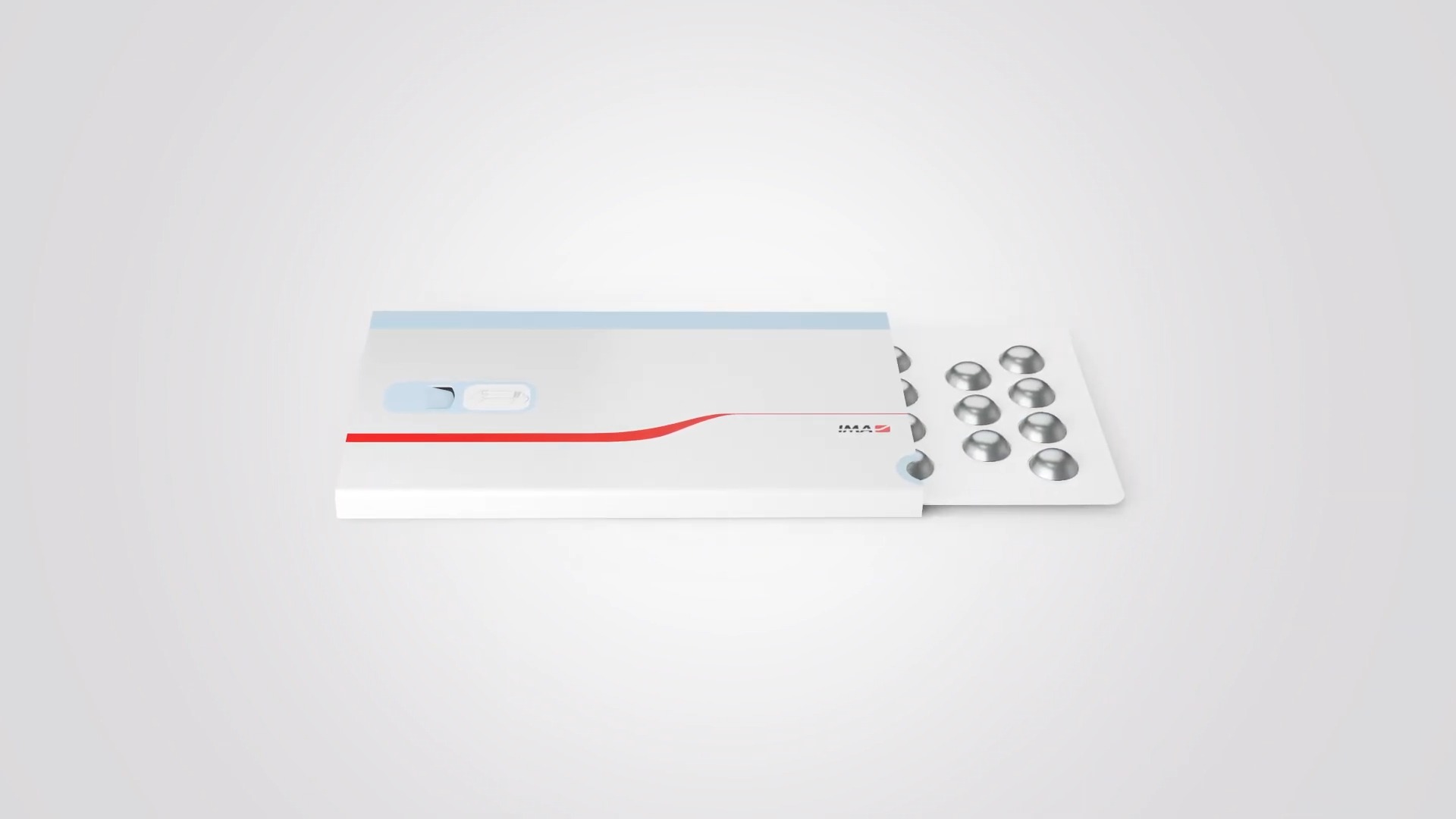

Dose pack wallet

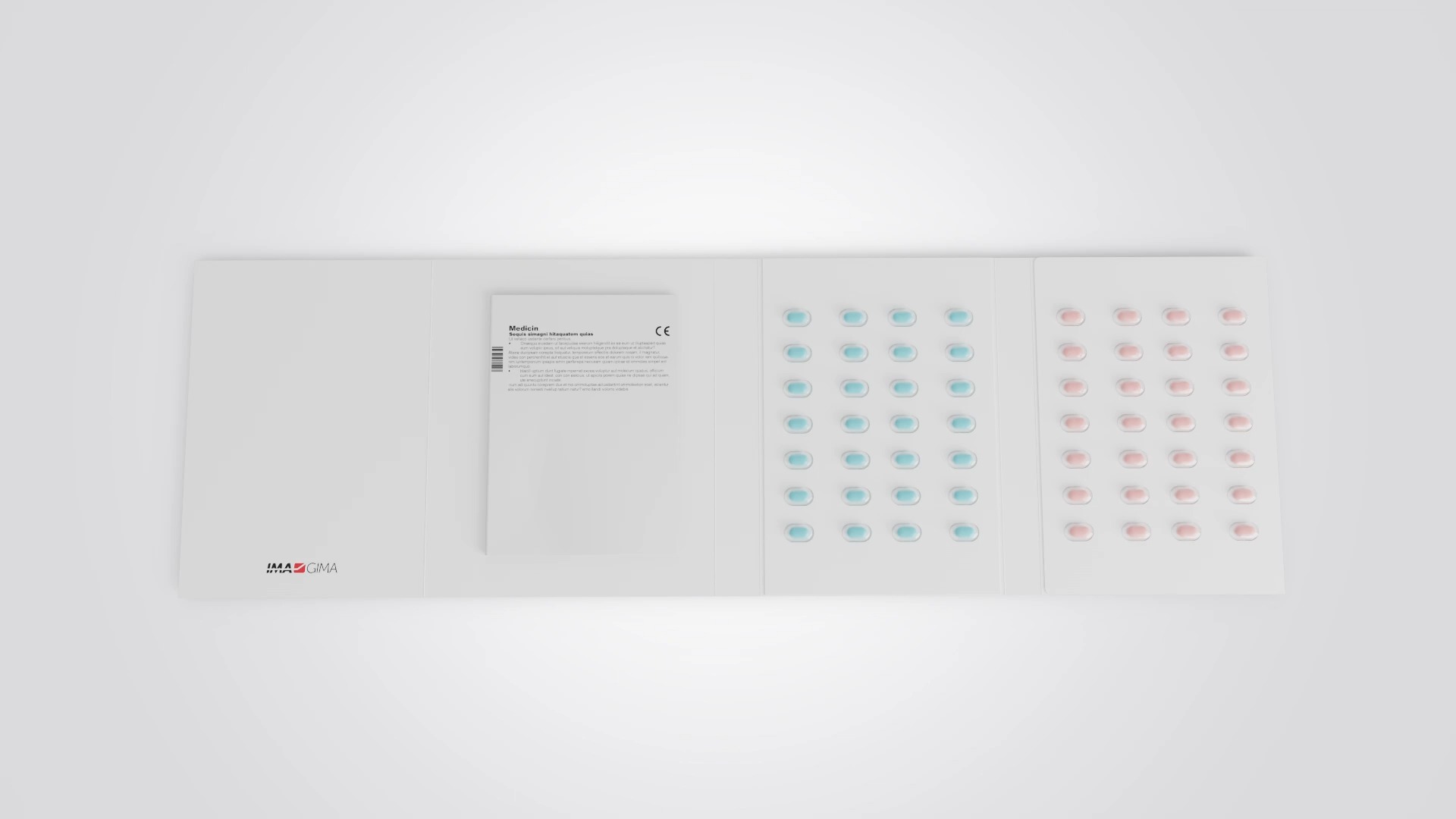

Multi panel wallets

Sleeves

Flat blank picking and positioning

Blank picking and glueing units

Folding unit

Product outfeed

Product outfeed

Technical information

FTC H SERIES TECHNICAL DATA
 WIDTH (W)HEIGHT (H)LENGTH (L)PRODUCTION SPEED
FTC530 Continous motion45 – 80 mm5 – 30 mm70 – 140 mmup to 400 crt/min
FTC530 Intermittent motion70 – 150 mm10 – 40 mm100 – 250 mmup to 60 crt/min

The dimensions are indicative. Size range can vary depending on the optional groups chosen and the machine layout.

SIZE FORMAT CHANGE OVER
In line with IMA’s philosophy, size change parts can easily be replaced ensuring ease of installation.
