FTC V Series Cartoning
Machine overview

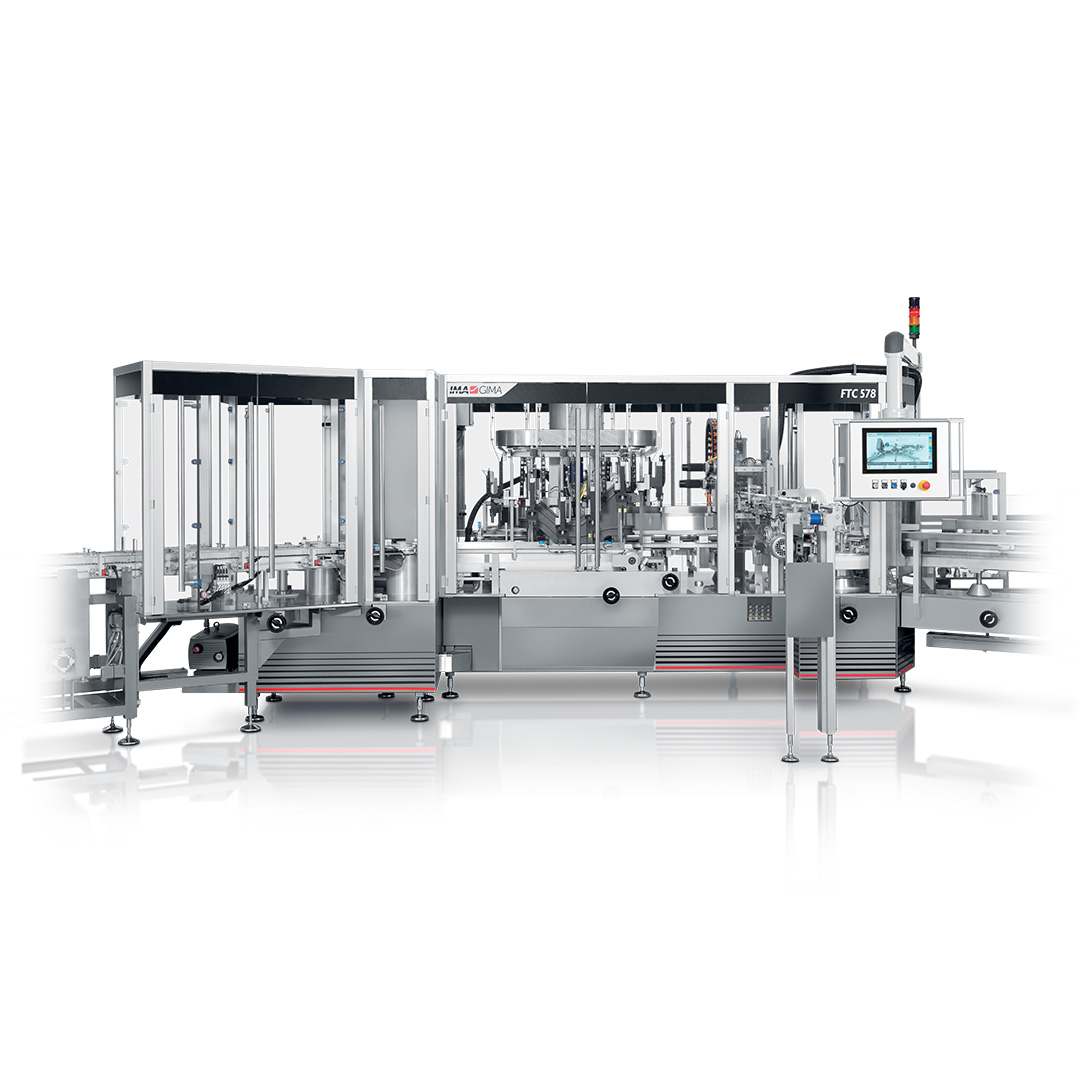

High-speed vertical cartoner with maximum modularity.
An ideal complement to high-speed filling equipment or buffering systems granting excellent line efficiency, the compact FTC578-C vertical cartoner is designed to enable significant machine configuration flexibility.
Capable of receiving products with or without pucks and handling up to 300 ppm, the FTC578-C is designed for modular configuration as well as high-speed operation.

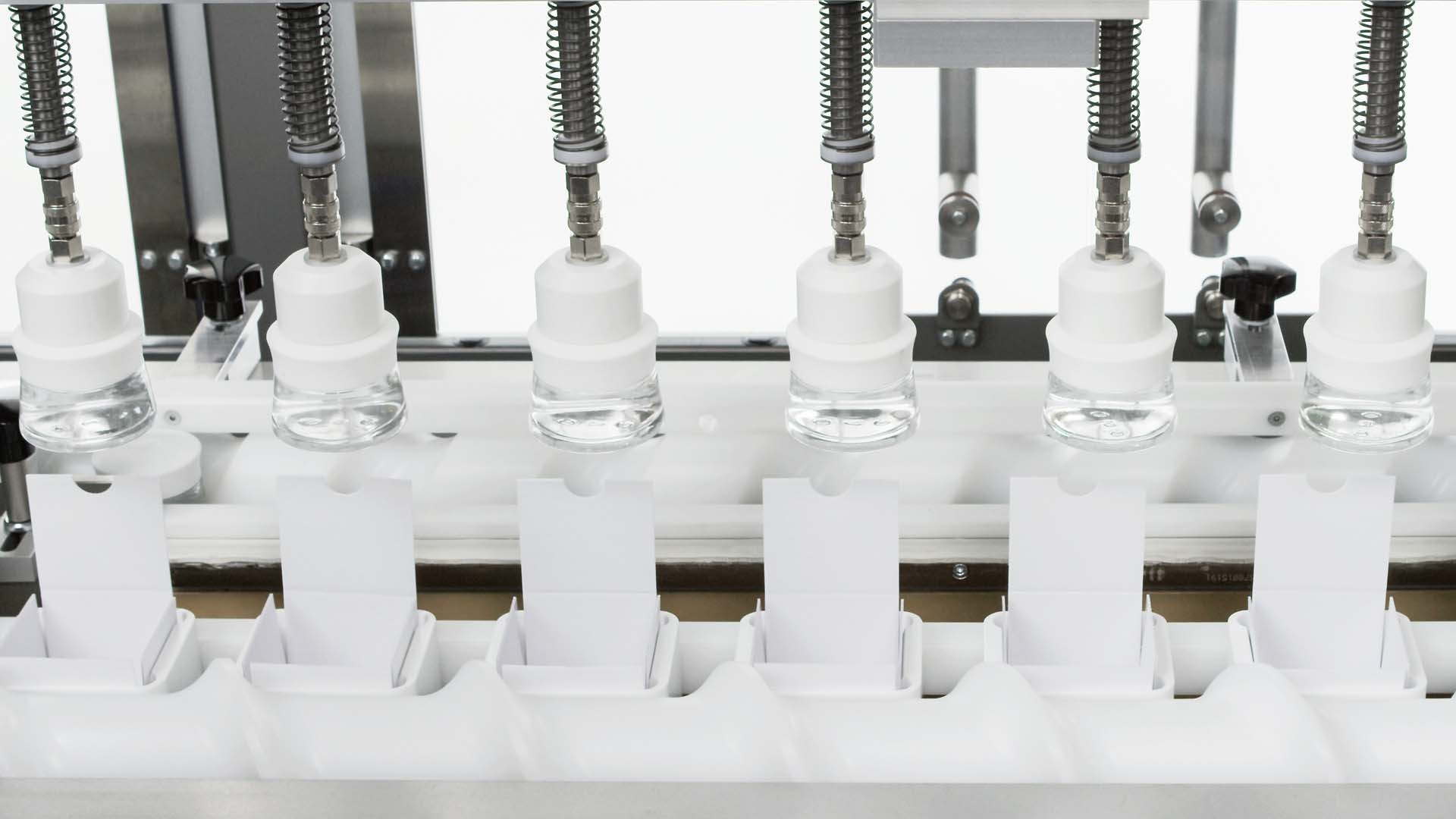

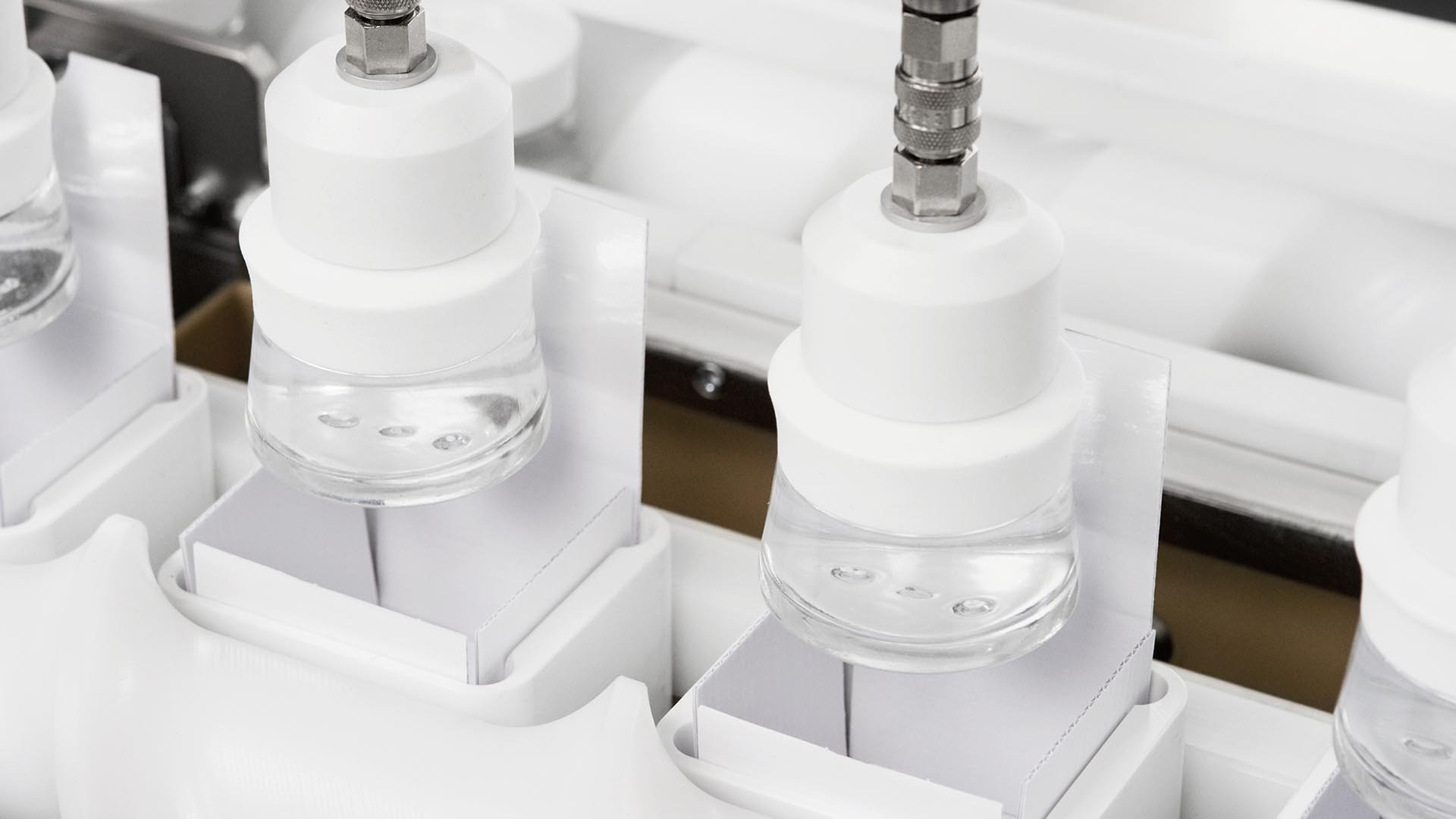

FTC578-C is able to package products such as Vials – in standard or partitioned cartons – Cream jars, Lotion bottles and Perfumes, having regular and irregular shapes. This modular machine can integrate multiple feeders for liners, booklets and any other accessory.
Thanks to its fully accessible design, implementation of additional feeding systems, printers and quality control units is simple. Main functions are servomotor-driven and allow for very short changeover times by means of PC panel recipes.
Data collection software, troubleshooting, a maintenance program and remote assistance are all available via the PC panel for operators and supervisors. According to product behaviour or functionality needs, the FTC578-C can run with continuous or intermittent motion.
Production plant
IMA Gima
Machine highlights
-
Ergonomic high‑capacity carton magazine

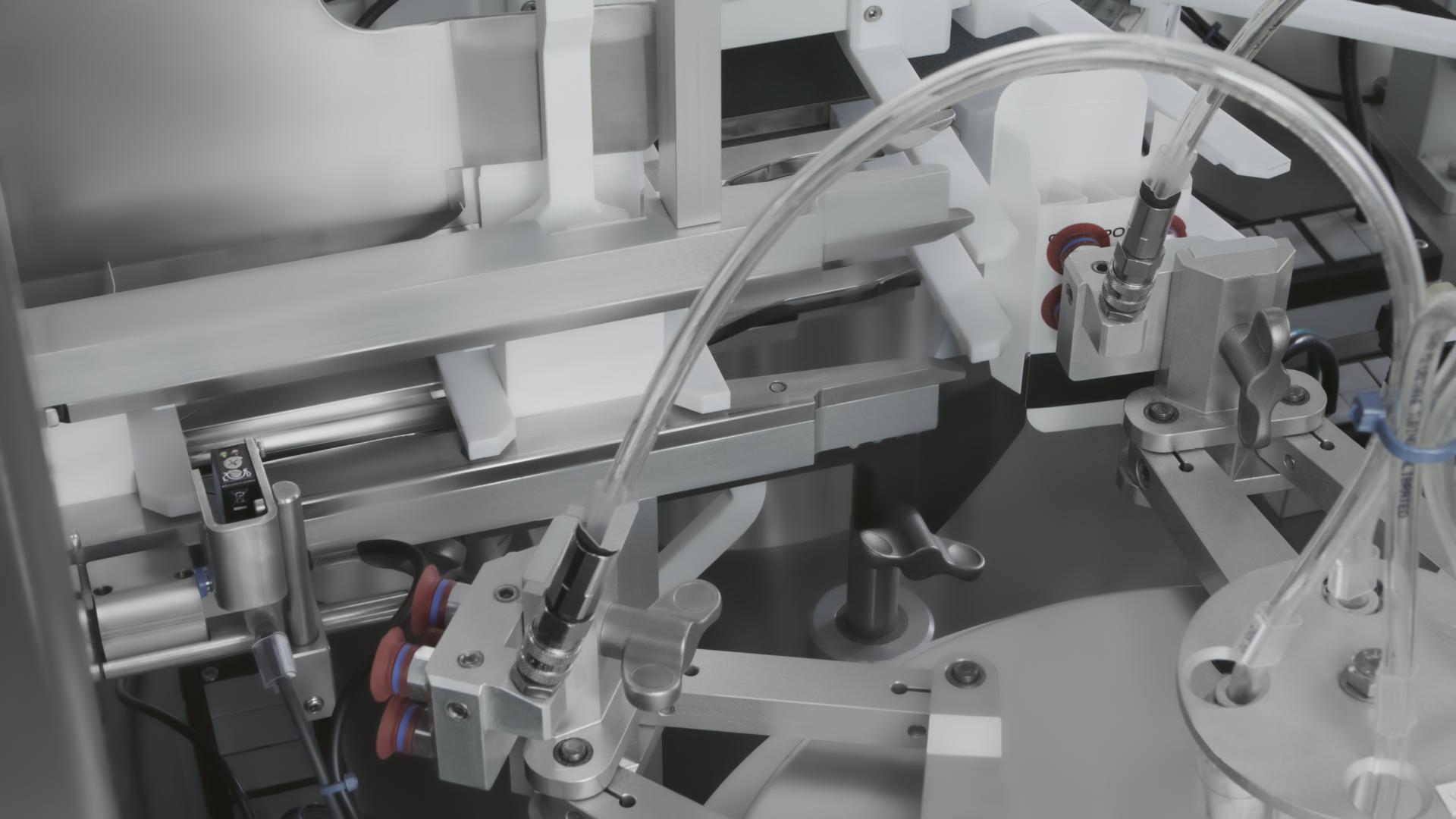

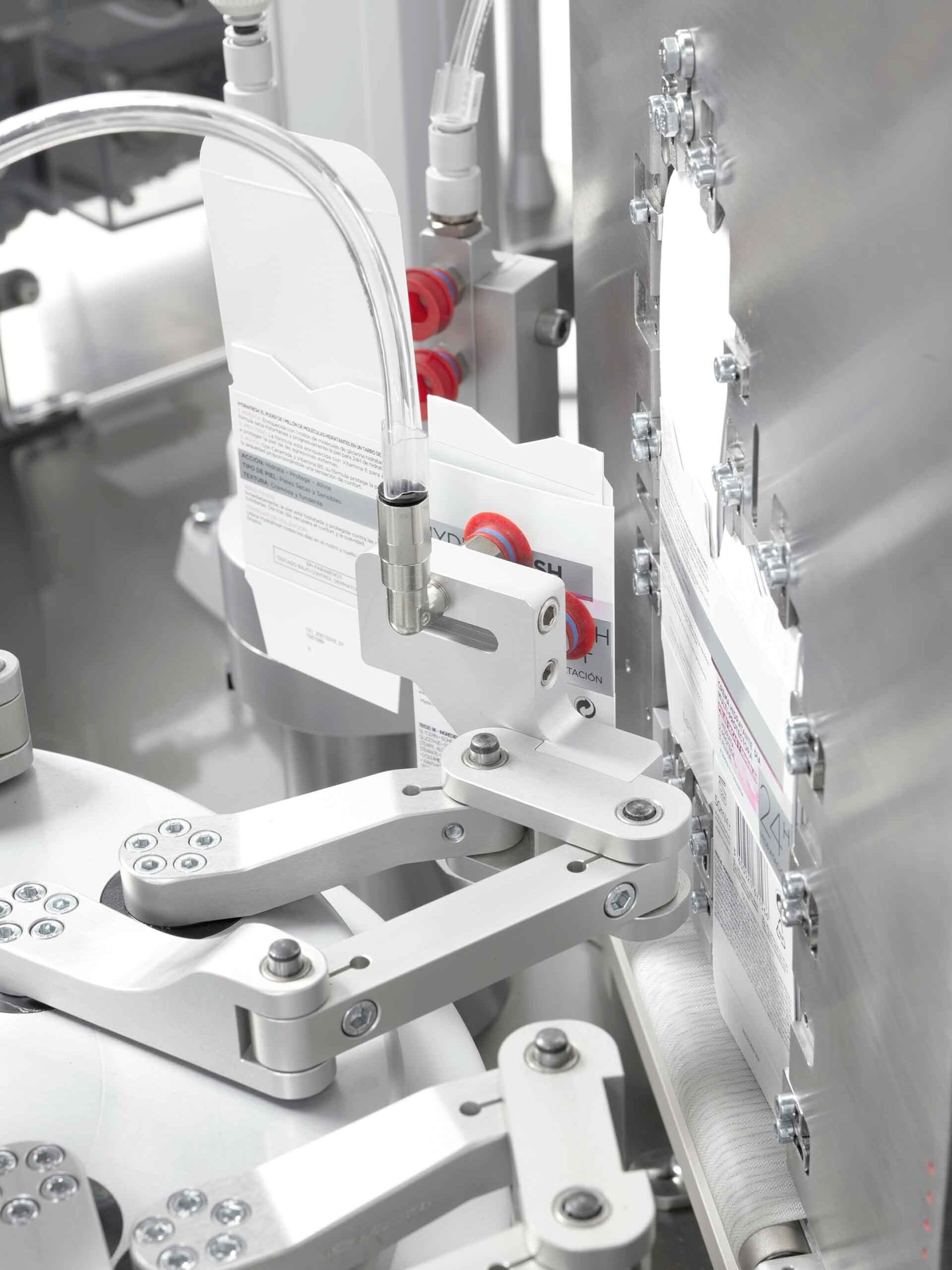

Ergonomically located, high-capacity carton magazine with operator-friendly function.
-
Versatile product handling

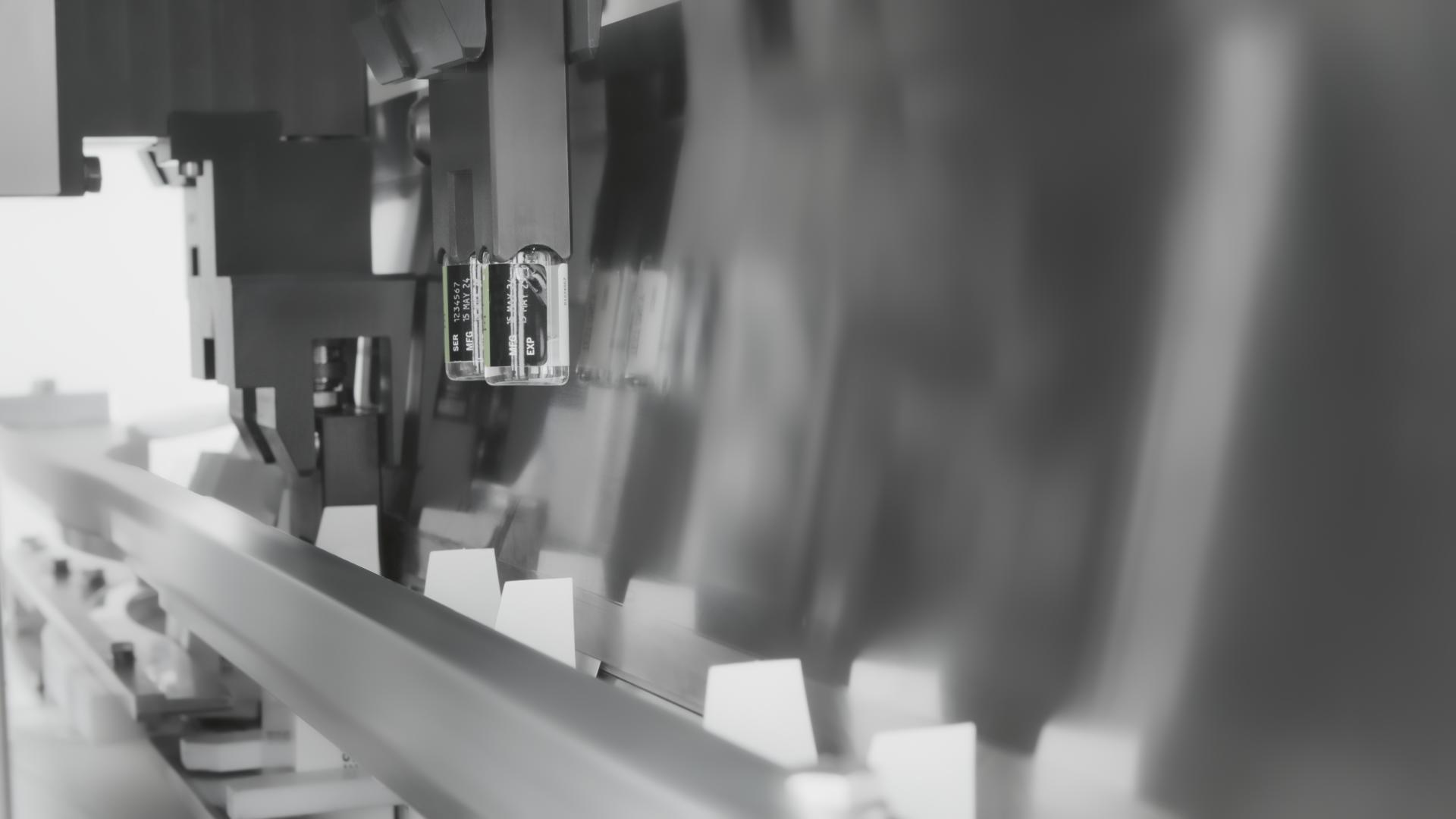

Product handling with or without pucks; feeding by pick and place or robotic system.
-
Ideal for pharmaceutical vial packaging

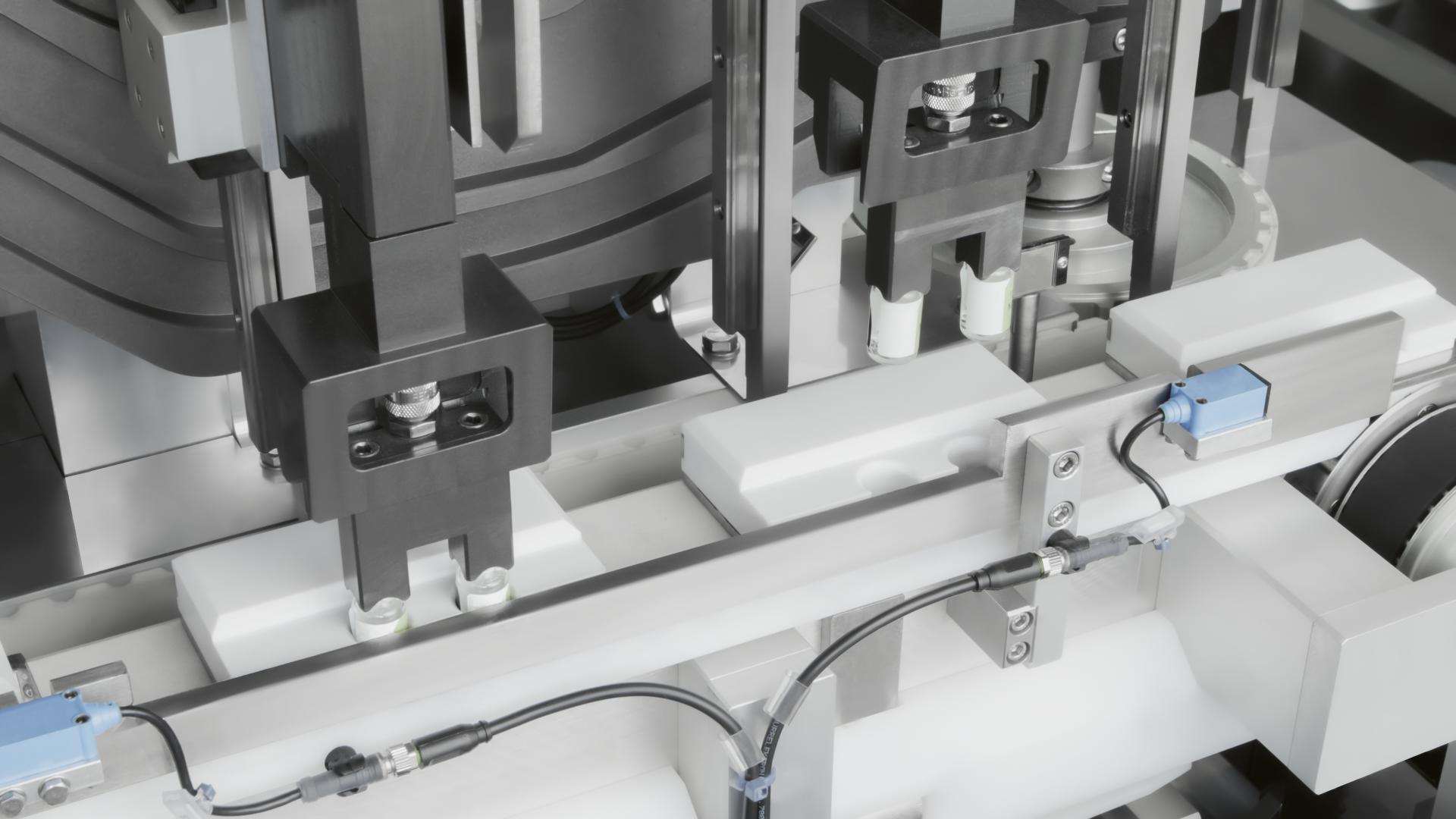

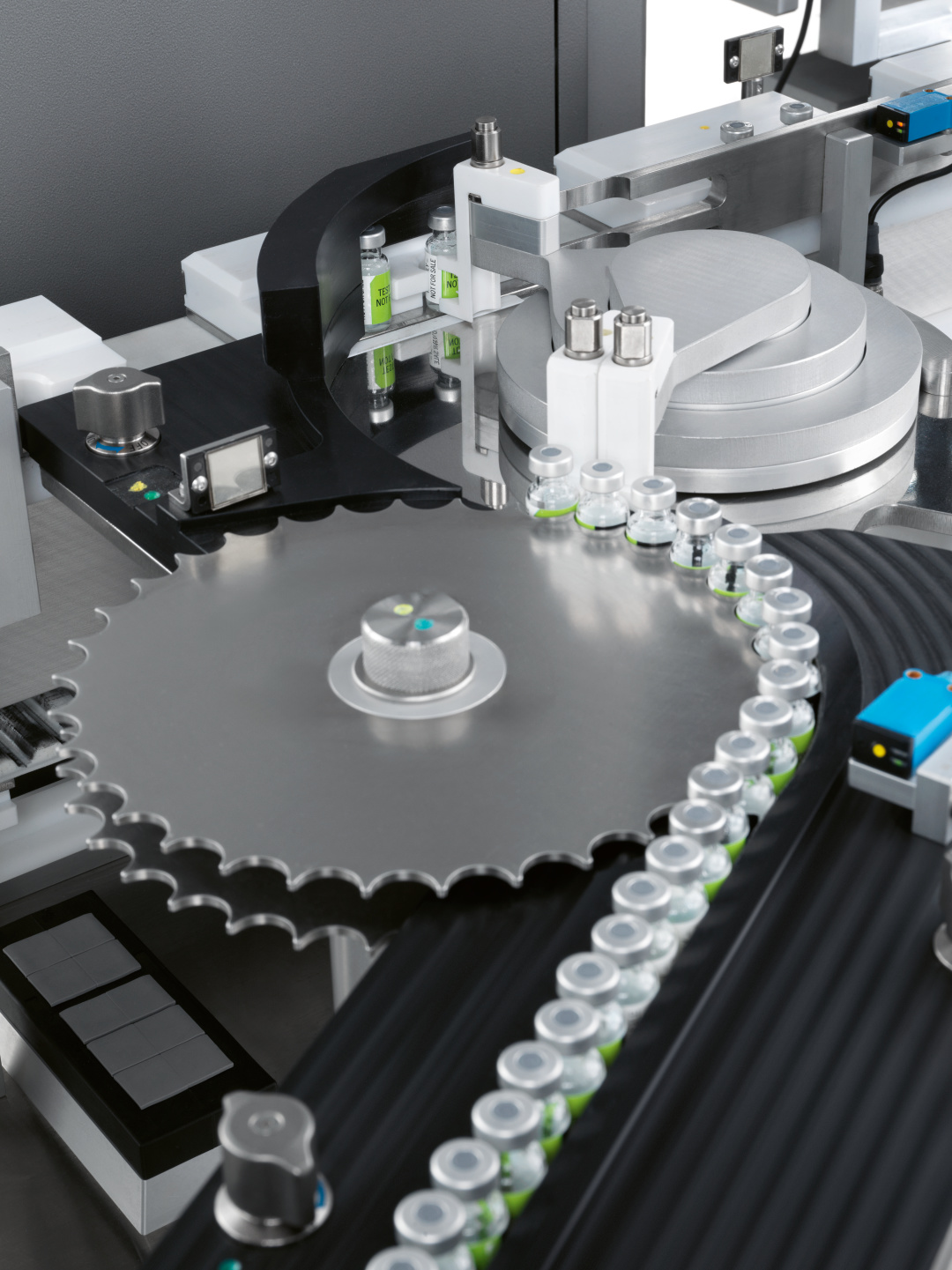

Particularly suitable for packaging pharmaceutical vials in standard or partitioned cartons.
-
Fast and user‑friendly servo-assisted format changeover
Fast and user-friendly format changeover, supported by servo-assisted PC panel recipe.
-
Modular integration for leaflets, booklets, and components

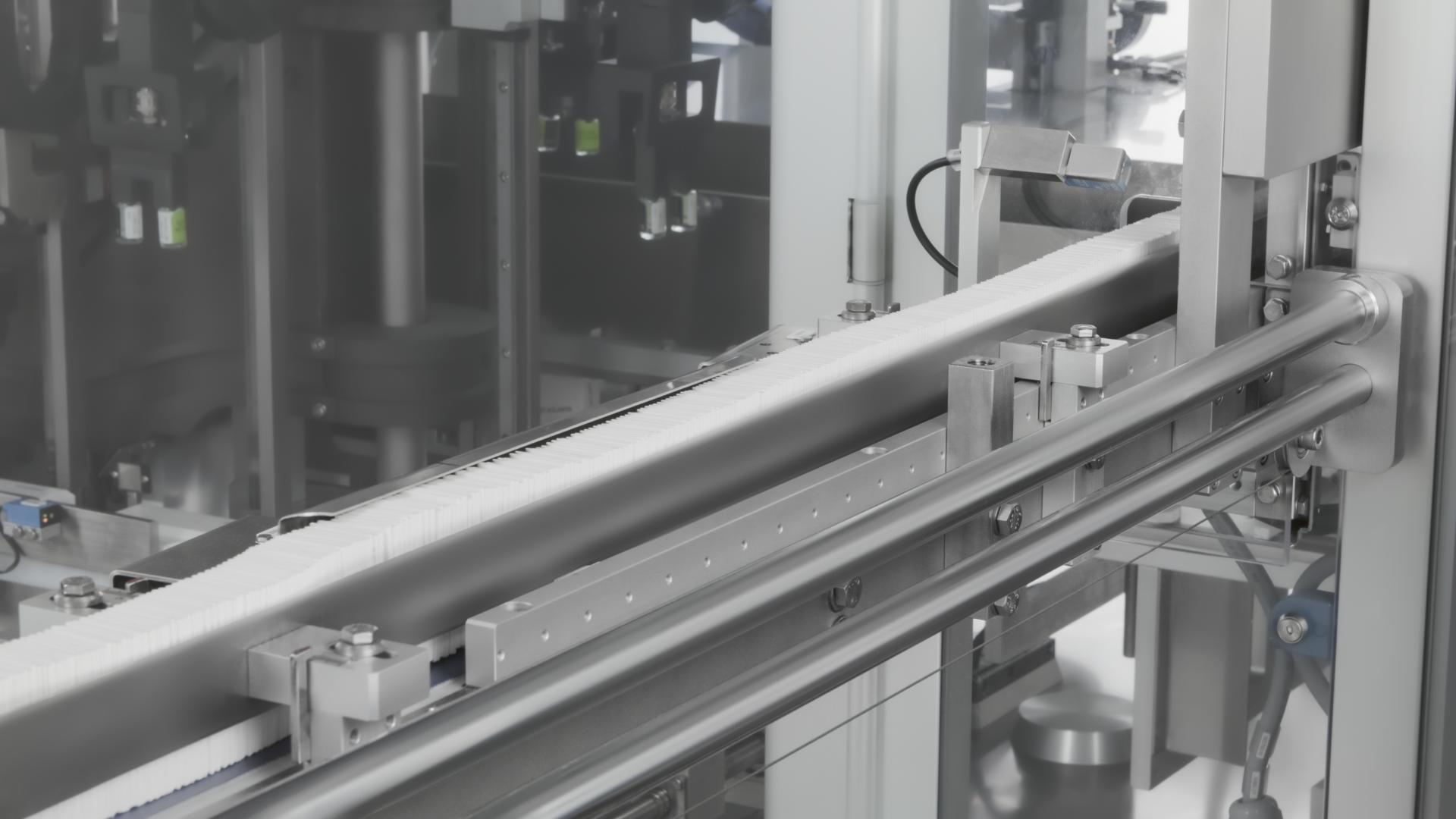

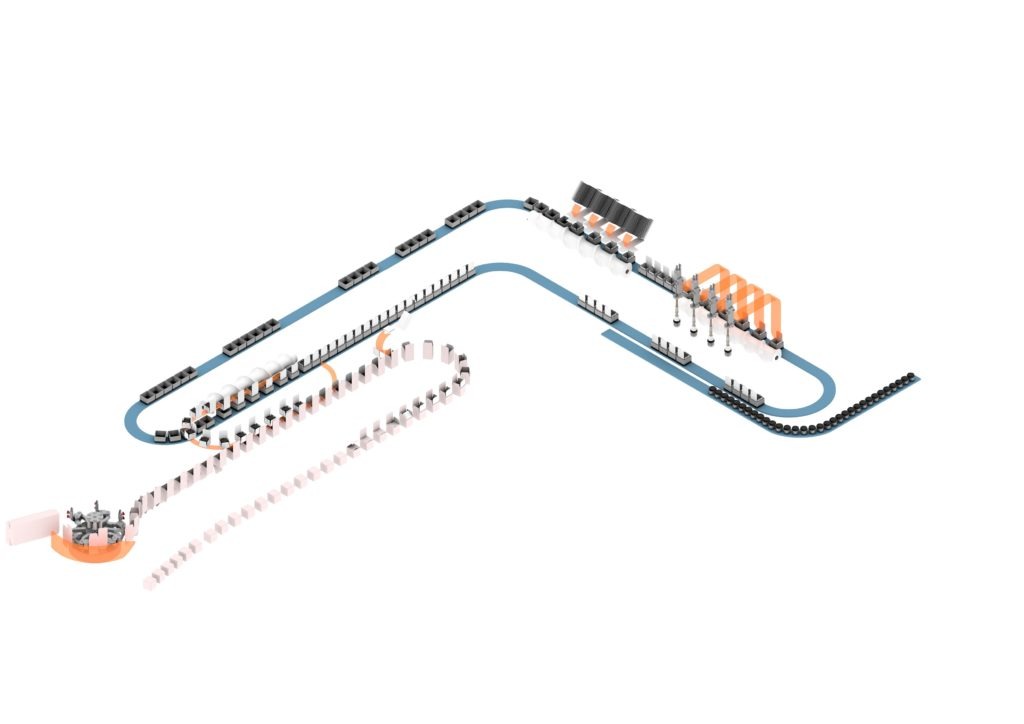

Can integrate a feeding system for leaflet/booklet and additional components, by modular units.
-
Fully flexible closure style options

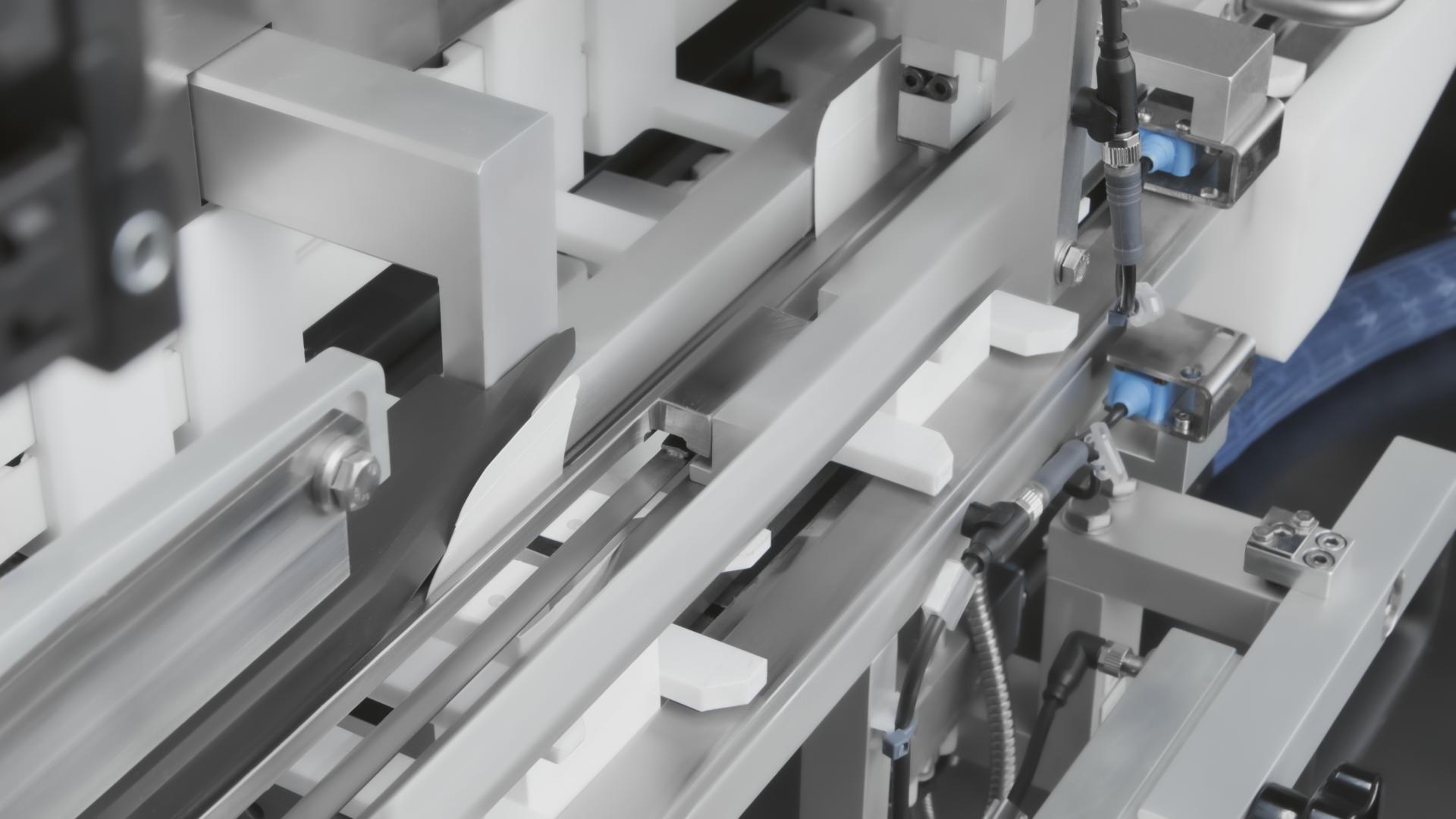

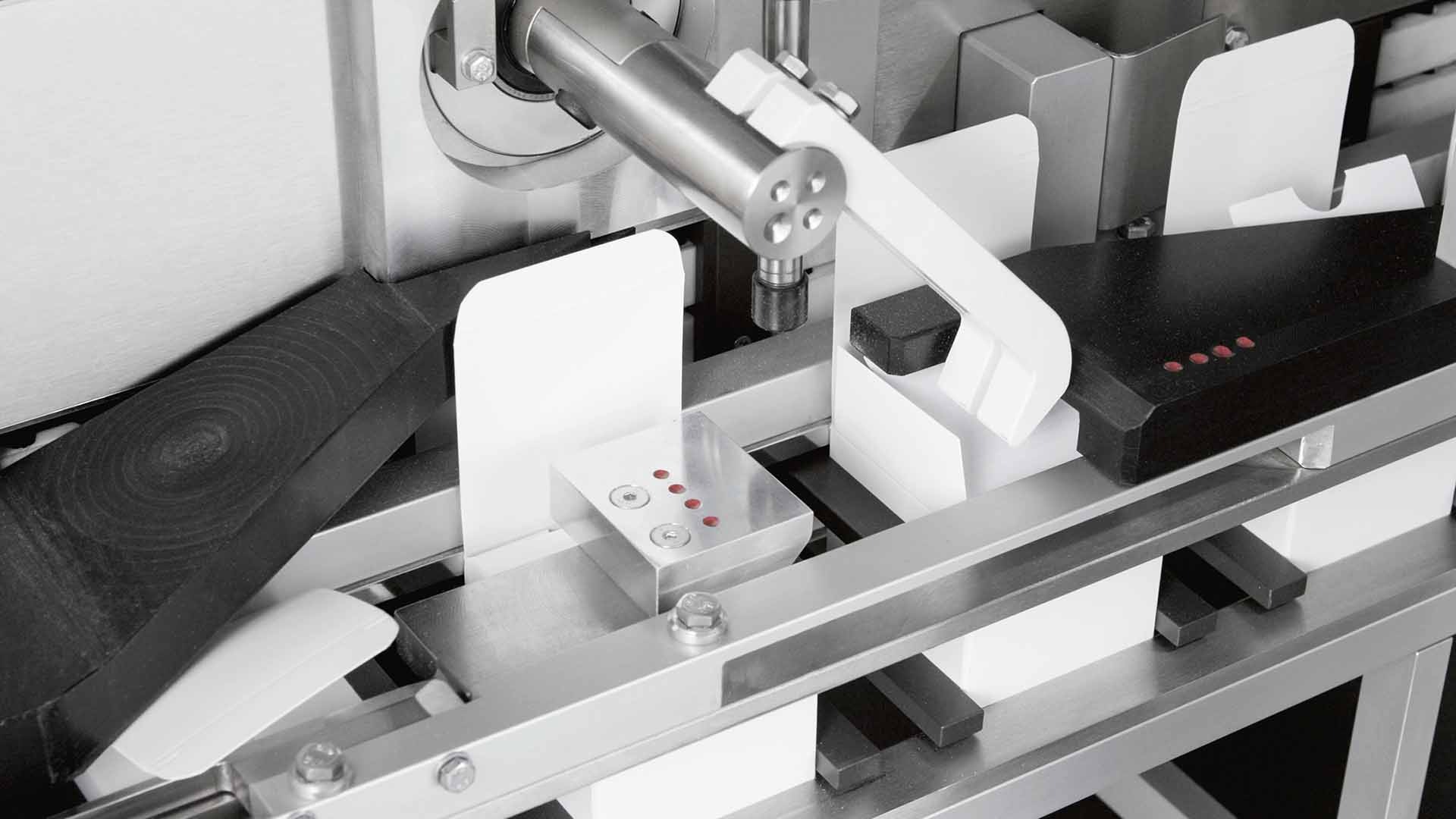

Fully flexible for different types of closure styles.
Machine details
Technical information
| TECHNICAL DATA FTC578-C | ||
| Carton range | Min. | Max. |
| A | 20 | 90 |
| B | 20 | 90 |
| C | 40 | 140 |
| Machine also available on extended “L” version: max carton dimensions 150 mm x 120 mm x 260 mm (A+B+C) | ||
| Production | Up to 300 ppm | |
| Installed power | 7 kW (standard version) | |
| Operating pressure | 6 bar | |
| Maximum air consumption | 80 Nl/min. | |
| Weight | 3,600 Kg (standard version) | |
